Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
4 in stock
Super-precision angular contact ball bearing, 40 x 68 x 15 mm, 25° contact angle, light preload, ABEC 7 / P4, phenolic cage, open. Single universal.
List Price
$75.73
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| Model | 7008A5/ACD 7008E T SUL P4 / 3MM9108WI CR SUL / 7008 H U J74 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 40 mm |
| OD | 68 mm |
| Width | 15 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 7000 |
| Lubricant | Grease or oil |
| Base Number | 7008 |
| Bore Shaft Size | 40 mm |
| Mpn Variants | 7008-E-T-SUL-P4, 7008-H-U-J74, 3MM9108WI CR SUL, 7008A5, 7008ACD |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Part Number | 7008HUJ74 |
| Cross Reference 1 | FAG B7008-E-T-P4S-UL - 25°, universal single, light preload |
|---|---|
| Cross Reference 2 | SKF 7008 ACD/P4ADGA - 25°, extra light preload |
| Cross Reference 3 | Fafnir 3MM9108WI CR SUL - 25°, universal single, light preload |

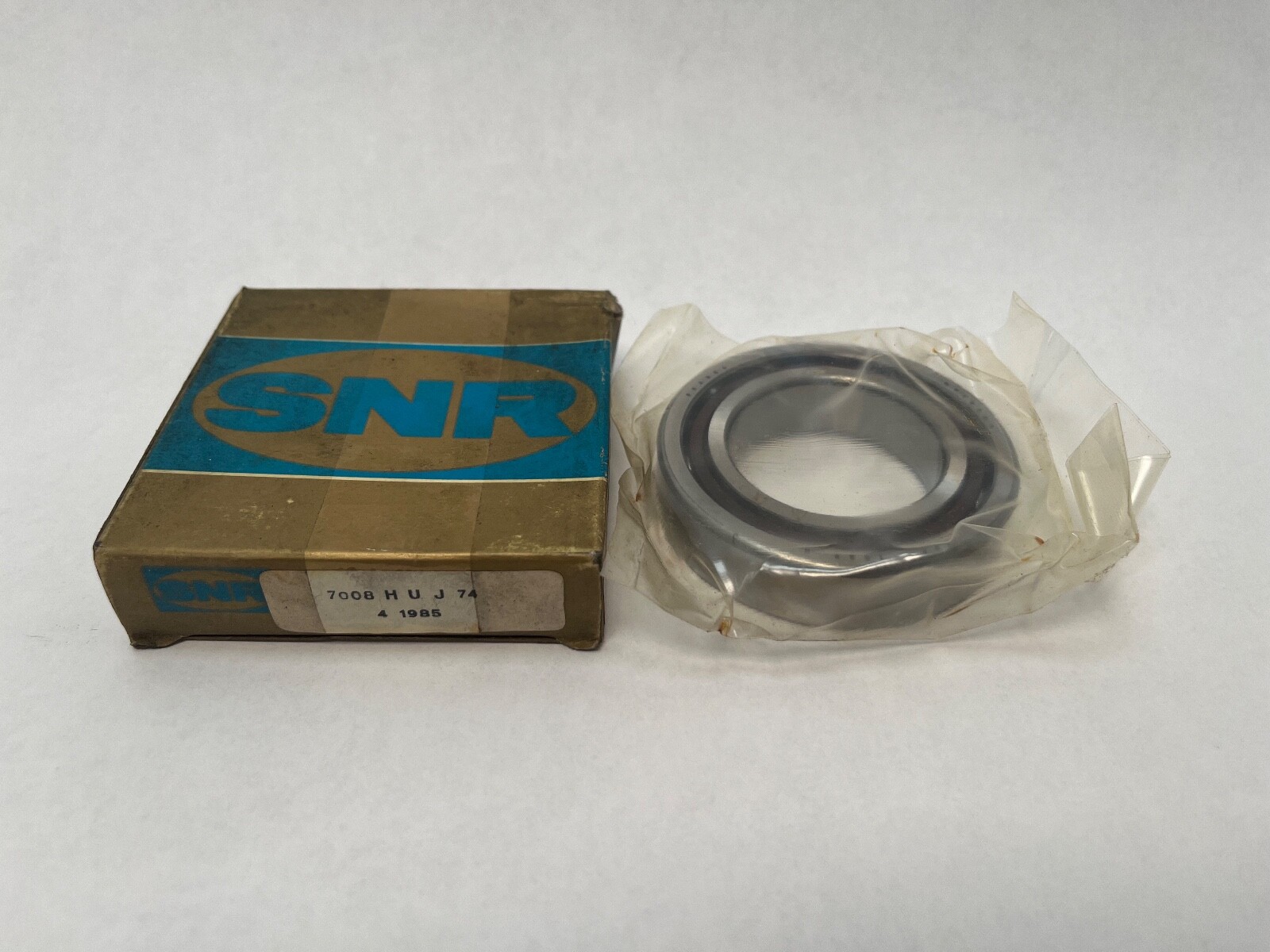

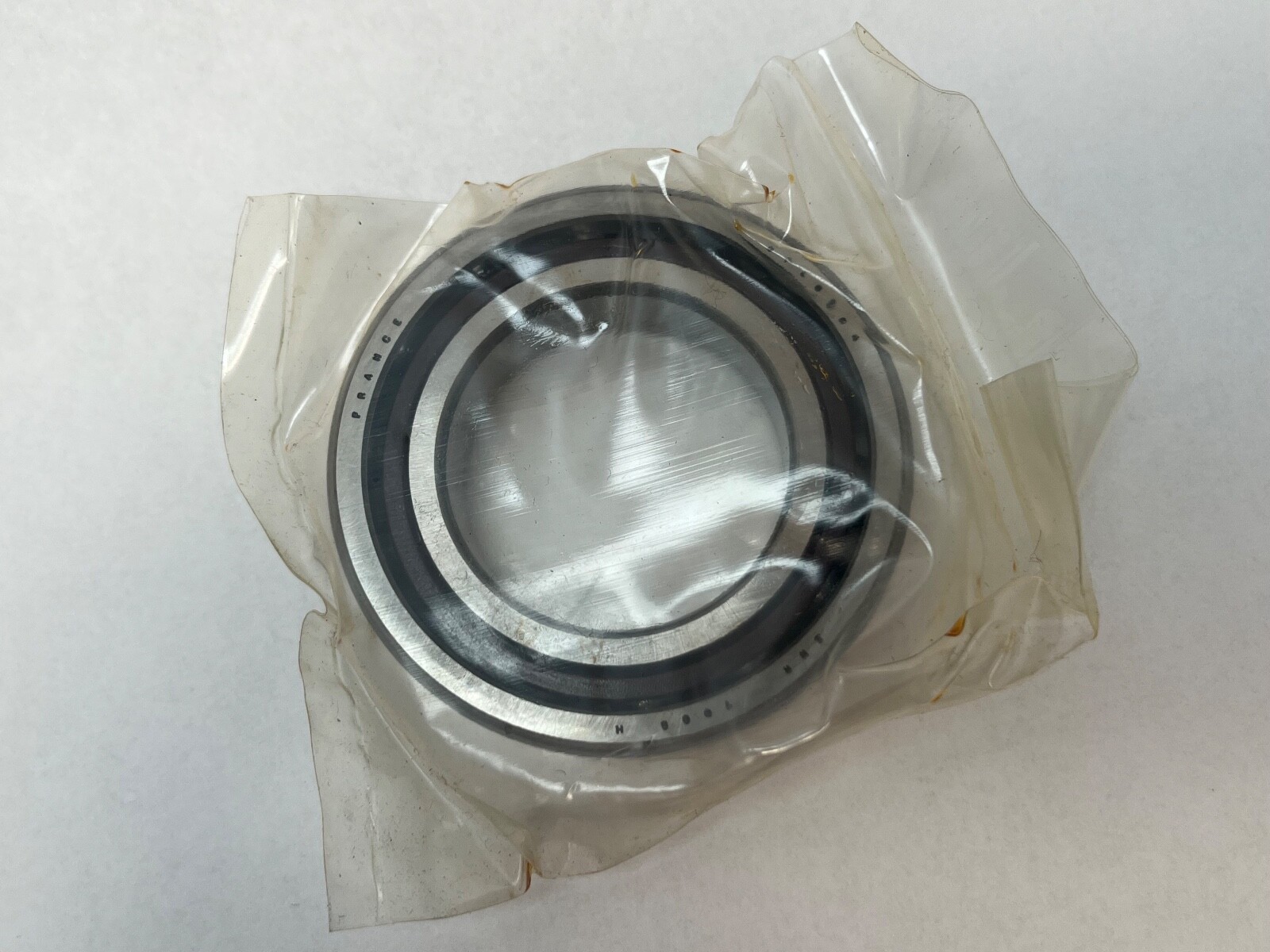

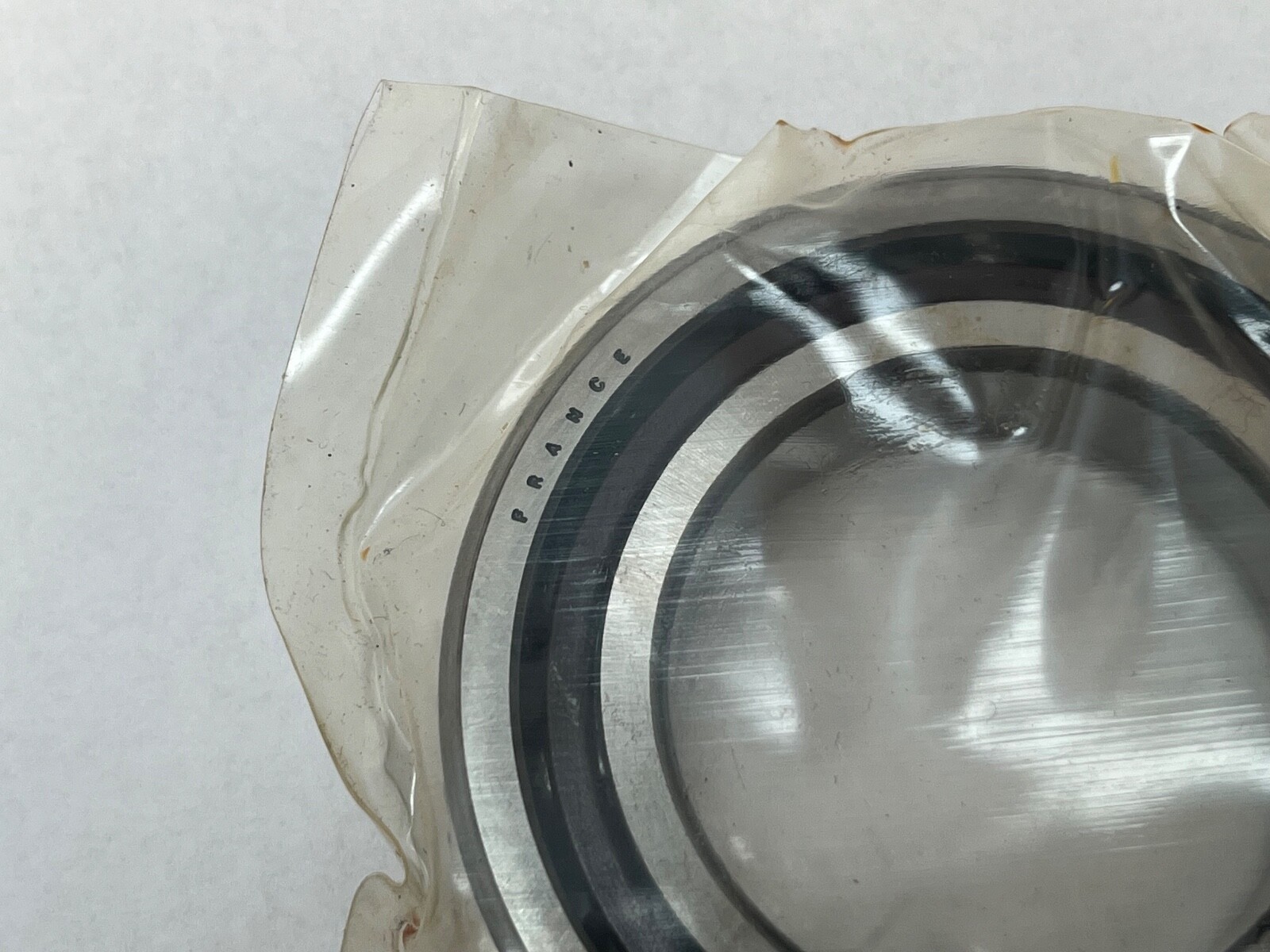

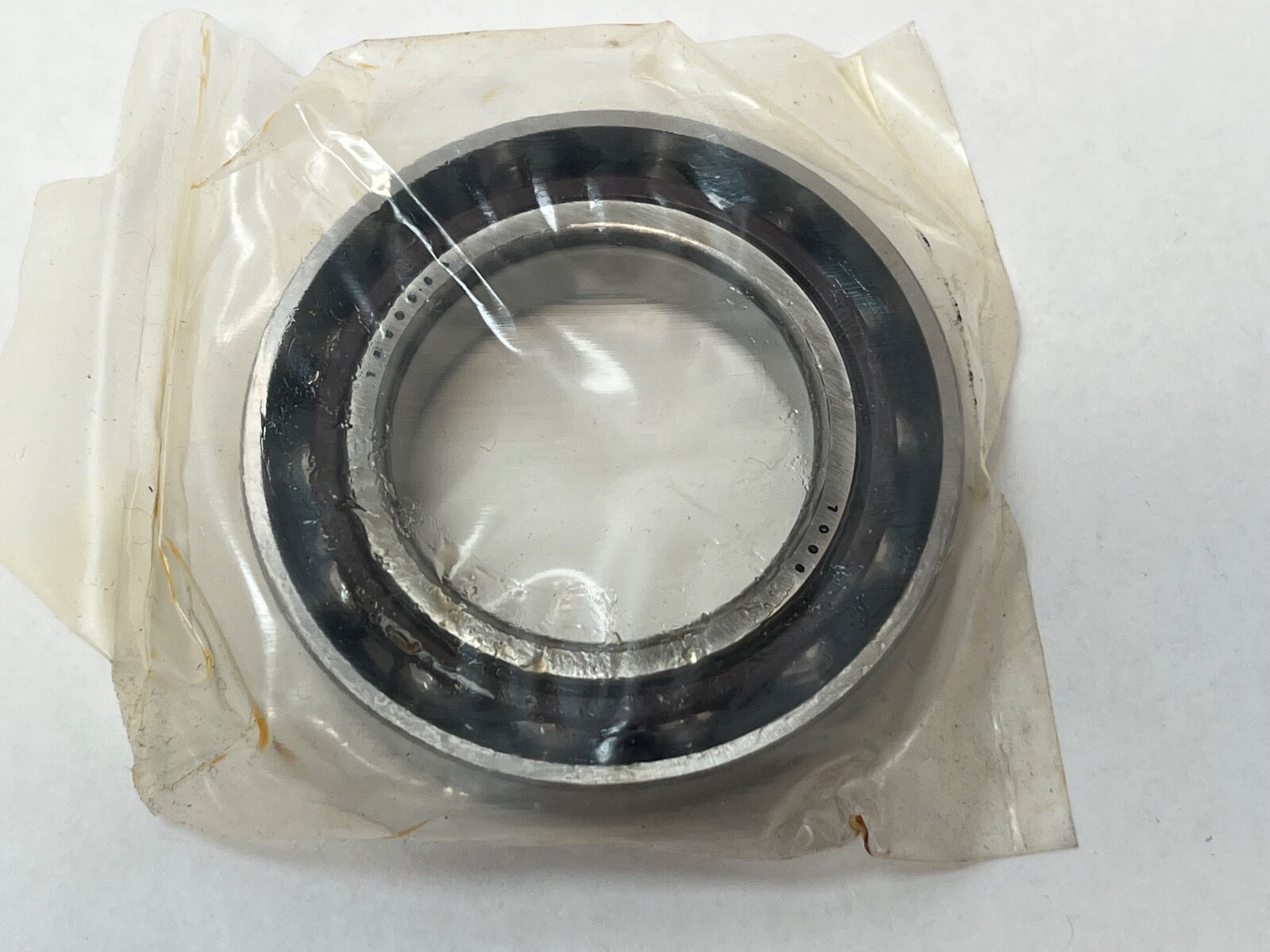

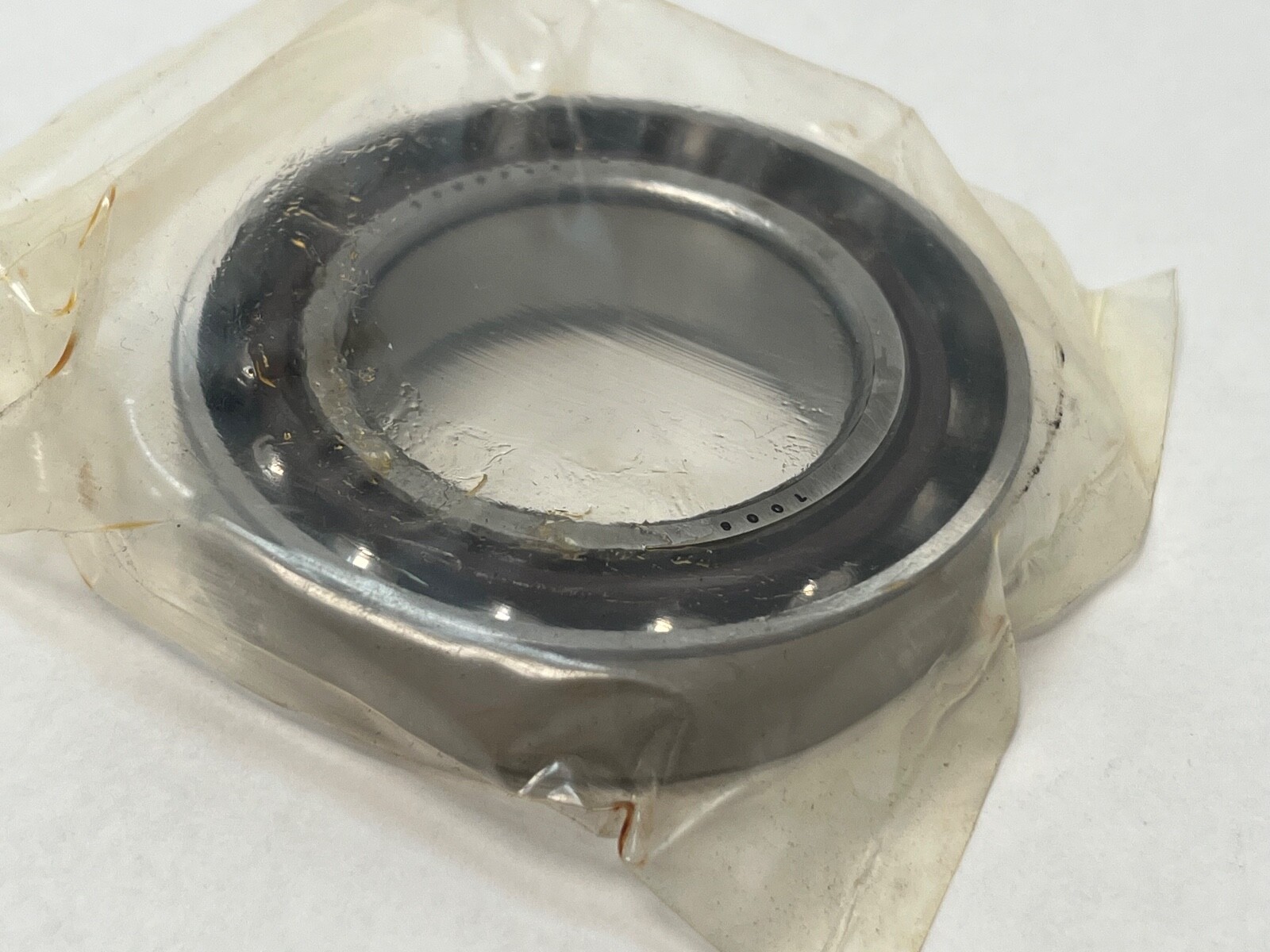

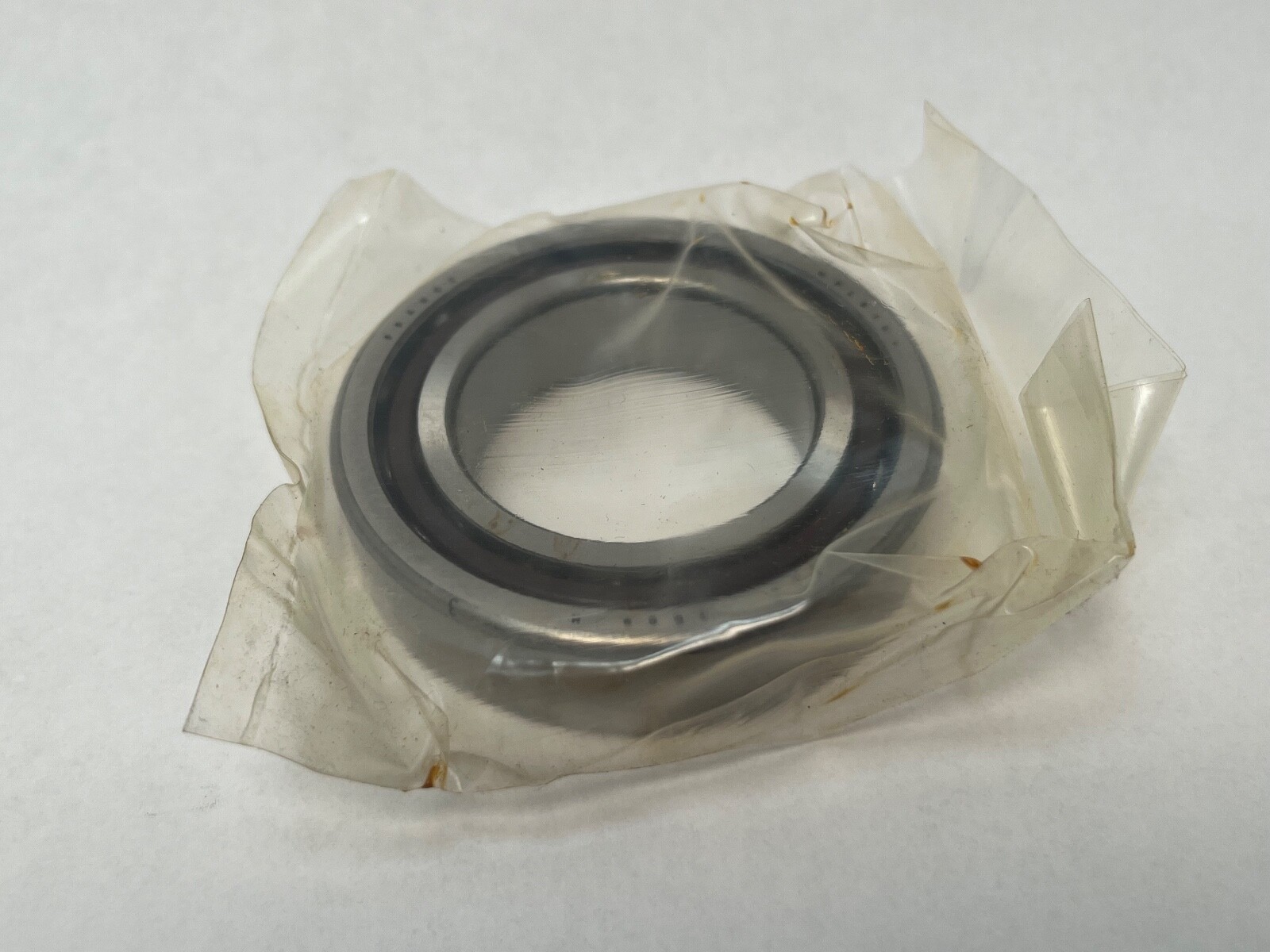

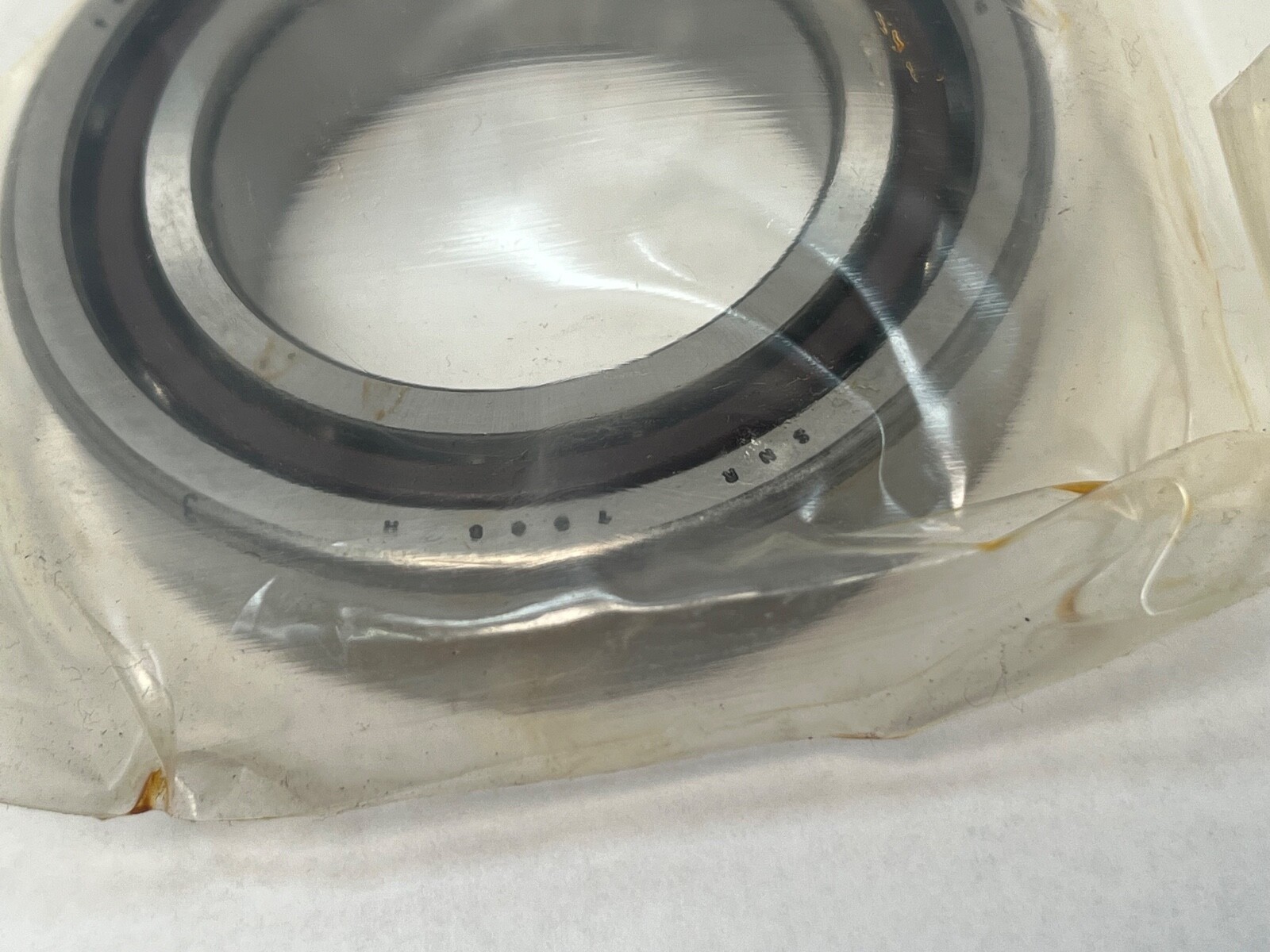

SNR 7008HUJ74 super-precision angular contact ball bearing. Bore: 40 mm. Outside Diameter: 68 mm. Overall Width: 15 mm. Series: 7000. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: High carbon chrome steel. Closure Type: Open. Bore Type: Straight.
Contact Angle: 25°. Preload: Light. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined, outer-ring land-riding. Mounting Arrangement: Universal. Base Number: 7008. Part Number: 7008HUJ74.
Dynamic Load Rating: 21.6 kN / 4856 lbf. Static Load Rating: 18.3 kN / 4114 lbf. Limiting Speed: 24000 rpm. A 25° contact angle carries more thrust and less speed than a 15° execution on the same envelope, which suits a shaft taking a substantial axial load. Light preload holds the rings in defined contact for running accuracy while keeping heat generation low. Internal Clearance: N/A — the bearing is set by preload.
The machined phenolic cage is guided on the outer-ring land, which keeps it stable at high speed and gives it low mass. Lubricant: grease or oil. Max Temp: 120°C. Min Temp: -40°C. Item Weight: 0.42 lbs.
Unit Quantity: 1 Pc. A single universally ground bearing, which can run alone or be set against another universally ground 7008H in back-to-back, face-to-face or tandem.
Other makers’ 25° super-precision single universally matchable bearings on the same 40 x 68 x 15 mm envelope: FAG B7008-E-T-P4S-UL and Fafnir 3MM9108WI CR SUL at light preload, SKF 7008 ACD/P4ADGA at extra light preload. MPN Variants: 7008-E-T-SUL-P4, 7008-H-U-J74, 3MM9108WI CR SUL, 7008A5, 7008ACD. Harmonization Code: 8482.10.50.
