Availability:
1 in stock
Super precision angular contact ball bearings, 75 x 130 x 25 mm, 15 degree contact angle, light preload, open, phenolic cage, P4 class. Pair.
List Price
$373.25
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SKF |
|---|---|
| MPN | 7215CP4DGA |
| Model | 7215 C P4 DGA / 2MM215WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Condition | New – Open box |
| Lubricant | Oil/Grease |
| Preload | Light |
| Base Number | 7215 |
| Industry Terms | Spindle bearing; super precision bearing; machine tool bearing; precision angular contact; duplex pair; new old stock |
| Common Misspellings | 7215CD P4 DGA; 7215 CD/P4 DAG; SKF 7215CDP4 DGA |
| Condition Note | Made In USA, New Old Stock |
| Overall Width | 25 mm |
| Bore Shaft Size | 75 mm |
| Mpn Variants | 7215CD/P4DGA; 7215 CD P4 DGA; 7215CDP4DGA; 7215-C-P4-DGA; 7215CP4DGA; 7215 C P4 DGA; 7215C |
| Manufacturer Status | New old stock |
| Precision Class | P4 |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 74.1 kN |
| Static Load Rating | 64.0 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 2.55 lbs |
| Cage Material | Fabric-reinforced phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | N/A - preloaded |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Not specified |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Part Number | 7215 CD/P4 DGA |
| Cross Reference 1 | Fafnir 2MM215WI-DUL |
|---|---|
| Cross Reference 2 | NSK 7215CTYNDULP4 |
| Cross Reference 3 | 7215 ACD/P4A (related size, 25 degree contact angle) |

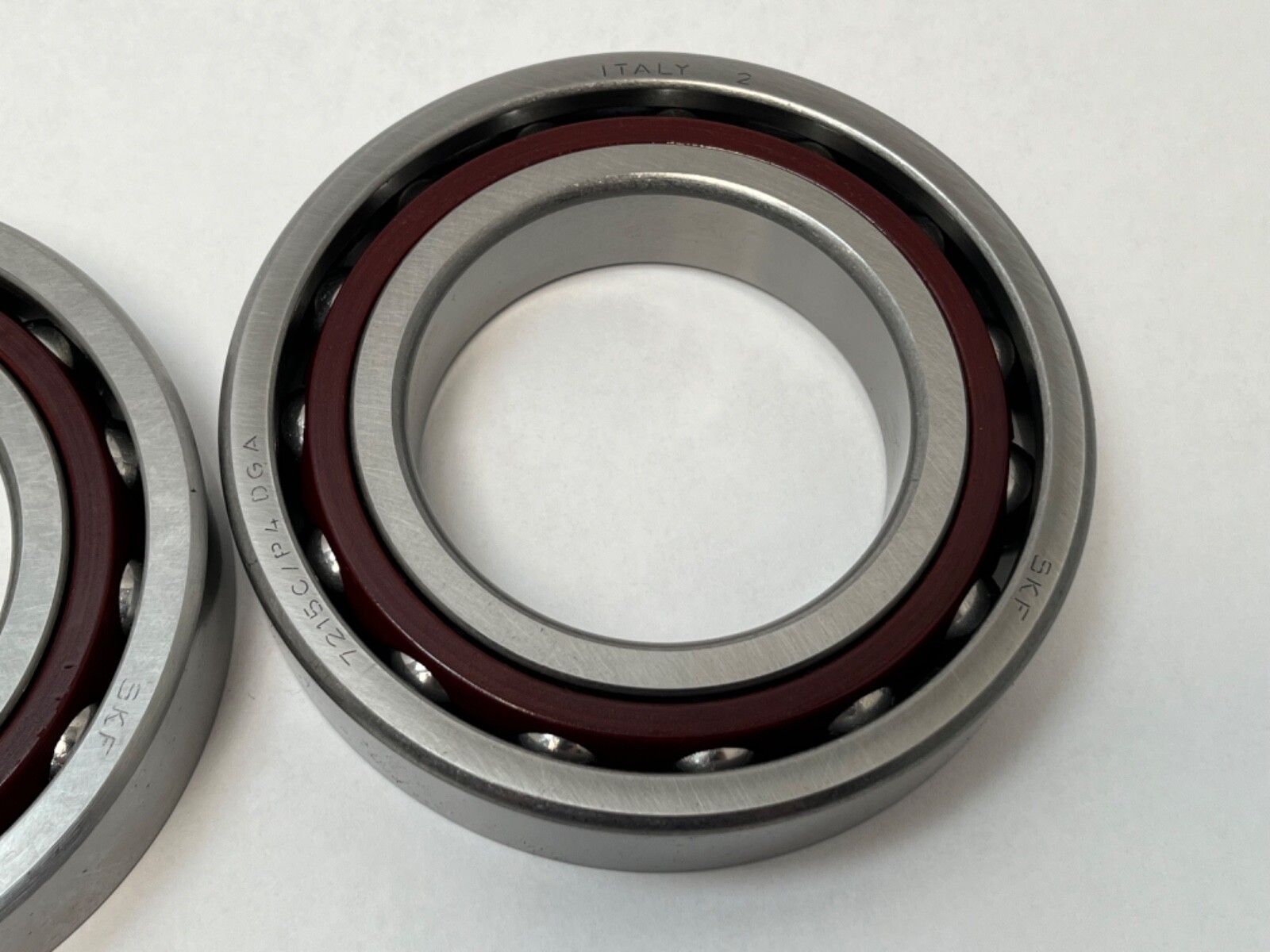

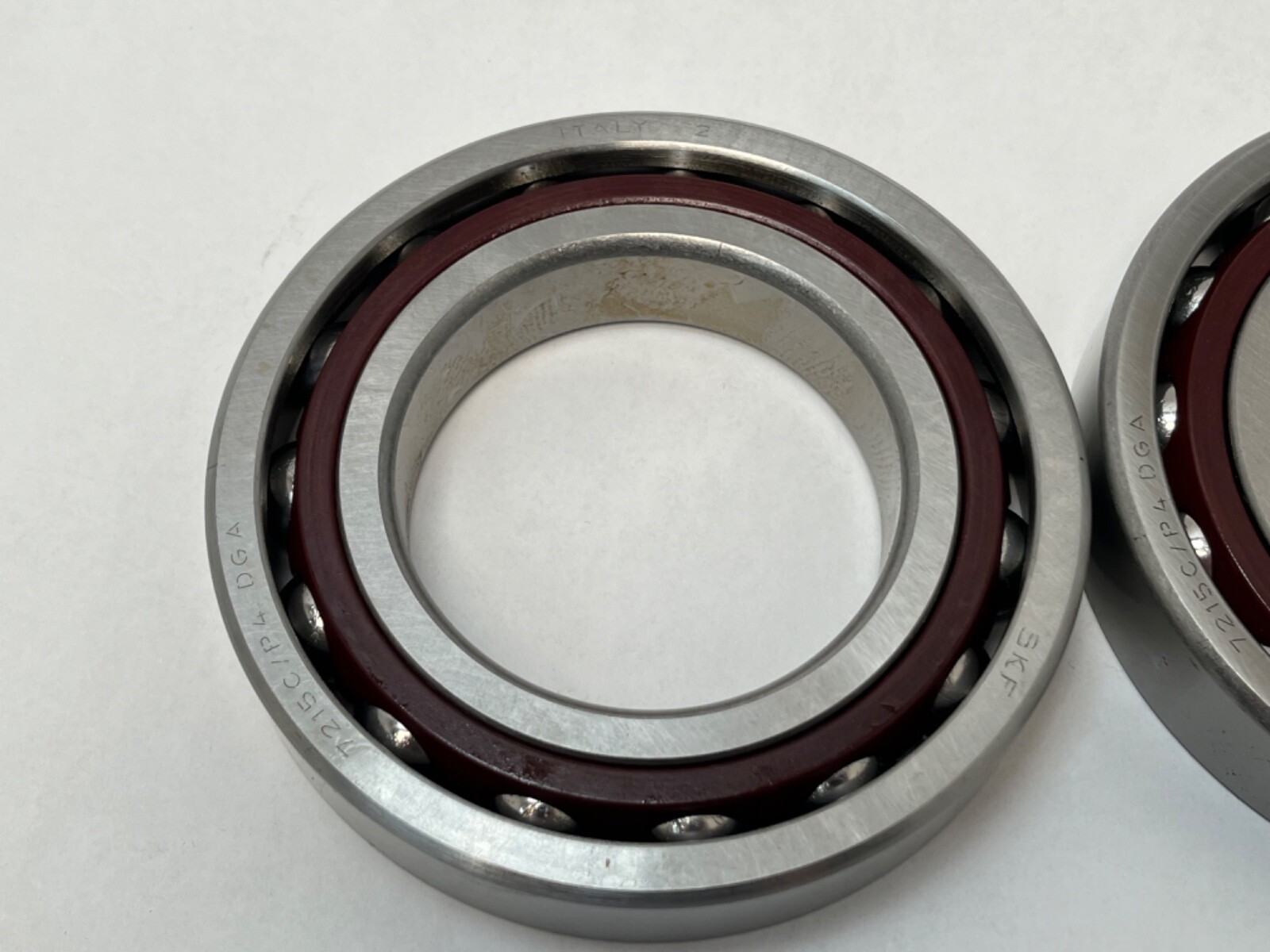

SKF 7215 CD/P4 DGA super-precision angular contact ball bearing. Series: 72, light section. Base number: 7215. Bore: 75 mm. Outside diameter: 130 mm. Width: 25 mm. Single row, straight bore, open on both faces. Searchable variants of the designation: 7215CD/P4DGA, 7215 CD P4 DGA, 7215CDP4DGA, 7215-C-P4-DGA, 7215CP4DGA, 7215C.

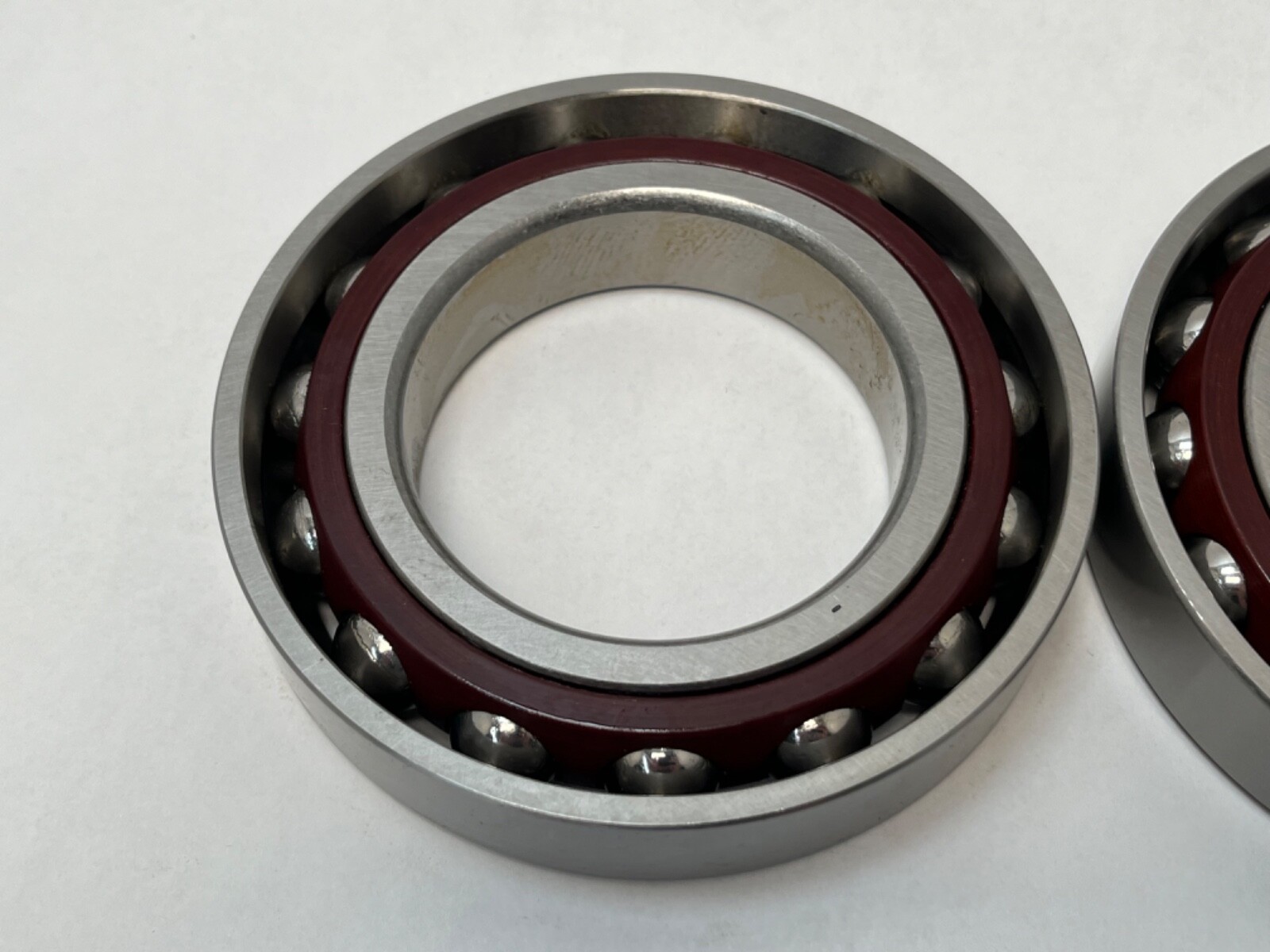

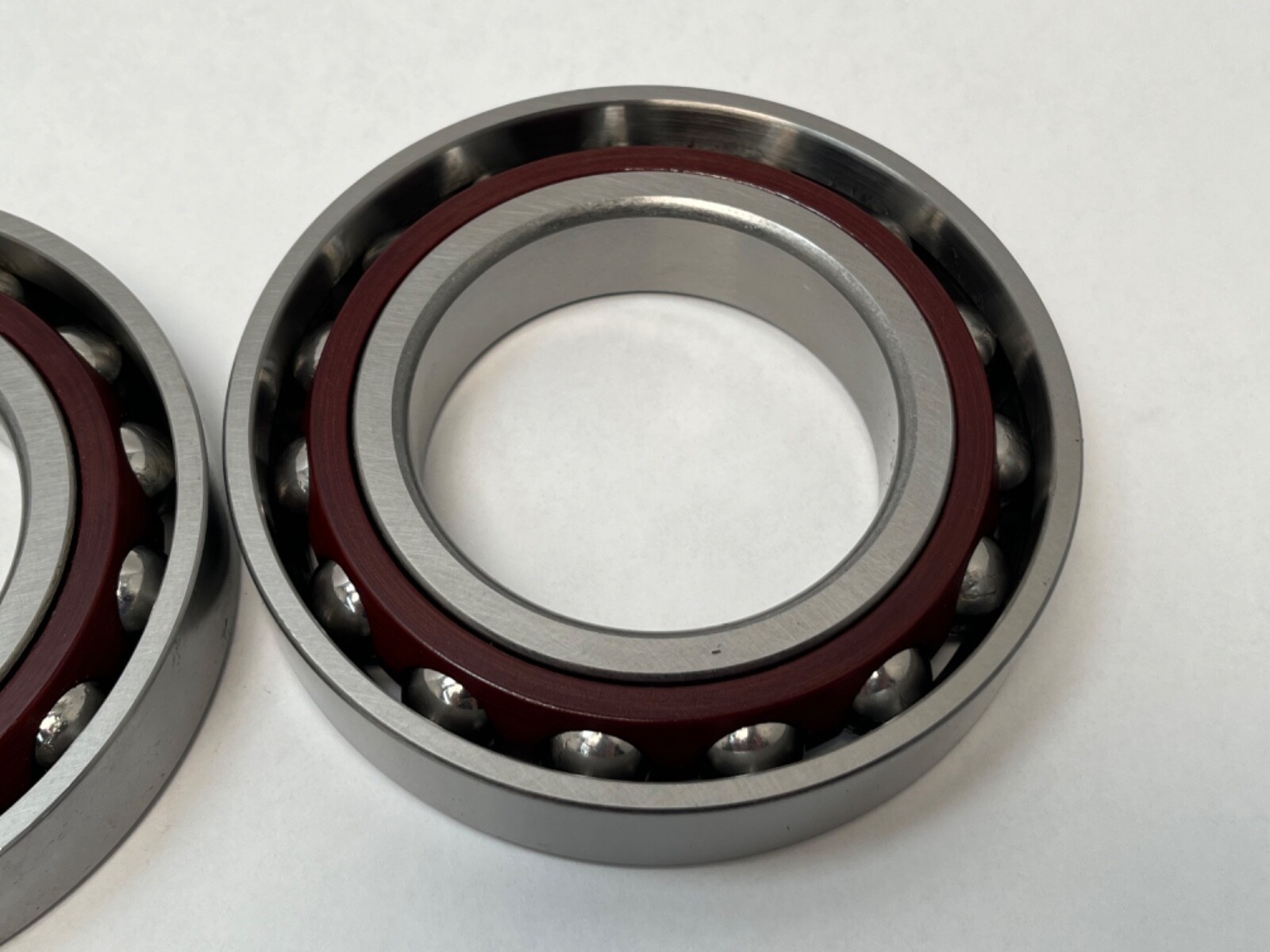

Contact Angle: 15°. Precision Class: P4, equivalent to ABEC 7. Preload: light. Cage: machined, fabric-reinforced phenolic, rated to 120 °C.
A 15° contact angle favours speed and radial rigidity over thrust capacity, which is why this execution is standard in machine tool spindles and precision grinders. Light preload holds running accuracy with lower heat generation than a medium or heavy setting. Basic dynamic load rating: 74.1 kN. Basic static load rating: 64.0 kN. Limiting speed: 13000 rpm.

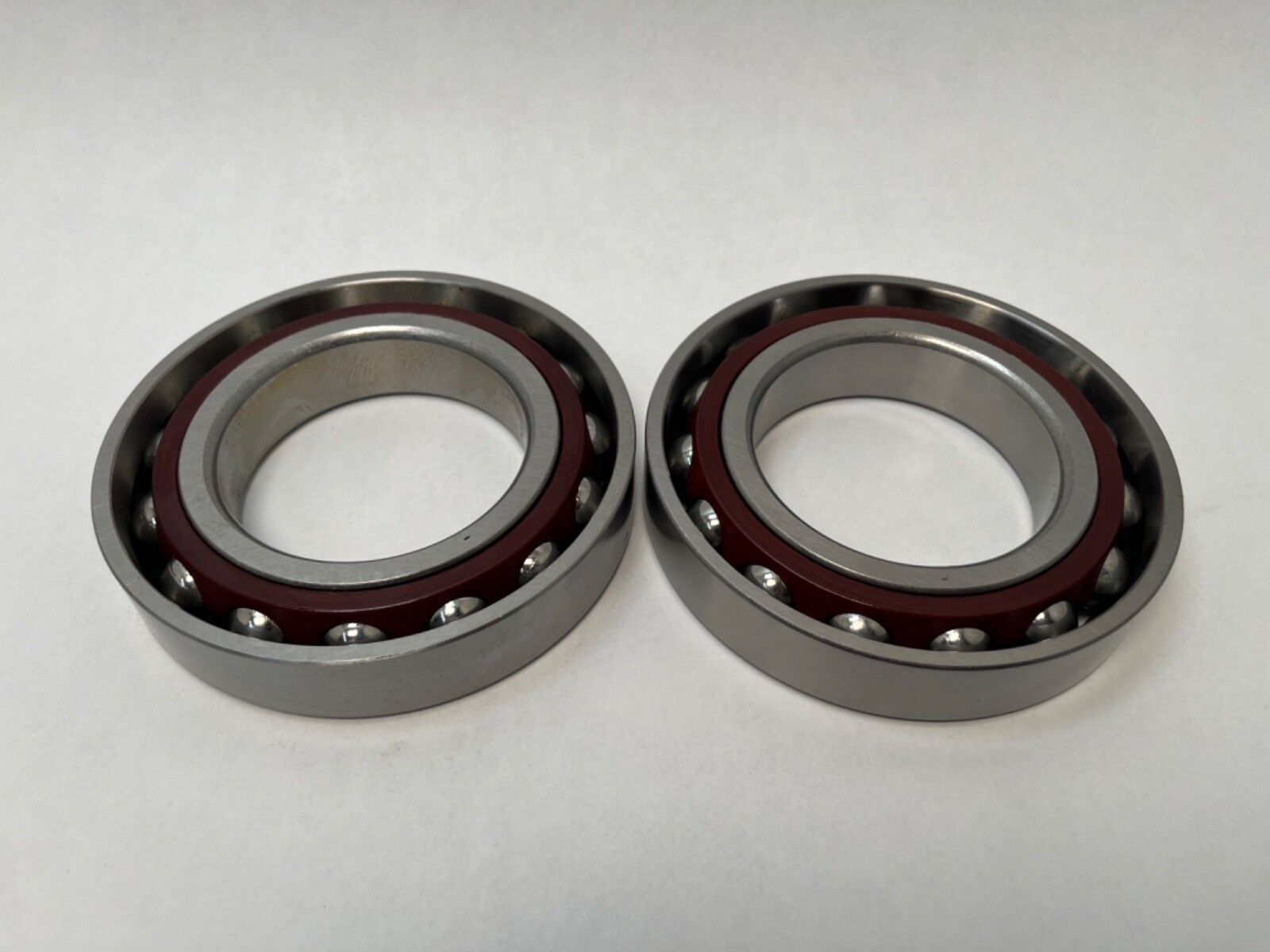

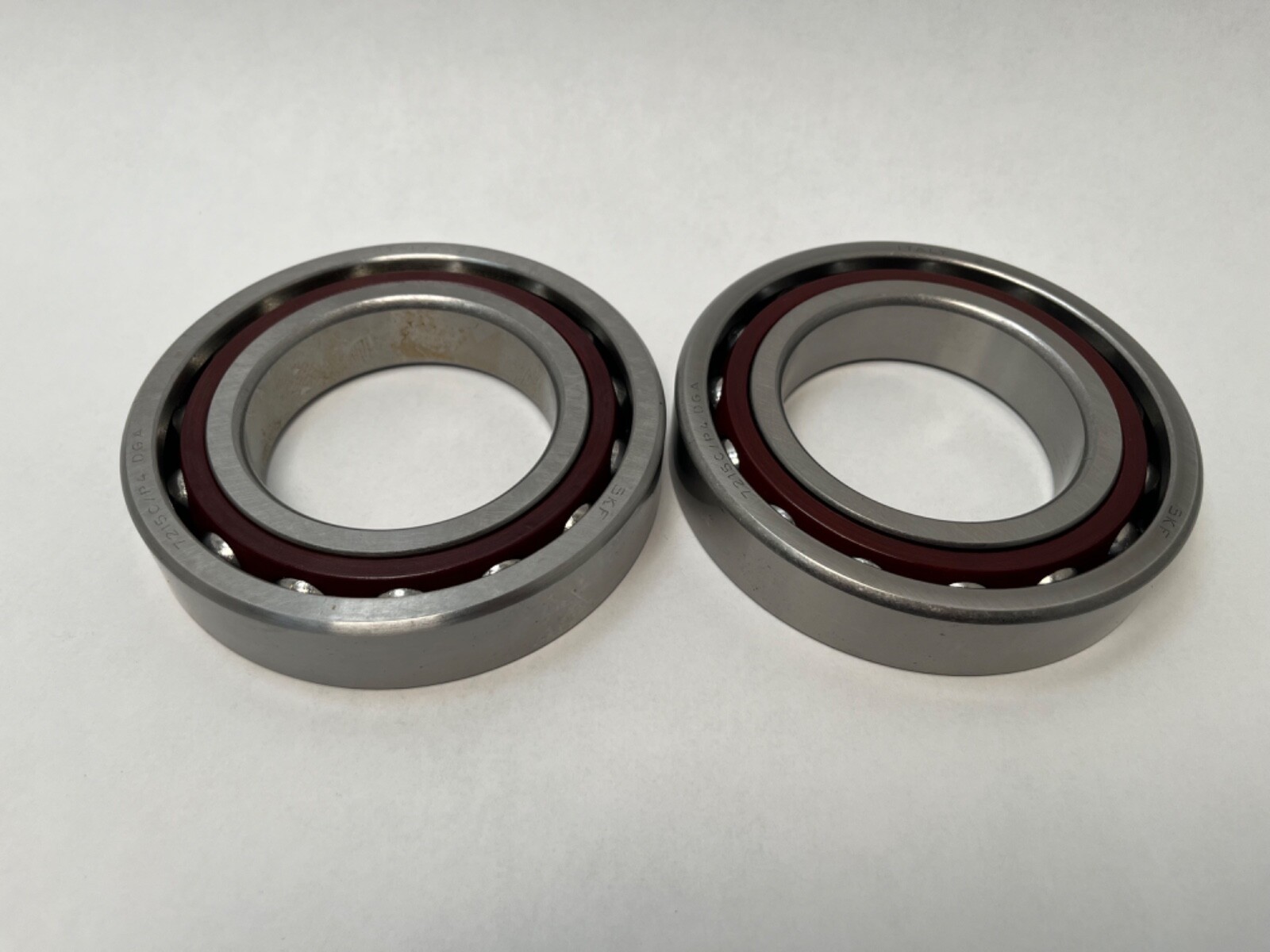

Two bearings. Unit Quantity: 2 Pcs. Universally matchable execution, ground to the light preload class. Internal Clearance: N/A — the bearings are preload-set, not clearance-set.

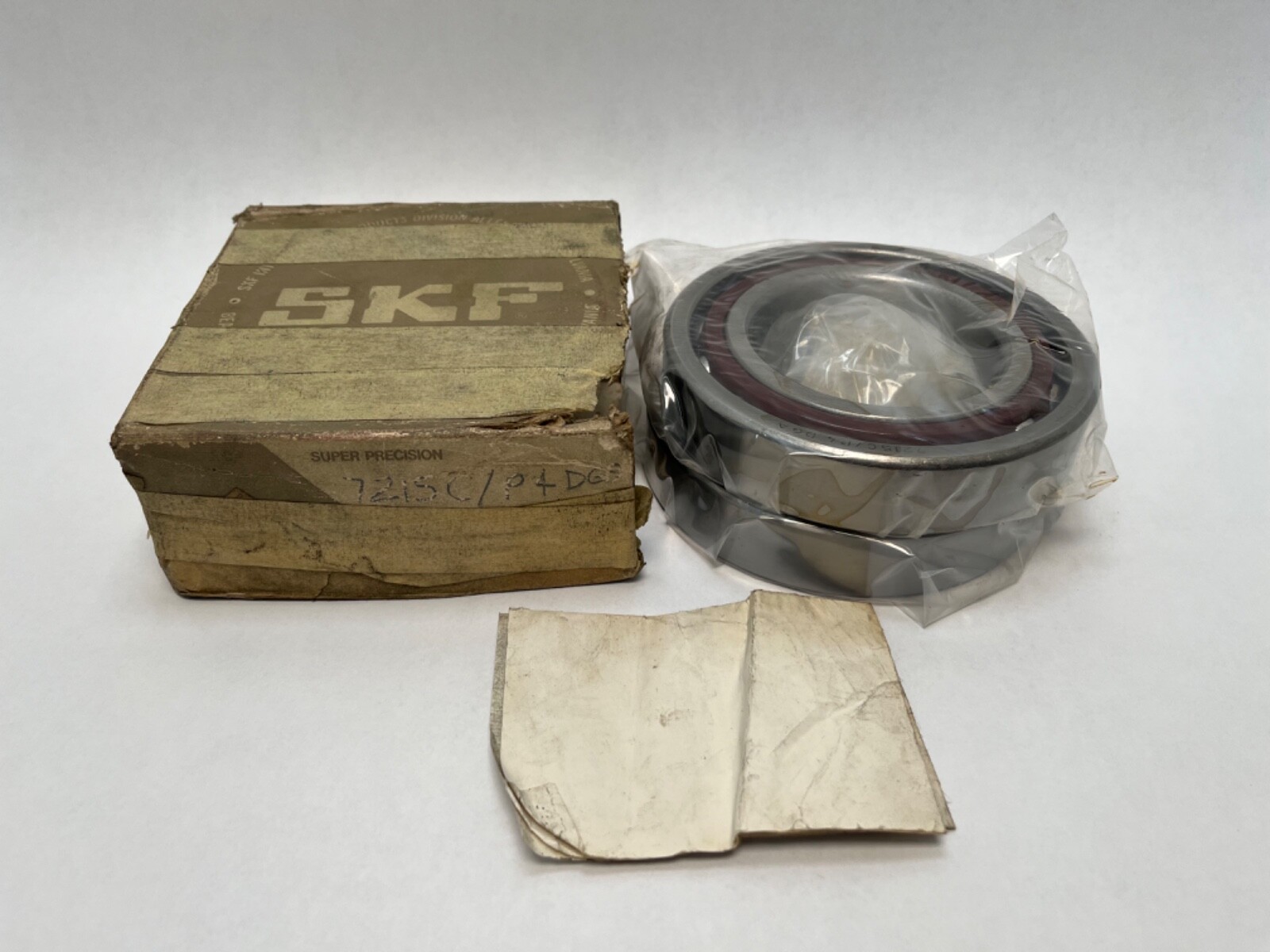

New old stock, open box. Item weight 2.55 lbs per bearing.
Mounting is by interference on the inner ring seat with the outer ring located axially in the housing. Oil or grease lubrication both suit the phenolic cage. Operating range: -30 °C to 120 °C.
Same-spec equivalents: Fafnir 2MM215WI-DUL, NSK 7215CTYNDULP4. Related size: 7215 ACD/P4A carries a 25° contact angle and a different thrust capacity.
