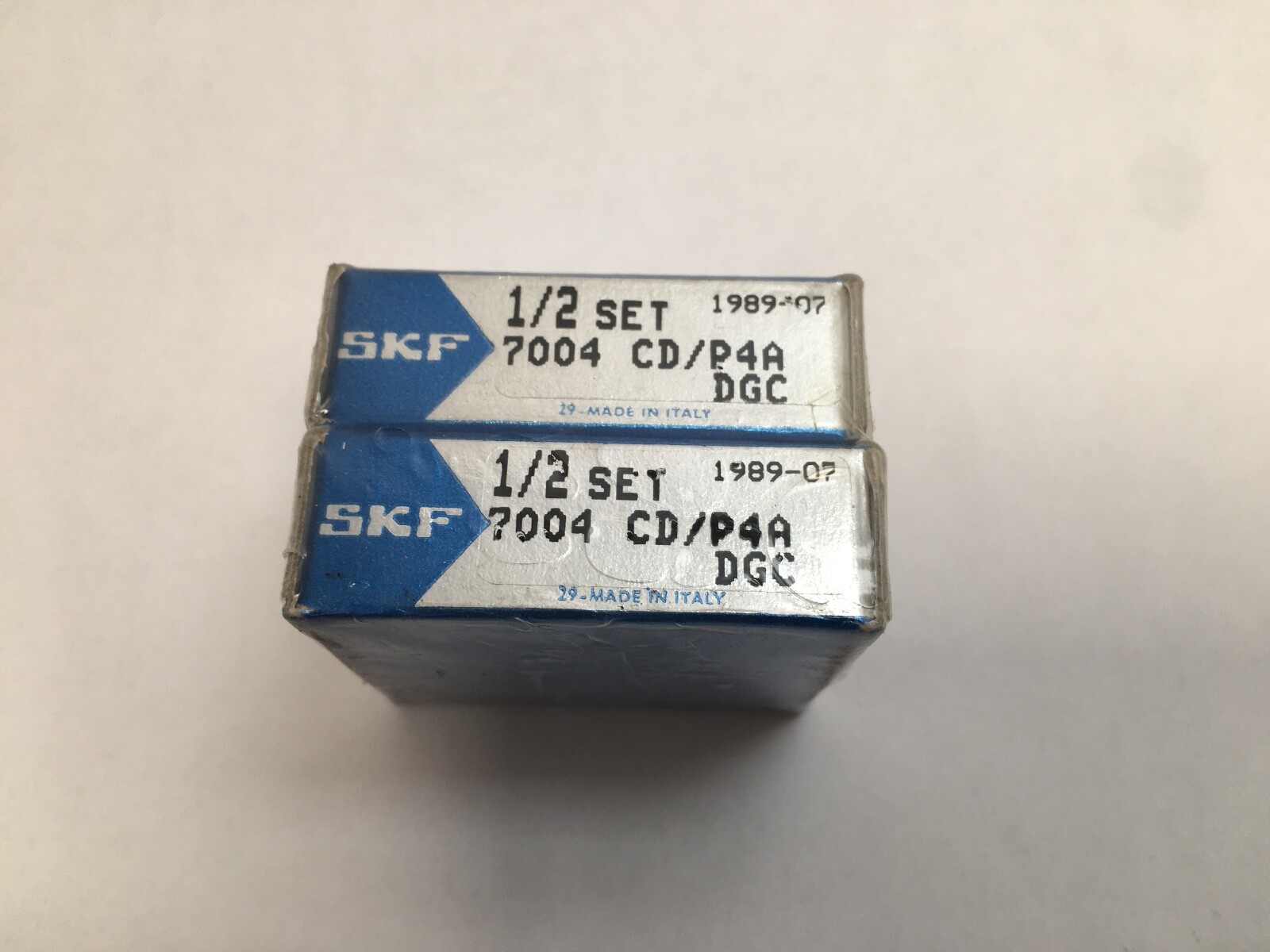

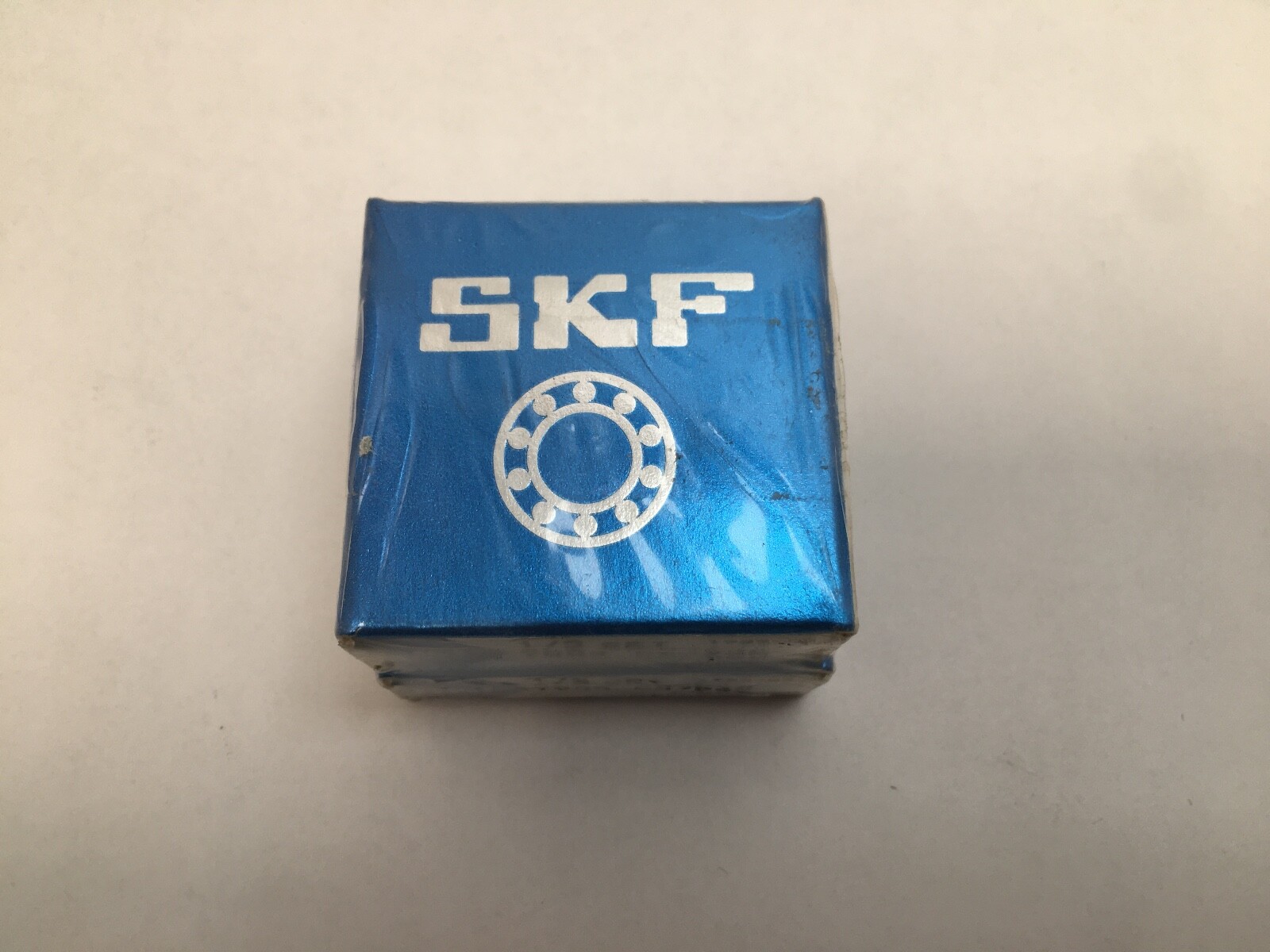

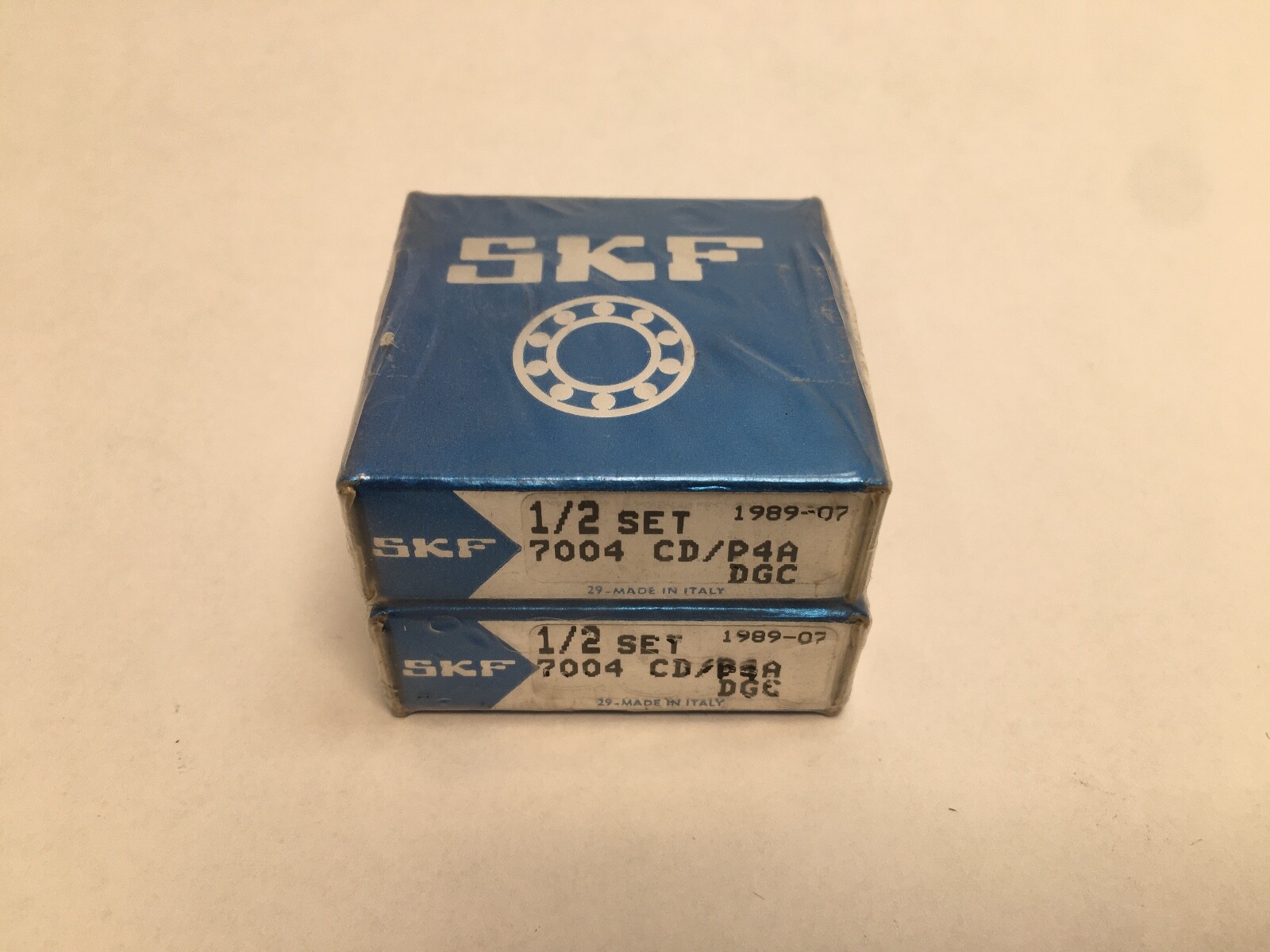

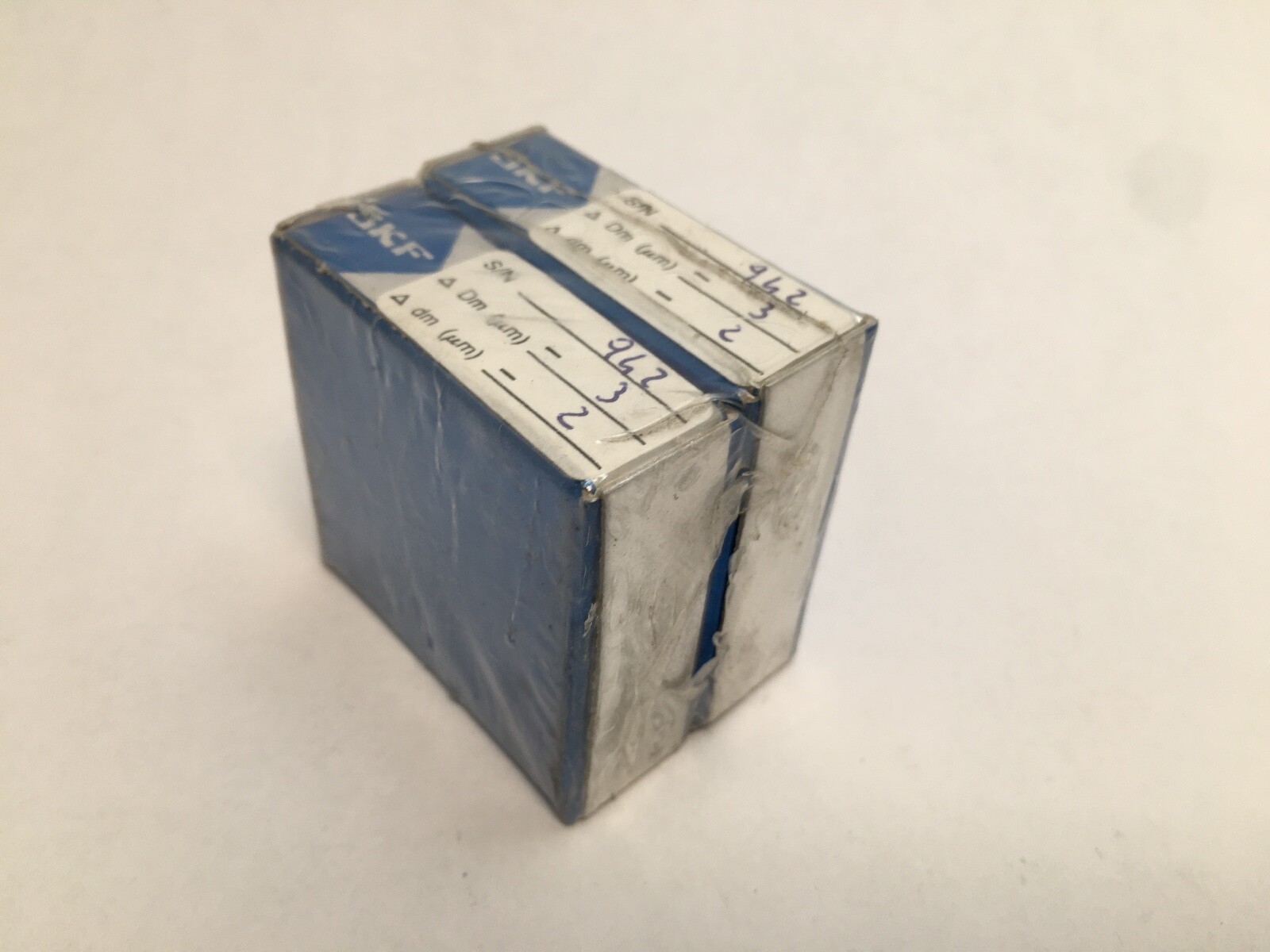

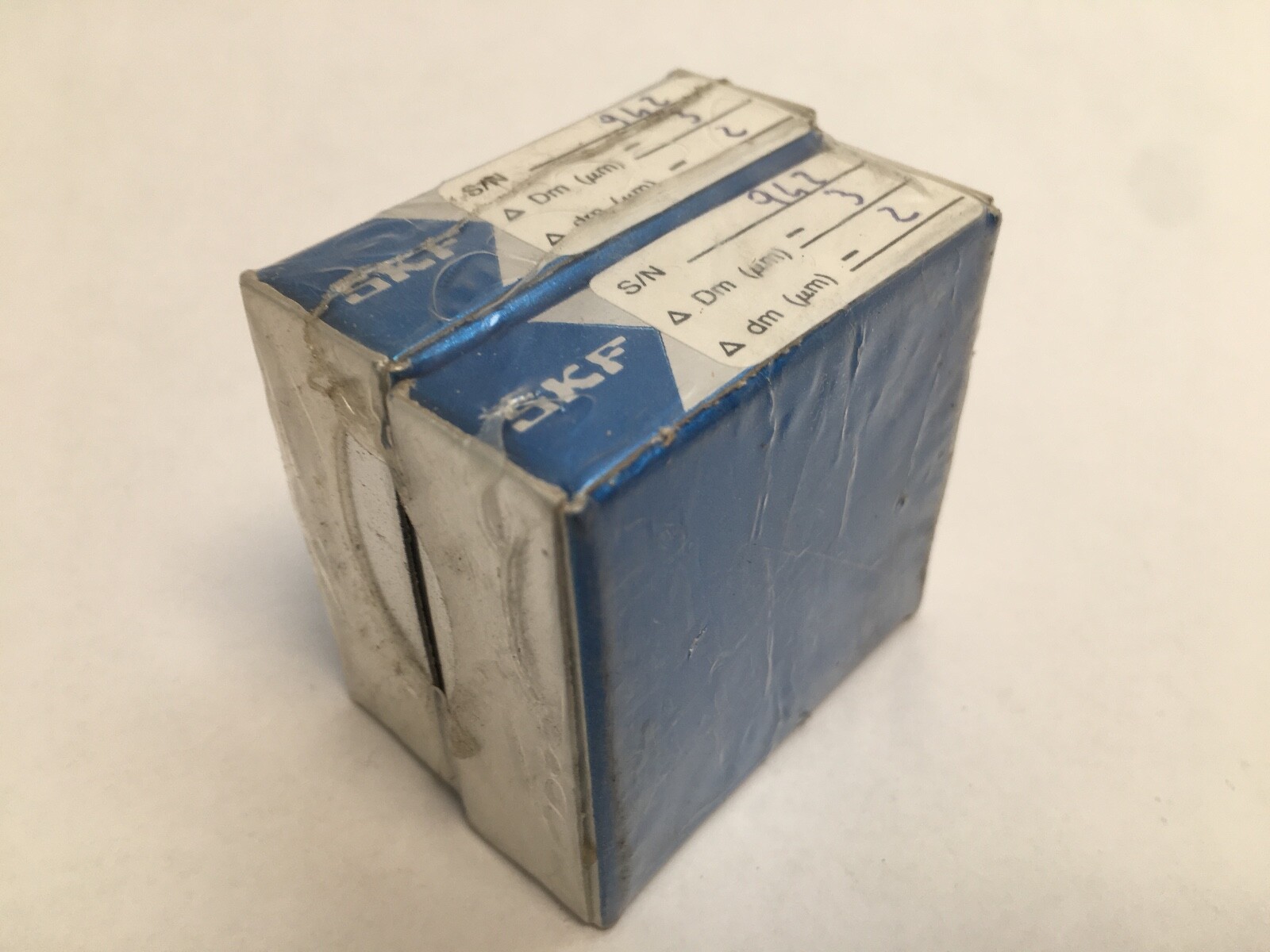

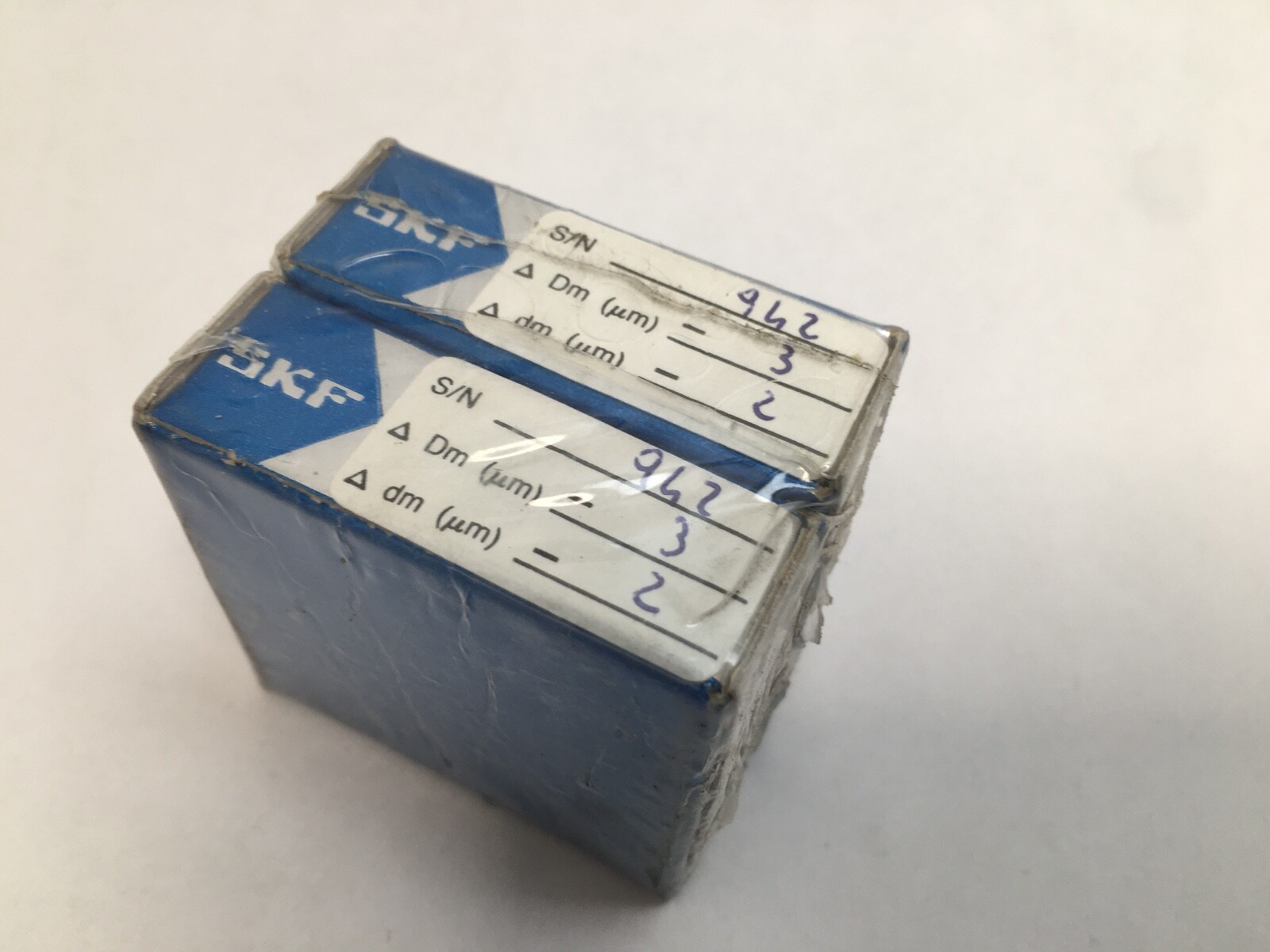

Super-precision angular contact ball bearing, 20 x 42 x 12 mm, 15° contact angle, P4A precision, medium preload (GC), universally matchable. 2 Pcs.
List Price
$167.63
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7004 CD/P4ADGC |
| Model | 7004CD/P4A DGC 7004C |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 42 mm |
| Width | 12 mm |
| Material | Bearing Steel |
|---|---|
| Series | 70 |
| Preload | Medium (GC) |
| Base Number | 7004 |
| Industry Terms | Spindle bearing; super-precision bearing; precision angular contact bearing; machine tool bearing; matched bearing set |
| Common Misspellings | 7004 CD P4A DGC; 7004CD/P4ADCG; 7004 CDCG/P4A; 70 04 CD P4A DGC; 7004CDP4AD6C |
| Application Types | Machine tool spindles; grinding spindles; high-speed motor spindles; precision rotary tables |
| Overall Width | 12 mm |
| Mpn Variants | 7004 CD/P4ADGC; 7004 CDGC/P4A; 7004-CD/P4ADGC; 7004CDP4ADGC; 7004-CD-P4A-DGC; 7004C |
| Arrangement Configuration | Universally matchable, two-piece set |
| Precision Class | P4A |
| Additional Attributes | Contact type: normal, two-point; rings: one piece; matched condition: measuring load, class C; lubricant: none |
| Dynamic Load Rating | 8,710 N |
| Static Load Rating | 4,300 N |
| Precision Rating | P4A |
| Rolling Elements | Ball |
| Item Weight | 0.066 kg (0.15 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable — back-to-back, face-to-face or tandem |
| Bearing Material | Bearing steel |
| Closure Type | Open |
| Cross Reference 1 | FAG B7004-C-T-P4S-UM – 15°, phenolic cage, medium preload |
|---|---|
| Cross Reference 2 | NSK 7004CTRSUMP4 – 15°, phenolic cage, medium preload |
| Cross Reference 3 | Fafnir 2MM9104WICRSUM – 15°, medium preload |
| Cross Reference 4 | RHP 7004X2TRSUMP4 – 15°, medium preload |
SKF 7004 CD/P4ADGC, super-precision, high-capacity, universally matchable single-row angular contact ball bearings, supplied as two pieces. Unit Quantity: 2 Pcs. Bore Diameter: 20 mm. Outside Diameter: 42 mm. Overall Width: 12 mm per bearing. Contact Angle: 15°. Precision Class: P4A. Rolling Elements: ball. Closure Type: open.
70 — ISO light dimension series 10, 20 mm bore, 42 mm outside diameter, 12 mm width.
04 — bore code, 04 x 5 = 20 mm.
C — 15° contact angle.
D — high-capacity internal design.
GC — universally matchable, medium preload.
P4A — SKF super-precision tolerance class: P4 dimensional accuracy with running accuracy held tighter still.
Dynamic Load Rating: 8,710 N per bearing. Static Load Rating: 4,300 N per bearing. Contact Angle: 15°. Precision Class: P4A. Preload: medium (GC). Item Weight: 0.066 kg (0.15 lb) per bearing. Number Of Rows: 1. Bore Type: straight. Bearing Material: bearing steel. Contact type: normal, two-point. Rings: one piece. Lubricant: none, supplied without lubricant. Unit Quantity: 2 Pcs.
Bore Diameter: 20 mm. Outside Diameter: 42 mm. Overall Width: 12 mm per bearing. Mounting Arrangement: universally matchable, back-to-back, face-to-face or tandem. Matched condition: measuring load, class C.
Universal 15° medium-preload bearings at 20 x 42 x 12 mm: FAG B7004-C-T-P4S-UM (phenolic cage), NSK 7004CTRSUMP4 (phenolic cage), Fafnir 2MM9104WICRSUM and RHP 7004X2TRSUMP4. SKF writes the same execution as 7004 CDGC/P4A.
GC marks a universally matchable bearing with medium preload; it can be mounted back-to-back, face-to-face or in tandem.
Dynamic Load Rating 8,710 N and Static Load Rating 4,300 N per bearing.
15° contact angle (C) and P4A precision class, in the 20 x 42 x 12 mm size.
