Availability:
1 in stock
Super precision angular contact ball bearing, 25 x 62 x 17 mm, 25° contact angle, light preload, open. Machined phenolic outer-ring guided cage, ABEC 7.
List Price
$68.29
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7305-E-T-SUL-P4 |
| Model | 7305 E T DUL P4 / 3MM305 WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 62 mm |
| Width | 17 mm |
| Series | 7300 |
|---|---|
| Material | Chrome bearing steel (SAE 52100) |
| Lubricant | grease or oil |
| Base Number | 7305 |
| Bore Shaft Size | 25 mm |
| Mpn Variants | 7305-E-T-SUL-P4, 7305ETSULP4, 7305 E T SUL P4, 7305-E-T-DUL-P4, B7305X3TADULEP7, 3MM305WICRDUL |
| Closure Type | Open |
| Rolling Elements | Balls |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Part Number | 7305ETSULP4 |
| Industry Terms | super precision angular contact bearing; spindle bearing; 7305 bearing; universal matched bearing |
| Common Misspellings | RPH 7305ETSULP4; RHP 7305 ETSUL P4; RHP 7305E TSULP4; RHP7305ETSULP4 |
| Application Types | Machine tool spindles; precision rotating shafts; high-speed precision machinery |
| Cross Reference 1 | NSK 7305A5TYNSULP4 (polyamide cage) |
|---|---|
| Cross Reference 2 | Fafnir 3MM305WI (no preload or cage code) |

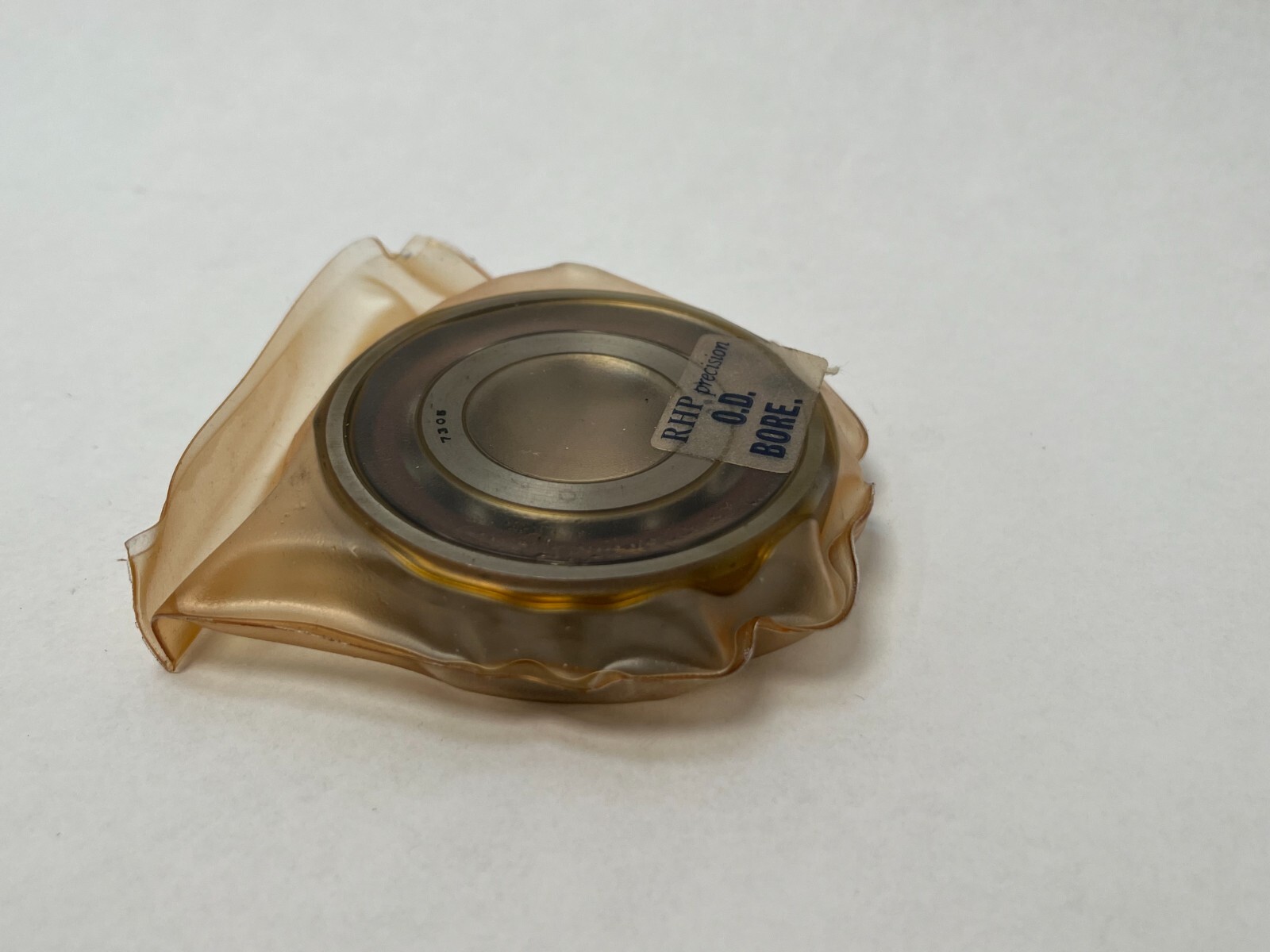

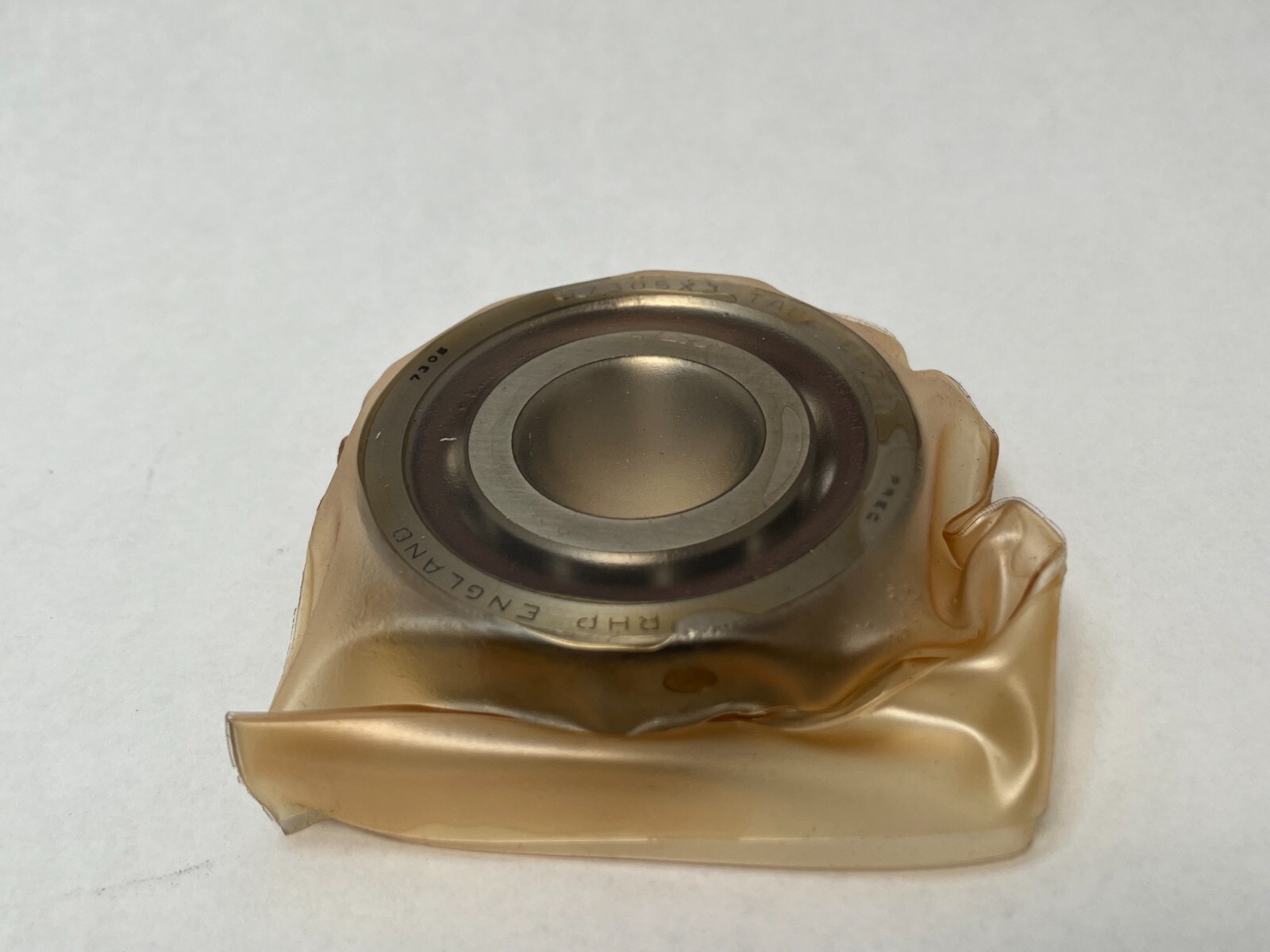

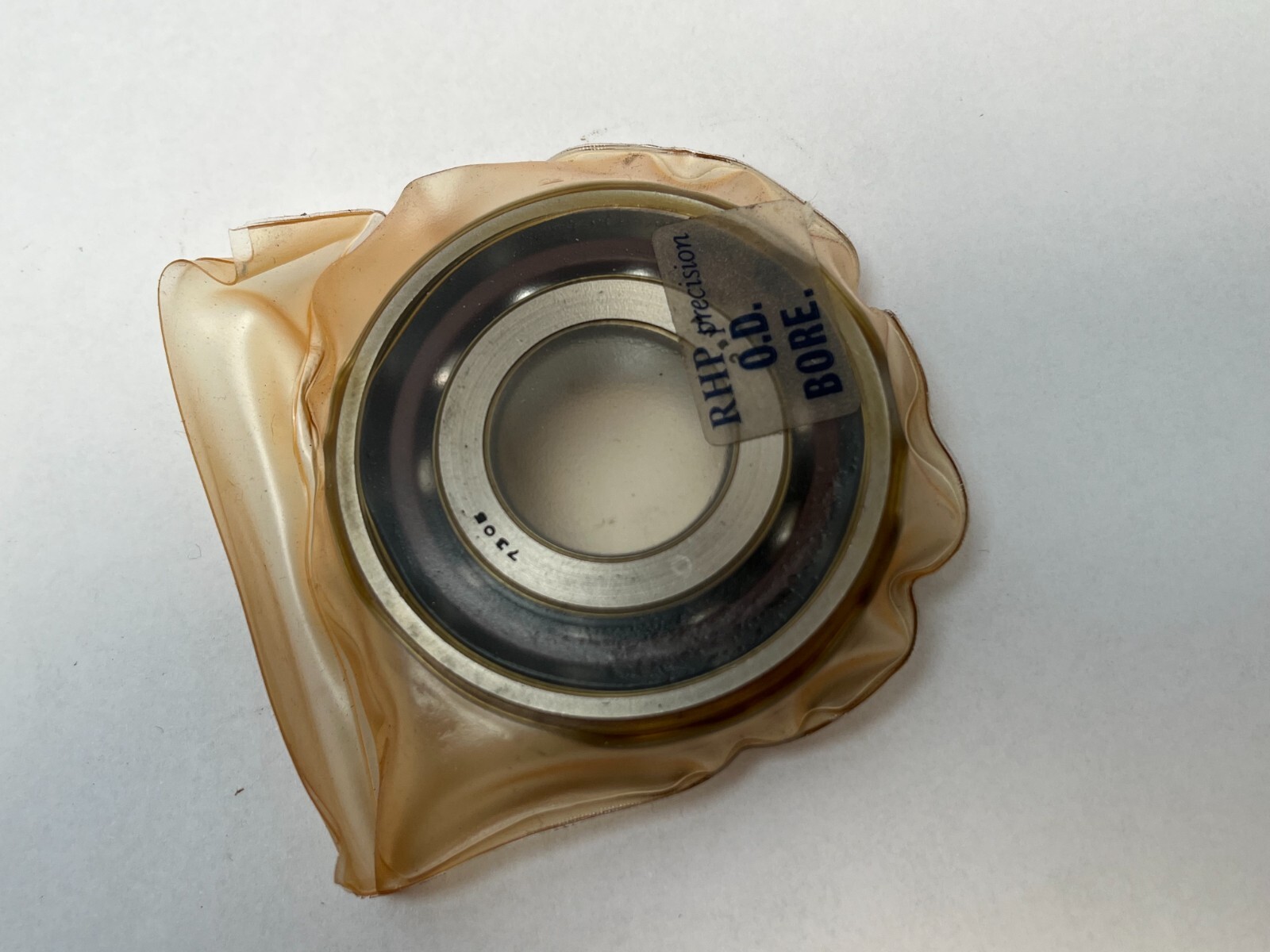

RHP 7305ETSULP4 super precision single-row angular contact ball bearing, 25 mm bore, 62 mm outside diameter, 17 mm wide, 25° contact angle, light preload, single universal, open, machined laminated phenolic outer-ring guided cage, RHP P4 precision. Unit Quantity: 1 Pc.
7305 — ISO dimension series 03, 25 mm bore.
E — 25° contact angle.
T — laminated phenolic resin cage, outer-ring guided.
SU — single universally ground, face relationships set at manufacture.
L — light preload.
P4 — RHP P4, ISO Class 4, ABEC 7.

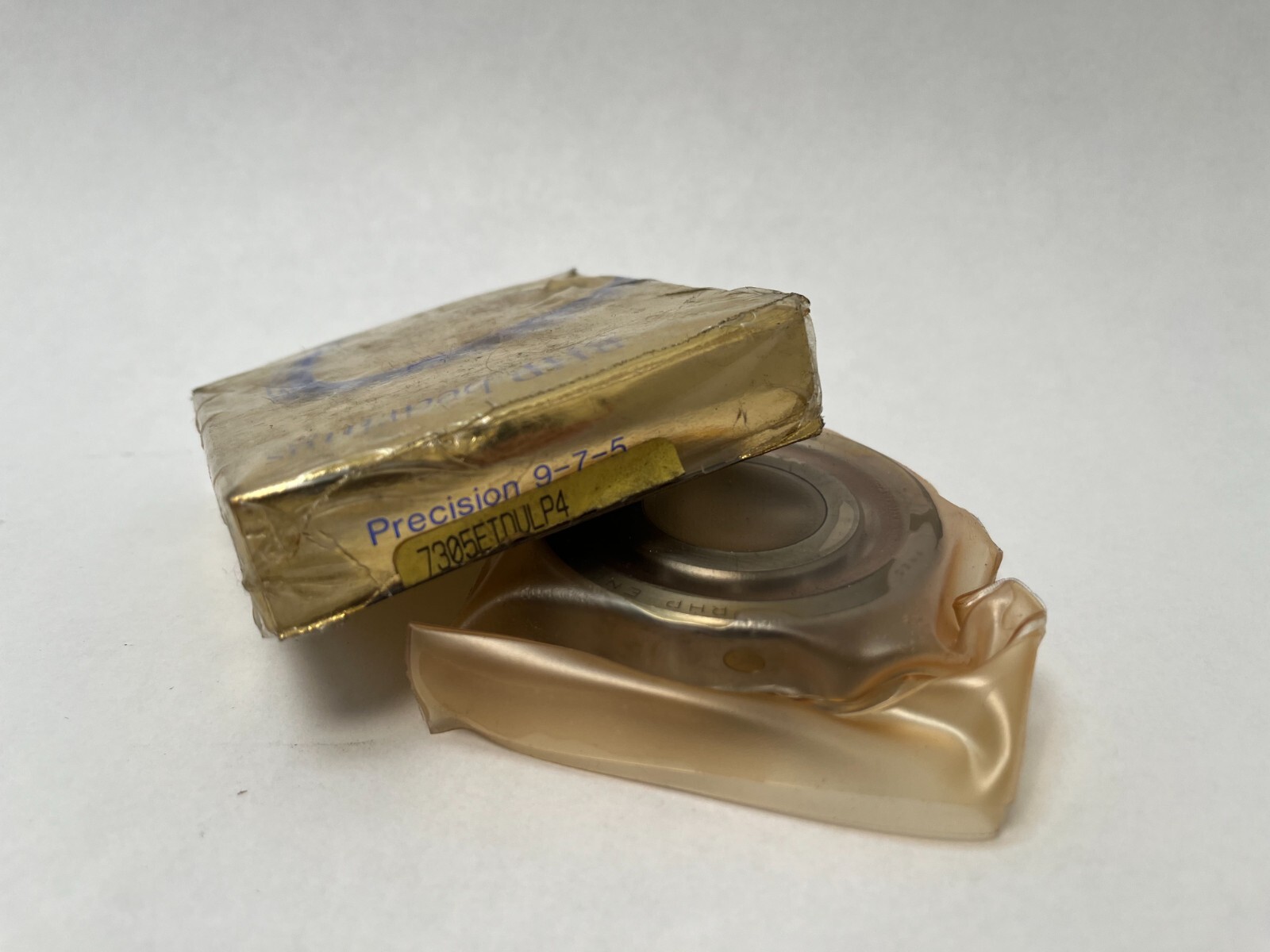

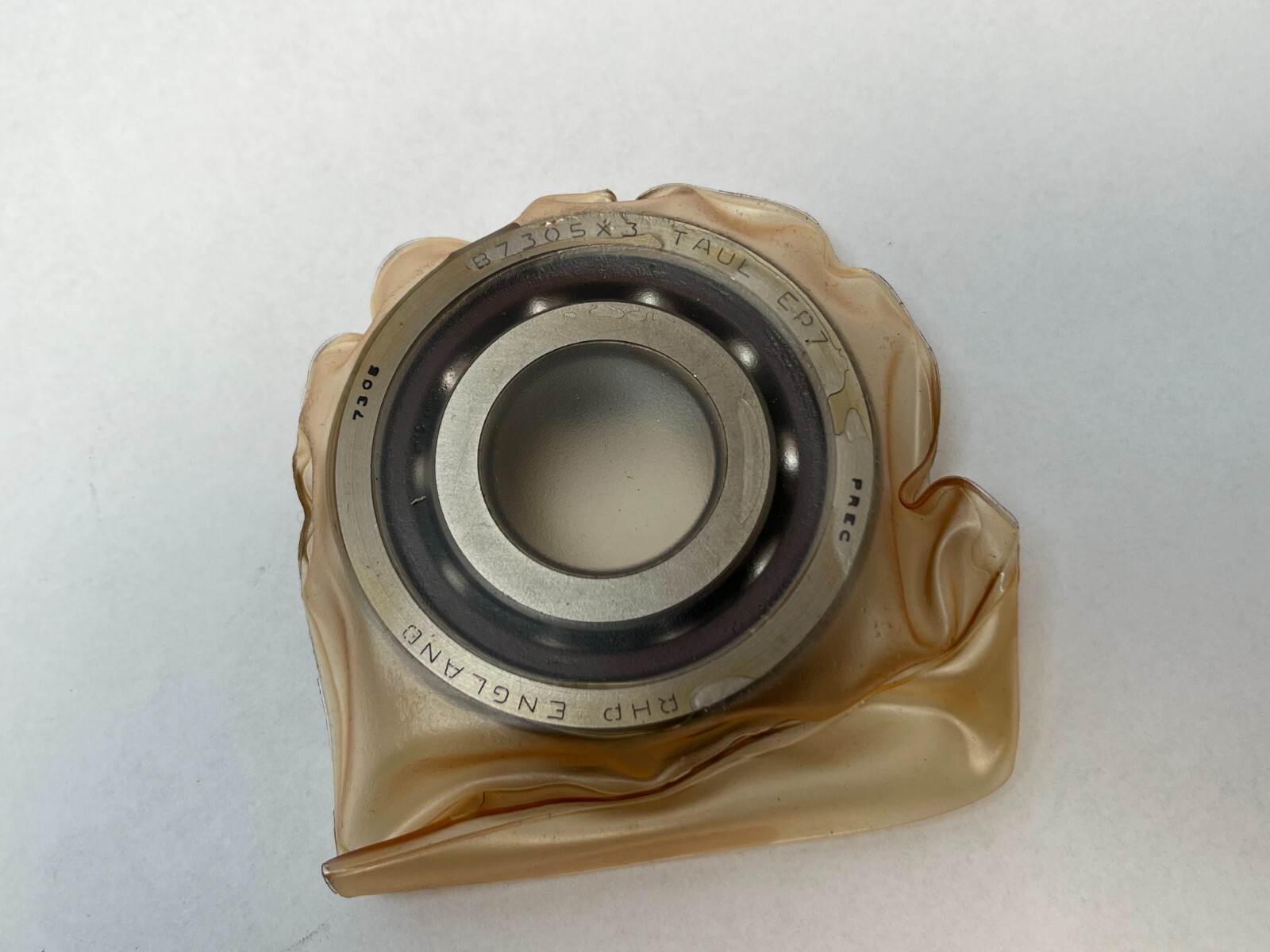

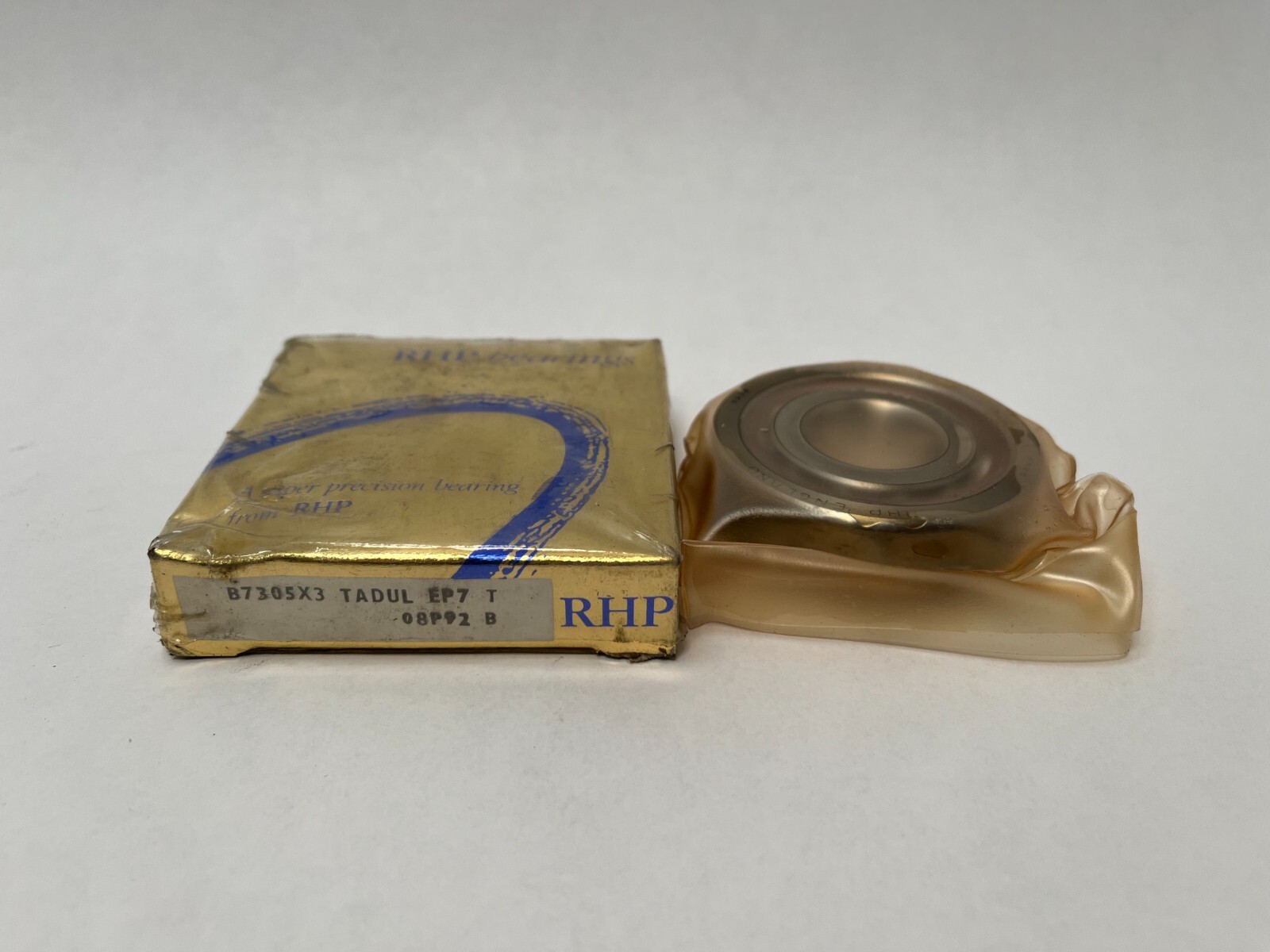

The carton carries the same bearing in three schemes: RHP 7305-E-T-SUL-P4, RHP B-series B7305X3TADULEP7 and Fafnir 3MM305WICRDUL.
Bore Diameter: 25 mm. Outside Diameter: 62 mm. Overall Width: 17 mm. Series: 7300. Contact Angle: 25°. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Cage Material: Laminated phenolic resin. Cage Type: Machined, outer-ring guided. Preload: Light. Mounting Arrangement: Single universal. Precision Class: RHP P4 / ISO Class 4 / ABEC 7. Lubricant: grease or oil. Bearing Material: Carbon chrome bearing steel, SAE 52100. Country of Origin: United Kingdom. Harmonization Code: 8482.10.50. Unit Quantity: 1 Pc.
Bore: 25 mm. Outside Diameter: 62 mm. Width: 17 mm. Universal face control: inner and outer rings are ground to the same width, so two bearings mount back-to-back or face-to-face at the same light preload, and tandem-mounted bearings share load equally.
NSK 7305A5TYNSULP4 is the 25° execution with a polyamide cage. Fafnir 3MM305WI is the 25° Fafnir scheme number. Also listed as 7305ETSULP4, 7305 E T SUL P4, 7305-E-T-DUL-P4, 7305E, B7305X3TADULEP7 and 3MM305WICRDUL.
25 mm bore, 62 mm outside diameter, 17 mm width.

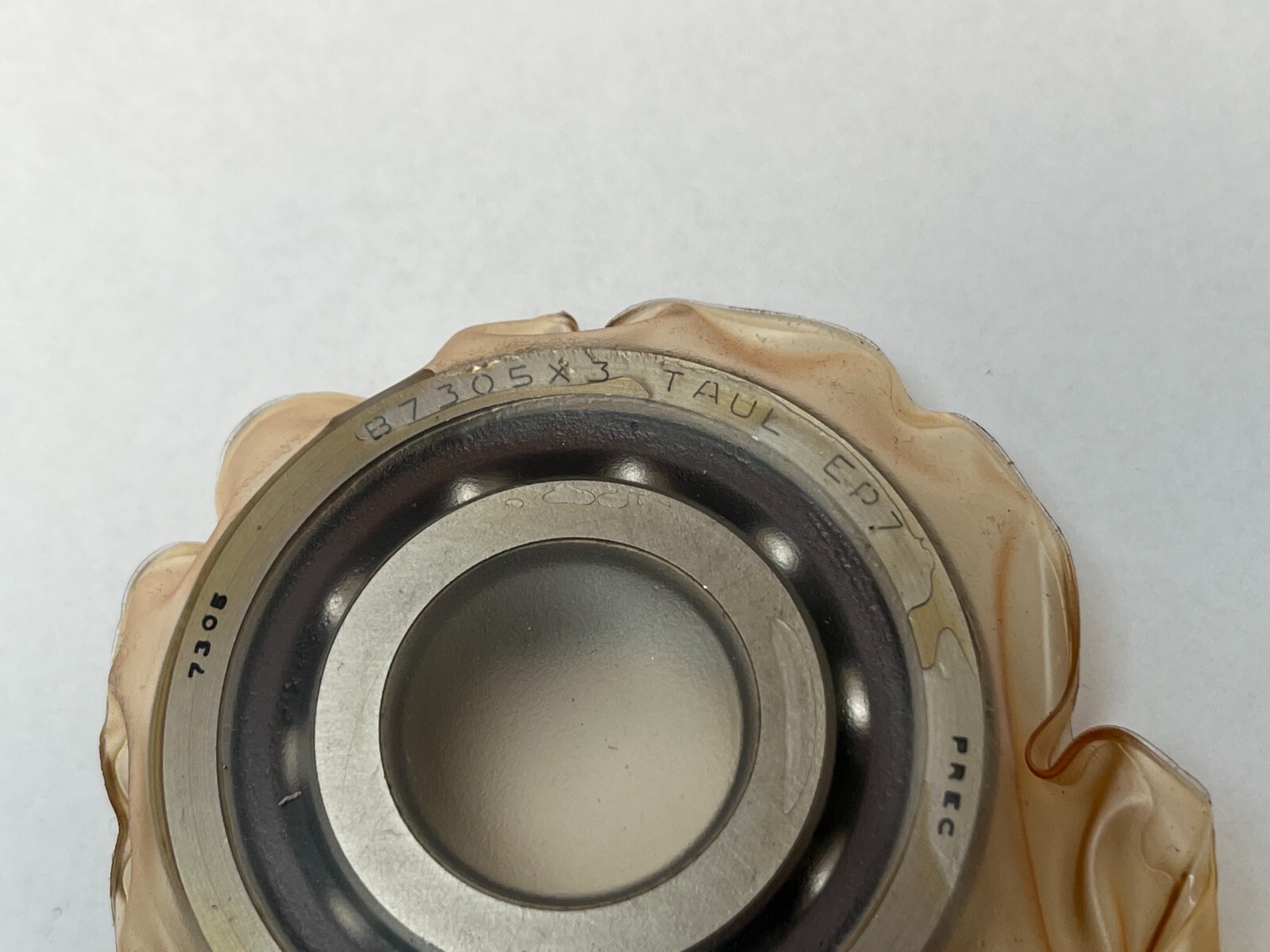

Contact Angle: 25°, shown by the E code and by the B-series X3 and Fafnir 3MM codes on the carton.
Light preload, single universal grind.
