Availability:
4 in stock

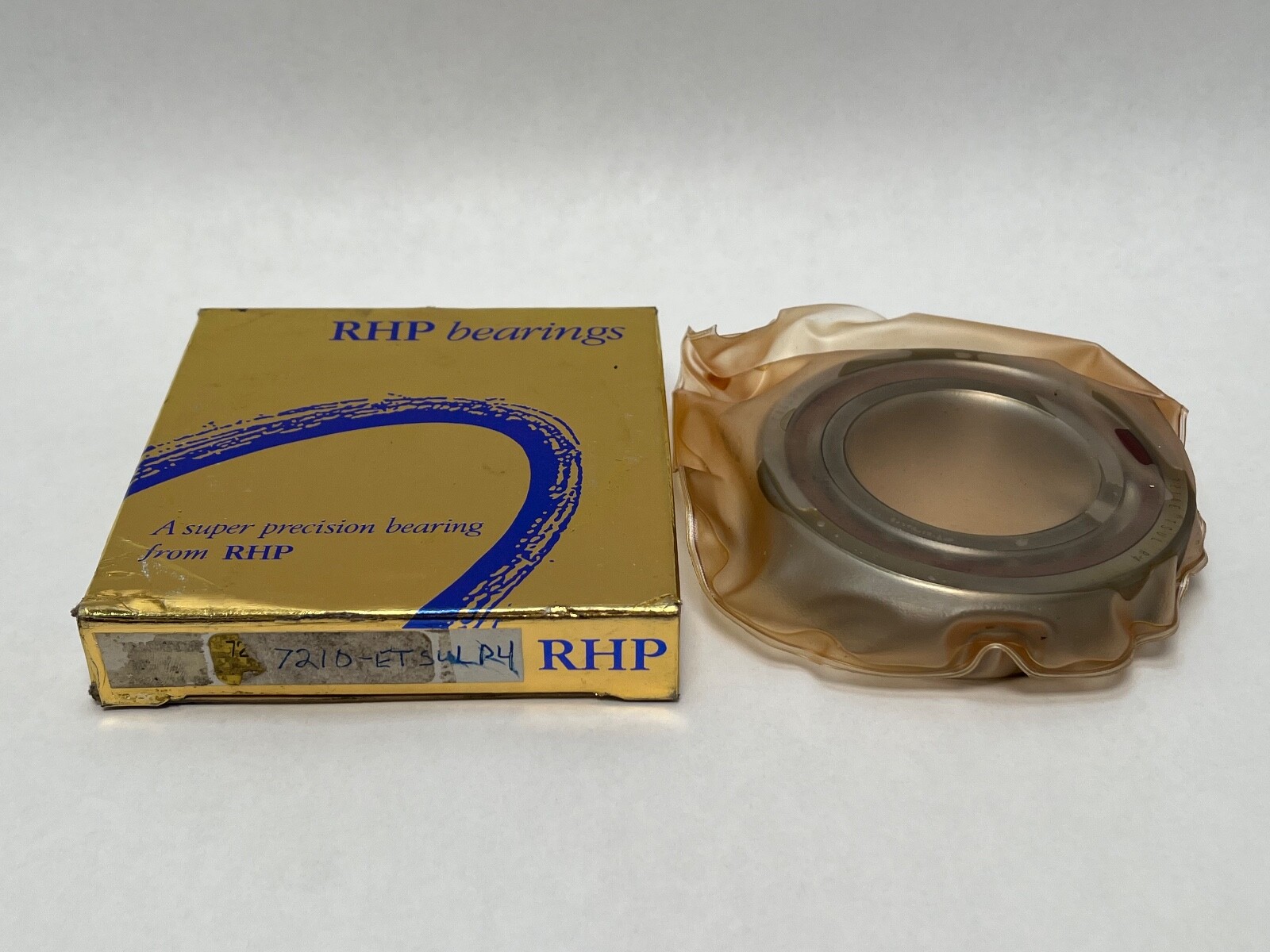

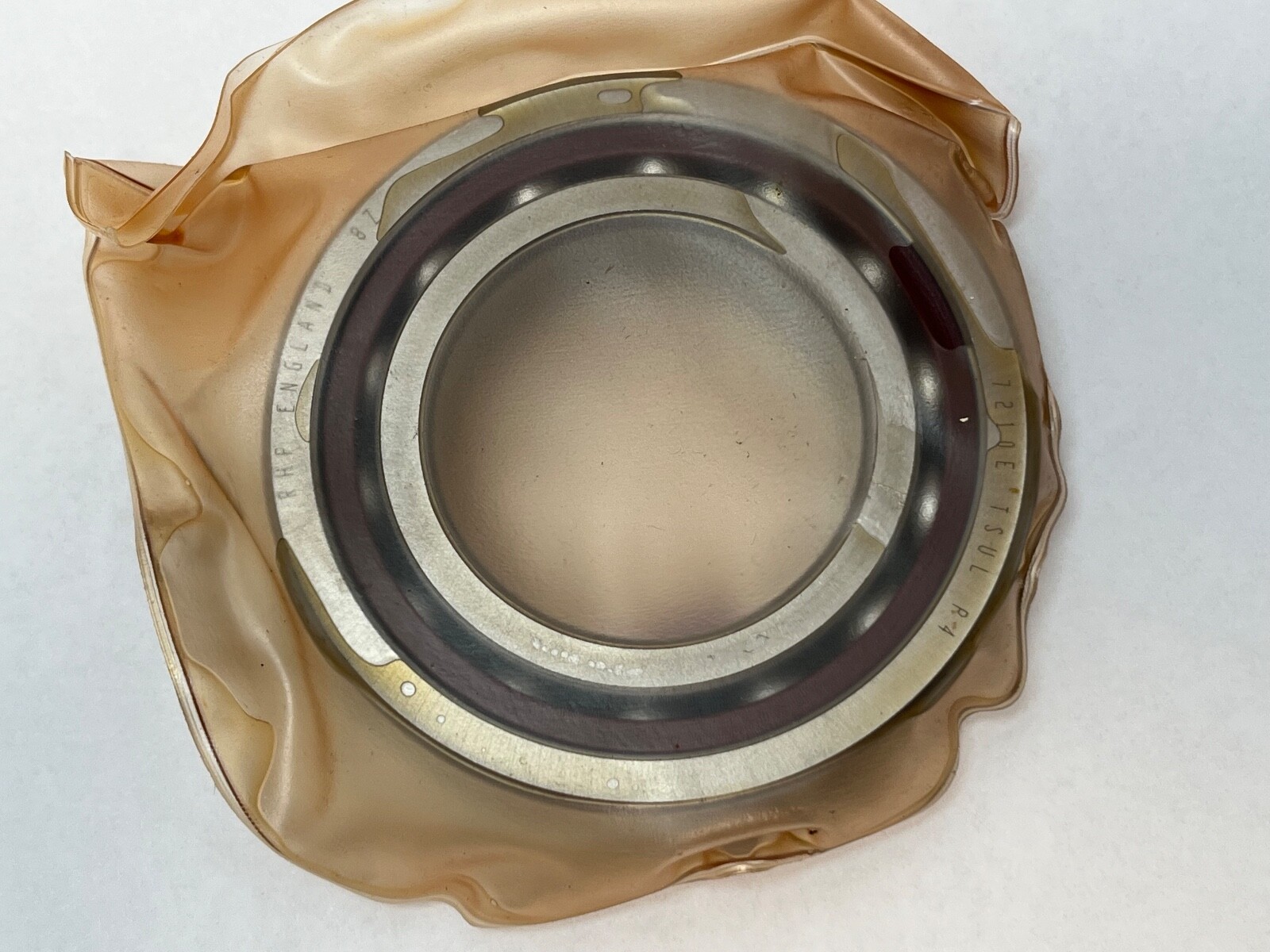

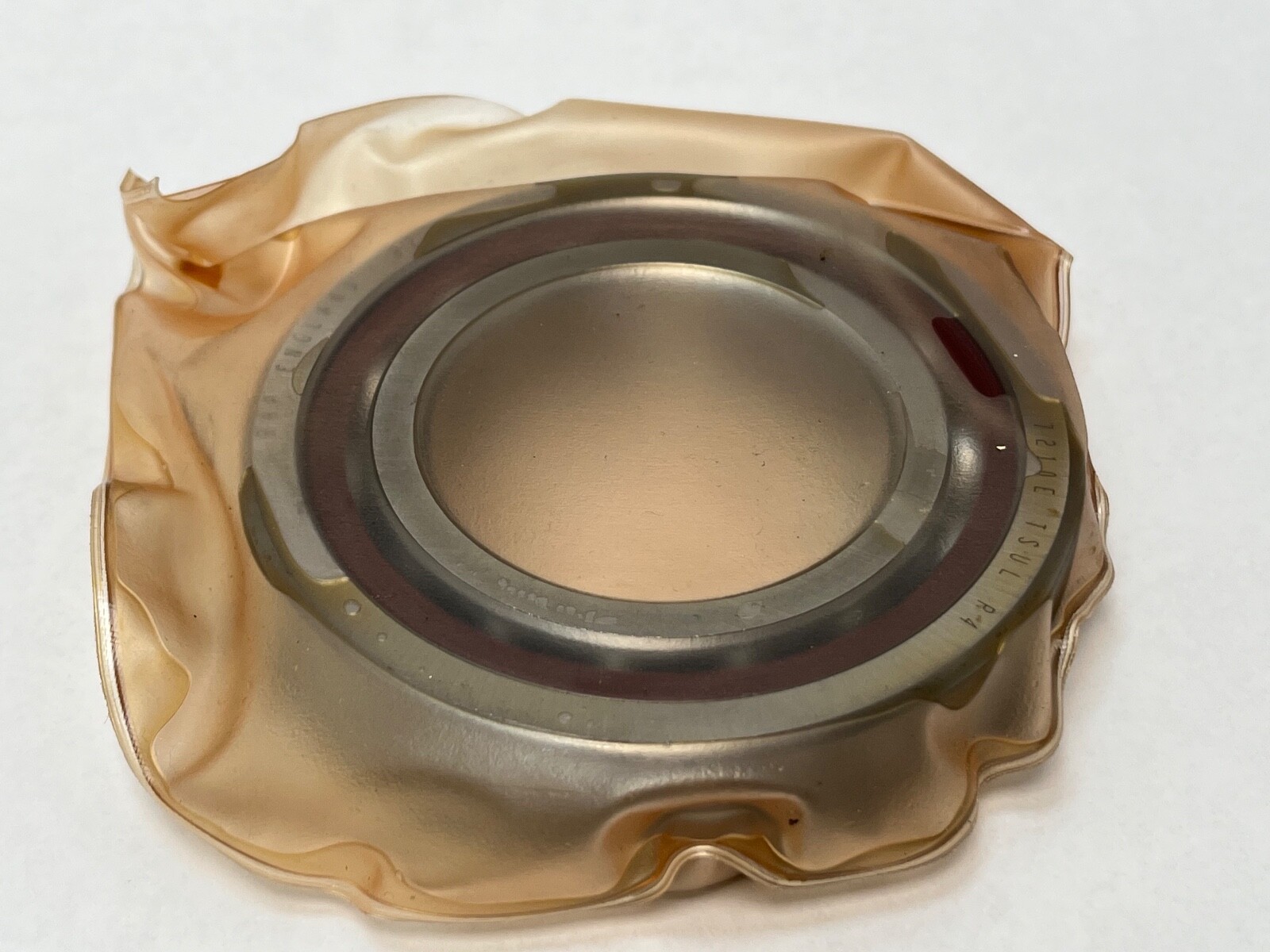

RHP 7210ETSULP4 super-precision angular contact bearing, 50x90x20 mm, 25 deg contact angle, light preload, P4 / ABEC 7, machined phenolic cage. Single.
List Price
$115.65
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7210ETSULP4 |
| Model | 7210 E T SUL P4 / 3MM210WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 20 mm |
| Material | Carbon chrome bearing steel (SAE 52100) |
|---|---|
| Series | 7200 |
| Lubricant | Oil |
| Preload | Light (L) |
| Base Number | 7210 |
| Industry Terms | spindle bearing, super precision bearing, angular contact ball bearing, universally ground bearing, machine tool bearing, ABEC 7 bearing |
| Common Misspellings | RHP 7210 ETSUL P4, 7210ETSULP-4, RHP7210ETSULP4, 7210 ET SUL P4, RPH 7210ETSULP4 |
| Application Types | Machine-tool spindles, precision grinders, high-speed motion control, rotary tables, indexing heads |
| Total Width | 20 mm |
| Bore Shaft Size | 50 mm (1.9685 in) |
| Mpn Variants | 7210ETSULP4, 7210-E-T-SUL-P4, 7210 E T SUL P4, 7210ETSUL, 7210E |
| Arrangement Configuration | Single, universally ground (SU) |
| Precision Class | P4 (ISO Class 4); ABEC 7 |
| Dynamic Load Rating C1 | 41,000 N (41.0 kN) |
| Cage Type | Machined, outer ring land riding |
| Dynamic Load Rating | 41,000 N (41.0 kN) |
| Static Load Rating | 30,500 N (30.5 kN) |
| Precision Rating | P4 (ISO Class 4); ABEC 7 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.457 kg (1.008 lb) |
| Cage Material | Laminated phenolic resin |
| Limiting Speed | 22,600 rpm oil/air; 14,000 rpm grease |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Single, universally ground (SU) |
| Bearing Class | P4 (ISO Class 4); ABEC 7 |
| Bearing Material | Carbon chrome bearing steel (BS970 534A99/535A99 or SAE 52100) |
| Part Number | 7210ETSULP4 |
| Cross Reference 1 | Fafnir 3MM210WI-CR-SUL |
|---|---|
| Cross Reference 2 | NSK 7210A5TRSULP4 |
A single super-precision angular contact ball bearing, RHP 7210ETSULP4, in the ISO 7210 envelope. Brand: RHP (NSK-RHP). MPN: 7210ETSULP4. Bearing type: super-precision angular contact ball bearing, single row, universally ground. Number of rows: 1. Bore type: Straight. Rolling elements: Balls. Seal type: Open.
Bore diameter d: 50 mm (1.9685 in). Outside diameter D: 90 mm. Width B: 20 mm. Chamfer r min: 1.1 mm. Chamfer r1 min: 0.6 mm. Shaft abutment diameter d1 min: 57 mm. Housing abutment diameter D1 max: 83 mm. Outer ring abutment diameter D2 max: 85 mm. Internal volume: 21.7 cm3. PCD of lubrication jets: 65.2 mm. Mass: 0.457 kg (1.008 lb).
Dynamic load rating Cr: 41,000 N (41.0 kN). Static load rating C0r: 30,500 N (30.5 kN). Limiting speed: 22,600 rpm oil/air; 14,000 rpm grease. Effective load centre a: 26.3 mm. Maximum operating temperature: 120 °C.
Precision class: P4 (ISO Class 4); ABEC 7; RHP class code EP7. Contact angle: 25°. Cage type: machined, outer ring land riding. Cage material: laminated phenolic resin. Preload: Light (L). Face control: SU, single universal face control. Arrangement: single, universally ground (SU). Ring and ball material: carbon chrome bearing steel, BS970 534A99 / 535A99 or SAE 52100. Snap ring included: No. The bearing is preload-set at manufacture rather than clearance-set.
In 7210ETSULP4: 7 is a single-row angular contact ball bearing, 2 is ISO dimension series 02, 10 is the bore code for 50 mm, E is the legacy RHP 25° contact angle equal to the current A5 code, T is the machined laminated phenolic cage guided on the outer ring, SU is single universal face control, L is light preload and P4 is ISO Class 4, equal to ABEC 7. The B-series form B7210X3TAULEP7 agrees: X3 gives 25° and EP7 gives the P4 class.
A single-row angular contact bearing carries radial load together with thrust in one direction only. Axial location in both directions comes from mounting a second bearing opposed to this one.
Shaft abutment diameter d1 min: 57 mm. Housing abutment diameter D1 max: 83 mm. Outer ring abutment diameter D2 max: 85 mm. Maximum fillet radius at the abutment: 1.1 mm on the main faces and 0.6 mm on the front faces. Effective load centre a: 26.3 mm from the bearing face. Internal volume for lubricant fill: 21.7 cm3. PCD of lubrication jets: 65.2 mm.
The rings are universally ground, so two bearings of this designation and preload class pair back-to-back, face-to-face or in tandem and reach the specified light preload as ground.
RHP super-precision designations cross-reference directly to NSK, which acquired RHP and continued the numbering. Matching 25° light-preload universal bearings: NSK 7210A5TRSULP4, where A5 is the NSK code for 25° and TR the phenolic cage, and Fafnir 3MM210WI CR SUL. Base number: 7210. MPN variants: 7210ETSULP4, 7210-E-T-SUL-P4, 7210 E T SUL P4.
