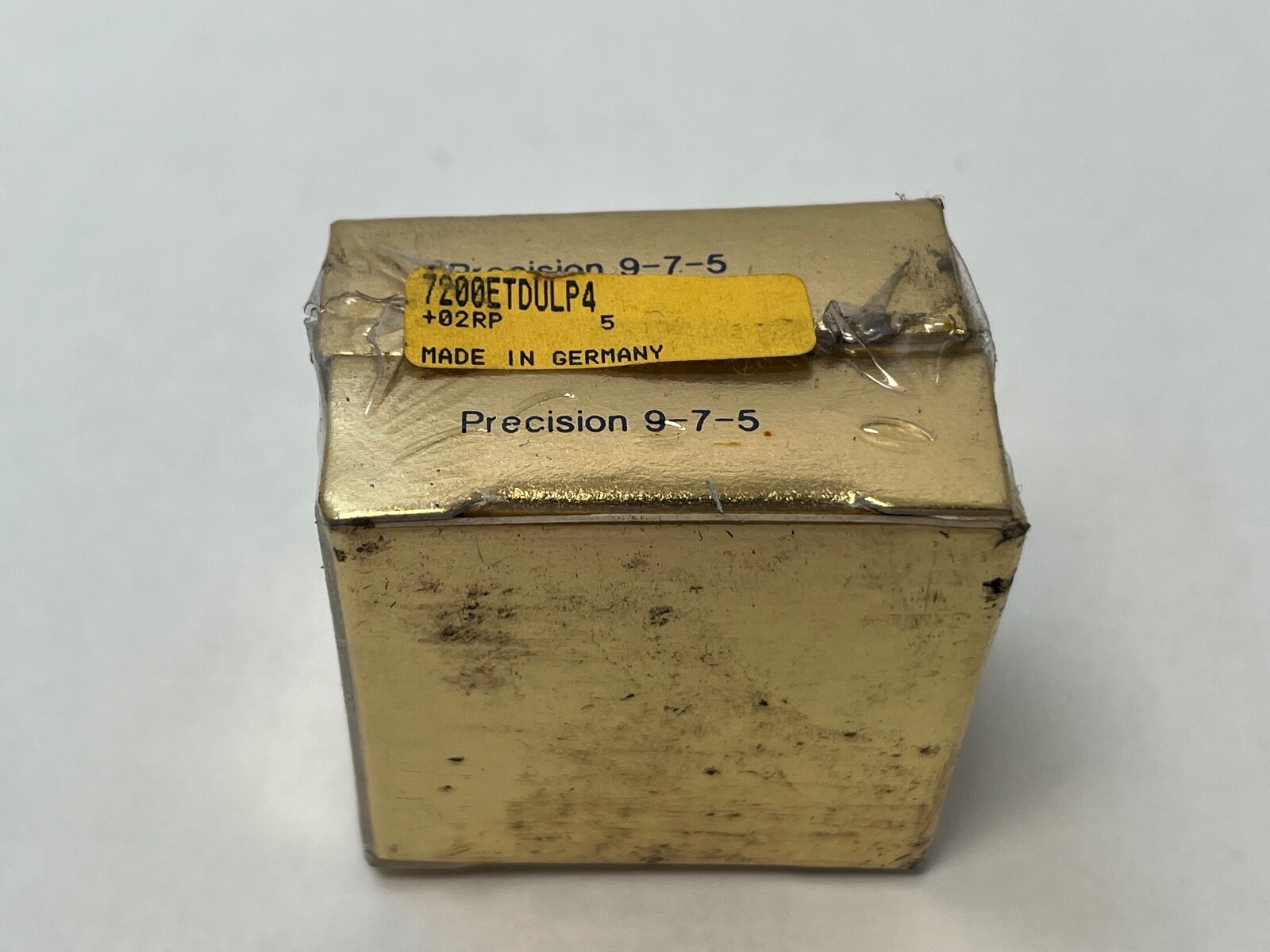

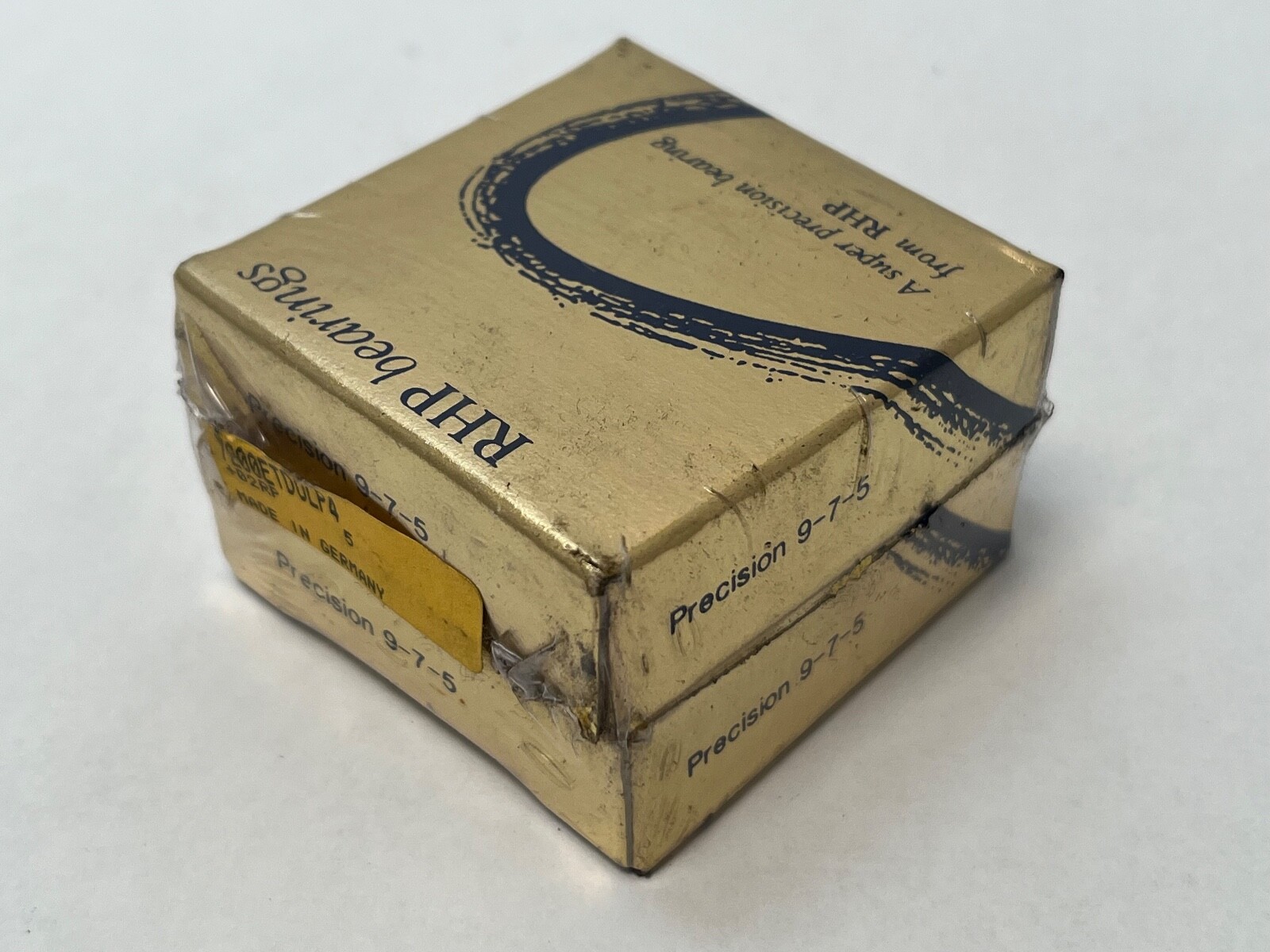

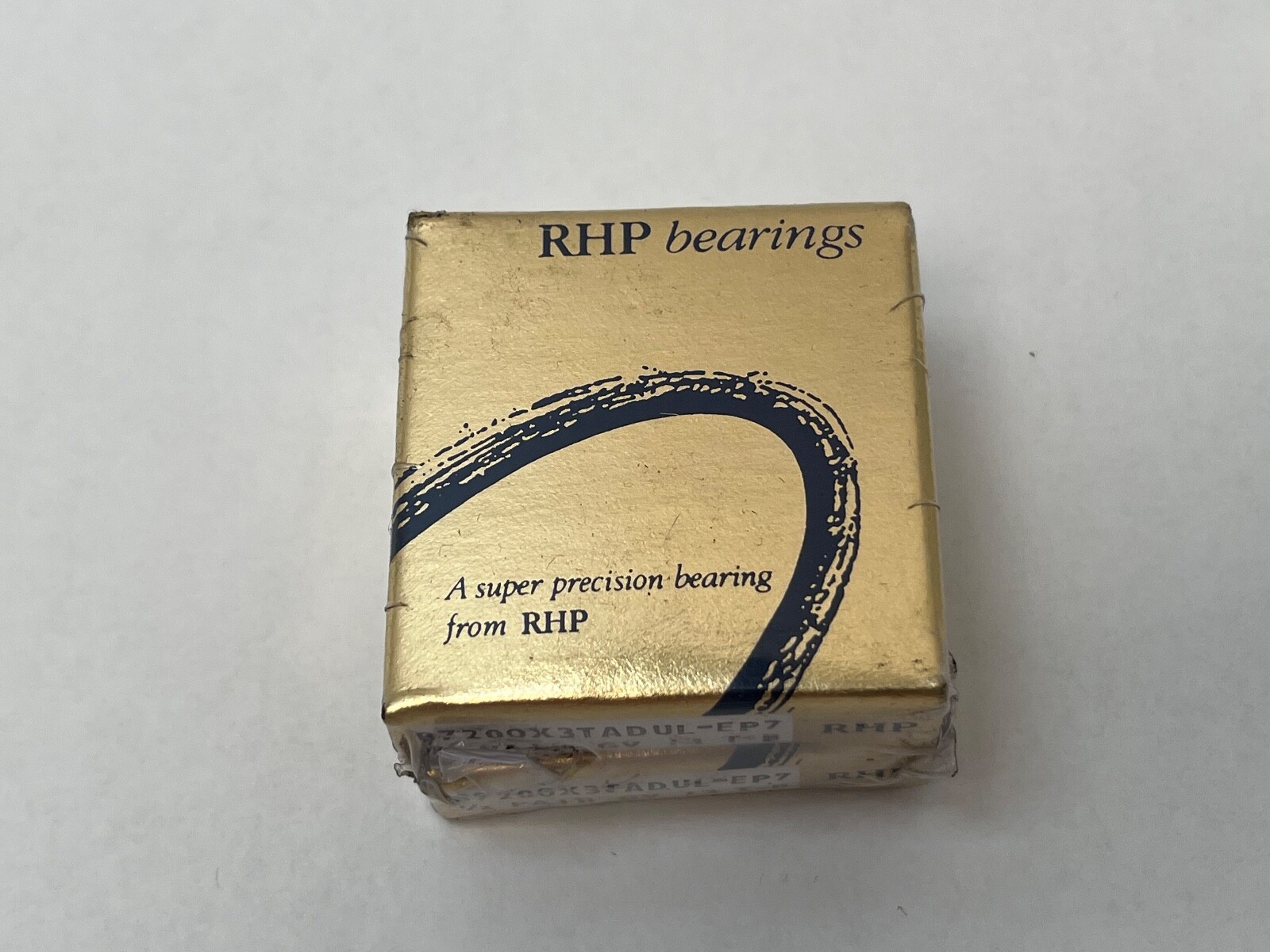

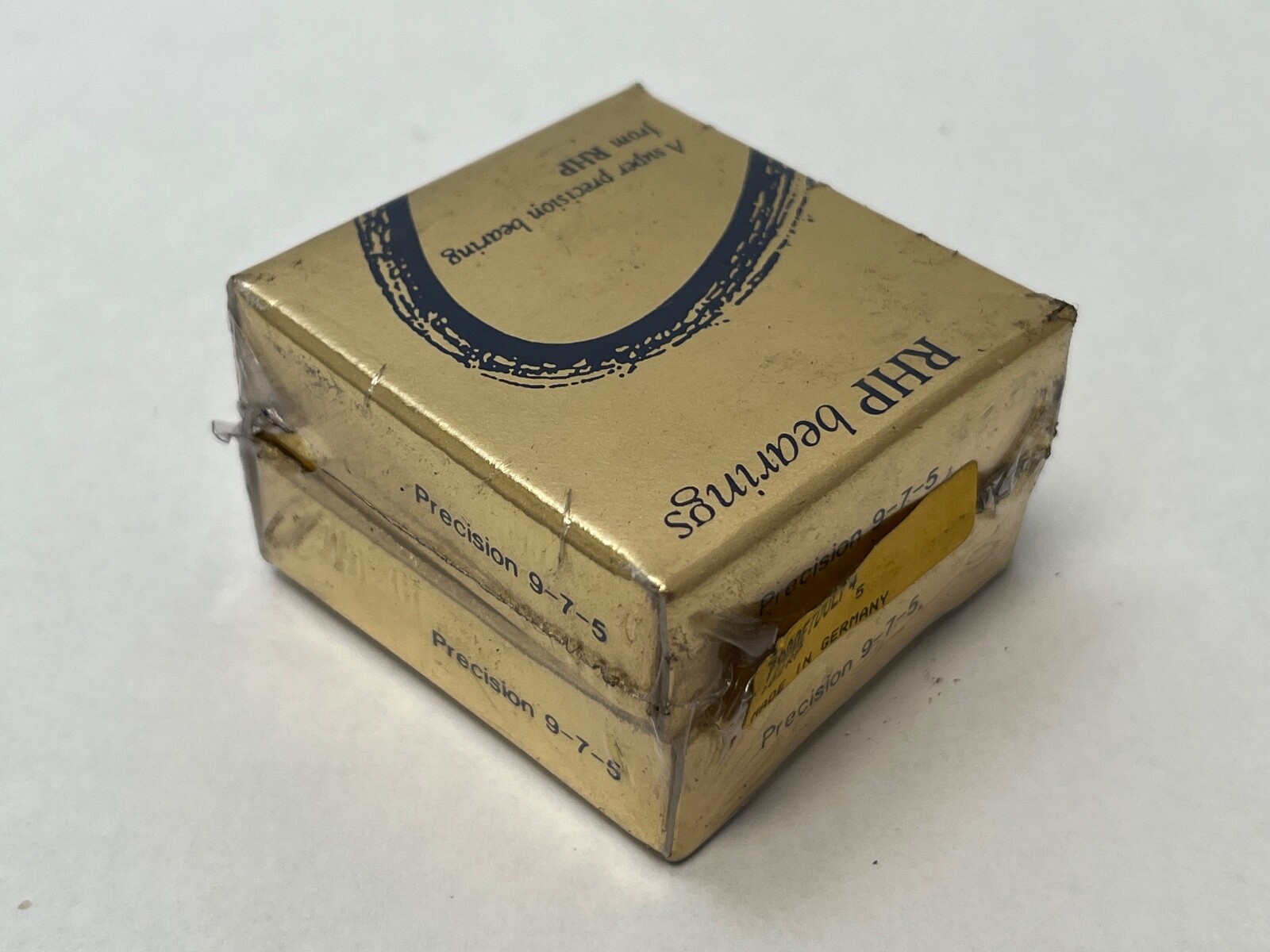

RHP7200ETDULP4Angular Contact Ball Bearing Pair – 10 mm ID, 30 mm OD, 9 mm Width, 25° Contact Angle, Light Preload, ABEC 7 / P4, Phenolic Cage, Open.

Product Description

What this part is:

RHP 7200ETDULP4 super-precision angular contact ball bearings, ISO dimension series 02, supplied as a matched duplex pair with a 25° contact angle, light preload, phenolic cages and ABEC 7 / P4 precision. Bore Diameter: 10 mm. Outside Diameter: 30 mm. Overall Width: 9 mm per bearing. Total Width: 18 mm for the pair.

Decoding the designation:

7 — single-row angular contact ball bearing.

2 — RHP dimension series 2, ISO series 02.

00 — bore code 00, 10 mm bore.

E — 25° contact angle. The legacy RHP code for the angle NSK now designates A5.

T — laminated phenolic resin cage, outer-ring guided.

DU — paired unit. Two universally faced bearings supplied and matched as a set, mountable back-to-back, face-to-face or in tandem.

L — light preload. As a back-to-back pair this gives an axial preload of 39 N and an axial stiffness of 41 N/µm.

P4 — ISO Class 4, ABEC 7, British Standard EP7.

Specifications:

Bore Diameter: 10 mm. Outside Diameter: 30 mm. Overall Width: 9 mm per bearing. Total Width: 18 mm for the pair. Contact Angle: 25°. Precision Class: ABEC 7 / P4. Preload: Light. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bore Type: Straight. Bearing Material: Bearing steel. Mounting Arrangement: Duplex pair, universally faced. Dynamic Load Rating: 5,200 N per bearing. Static Load Rating: 2,510 N per bearing. Limiting Speed: 43,200 rpm grease; 69,800 rpm oil. Speed rating as a back-to-back pair at light preload: 80 percent of those figures; face-to-face mounting a further 50 percent lower. Lubricant: grease or oil. Maximum Temperature (phenolic cage): 120 °C. Item Weight: 0.032 kg (0.07 lb) per bearing, 0.064 kg (0.14 lb) for the pair. Country of Origin: United Kingdom. Unit Quantity: 2 Pcs.

Dimensions and mounting:

Inner ring abutment diameter d1 min: 15 mm. Outer ring abutment diameter D1 max: 25 mm. Outer ring seating diameter D2 max: 27.5 mm. Chamfer dimension r min: 0.6 mm. Chamfer dimension r1 min: 0.3 mm. Effective load centre a: 9.2 mm. Internal free volume: 1.2 cm³ per bearing. PCD of lubrication jets: 18.1 mm. Bores and outside diameters are matched across the set, and the deviation from nominal in microns is marked on the face of each ring.

Compatibility and replacement:

Same 10 x 30 x 9 mm envelope, same 25° angle, same light preload duplex pairing at super-precision class: SKF 7200 ACD/P4ADGA, FAG B7200-E-T-P4S-UL, NSK 7200A5TRDULP4, Timken Fafnir 3MM200WI DUL, IBC 7200-E-T-P4S-DUL, GMN S6200-E-TA-P4.

Frequently asked questions:

What size is the RHP 7200ETDULP4?

10 mm bore, 30 mm outside diameter, 9 mm width per bearing, 18 mm total width for the pair.

What is the contact angle of the 7200ETDULP4?

25°. The E in the RHP designation marks the 25° angle, the legacy code for what NSK now designates A5.

What does DUL mean in 7200ETDULP4?

DU is a paired unit of two universally faced, matched bearings. L is light preload.
