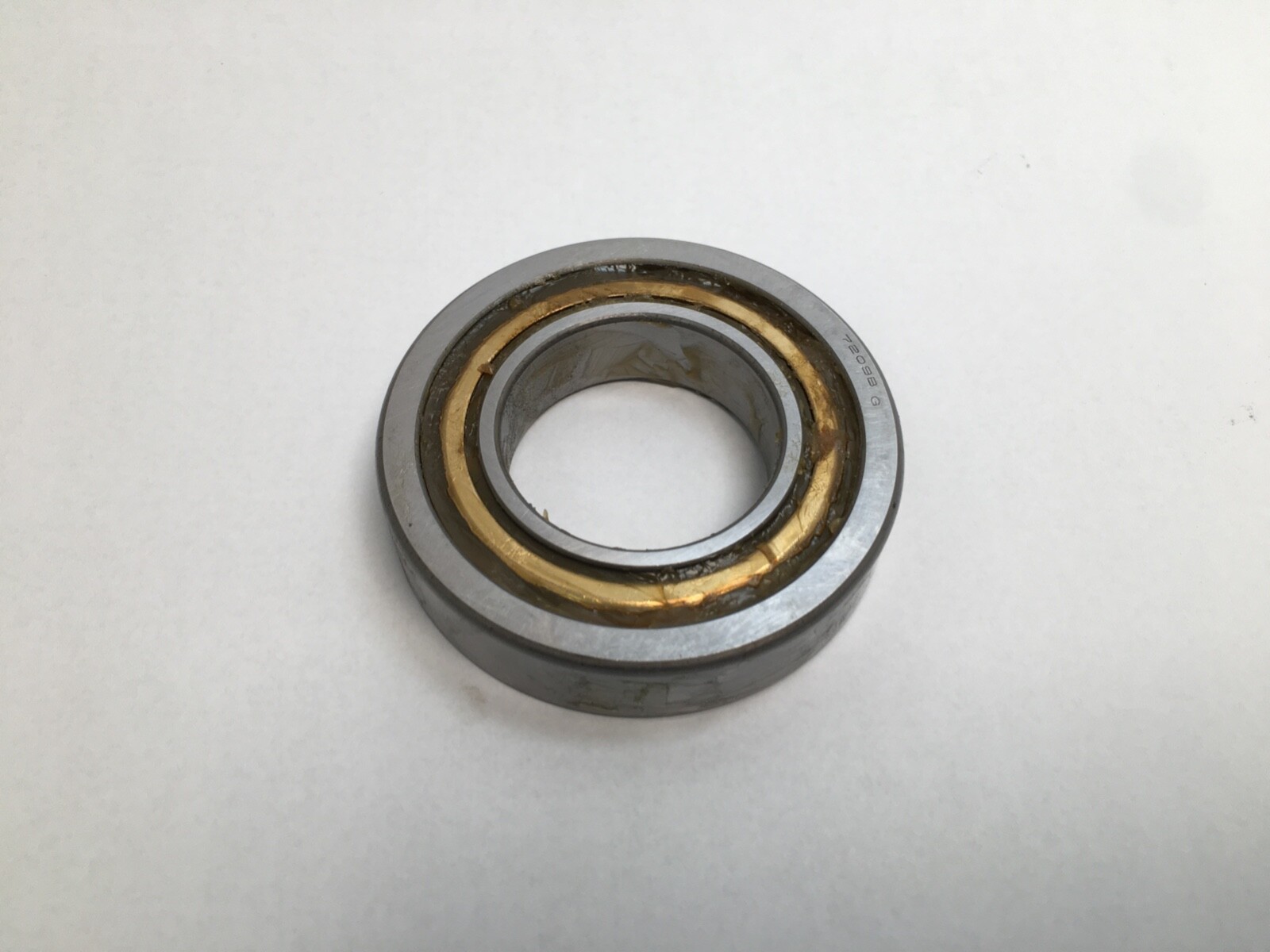

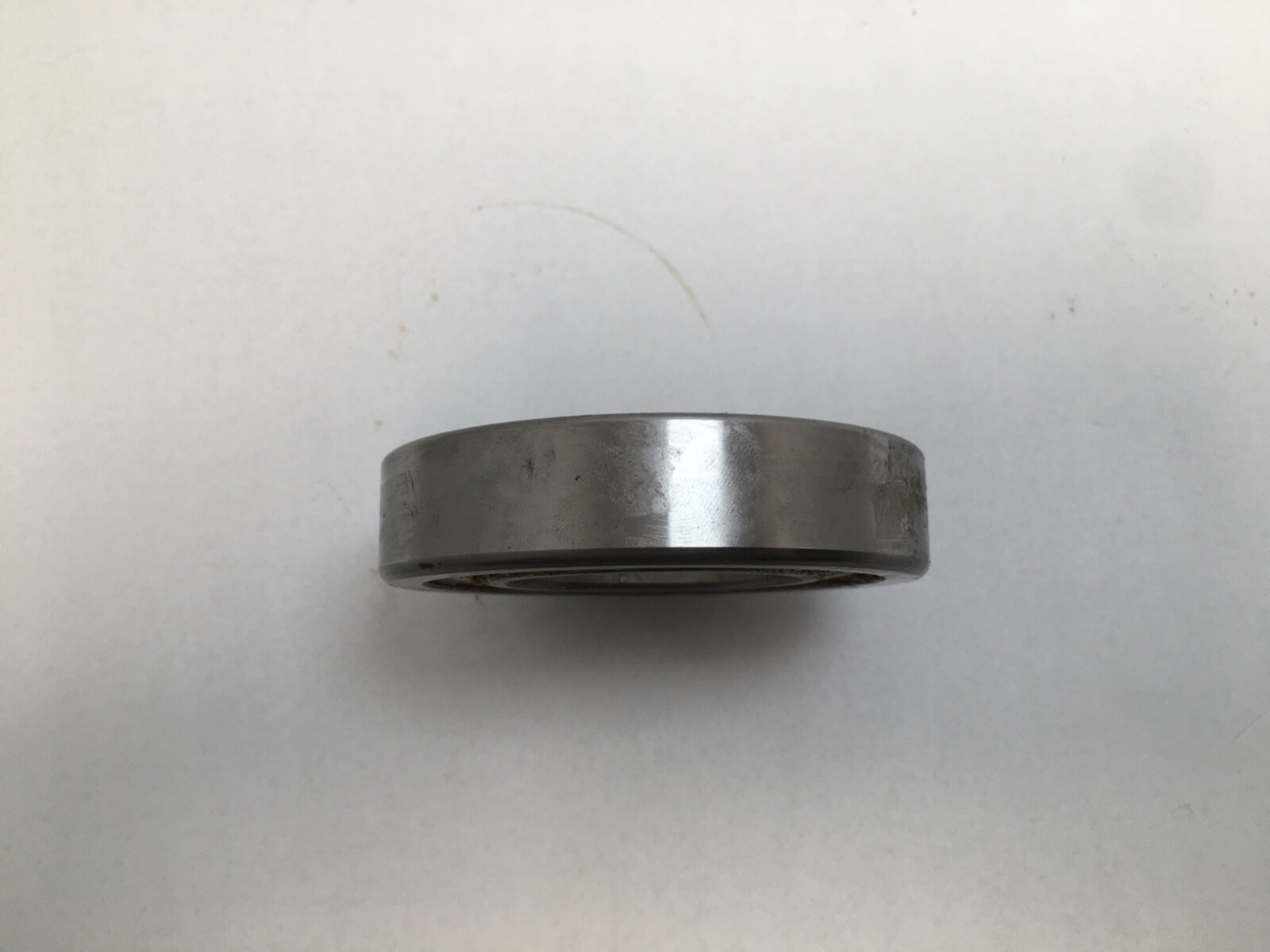

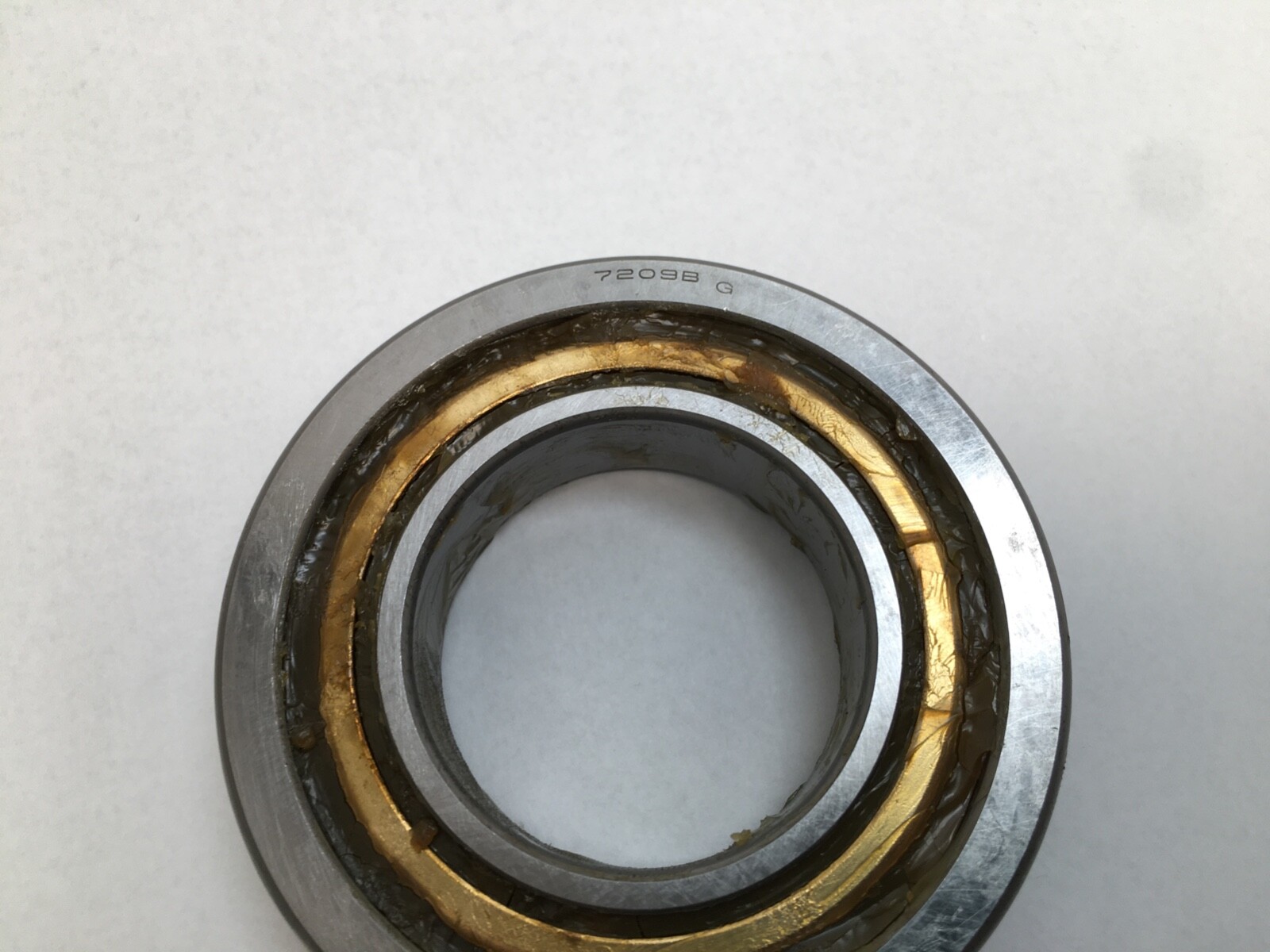

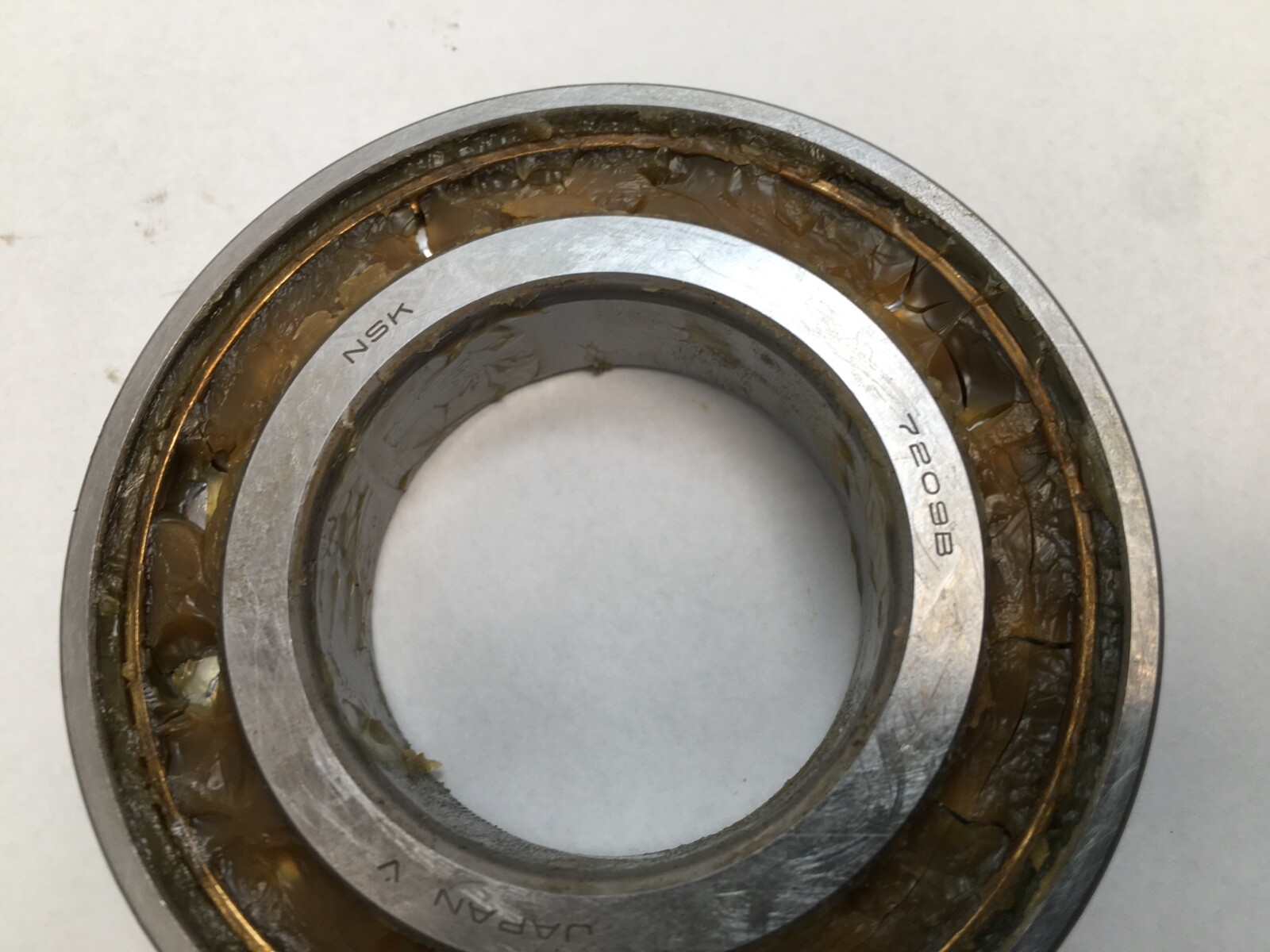

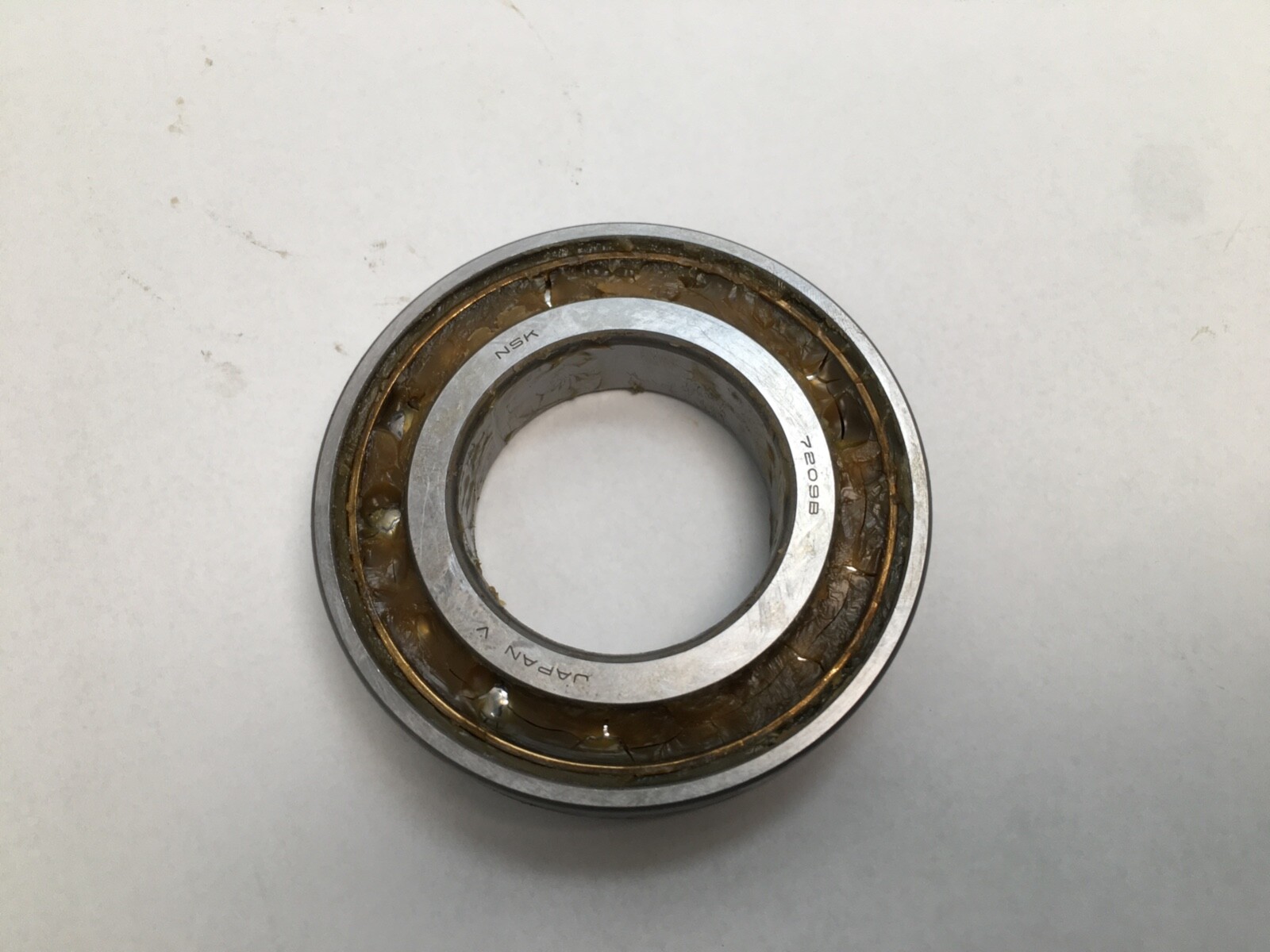

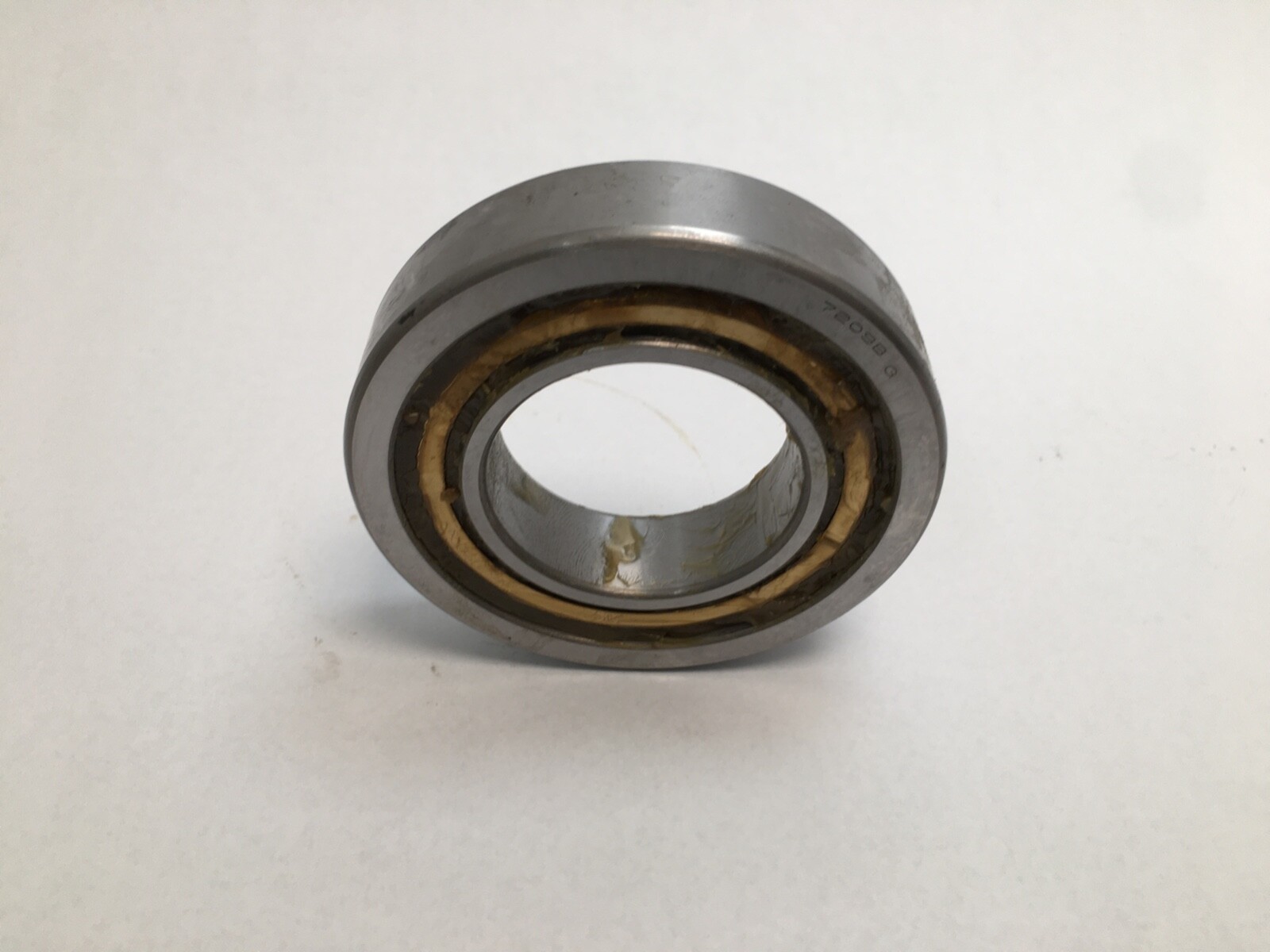

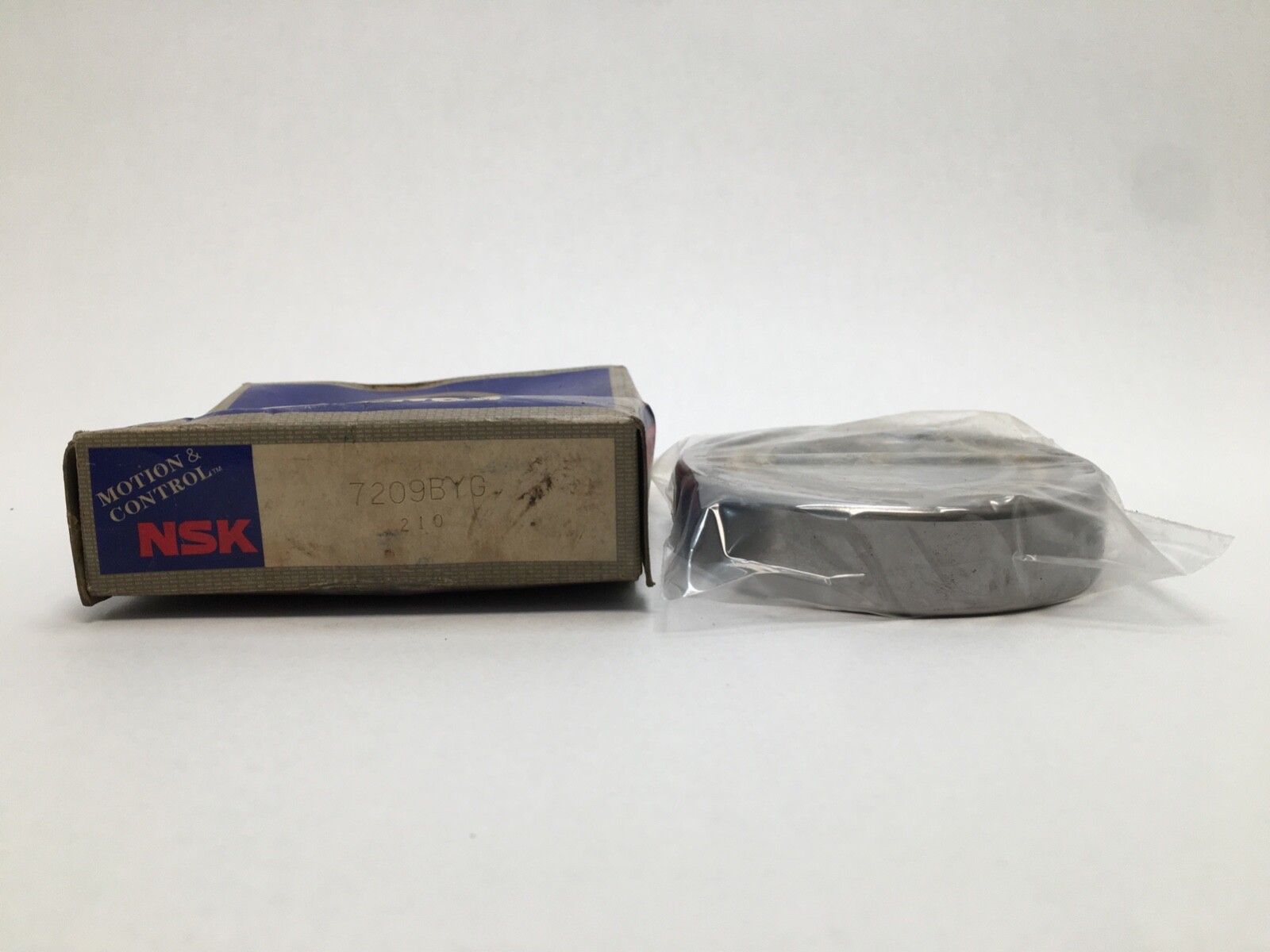

Single-row angular contact ball bearing, 45 mm bore, 85 mm OD, 19 mm width, 40° contact angle, pressed brass cage, open. NSK 7209BYG, new old stock.
List Price
$41.86
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7209BYG |
| GTIN | 029176018770 |
| Model | 7209B |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Series | 7200 |
|---|---|
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 40° |
| Overall Width | 19 mm |
| Mpn Variants | 7209BYG, 7209 BYG, 7209-BYG, 7209 B Y G, 7209BY, 7209B |
| Precision Class | ABEC 1 / P0 |
| Cage Material | Pressed brass |
| Cross Reference 1 | SKF 7209 BECBY |
|---|---|
| Cross Reference 2 | FAG 7209-B-XL-JP - steel cage |
| Cross Reference 3 | NTN 7209B |
| Cross Reference 4 | Koyo 7209B |
NSK 7209BYG is a single-row angular contact ball bearing in the 7209 size with a 40° contact angle and a pressed brass cage. The bearing is open and carries combined radial load and axial load in one direction. Unit Quantity: 1 Pc.
72 — single-row angular contact ball bearing, ISO dimension series 02.
09 — bore code, 09 x 5 = 45 mm.
B — NSK 40° contact angle, the highest axial capacity of the standard angles.
Y — NSK pressed brass cage.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 19 mm. Contact Angle: 40°. Cage Material: Pressed brass. Closure Type: Open. Precision Class: ABEC 1 / P0. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Series: 7200. GTIN: 029176018770.
Envelope: 45 x 85 x 19 mm. Single-row angular contact bearings are mounted in opposed pairs or sets to locate a shaft in both directions.
Same envelope and 40° contact angle as SKF 7209 BECBY, NTN 7209B and Koyo 7209B. FAG 7209-B-XL-JP shares the envelope and angle with a steel cage.
40°, from the B in the designation.
A pressed brass cage, coded Y.
45 mm bore, 85 mm outside diameter, 19 mm width.
