Availability:
3 in stock

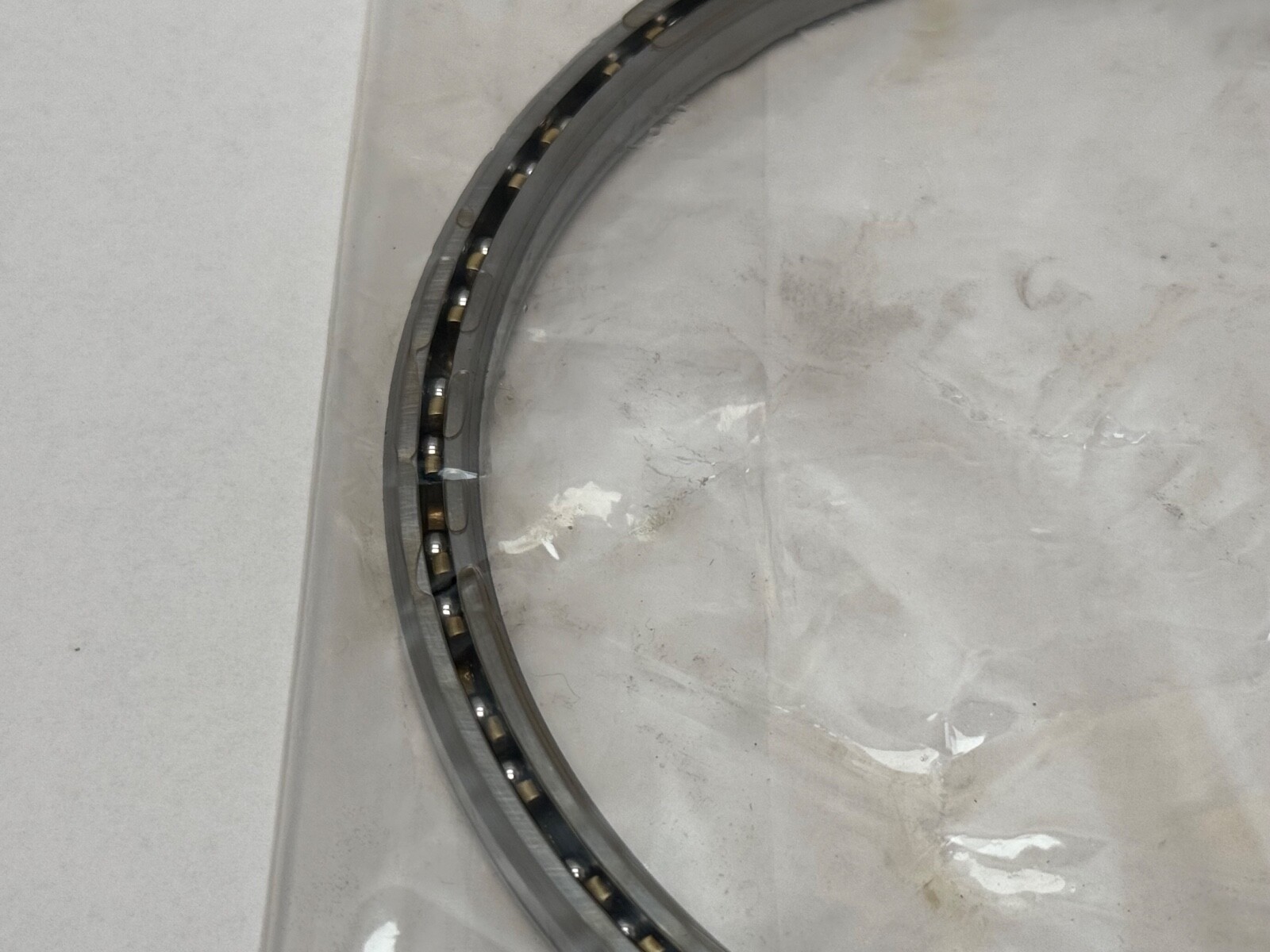

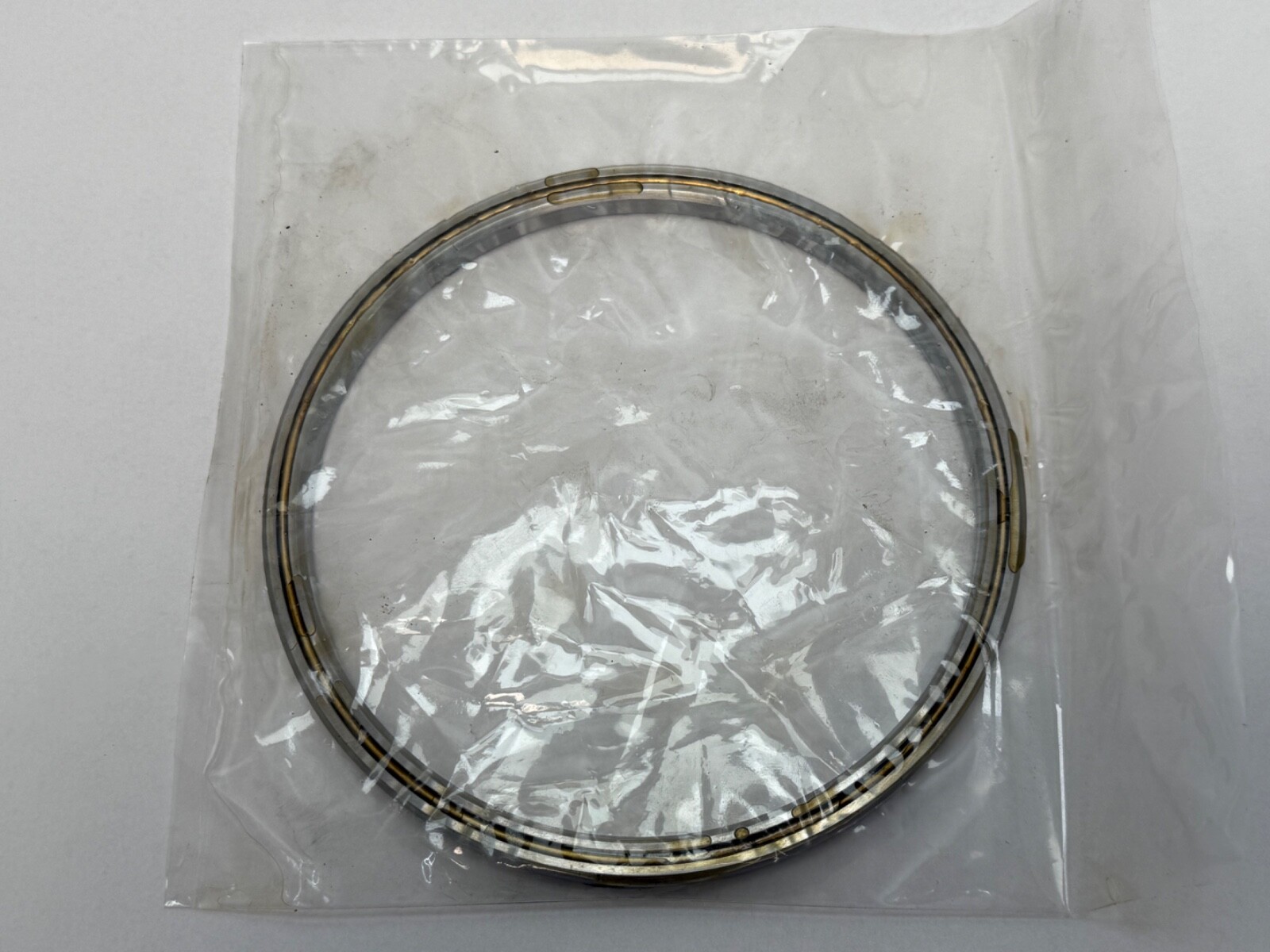

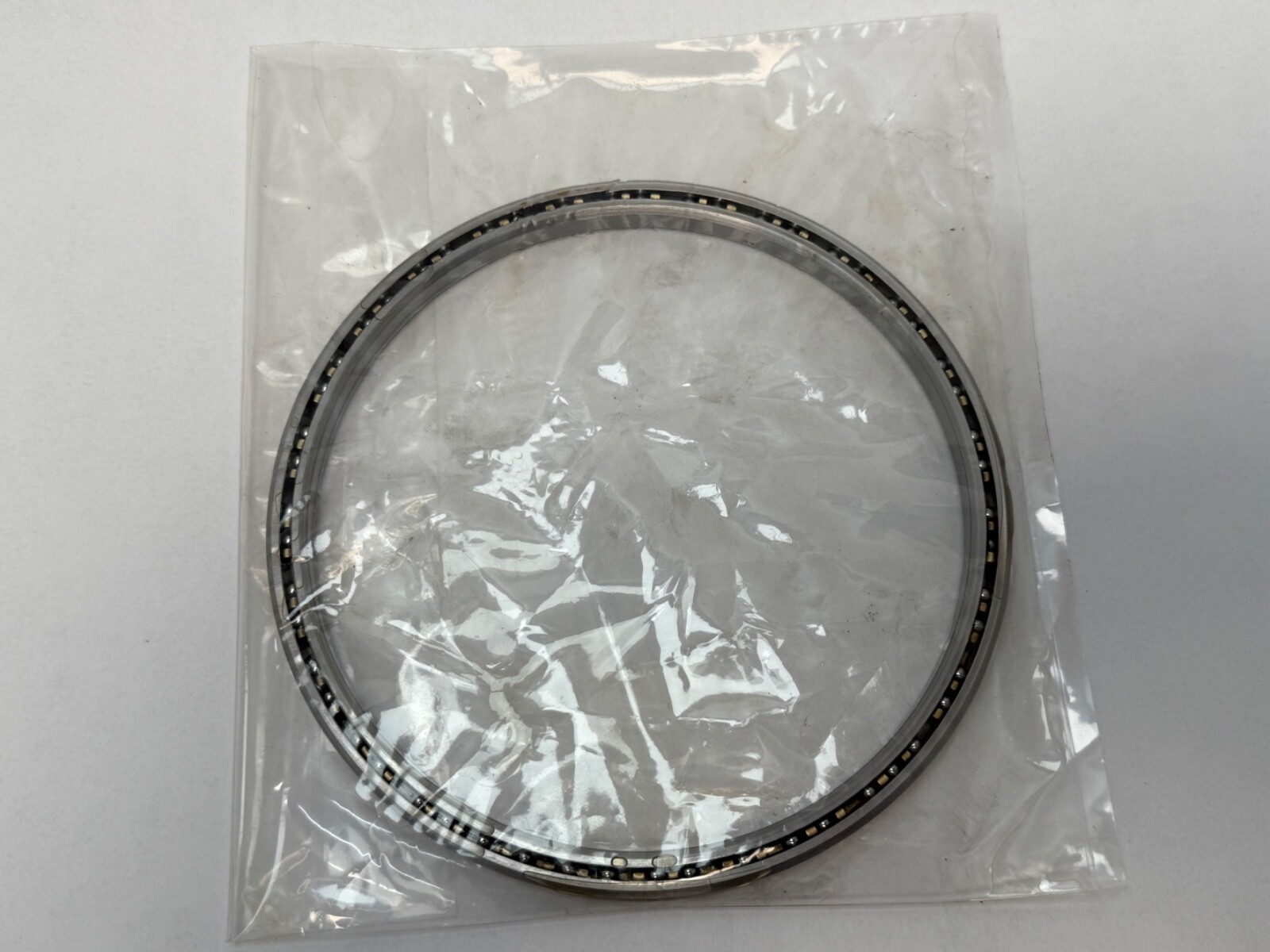

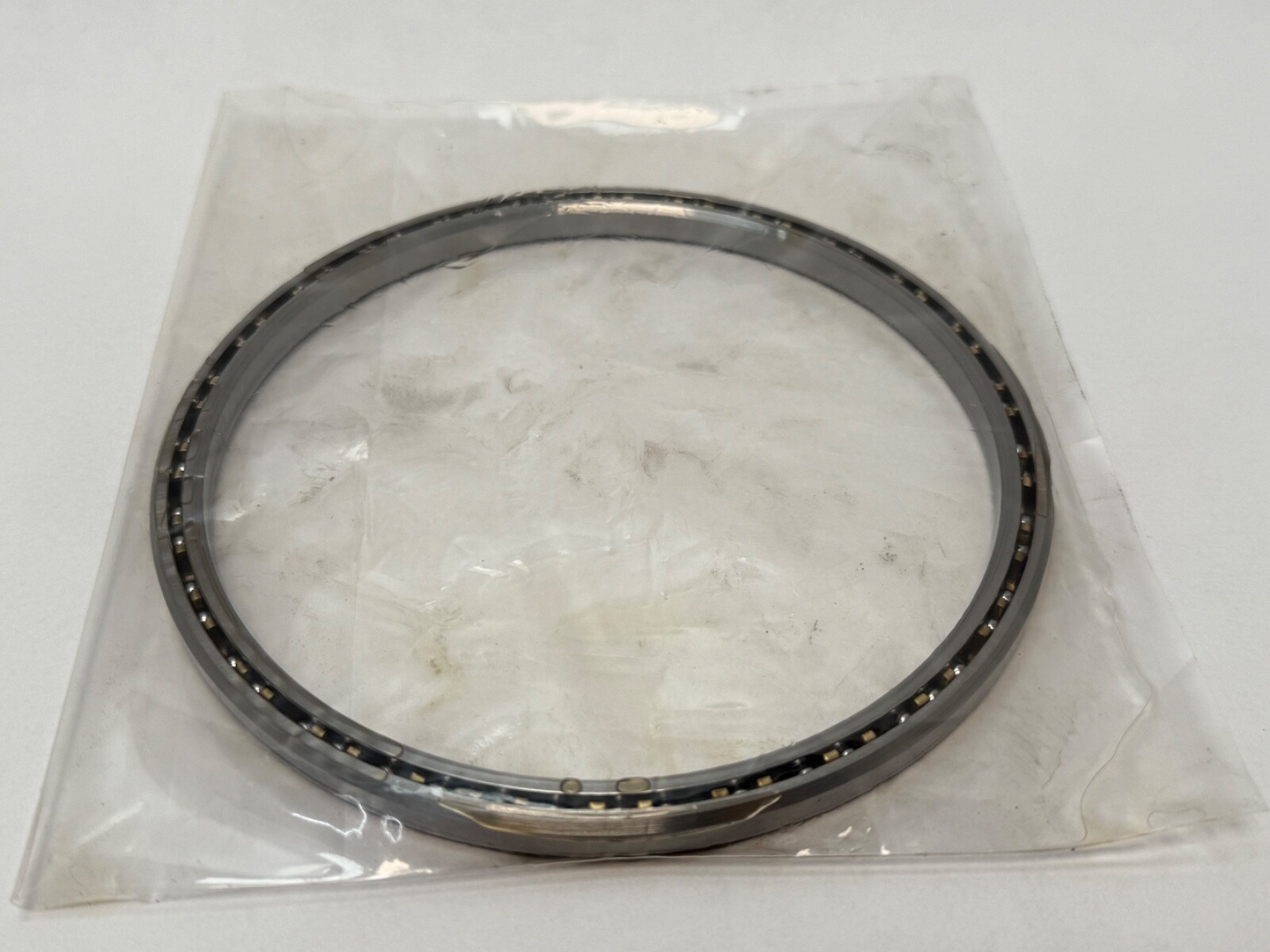

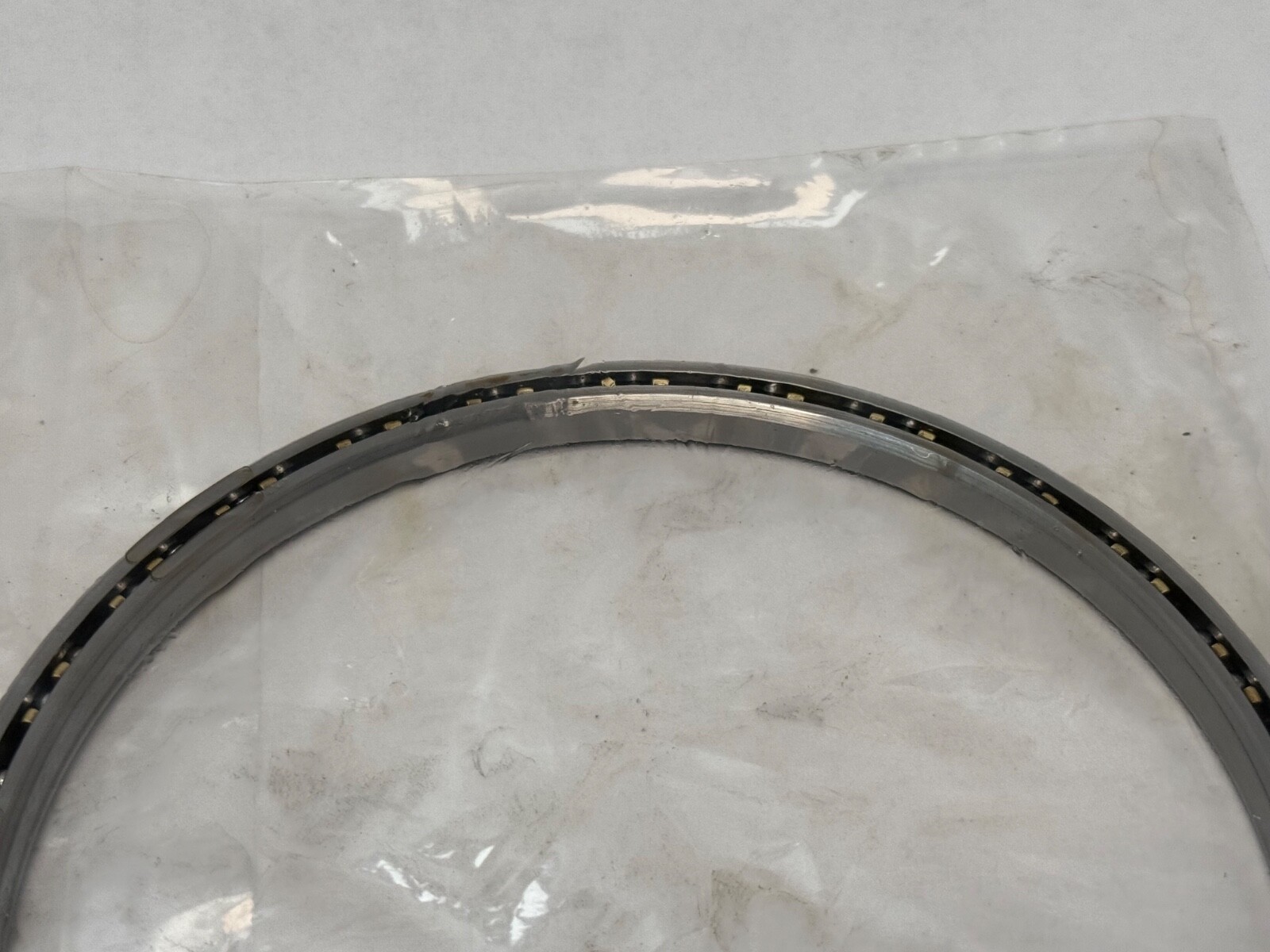

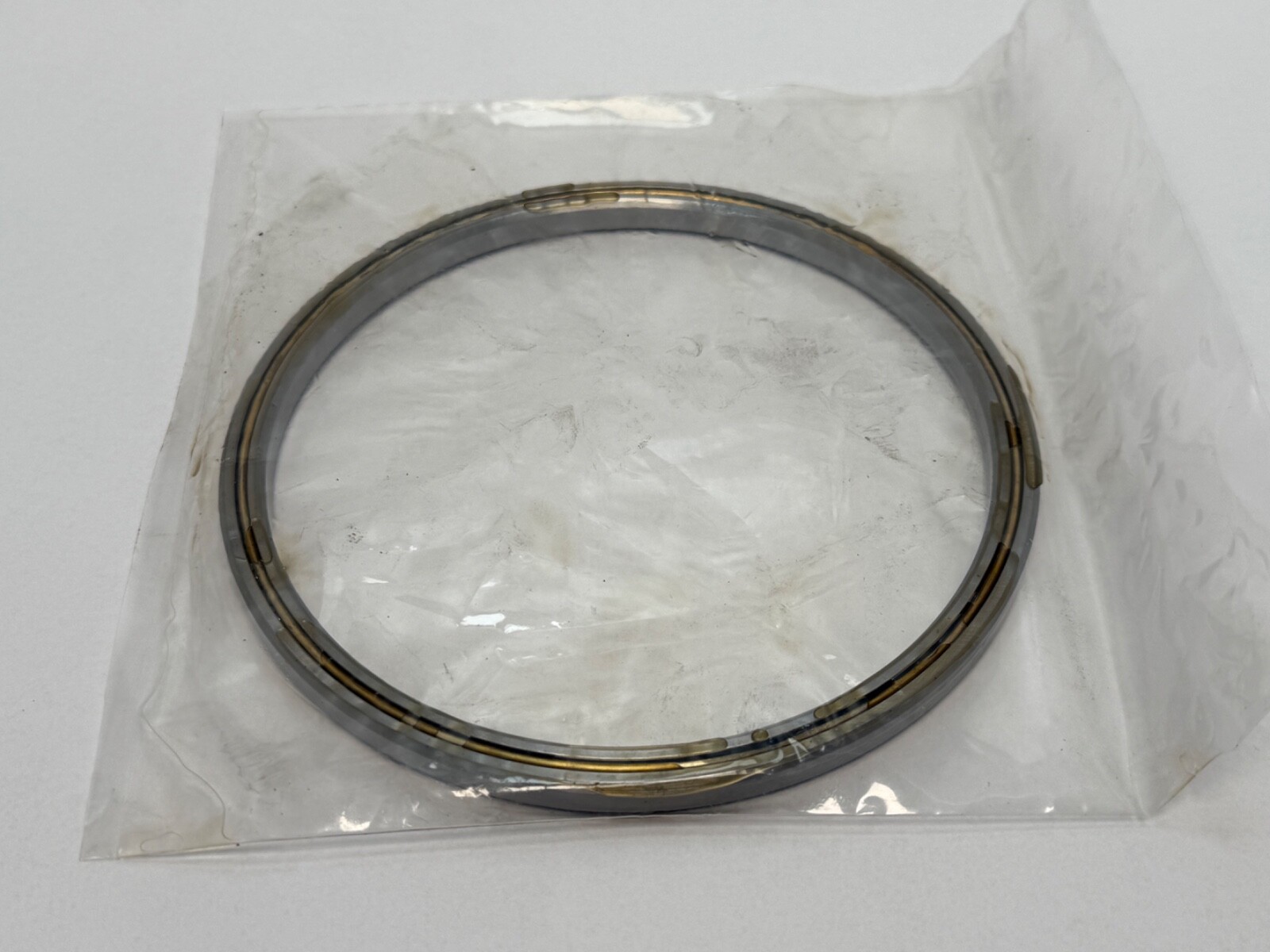

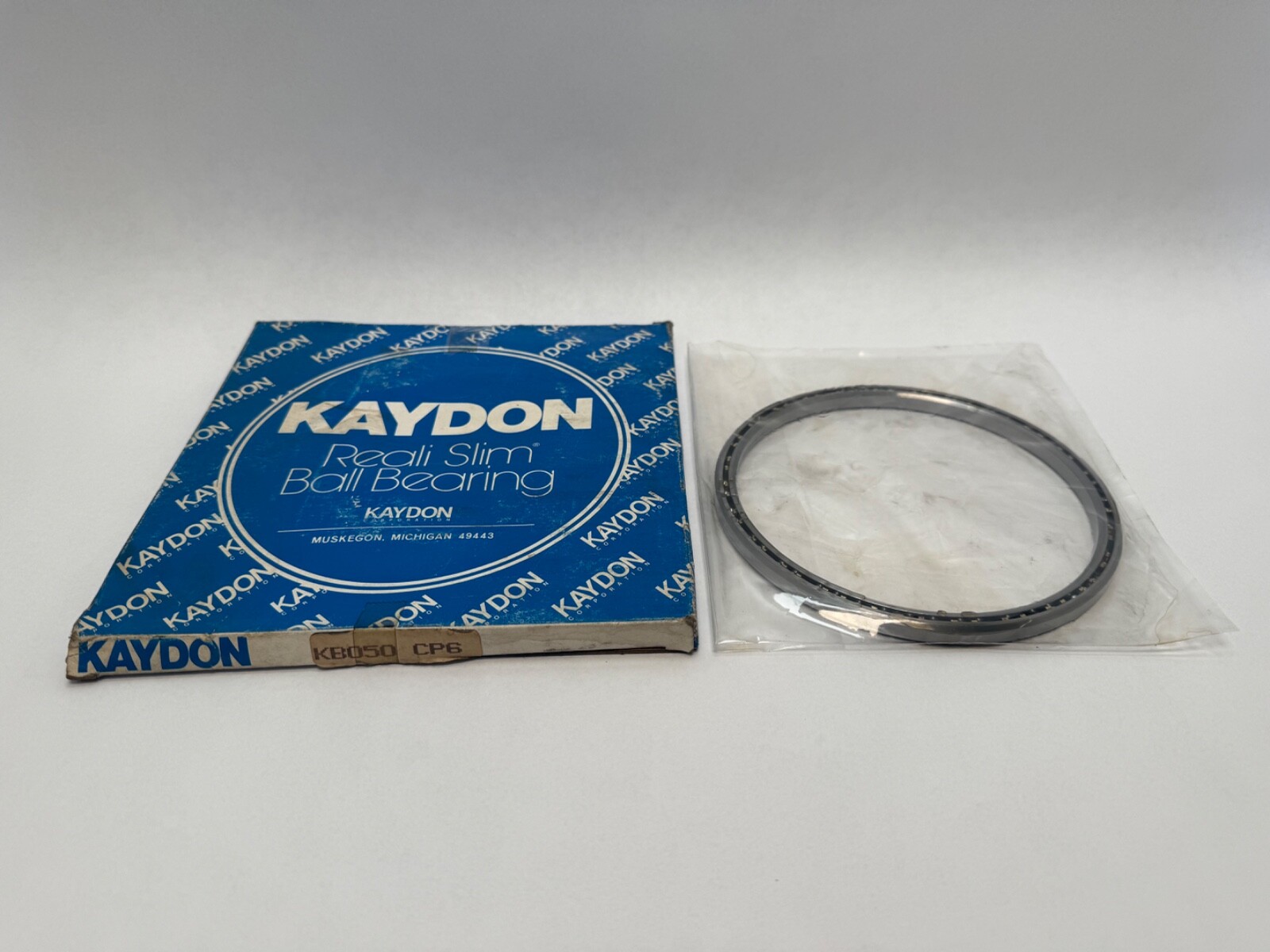

Thin section radial contact ball bearing, 5 x 5-5/8 x 5/16 in (127 x 142.9 x 7.9 mm), KB series, open, ABEC 7F precision. Kaydon Reali-Slim, 5/32 in balls.
List Price
$266.94
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Kaydon |
|---|---|
| MPN | KB050CP6 |

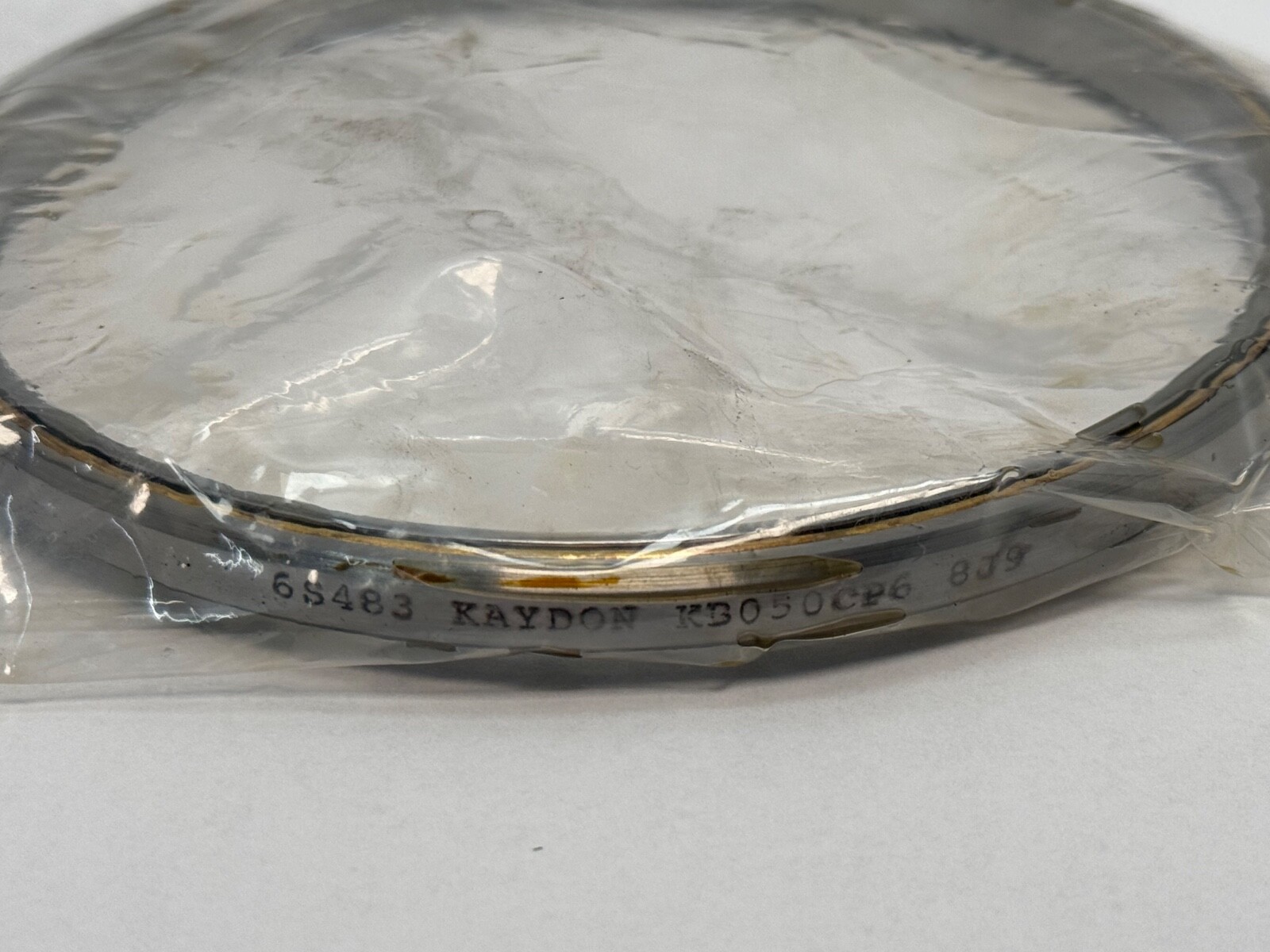

| Model | KB 050 CP6 8J9 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 5.0000 in (127.000 mm) |
| OD | 5.6250 in (142.875 mm) |
| Width | 0.3125 in (7.938 mm) |
| Mpn Variants | KB050CP6, KB050-CP6, KB 050 CP6, KB050 CP6 |
|---|---|
| Precision Class | ABEC 7F (Kaydon Class 6) |
| Material | AISI 52100 steel |
| Cage Type | Formed ring, snap-over |
| Dynamic Load Rating | 4,150 N (933 lbf) |
| Static Load Rating | 9,560 N (2,150 lbf) |
| Series | Reali-Slim KB (0.312 in section) |
| Item Weight | 0.17 kg (0.38 lb) |
| Bearing Material | AISI 52100 steel |
| Cross Reference 1 | RBC KB050CP6 |
|---|
Kaydon KB050CP6 is a Reali-Slim thin section radial contact ball bearing, KB series, open, in Kaydon precision class 6. Bore Diameter: 5.000 in (127.00 mm). Outside Diameter: 5.625 in (142.88 mm). Width: 0.3125 in (7.94 mm). Radial Section: 0.3125 in.
K — AISI 52100 bearing steel rings and balls, no seals or shields.
B — 0.312 x 0.312 in cross-section series.
050 — 5.0 in nominal bore.
C — radial contact (Conrad) type, for radial load with some thrust in either direction.
P — standard formed-ring snap-over separator.
6 — Kaydon precision class 6, per ABEC 7F.
Dynamic Load Rating: 4,150 N (933 lbf, Kaydon rating). ISO 281 Radial Dynamic Rating: 8,790 N (1,976 lbf). Static Load Rating: 9,560 N (2,150 lbf) radial. Precision Class: ABEC 7F. Rolling Elements: 5/32 in balls. The class 6 grade gives the tight runout needed for encoders, optical stages, rotary indexers and instrument gimbals.
Inner Land Diameter: 5.231 in. Outer Land Diameter: 5.393 in. Maximum Shaft or Housing Fillet Radius: 0.040 in. Item Weight: 0.17 kg (0.38 lb). Closure Type: Open.
Unit Quantity: 1 Pc.
Kaydon Reali-Slim is an SKF Group brand. The standard-precision version of the same envelope is Kaydon KB050CP0. RBC thin section numbering for the same radial contact bearing: RBC KB050CP6.
