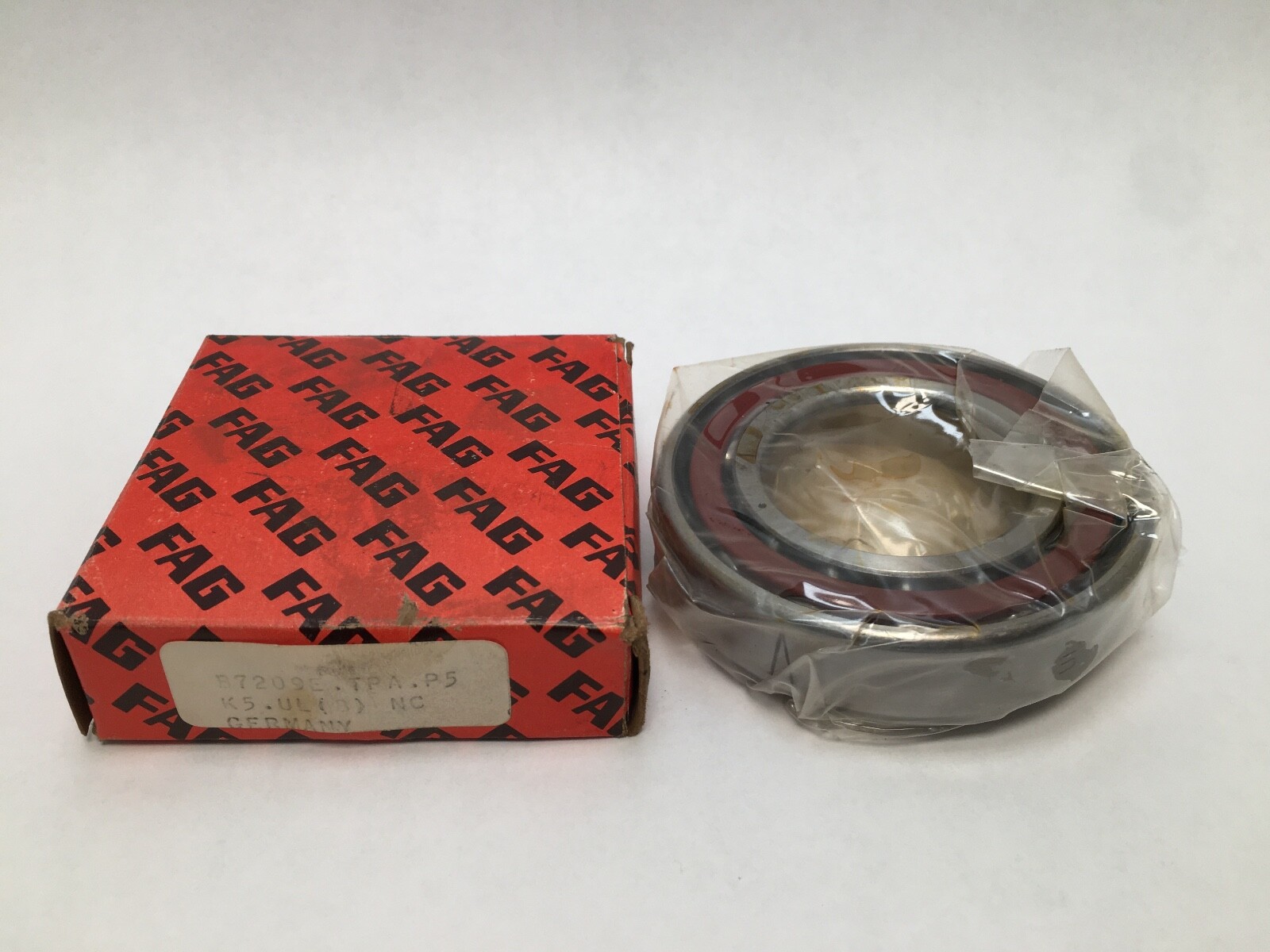

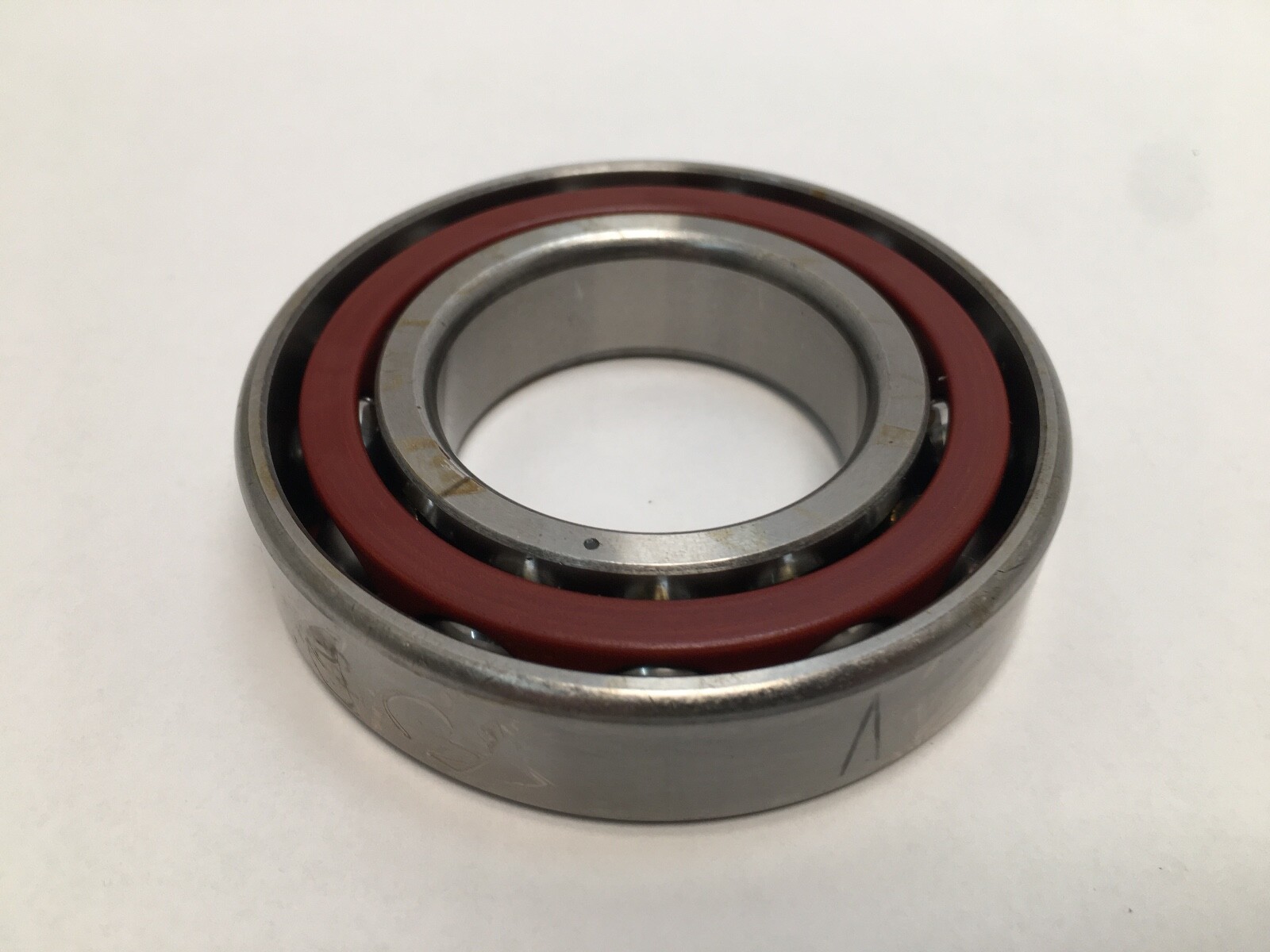

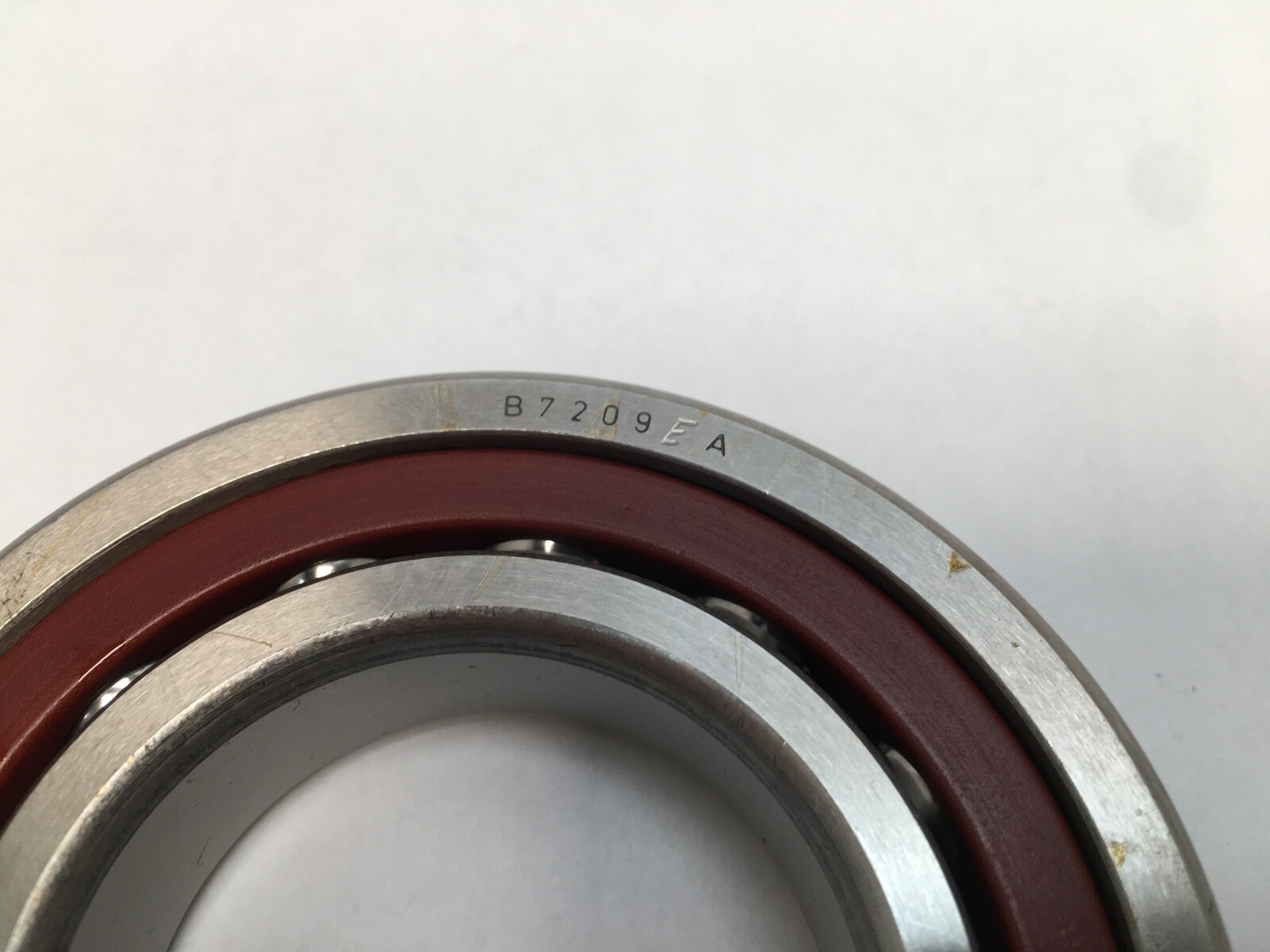

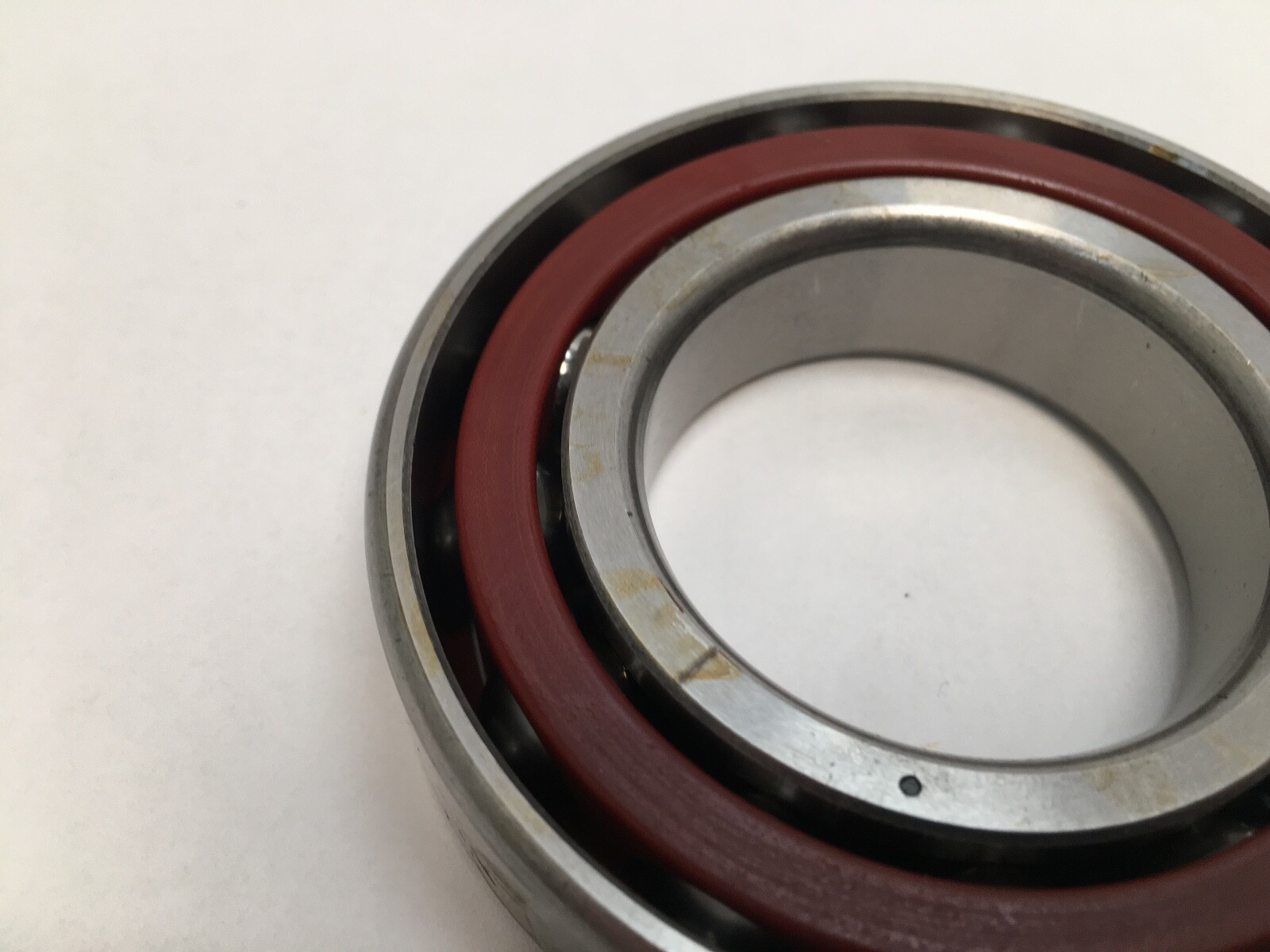

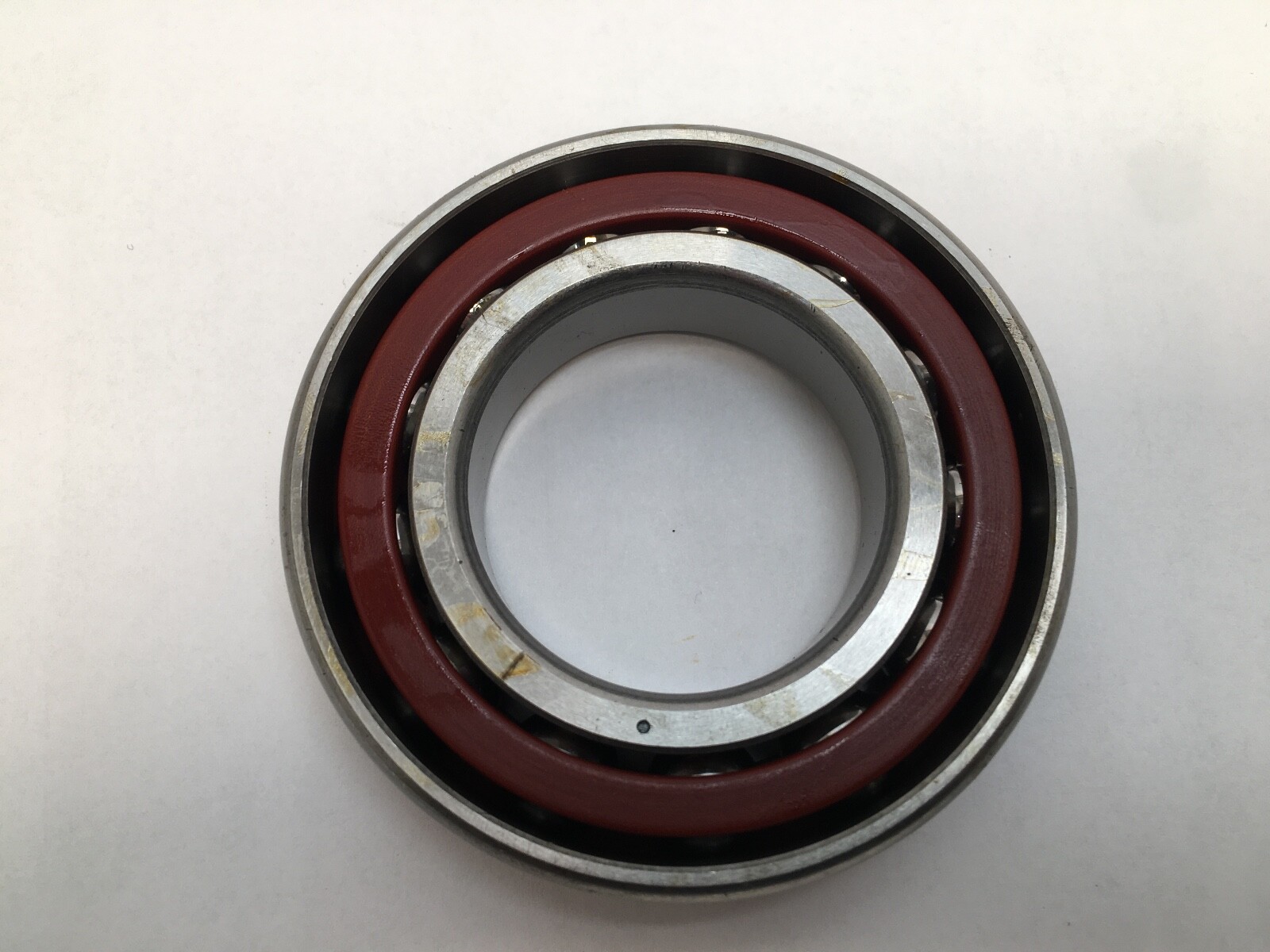

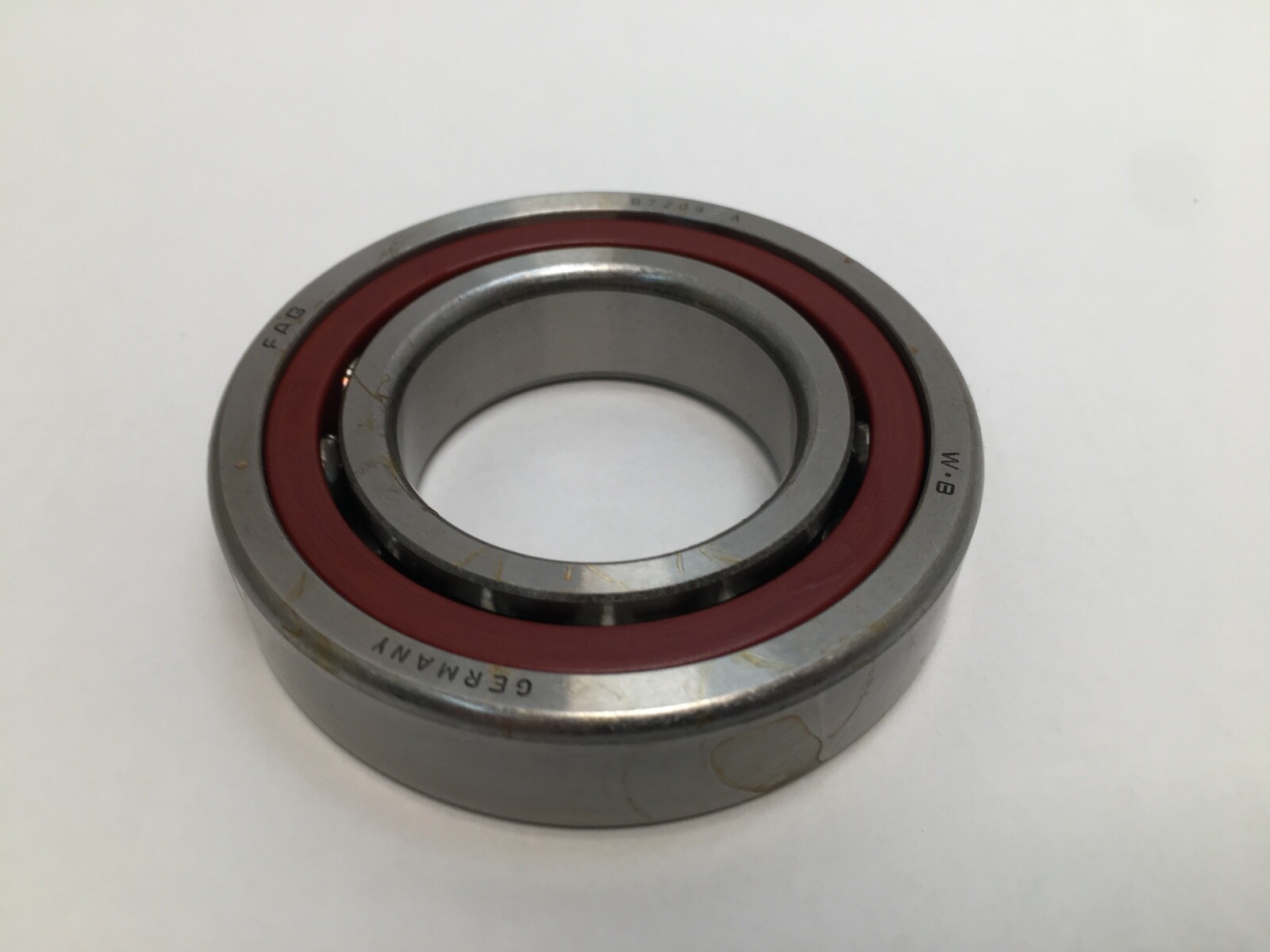

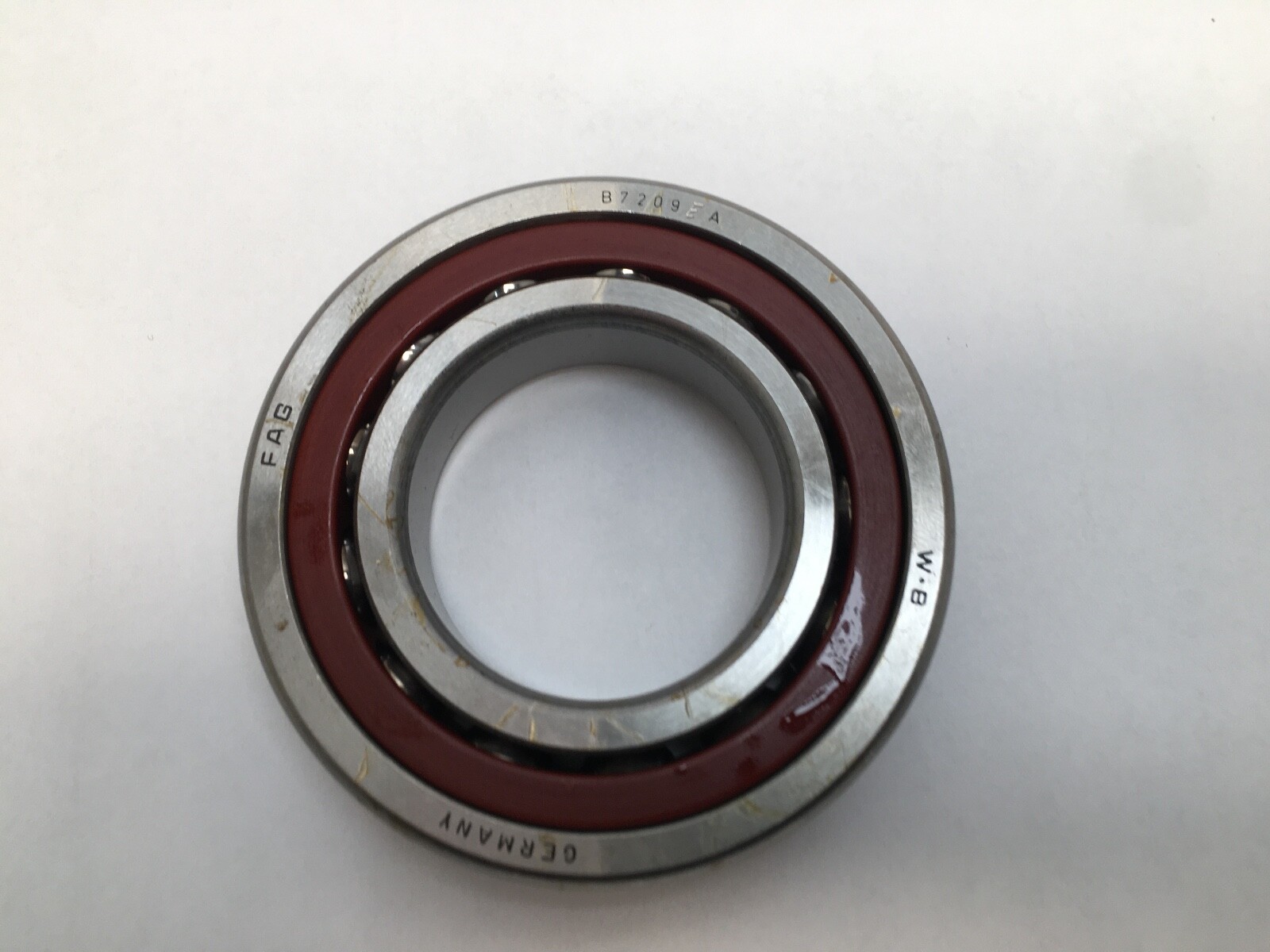

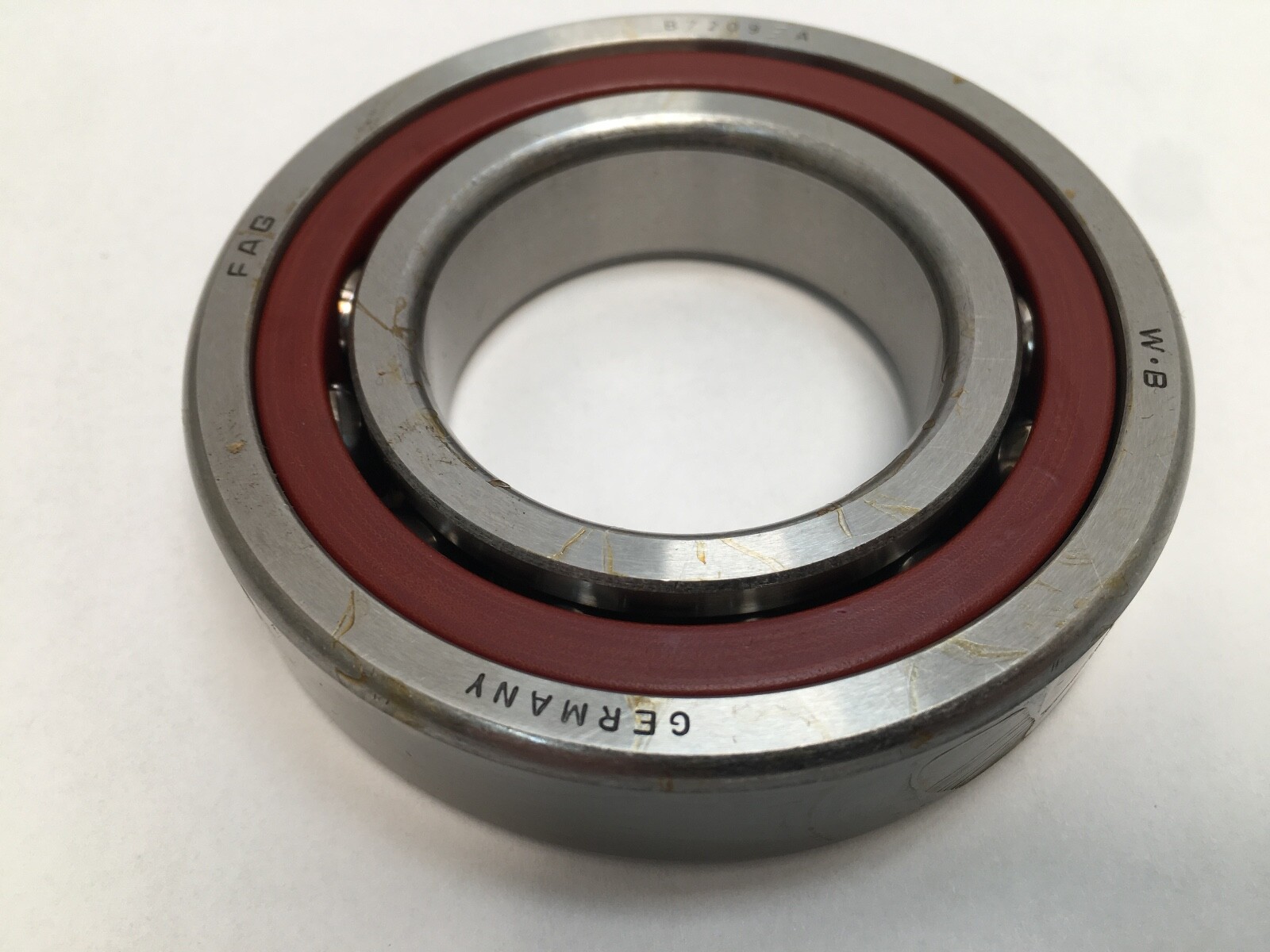

FAG B7209E.TPA.P5.K5.UL angular contact spindle bearing, 45 x 85 x 19 mm, 25° contact angle, phenolic cage, P5, universal light preload.
List Price
$116.42
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7209ETPAP5K5UL |
| Model | B7209-E-TPA-P5-K5-UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Series | 72 |
|---|---|
| Condition | New |
| Preload | Light (UL) |
| Min Temp | -30 °C |
| Dynamic Load Rating | 32,500 N |
| Static Load Rating | 16,900 N |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.408 kg (0.90 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Limiting Speed | 15,000 rpm grease; 24,000 rpm oil |
| Base Number | 7209 |
| Industry Terms | spindle bearing, angular contact ball bearing, 25 degree, universal matched, light preload, P5 |
| Common Misspellings | B7209 E TPA P5 K5 UL, B7209ETPA, 7209ETPA |
| Application Types | Machine tool spindles, grinding spindles, high-speed motor spindles |
| Overall Width | 19 mm |
| Mpn Variants | B7209-E-TPA-P5-K5-UL, B7209E.TPA.P5.K5.UL, B7209ETPAP5K5UL, B7209E, 7209E |
| Compatible With Replaces | Successor: FAG B7209-E-T-P4S-UL |
| Precision Class | ABEC 5 / P5 |
| Additional Attributes | Successor B7209-E-T-P4S-UL data (load ratings, speeds, weight, temperature, preload and mounting rows): preload force light 268 N; axial rigidity light 121 N/µm; lift-off force light 782 N; shaft shoulder 52.5 mm; outer ring shoulder 78 mm; injection pitch 58.5-62.2 mm; pressure cone apex distance 24.7 mm |
| Cross Reference 1 | SKF 7209 ACD |
|---|---|
| Cross Reference 2 | NSK 7209A5 |
| Cross Reference 3 | Fafnir 3MM209WI |
FAG B7209E.TPA.P5.K5.UL (B7209-E-TPA-P5-K5-UL) is a single-row angular contact spindle bearing, universally matchable with light preload. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 19 mm. Contact Angle: 25°. Cage Material: Phenolic. Precision Class: ABEC 5 / P5. Closure Type: Open.
B72 — FAG spindle bearing, ISO dimension series 02 (72xx).
09 — bore code, 45 mm.
E — 25° contact angle.
TPA — fabric-base laminate phenolic cage.
P5 — ISO tolerance class P5 (ABEC 5).
UL — universal design for mounting in any arrangement: Light preload.
Successor B7209-E-T-P4S-UL data: Dynamic Load Rating: 32,500 N. Static Load Rating: 16,900 N. Limiting Speed: 15,000 rpm grease; 24,000 rpm oil. Item Weight: 0.408 kg (0.90 lb). Preload force, light: 268 N. Axial rigidity, light: 121 N/µm. Lift-off force, light: 782 N. Operating temperature range: −30 to 100 °C. The 25° angle gives higher axial stiffness and axial load capacity than a 15° spindle bearing.
Successor B7209-E-T-P4S-UL data: Shaft shoulder diameter: 52.5 mm. Outer ring shoulder diameter: 78 mm. Maximum fillet radius: 1 mm. Minimum chamfer: 1.1 mm. Lubrication injection pitch diameter: 58.5 to 62.2 mm. Pressure cone apex distance: 24.7 mm.
Unit Quantity: 1 Pc. Single universal bearing for DB, DF or DT sets.
Current Schaeffler equivalent: FAG B7209-E-T-P4S-UL. Same-envelope 25° equivalents: SKF 7209 ACD, NSK 7209A5, Fafnir 3MM209WI. Precision class and preload vary by the maker’s suffix.
