FAGB7016CBTPAP4ULSpindle Bearing — 80 mm ID, 125 mm OD, 22 mm Width, 15° Contact Angle, Light Preload, ABEC 7 / P4

Product Description

What this part is

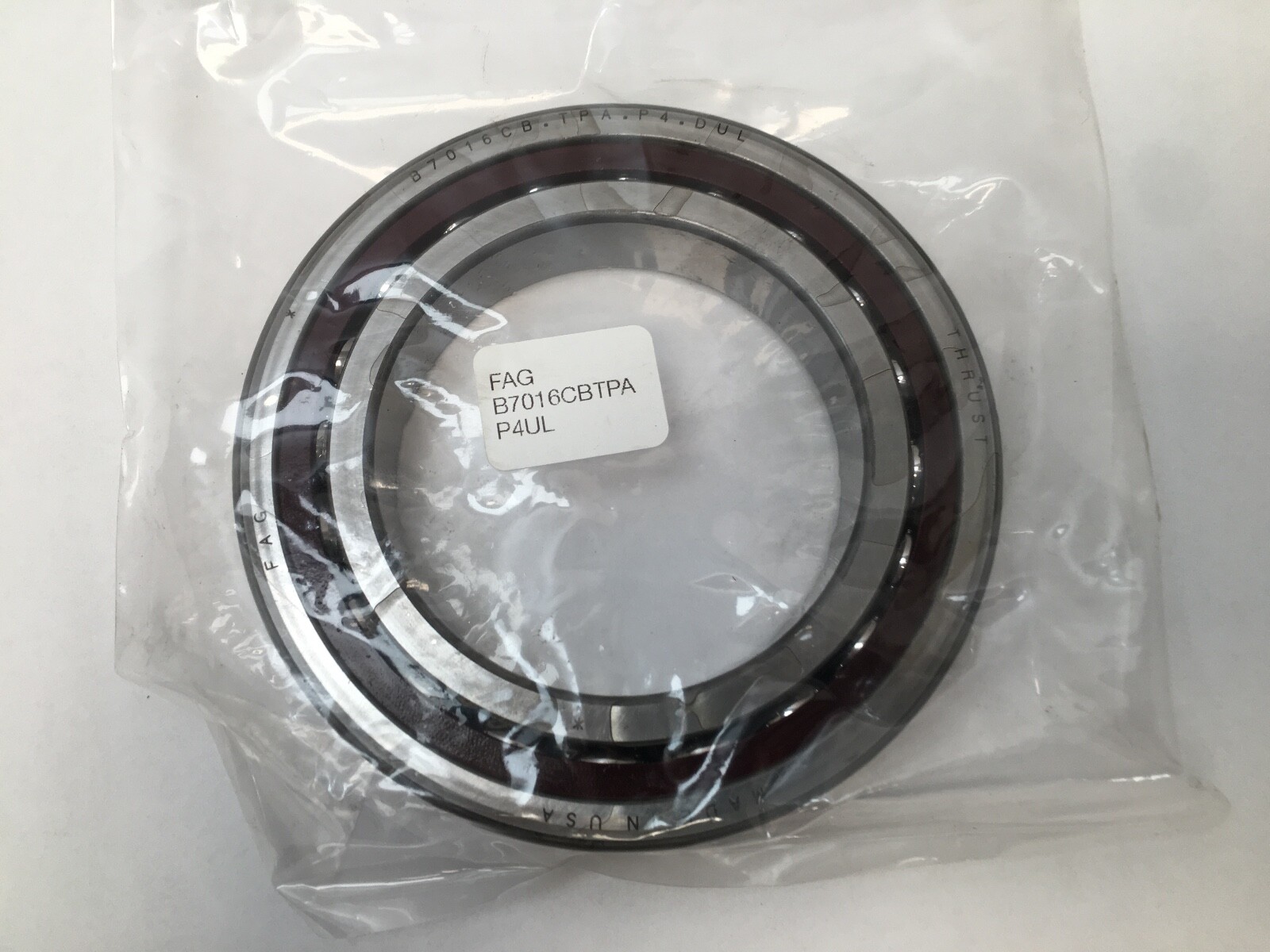

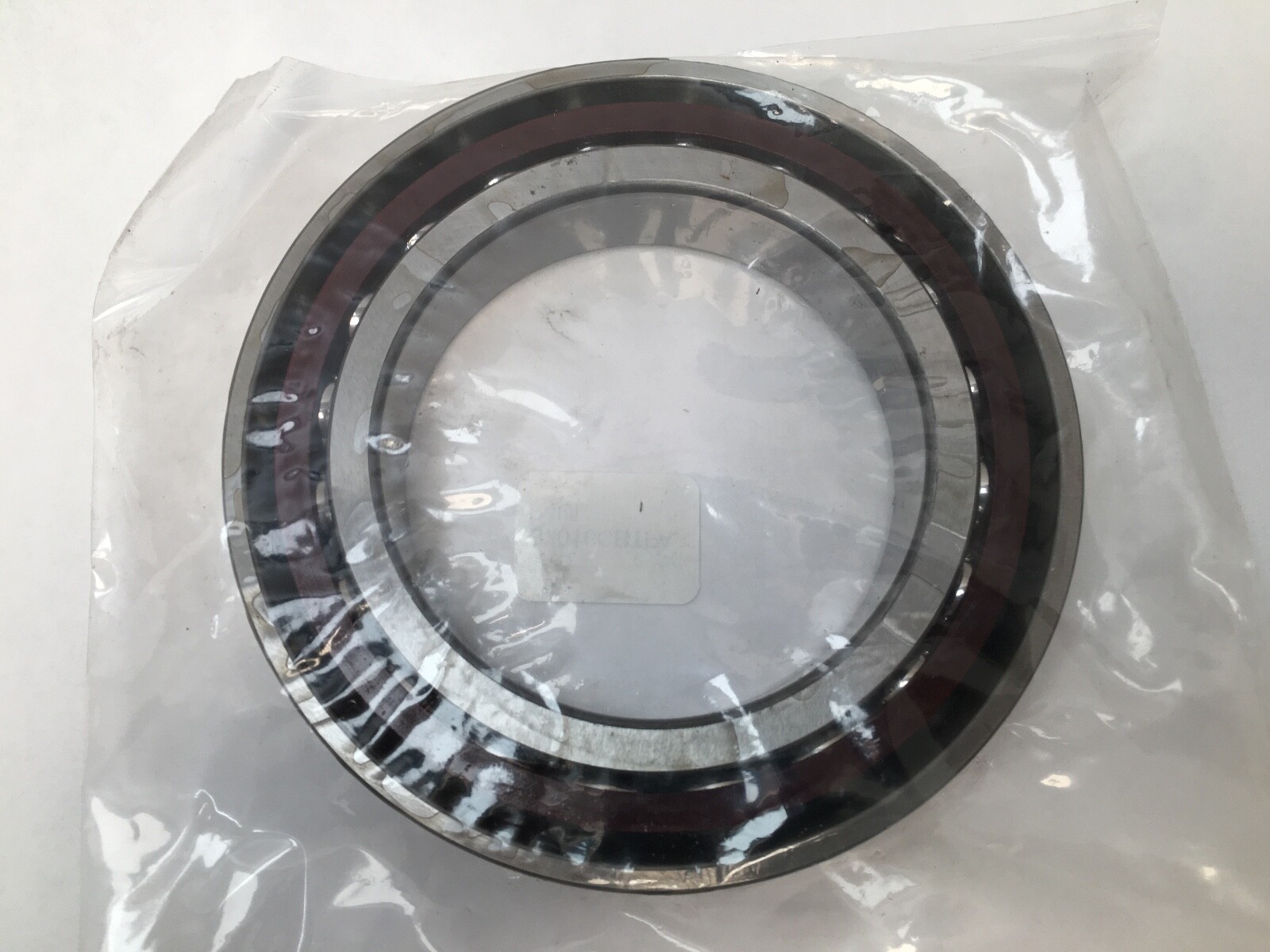

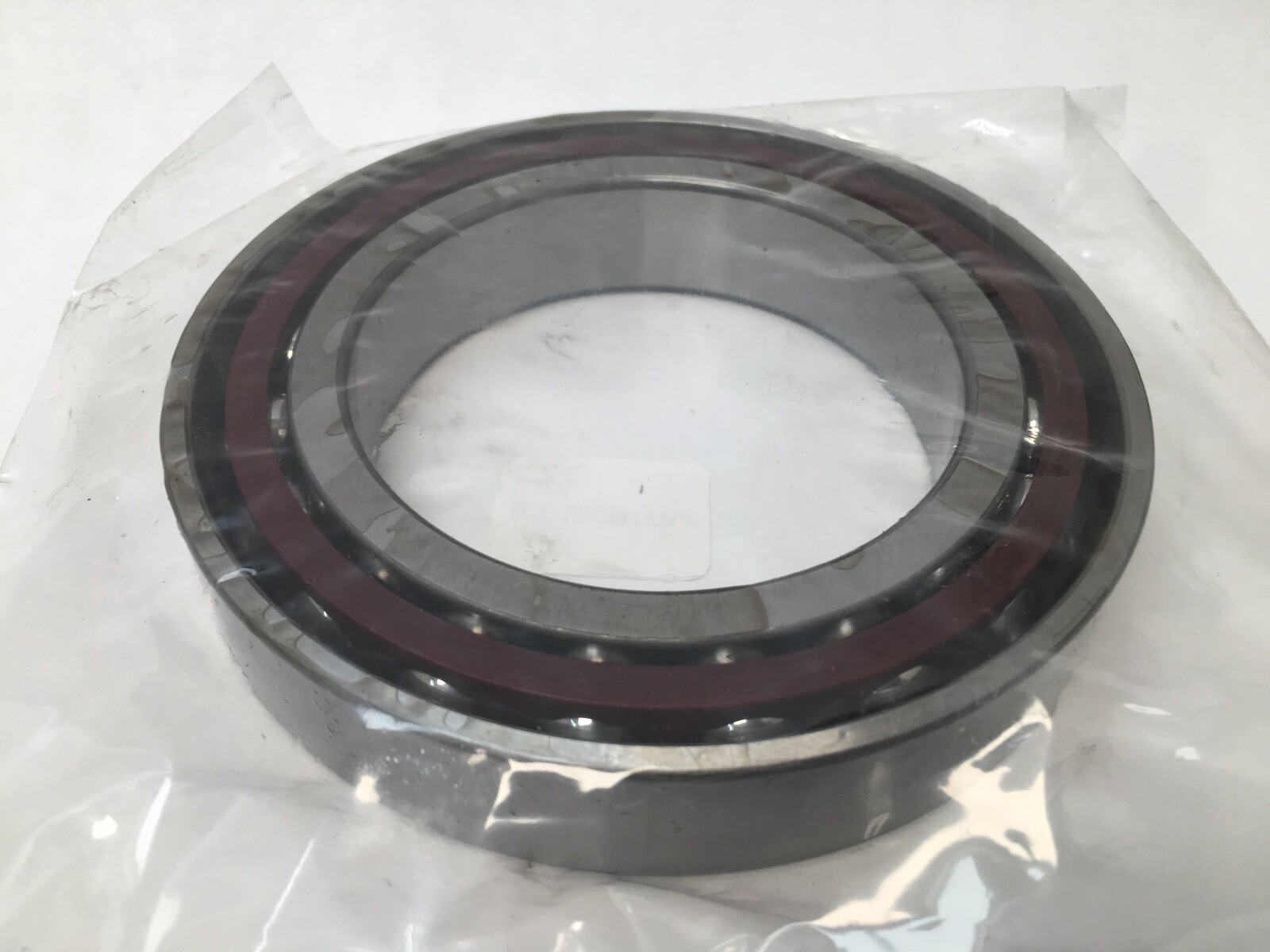

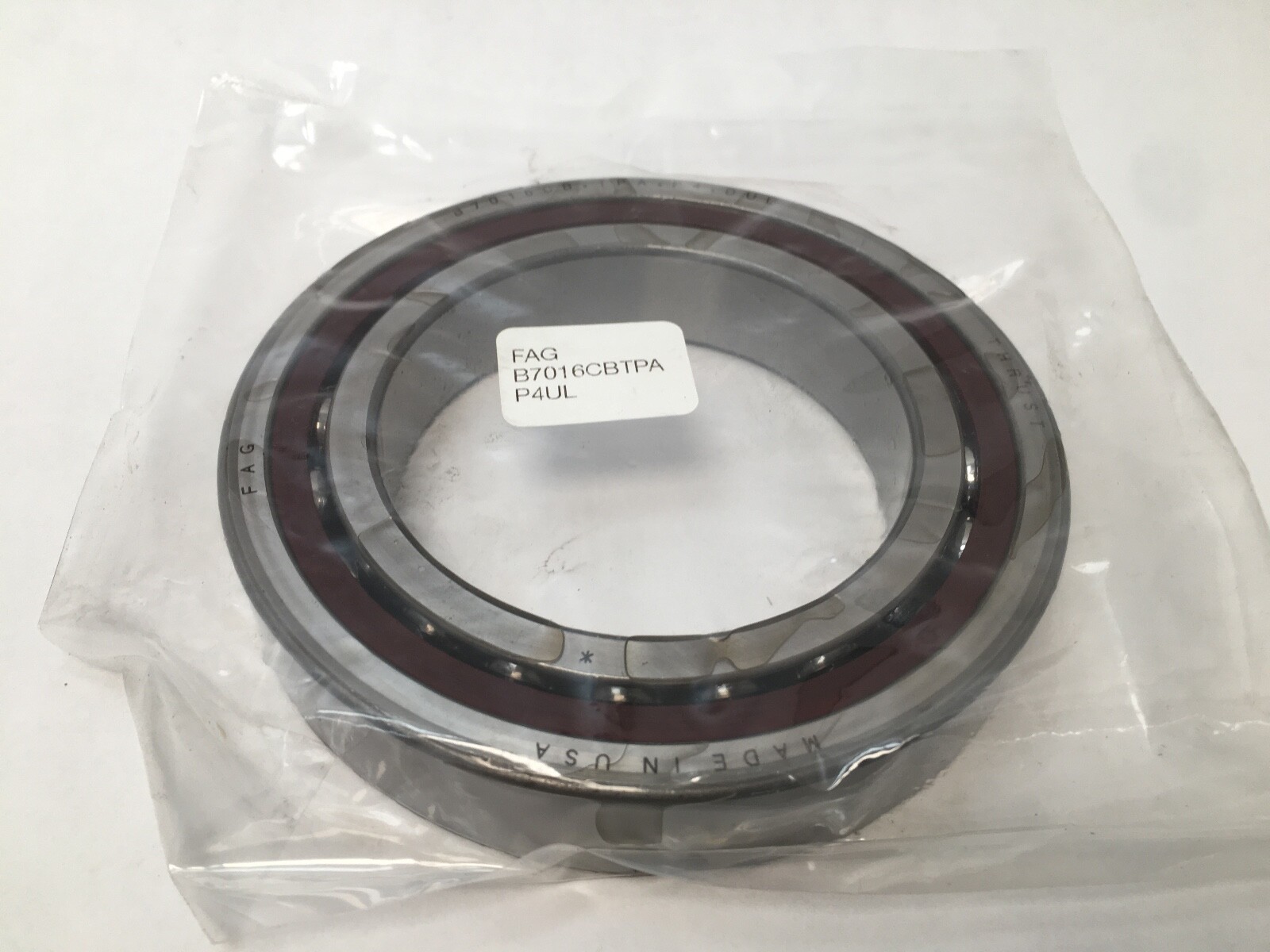

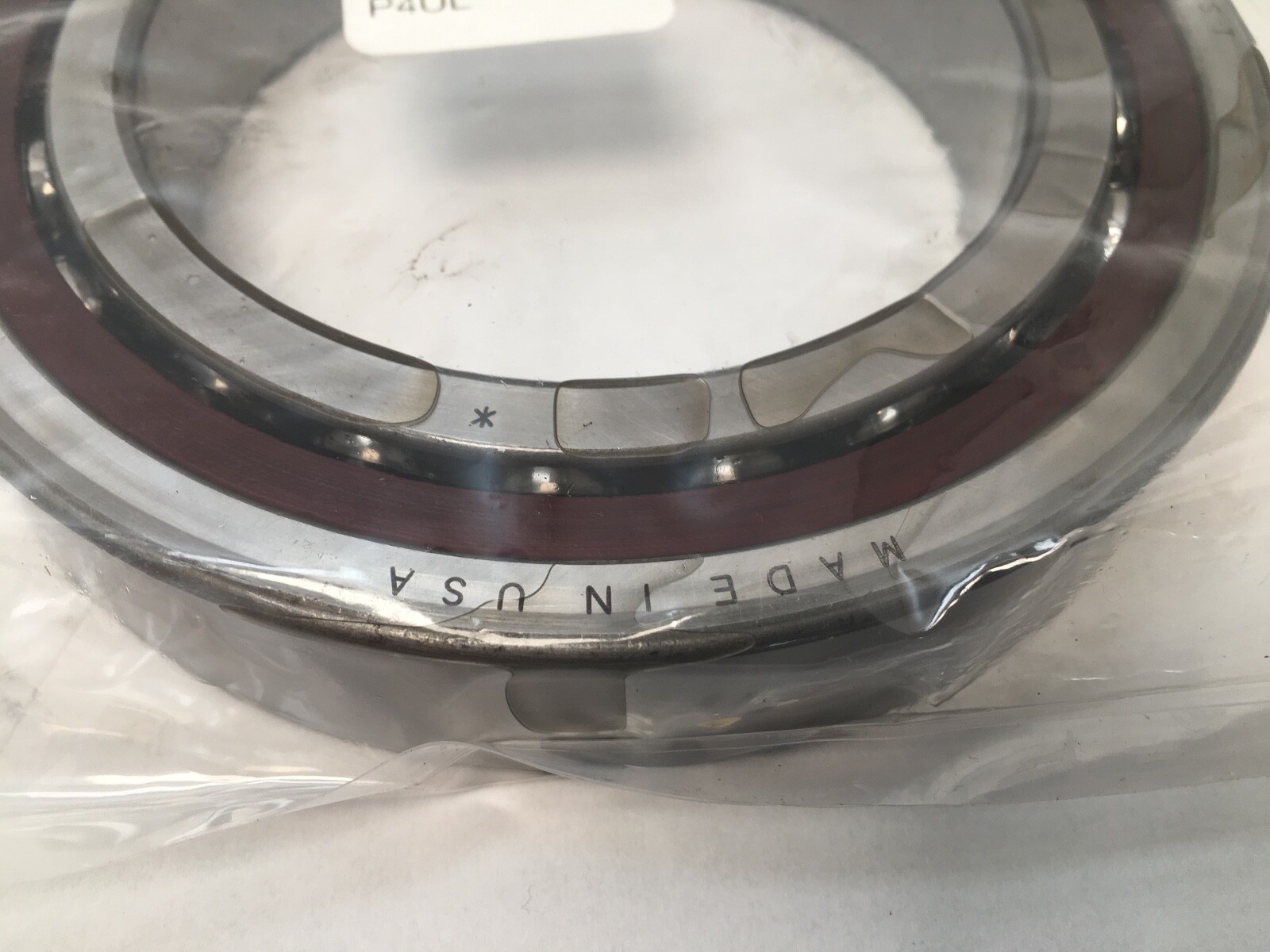

FAG B7016CB.TPA.P4.UL super-precision spindle bearing (angular contact ball bearing), universal ground for light preload. Bore Diameter: 80 mm. Outside Diameter: 125 mm. Overall Width: 22 mm. Contact Angle: 15°. Preload: Light (354 N). Precision Class: ABEC 7 / P4. Current Schaeffler designation: B7016-C-T-P4S-UL.

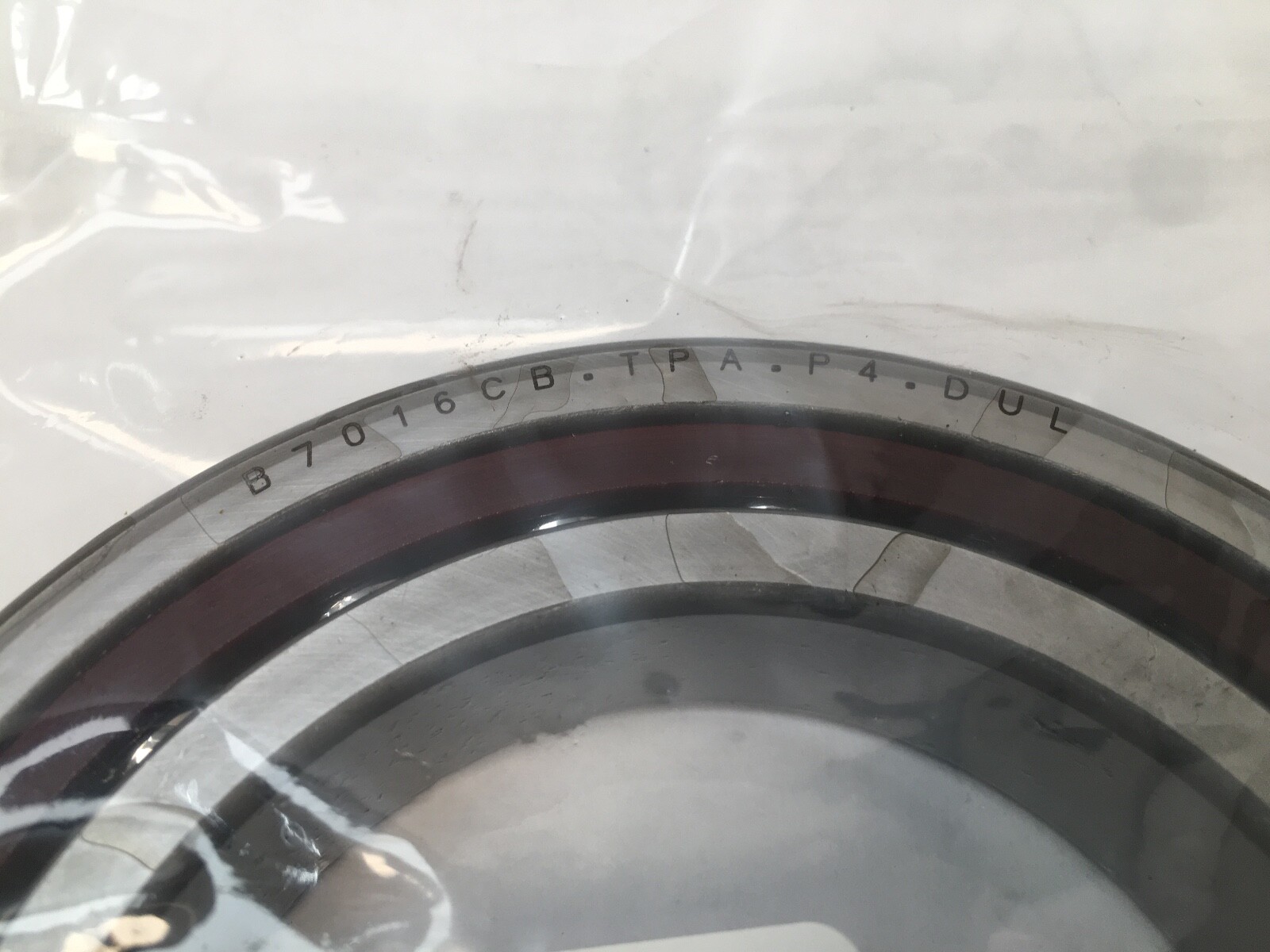

Decoding the designation

B70 — FAG spindle bearing, ISO dimension series 10.

16 — bore code, 16 x 5 = 80 mm.

C — 15° contact angle, for high speed and radial stiffness.

TPA — fabric-base laminated phenolic cage.

P4 — ISO tolerance class P4, equivalent to ABEC 7.

UL — universal design, light preload when mounted in any O, X or tandem arrangement.

What these specs mean in practice

Dynamic load rating: 64,000 N. Static load rating: 41,000 N. Fatigue load limit: 4,300 N. Limiting Speed: 11,000 rpm grease; 17,000 rpm oil. Preload force, light: 354 N; lift-off force 1,091 N; axial rigidity 86 N/µm. Medium preload for the same size: 1,138 N; heavy: 2,277 N. Operating temperature: −30 °C to +100 °C. Item weight: 0.84 kg (1.85 lb).

Mounting data

Pressure cone apex distance: 24.7 mm. Minimum chamfer: 1.1 mm. Maximum fillet radius: 1 mm; maximum recess radius: 0.6 mm. Shaft shoulder diameter: 88 mm (h12). Housing shoulder diameter: 117 mm (H12). Oil injection pitch diameter: 94 to 98.8 mm.

Interchange guidance

Cross-references at 80 x 125 x 22 mm, 15°, P4, light preload: SKF 7016 CD/P4A (DGB light preload), NSK 7016CTRSULP4, Timken Fafnir 2MM9116WICRSUL, NTN 7016UCG/GLP4, RHP 7016CTSULP4. Schaeffler lists B7016C.TPA.P4.UL as a former designation of B7016-C-T-P4S-UL.
