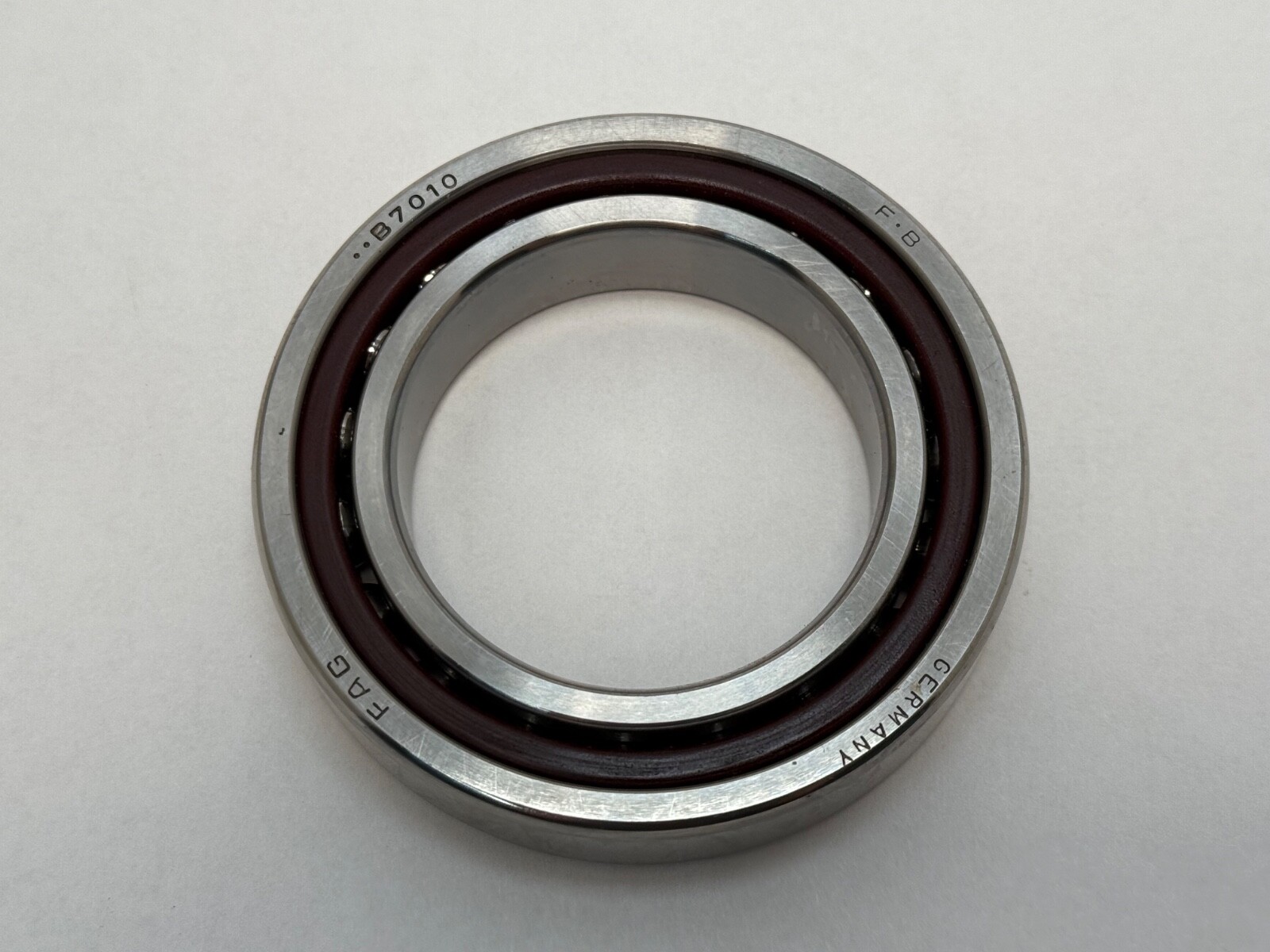

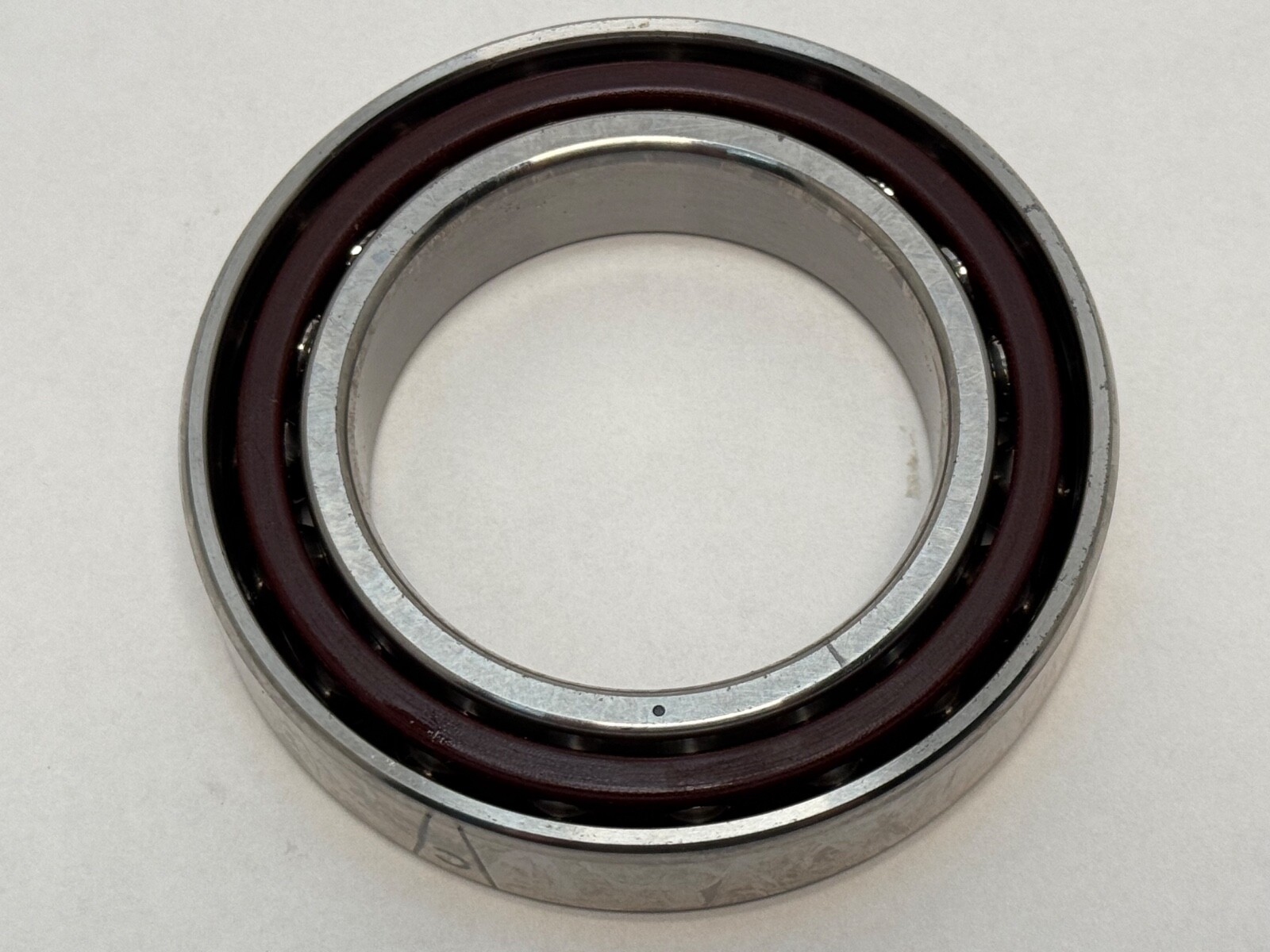

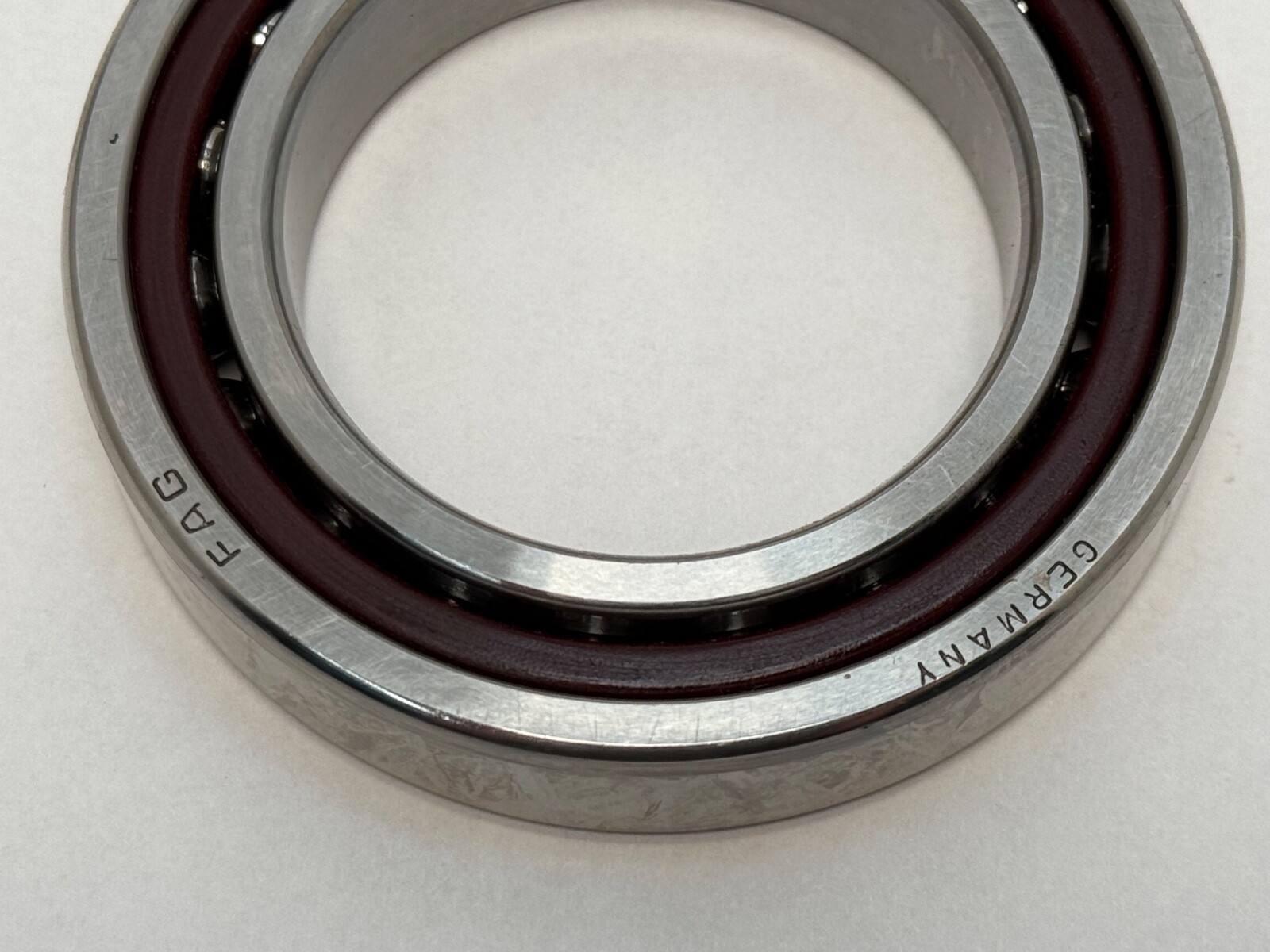

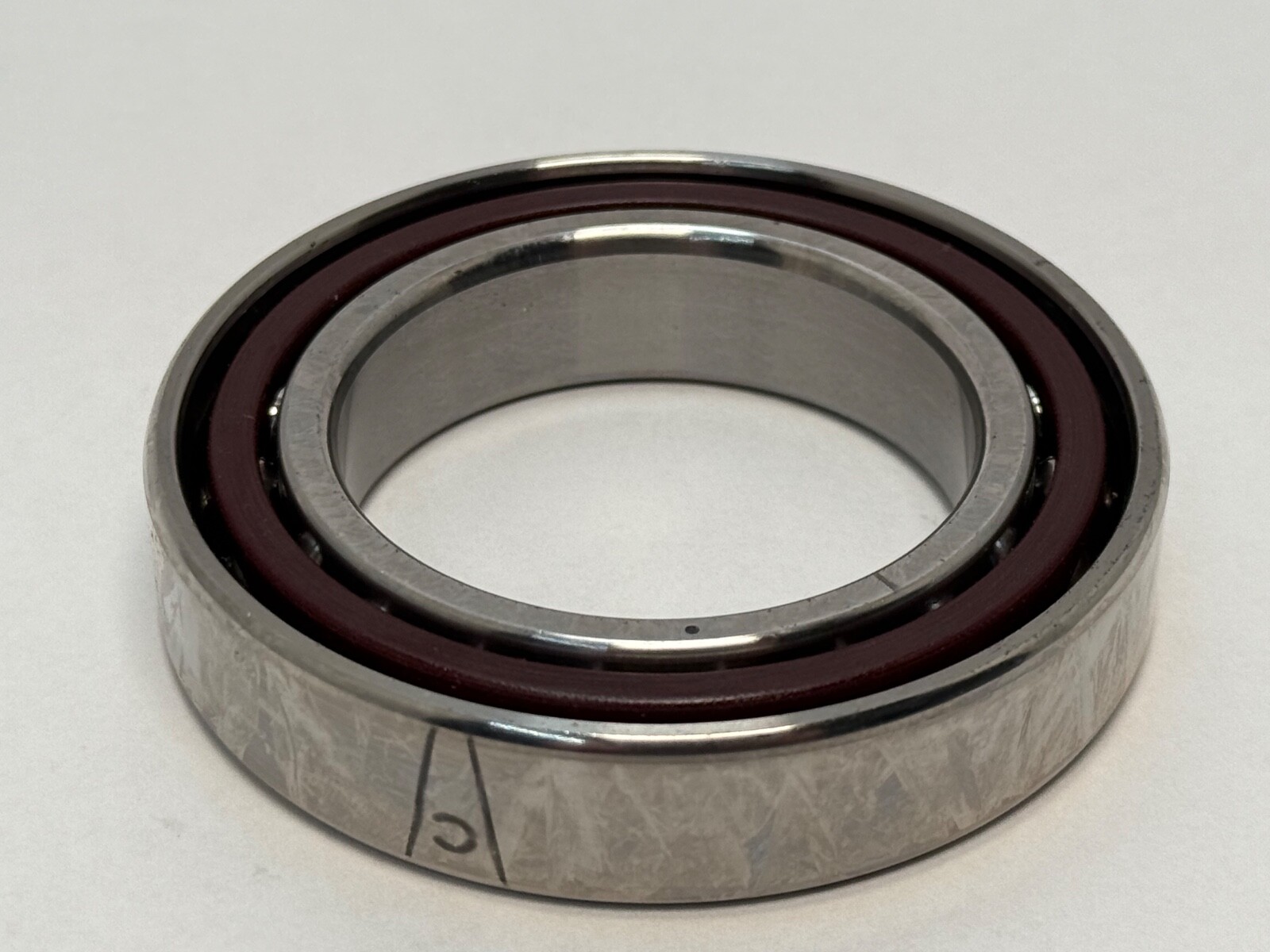

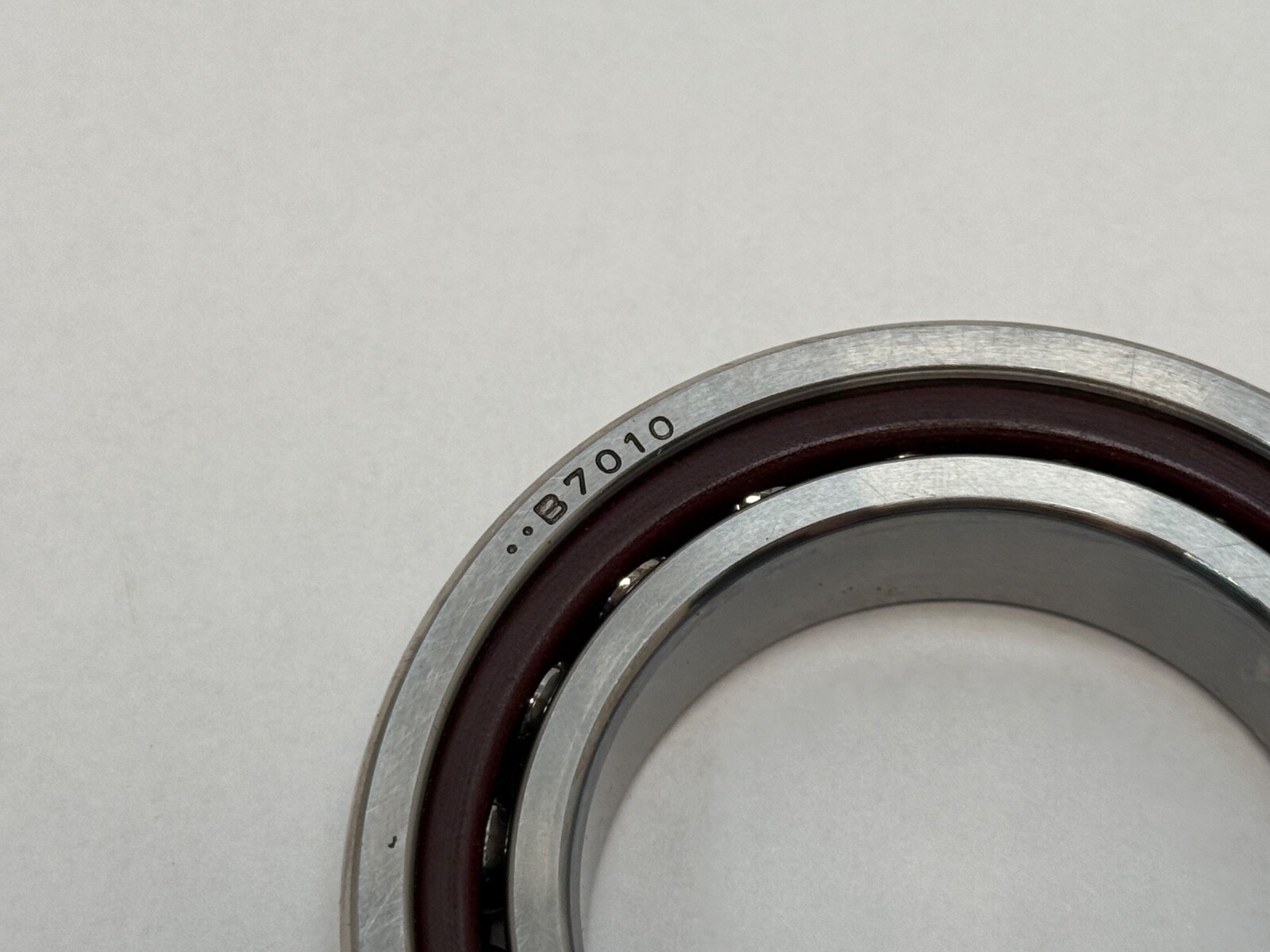

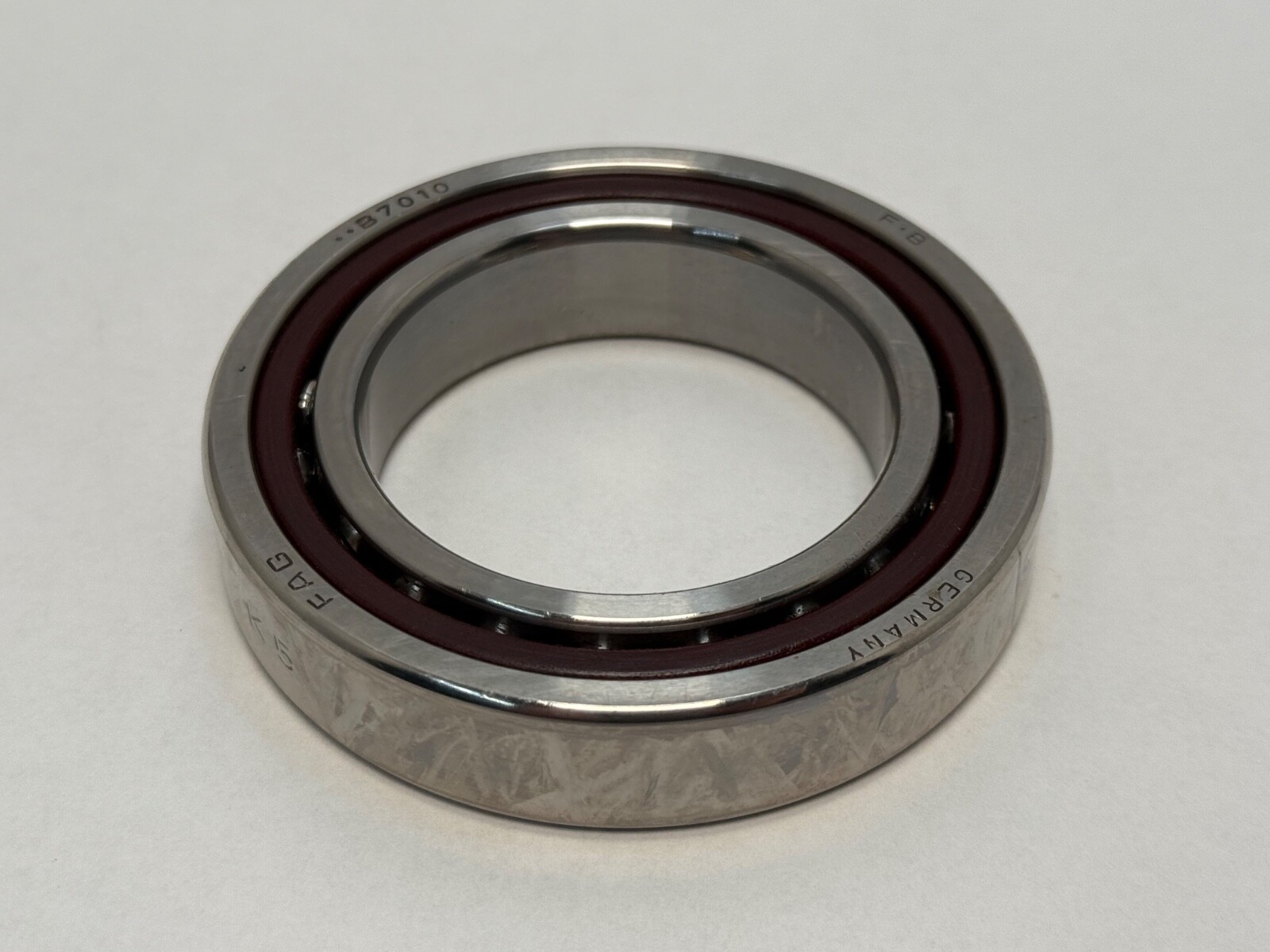

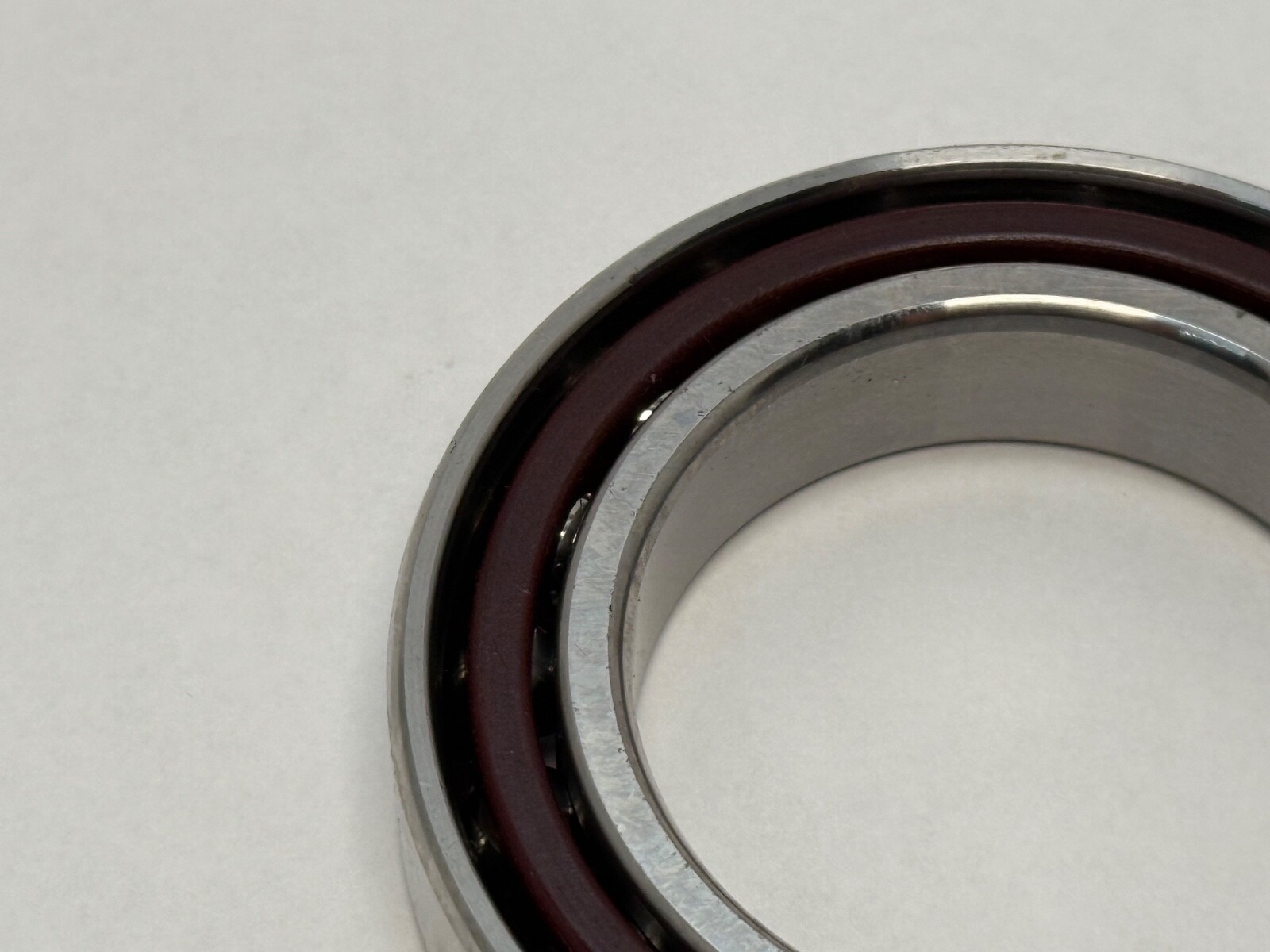

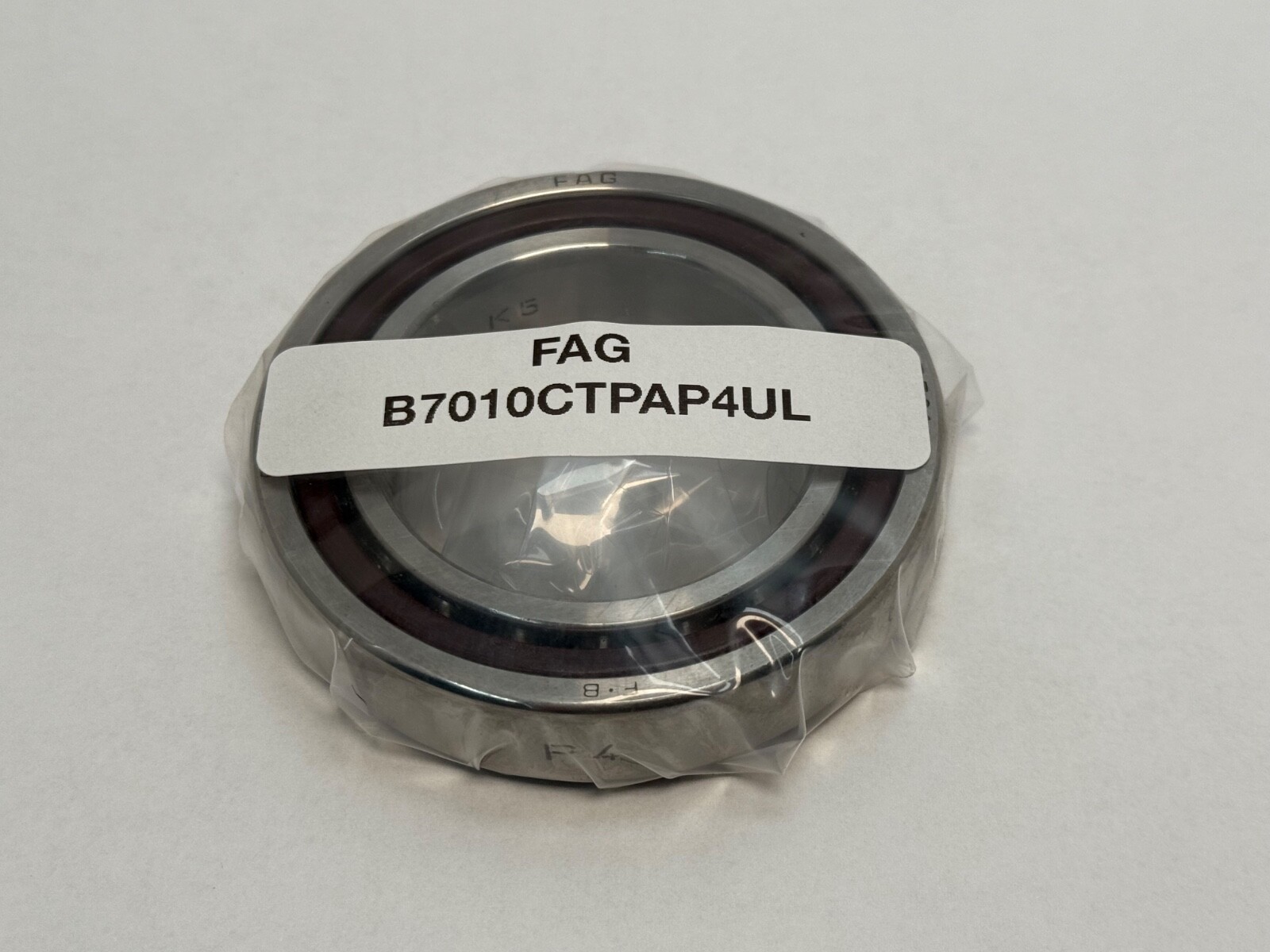

FAG B7010C.TPA.P4.UL spindle bearing, 50 x 80 x 16 mm, 15° contact angle, phenolic cage, P4 (ABEC 7), universal light preload. Cr 29,000 N, C0r 16,100 N.
List Price
$51.33
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7010C.TPA.P4.UL |
| Model | B7010-C-T-P4S-UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 80 mm |
| Width | 16 mm |
| Series | B70 |
|---|---|
| Preload | Light |
| Min Temp | -30 °C |
| Cage Type | Solid, fabric-base laminate |
| Dynamic Load Rating | 29,000 N |
| Static Load Rating | 16,100 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.25 kg (0.55 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 18,000 rpm grease; 28,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Industry Terms | spindle bearing, super precision angular contact bearing, machine tool spindle bearing, 15 degree angular contact |
| Overall Width | 16 mm |
| Mpn Variants | B7010C.TPA.P4.UL, B-7010-C-TPA-P4-UL, B7010CTPAP4UL, B7010-C-T-P4S-UL, B7010C.T.P4S.UL, 7010C |
| Compatible With Replaces | Current FAG designation: B7010-C-T-P4S-UL |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Preload force light: 148 N; Lift-off force light: 459 N; Axial rigidity light: 52 N/um; da: 56 mm; Da: 74 mm; a: 16.7 mm; Fatigue limit load Cu: 1,710 N |
| Common Misspellings | FAG B7010C TPA P4 UL; FAG B 7010 C TPA; Fag B7010CTPAP4UL; FAG B7010 C.TPA.P4.UL |
| Application Types | Machine tool spindles; high-speed precision spindle supports; grinding spindles |
| Cross Reference 1 | FAG B7010-C-T-P4S-UL |
|---|---|
| Cross Reference 2 | SKF 7010 CD/P4A |
| Cross Reference 3 | Timken 2MM9110WI CR SUL |
| Cross Reference 4 | NSK 7010CTYNSULP4 - polyamide cage |
FAG B7010C.TPA.P4.UL is a single-row super-precision spindle bearing (angular contact ball bearing) with a 15° contact angle, universally matchable with light preload. Current FAG designation: B7010-C-T-P4S-UL. Unit Quantity: 1 Pc.
B70 — FAG spindle bearing, ISO 70 dimension series.
10 — bore code, 50 mm.
C — 15° contact angle.
TPA — solid cage of fabric-base laminated phenolic resin.
P4 — tolerance class P4, equivalent to ABEC 7.
UL — universal design, light preload when mounted in any arrangement.
Bore Diameter: 50 mm. Outside Diameter: 80 mm. Overall Width: 16 mm. Contact Angle: 15°. Closure Type: Open. Precision Class: ABEC 7 / P4. Preload: Light. Cage Material: Phenolic. Cage Type: Solid, fabric-base laminate. Dynamic Load Rating: 29,000 N. Static Load Rating: 16,100 N. Limiting Speed: 18,000 rpm grease; 28,000 rpm oil. Item Weight: 0.25 kg (0.55 lb). Operating Temperature: -30 °C to 100 °C. Series: B70.
Shaft Abutment da: 56 mm. Housing Abutment Da: 74 mm. Chamfer r min: 1 mm. Chamfer r1 min: 1 mm. Pressure Centre Distance a: 16.7 mm. Preload Force (Light): 148 N. Axial Rigidity (Light): 52 N/µm. Mounting Arrangement: universal, pairs in DB, DF or DT arrangement.
Current FAG designation: B7010-C-T-P4S-UL. 15° ISO 7010 crosses: SKF 7010 CD/P4A, Timken 2MM9110WI CR SUL, NSK 7010CTYNSULP4 (polyamide cage).
50 mm bore, 80 mm outside diameter and 16 mm width.
15° contact angle with a phenolic cage.
Dynamic load rating 29,000 N and static load rating 16,100 N. Limiting speed 18,000 rpm grease and 28,000 rpm oil.
