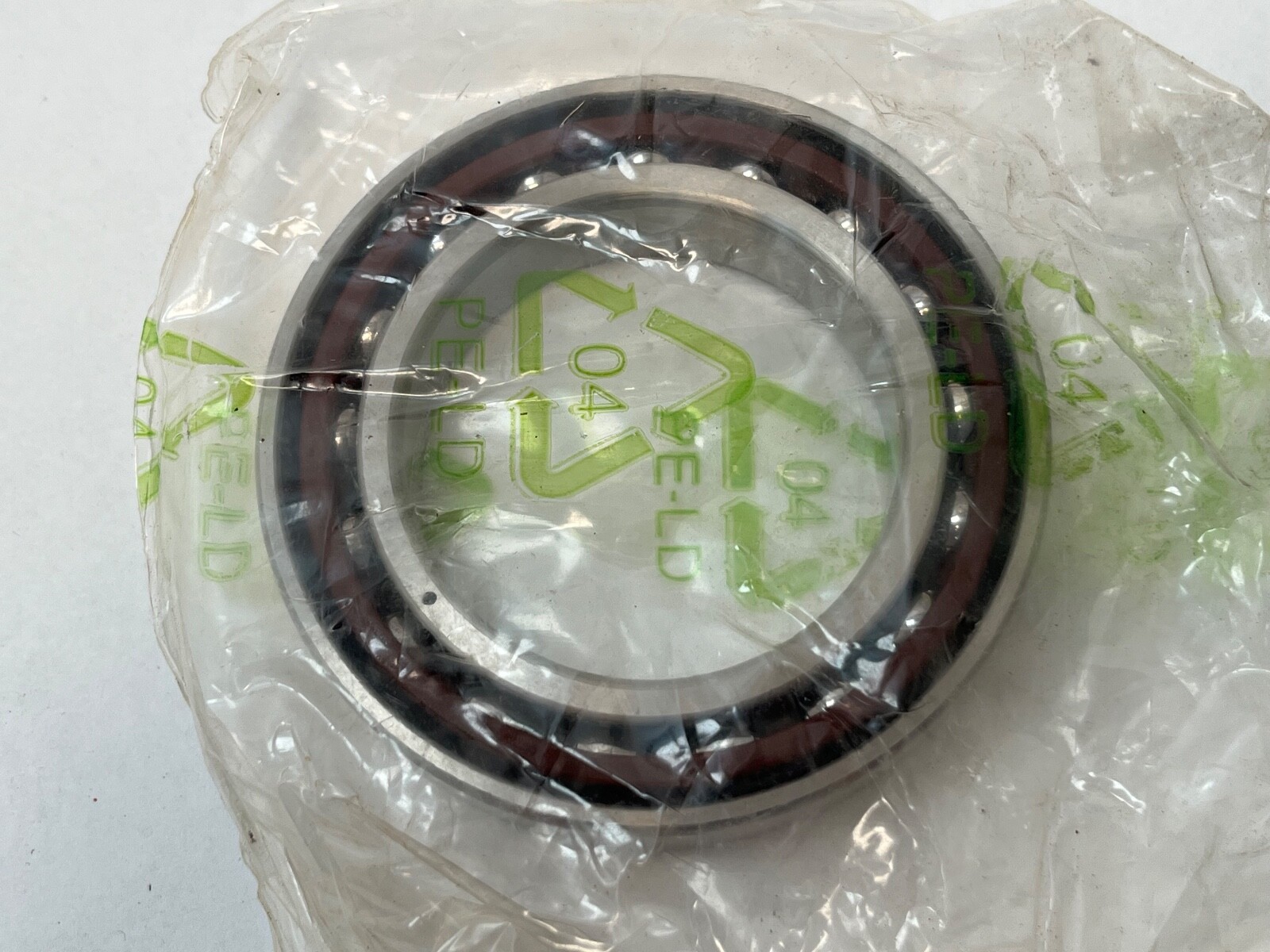

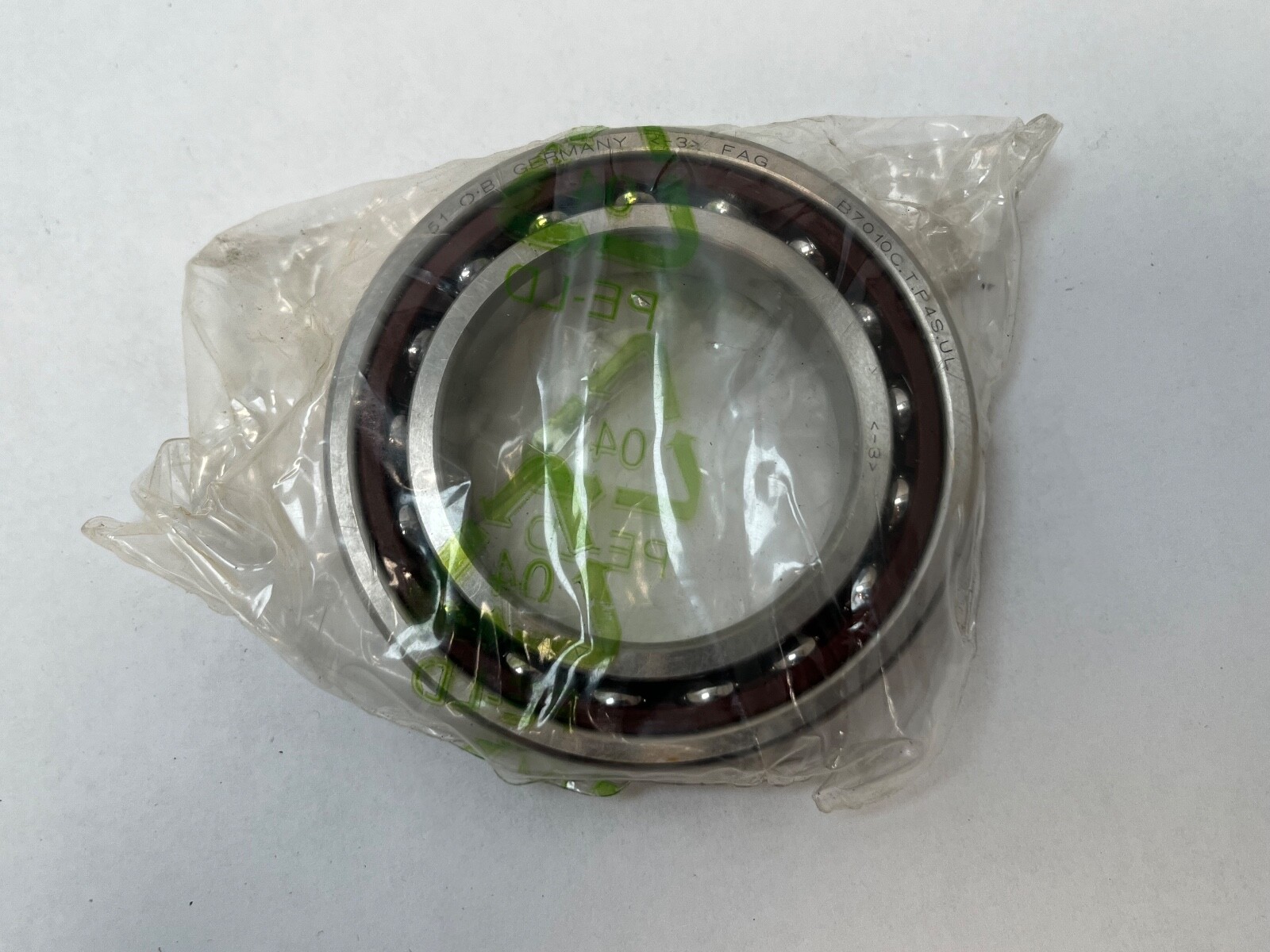

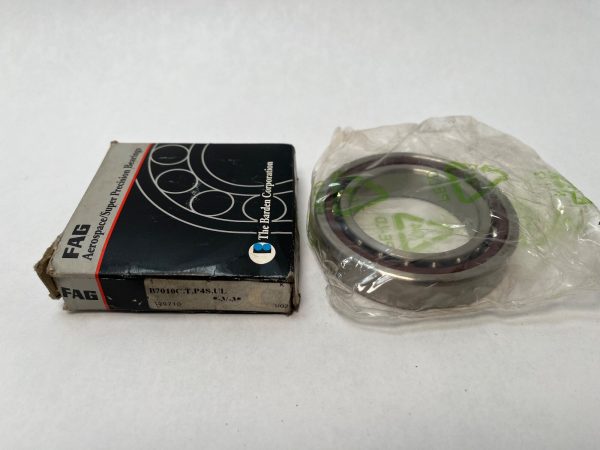

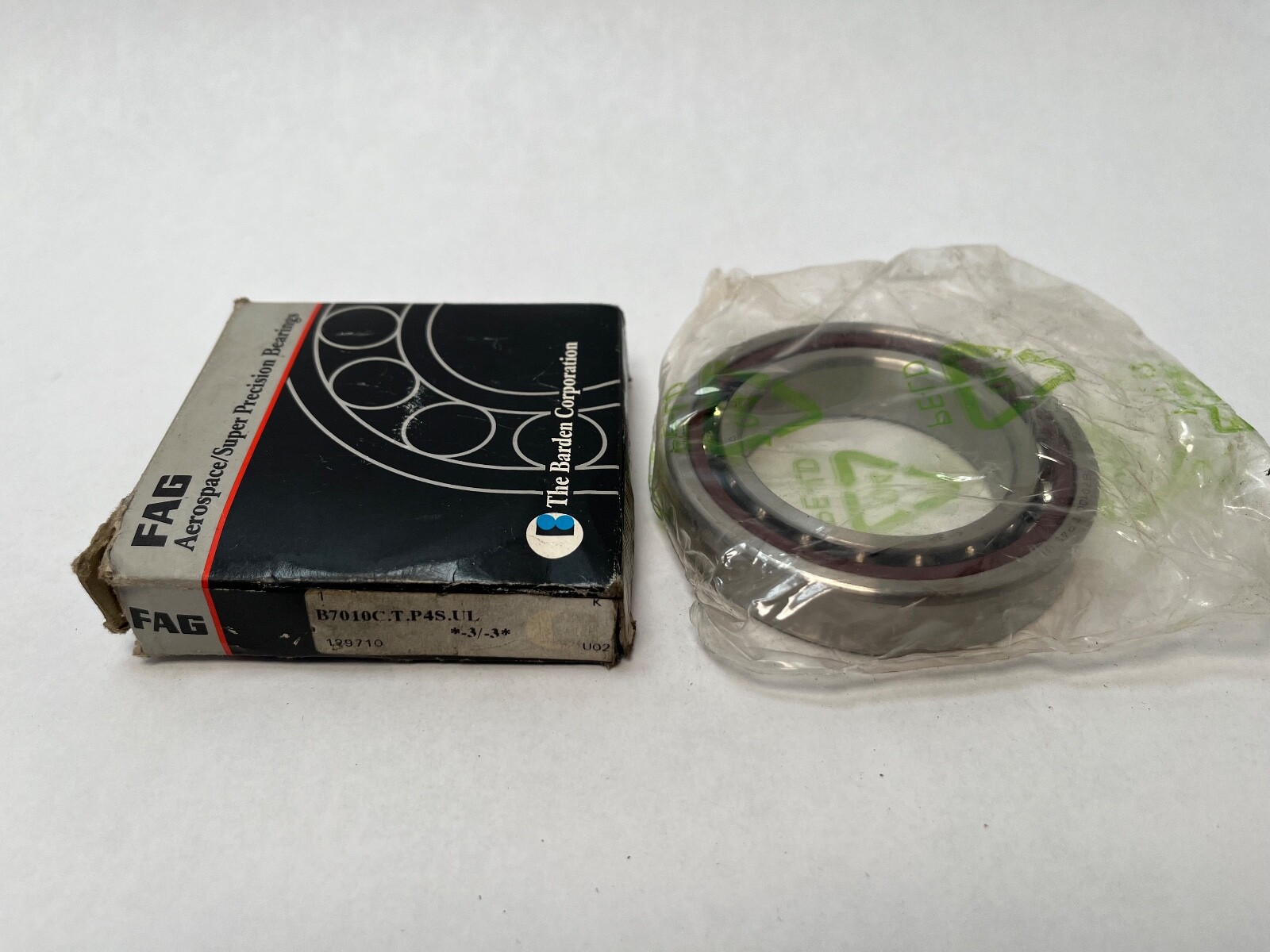

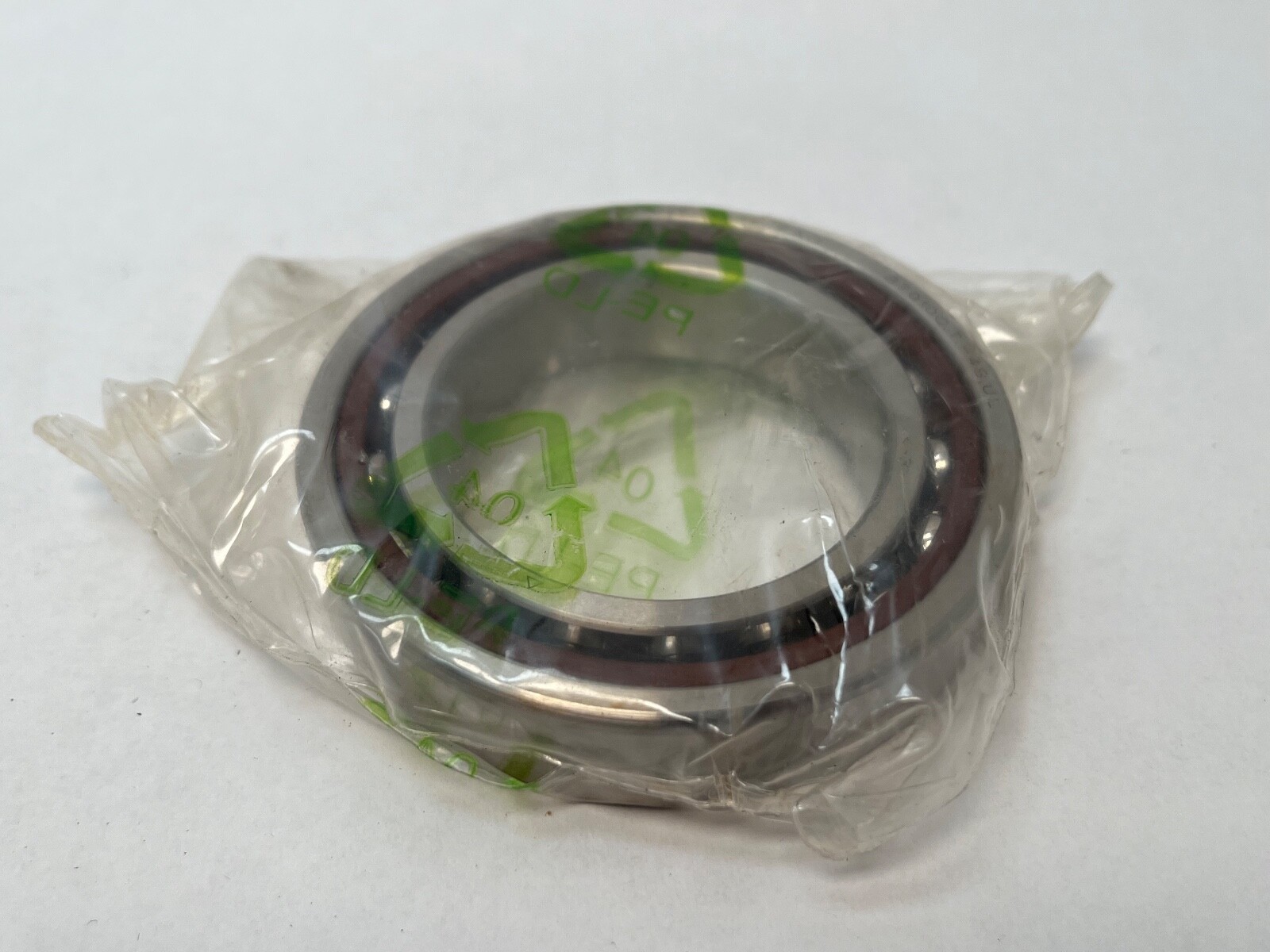

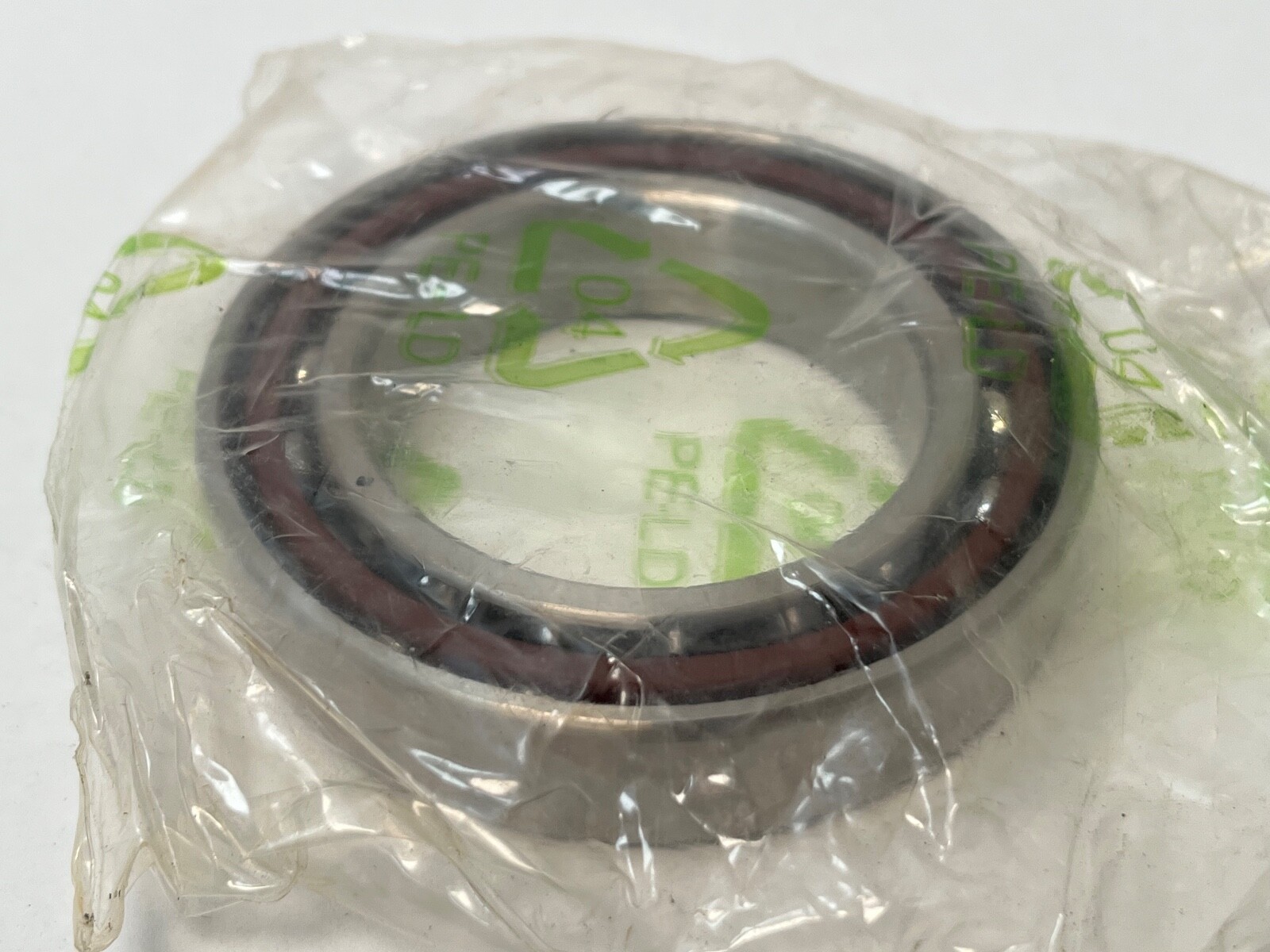

Super-precision spindle angular contact ball bearing, 50 x 80 x 16 mm, 15° contact angle, phenolic cage, universally matchable for any arrangement.
List Price
$121.92
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7010C.T.P4S.UL |
| Model | B 7010 C T P4S UL / 2MM9110WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 80 mm |
| Width | 16 mm |
| Material | Chrome steel |
|---|---|
| Preload | Universally matchable; light 148 N, medium 493 N, heavy 994 N per pair |
| Series | B70 |
| Base Number | B7010 |
| Mpn Variants | B7010C.T.P4S.UL; B7010CTP4SUL; B7010-C-T-P4S-UL; B7010C.TPA.P4.UL |
| Precision Class | ABEC 7 / P4 |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 29,000 N |
| Static Load Rating | 16,100 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.25 kg (0.55 lb) |
| Cage Material | Phenolic |
| Limiting Speed | 18,000 rpm grease; 28,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Internal Clearance | N/A |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal — back-to-back, face-to-face or tandem |
| Bearing Material | Chrome steel |
| Part Number | B7010C.T.P4S.UL |
| Cross Reference 1 | SKF 7010 CD/P4A |
|---|---|
| Cross Reference 2 | NSK 7010C |
| Cross Reference 3 | NTN 7010C |
| Cross Reference 4 | Timken Fafnir 2MM9110WI |
| Cross Reference 5 | RHP 7010CT |
| Cross Reference 6 | Koyo 7010C |
FAG B7010C.T.P4S.UL is a super-precision spindle angular contact ball bearing. Bore Diameter: 50 mm. Outside Diameter: 80 mm. Overall Width: 16 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: Chrome steel. Cage Material: Phenolic. Cage Type: Machined. Item Weight: 0.25 kg (0.55 lb).
B70 — Schaeffler spindle bearing series, light 70 section, super-precision tolerances for machine tool spindles.
7010 — ISO size code. Bore 50 mm, outside diameter 80 mm, width 16 mm.
C — contact angle 15°.
T — machined fabric-base laminate phenolic cage.
P4S — Precision Class ABEC 7 / P4, S execution running accuracy.
UL — universally matchable. Faces are ground so any two or more bearings pair back-to-back, face-to-face or in tandem at the published preload without shims.
Dynamic Load Rating: 29,000 N. Static Load Rating: 16,100 N. Limiting Speed: 18,000 rpm grease; 28,000 rpm oil. Fatigue load limit, radial: 1,710 N. Precision Class: ABEC 7 / P4. Lubricant: grease or oil. Operating temperature range: -30 °C to +100 °C. Series: B70. Base Number: B7010. Harmonization Code: 8482.10.50.68. Unit Quantity: 1 Pc.
Preload per matched pair: light 148 N, medium 493 N, heavy 994 N. Axial rigidity per matched pair: 52 N/µm light, 91 N/µm medium, 130 N/µm heavy. Shaft shoulder diameter: 56 mm. Outer ring shoulder diameter: 74 mm. Mounting Arrangement: universal, back-to-back (O), face-to-face (X) or tandem.
SKF 7010 CD/P4A, NSK 7010C, NTN 7010C, Timken Fafnir 2MM9110WI, RHP 7010CT, Koyo 7010C. The Fafnir 2MM prefix is the 15° super-precision code. MPN Variants: B7010C.T.P4S.UL, B7010CTP4SUL, B7010-C-T-P4S-UL, B7010C.TPA.P4.UL.
15°. C is the FAG code for the 15° angle.
Universally matchable: the faces are ground so bearings pair in any arrangement.
18,000 rpm with grease and 28,000 rpm with oil.
