Availability:
1 in stock

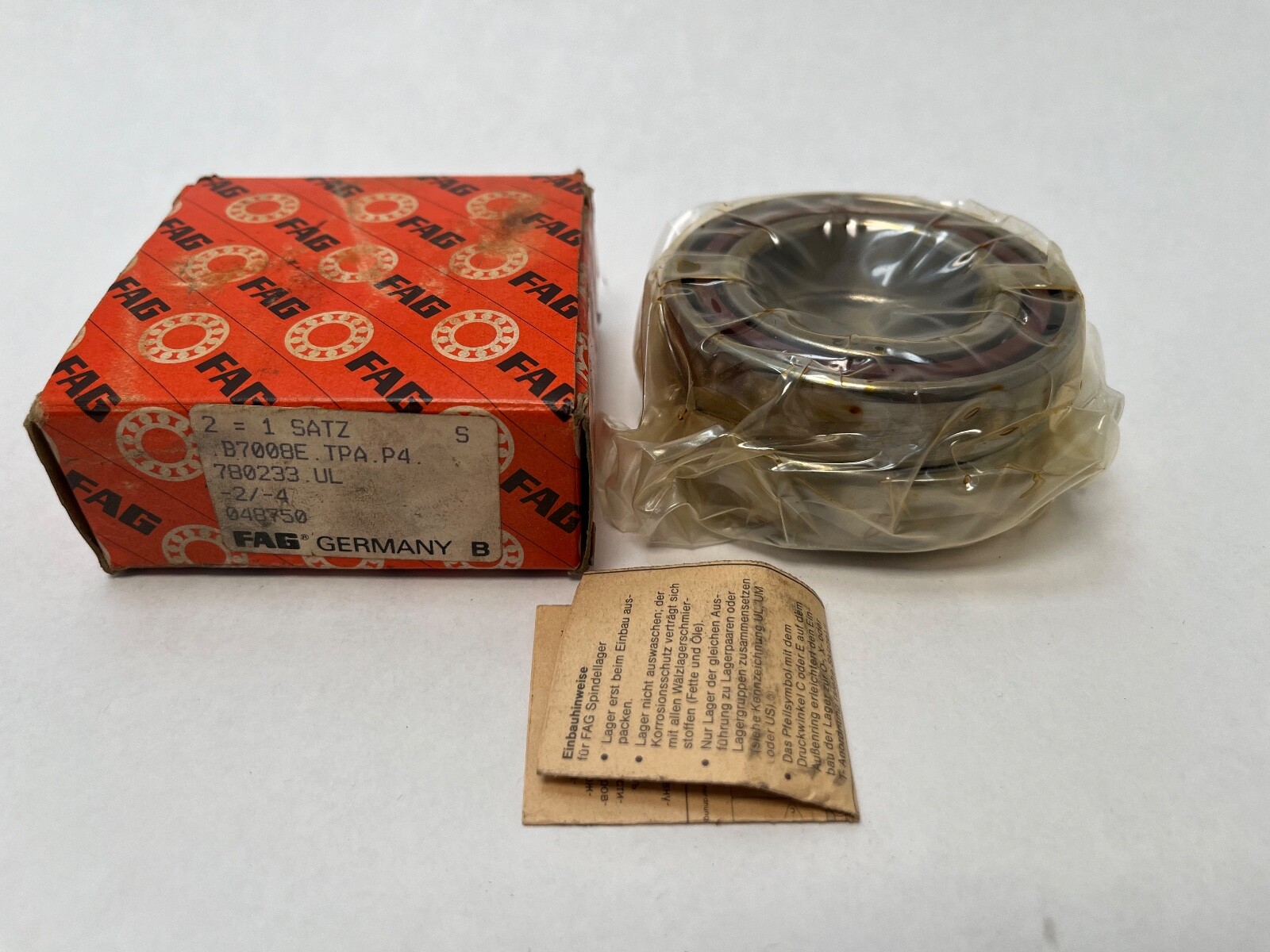

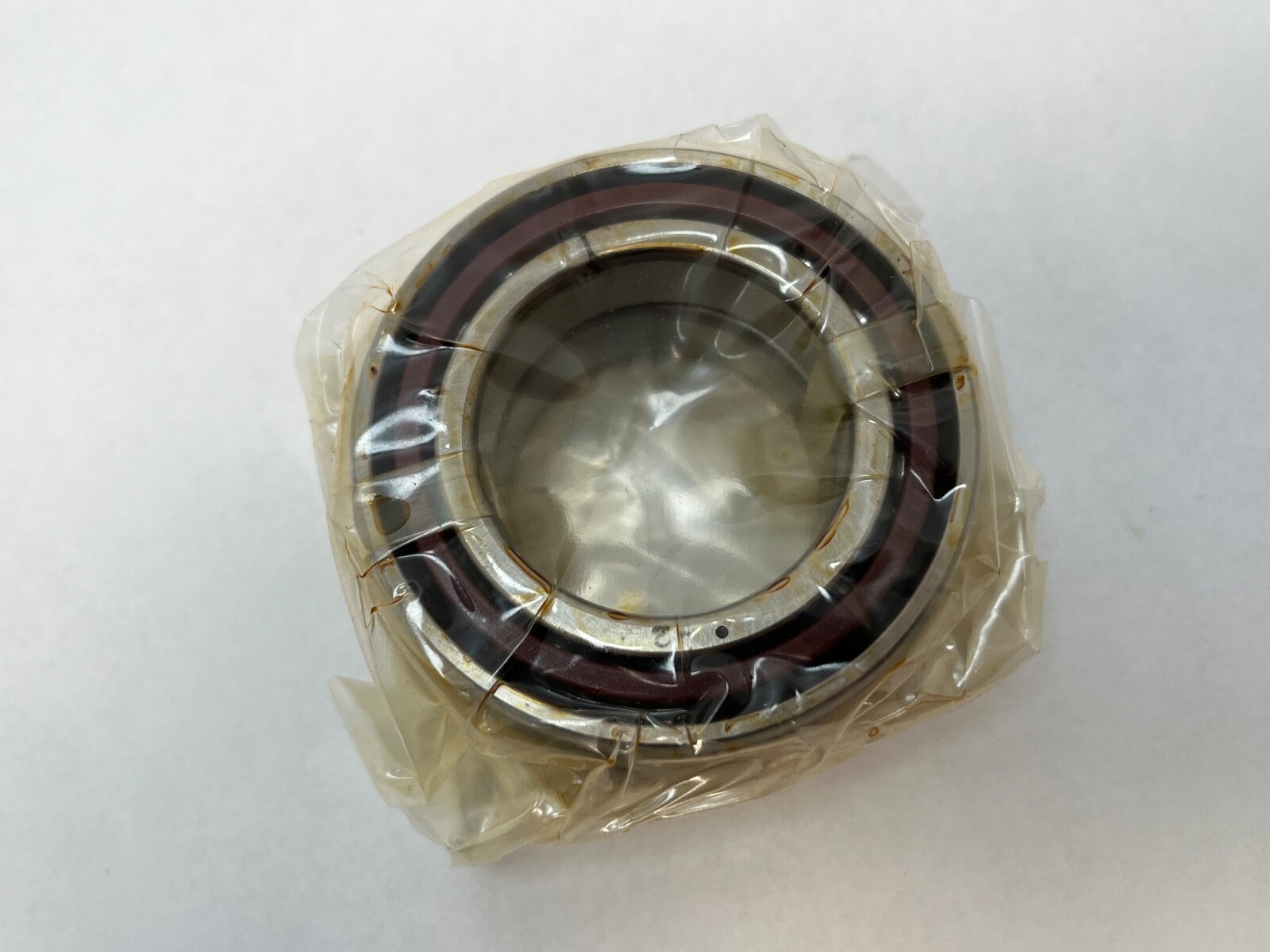

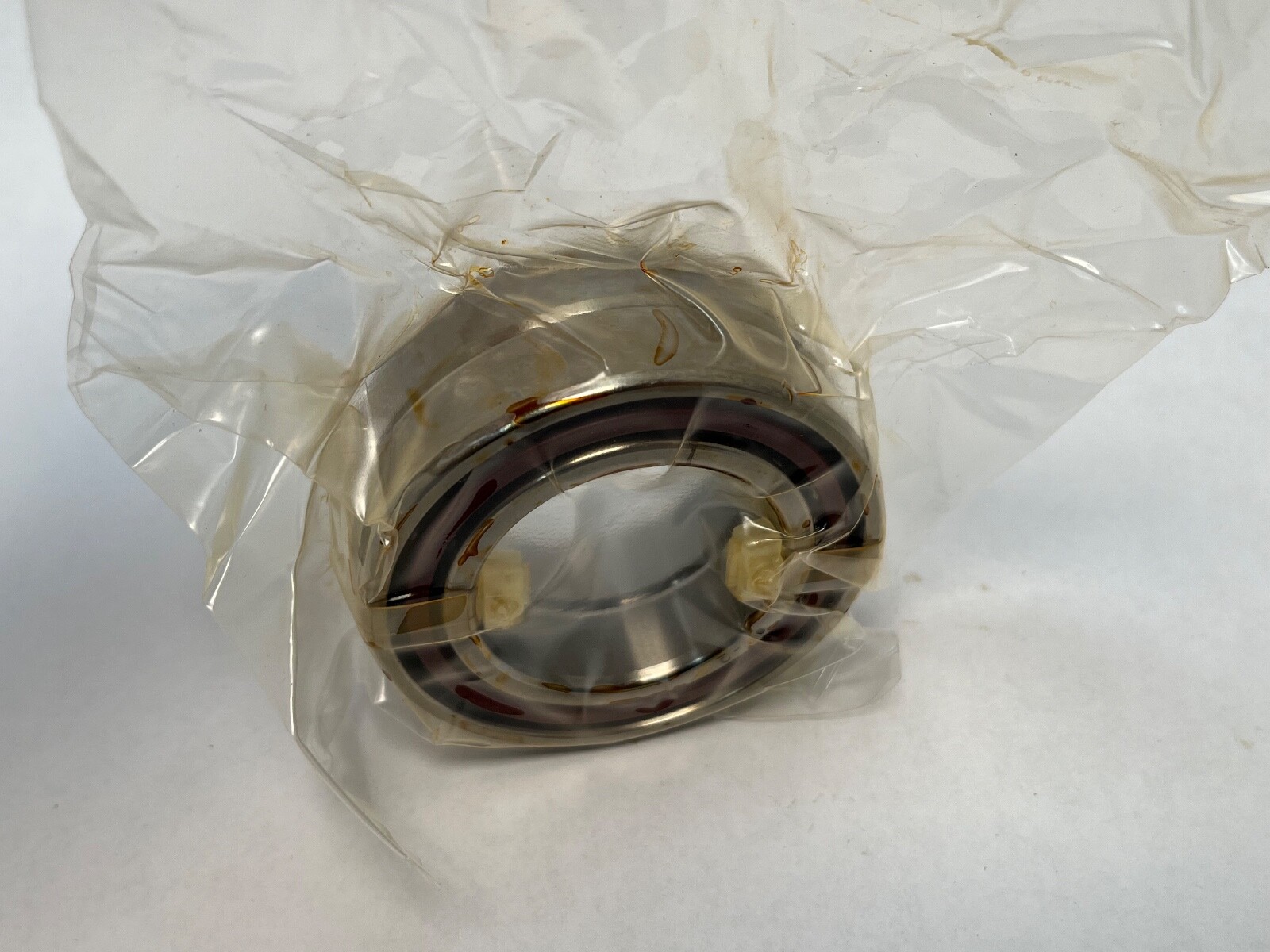

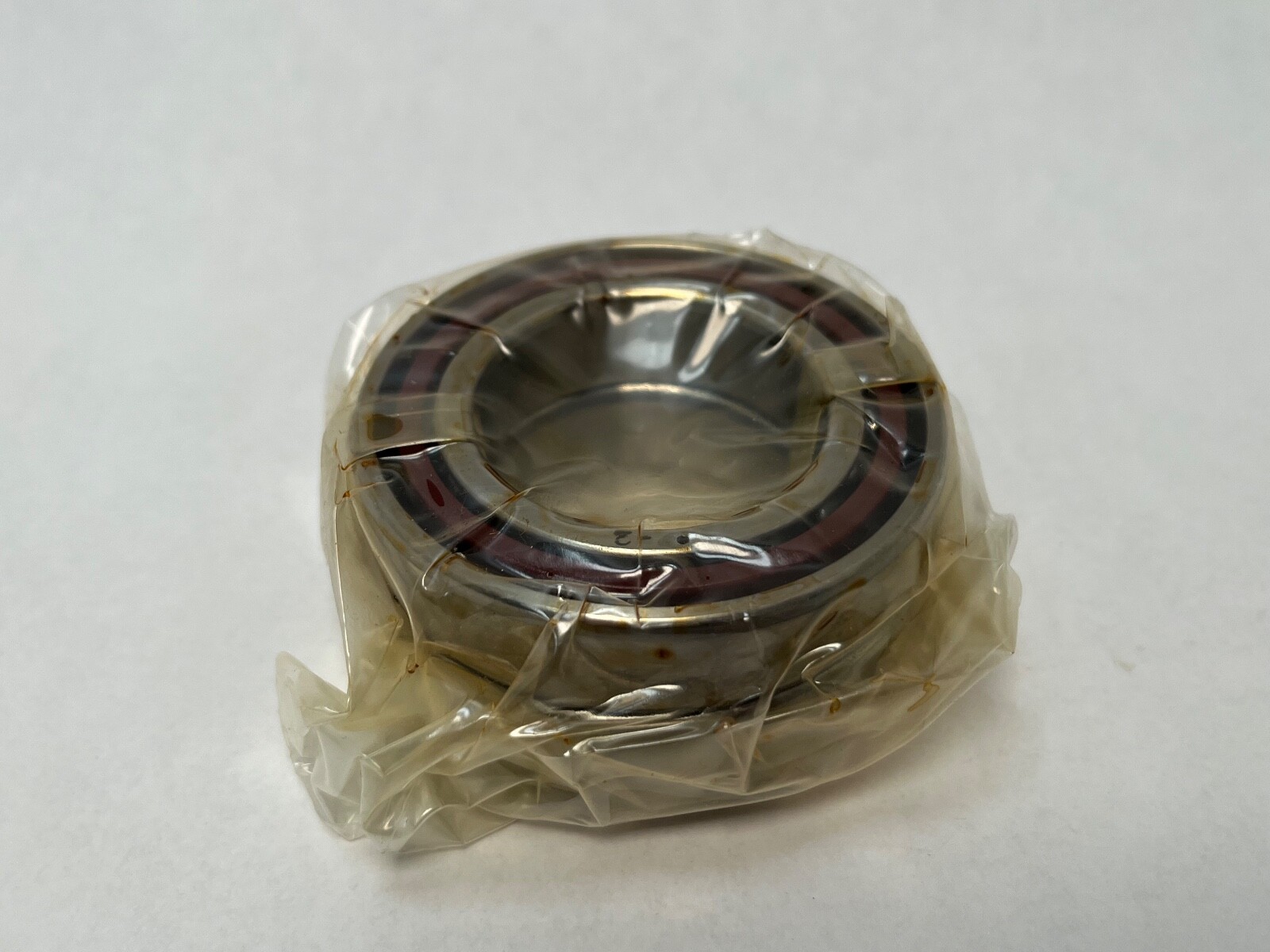

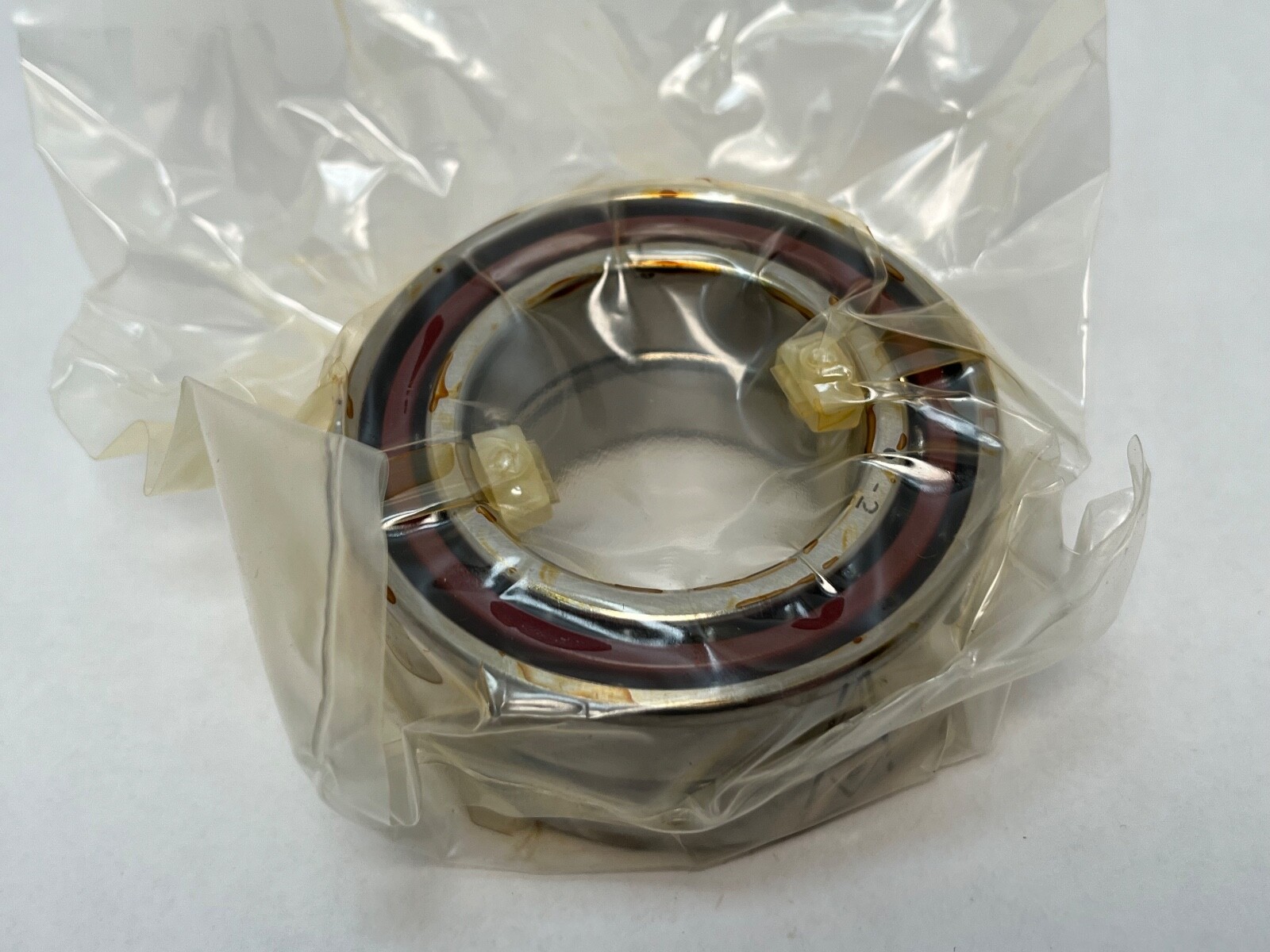

Matched pair of super-precision spindle angular contact ball bearings, 40 x 68 x 15 mm, 25° contact angle, phenolic cage, universal grinding.
List Price
$183.04
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7008ETPAP4DUL |
| Model | B 7008 E TPA P4 DUL / 3MM9108WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 40 mm |
| OD | 68 mm |
| Width | 15 mm |
| Material | Chrome steel |
|---|---|
| Series | B70 |
| Preload | Universally matchable; light 141 N, medium 543 N, heavy 1,170 N per pair |
| Base Number | B7008 |
| Total Width | 30 mm |
| Mpn Variants | B7008E.TPA.P4.DUL; B7008ETPAP4DUL; B-7008-E-TPA-P4-DUL; B 7008 E TPA P4 DUL; B7008-E-T-P4S-UL; 7008E |
| Arrangement Configuration | DUL — matched duplex set, universal grinding |
| Precision Class | ABEC 7 / P4 |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 19,900 N |
| Static Load Rating | 10,600 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.38 kg (0.83 lb) |
| Cage Material | Phenolic |
| Limiting Speed | 20,000 rpm grease; 30,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Internal Clearance | N/A |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal — back-to-back, face-to-face or tandem |
| Bearing Material | Chrome steel |
| Part Number | B7008E.TPA.P4.DUL |
| Cross Reference 1 | SKF 7008 ACD/P4ADGA |
|---|---|
| Cross Reference 2 | NSK 7008A5DB |
| Cross Reference 3 | NTN 7008UCDB |
| Cross Reference 4 | Koyo 7008CDB |
FAG B7008E.TPA.P4.DUL is a matched pair of super-precision spindle angular contact ball bearings. Bore Diameter: 40 mm. Outside Diameter: 68 mm. Overall Width: 15 mm per bearing. Contact Angle: 25°. Number Of Rows: 1 per bearing. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: Chrome steel. Item Weight: 0.19 kg (0.42 lb) per bearing, 0.38 kg (0.83 lb) for the pair.
B70 — Schaeffler’s spindle bearing series in the light 70 section.
7008 — ISO size code. Bore 40 mm, outside diameter 68 mm, width 15 mm.
E — Contact angle 25°. On a B70 or B719 designation the E is an angle code.
TPA — Fabric-base laminate phenolic cage, machined.
P4 — Precision Class: ABEC 7 / P4.
DUL — Duplex set of two bearings, universally ground, supplied matched.
Per bearing: Dynamic Load Rating: 19,900 N. Static Load Rating: 10,600 N. Limiting Speed: 20,000 rpm grease; 30,000 rpm oil. Fatigue load limit, radial: 1,130 N.
Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined. Lubricant: grease or oil. Operating temperature range: -30 °C to +100 °C.
A 25° contact angle carries more thrust than a 15° execution of the same size and runs slower. Series: B70. Base Number: B7008.
Preload per matched pair: light 141 N, medium 543 N, heavy 1,170 N.
Mounting Arrangement: Universal — the pair mounts back-to-back (O), face-to-face (X) or tandem, and reaches the published preload on assembly without shims. Internal Clearance: N/A; the set is preload-adjusted rather than clearance-set.
Unit Quantity: 2 Pcs. One matched duplex set, ground and supplied as a pair.
Same-envelope, same-angle, same-class equivalents: SKF 7008 ACD/P4ADGA, NSK 7008A5DB, NTN 7008UCDB and Koyo 7008CDB. Only same-angle duplex sets substitute here; a 15° pair of the same envelope is a related size with different axial stiffness.
Searchable forms of the number: B7008E.TPA.P4.DUL, B7008ETPAP4DUL, B-7008-E-TPA-P4-DUL, B 7008 E TPA P4 DUL, B7008-E-T-P4S-UL, 7008E.
