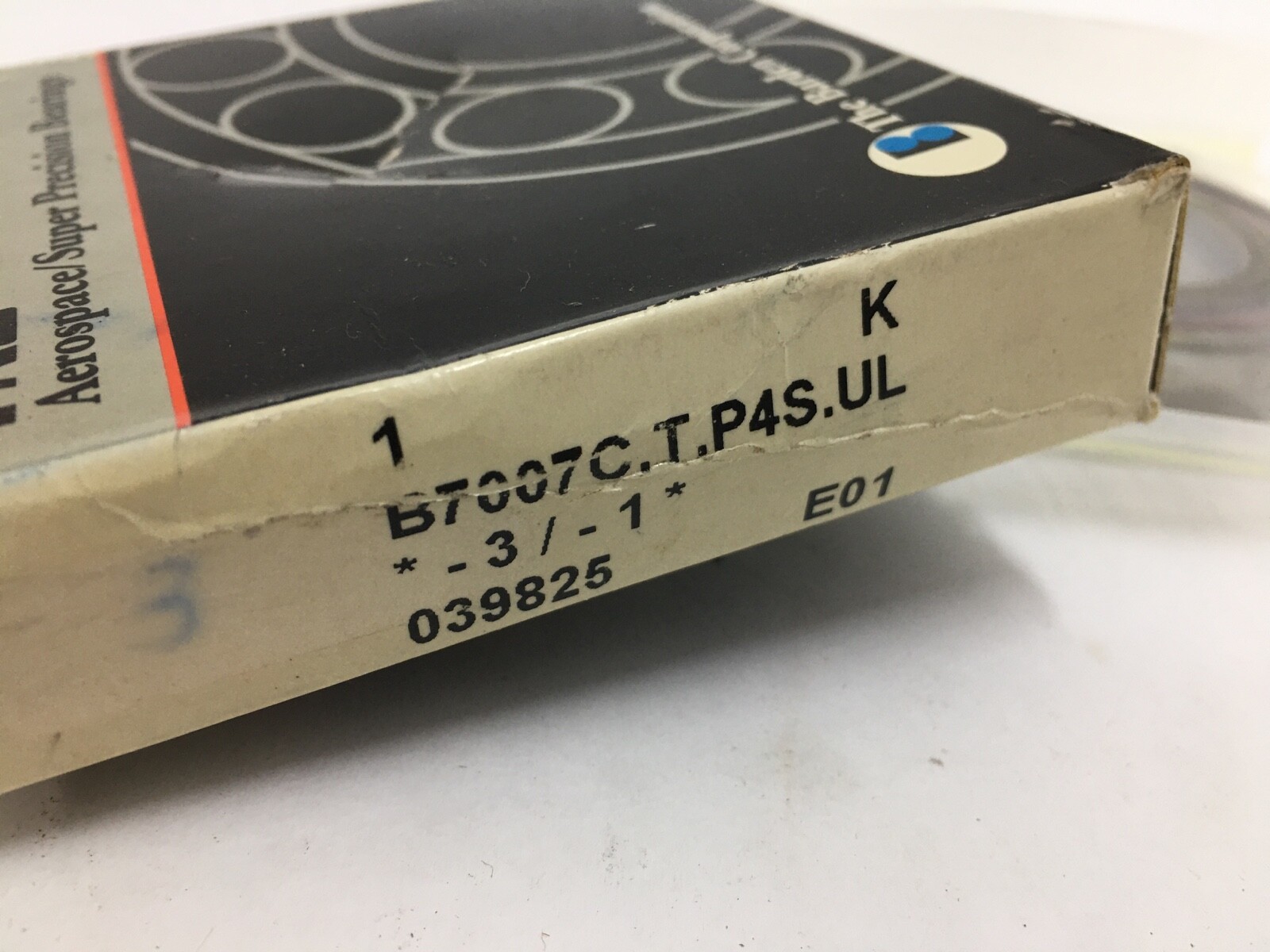

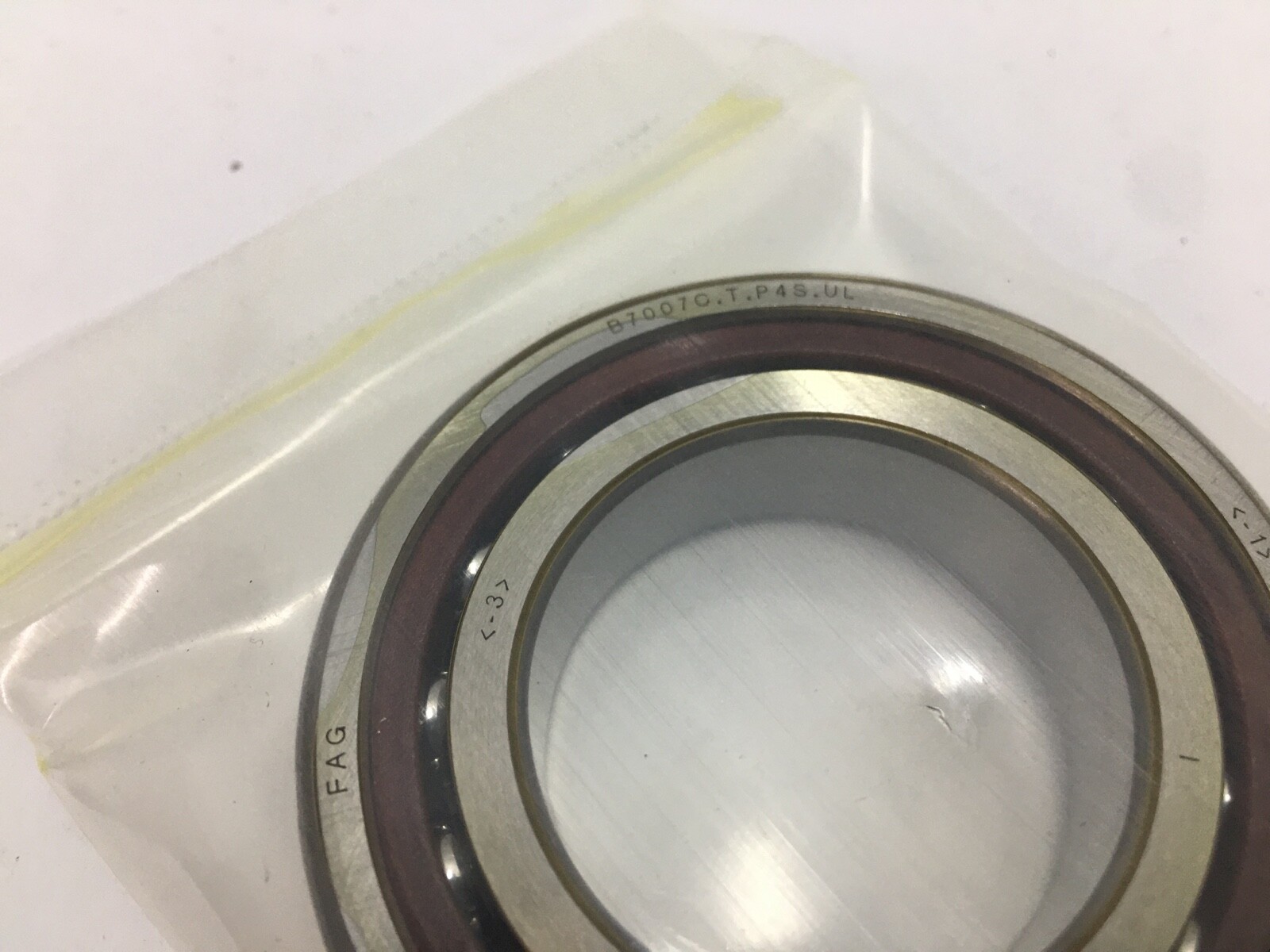

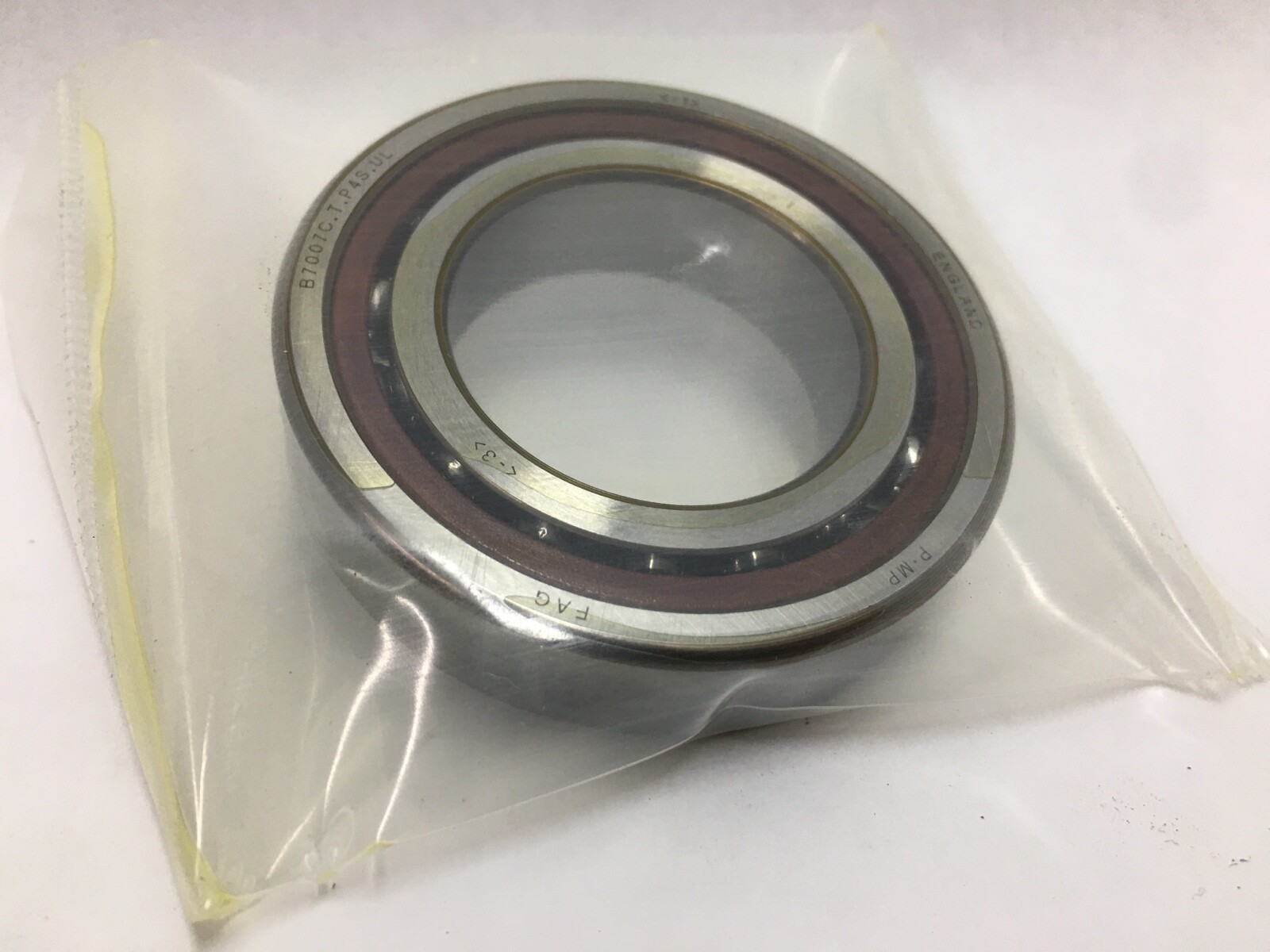

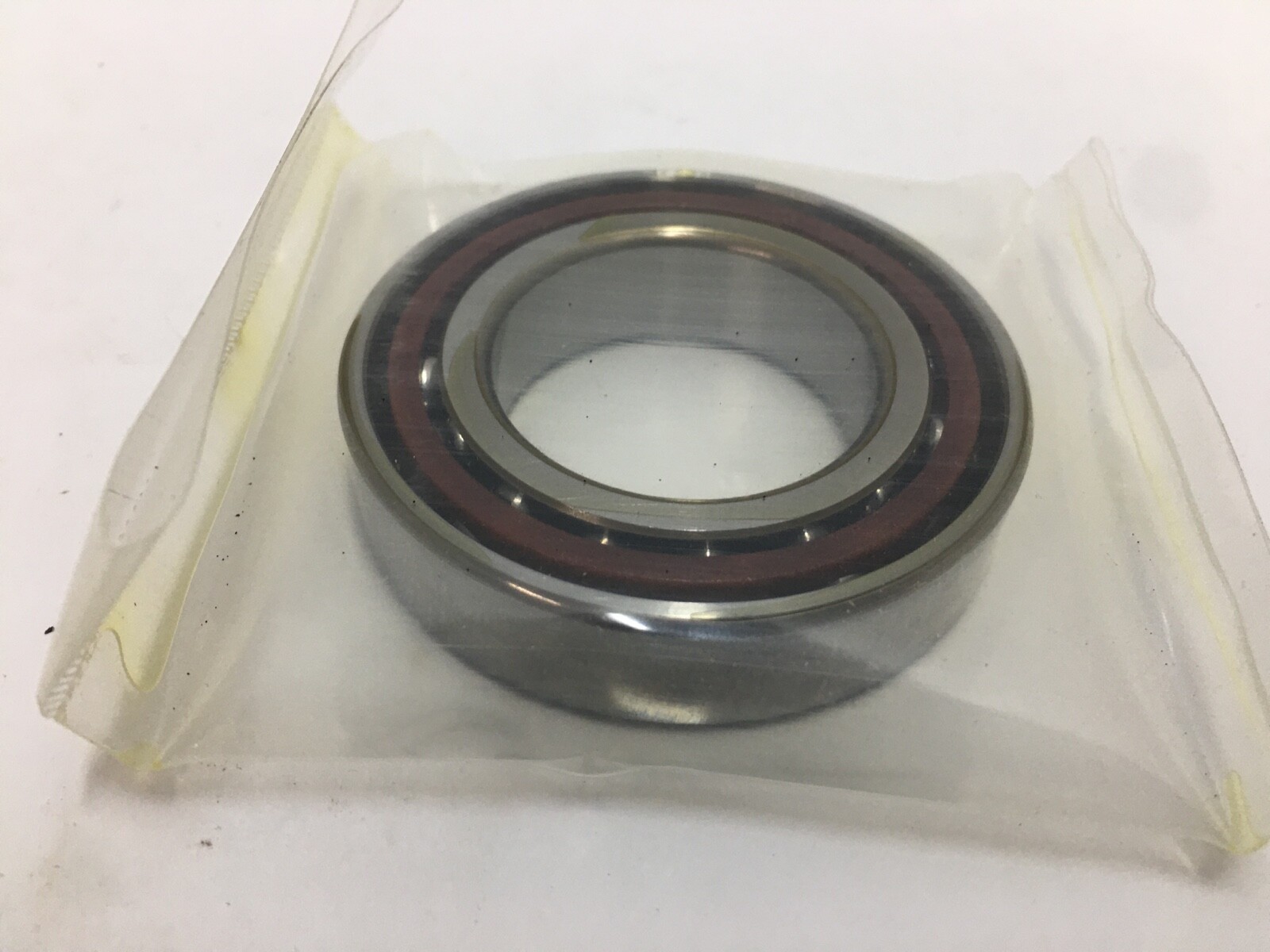

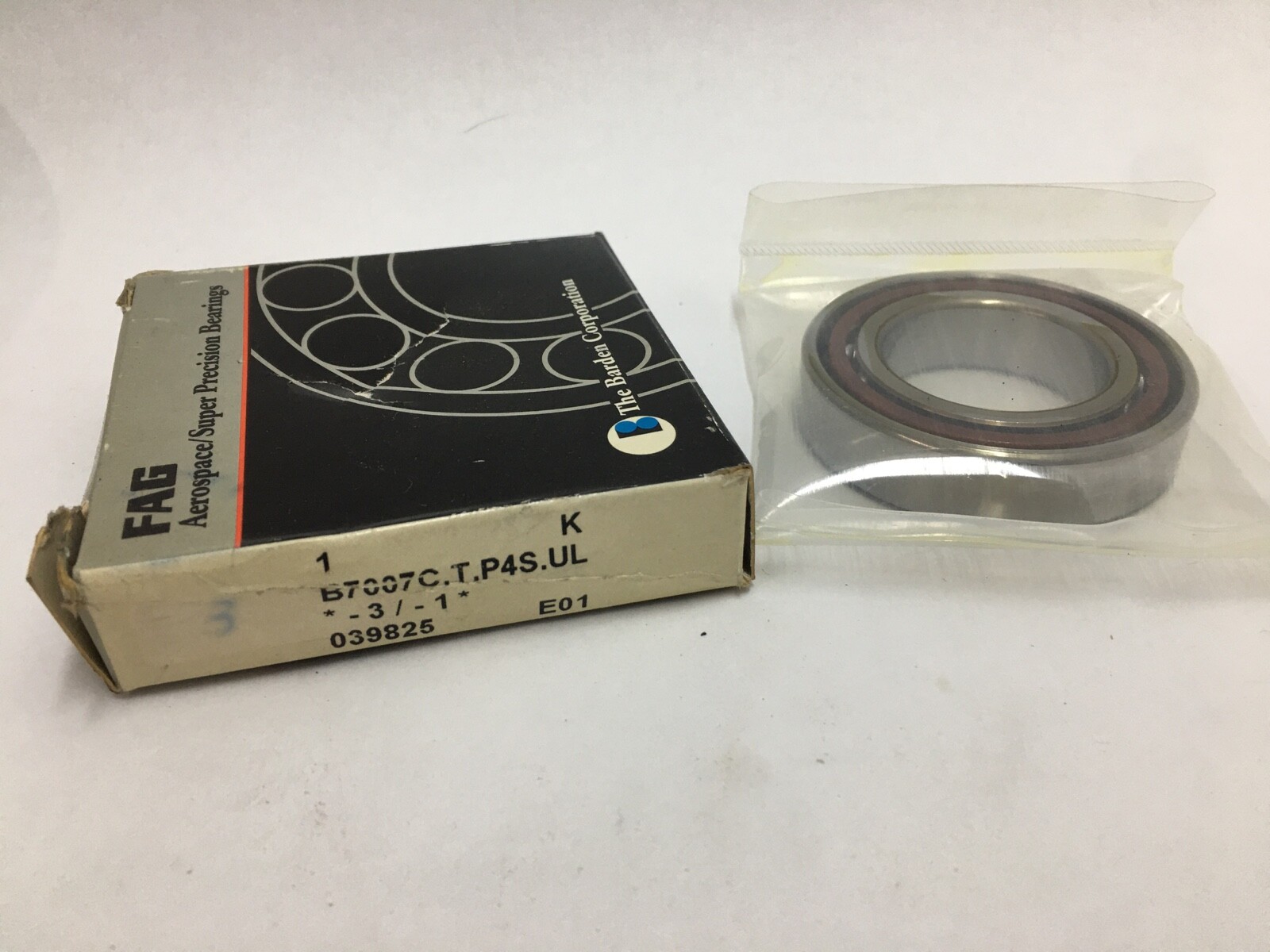

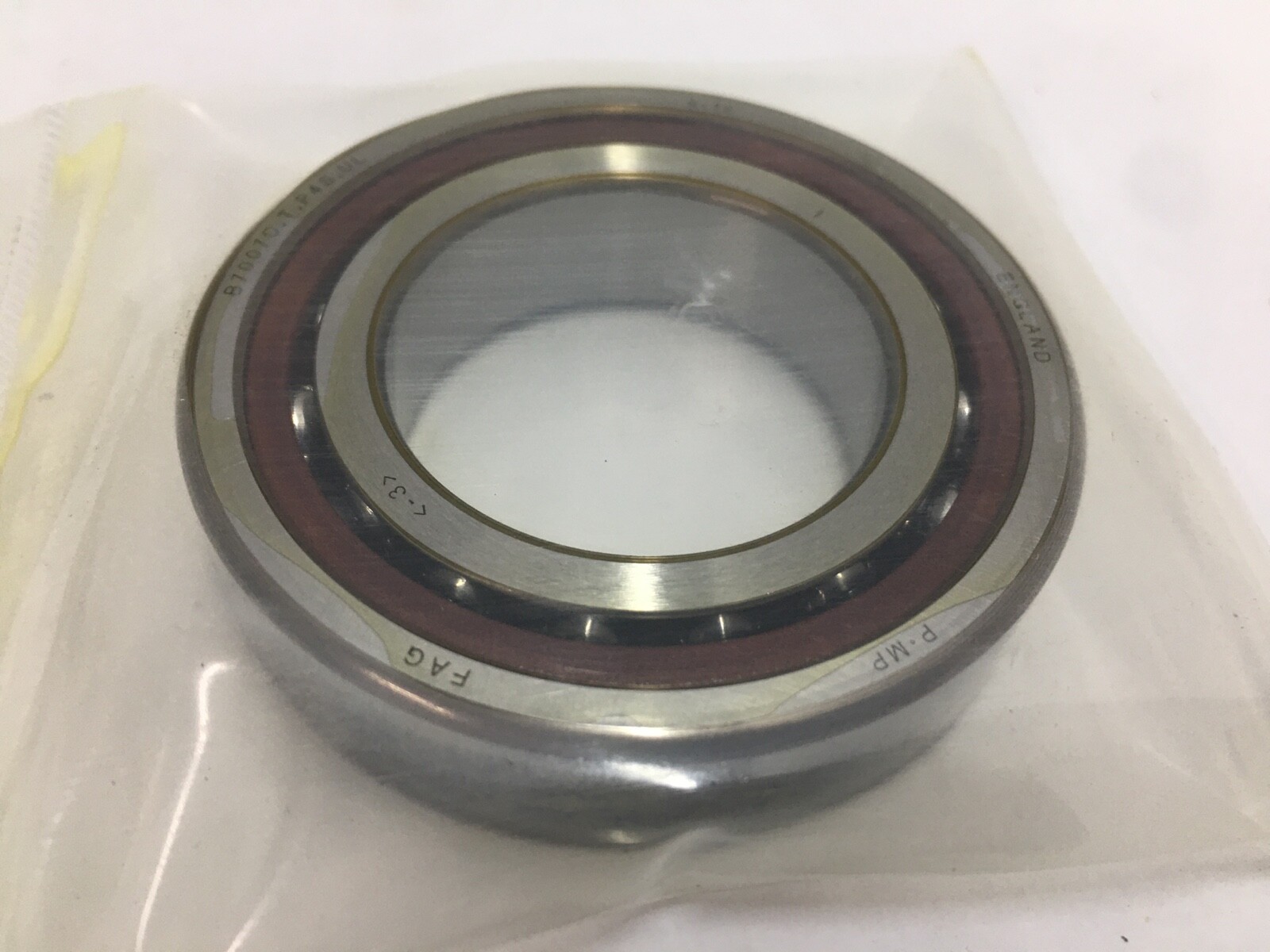

FAG B7007-C-T-P4S-UL angular contact spindle bearing, 35 x 62 x 14 mm, 15° contact angle, P4S class. Universal matching, light preload, phenolic cage.
List Price
$88.32
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7007-C-T-P4S-UL |
| GTIN | 4012801167147 |
| Model | B7007C.T.P4S.UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 62 mm |
| Width | 14 mm |
| Preload | Light (UL) |
|---|---|
| Min Temp | -30 °C |
| Dynamic Load Rating | 19,300 N |
| Static Load Rating | 9,600 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 15° |
| Mounting Arrangement | Universal, any matched arrangement (UL) |
| Limiting Speed | 24,000 rpm grease; 38,000 rpm oil |
| Base Number | 7007 |
| Industry Terms | spindle bearing, super precision angular contact bearing, machine tool bearing, B70 series, 7007 spindle bearing |
| Application Types | Machine tool spindles, grinding spindles, high-speed motor spindles |
| Overall Width | 14 mm |
| Mpn Variants | B7007-C-T-P4S-UL, B7007C.T.P4S.UL, B7007CTP4SUL, B7007C T P4S UL, 7007C |
| Precision Class | P4S (FAG, better than ISO P4) |
| Additional Attributes | Fatigue load limit: 1,020 N; Preload force light/medium/heavy: 95/321/649 N; Lift-off force light/medium/heavy: 296/1,087/2,357 N; Axial rigidity light/medium/heavy: 38/67/96 N/µm; Injection pitch diameter: 44.5-46.3 mm; Distance between pressure cone apexes: 13.5 mm; Max recess radius ra1: 0.3 mm |
| Series | B70 |
| Cage Material | Laminated fabric (phenolic) |
| Cross Reference 1 | SKF 7007 CD/P4A |
|---|---|
| Cross Reference 2 | NSK 7007CTRSULP4 |
| Cross Reference 3 | NTN 7007UCG/GNP4 |
FAG B7007-C-T-P4S-UL (B7007C.T.P4S.UL) is a single-row super precision angular contact ball bearing from the Schaeffler B70 spindle bearing series. Bearing type: Angular contact ball bearing. Bore Diameter: 35 mm. Outside Diameter: 62 mm. Overall Width: 14 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Ball. Closure Type: Open.
B70 — FAG spindle bearing series B70, ISO dimension series 10 (the 70xx envelope).
07 — bore code, 35 mm.
C — contact angle 15°.
T — laminated fabric (phenolic) cage.
P4S — FAG tolerance class P4S, better than ISO P4 to ISO 492.
UL — universal design for any matched arrangement, light preload.
Dynamic Load Rating: 19,300 N. Static Load Rating: 9,600 N. Limiting Speed: 24,000 rpm grease; 38,000 rpm oil. Cage Material: Laminated fabric (phenolic). Precision Class: P4S. Preload: Light (UL). Operating temperature: −30 °C to +100 °C. The 15° contact angle favours speed and radial stiffness, which suits machine tool spindles, grinding spindles and high-speed motor spindles. The universal UL grinding lets two or more bearings be paired back-to-back, face-to-face or in tandem with a defined light preload.
Shaft shoulder diameter: 41 mm. Outer ring shoulder diameter: 56 mm. Maximum fillet radius: 1 mm. Minimum chamfer: 1 mm.
Unit Quantity: 1 Pc. Single universally matchable bearing.
Same 35 x 62 x 14 mm envelope, 15° contact angle, P4 class: SKF 7007 CD/P4A, NSK 7007CTRSULP4, NTN 7007UCG/GNP4. MPN Variants: B7007-C-T-P4S-UL, B7007C.T.P4S.UL, B7007CTP4SUL, B7007C T P4S UL, 7007C.
CAD model and data sheet: available from Schaeffler (medias.schaeffler.com).
What is the FAG B7007-C-T-P4S-UL?
It is a single-row super precision angular contact ball bearing, 35 mm bore, 62 mm outside diameter and 14 mm width, with a 15° contact angle and a phenolic cage, built for machine tool spindles.
What does the C-T-P4S-UL suffix mean?
C is the 15° contact angle, T is a laminated fabric phenolic cage, P4S is FAG’s tolerance class better than ISO P4, and UL is universal matching with light preload.
What are the load ratings and speeds?
Dynamic load rating is 19,300 N and static load rating is 9,600 N. Limiting speed is 24,000 rpm with grease and 38,000 rpm with oil.
What does the FAG B7007-C-T-P4S-UL cross-reference to?
Equivalent envelope and contact angle: SKF 7007 CD/P4A, NSK 7007CTRSULP4 and NTN 7007UCG/GNP4.
