FAG7308-B-TVP-P5-UOAngular Contact Ball Bearing – 40 mm Bore, 90 mm OD, 23 mm Width, 40° Contact Angle, P5 Precision, Universal Design, Clearance-Free Pairing

Product Description

What this part is:

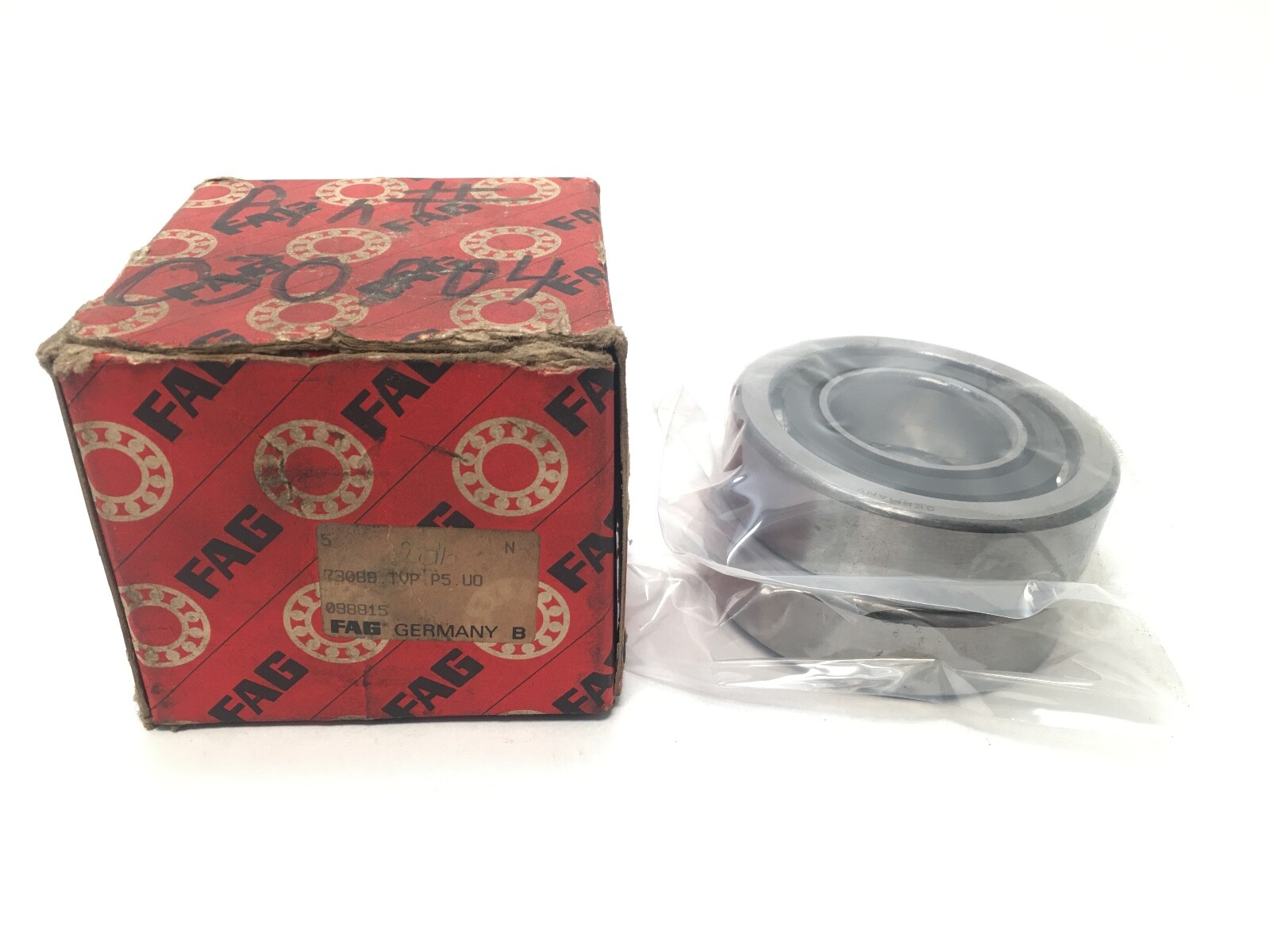

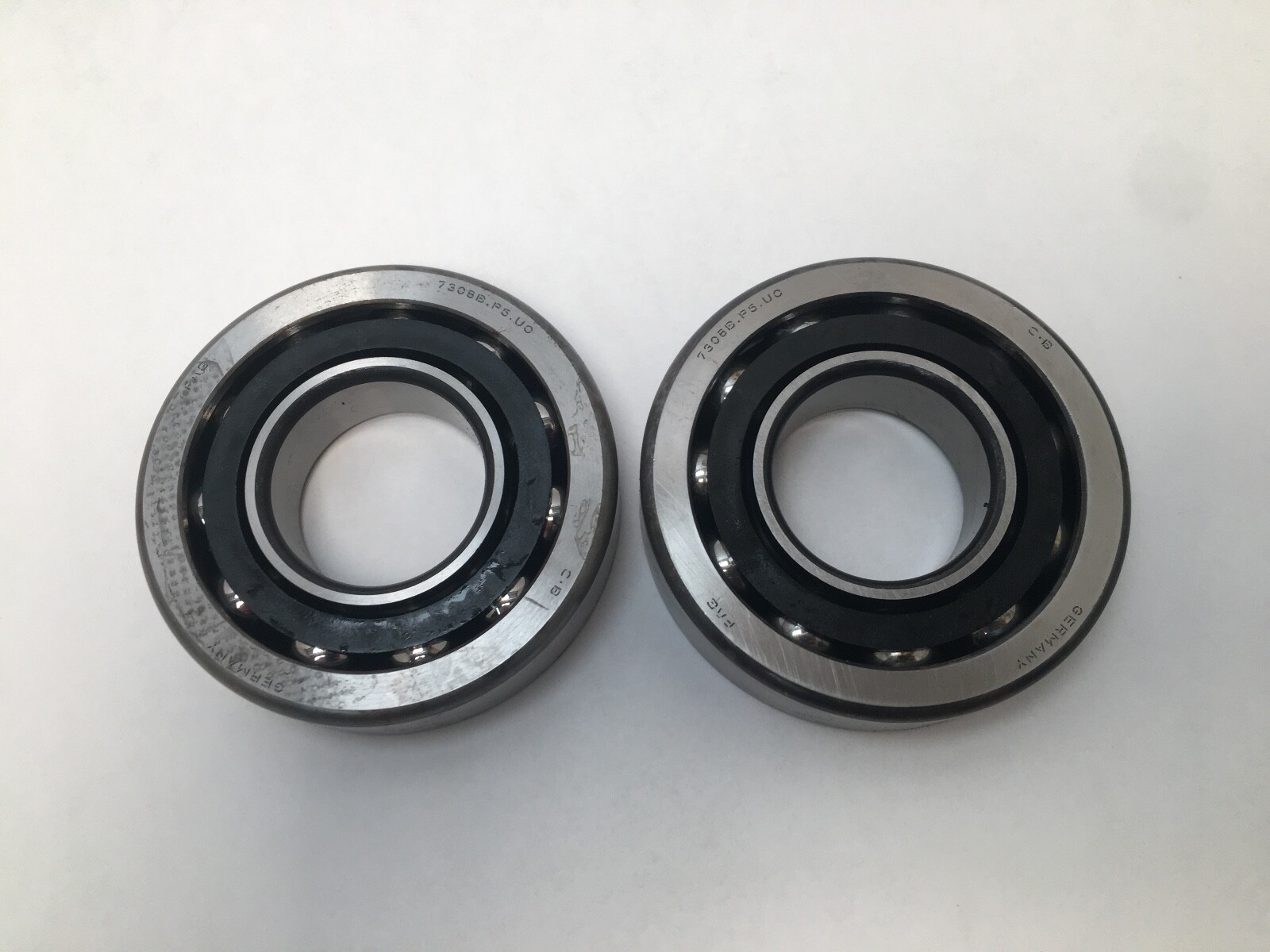

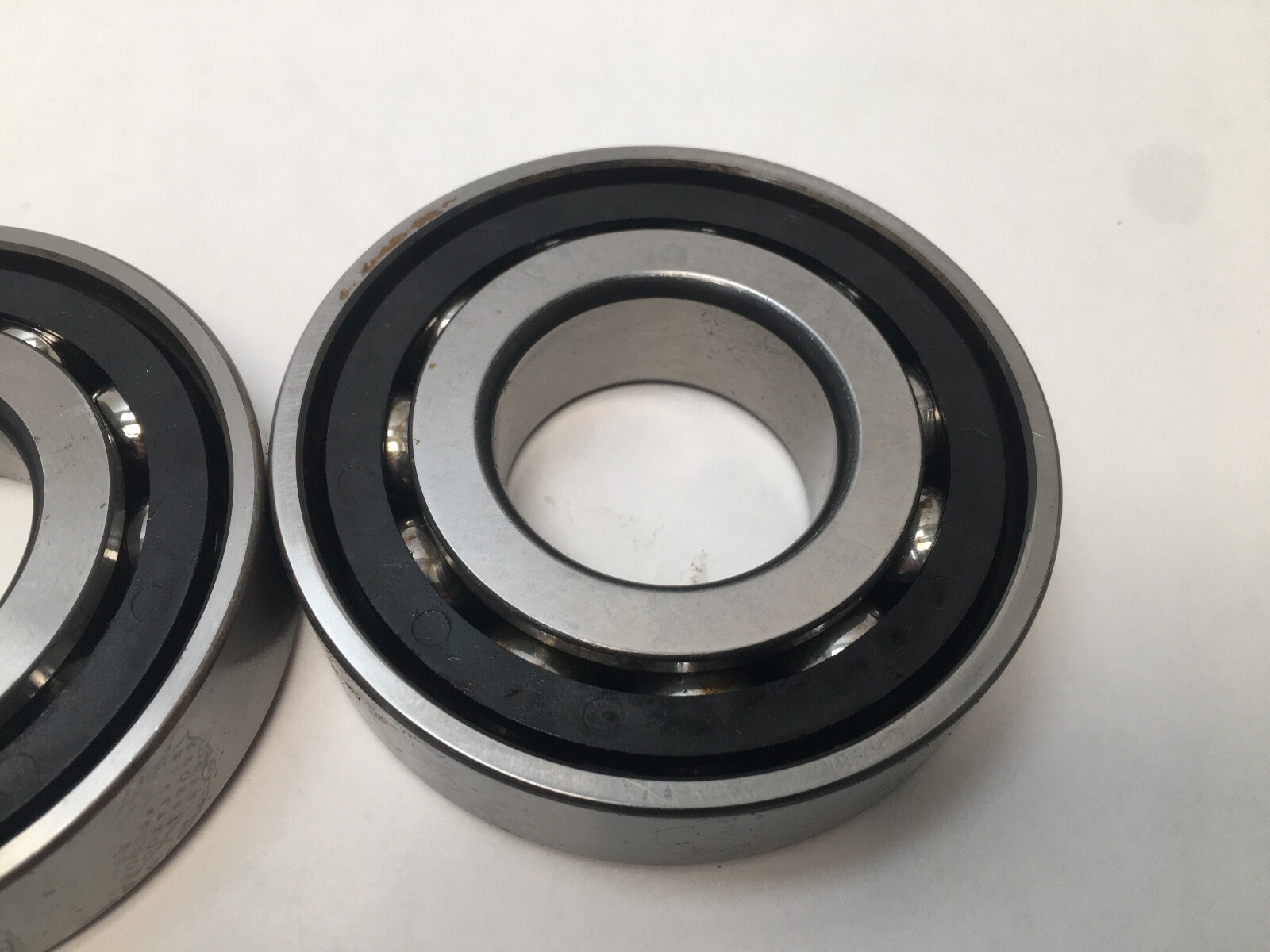

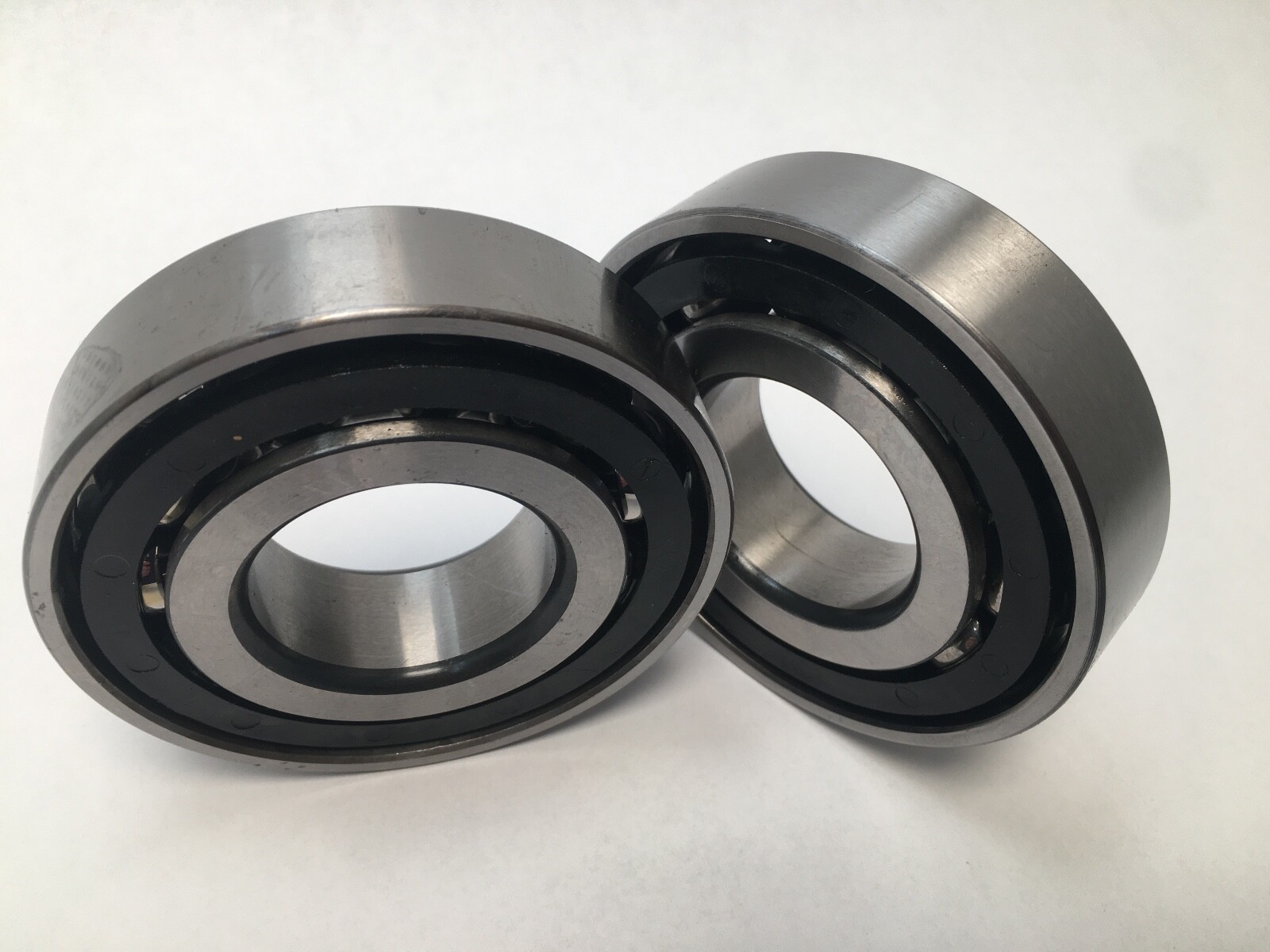

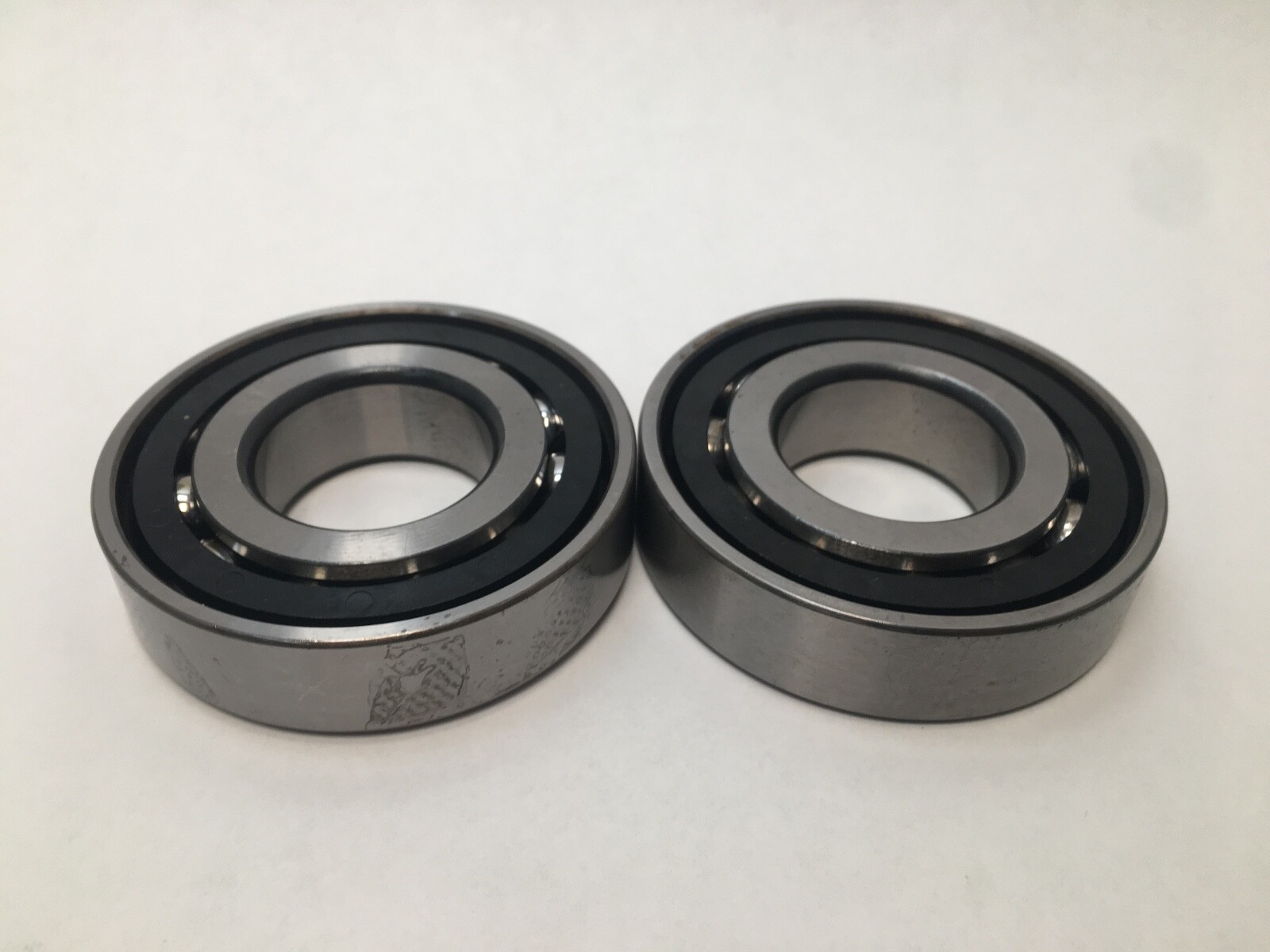

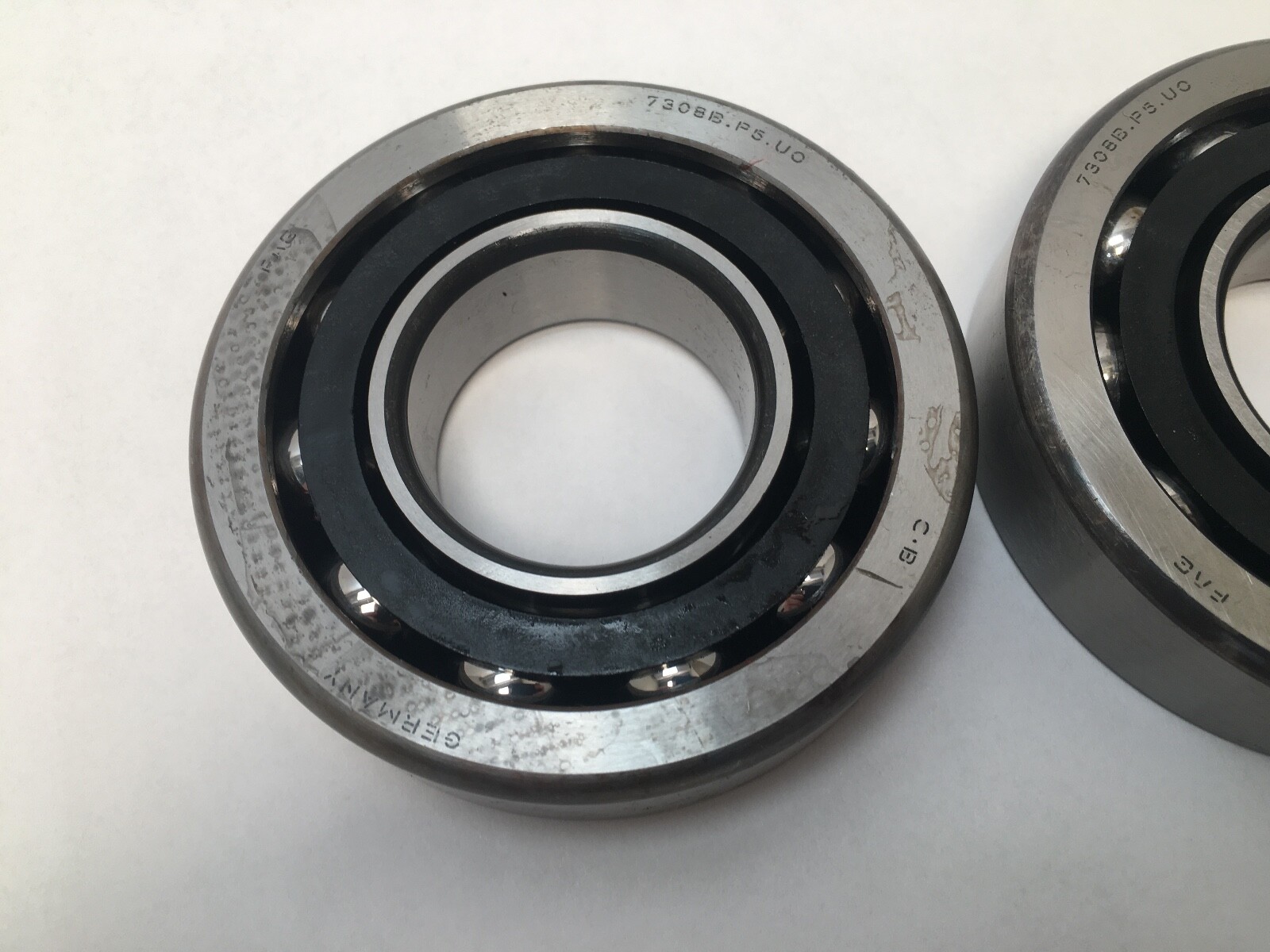

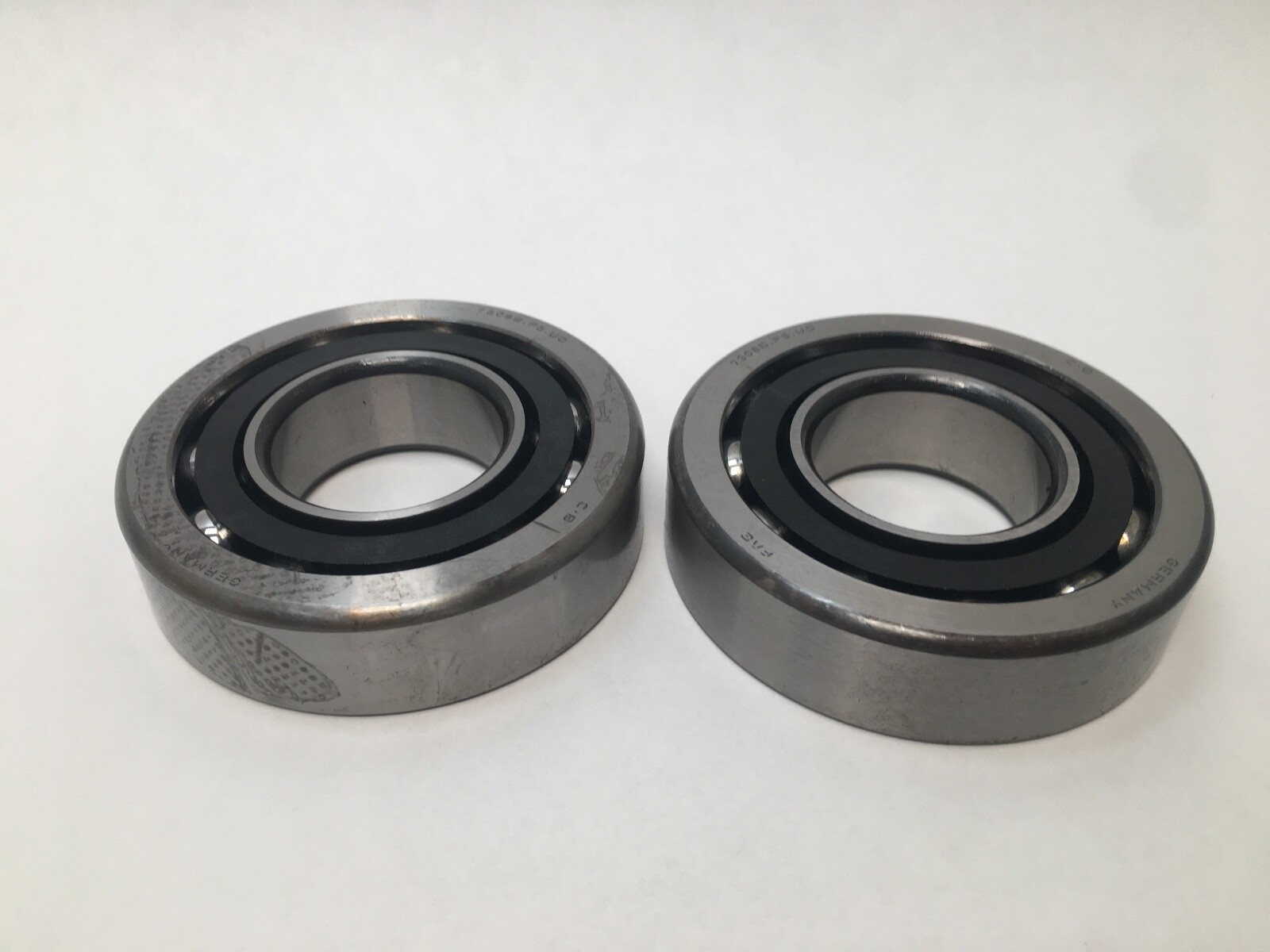

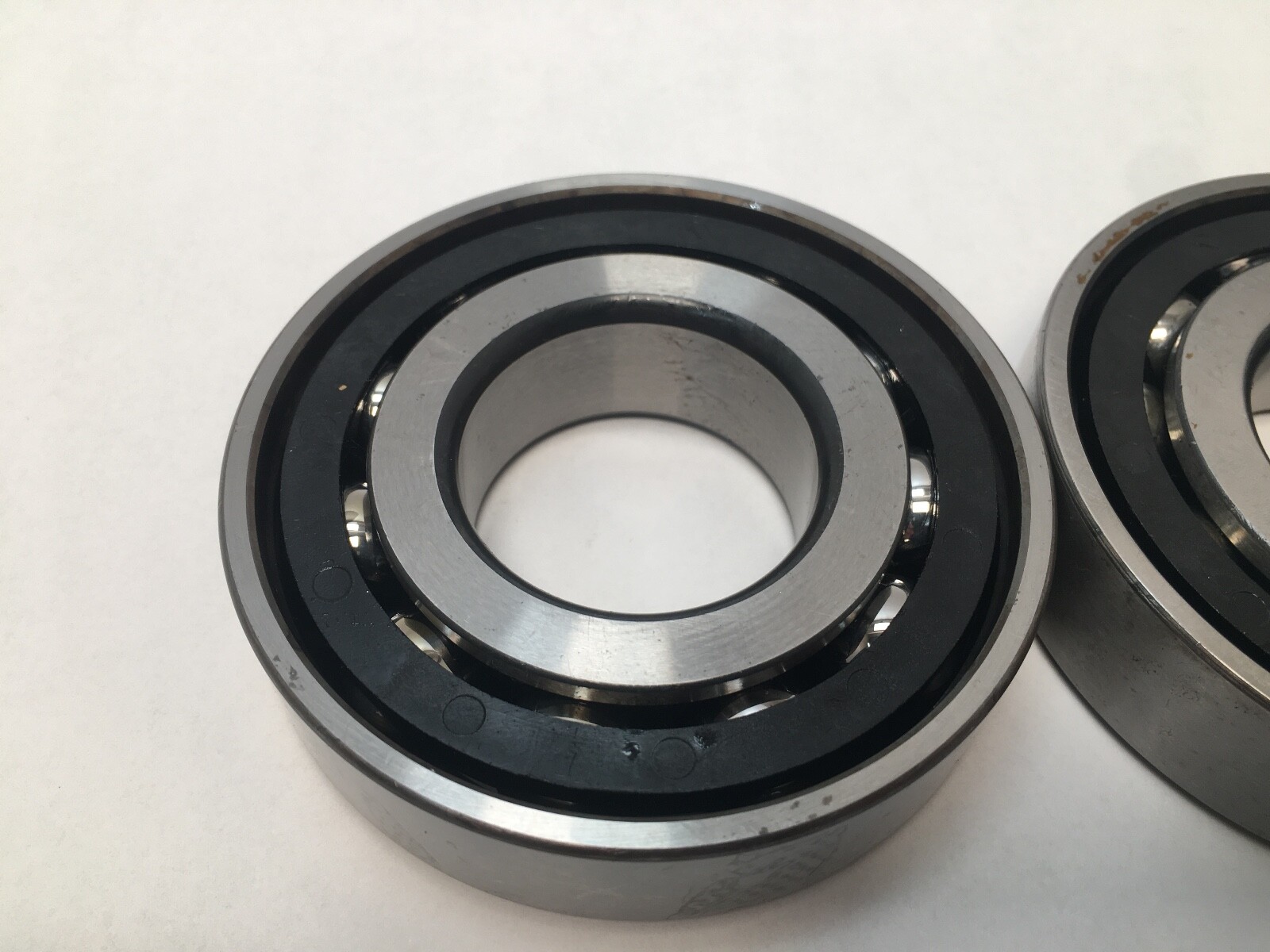

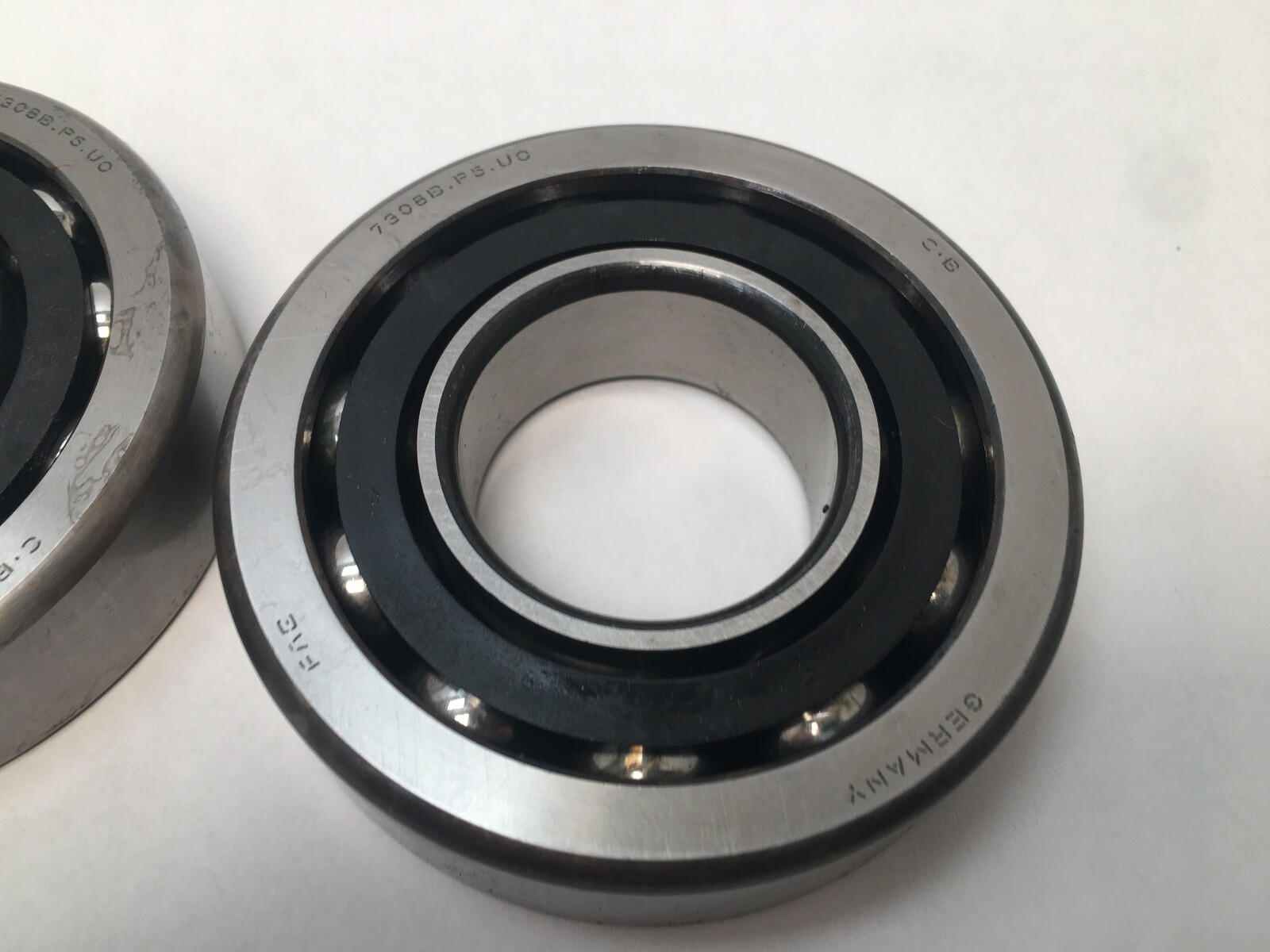

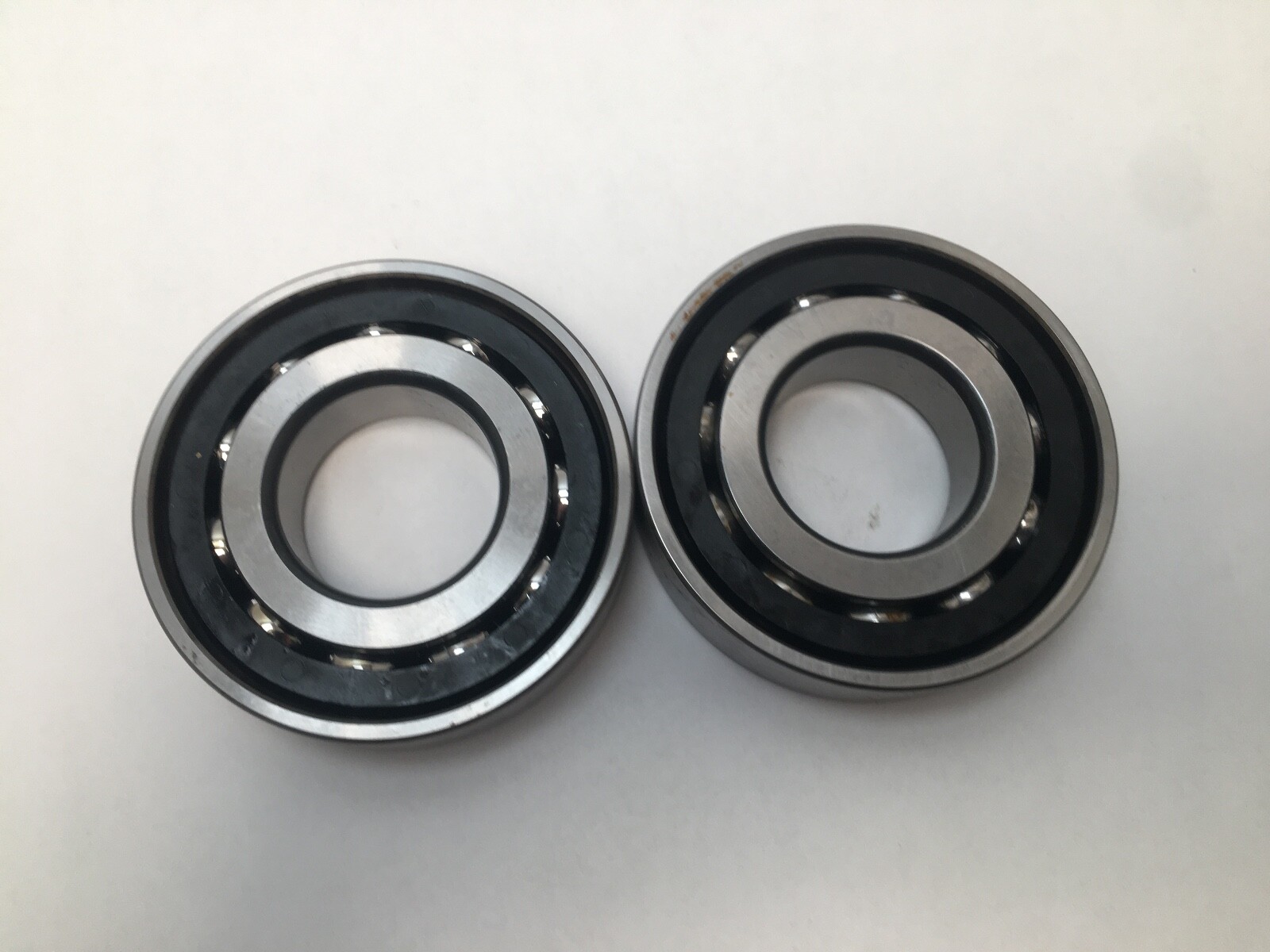

FAG 7308-B-TVP-P5-UO is a single-row angular contact ball bearing, supplied as 2 Pcs: one universally matched pair of two complete single bearings. Bore Diameter: 40 mm. Outside Diameter: 90 mm. Width: 23 mm. Contact Angle: 40°. Precision Rating: P5 (ABEC 5). Cage Material: glass-fibre reinforced polyamide. Seal Type: Open. Condition: new, open box, with grease stains.

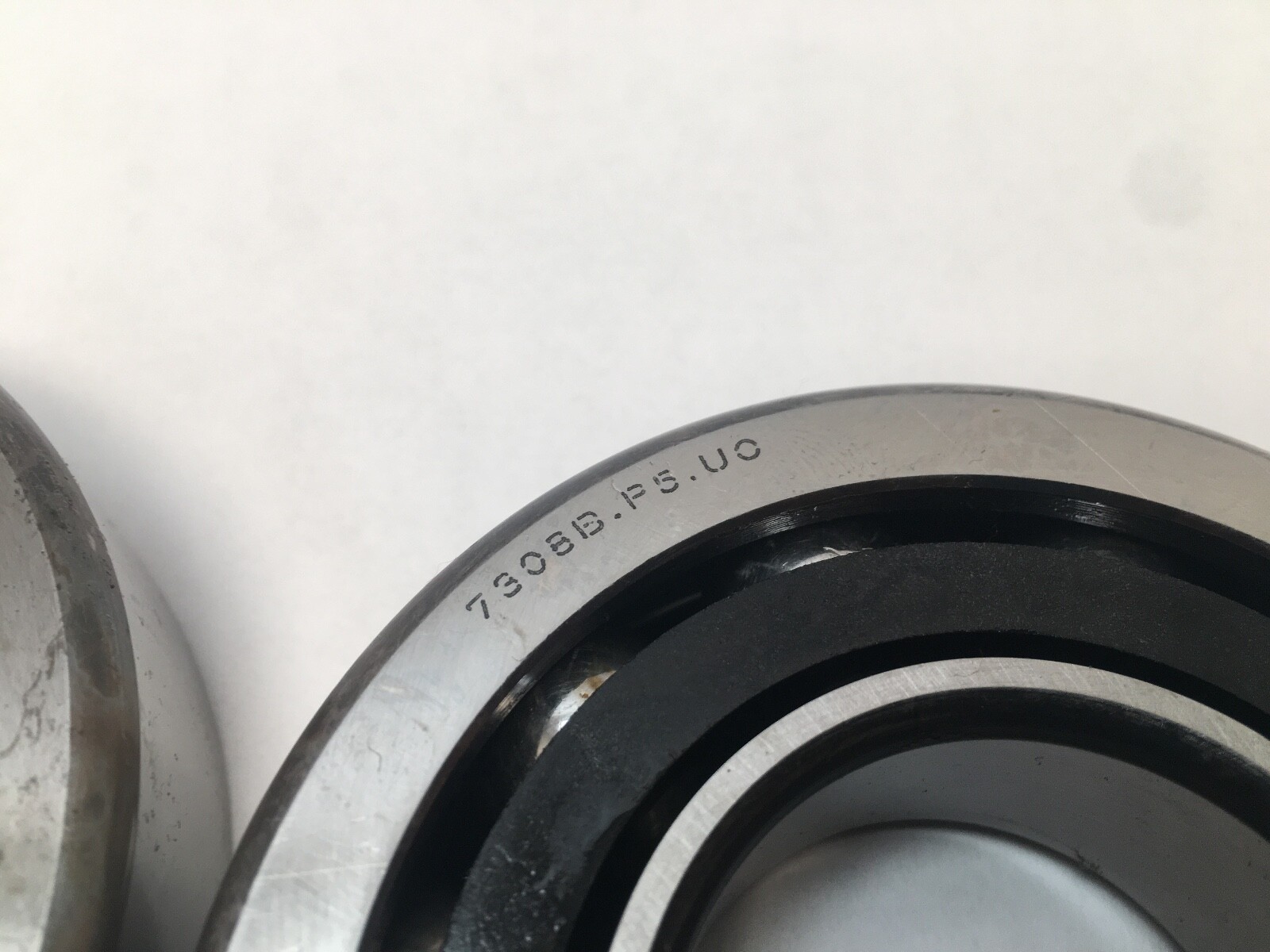

Decoding the designation:

73 — medium dimension series.

08 — bore code, 40 mm bore.

B — modified internal construction with a 40° contact angle.

TVP — one-piece glass-fibre reinforced polyamide window cage.

P5 — ISO tolerance class 5, equivalent to ABEC 5.

UO — universal design. Any two bearings can be set back-to-back, face-to-face or in tandem with zero axial clearance and zero preload.

Specifications:

Dynamic Load Rating: 50 kN. Static Load Rating: 32.5 kN. Fatigue Limit Load: 2.34 kN. Limiting Speed: 8,500 rpm. Reference Speed: 8,500 rpm. Rolling Elements: Balls. Number Of Rows: 1 per bearing. Unit Quantity: 2 Pcs.

Dimensions and mounting:

Bore Diameter: 40 mm (1.5748 in). Outside Diameter: 90 mm. Width: 23 mm. Contact Angle: 40°. A paired set locates the shaft in both axial directions.

Compatibility and replacement:

FAG 7308-B-TVP-P5-UA: P5 universal design, small axial clearance across the pair. FAG 7308-B-TVP-P5-UL: P5 universal design, light preload across the pair. FAG 7308-B-TVP-UO: P0 tolerance instead of P5.

Frequently asked questions:

What size is a FAG 7308-B-TVP-P5-UO?

40 mm bore, 90 mm outside diameter, 23 mm wide, with a 40° contact angle.

What does UO mean?

Universal design. Any two bearings can be set back-to-back, face-to-face or in tandem with zero axial clearance and zero preload.

What are the load ratings?

Dynamic Load Rating: 50 kN. Static Load Rating: 32.5 kN.
