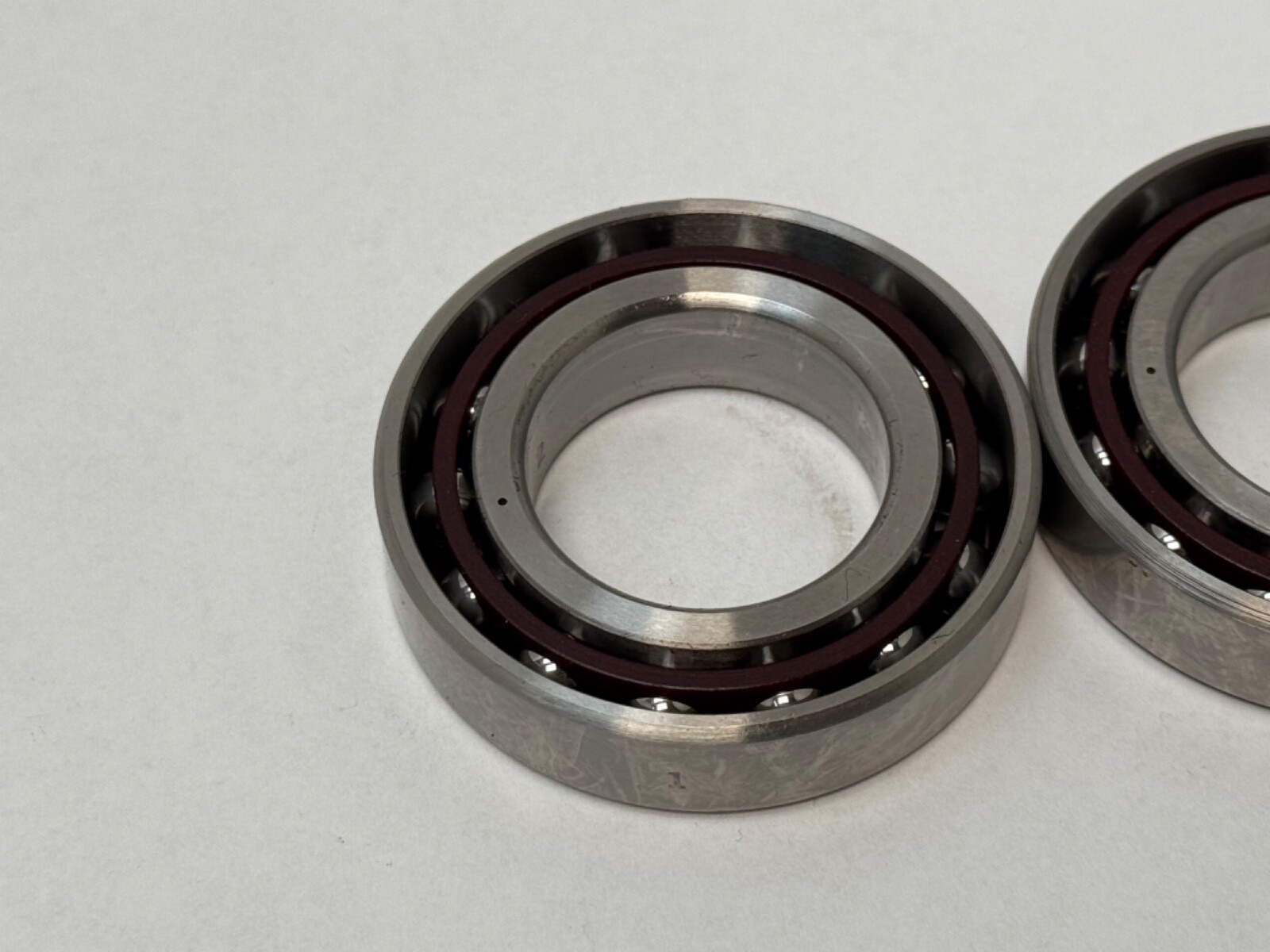

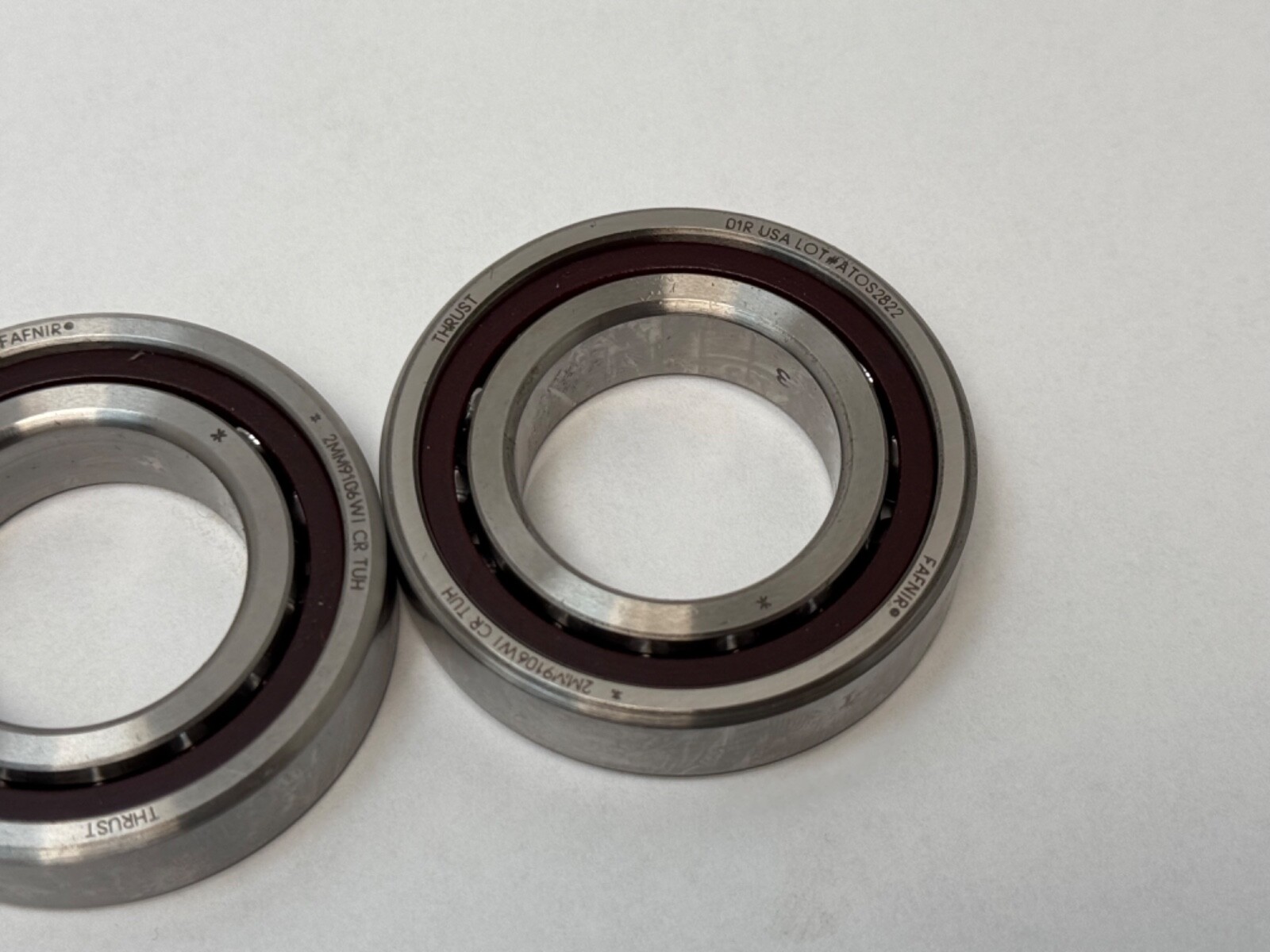

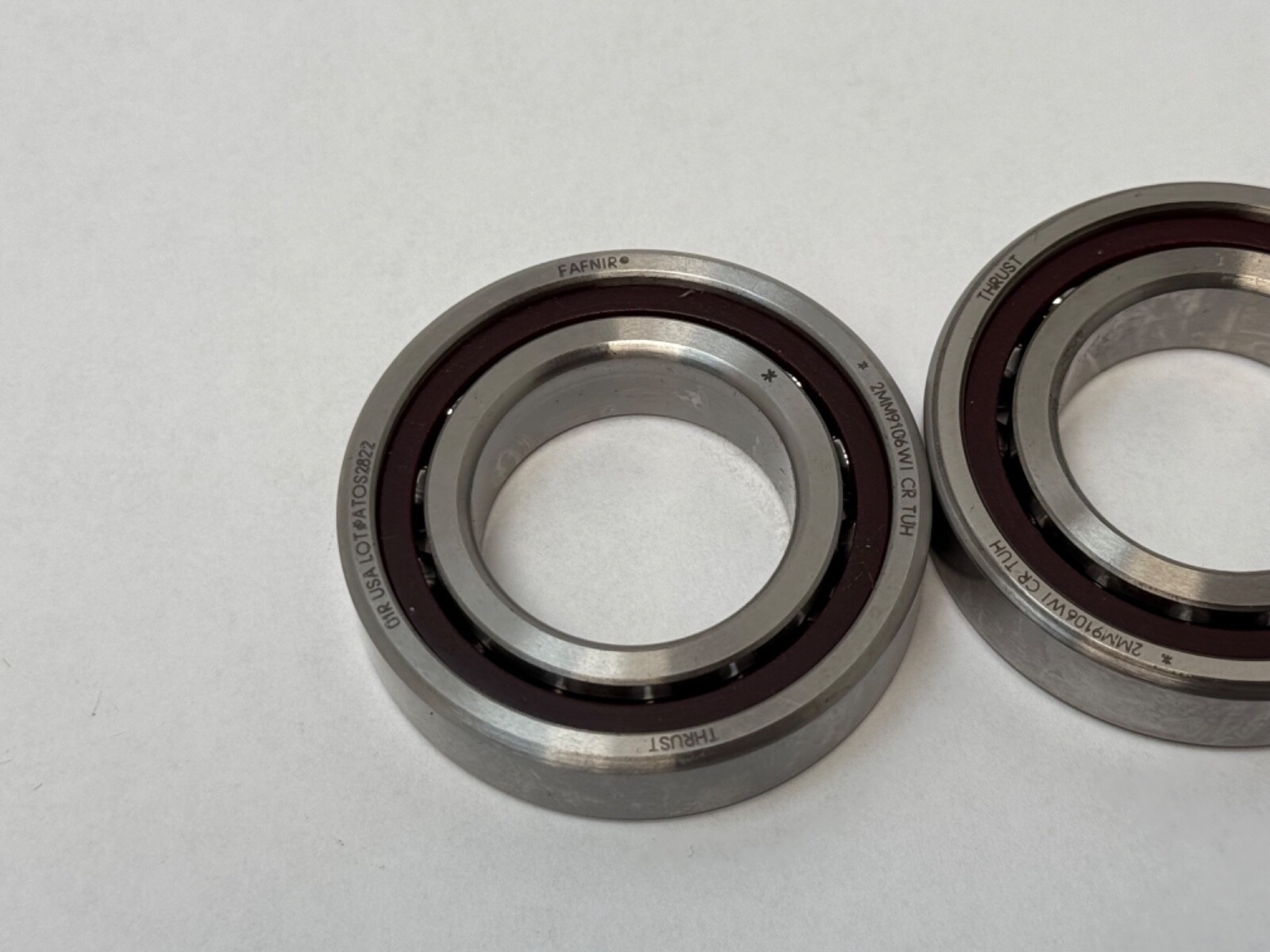

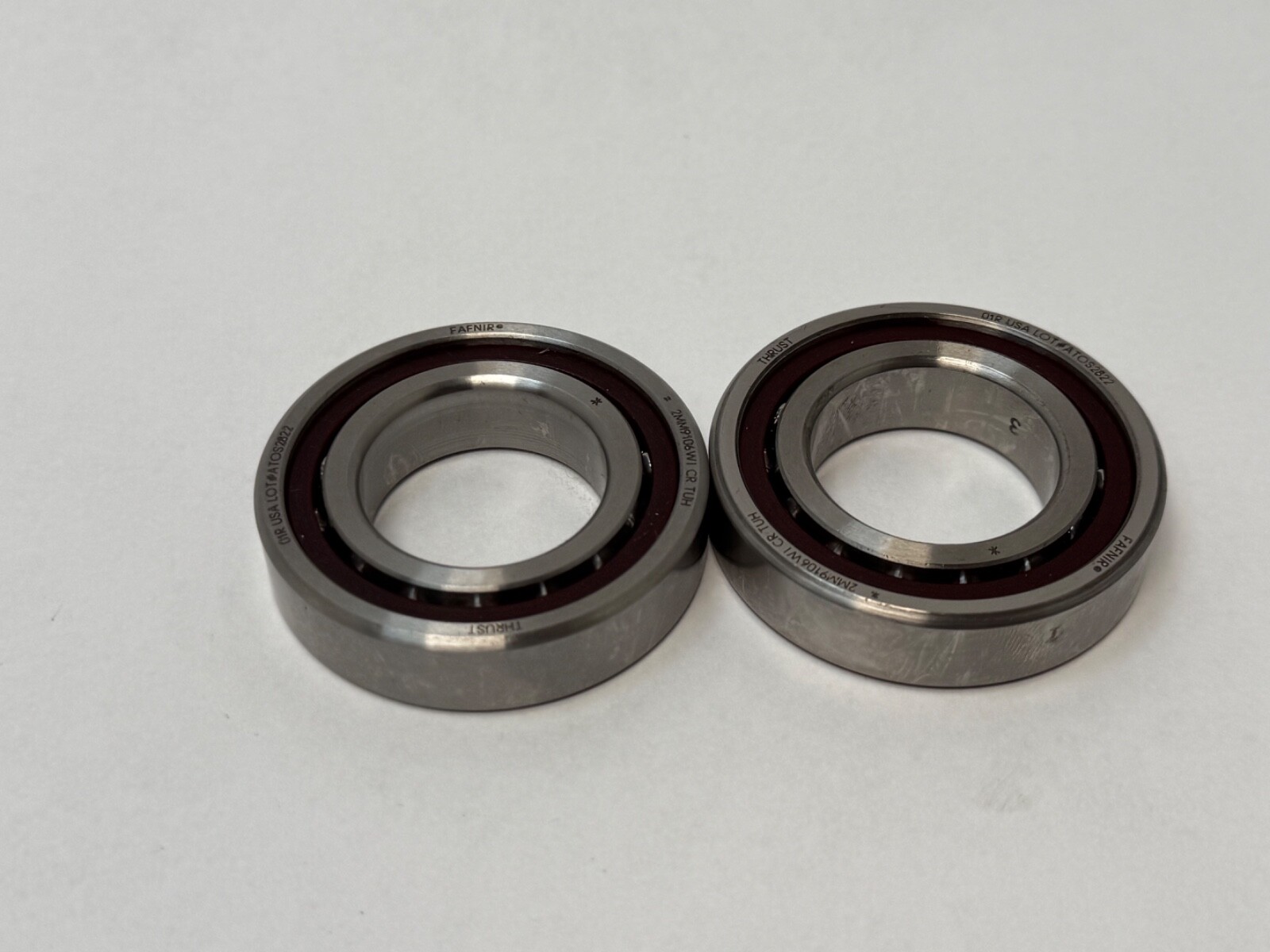

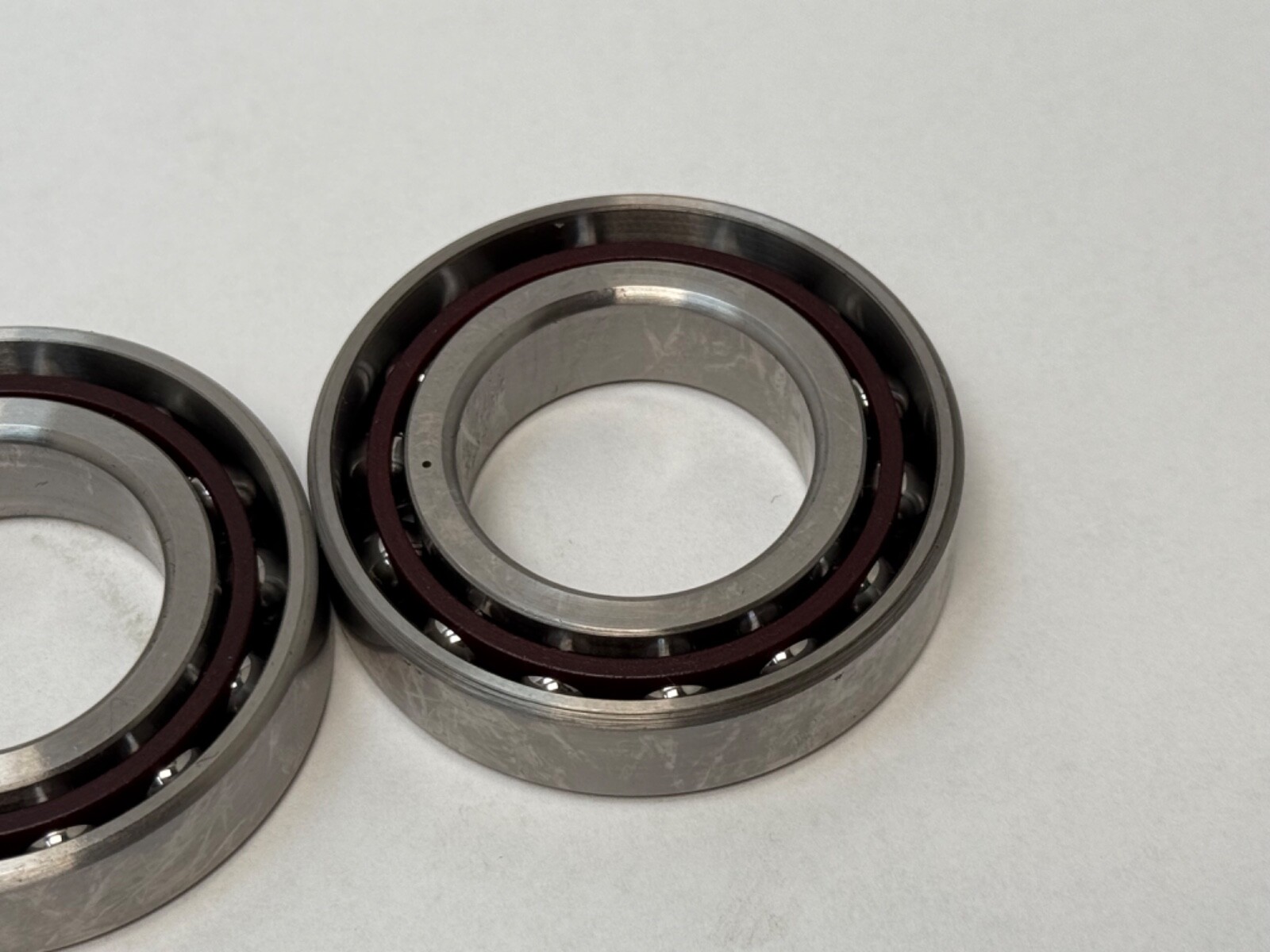

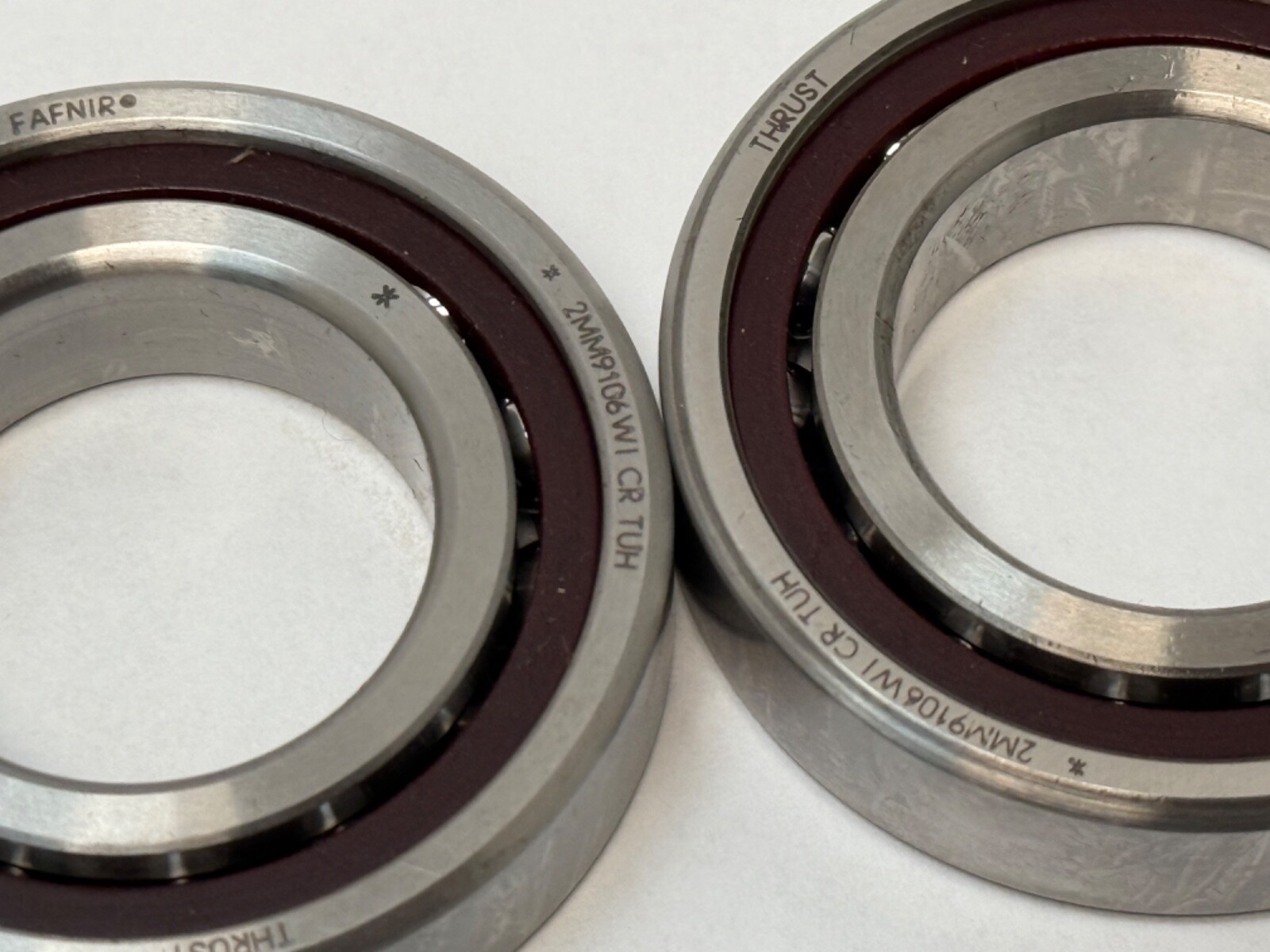

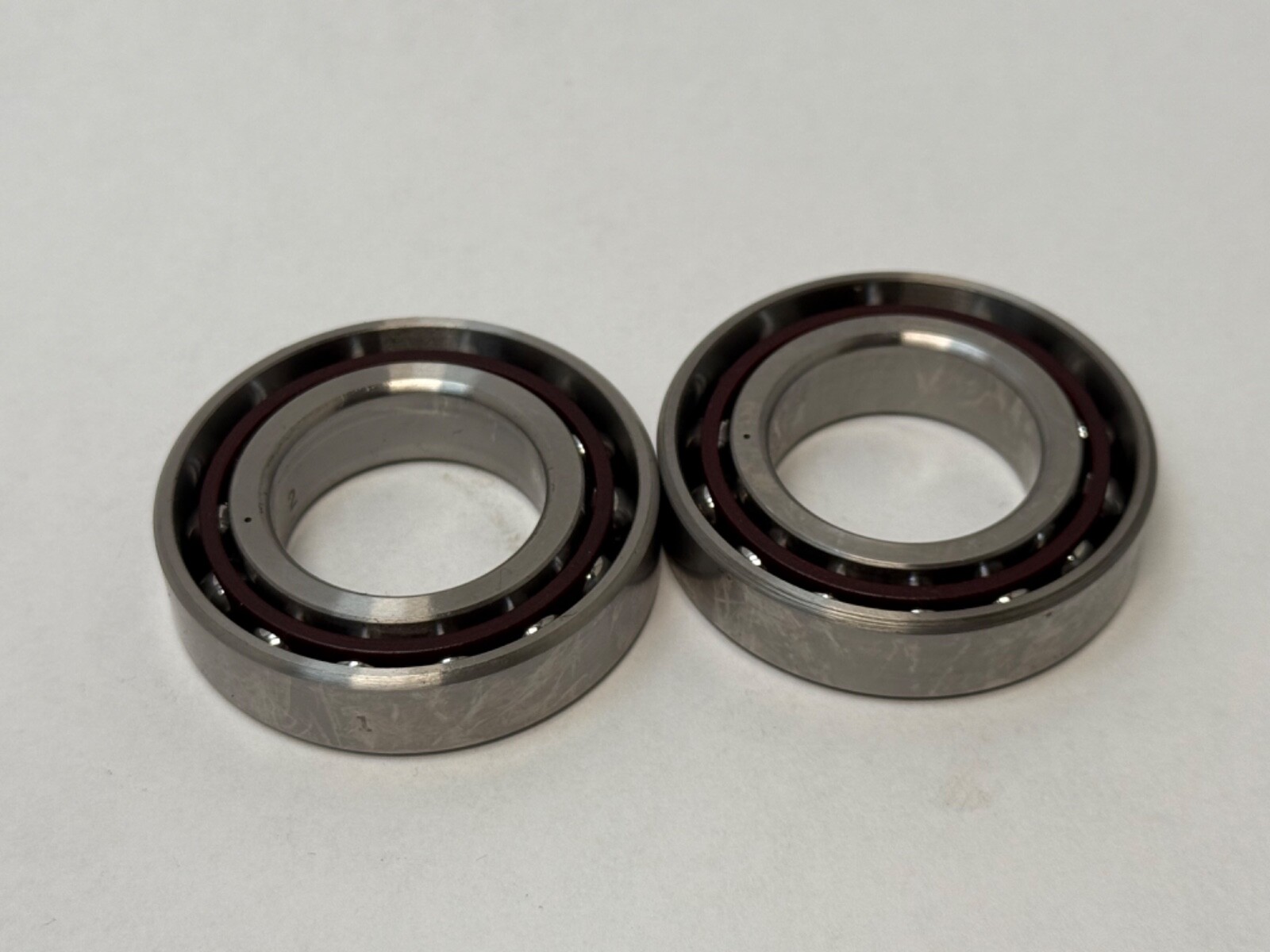

Matched duplex pair of super precision angular contact ball bearings, 30 mm bore x 55 mm OD x 13 mm wide each, 25 degree contact angle, ABEC 7, heavy preload.
List Price
$110.28
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 3MM9106WI DUH |
| Model | 3MM 9106 WI DUH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 55 mm |
| Width | 13 mm |
| Material | Bearing Steel |
|---|---|
| Series | 9100 |
| Preload | Heavy |
| Base Number | 7006 |
| Industry Terms | Spindle bearing, machine tool bearing, precision duplex pair, matched set angular contact, heavy preload spindle set |
| Common Misspellings | Fafner, Faffnir, Fafnier, 3MM9106W1, 3MM 9106WL DUH |
| Application Types | Machine tool spindles, grinding spindles, precision ball screw drives, rotary tables |
| Bore Shaft Size | 30 mm |
| Mpn Variants | 3MM9106WI-DUH, 3MM9106WIDUH, 3MM-9106-WI-DUH, 3MM 9106 WI DUH, MM9106WI |
| Precision Class | ABEC 7 / P4 |
| Precision Rating | ABEC 7 |
| Rolling Elements | Ball |
| Number Of Rows | 1 per bearing (duplex pair) |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 25° |
| Part Number | 3MM9106WI-DUH |
| Total Width | 26 mm (pair stack) |
A matched duplex pair of Fafnir 3MM9106WI super precision angular contact ball bearings, universally ground for heavy preload (DUH). Each bearing is 30 mm bore x 55 mm OD x 13 mm wide, so the pair stacks to 26 mm overall. The 9100WI line is Fafnir’s light-section spindle series on the 7006 envelope.
3MM — Fafnir super precision series, 25° contact angle, ABEC 7 / P4 precision.
9106 — 9100 light-section series, 7006 envelope, 30 x 55 x 13 mm.
WI — super precision spindle bearing design.
DUH — duplex, universally ground, heavy preload.
Bearing Type: Super precision angular contact ball bearing. Bore Diameter: 30 mm. Outside Diameter: 55 mm. Width: 13 mm each bearing. Total Width Mounted As A Pair: 26 mm. Contact Angle: 25°. Precision Class: ABEC 7 / P4. Preload: Heavy (H). Number Of Rows: 1 per bearing, duplex pair. Closure Type: Open. Bore Type: Straight. Rolling Elements: Ball. Series: 3MM 9100WI. Unit Quantity: 2 Pcs. Harmonization Code: 8482.10.50.68.
Bore Diameter: 30 mm. Outside Diameter: 55 mm. Width: 13 mm per bearing, 26 mm as a pair. Universally ground rings allow back-to-back (DB), face-to-face (DF) or tandem (DT) mounting, each producing the heavy preload.
7006 envelope, 25° ABEC 7 heavy preload duplex sets. Written variously as 3MM9106WI-DUH, 3MM9106WIDUH, 3MM-9106-WI-DUH and 3MM 9106 WI DUH. 2MM9106WI is the 15° version; DUL and DUM carry light and medium preload.
Two bearings, supplied as the factory matched set.
25°, from the 3MM series prefix.
Duplex, universally ground, heavy preload.
