Fafnir2MM9124WI CRAngular Contact Ball Bearing – 120 mm ID, 180 mm OD, 28 mm Width, 15° Contact Angle, Phenolic Cage, Open, ABEC 7 / P4

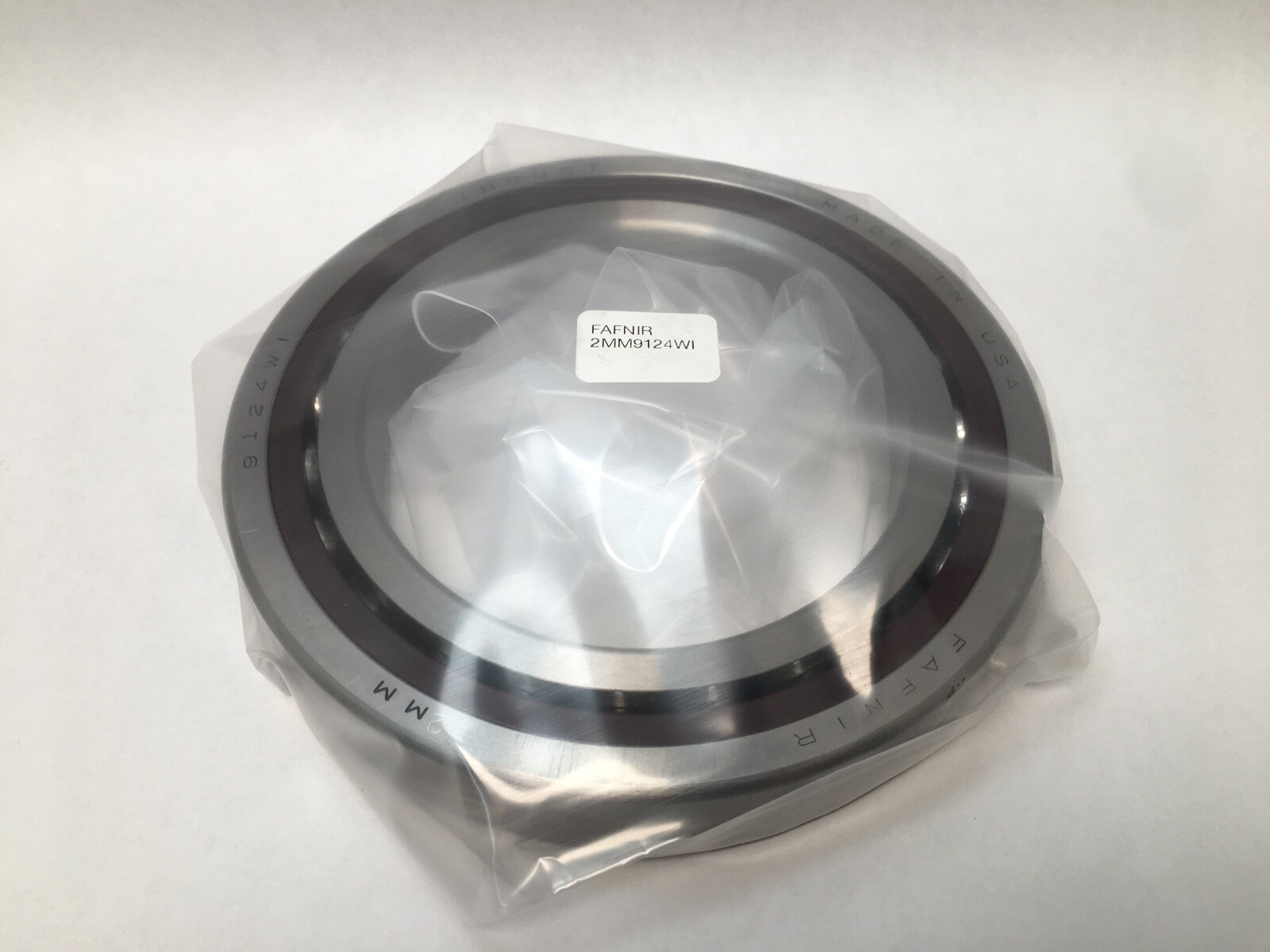

Condition: New – Open box

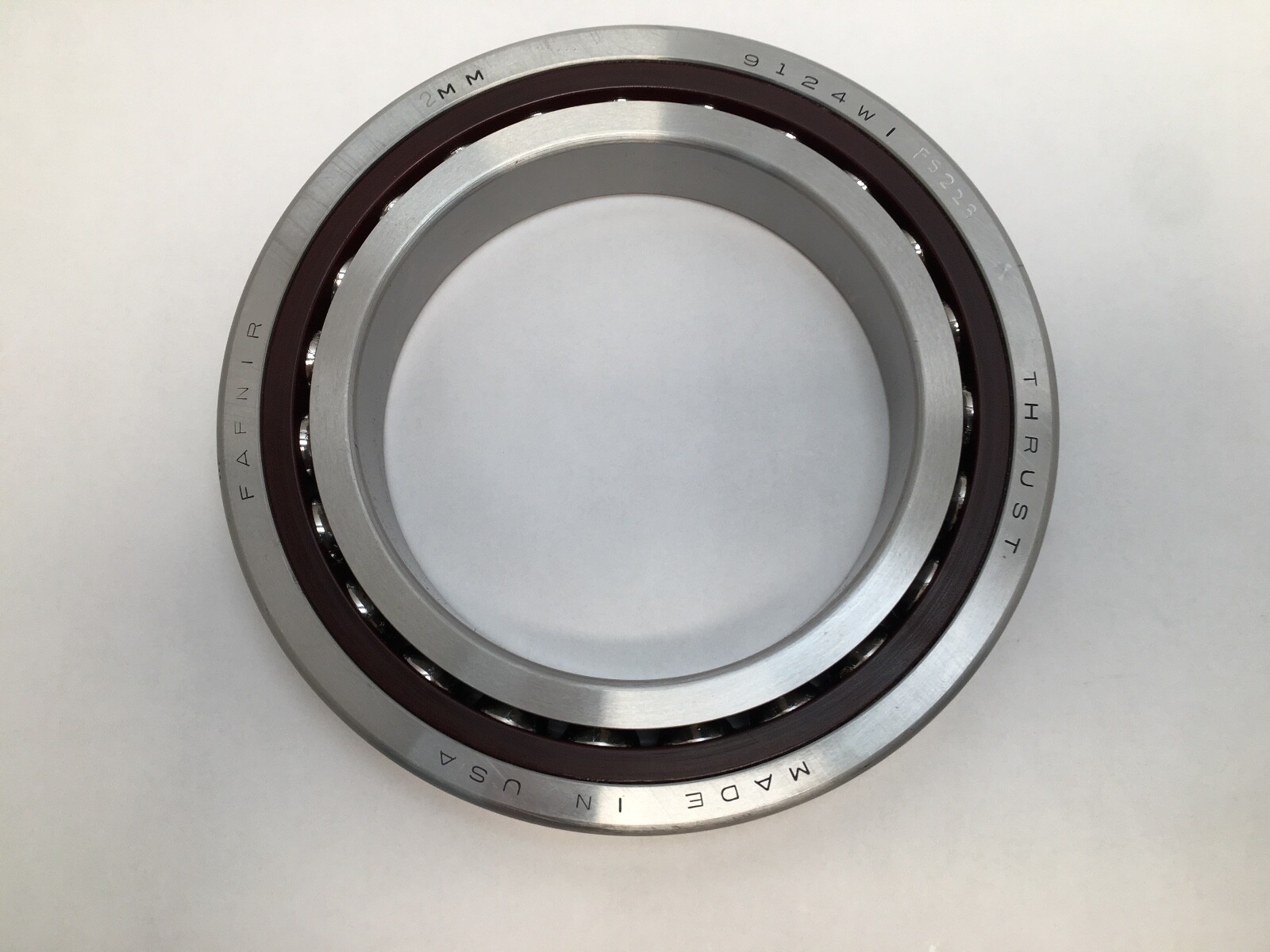

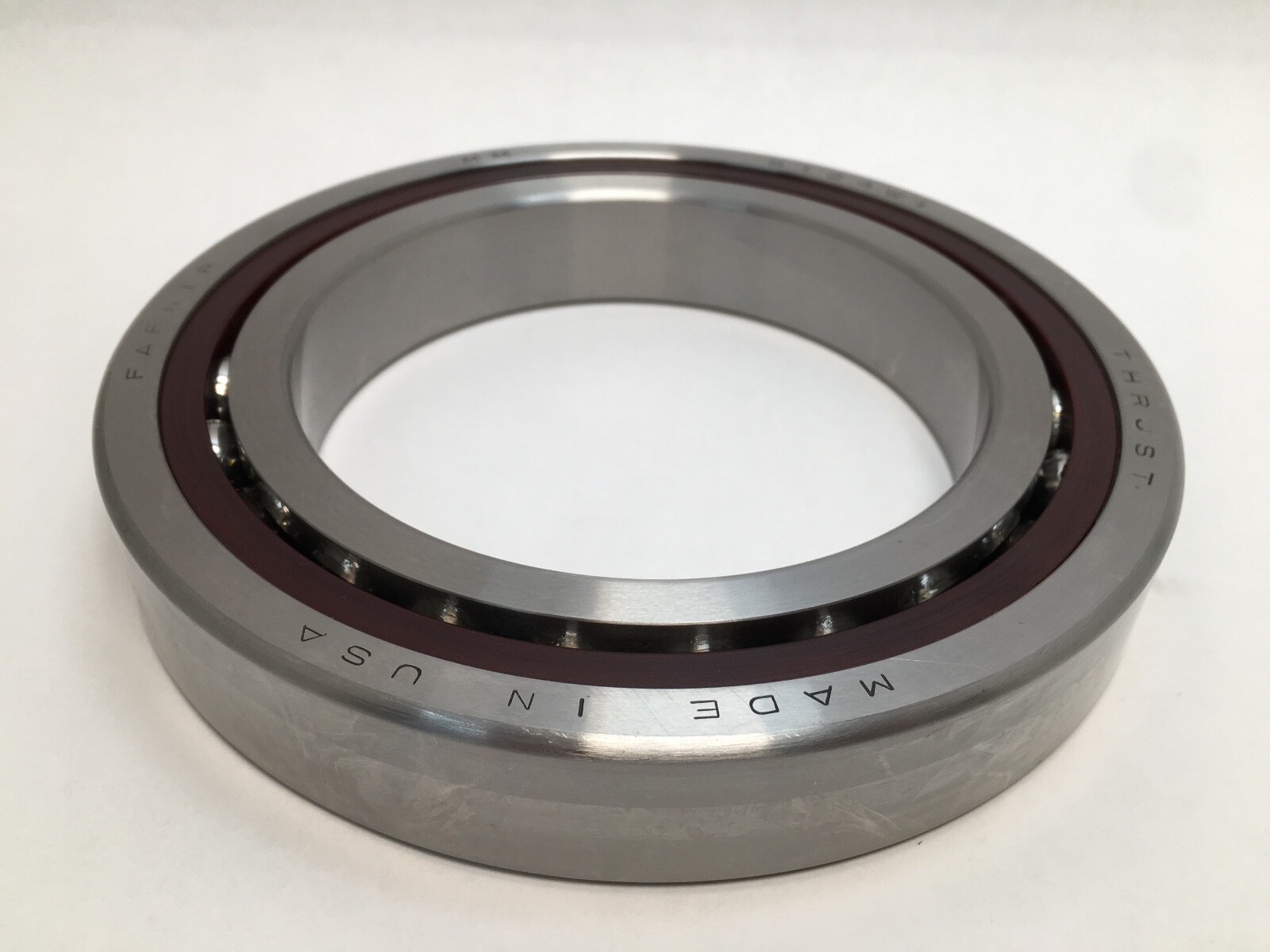

Condition Note: Made In USA, New Old Stock

Availability:

1 in stock

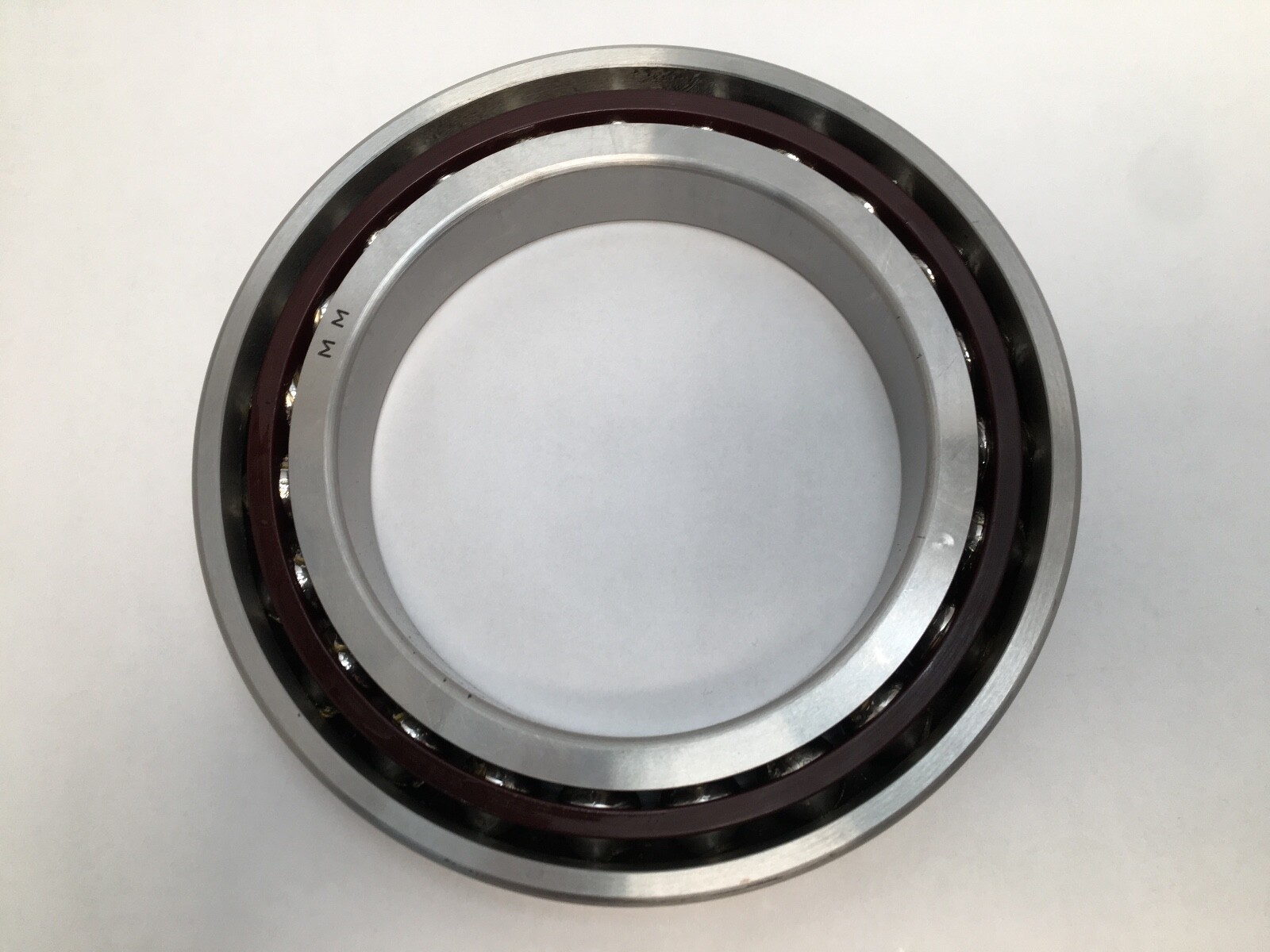

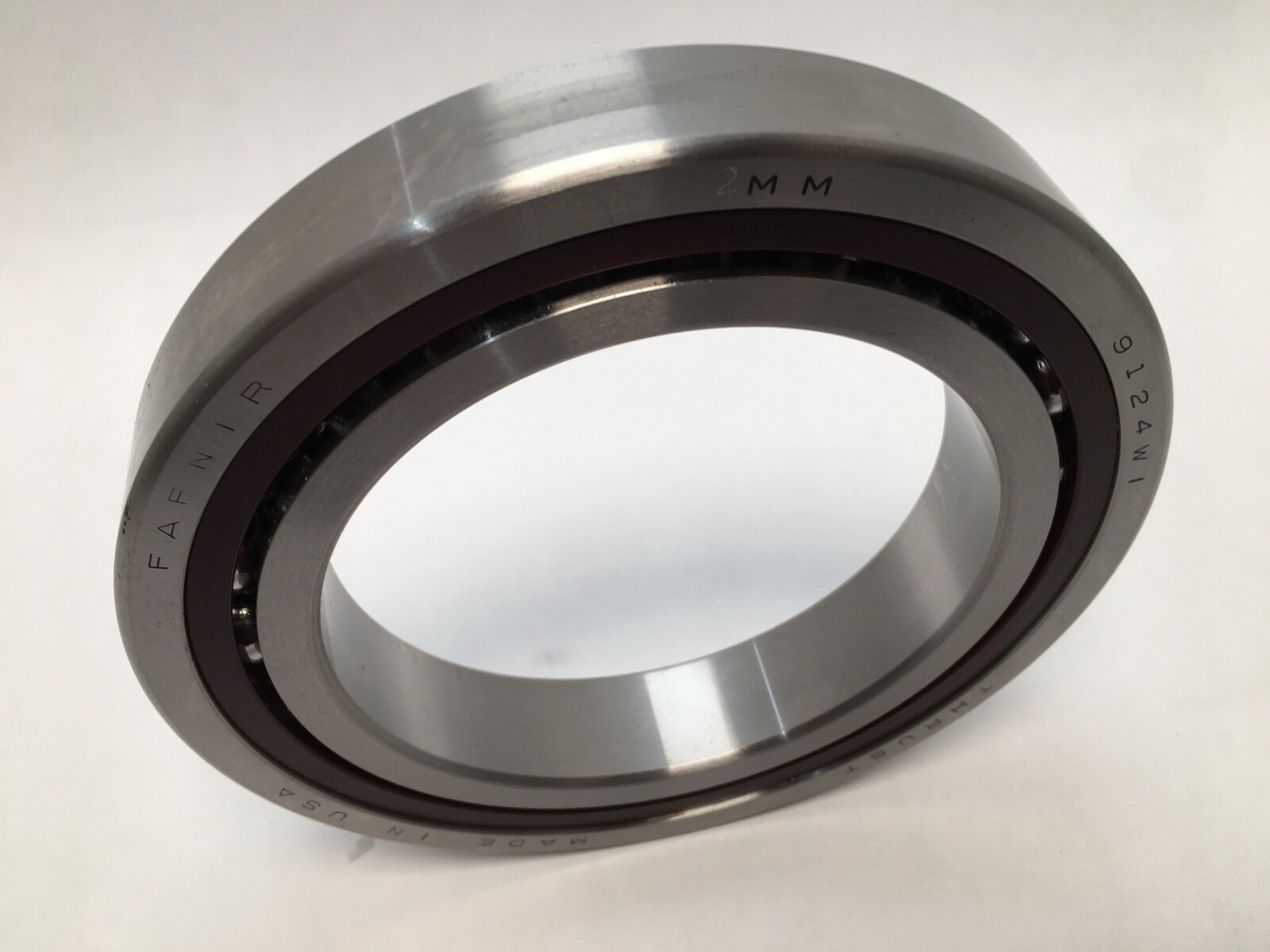

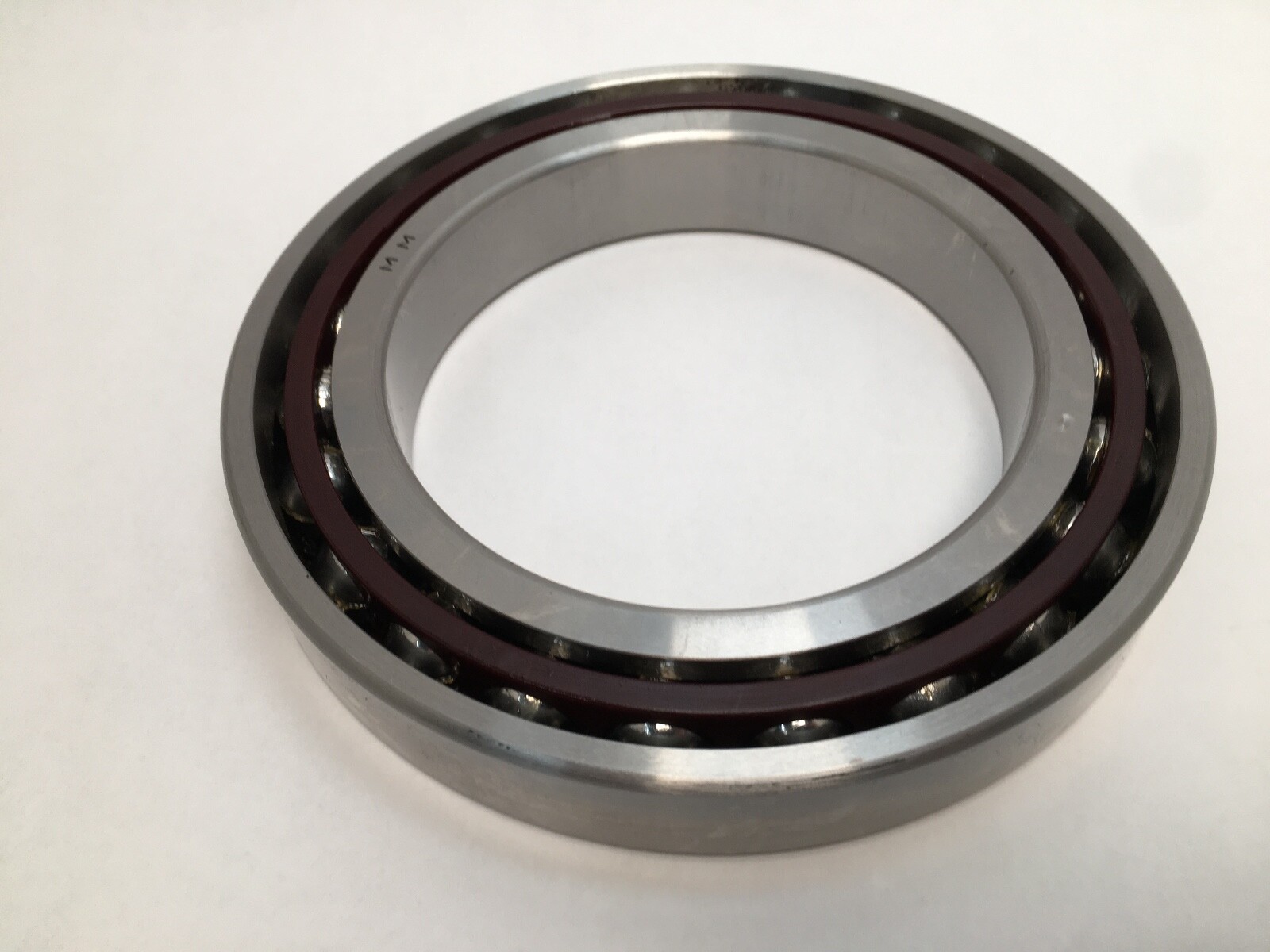

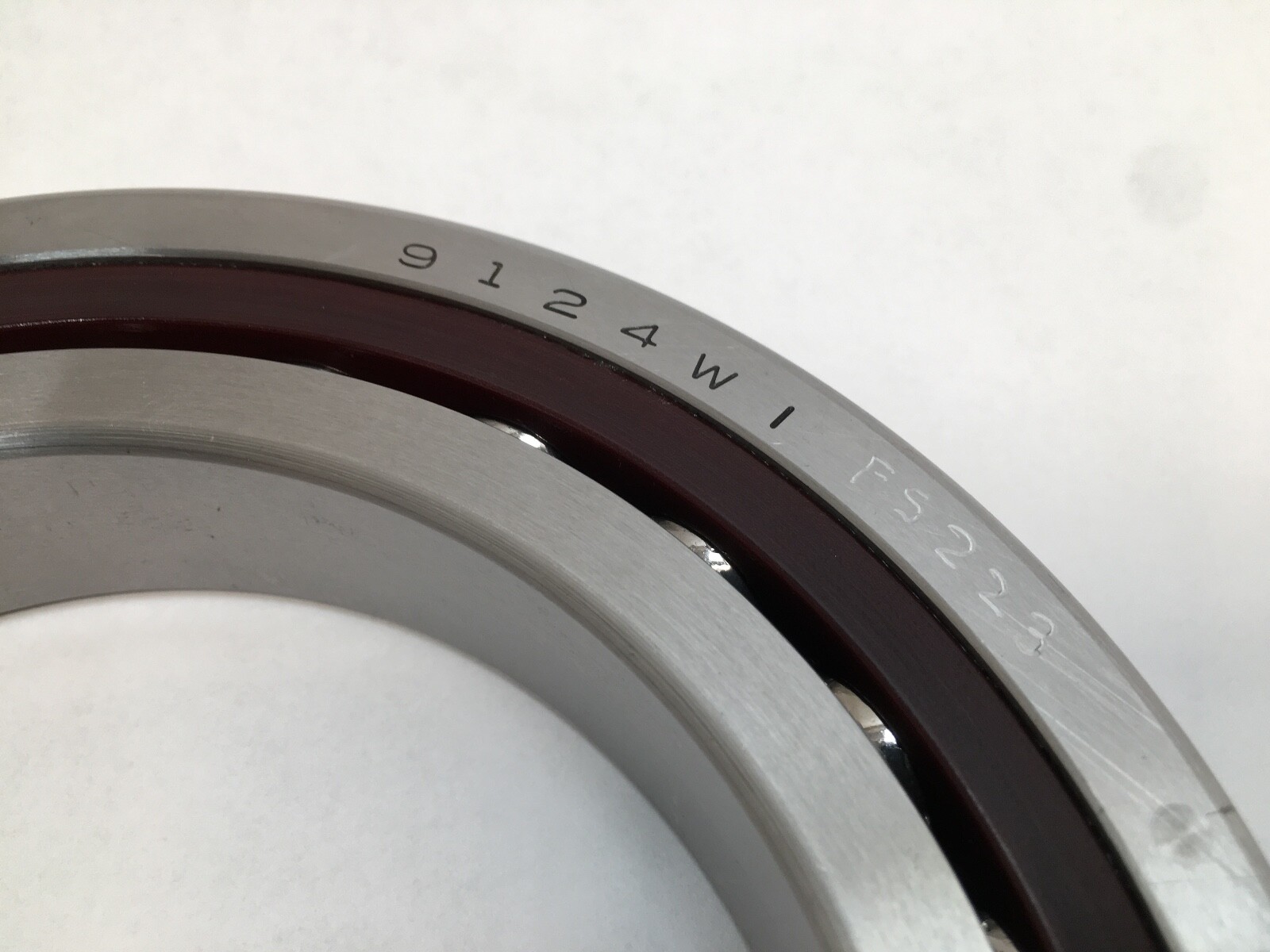

Fafnir 2MM9124WI super-precision angular contact ball bearing, 120 x 180 x 28 mm, 15° contact angle, ABEC 7 / P4, phenolic outer-land-riding cage, open.

Same day shipment

List Price

$290.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFafnir
MPN2MM9124WI CR
Model7024C 2MM 9124 WI
Bearing TypeAngular Contact Ball Bearing, Open
ID120 mm
OD180 mm
Width28 mm

Technical Specifications

MaterialChrome steel
Series9100
LubricantGrease or oil
Base Number2MM9124WI
Total Width28 mm
Bore Shaft Size120 mm
Mpn Variants2MM9124WI CR, 2MM9124WI, 2MM9124WICR, 2MM-9124-WI-CR, 2MM 9124 WI
Precision ClassABEC 7 / P4
Dynamic Load Rating C1111,200 N
Additional AttributesBall type: steel. Shaft backing shoulder diameter: 132.5 mm. Housing backing shoulder diameter: 168.3 mm. Maximum shaft fillet radius: 2 mm. Outer ring to-clear radius: 2 mm. ISO dynamic radial rating per row: 101,000 N.
Cage TypeCR - Phenolic Outer Land Riding Cage
Dynamic Load Rating111,200 N
Static Load Rating108,500 N
Precision RatingABEC 7 / P4
Rolling ElementsBall
Cage MaterialPhenolic
Limiting Speed6,900 rpm grease / 13,800 rpm oil
Number Of Rows1
Bore TypeStraight
Harmonization Code8482.10.50
Contact Angle15°
Bearing MaterialChrome steel
Industry Termssuper precision angular contact bearing; machine tool spindle bearing; Fafnir 9100WI spindle bearing
Common MisspellingsFafnir 2MM 9124 WI; Fanir 2MM9124WI; Fafnr 2MM9124WI; 2MM9124 W1 CR
Application TypesMachine tool spindles; grinding spindles; high-speed rotating equipment
Closure TypeOpen

Cross-References

Cross Reference 1Timken 7024C-T-P4S - world part number
Seller Part Number: P8#4EUUPZ

Product Description

What this part is:

Fafnir 2MM9124WI CR super-precision single-row angular contact ball bearing, built by Timken, 120 x 180 x 28 mm, 15° contact angle, ISO P4 (ABEC 7), phenolic outer-land-riding cage, open. Unit Quantity: 1 Pc.

Decoding the designation:

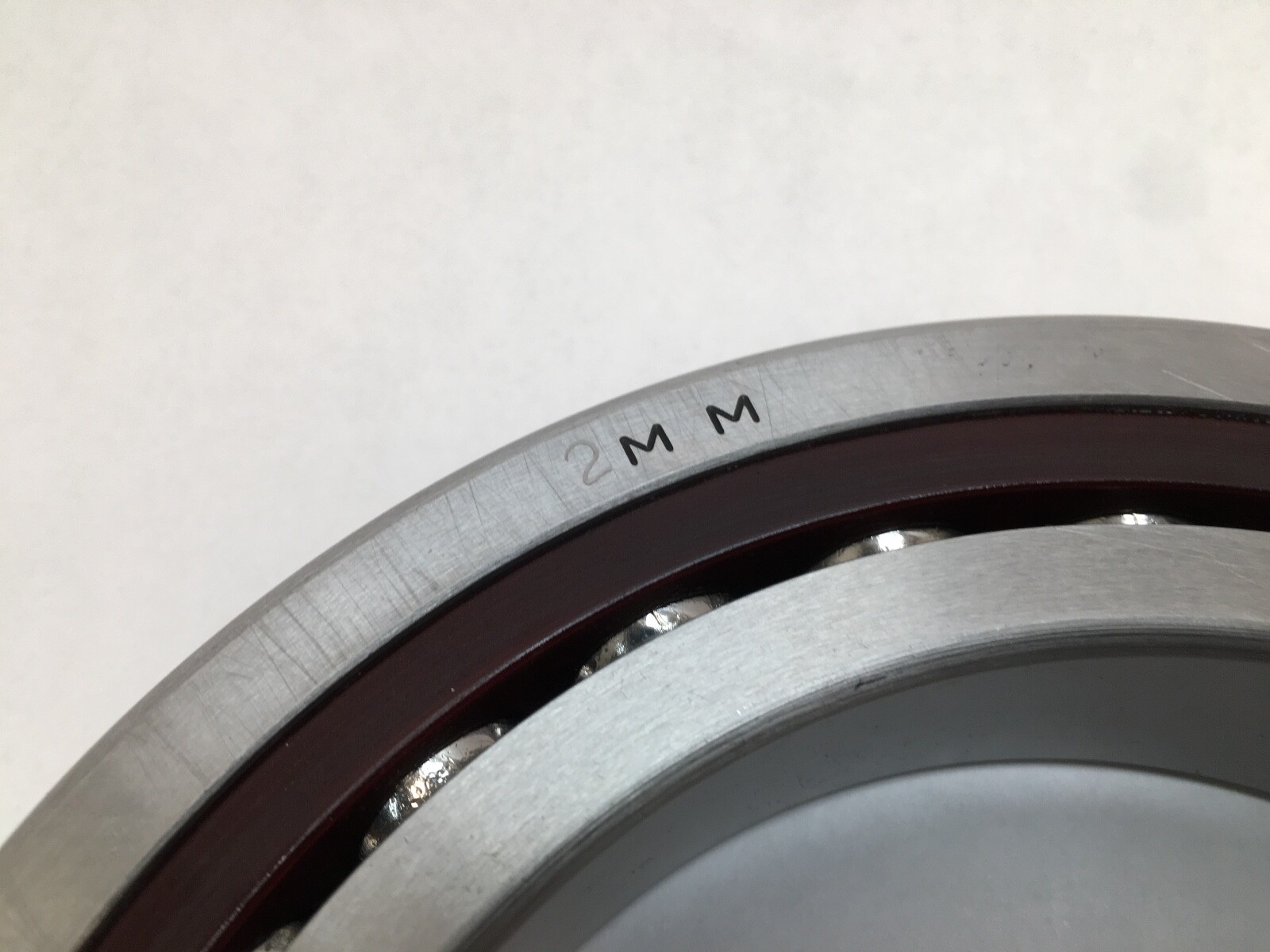

2MM — Fafnir super-precision spindle execution at a 15° contact angle, ground to ISO P4 (ABEC 7).

9124 — the 9100WI size series, ISO 7024 envelope, 120 x 180 x 28 mm.

WI — low shoulder on both rings.

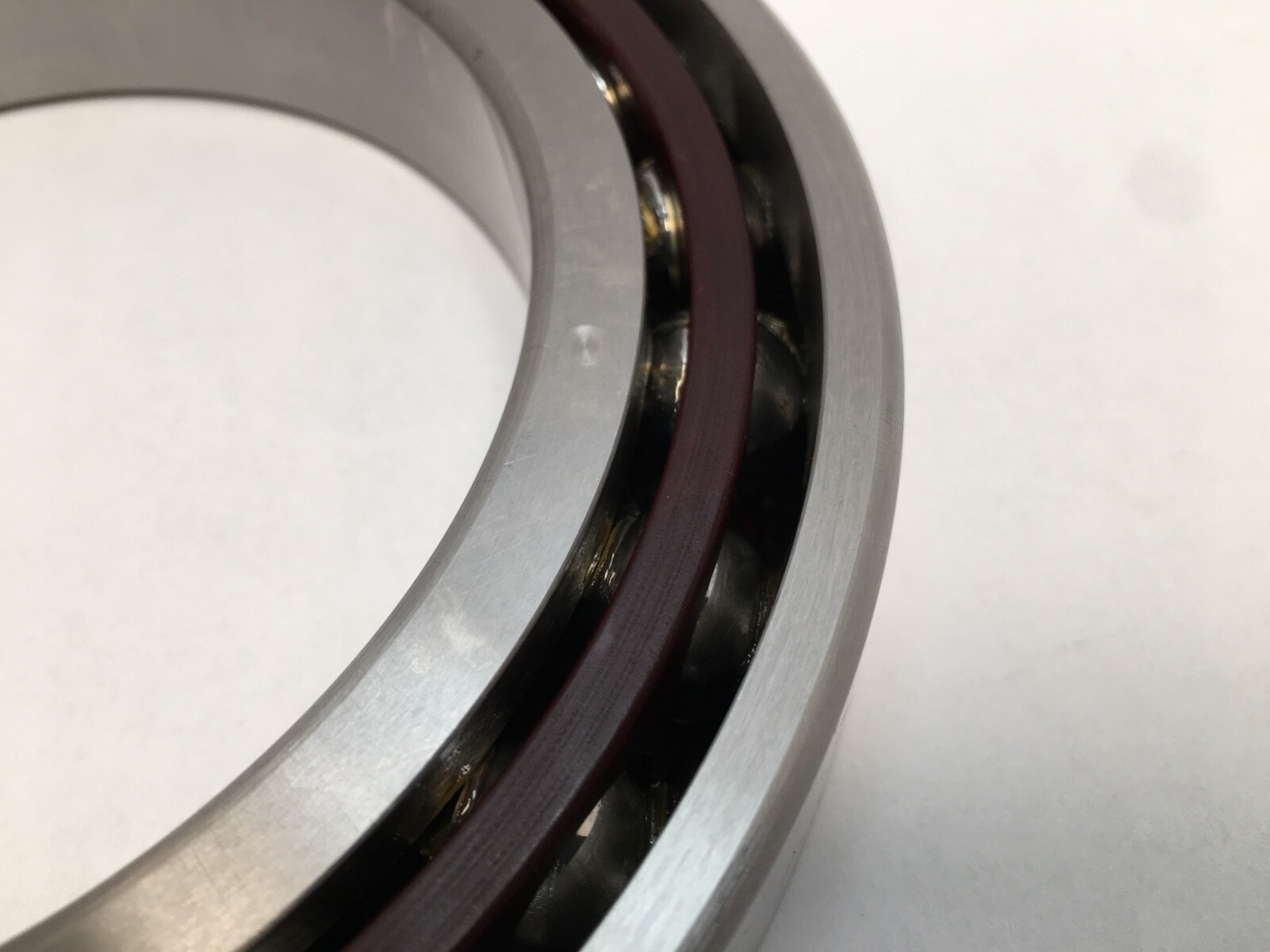

CR — phenolic outer land riding cage.

Specifications:

Bore Diameter: 120 mm. Outside Diameter: 180 mm. Bearing Width: 28 mm. Total Width: 28 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: CR – Phenolic Outer Land Riding Cage. Rolling Elements: Ball (steel). Closure Type: Open. Number Of Rows: 1. Series: 9100. Bore Type: Straight. Unit Quantity: 1 Pc.

Dynamic Radial Load Rating (C1): 111,200 N. Static Radial Load Rating (C0): 108,500 N. ISO dynamic radial rating per row: 101,000 N. Limiting Speed: 6,900 rpm grease; 13,800 rpm oil. Lubricant: grease or oil.

Dimensions and mounting:

Shaft Backing Shoulder Diameter: 132.5 mm. Housing Backing Shoulder Diameter: 168.3 mm. Maximum Shaft Fillet Radius: 2 mm. Outer Ring To-Clear Radius: 2 mm.

Compatibility and replacement:

Timken world part number: 7024C-T-P4S. Manufacturing part number: 2MM9124WI. MPN variants: 2MM9124WI CR, 2MM9124WICR, 2MM-9124-WI-CR, 2MM 9124 WI.

Frequently asked questions:

What are the dimensions of the Fafnir 2MM9124WI CR?

Bore Diameter 120 mm, Outside Diameter 180 mm, Bearing Width 28 mm (ISO 7024 envelope).

What contact angle and precision class does it have?

Contact Angle 15° (2MM) and precision class ISO P4 (ABEC 7).

What do WI and CR mean in the designation?

WI is a low shoulder on both rings; CR is a phenolic outer land riding cage.
