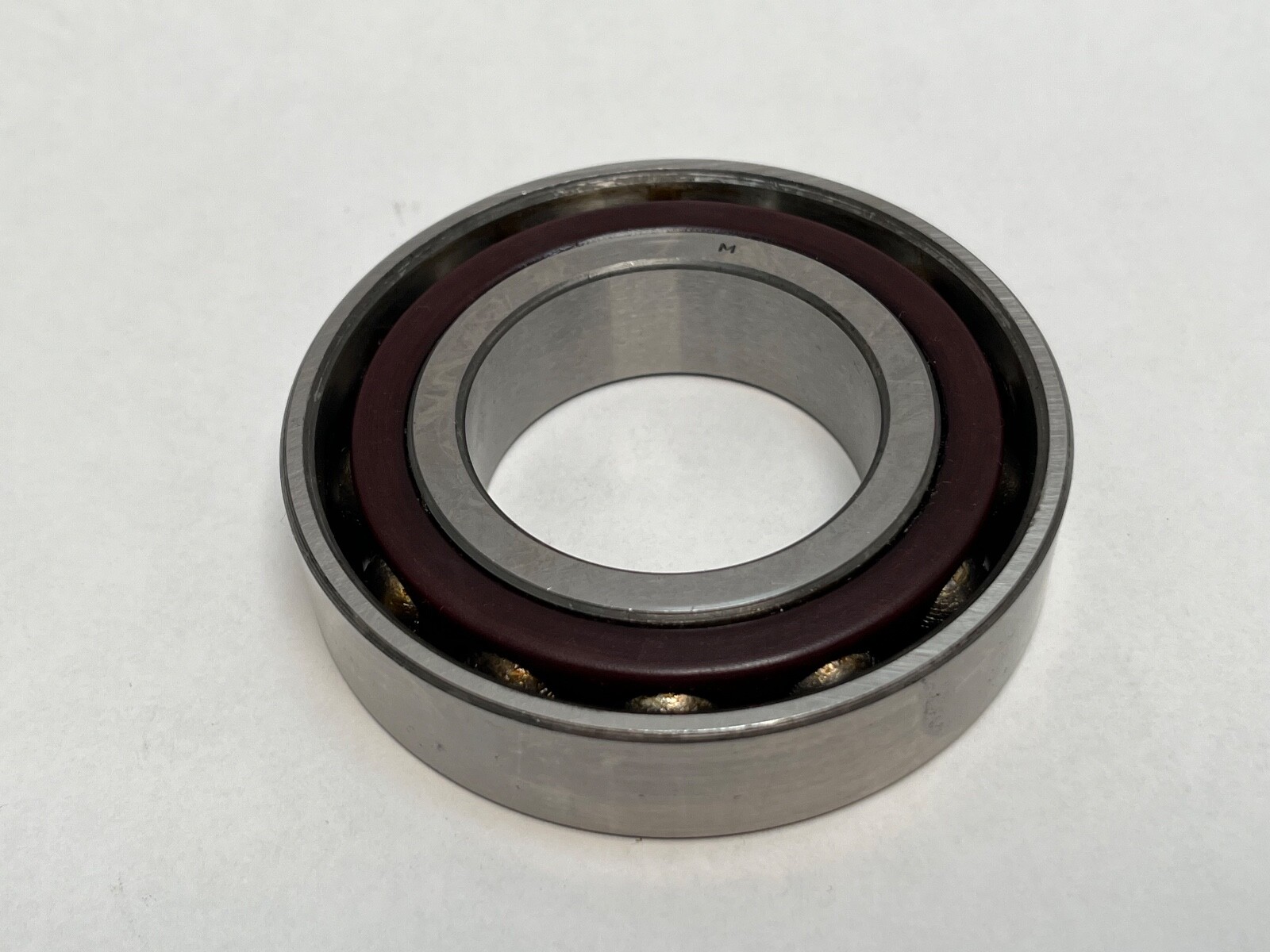

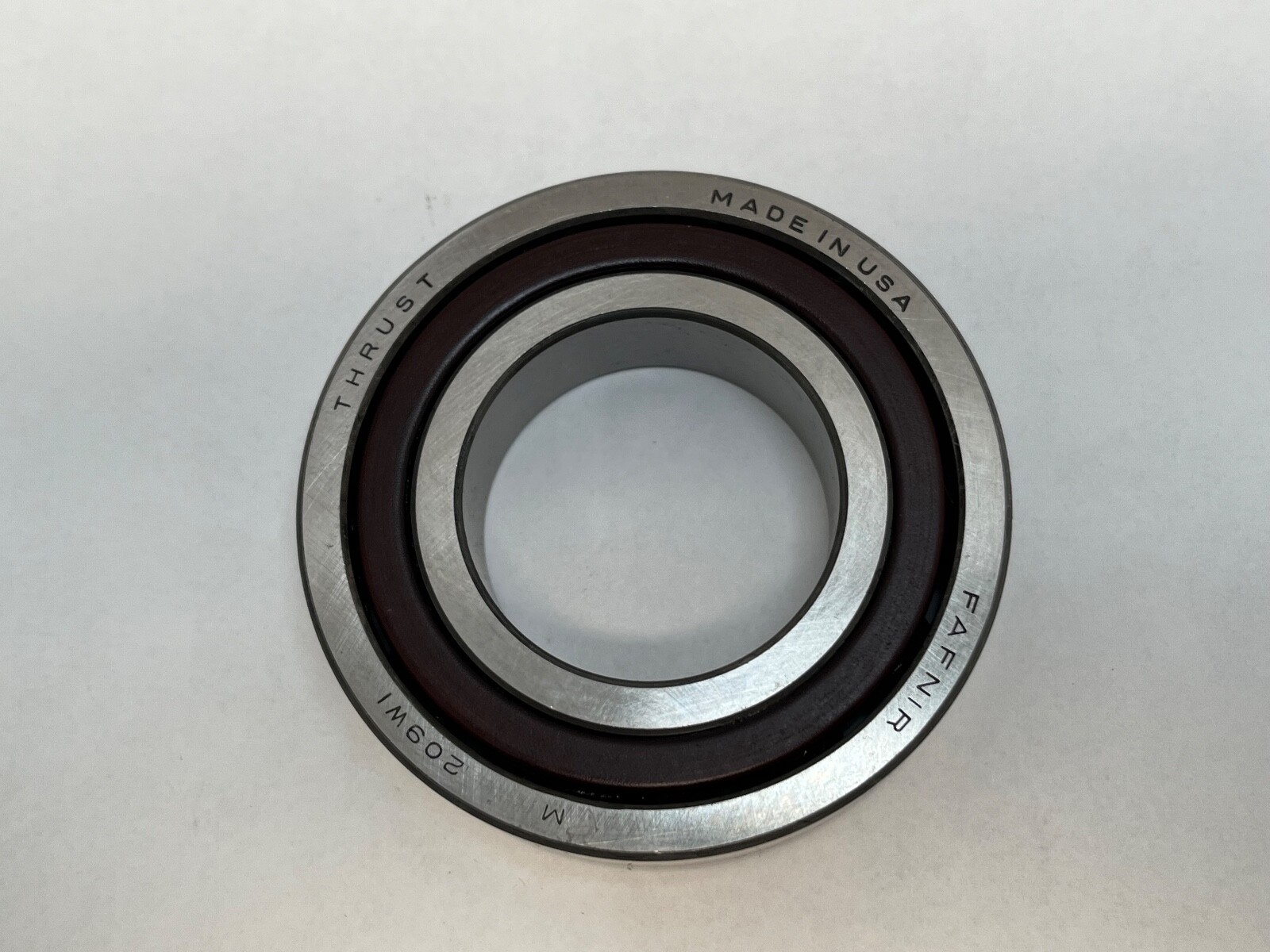

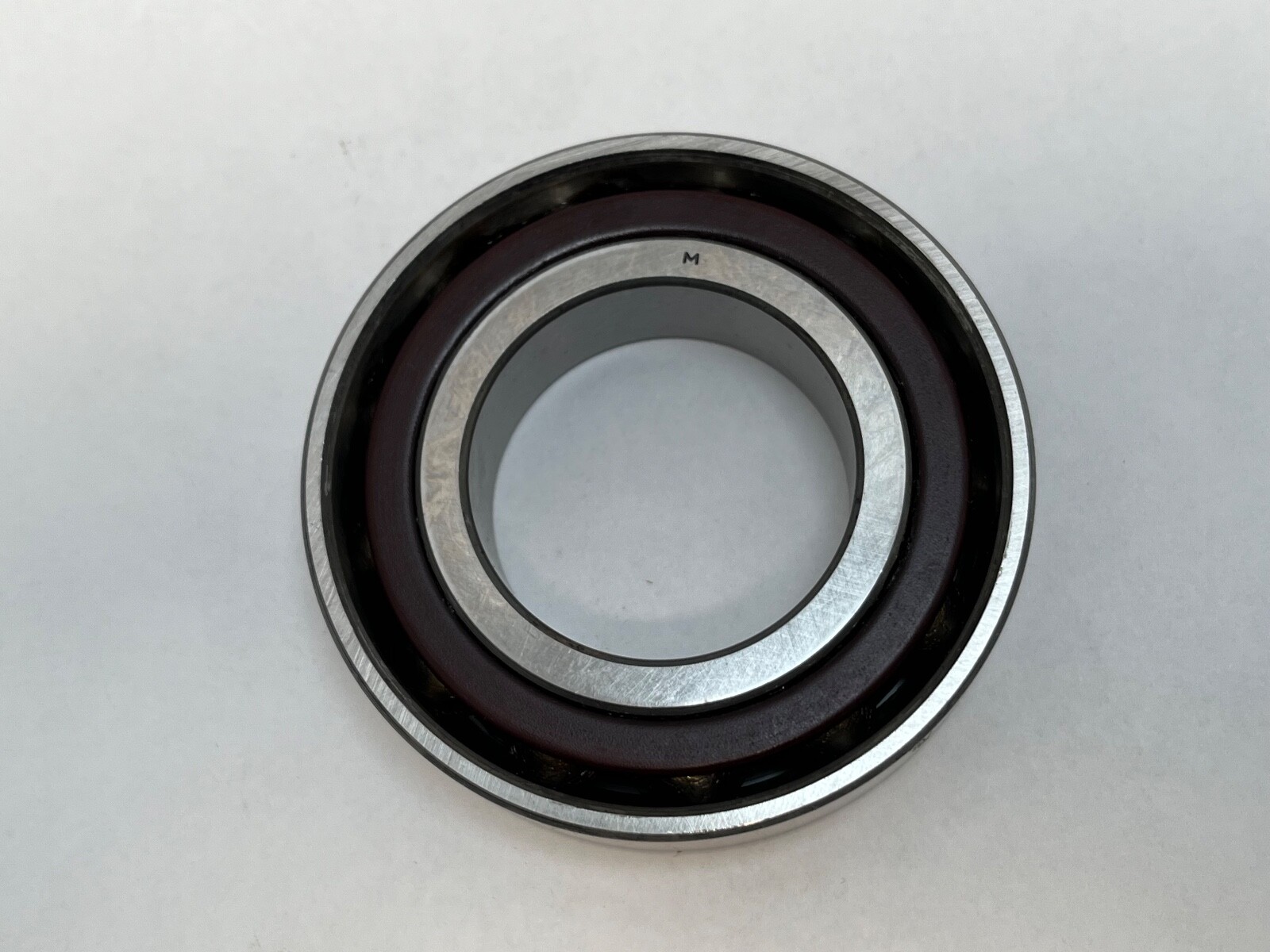

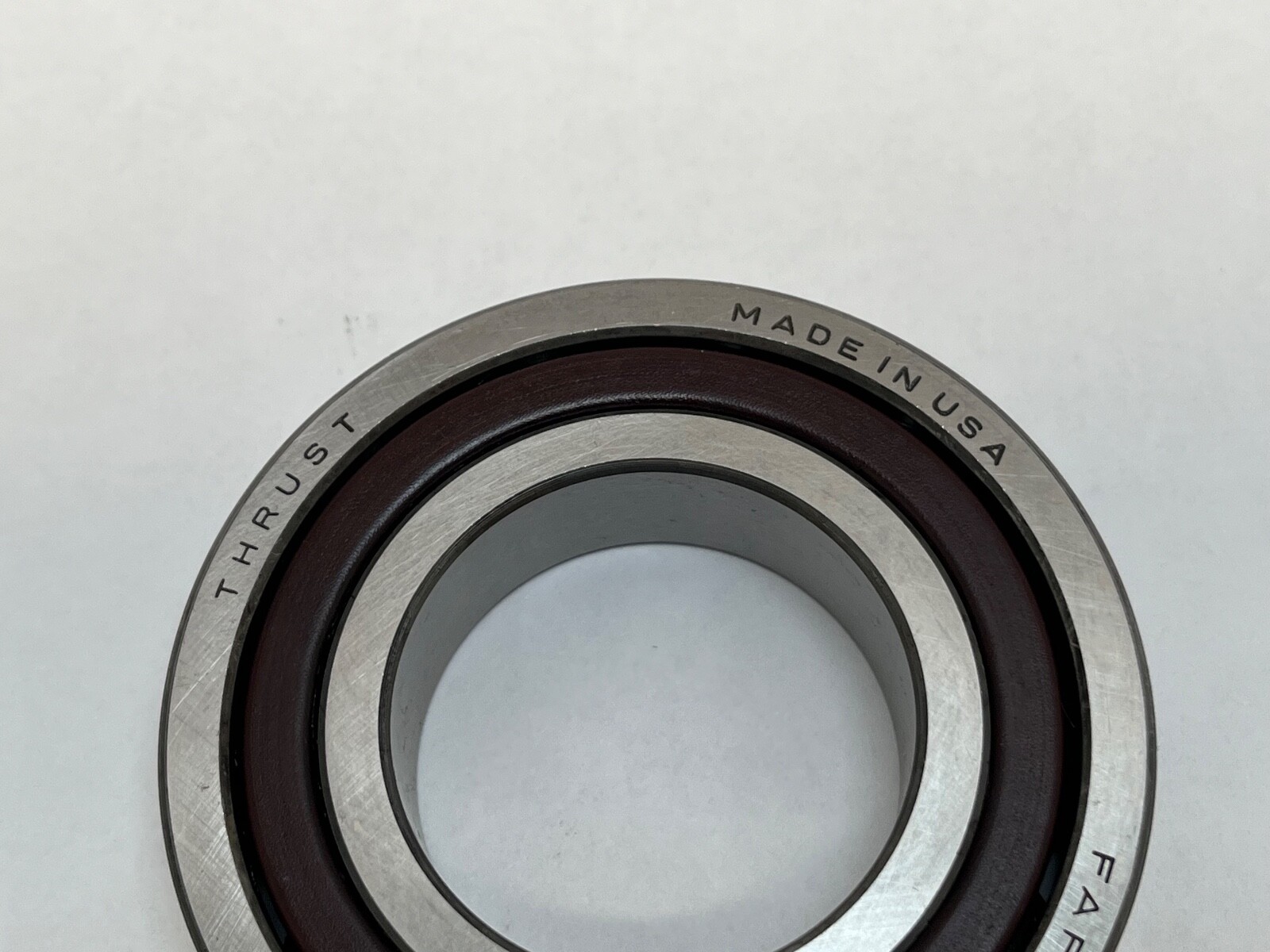

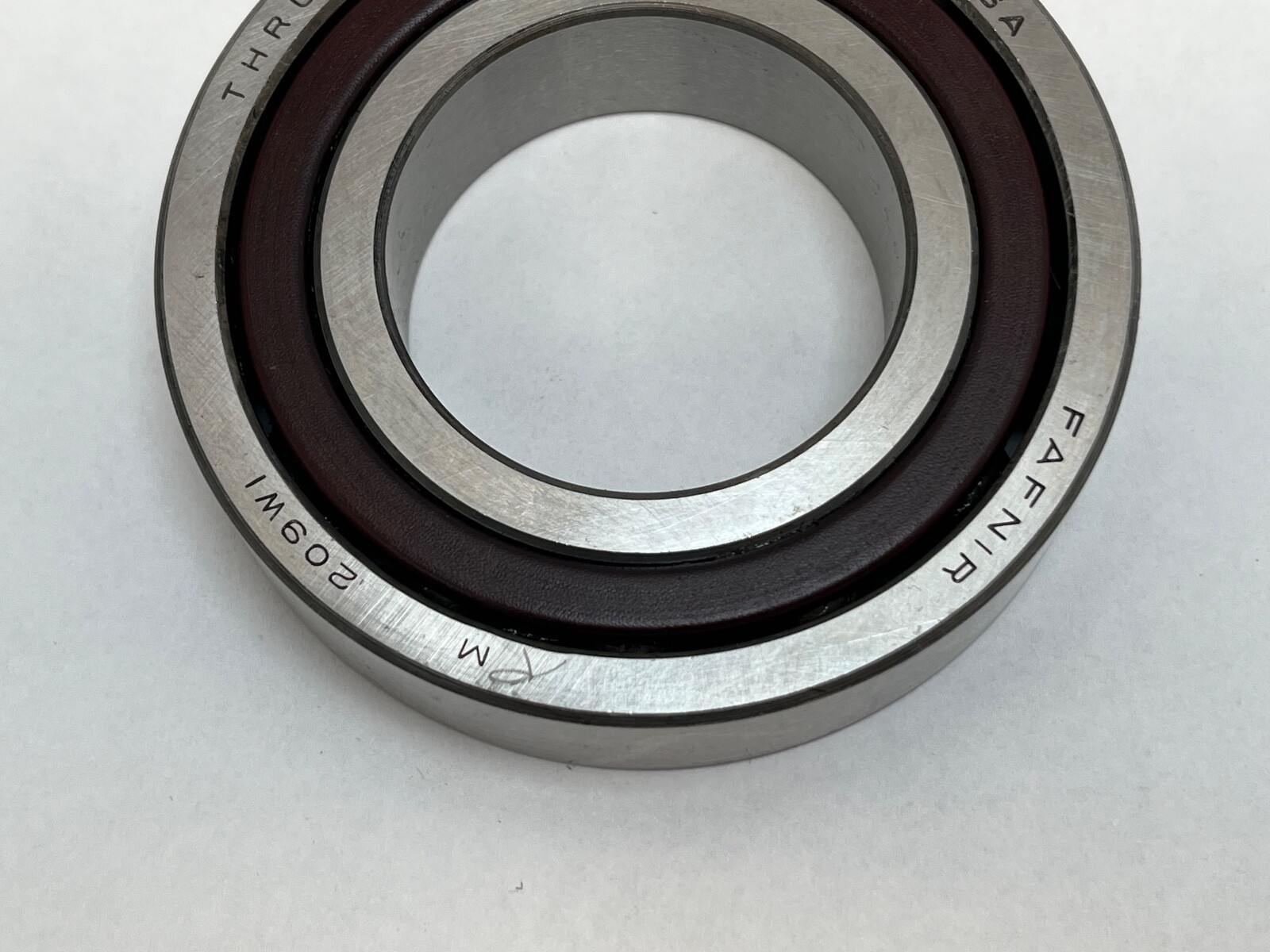

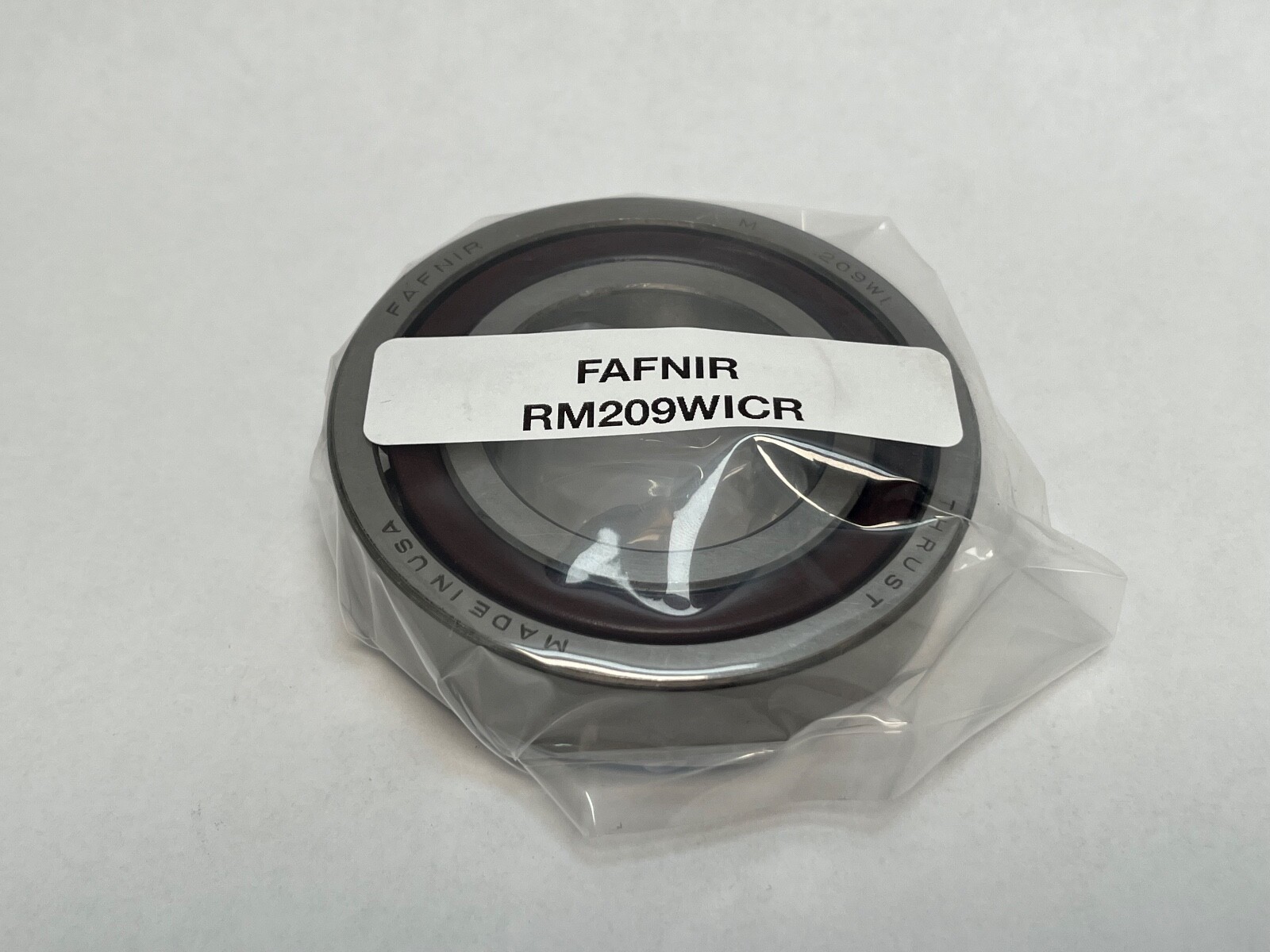

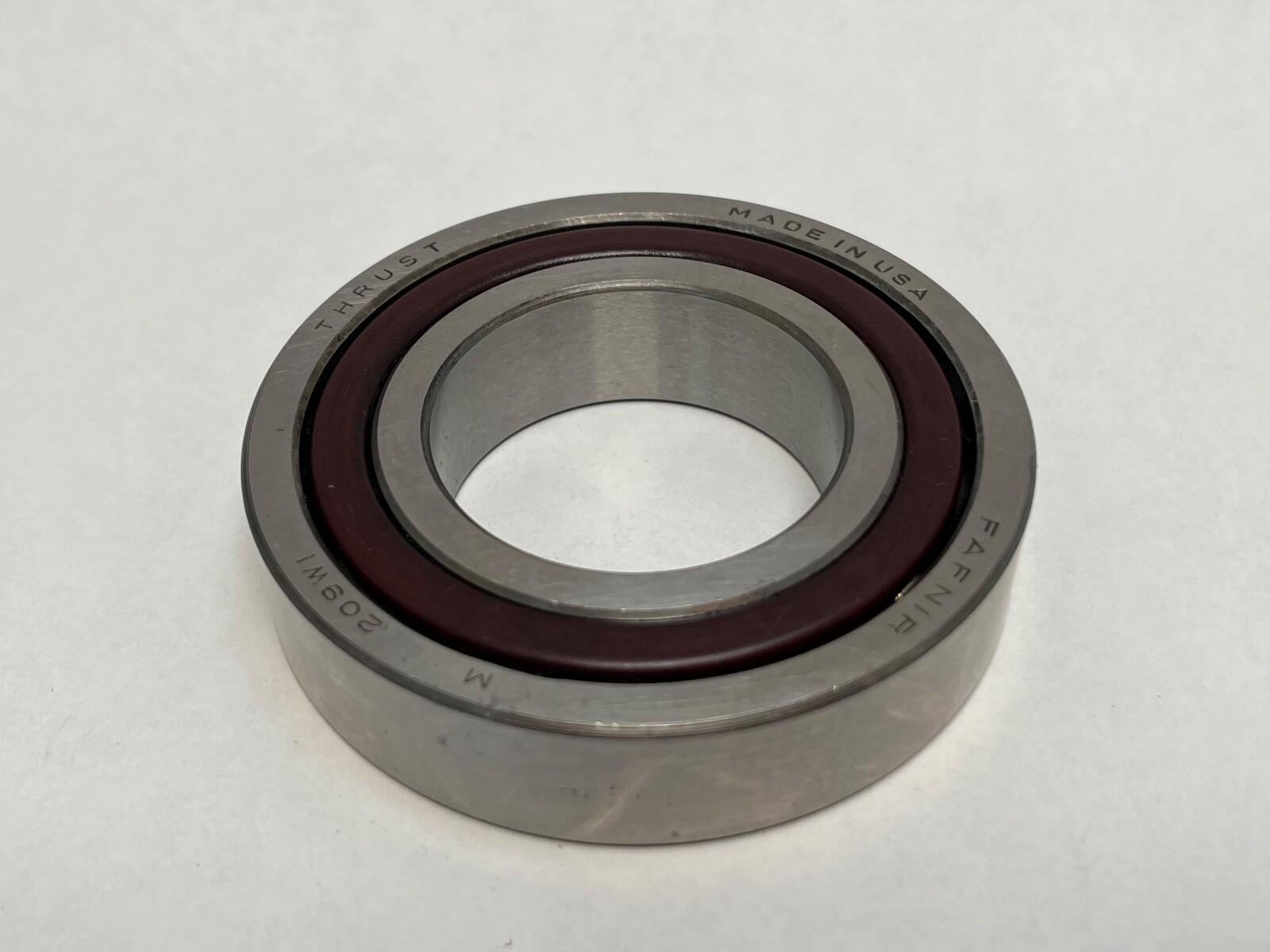

Single-row angular contact ball bearing, 45 x 85 x 19 mm, straight bore, open. Machined phenolic cage riding the outer-ring lands, 200WI spindle series.
List Price
$53.53
3 in stock
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | RM209WICR |
| Model | RM 209 WI / 7209B T P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Material | Chrome Steel |
|---|---|
| Series | 200 |
| Condition | New – Open box |
| Base Number | RM209WI |
| Industry Terms | spindle bearing, angular contact ball bearing, phenolic cage bearing, precision ball bearing, 7209 bearing, low shoulder bearing |
| Common Misspellings | Fafnir RM209WI CR, Faffnir RM209WICR, RM209WICK, RM209WLCR, Fafnir RM 209WI, angular contct bearing 45x85x19 |
| Application Types | Machine tool spindles, precision gearboxes, grinding heads, industrial drive shafts |
| Condition Note | Made In USA, New Old Stock |
| Overall Width | 19 mm |
| Mpn Variants | RM209WICR, RM209WI-CR, RM-209-WI-CR, RM209WI CR, RM209WI, RM 209 WI CR, Timken RM209WICR, 209WI, 7209-B, 7209B T P4 |
| Manufacturer Status | Fafnir brand now owned by Timken; legacy precision spindle designation |
| Compatible With Replaces | Positions calling a 45 x 85 x 19 mm single-row angular contact ball bearing in the Fafnir 200WI spindle series |
| Cage Type | Machined, outer-ring guided |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Limiting Speed | 10000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50.68 |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Part Number | RM209WICR |
| Cross Reference 1 | SKF 7209 CD/P4A (15°, P4A, same 45 x 85 x 19 mm envelope) |
|---|---|
| Cross Reference 2 | FAG B7209-C-T-P4S-UL (15°, P4S, same 45 x 85 x 19 mm envelope) |
| Cross Reference 3 | NSK 7209CTRSULP4 (C = 15°, P4, same 45 x 85 x 19 mm envelope) |
| Cross Reference 4 | NTN 7209UCG/GNP4 (15°, P4, same 45 x 85 x 19 mm envelope) |
| Cross Reference 5 | RHP 7209CTDULP4 (C = 15°, P4, same 45 x 85 x 19 mm envelope) |
| Cross Reference 6 | Koyo 7209C-5GLFGP4 (C = 15°, P4, same 45 x 85 x 19 mm envelope) |
| Cross Reference 7 | Timken 7209C-T-P4S (Fafnir world part number, 15°, same 45 x 85 x 19 mm envelope) |
| Cross Reference 8 | SNR 7209CG1UJ74 (15°, light preload, same 45 x 85 x 19 mm envelope) |
| Cross Reference 9 | MRC 7209 (related, 29° contact angle, same 45 x 85 x 19 mm envelope) |
Fafnir RM209WICR single-row angular contact ball bearing, Timken Fafnir 200WI spindle series. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 19 mm — the 7209 / 209 envelope. Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Ball. Closure Type: Open. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Bearing Material: Chrome steel. Series: Fafnir 200WI. Base Number: RM209WI. Unit Quantity: 1 Pc.
209 — 200 dimension series, bore code 09: a 45 mm bore in an 85 mm outside diameter, 19 mm wide.
WI — low shoulder on both rings, the Fafnir spindle angular contact execution. The ball complement seats against the high shoulders, so the bearing carries radial load together with thrust in one direction.
CR — machined phenolic cage riding on the outer-ring lands.
A phenolic cage is light, so cage inertia stays low as the shaft speeds up, and the laminated fabric holds oil in its structure and keeps feeding the ball pockets under thin lubrication. Outer-land guidance holds the cage concentric with the outer ring at speed rather than letting it float on the ball set, which steadies cage motion and keeps running noise down.
A single-row angular contact bearing locates the shaft axially in one direction, so it is used opposed by a second bearing or a shoulder that takes thrust the other way. Closure Type: Open — the raceways are accessible for the housing lubricant, grease or oil alike.
Unit Quantity: 1 Pc. One bearing per listing, faces plain ground.
The Fafnir line is now Timken, so Timken RM209WICR and Fafnir RM209WICR are the same part. Same 45 x 85 x 19 mm envelope, each with its contact angle named: SKF 7209 CD/P4A at 15°, FAG B7209-C-T-P4S-UL at 15°, NSK 7209CTRSULP4 at 15°, NTN 7209UCG/GNP4 at 15°, RHP 7209CTDULP4 at 15°, Koyo 7209C-5GLFGP4 at 15°, SNR 7209CG1UJ74 at 15°. The MRC 7209 shares the envelope at a 29° contact angle and is listed as a related size. Match the angle the spindle was designed around.
RM209WICR, RM209WI-CR, RM-209-WI-CR, RM209WI, RM 209 WI CR, 209WI, 7209-B, 7209B T P4.
