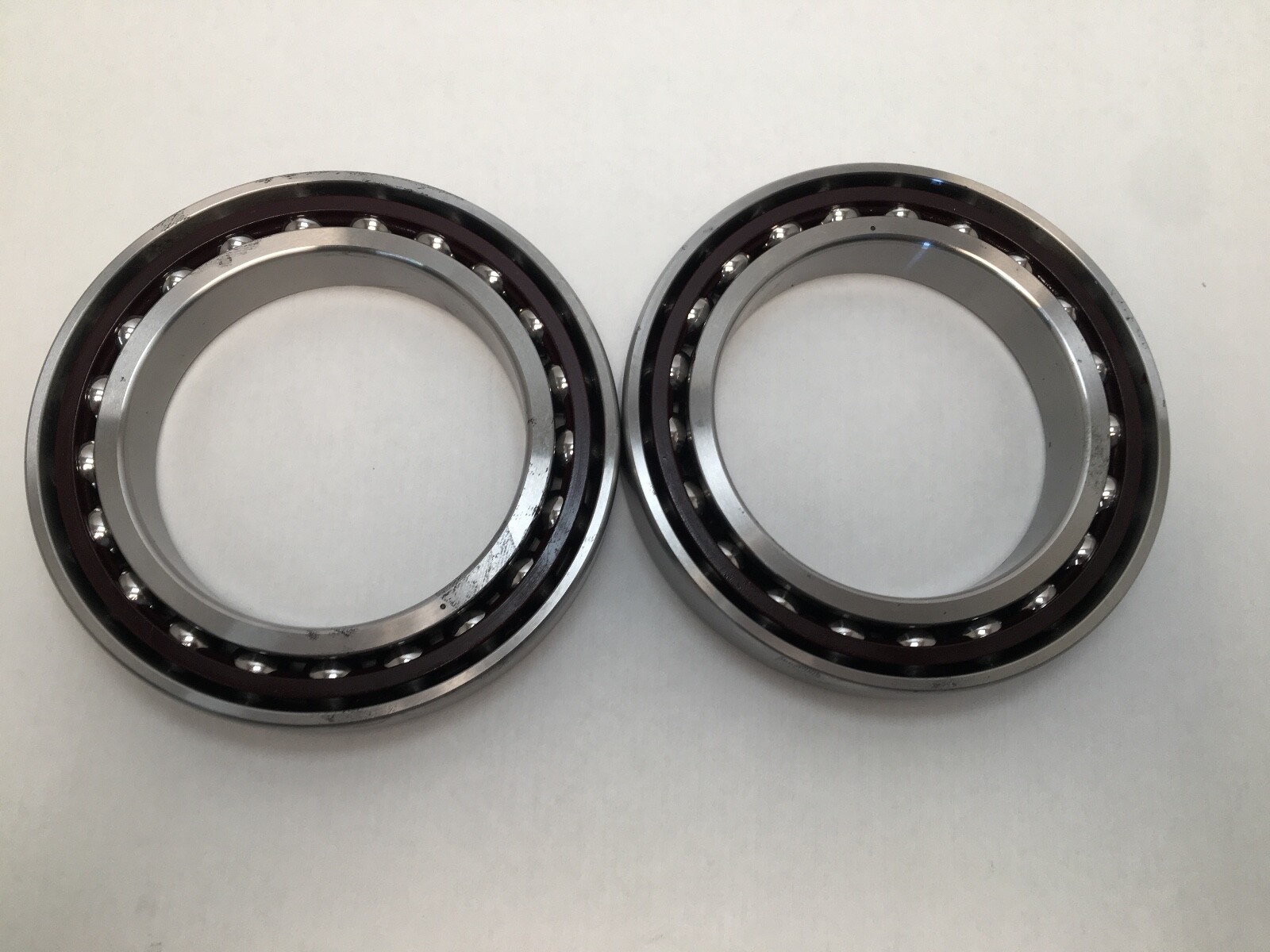

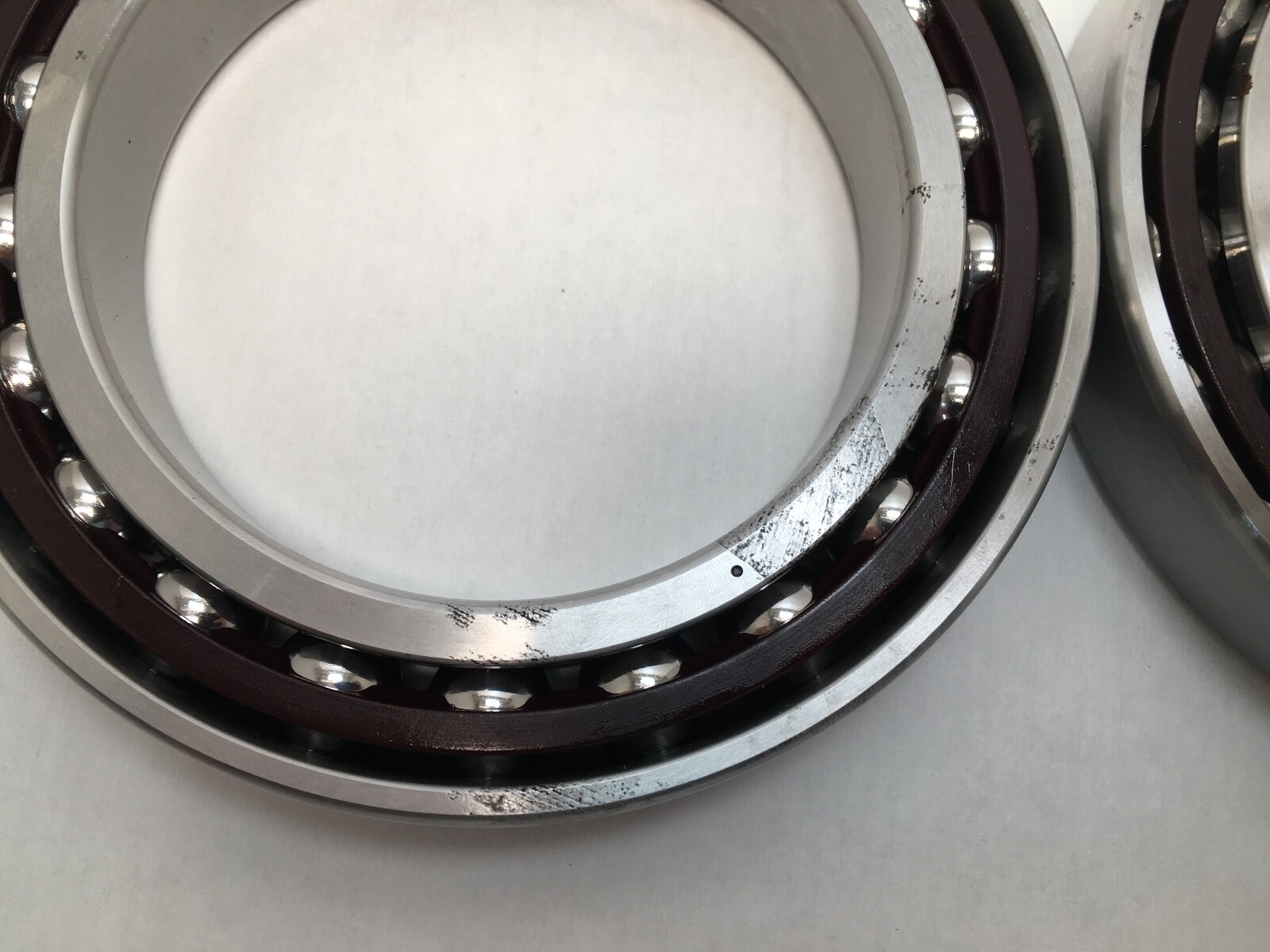

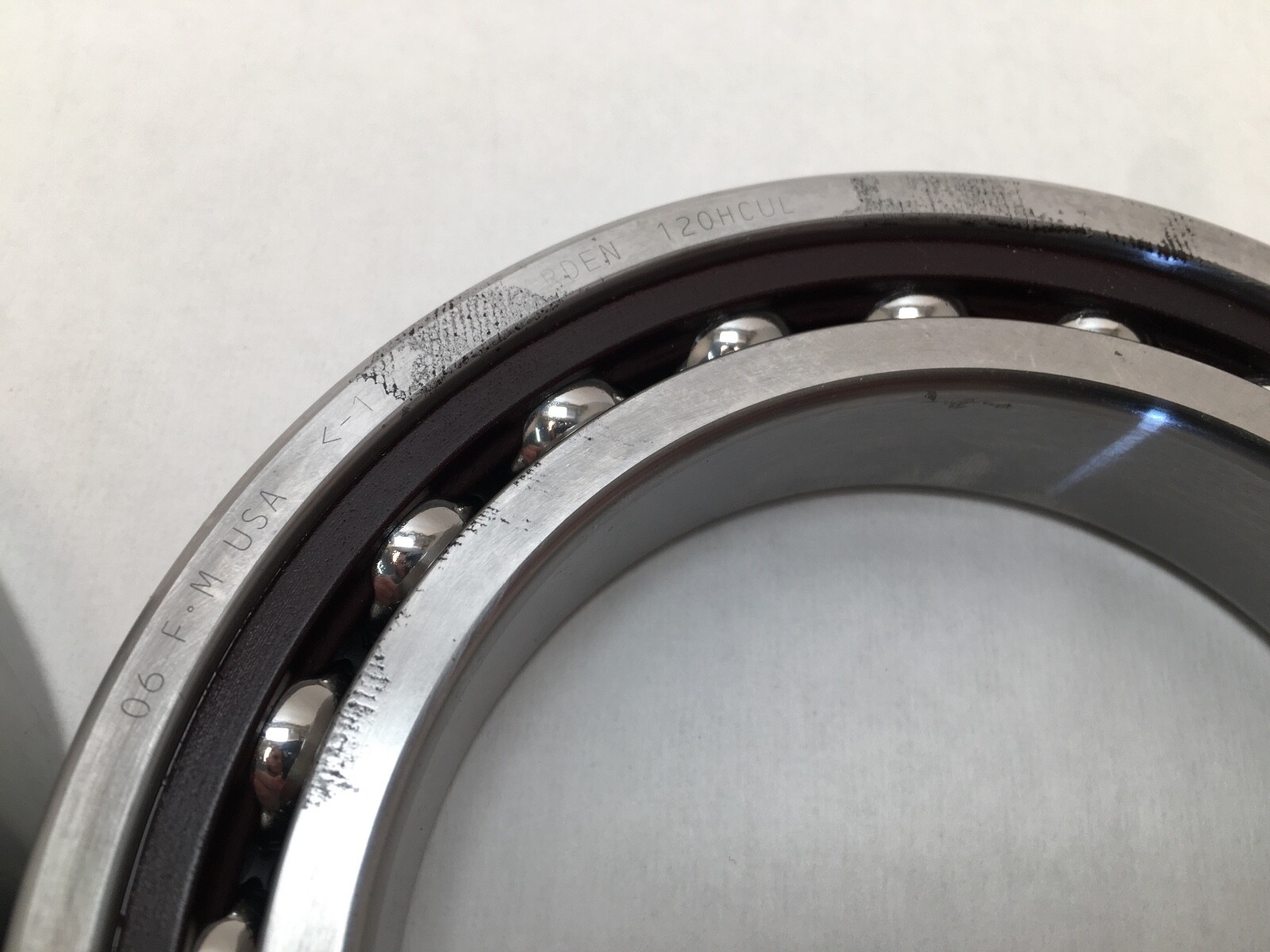

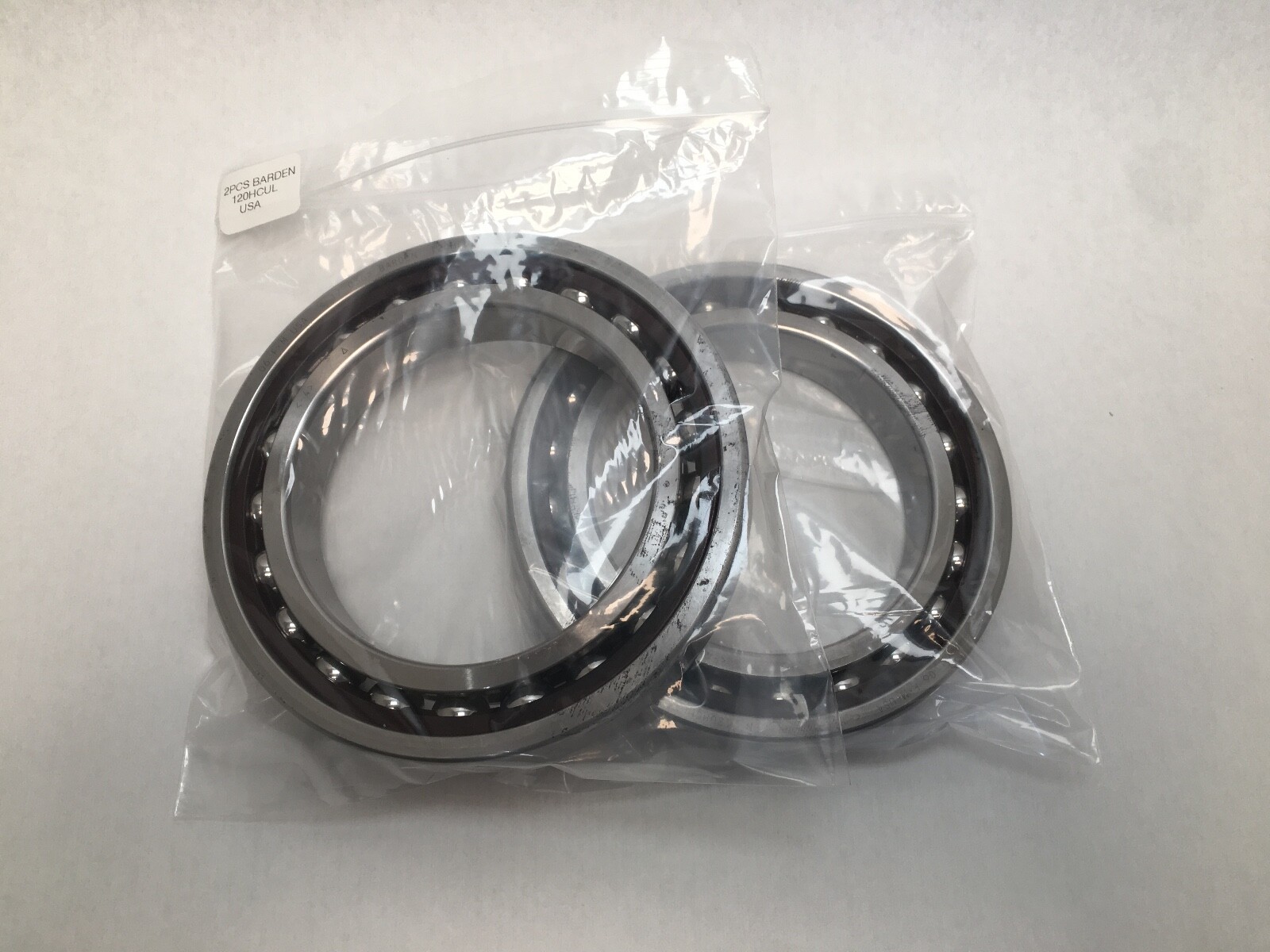

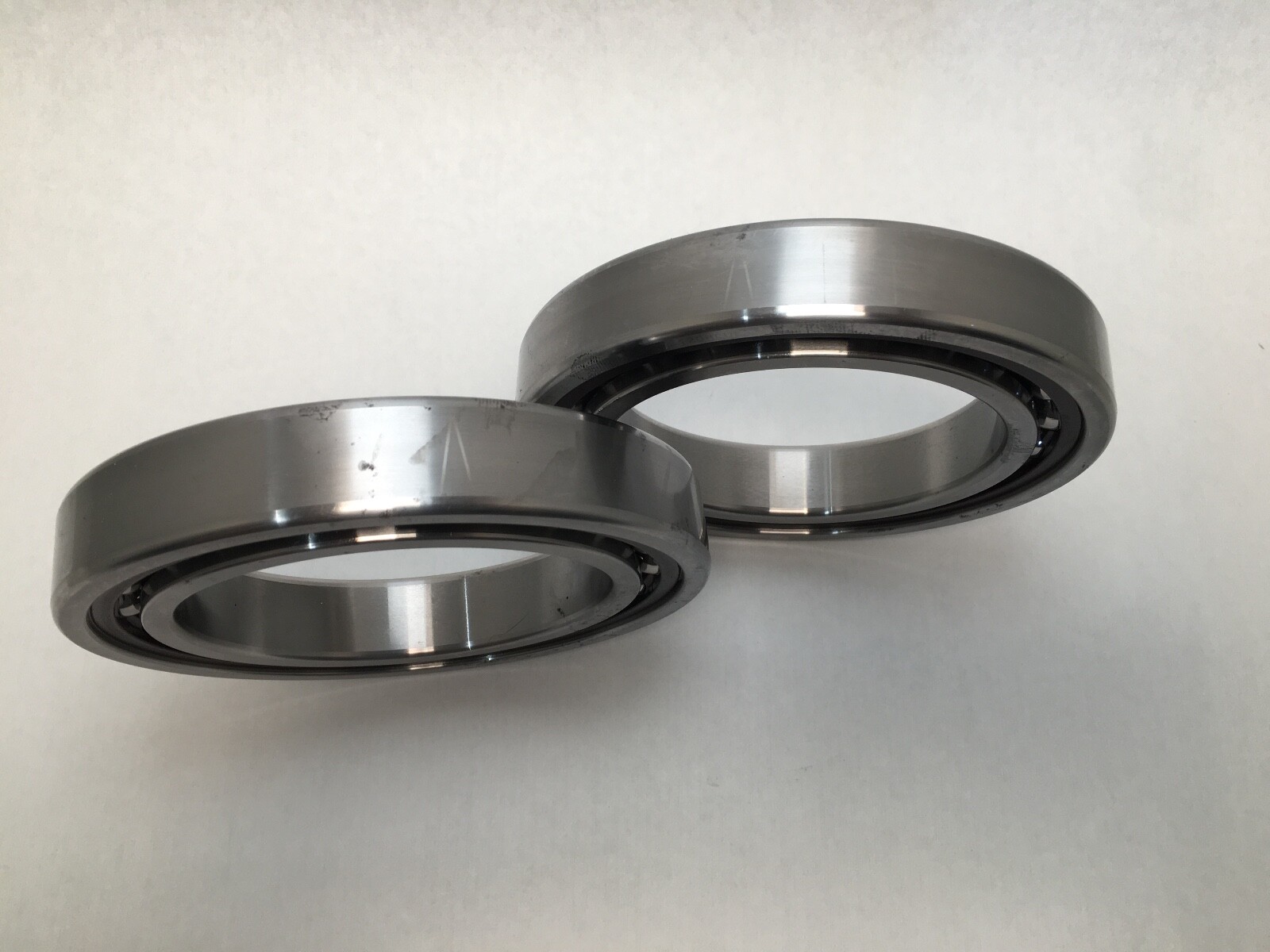

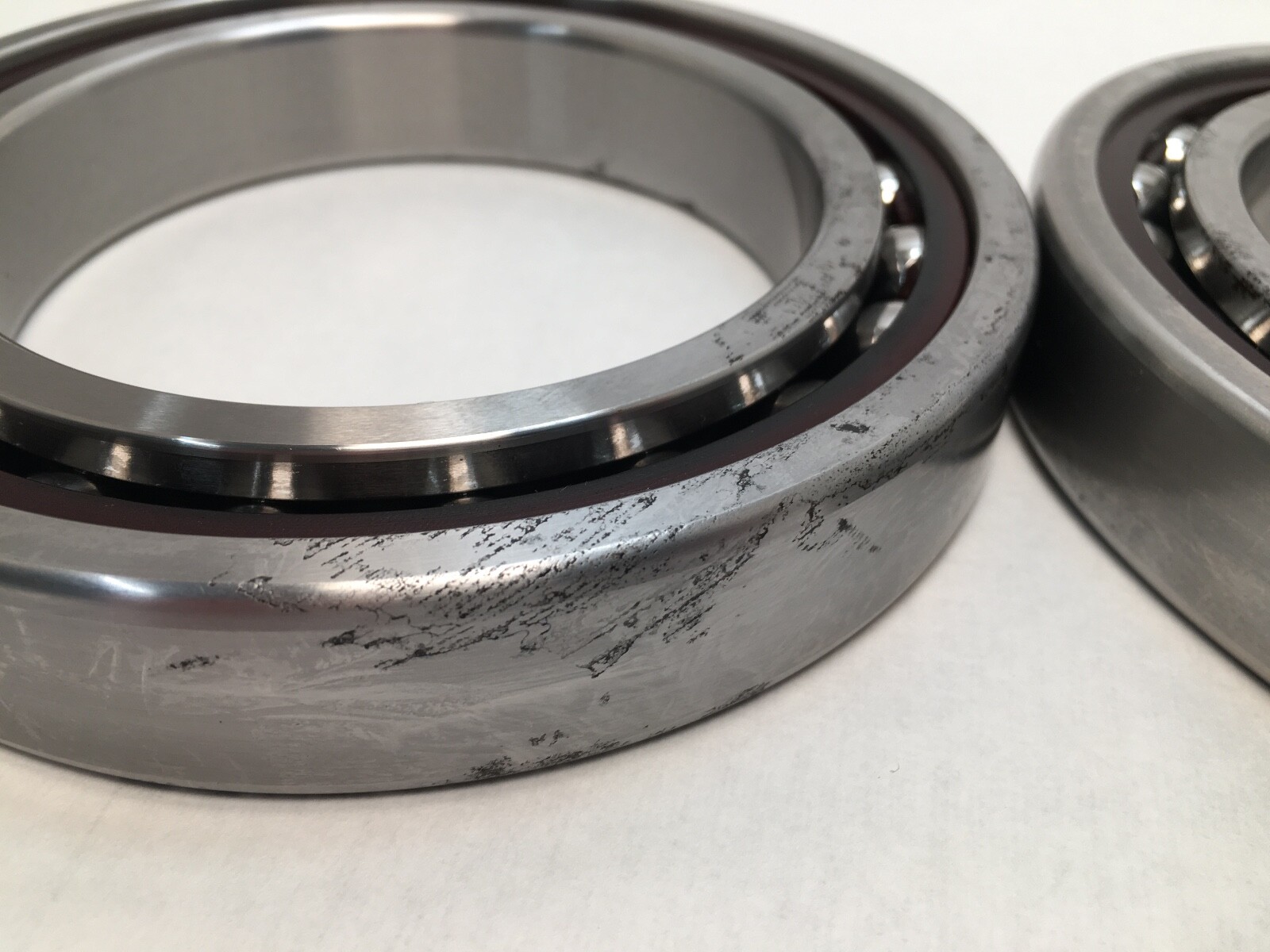

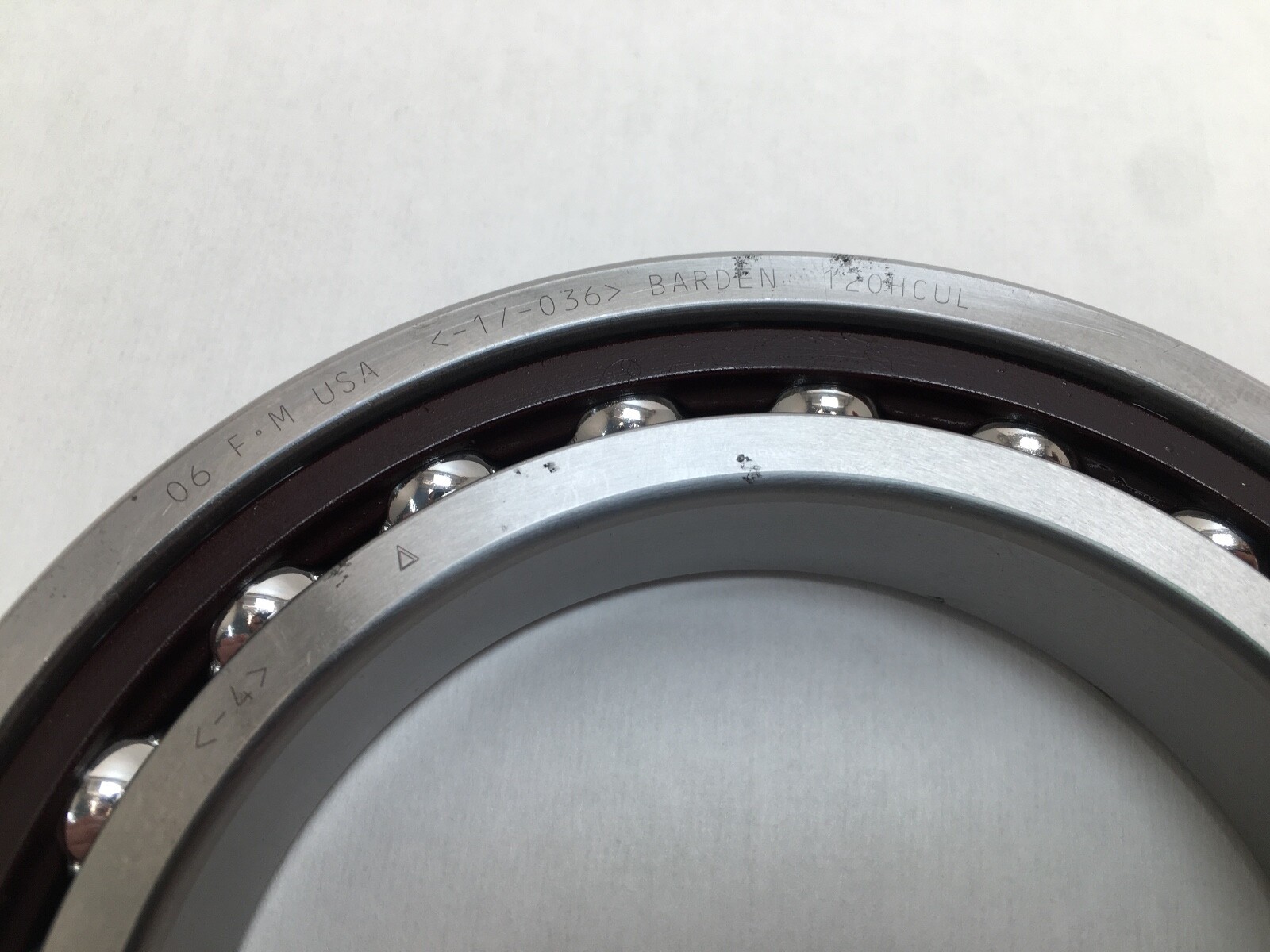

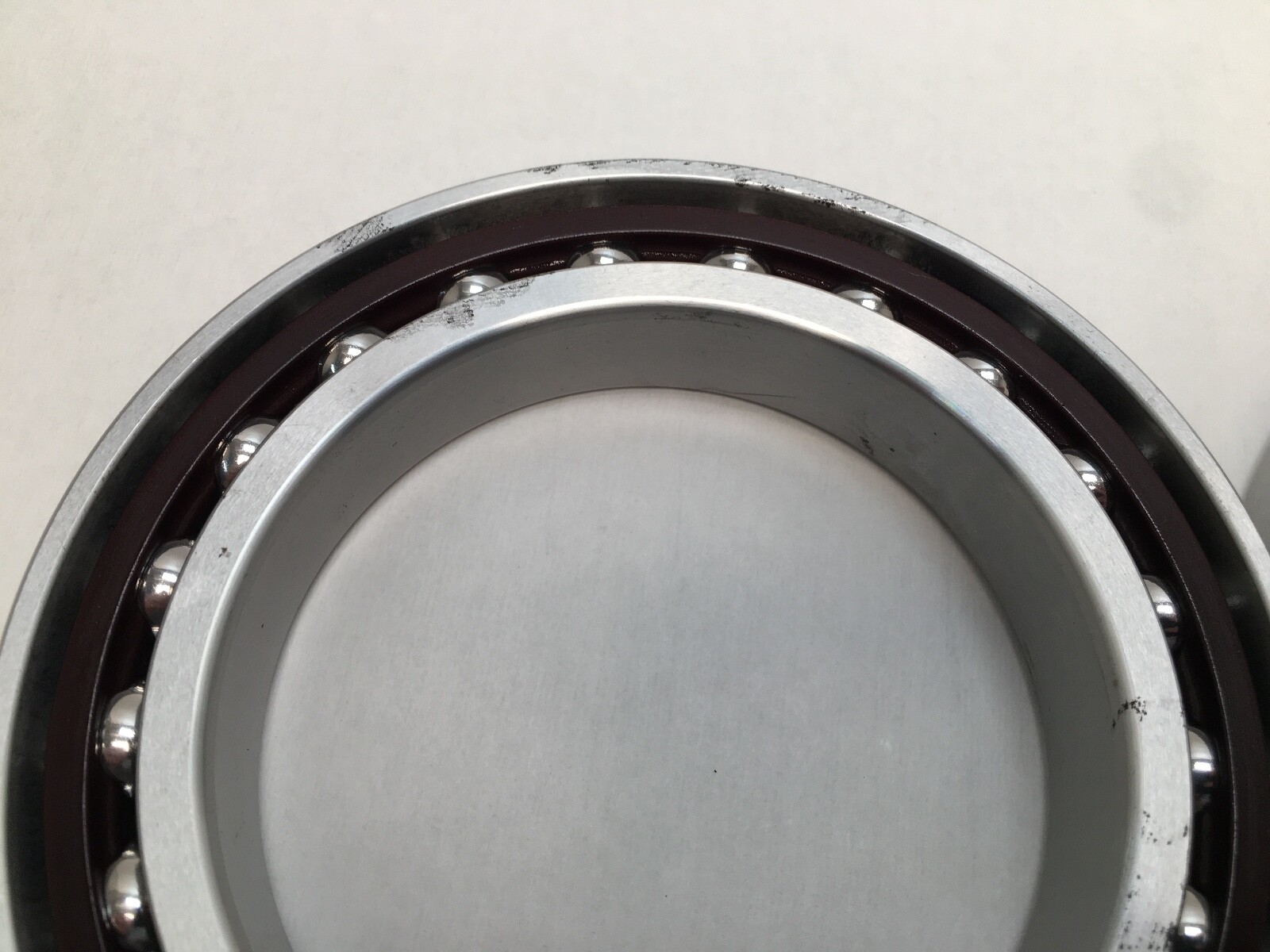

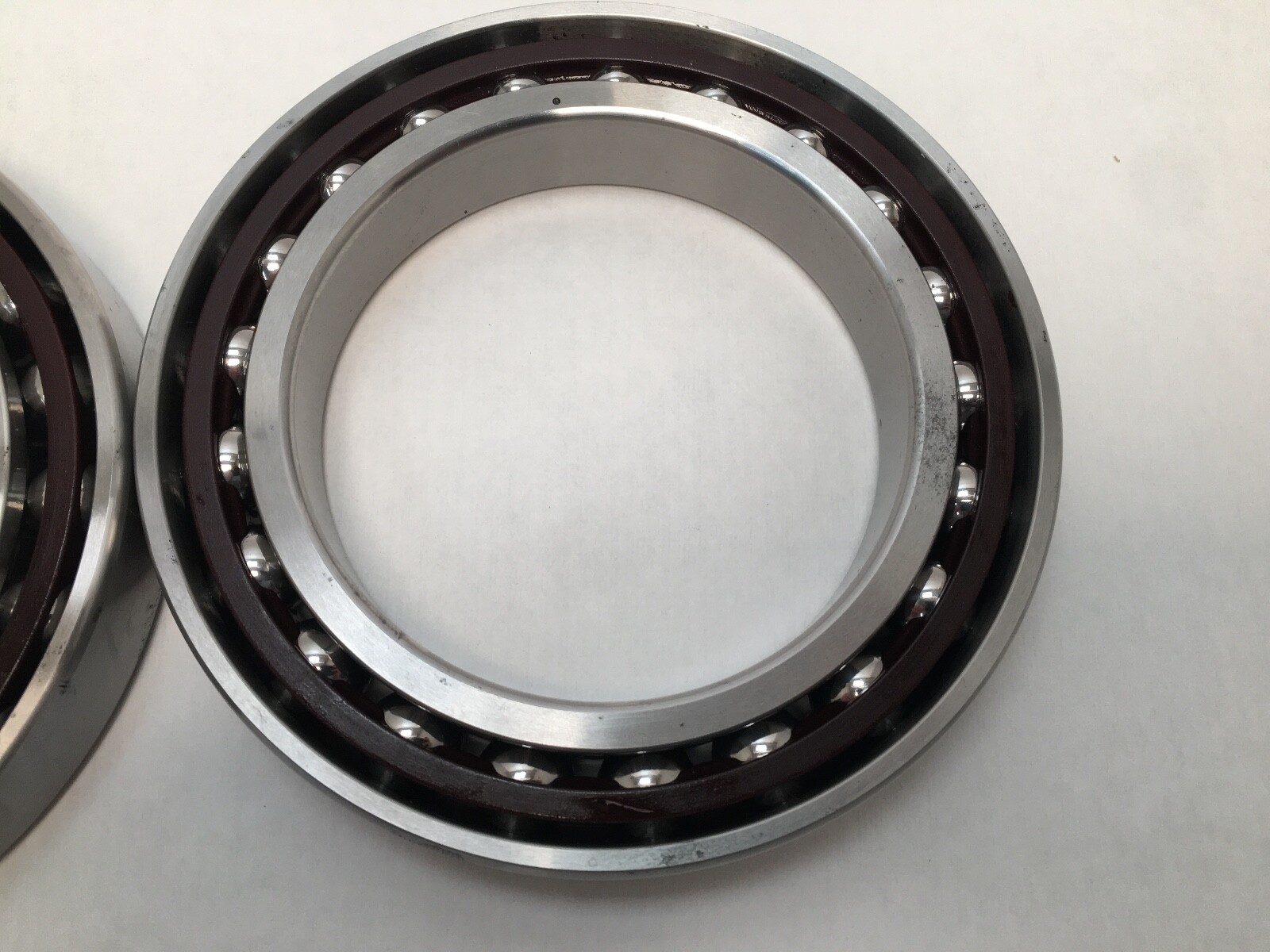

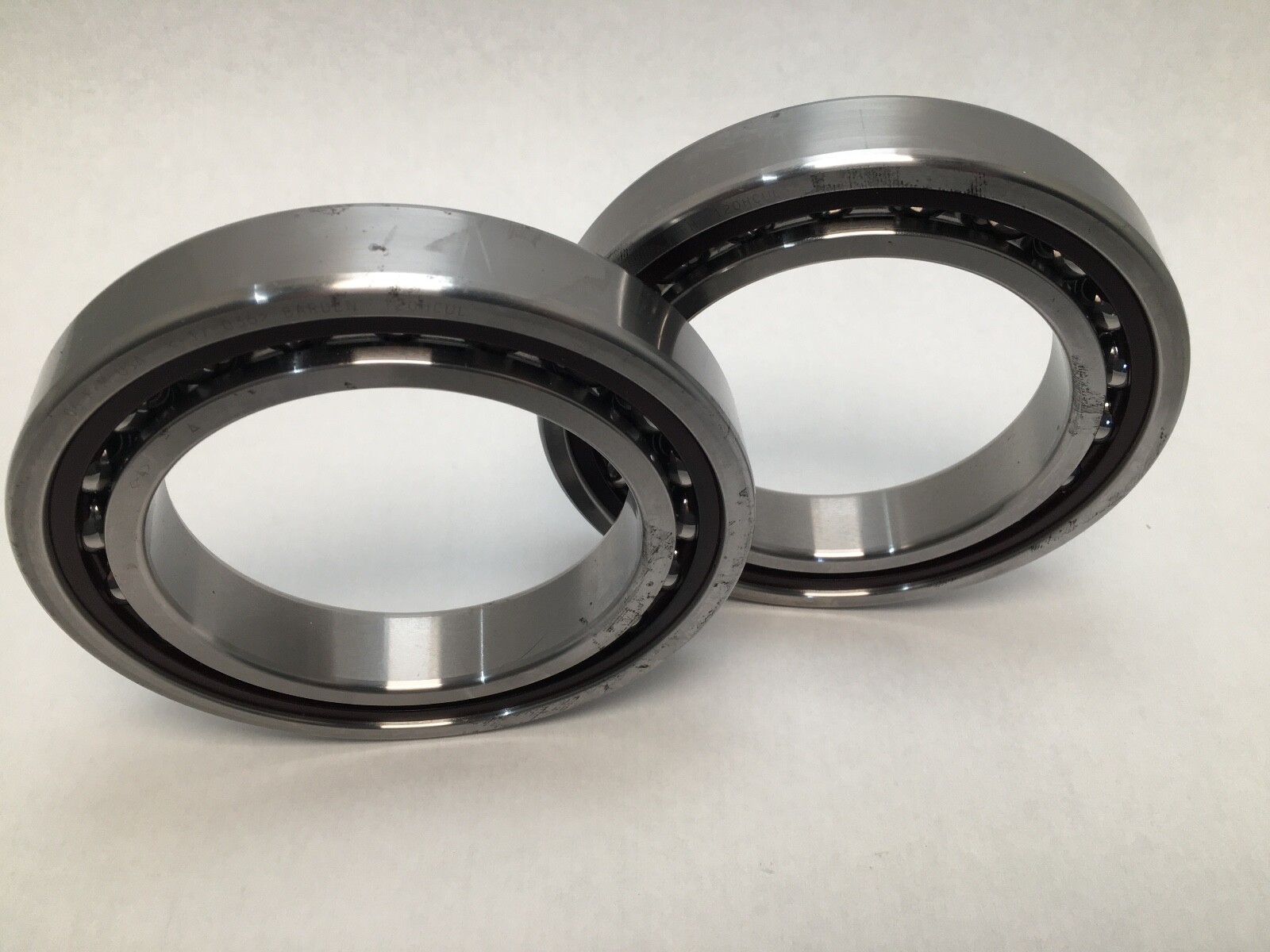

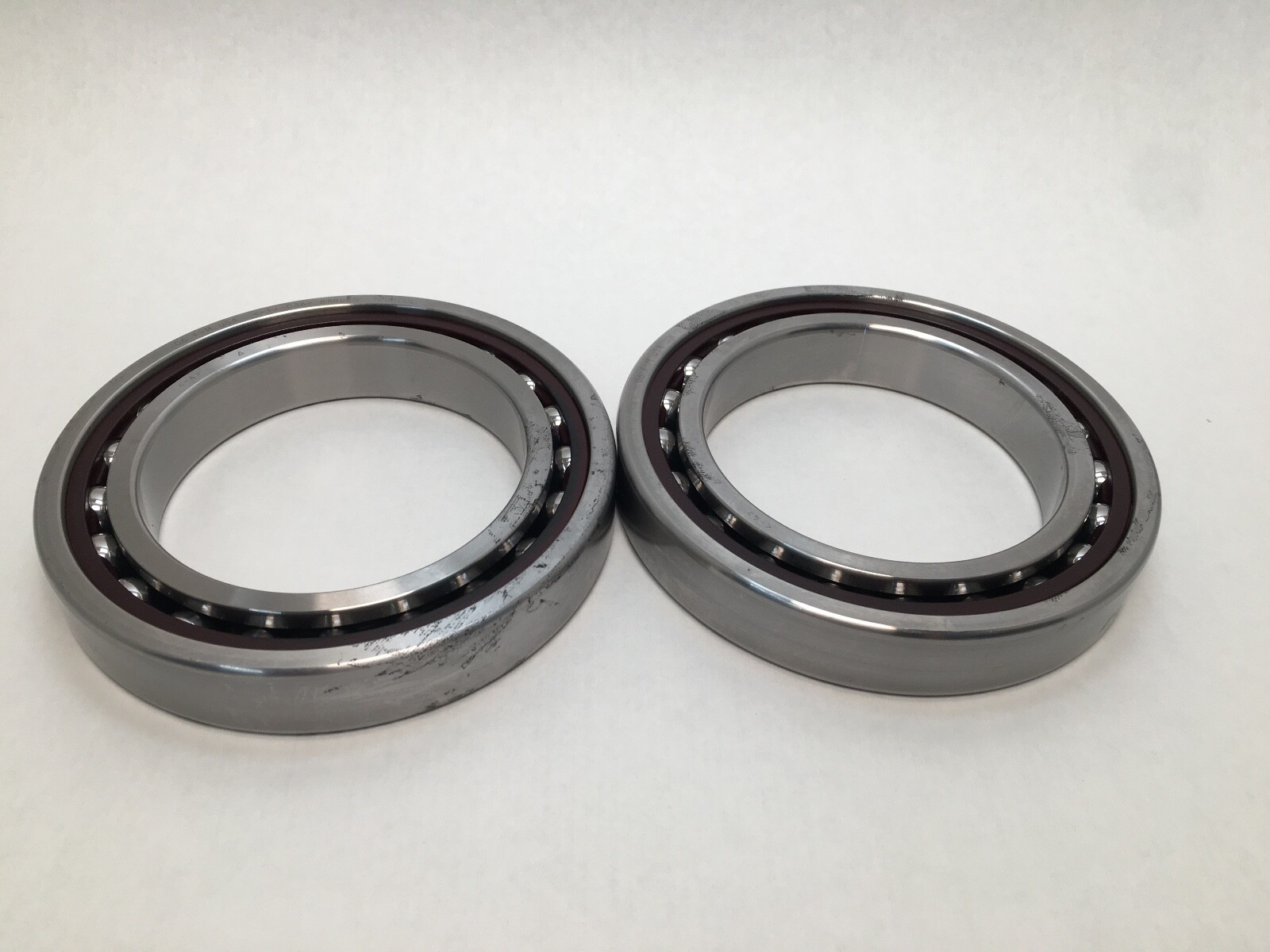

Barden 120HCUL angular contact ball bearing, 100 x 150 x 24 mm, 15° contact angle, phenolic outer-ring centred cage, universal matching, light preload.
List Price
$374.46
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Matched Duplex Super-Precision Spindle Bearing Set – 100 mm ID, 150 mm OD, 24 mm Width, Open, 15°, Light Preload, P4S$943.21
Super Precision Angular Contact Ball Bearing Pair - Straight Bore, 100 mm ID, 150 mm OD, 24 mm Width, Open, 15° Contact Angle, Extra Light Preload, Universally Matchable.$390.13
Angular Contact Ball Bearing — Super-Precision, 100 mm ID, 150 mm OD, 24 mm Width, 15° Contact Angle, Extra Light Preload, P4A, Matched Pair$757.32
Super Precision Angular Contact Ball Bearing - Matched Pair, Straight Bore, 100 mm ID, 150 mm OD, 24 mm Width, Open, 15° Contact Angle, Universal Light Preload$644.17| MFR / Brand | Barden |
|---|---|
| MPN | 120HCUL |
| Model | 120HCDUL / 7020 / 9120WI DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 100 |
| Lubricant | Oil/Grease |
| Preload | Light |
| Mpn Variants | 120HCUL, 120 HC UL, 120HCDUL, 120HC |
| Compatible With Replaces | Barden 120H (earlier H design, same envelope) |
| Additional Attributes | Radius r1 max: 0.76 mm; Radius r2 max (non-thrust side): 0.30 mm |
| Cage Type | Outer-ring centred |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Cross Reference 1 | FAG B7020-C-T-P4S-UL |
|---|---|
| Cross Reference 2 | SKF 7020 CD/P4A |
| Cross Reference 3 | NSK 7020CTRSULP4 |
| Cross Reference 4 | Fafnir 2MM9120WI SUL |
Barden 120HCUL is a super precision angular contact ball bearing in the ISO 7020 envelope, universally ground with light preload. Bore Diameter: 100 mm. Outside Diameter: 150 mm. Overall Width: 24 mm. Contact Angle: 15°.
120 — Barden 100-series bore code 20, 100 mm bore, ISO 70 dimension series.
H — textile laminated phenolic resin cage, outer ring centred.
C — 15° contact angle.
U — universal matching; mounts back-to-back, face-to-face or tandem with other U bearings.
L — light preload.
Cage Material: Phenolic. Cage Type: Outer-ring centred. Closure Type: Open. Preload: Light. The 15° angle favours speed and radial stiffness in machine tool spindles.
Radius r1 max: 0.76 mm. Radius r2 max, non-thrust side: 0.30 mm.
Same envelope and angle: FAG B7020-C-T-P4S-UL, SKF 7020 CD/P4A, NSK 7020CTRSULP4, Fafnir 2MM9120WI SUL.
