Availability:
1 in stock
SKF 7024 CDGA/P4A super-precision angular contact bearing, 120 x 180 x 28 mm, 15° angle, extra light preload 430 N, P4A. Dynamic rating 114,000 N, static 122,000 N.
List Price
$745.46
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7024CDP4ADGA |

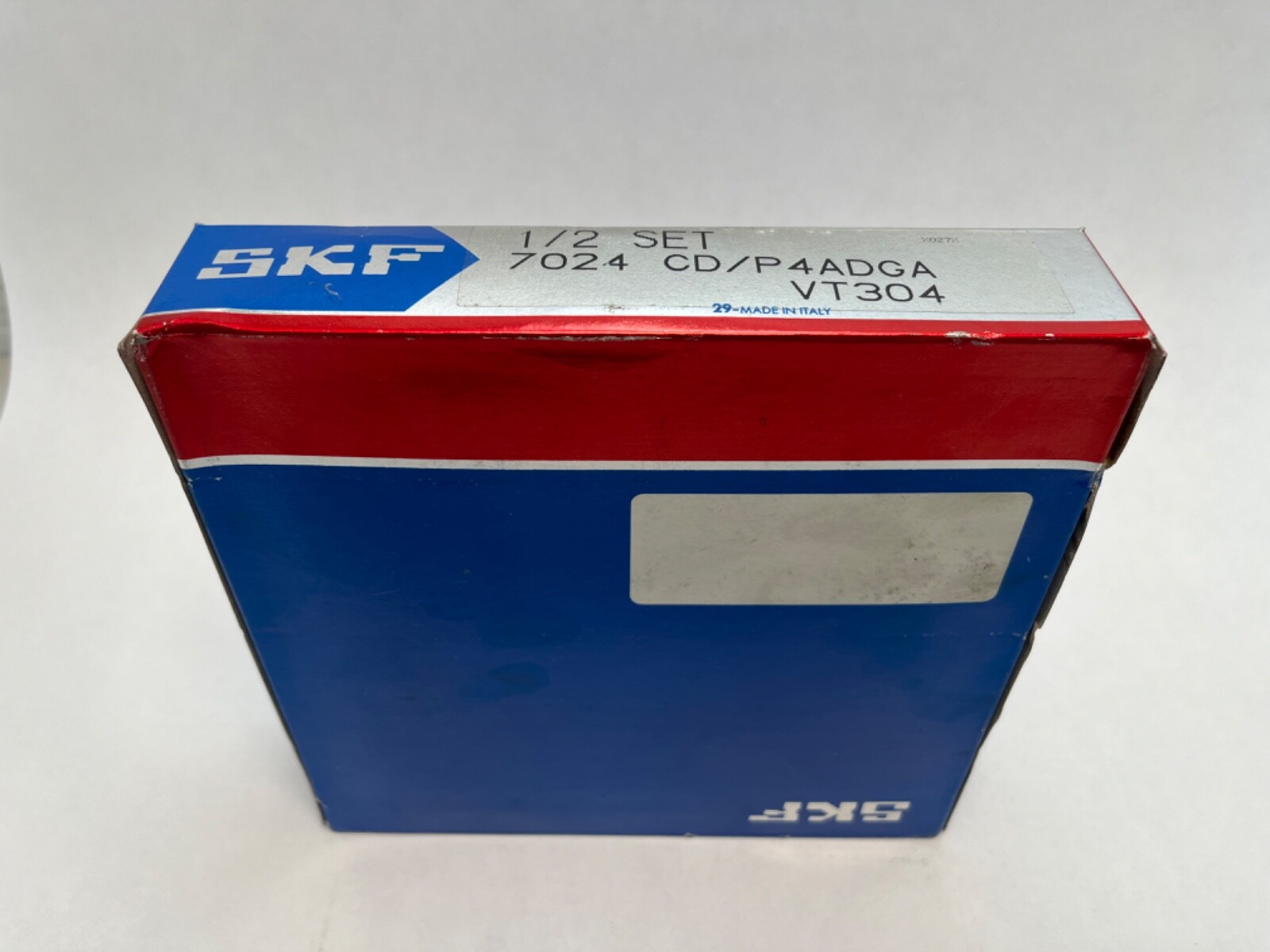

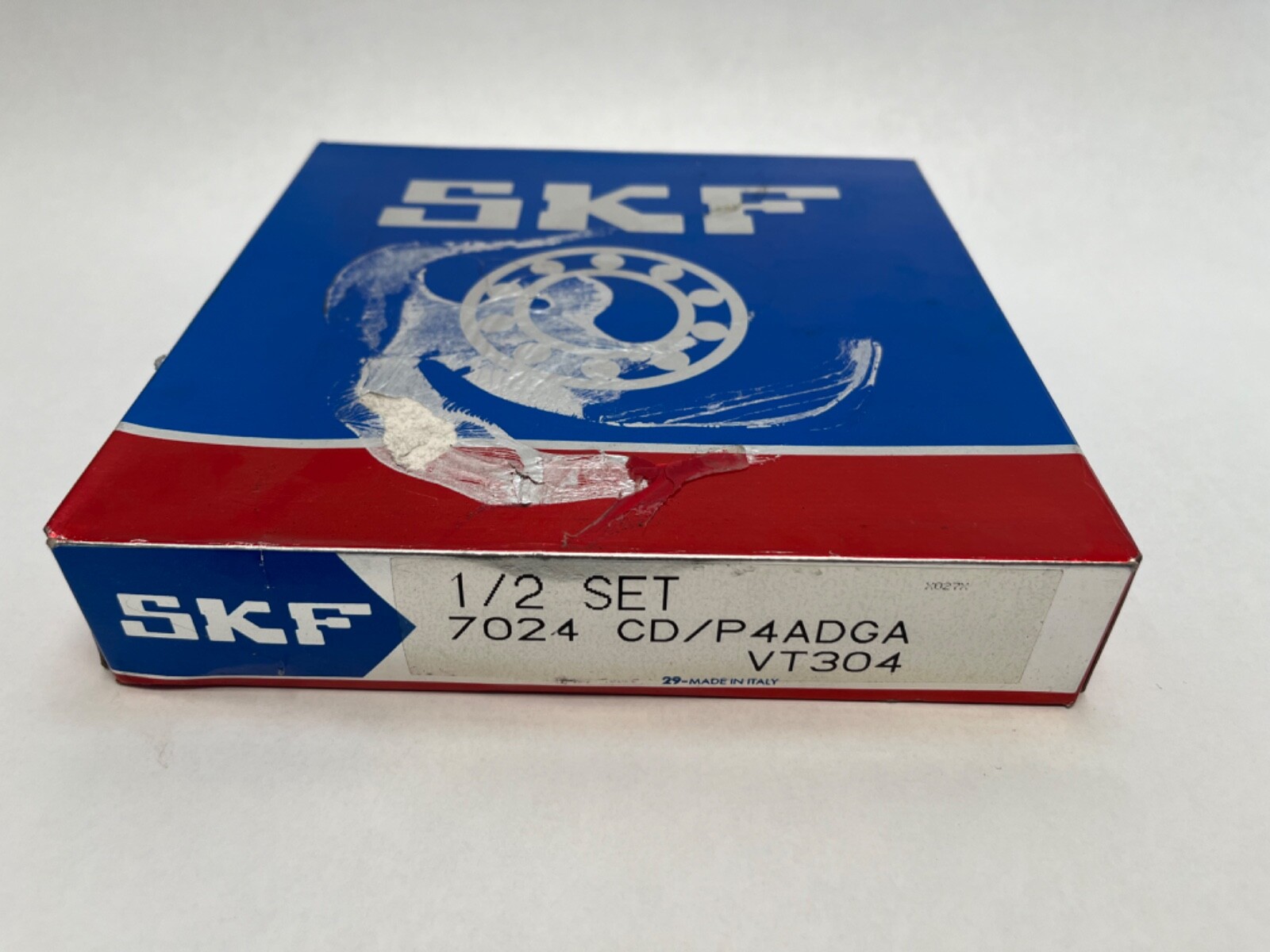

| Model | 7024CD/P4A DGA VT304 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 120 mm |
| OD | 180 mm |
| Width | 28 mm |
| Material | Steel |
|---|---|
| Series | 7000 |
| Preload | Extra light, 430 N |
| Mpn Variants | 7024 CDGA/P4A, 7024CDGAP4A, 7024-CD-P4A-DGA, 7024CDP4ADGA, 7024CD/P4A DGA VT304 |
| Precision Class | P4A (ABEC 7 / P4 dimensional, P2 running accuracy) |
| Dynamic Load Rating | 114,000 N |
| Static Load Rating | 122,000 N |
| Precision Rating | P4A (ABEC 7 / P4 dimensional, P2 running accuracy) |
| Rolling Elements | Ball |
| Item Weight | 2.09 kg (4.61 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal: back-to-back, face-to-face or tandem |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG B7024-C-T-P4S |
|---|---|
| Cross Reference 2 | NSK 7024C |
| Cross Reference 3 | NTN 7024C |
| Cross Reference 4 | Fafnir 2MM9124WI |
SKF 7024 CDGA/P4A is a super-precision, high-capacity single row angular contact ball bearing in the 70 series, with a 15° contact angle and extra light preload for universal matching. It carries combined radial and one-direction axial load in machine tool spindles.
70 — ISO dimension series 10, light section.
24 — bore code, 24 x 5 = 120 mm bore.
CD — 15° contact angle, high-capacity D design.
GA — single bearing for universal matching, extra light preload. Any two GA bearings mount back-to-back, face-to-face or in tandem.
P4A — SKF tolerance class: ISO P4 dimensional accuracy with ISO P2 running accuracy.
Bore Diameter: 120 mm. Outside Diameter: 180 mm. Width: 28 mm. Contact Angle: 15°. Dynamic Load Rating: 114,000 N. Static Load Rating: 122,000 N. Fatigue Load Limit: 4,250 N. Preload: Extra light, 430 N unmounted (back-to-back or face-to-face pair). Axial Stiffness: 131 N/µm. Precision Class: P4A (ABEC 7 / P4 dimensional, P2 running accuracy). Ball Diameter: 19.05 mm. Number Of Balls: 22. Design: High-capacity D. Bearing Material: Bearing steel. Closure Type: Open. Item Weight: 2.09 kg (4.61 lb).
Load centre distance a: 34.2 mm from side face. Shaft abutment diameter: 129 mm min. Housing abutment diameter: 171 mm max (large side), 175 mm max (small side). Fillet radius: 2 mm max (large side), 1 mm max (small side). Oil nozzle position: 142.6 mm. Reference grease quantity: 27 cm³.
Unit Quantity: 1 Pc. Single universally matchable bearing.
Same envelope, 15° angle, super-precision class: FAG B7024-C-T-P4S, NSK 7024C, NTN 7024C, Fafnir 2MM9124WI. MPN variants: 7024 CDGA/P4A, 7024CDGAP4A, 7024-CD-P4A-DGA, 7024CDP4ADGA, 7024CD/P4A DGA VT304. Harmonization Code: 8482.10.50.
