Super-precision angular contact ball bearing, 75 x 130 x 25 mm, 15° contact angle, phenolic cage, ABEC 7/9 tolerance, 87,900 N dynamic rating.
List Price
$51.87
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM215WI |
| GTIN | 087796070882 |
| Model | 2MM 215W1 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25mm |
| Series | 2MM9200 |
|---|---|
| Condition | New – Open box |
| Lubricant | Oil |
| Material | Bearing Steel |
| Base Number | 2MM215WI |
| Condition Note | Made In USA, New Old Stock |
| Overall Width | 25 mm |
| Mpn Variants | 2MM215WI; 2 MM 215 WI; 2MM-215-WI-CR; 2MM215WICR |
| Precision Class | ABEC 7/9 / P4S |
| Dynamic Load Rating | 87,900 N |
| Static Load Rating | 64,900 N |
| Rolling Elements | Ball |
| Item Weight | 1.174 kg (2.59 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 10,800 rpm grease; 21,600 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Cross Reference 1 | FAG 7215-C-T-P4S-UL |
|---|---|
| Cross Reference 2 | SKF 7215 CD/P4A |
| Cross Reference 3 | NSK 7215CTRSULP4 |
| Cross Reference 4 | NTN 7215UCG/GNP4 |
| Cross Reference 5 | RHP 7215CTSULP4 |
| Cross Reference 6 | Koyo 7215C P4 |
| Cross Reference 7 | 7215C (related size, standard tolerance) |

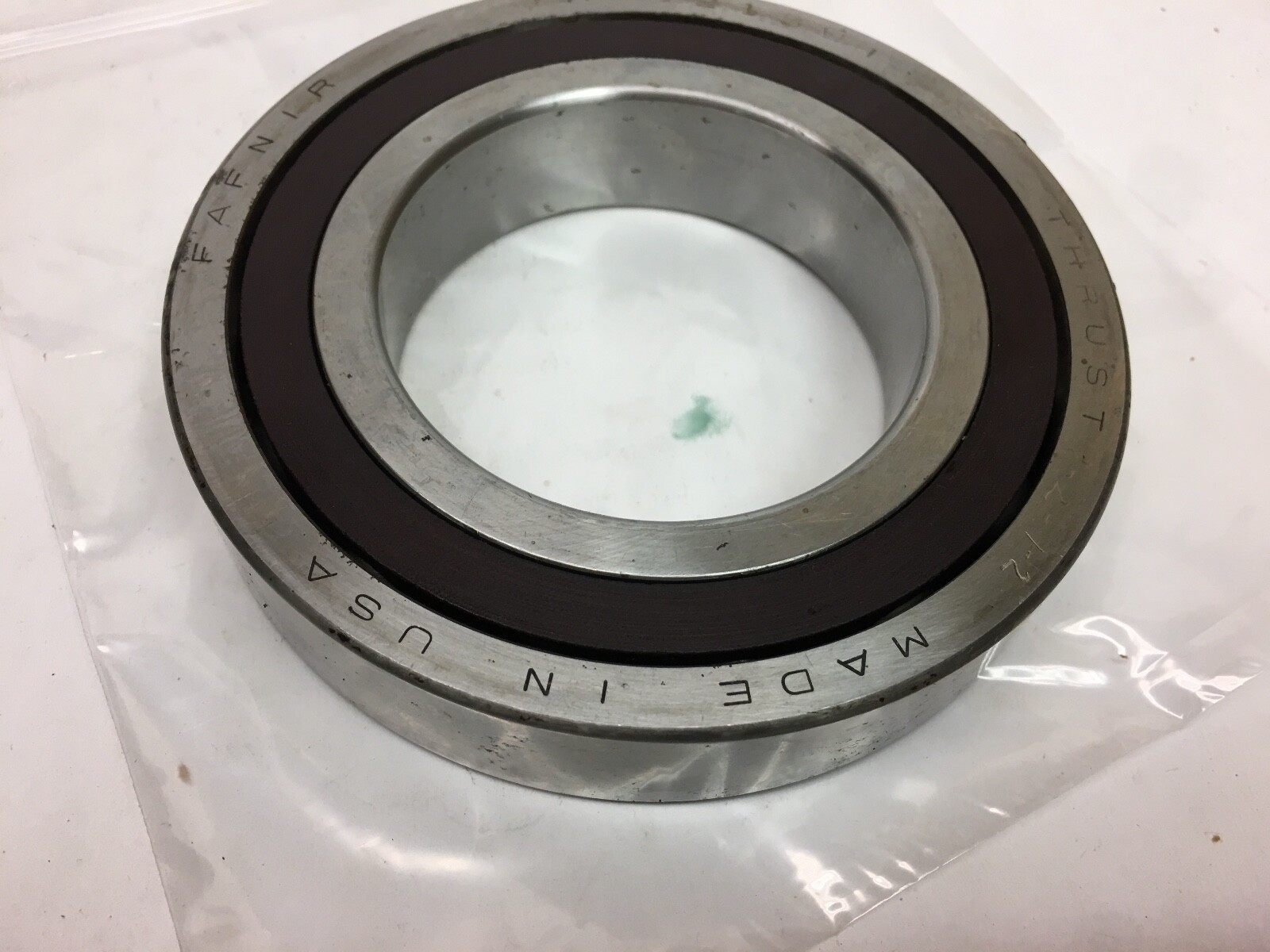

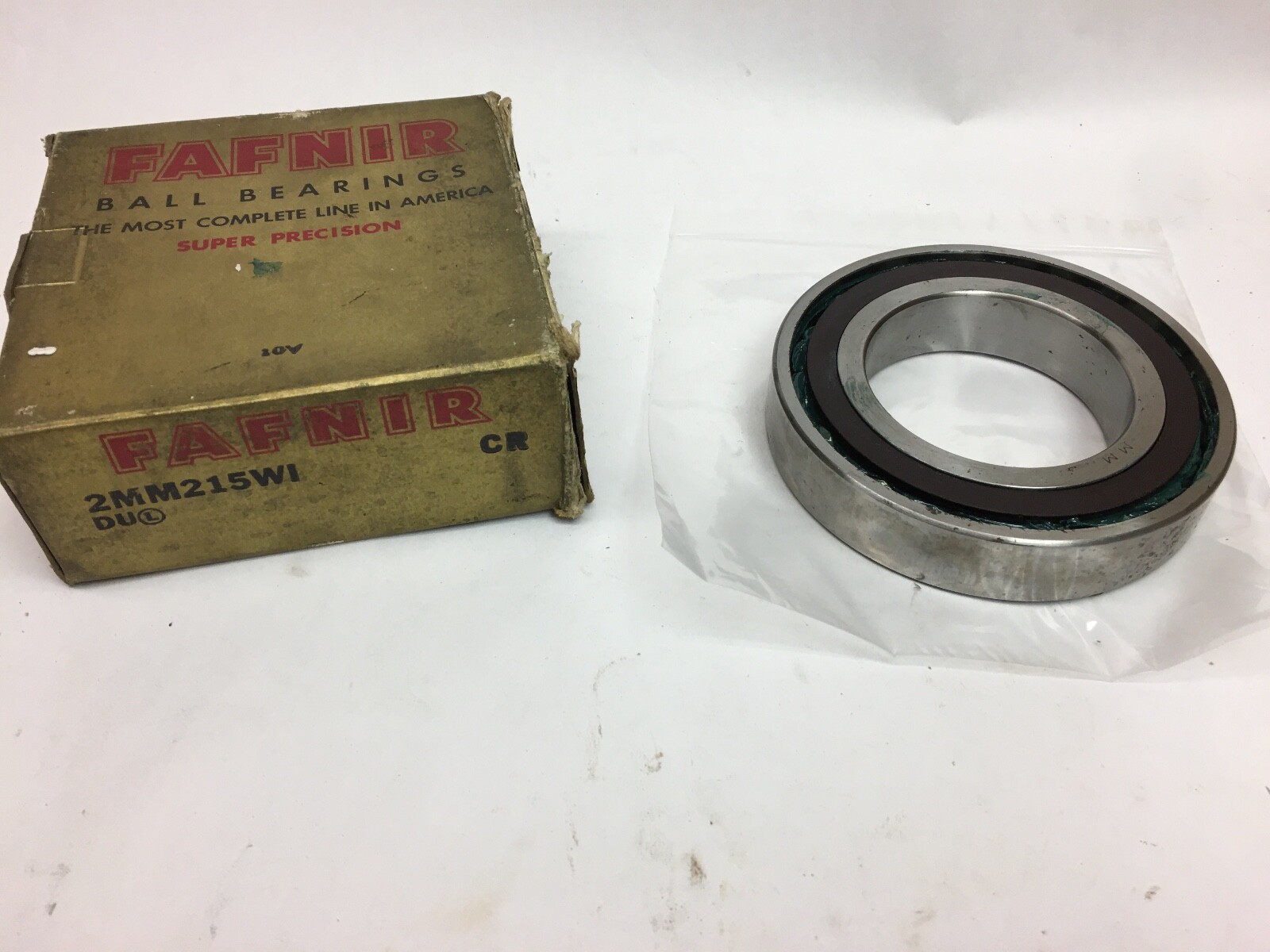

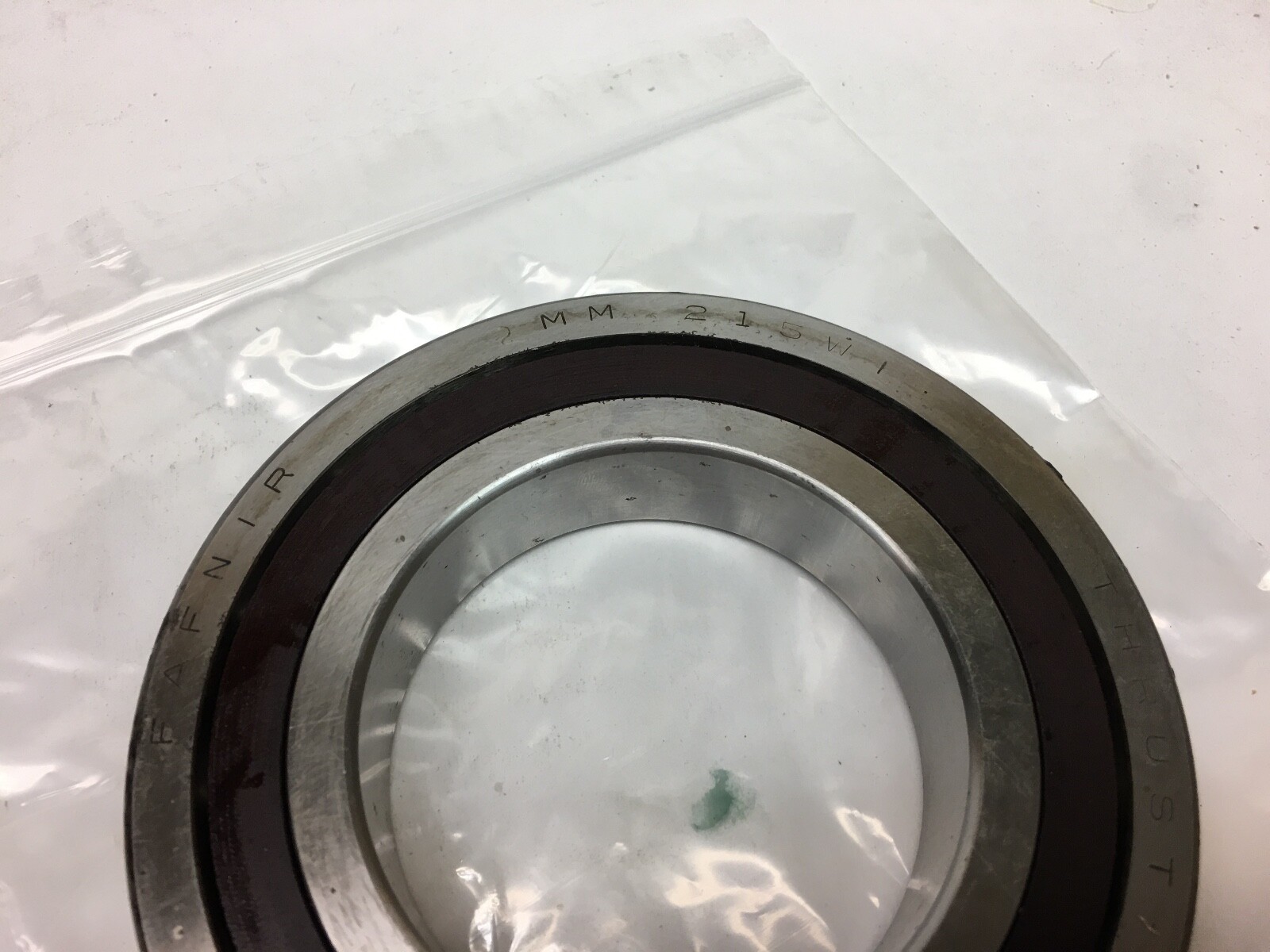

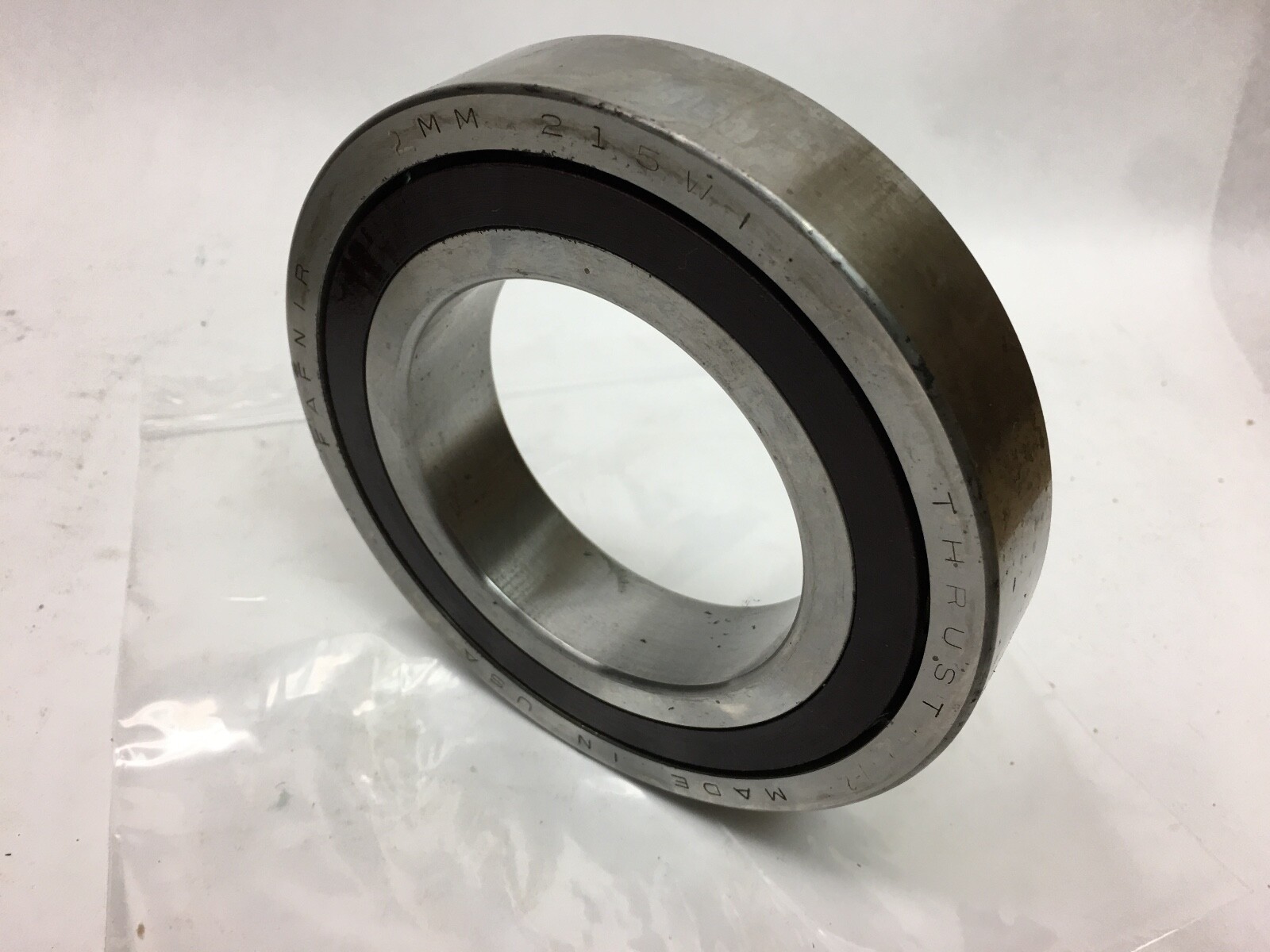

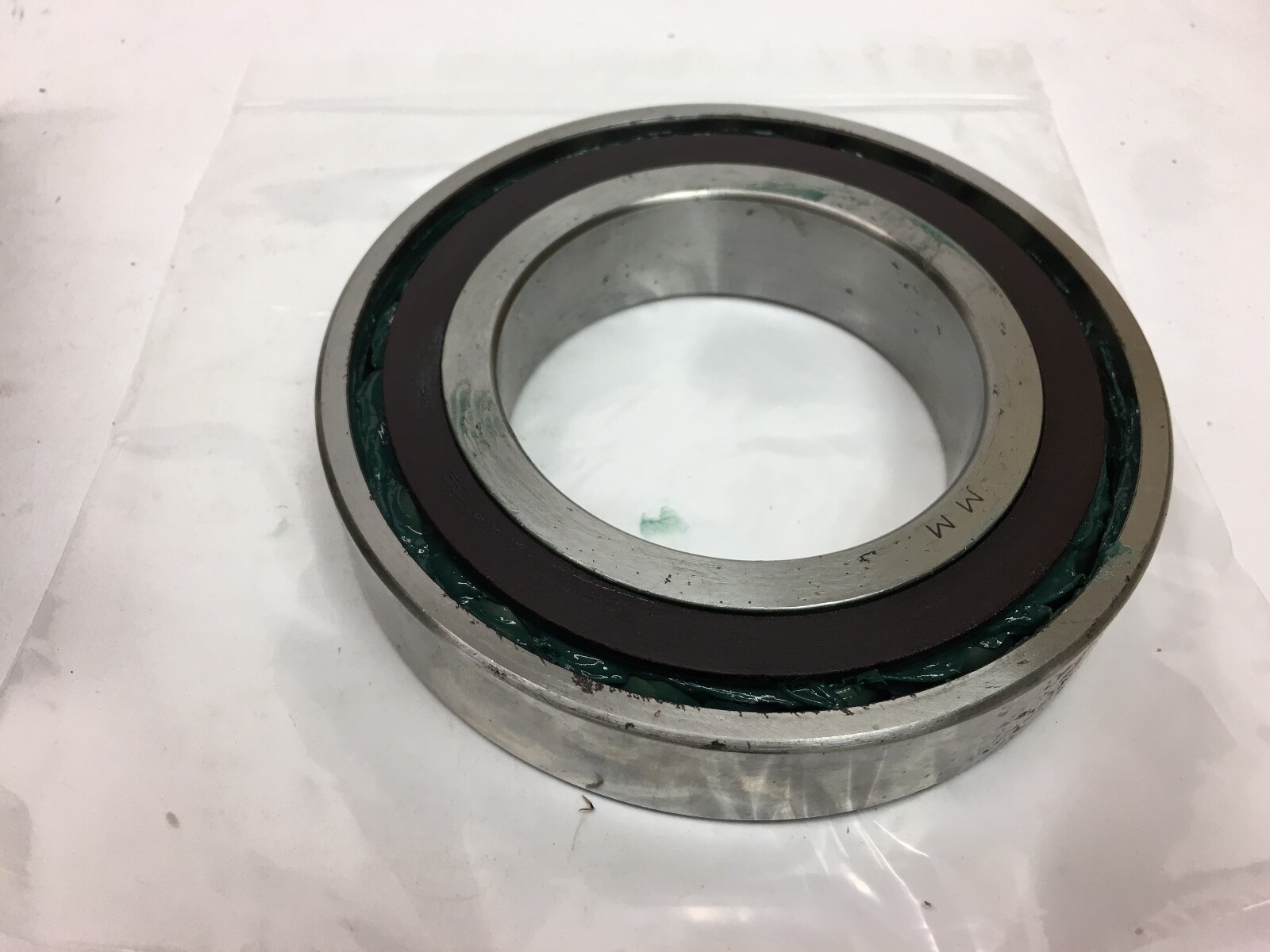

Fafnir 2MM215WICR, a single super-precision angular contact ball bearing. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 25 mm. Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Cage Material: Phenolic. Precision Class: ABEC 7/9 / P4S. Series: 200WI. Base Number: 2MM215WI. GTIN: 087796070882.
2MM — Fafnir super-precision spindle range at a 15° contact angle, ground to ABEC 7/9 (P4S) tolerances.
215 — 200 medium dimension series, bore code 15, which maps to the ISO 7215 envelope: 75 mm bore, 130 mm outside diameter, 25 mm width.
WI — low shoulder on both rings.
CR — phenolic cage.
Dynamic Load Rating: 87,900 N. Static Load Rating: 64,900 N. Limiting Speed: 10,800 rpm grease; 21,600 rpm oil. Item Weight: 1.174 kg (2.59 lb). The 200 medium series puts a larger ball complement in the same bore than the 9100 light series does, which is where the high dynamic rating comes from. A 15° contact angle favours speed and radial rigidity over thrust capacity.
Shaft Backing Shoulder Diameter: 85.2 mm. Housing Backing Shoulder Diameter: 120.8 mm. Maximum Housing Fillet Radius: 1.5 mm (0.059 in) — the largest housing corner radius the bearing corners will clear.
Unit Quantity: 1 Pc. One single-row bearing. Fafnir grinds this execution universally, so two or more can be stacked back-to-back, face-to-face or in tandem and will reach the factory preload when clamped.
Direct super-precision equivalents on the 7215 envelope at 15°: FAG 7215-C-T-P4S-UL, SKF 7215 CD/P4A, NSK 7215CTRSULP4, NTN 7215UCG/GNP4, RHP 7215CTSULP4 and Koyo 7215C P4. A standard-tolerance 7215C shares the envelope and angle only. Searchable variants include 2MM215WI, 2 MM 215 WI, 2MM-215-WI-CR and 2MM215WICR.
