| MFR / Brand | SKF |
|---|---|
| MPN | 7209CDP4ADGB |
| Model | 7209 CD P4A DGB / 2MM209WI CR DUM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Condition | New |
| Preload | Medium |
| Min Temp | -30°C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 35.1 kN |
| Static Load Rating | 26 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120°C |
| Item Weight | 0.90 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Cross Reference 1 | FAG B7209-C-T-P4S |
|---|---|
| Cross Reference 2 | NSK 7209CTYNDBLP4 |

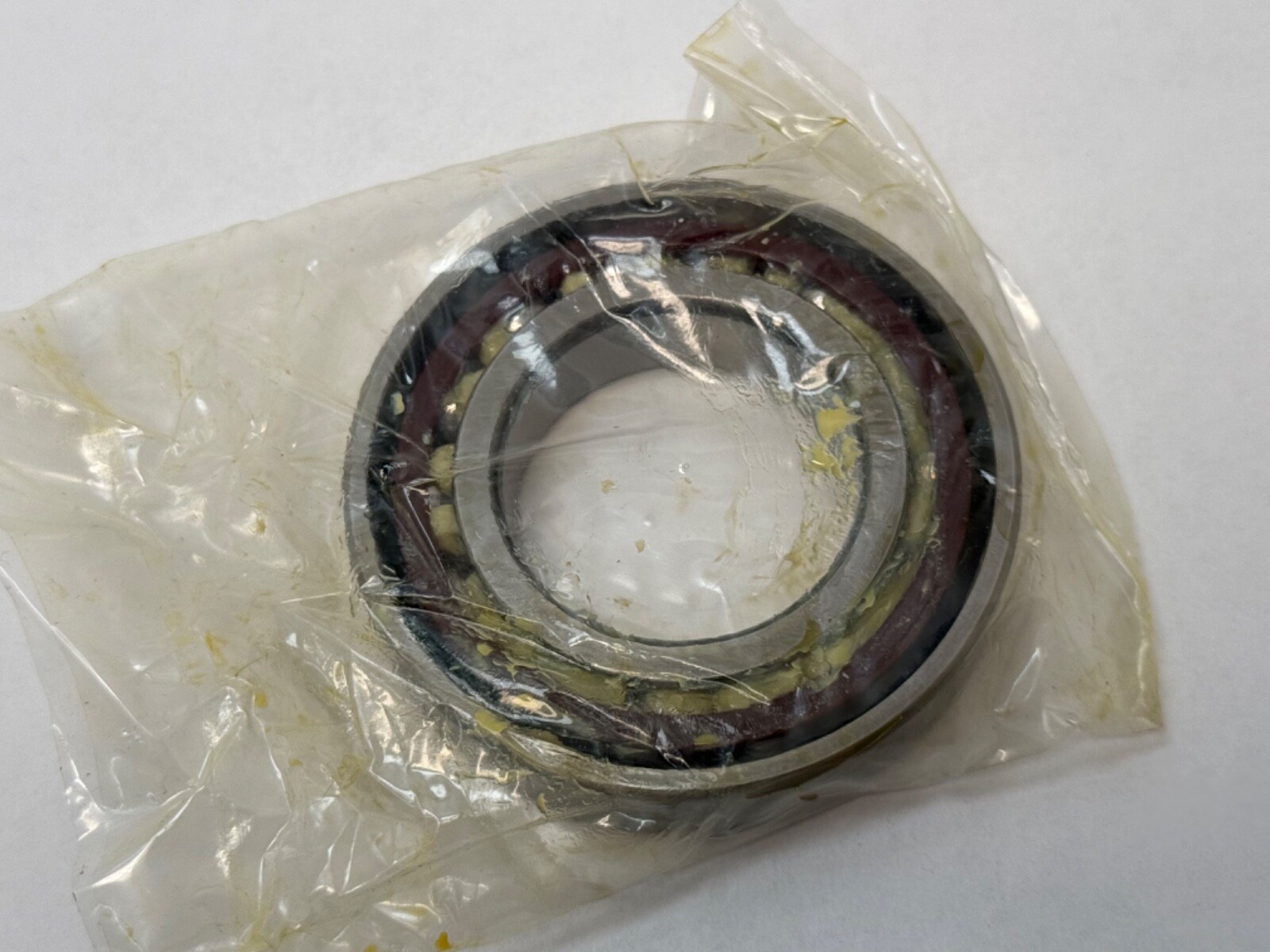

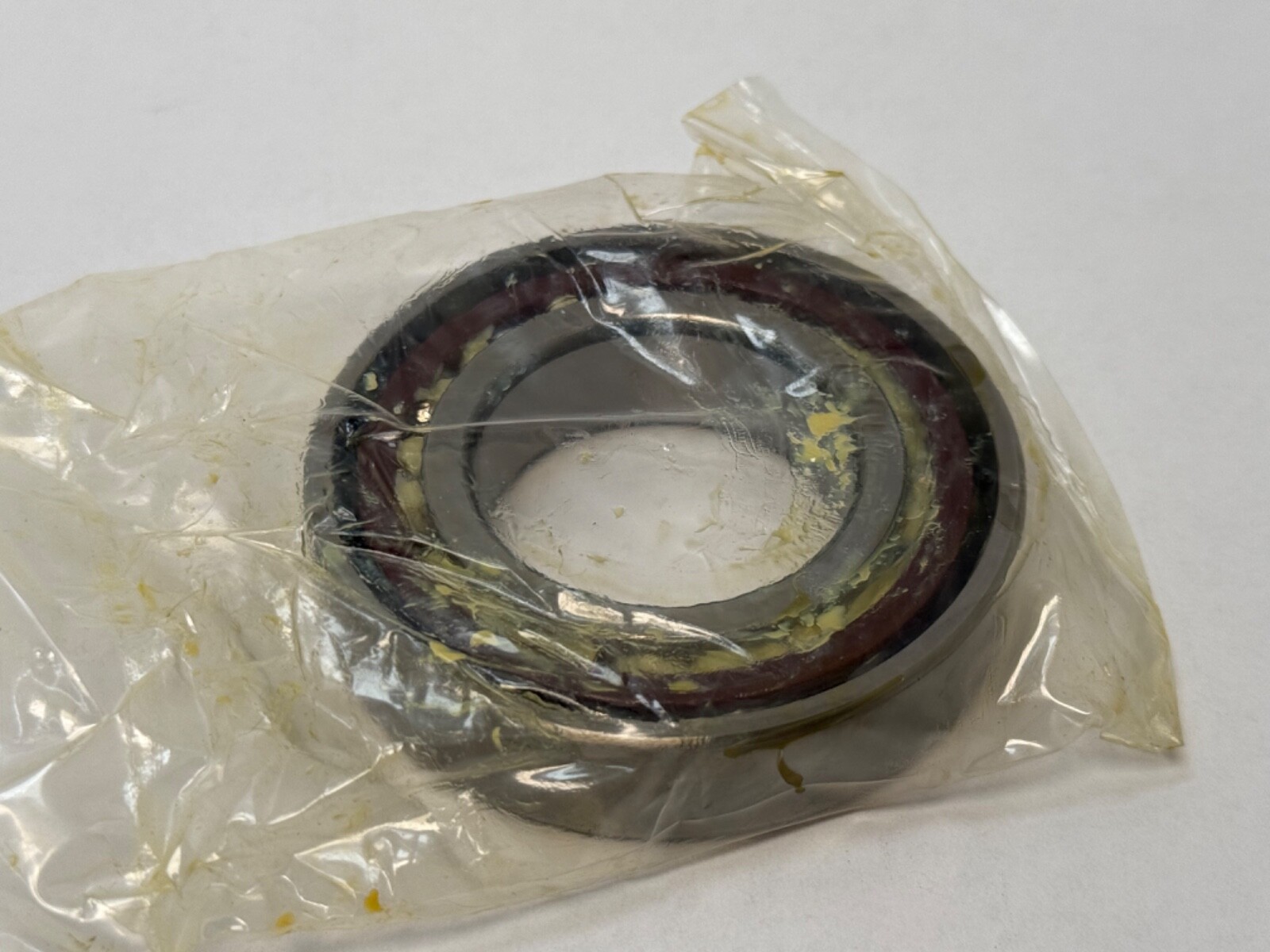

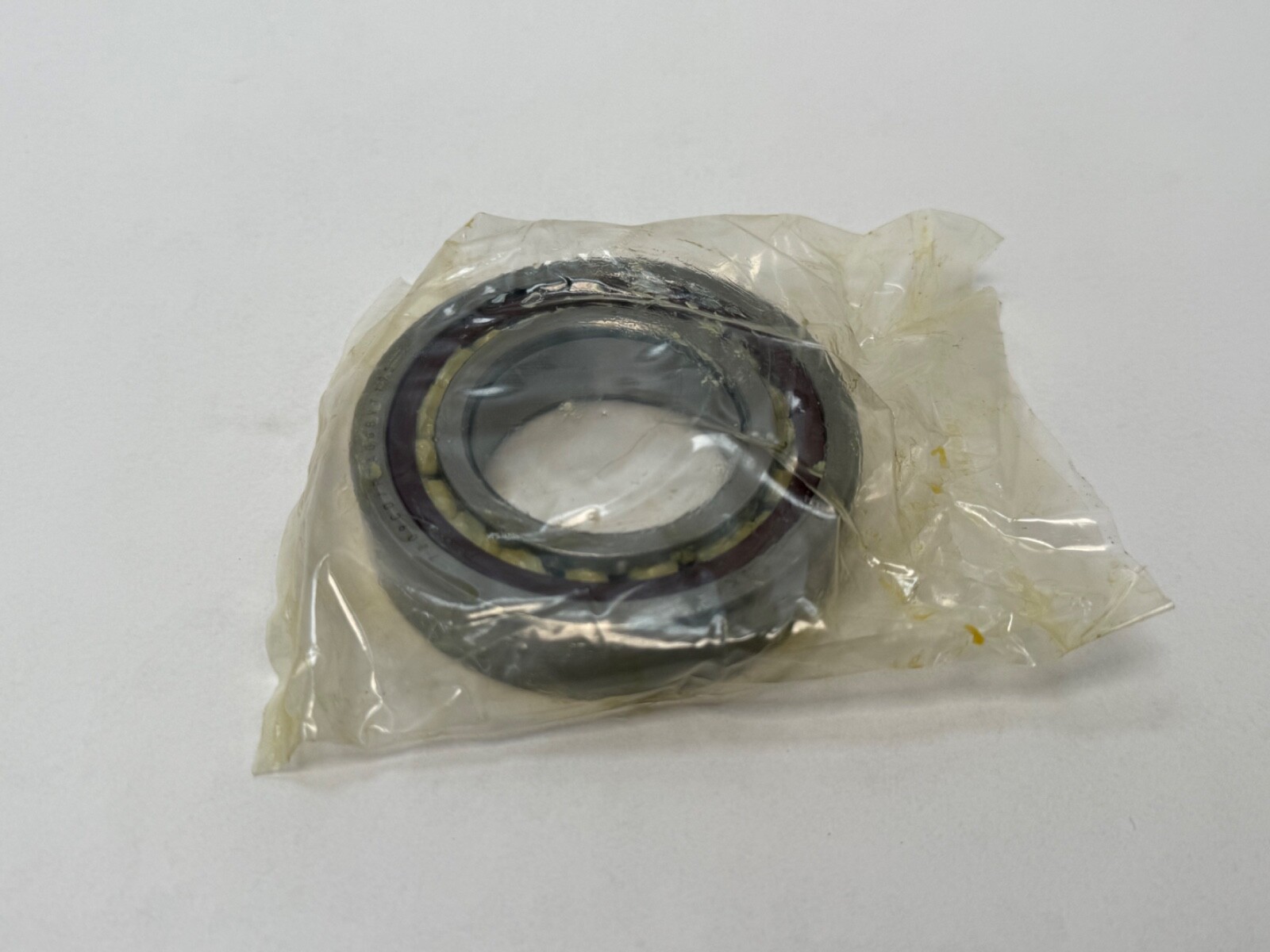

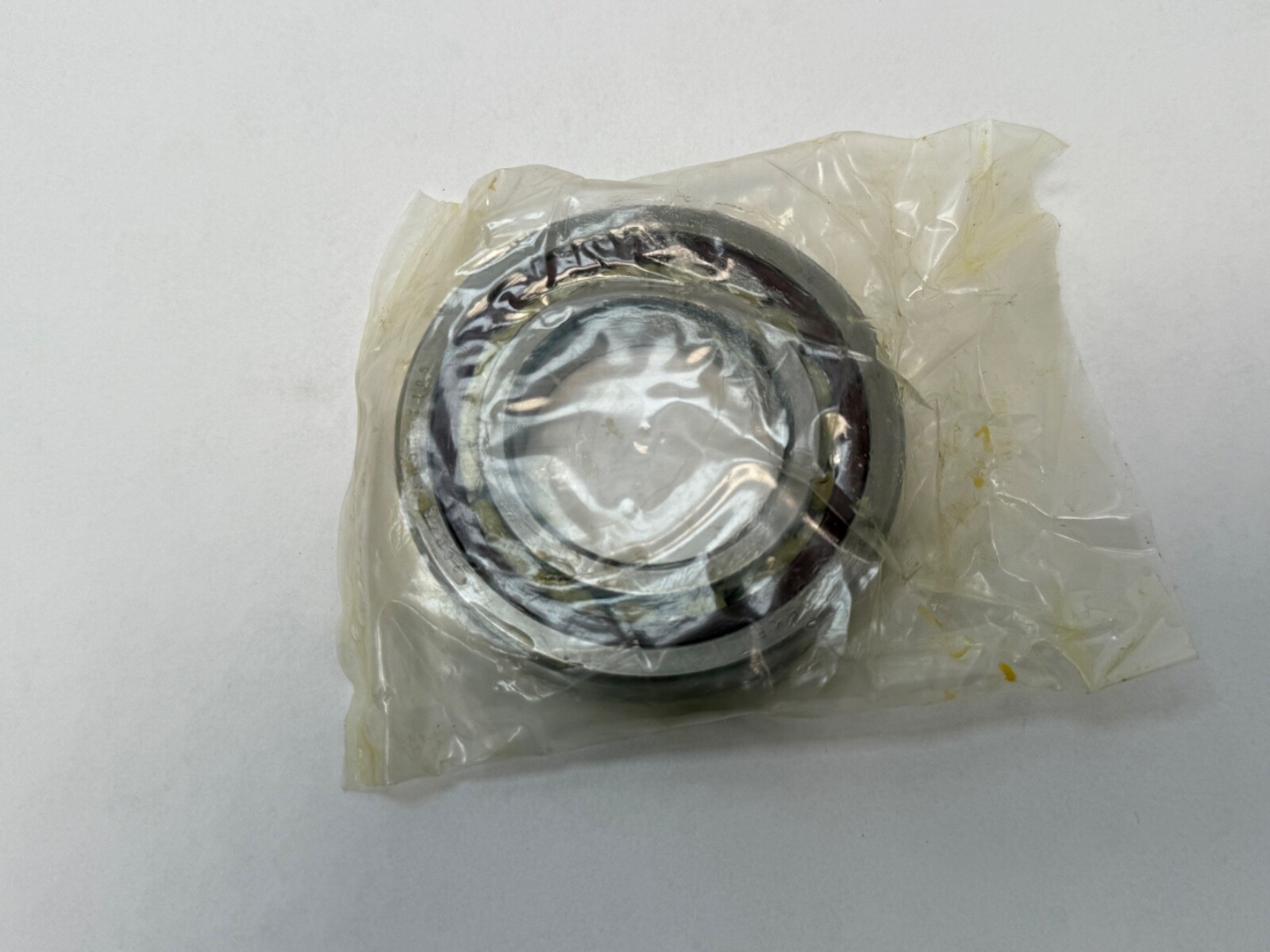

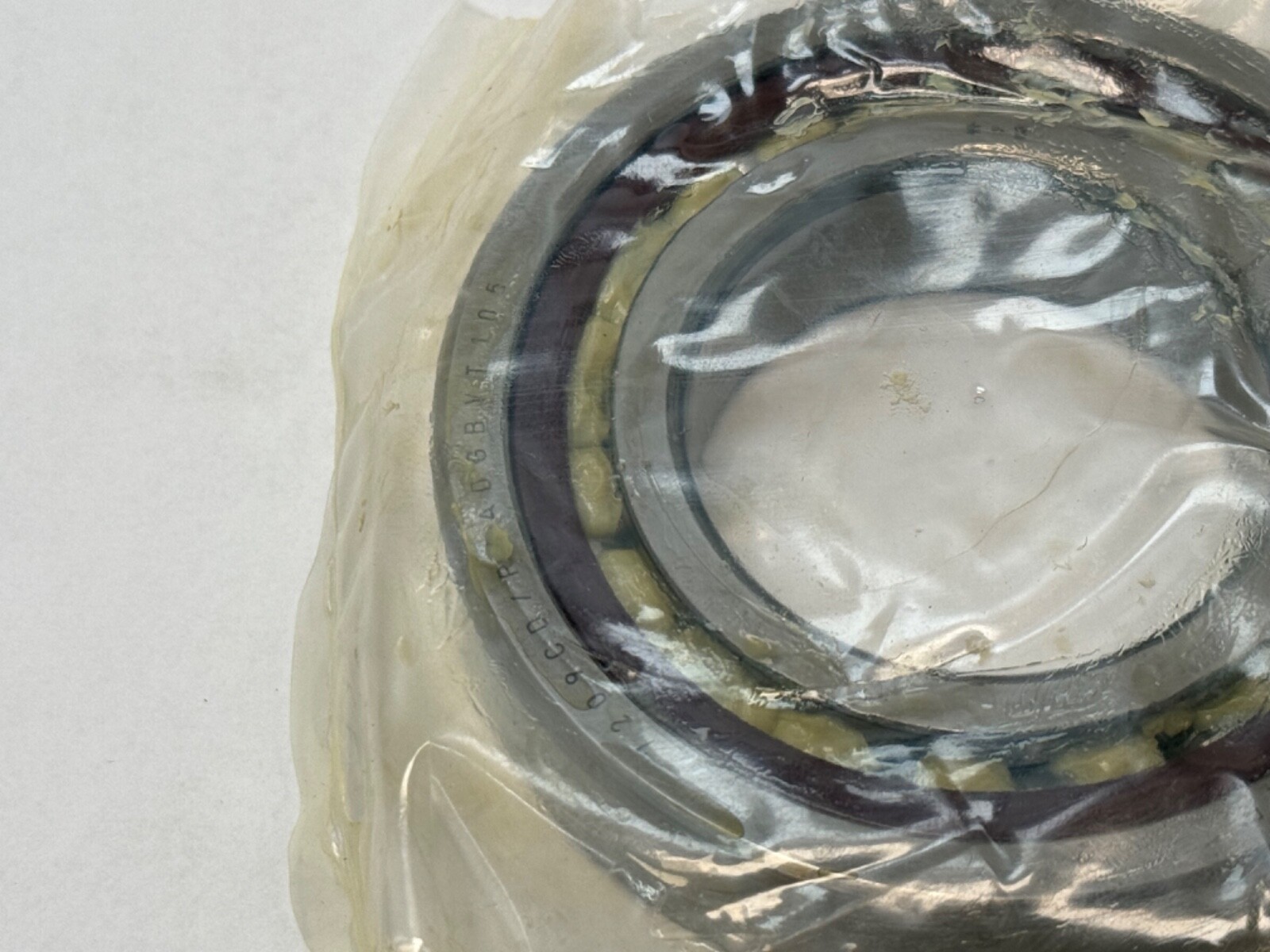

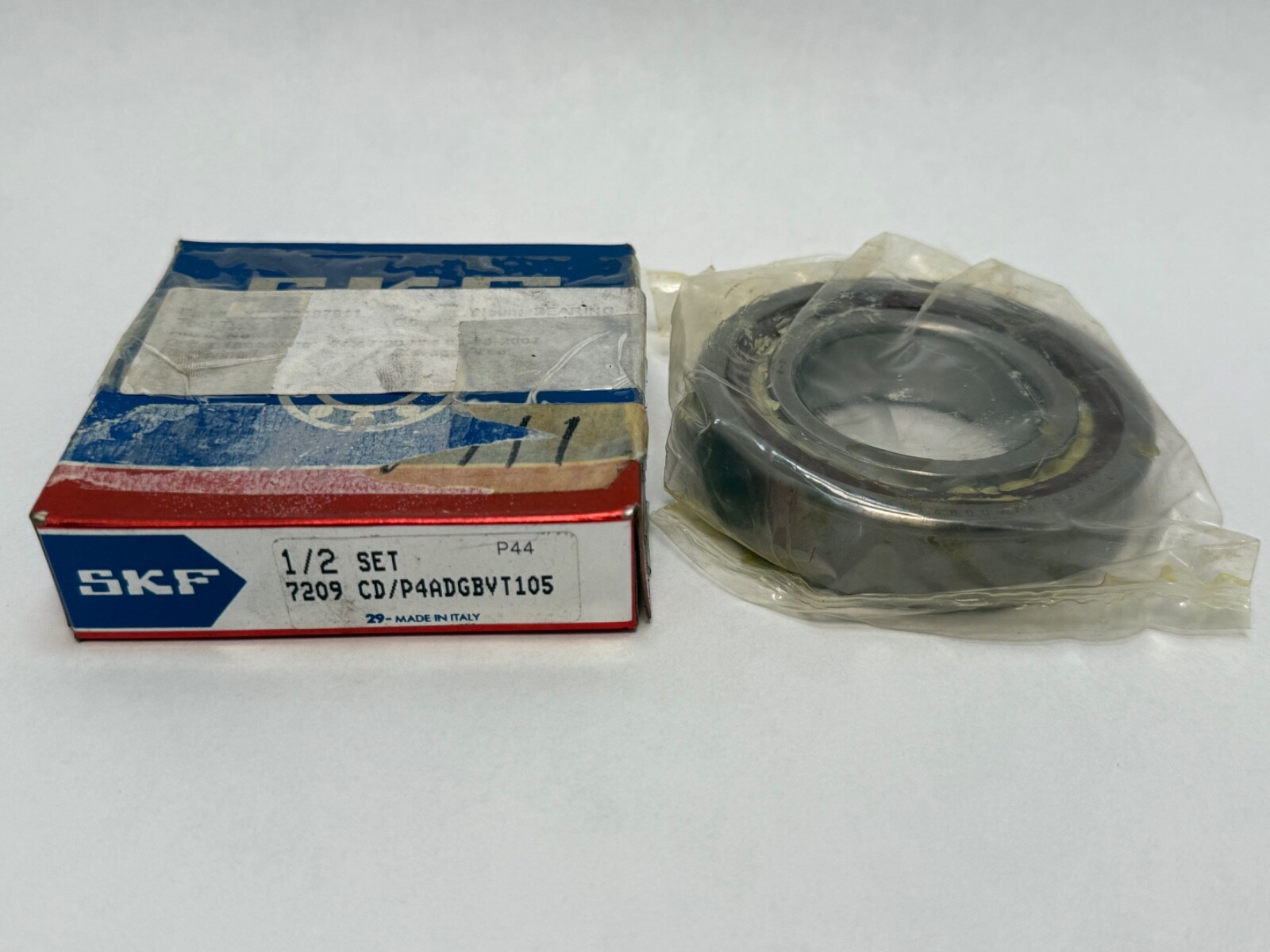

The SKF 7209-CDGB/P4A Bearing is a precision angular contact ball bearing with a high dynamic load rating of 35.1 kN. Made of bearing steel, this open sealed bearing has a constant angle of 15° and a bore diameter of 45 mm. With a static load rating of 26 kN and a temperature range of -30°C to 120°C, this bearing is suitable for various industrial applications. The bearing is designed for universal mounting arrangement and features ball rolling elements, a phenolic cage type, and an outside diameter of 85 mm. Manufactured in Italy, this bearing is a reliable choice for mechanical power transmission and industrial automation systems.
