Availability:
2 in stock
Super-precision angular contact ball bearing, 45 x 85 x 19 mm, 15° contact angle, light preload, phenolic outer-land-riding cage, ABEC 7/9.
List Price
$224.74
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM209WICRDUL |
| Model | 2-MM-209-WI-CR-DUL / 7209C T P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Material | Chrome steel |
|---|---|
| Series | 200 |
| Lubricant | Grease or oil |
| Preload | Light |
| Base Number | 2MM209WI |
| Total Width | 38 mm |
| Bore Shaft Size | 45 mm |
| Mpn Variants | 2MM209WICR-DUL, 2MM209WIDUL, 2MM209WICRDUL, 2MM-209-WI-CR-DUL, 2MM209WI DUL |
| Arrangement Configuration | Universally ground duplex pair |
| Precision Class | ABEC 7/9 (ISO P4S) |
| Dynamic Load Rating C1 | 45,200 N per bearing |
| Additional Attributes | Ball type: steel. Shaft backing shoulder diameter: 52.3 mm. Housing backing shoulder diameter: 78.2 mm. Maximum shaft fillet radius: 1 mm. Outer ring to-clear radius: 1 mm. ISO dynamic radial rating per row: 41,100 N. |
| Cage Type | CR – Phenolic Outer Land Riding Cage |
| Dynamic Load Rating | 45,200 N per bearing |
| Static Load Rating | 28,800 N per bearing |
| Precision Rating | ISO P4S (ABEC 7/9) |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Limiting Speed | 17,500 rpm grease / 35,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal duplex – back-to-back, face-to-face or tandem |
| Bearing Material | Chrome steel |
| Cross Reference 1 | Timken 7209C-T-P4S-DUL |
|---|

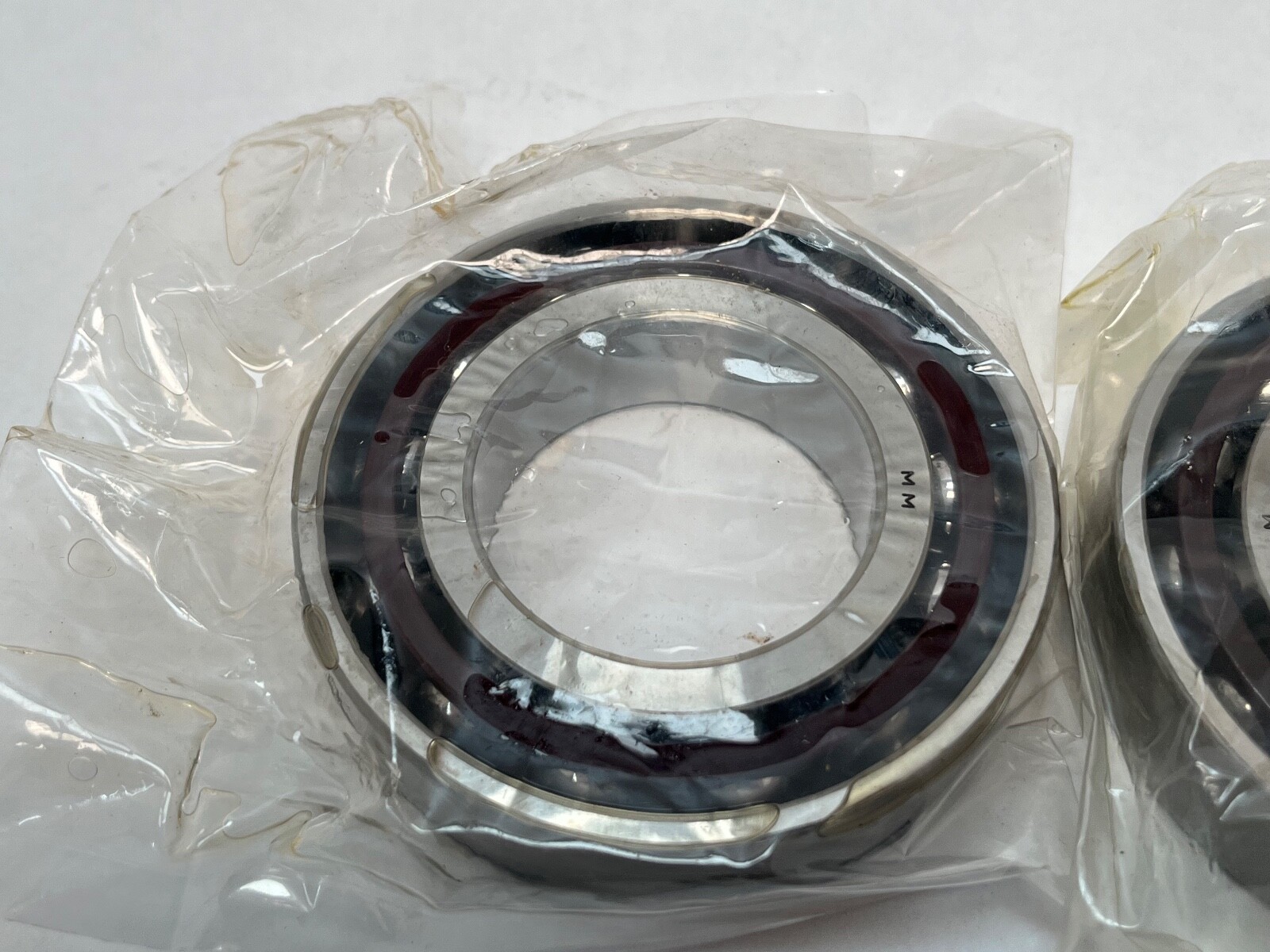

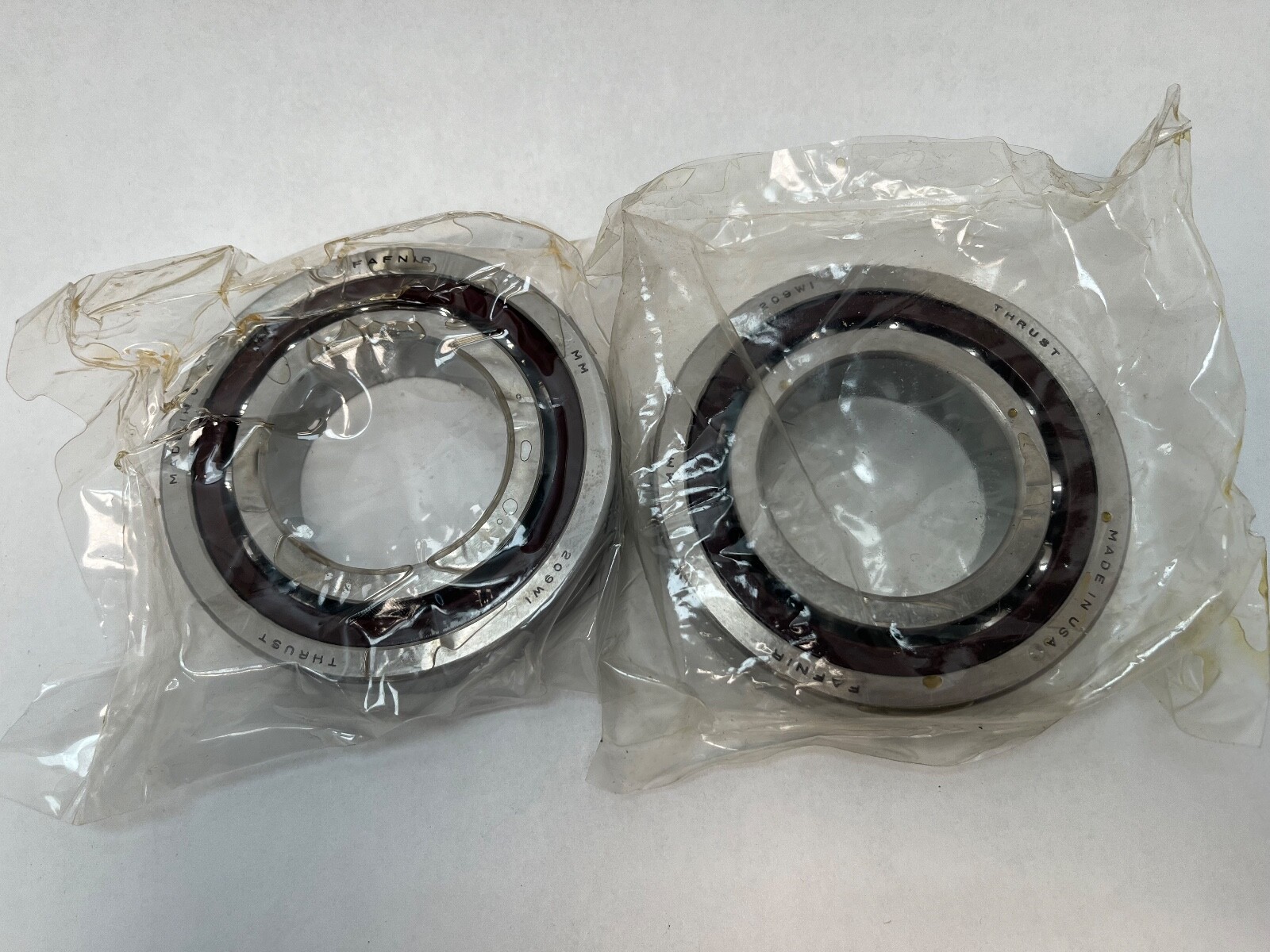

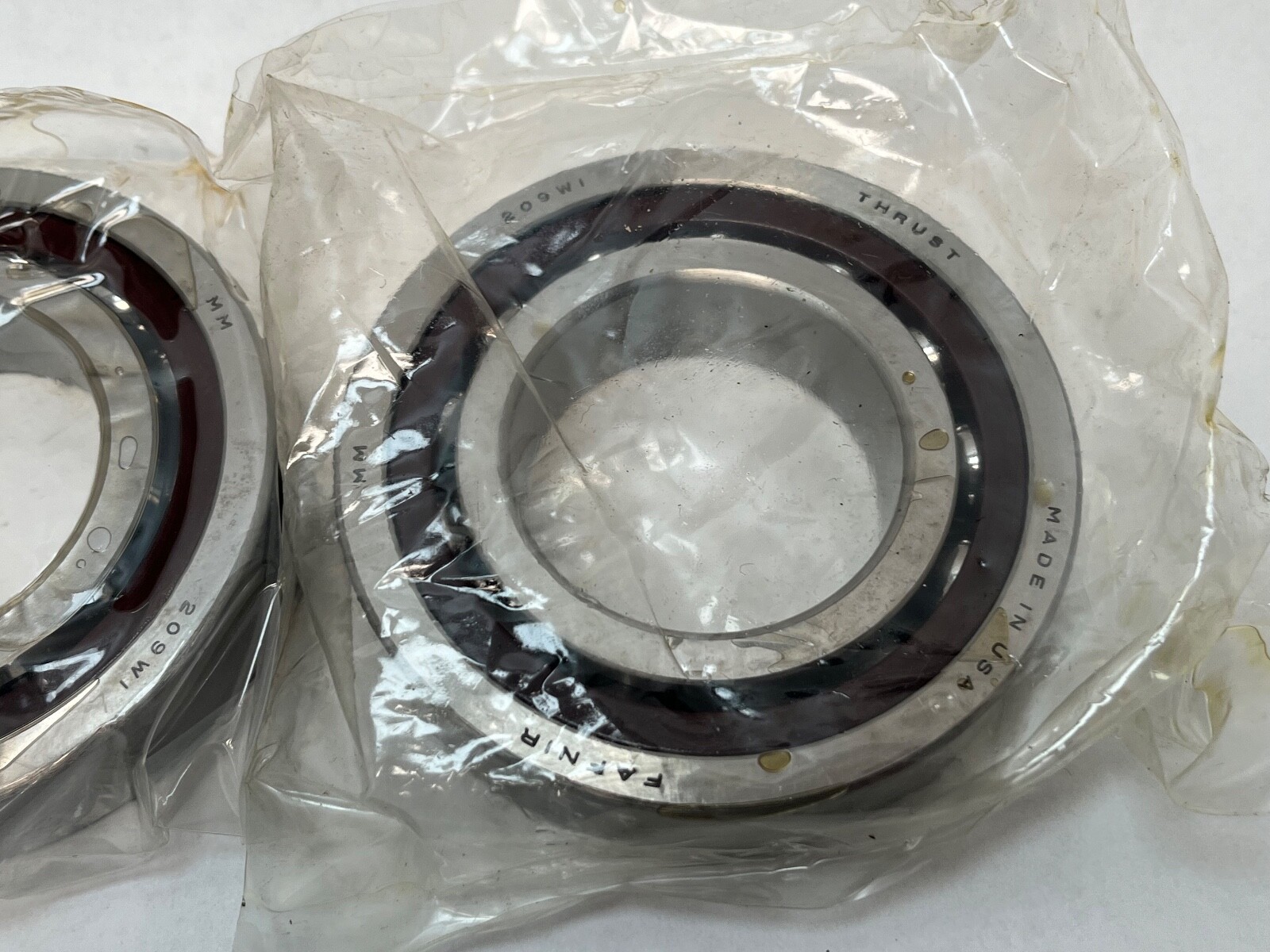

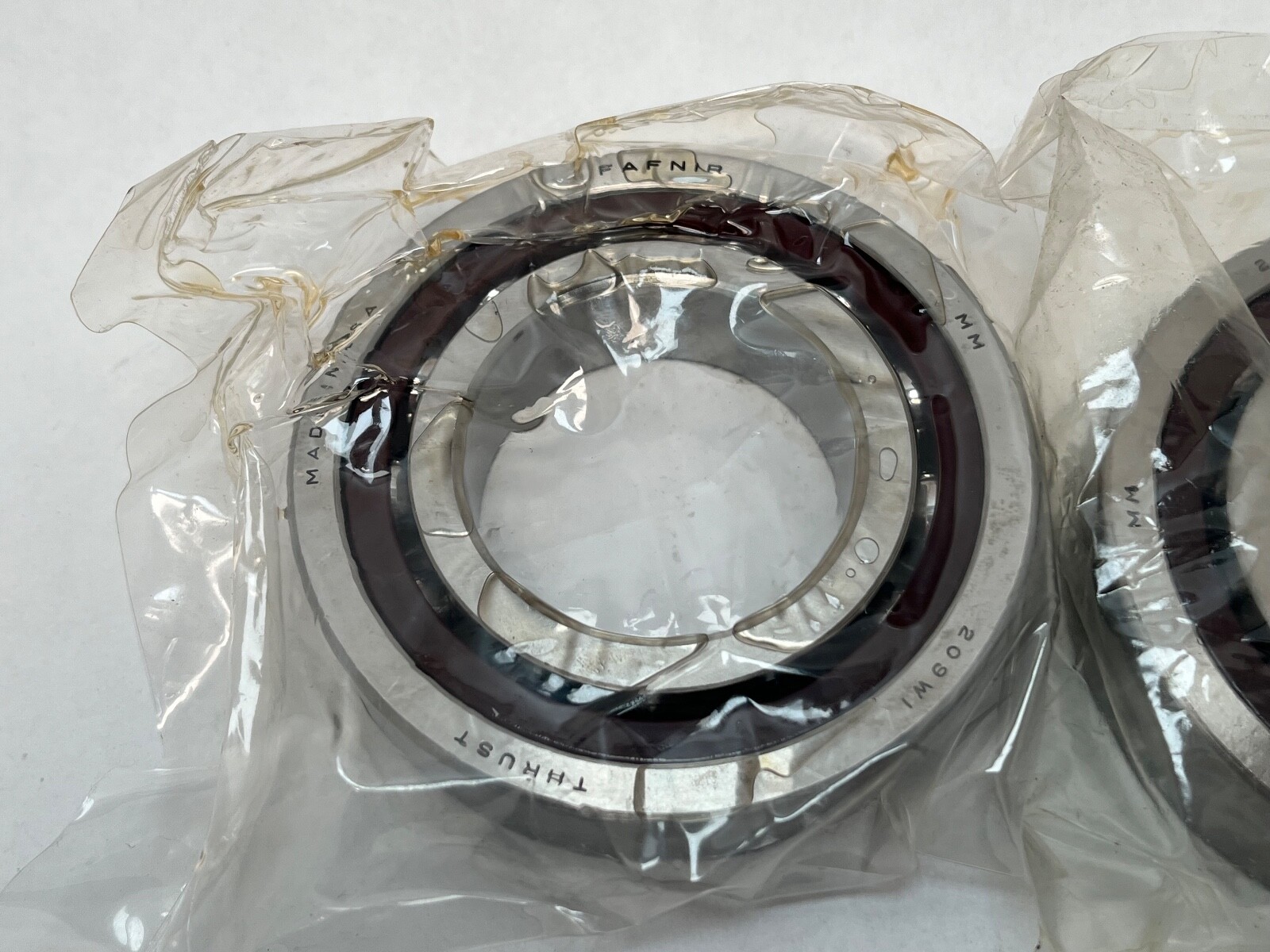

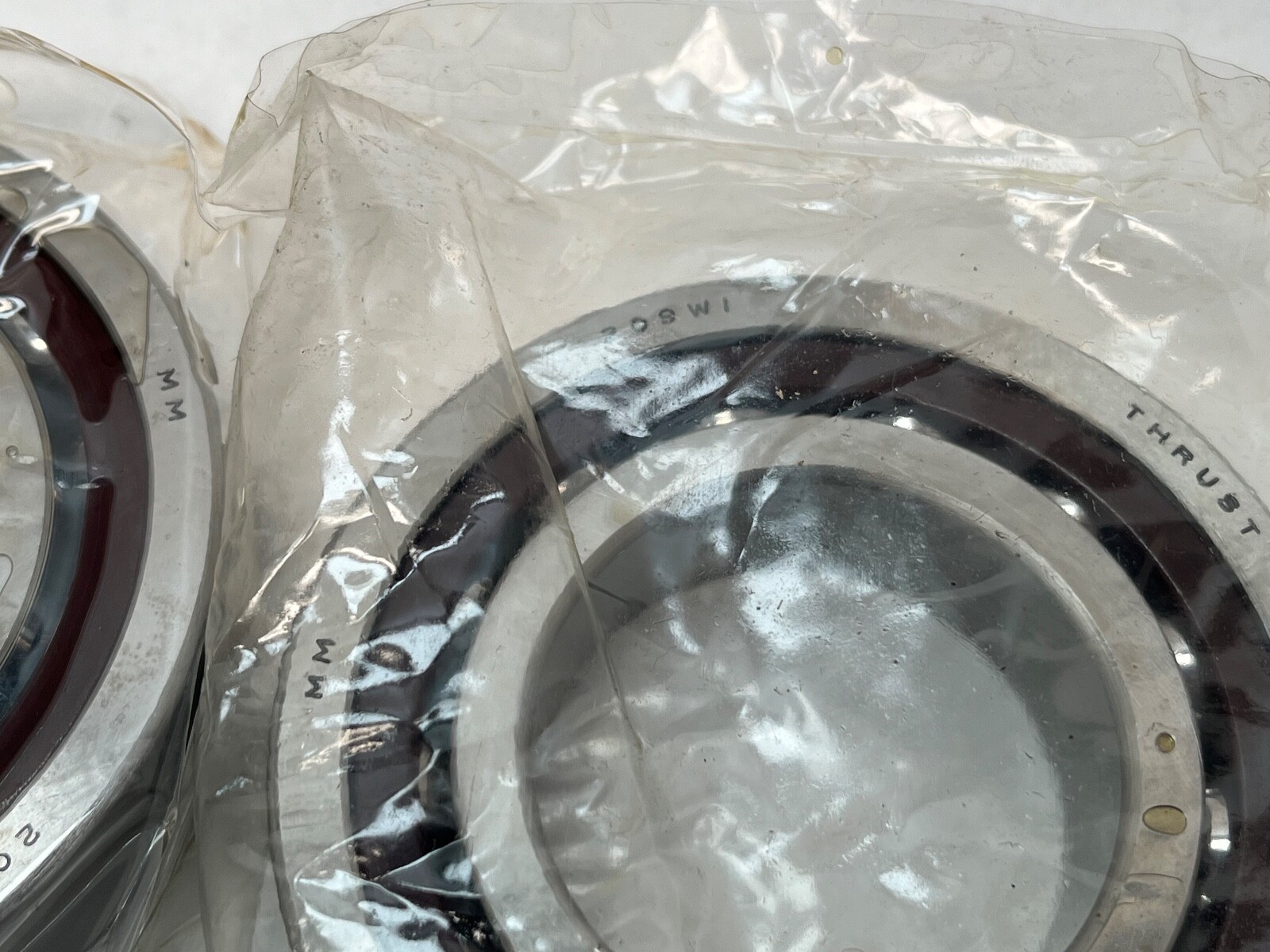

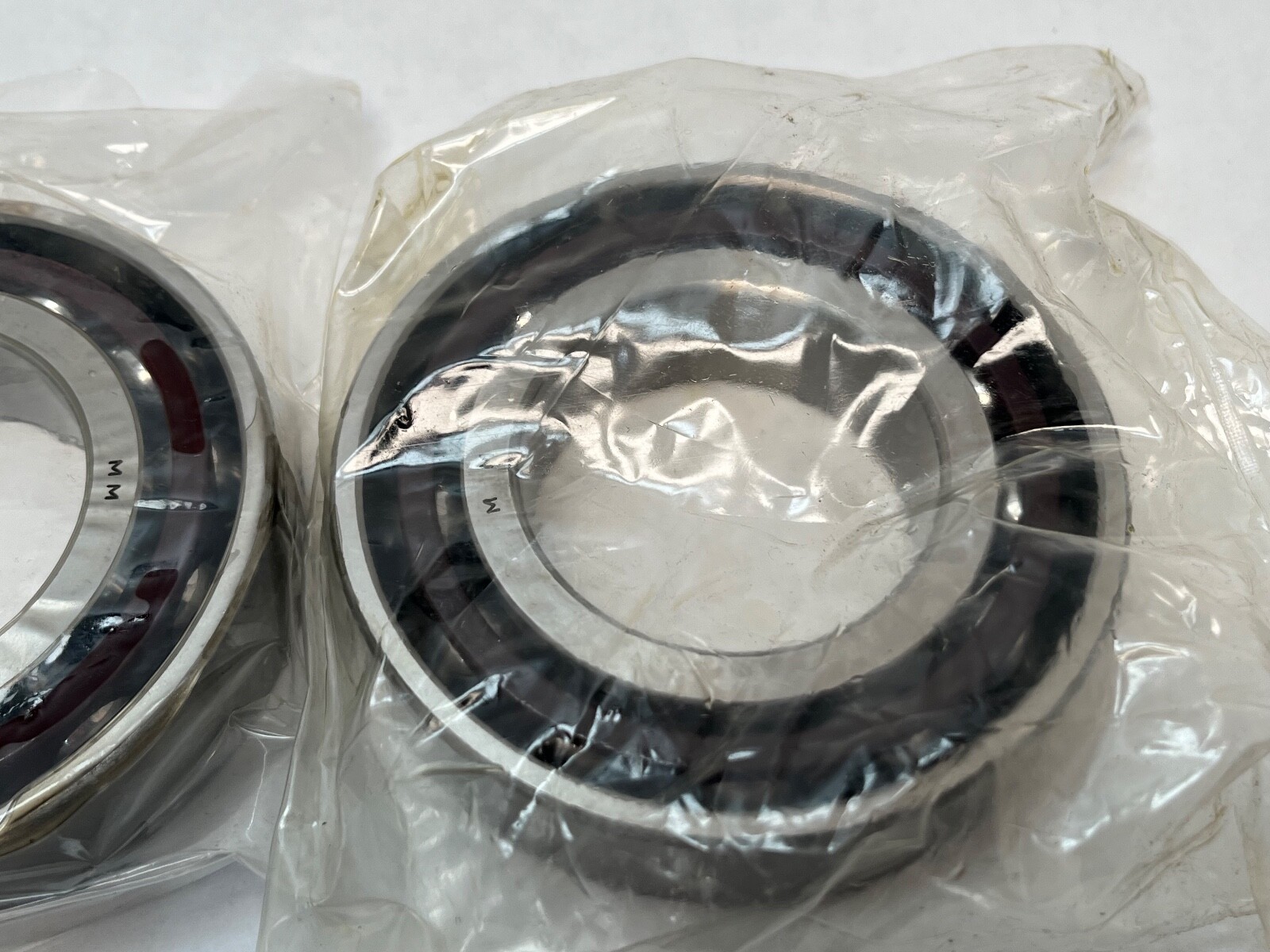

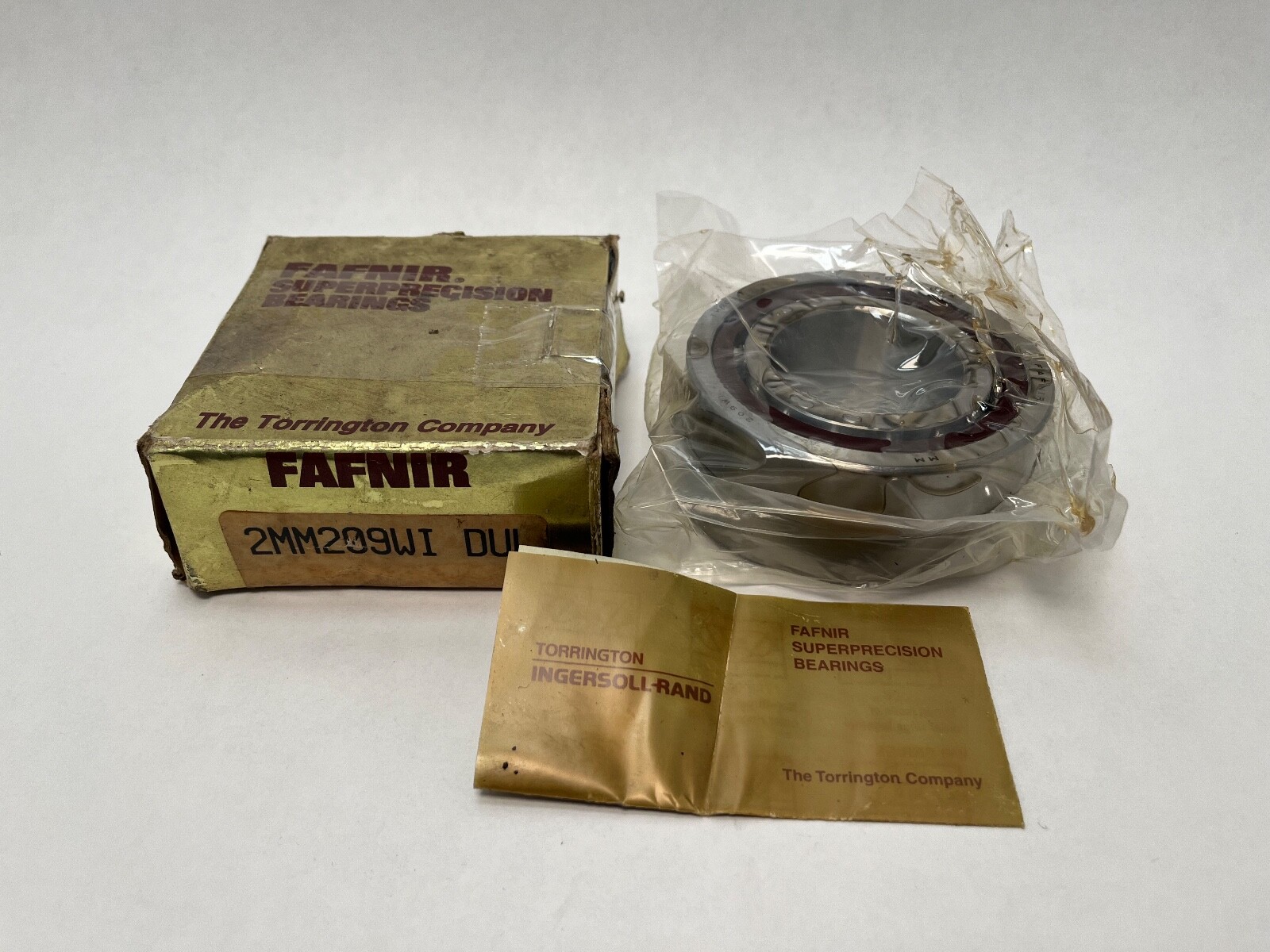

Fafnir 2MM209WICR-DUL super-precision angular contact ball bearing, built by Timken. Bore: 45 mm. Outside Diameter: 85 mm. Bearing Width: 19 mm. Total Width: 38 mm. Contact Angle: 15°. Precision Class: ISO P4S (ABEC 7/9). Preload: Light. Cage Material: Phenolic. Cage Type: outer-ring land riding, machined. Rolling Elements: steel balls. Closure Type: Open. Series: 200. Bore Type: Straight.
2MM — Fafnir super-precision spindle execution at a 15° contact angle, ground to ISO P4S.
209 — the 200WI size series, ISO 7209 envelope, 45 x 85 x 19 mm.
WI — low shoulder on both rings.
CR — phenolic outer land riding cage.
DUL — universally ground duplex, light preload. Two single-row bearings ground as a matched set.
Dynamic Radial Load Rating (C1): 45,200 N per bearing. Static Radial Load Rating (C0): 28,800 N per bearing. ISO dynamic radial rating per row: 41,100 N. Limiting Speed: 17,500 rpm on grease, 35,000 rpm on oil. Lubricant: grease or oil.
The 72 dimension series carries a heavier cross-section than the 70 series at the same bore, which raises load capacity. A 15° contact angle favours speed and radial stiffness over thrust capacity. Light preload gives the highest running speed and the lowest heat generation of the three grades. The phenolic cage is light, tolerates high surface speed and holds oil in its fabric base.

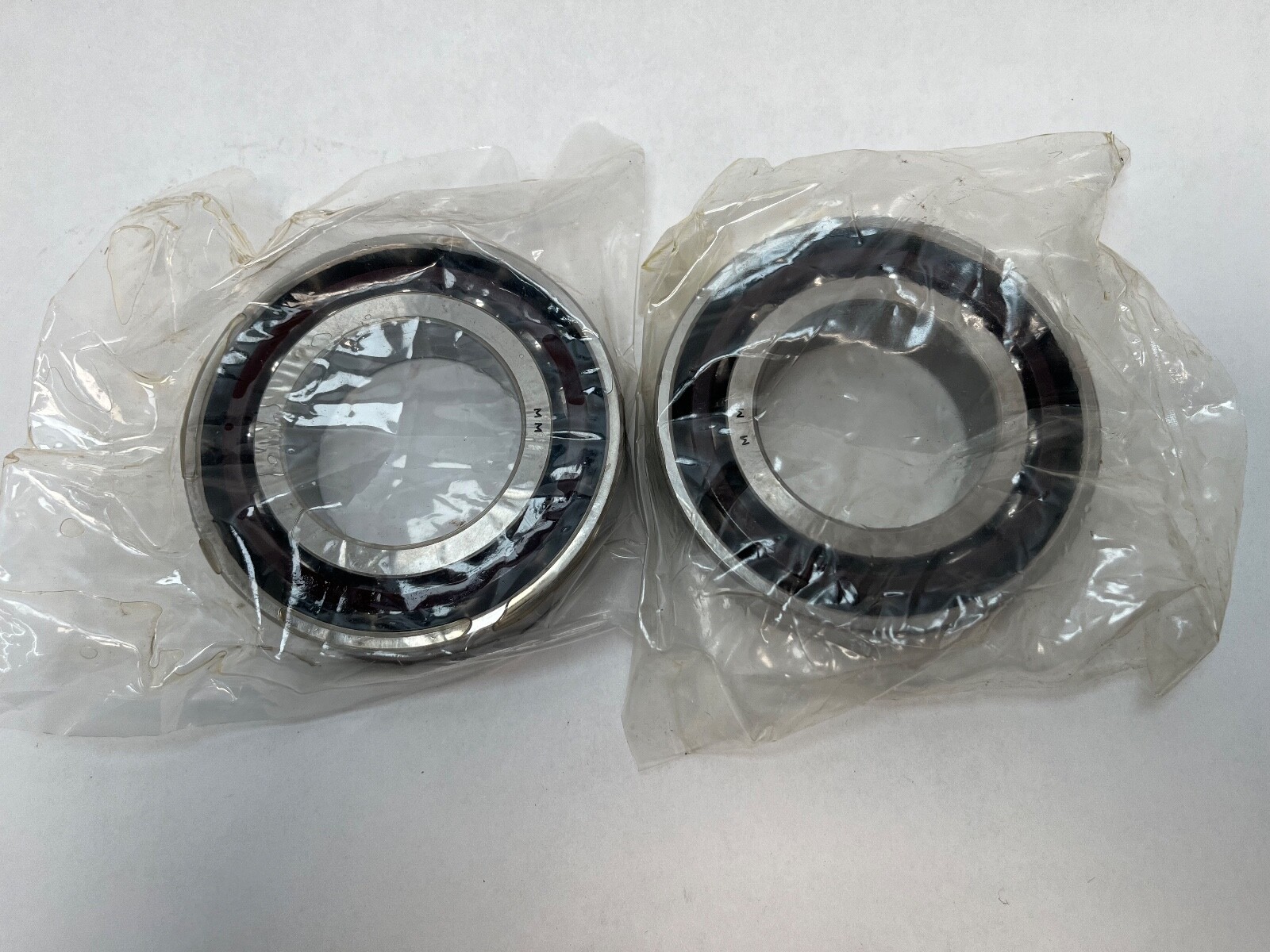

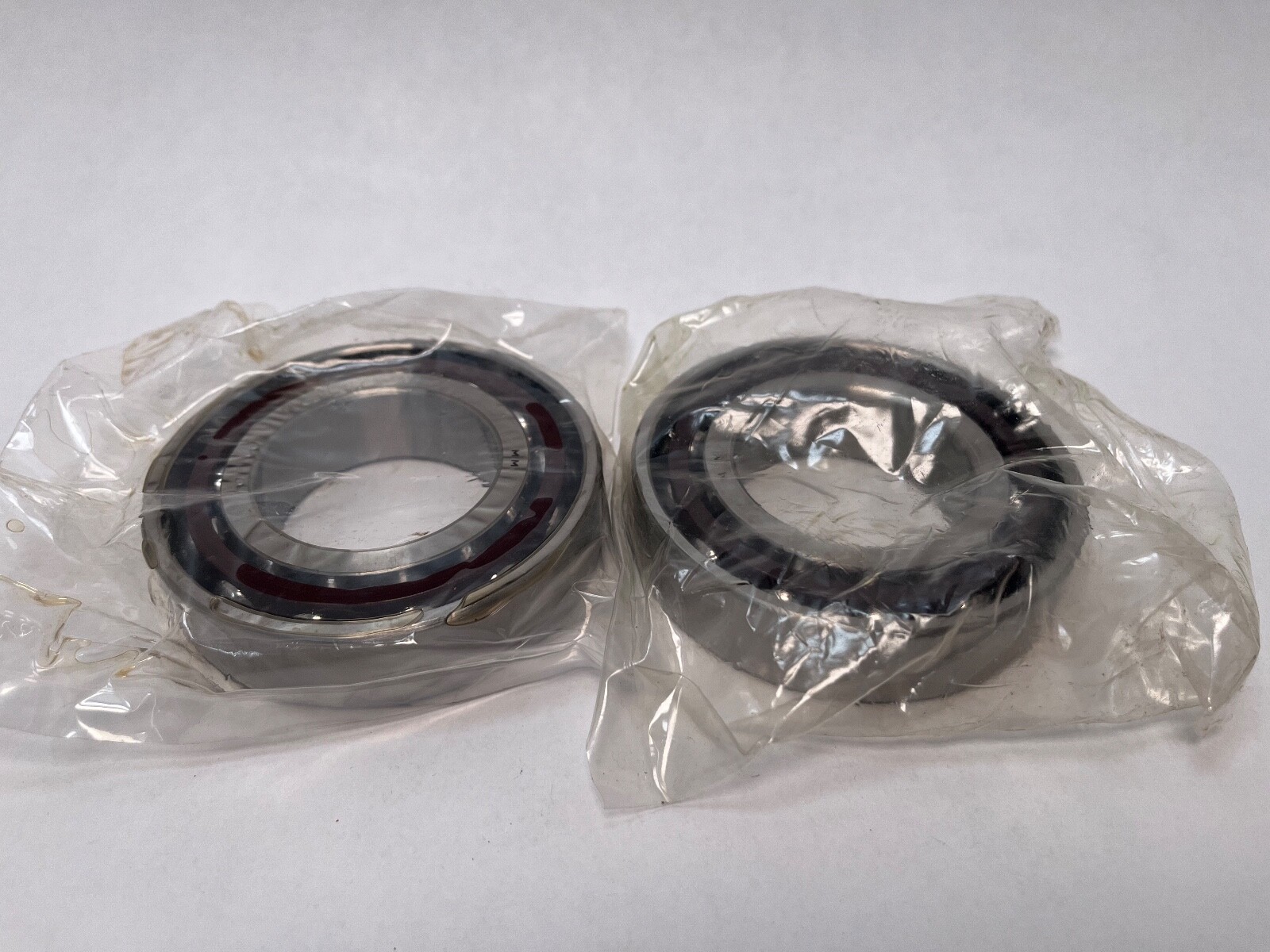

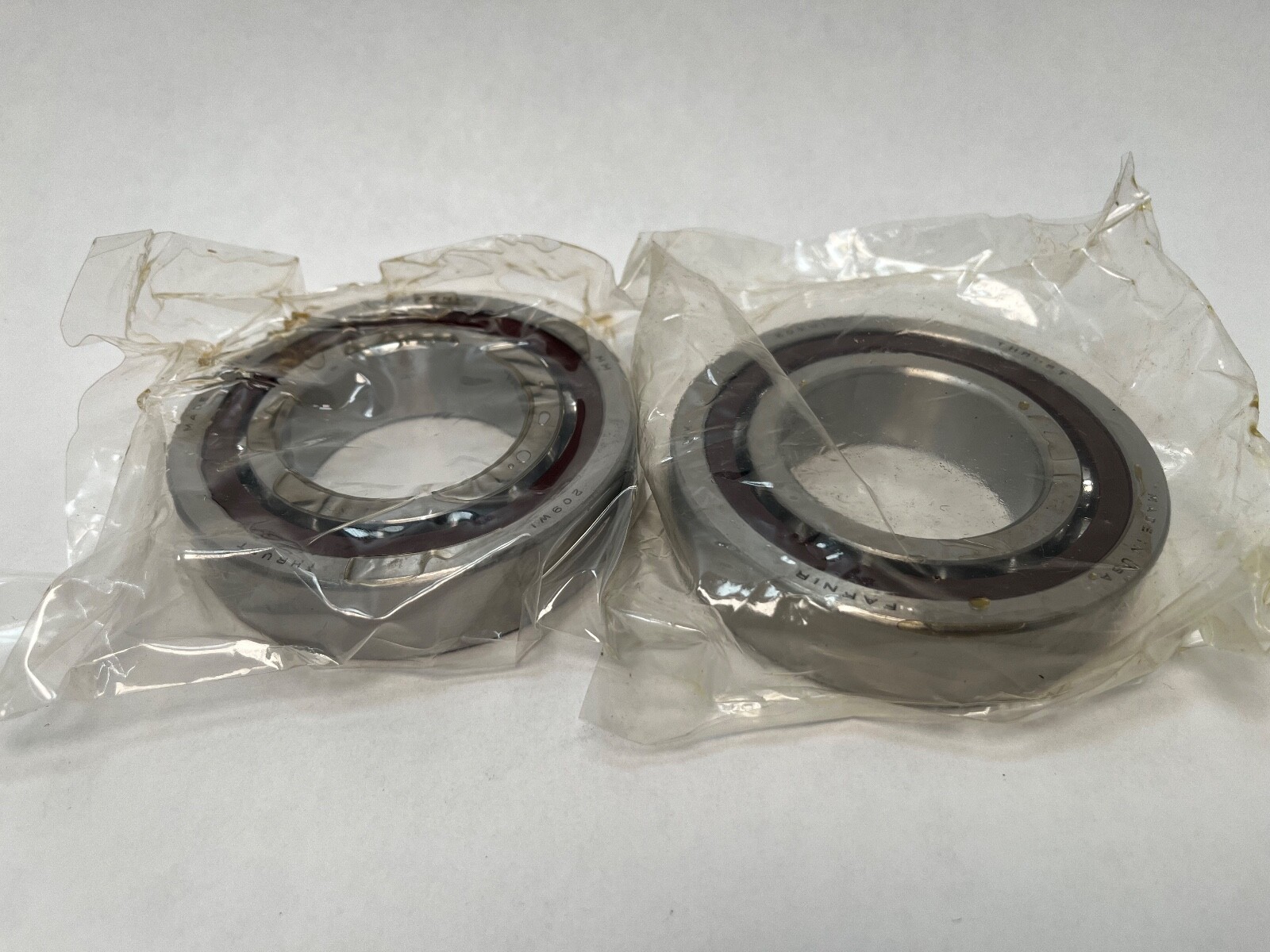

Unit Quantity: 2 Pcs. Universally ground duplex pair, mountable back-to-back, face-to-face or in tandem.
Shaft Backing Shoulder Diameter: 52.3 mm. Housing Backing Shoulder Diameter: 78.2 mm. Maximum Shaft Fillet Radius: 1 mm. Outer Ring To-Clear Radius: 1 mm.
Timken world part number: 7209C-T-P4S-DUL. Manufacturing part number: 2MM209WI DUL. The same bearing is written 2MM209WIDUL, 2MM-209-WI-CR-DUL and 2MM209WICRDUL.
