NSK

35TAC72BSUC10PN7B

Angular Contact Bearing – 35 mm ID, 72 mm OD, 15 mm Width, Open, 60° Contact Angle

Name: Angular Contact Bearing - 35 mm ID, 72 mm OD, 15 mm Width, Open, 60° Contact Angle
Brand: NSK
SKU: AR4B2#5IDKCO
Price: 41.75 USD
Availability: InStock

Condition: New – Open box

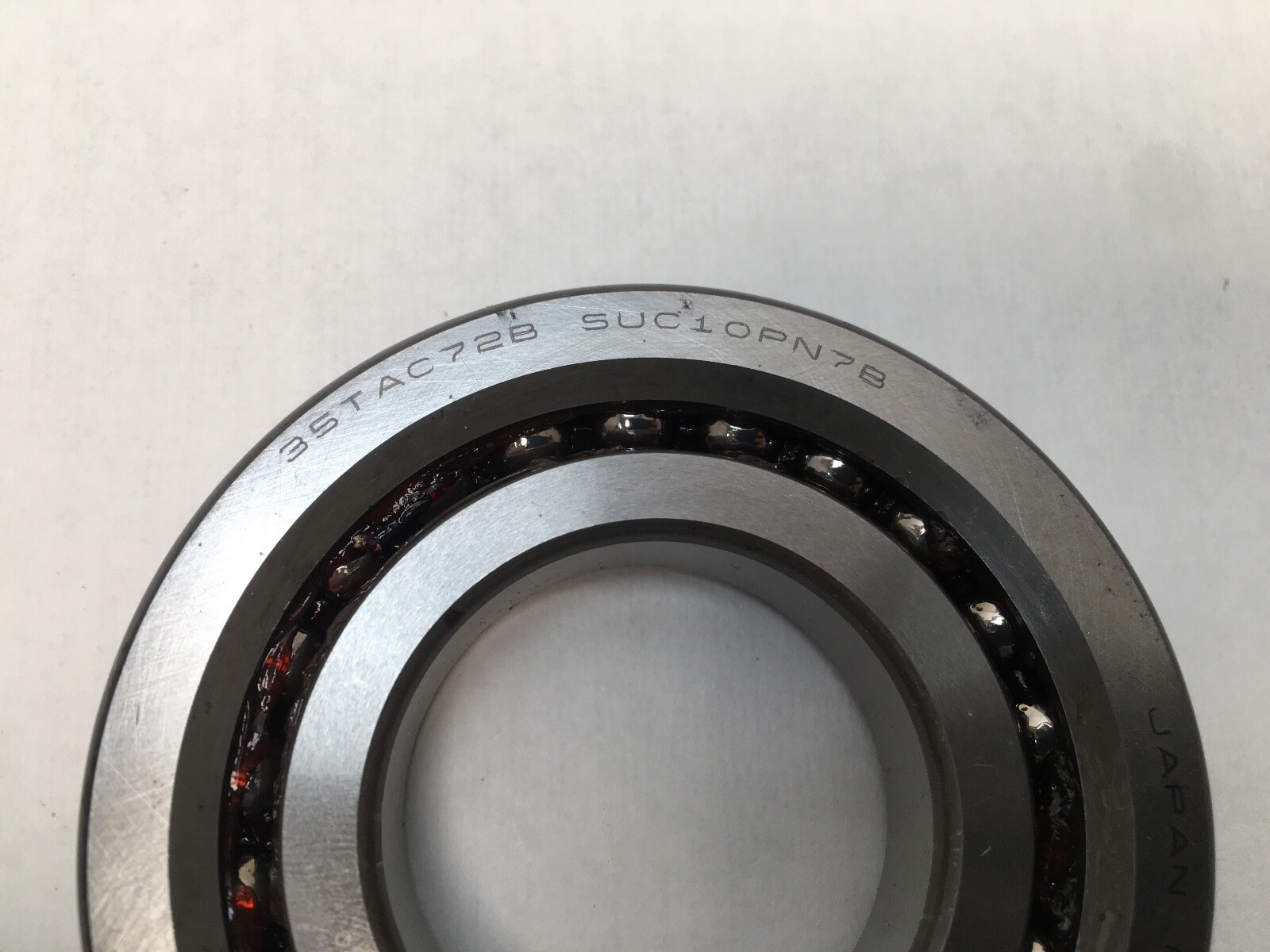

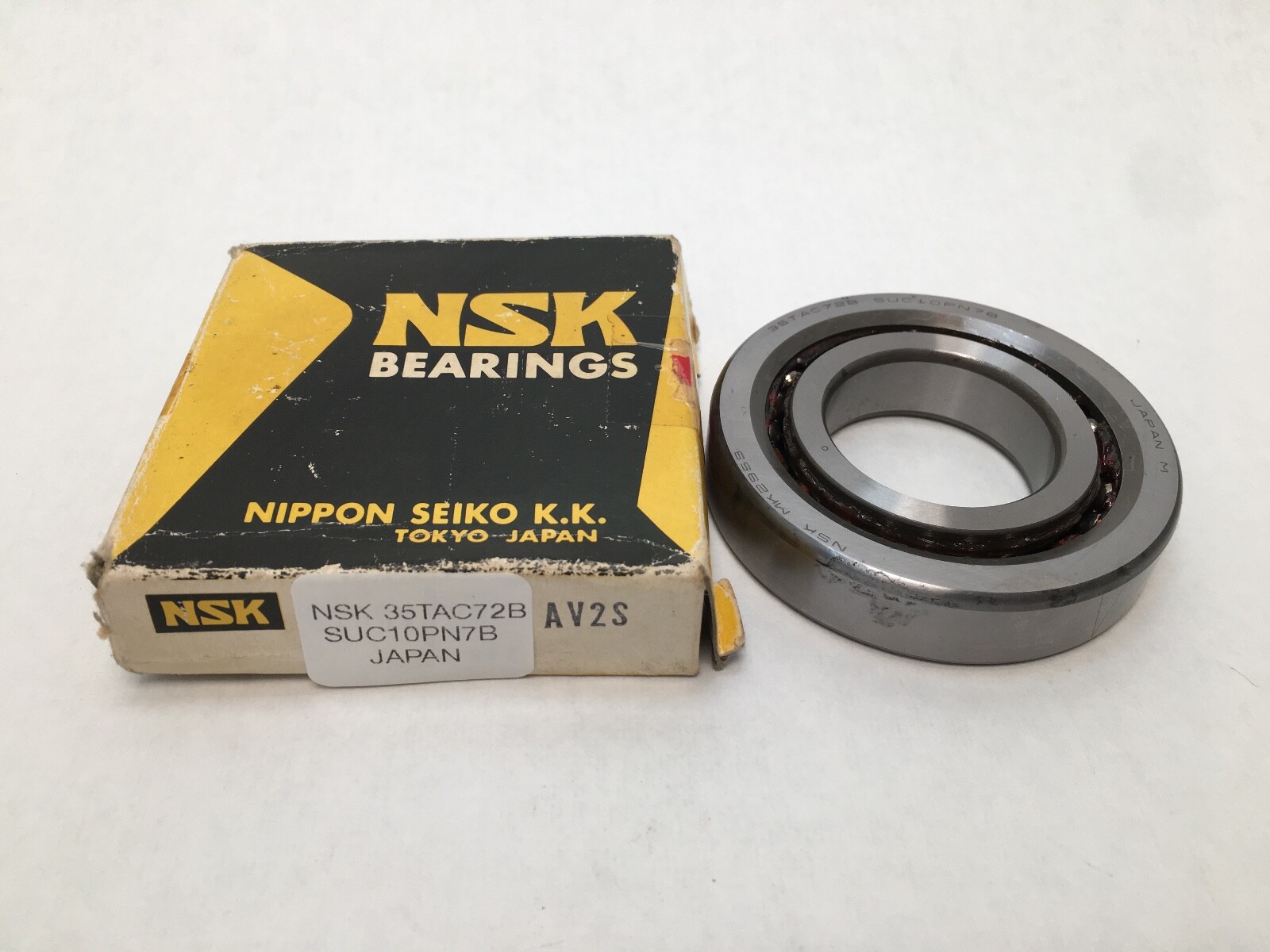

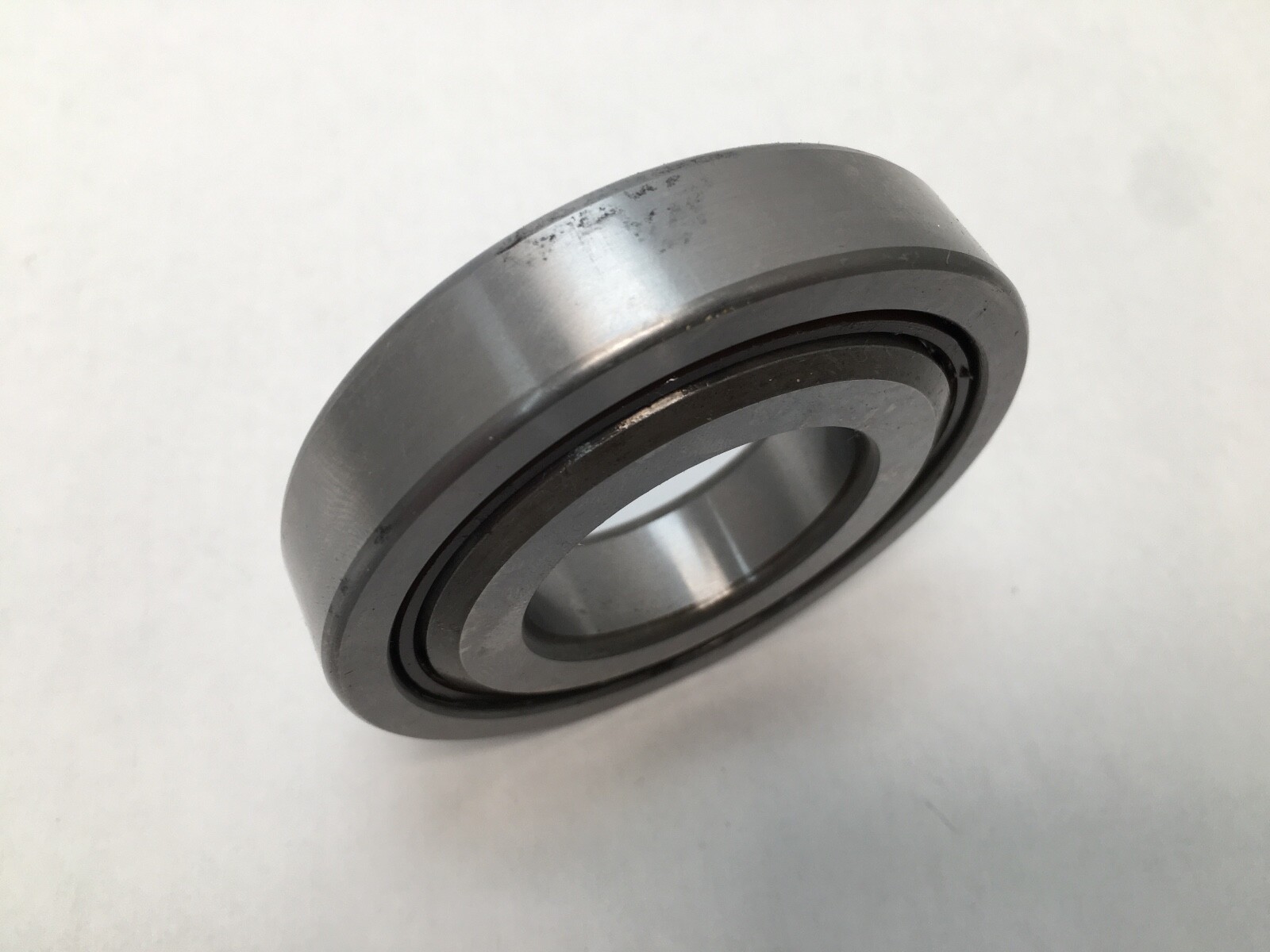

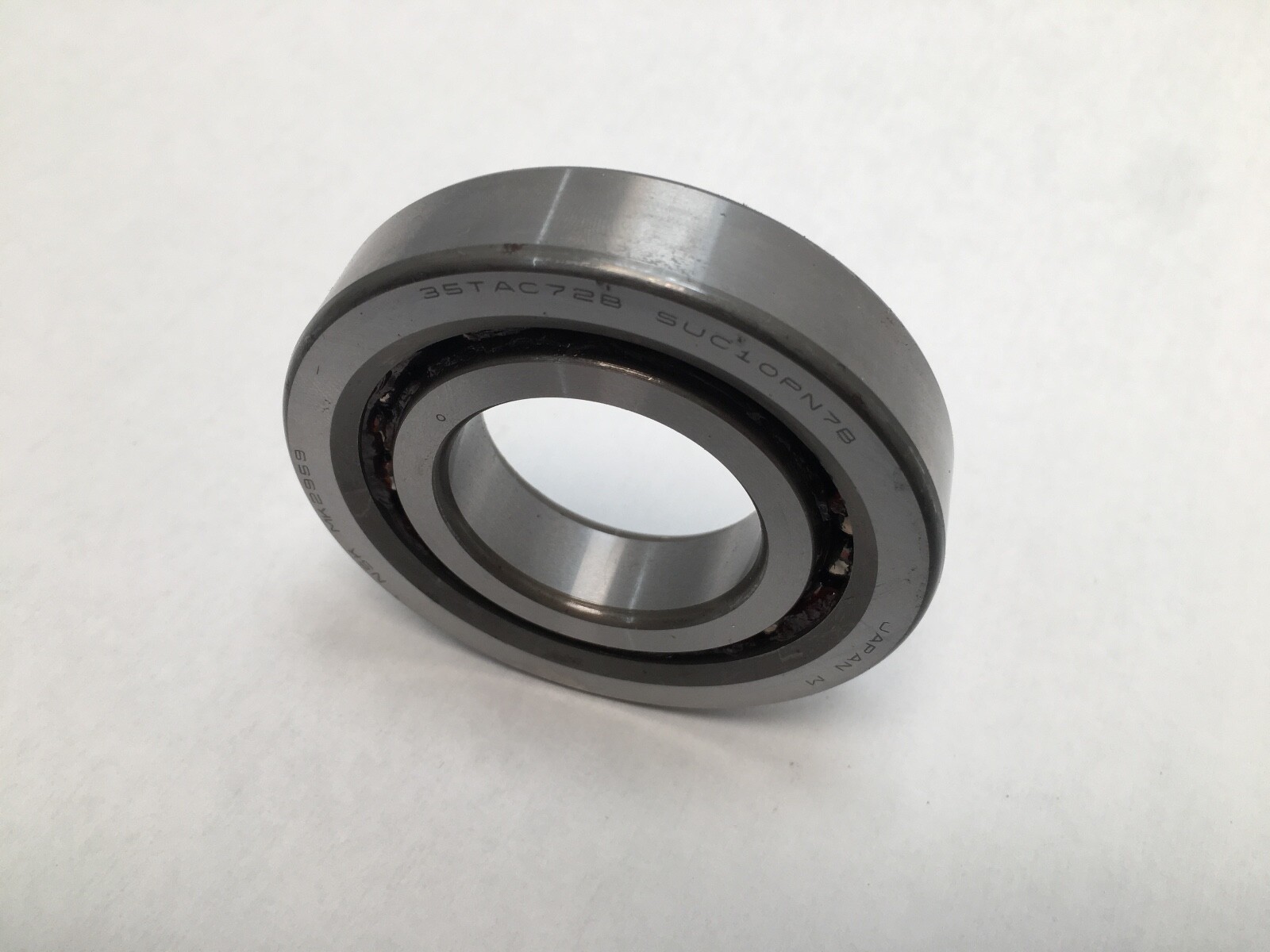

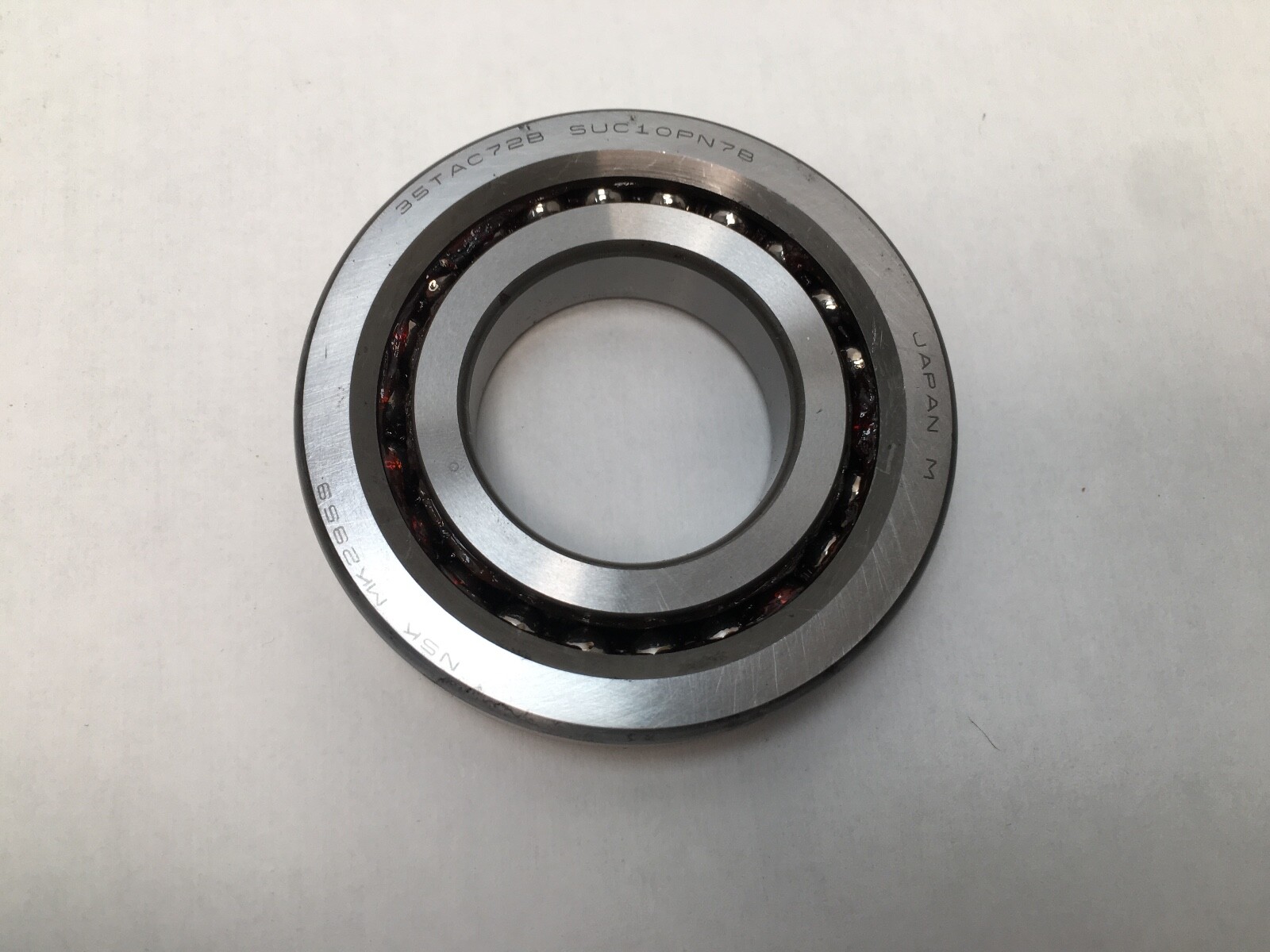

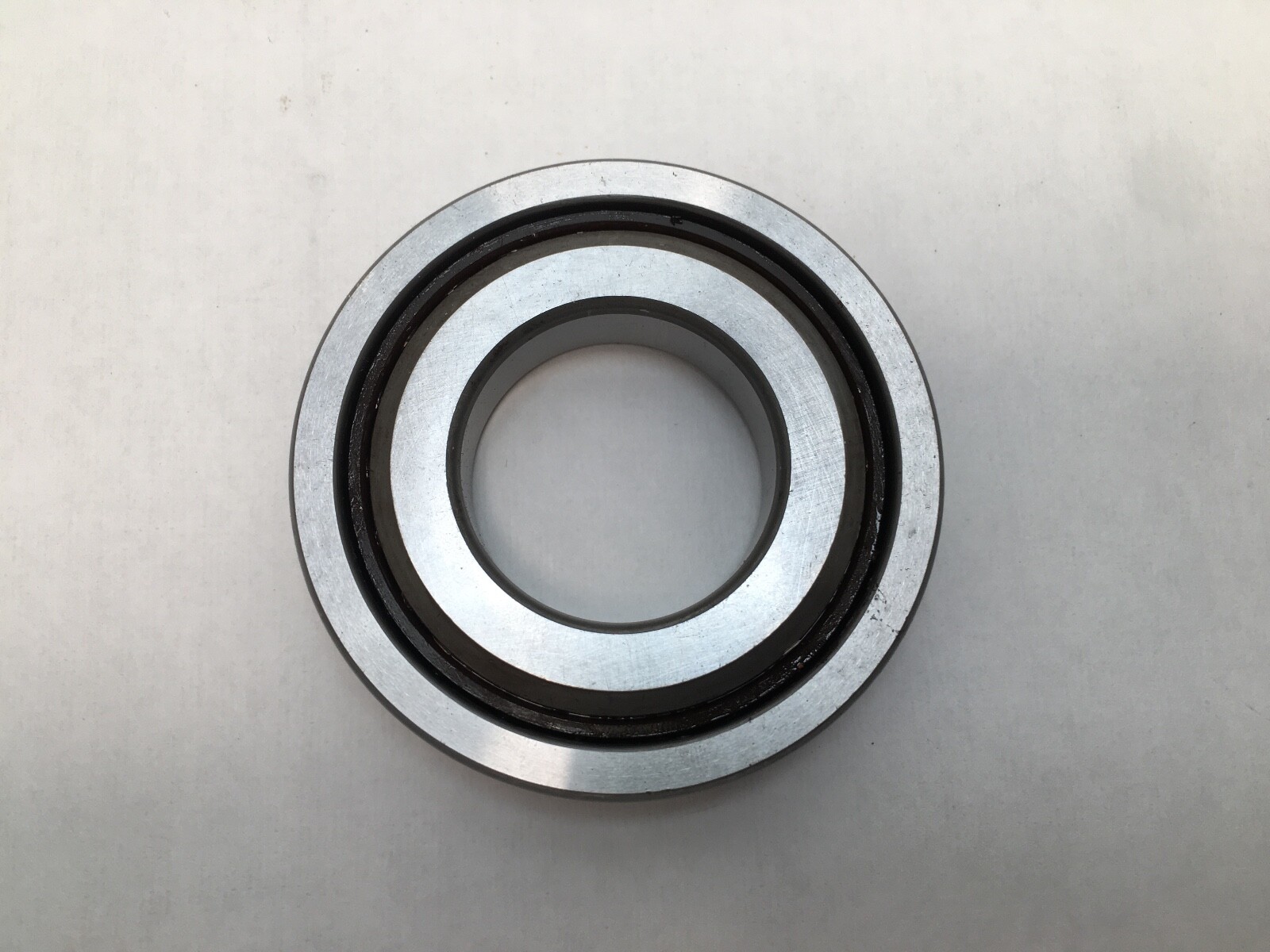

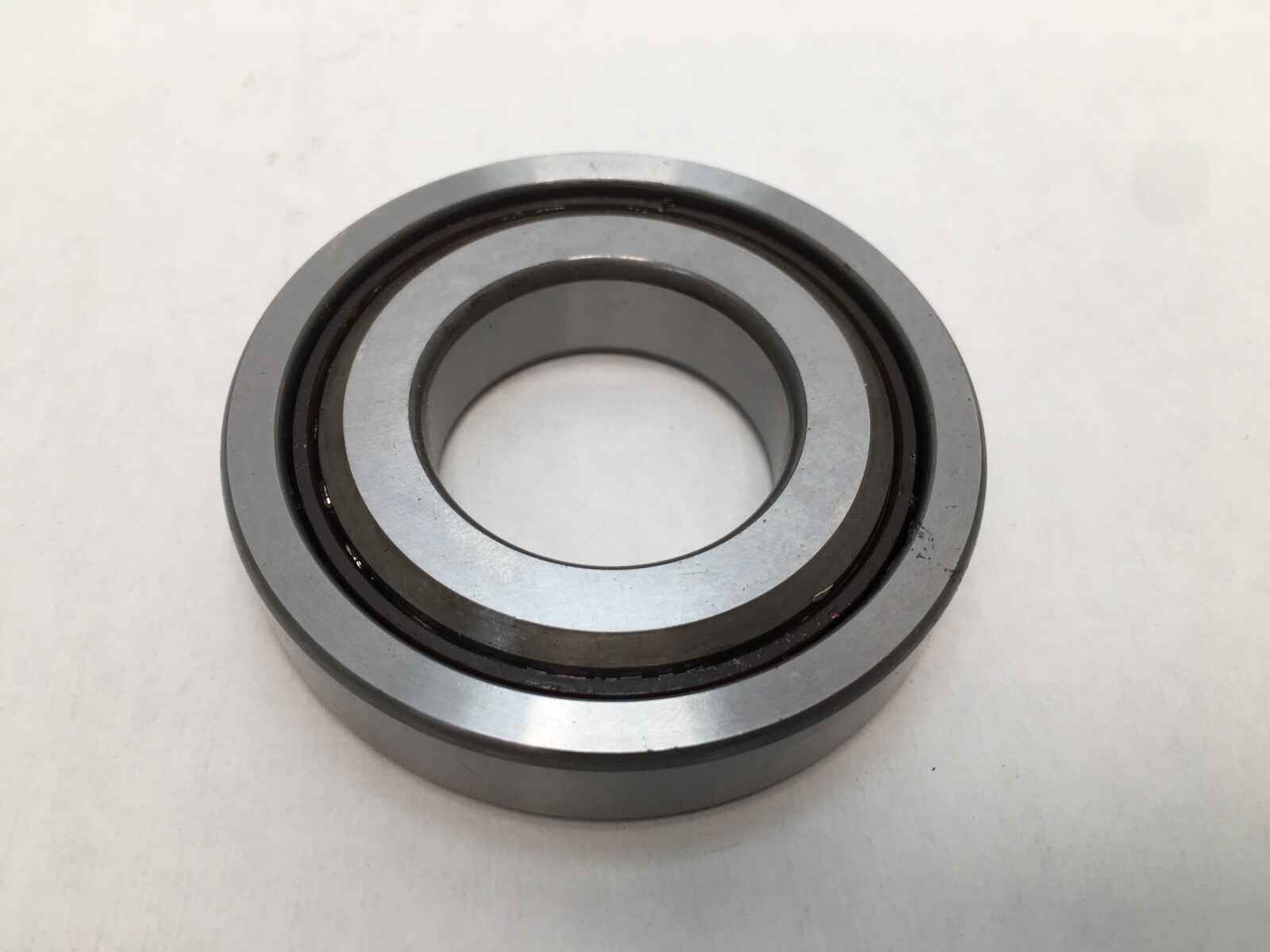

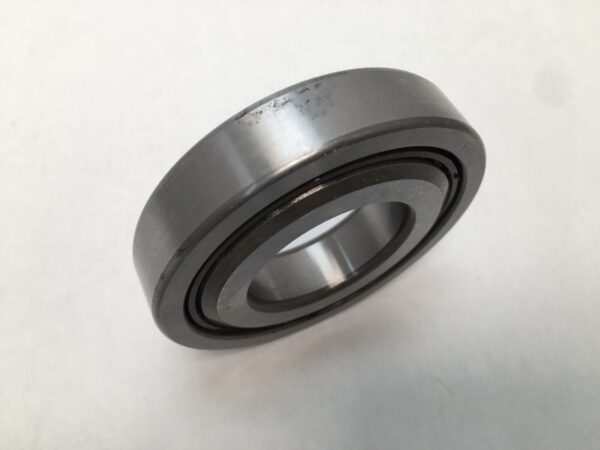

Condition: Made In Japan, New Old Stock, Spot Of Surface Rust, See Pictures.

Availability:

1 in stock

Categories: Bearings, Angular Contact Ball Bearing

Product Description

Same day shipment

List Price

$41.75

1 in stock

Also Available From:

Need Help?
Click Here To Contact Support

Specifications

Additional information

Key Specifications

MFR / Brand	NSK
MPN	35TAC72BSUC10PN7B
Model	( BSD-3572 ) 35TAC72BSUC10 PN7B
Bearing Type	Angular Contact Ball Bearing, Open
ID	35 mm
OD	72 mm
Width	15 mm

Specifications

Advertise	1
Material	Steel
Series	TAC
Condition	New – Open box
Condition Note	Made In Japan, New Old Stock, Spot Of Surface Rust, See Pictures.
Min Temp	-30 °C
Cage Type	Machined
Dynamic Load Rating	29.3 kN / 6590 lbf
Static Load Rating	55 kN / 12360 lbf
Precision Rating	ABEC 7 / P4
Rolling Elements	Balls
Max Temp	120 °C
Item Weight	0.68 lbs
Cage Material	Polyamide
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Harmonization Code	8482.10.50
Contact Angle	60°
Mounting Arrangement	Single Universal

Cross-References

Cross Reference 1	Fafnir MM35BS72
Cross Reference 2	SKF BSD 3572 CGA

Seller Part Number: AR4B2#5IDKCO

Upgrade Your Machinery with the NSK 35TAC72BSUC10PN7B Angular Contact Ball Bearing

Introducing the NSK 35TAC72BSUC10PN7B Angular Contact Ball Bearing, the ideal solution for industrial automation and precision motion control applications. Manufactured in Japan, this bearing exemplifies reliability and durability, meeting the high demands of mechanical power transmission systems.

With a bore diameter of 35mm, outside diameter of 72mm, and width of 15mm, this angular contact ball bearing is designed to provide exceptional performance. Crafted from high-quality steel, the NSK bearing ensures long-lasting service and efficient operation even under heavy loads.

Key Specifications:

Brand: NSK
Bearings Type: Angular Contact Ball Bearing
Model: 35TAC72BSUC10PN7B
Material: Steel
Country of Manufacture: Japan
Bore Diameter: 35 mm
Outside Diameter: 72 mm
Width: 15 mm

This brand new, open box item combines innovation with precision, making it a perfect fit for your industrial applications. Enhance your machinery’s efficiency and performance with the NSK 35TAC72BSUC10PN7B Angular Bearing today!
