Availability:
1 in stock
List Price
$665.53
1 in stock
1 in stock
Get Estimated Arrival Date
| MFR / Brand | SNFA |
|---|---|
| MPN | E295-7CE3DUM |
| Model | 3MM-219 DUM / 7219A P4 DUM / E 295-7 CE 3 DUM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 95 mm |
| OD | 170 mm |
| Width | 32 mm |
| Material | Bearing Steel |
|---|---|
| Min Temp | -30°C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 143 kN / 32100 lbf |
| Static Load Rating | 108 kN / 24300 lbf |
| Precision Rating | ABEC 7 / P4 |
| Series | E200 |
| Rolling Elements | Balls |
| Max Temp | 120°C |
| Condition | New |
| Item Weight | 6.20 lbs |
| Cage Material | Phenolic Resin |
| Limiting Speed | 9500 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Lubricant | Oil Preservative |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 25° |
| Preload | Medium |
| Mounting Arrangement | Universal |
| Running Accuracy | P4 |
| Running Accuracy Radial And Axial Runout | P4 |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 7219 ACDGB/P4A |
|---|---|
| Cross Reference 2 | NSK 7219A5TRSUMP4 |

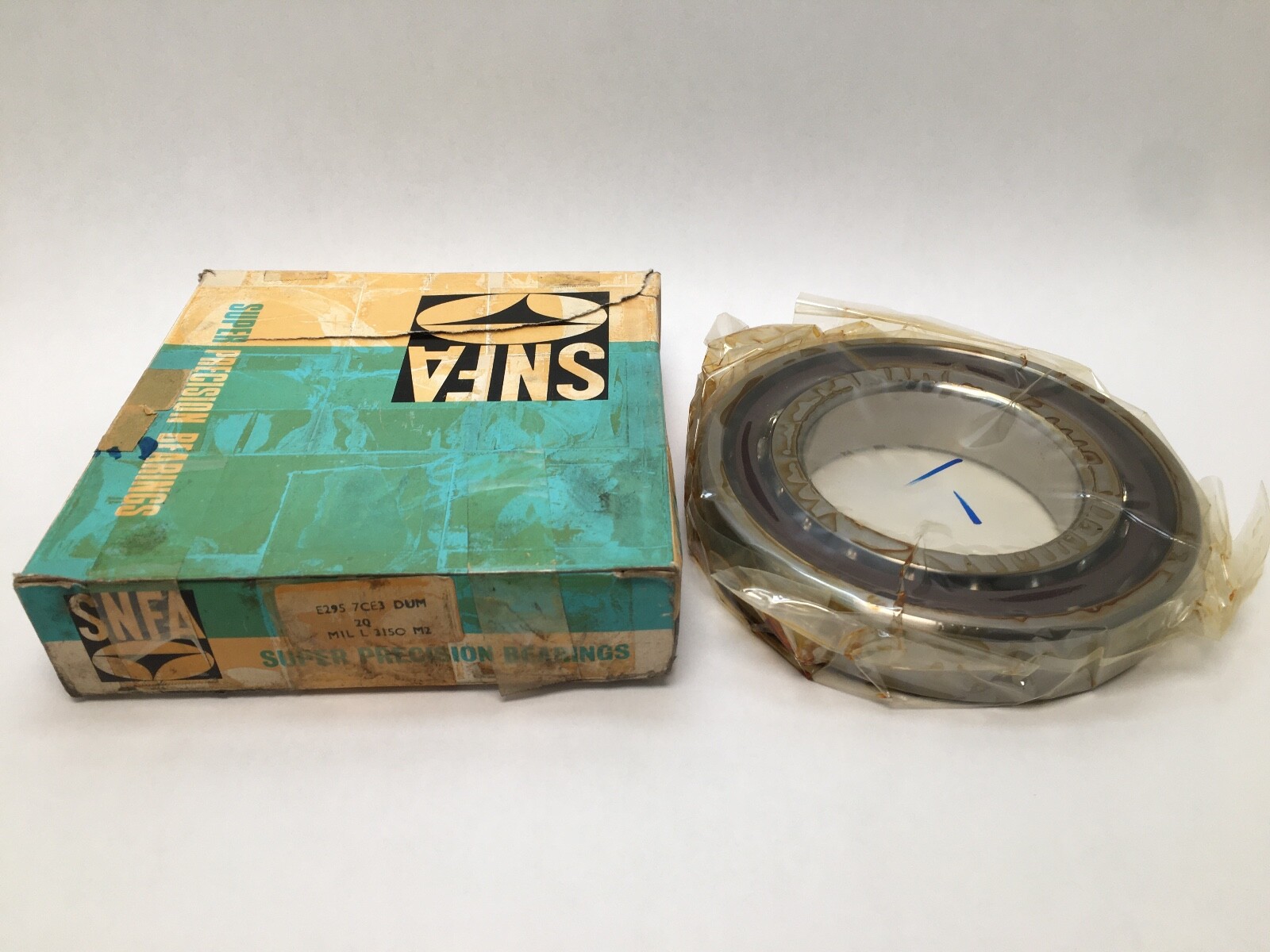

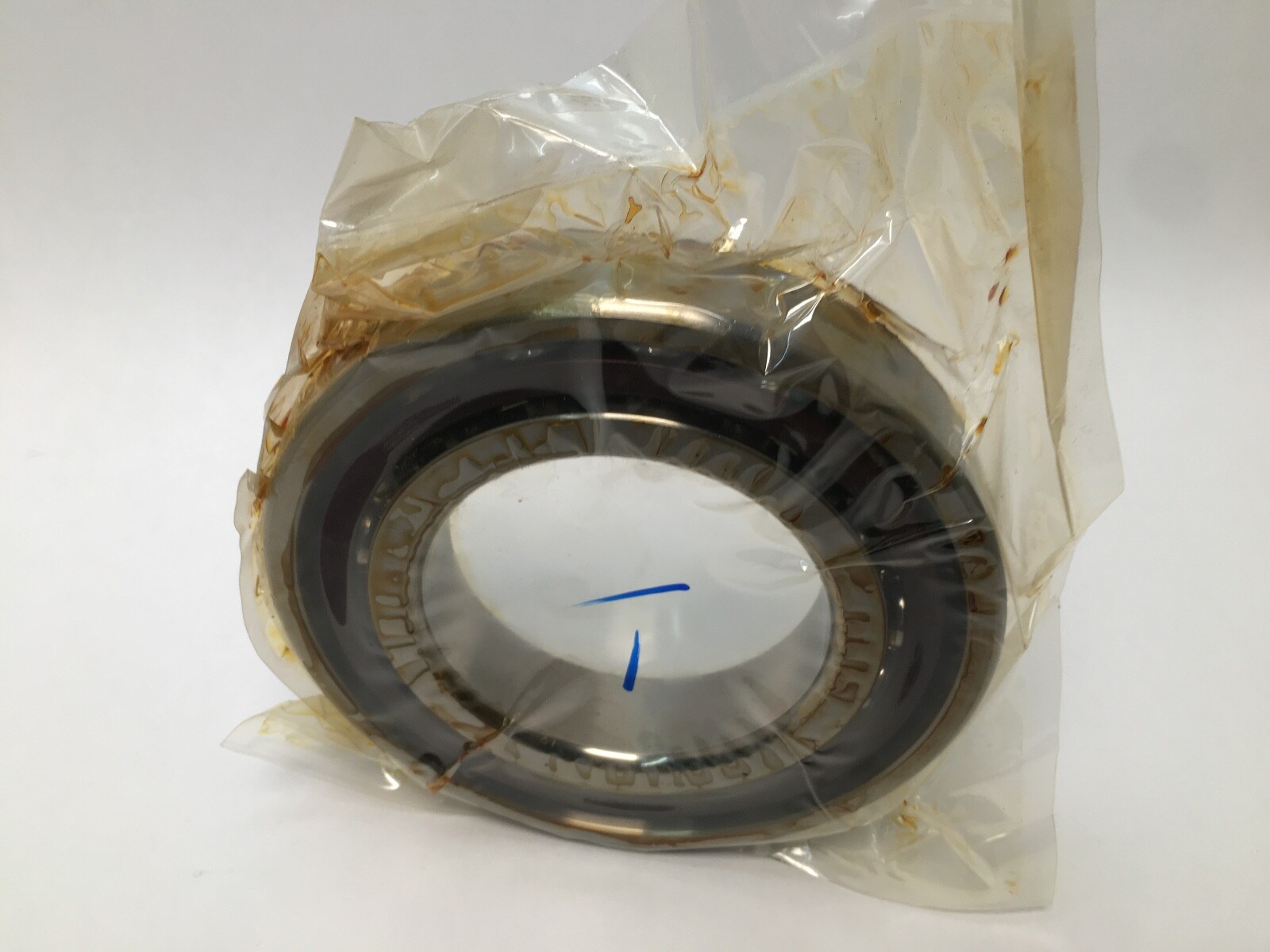

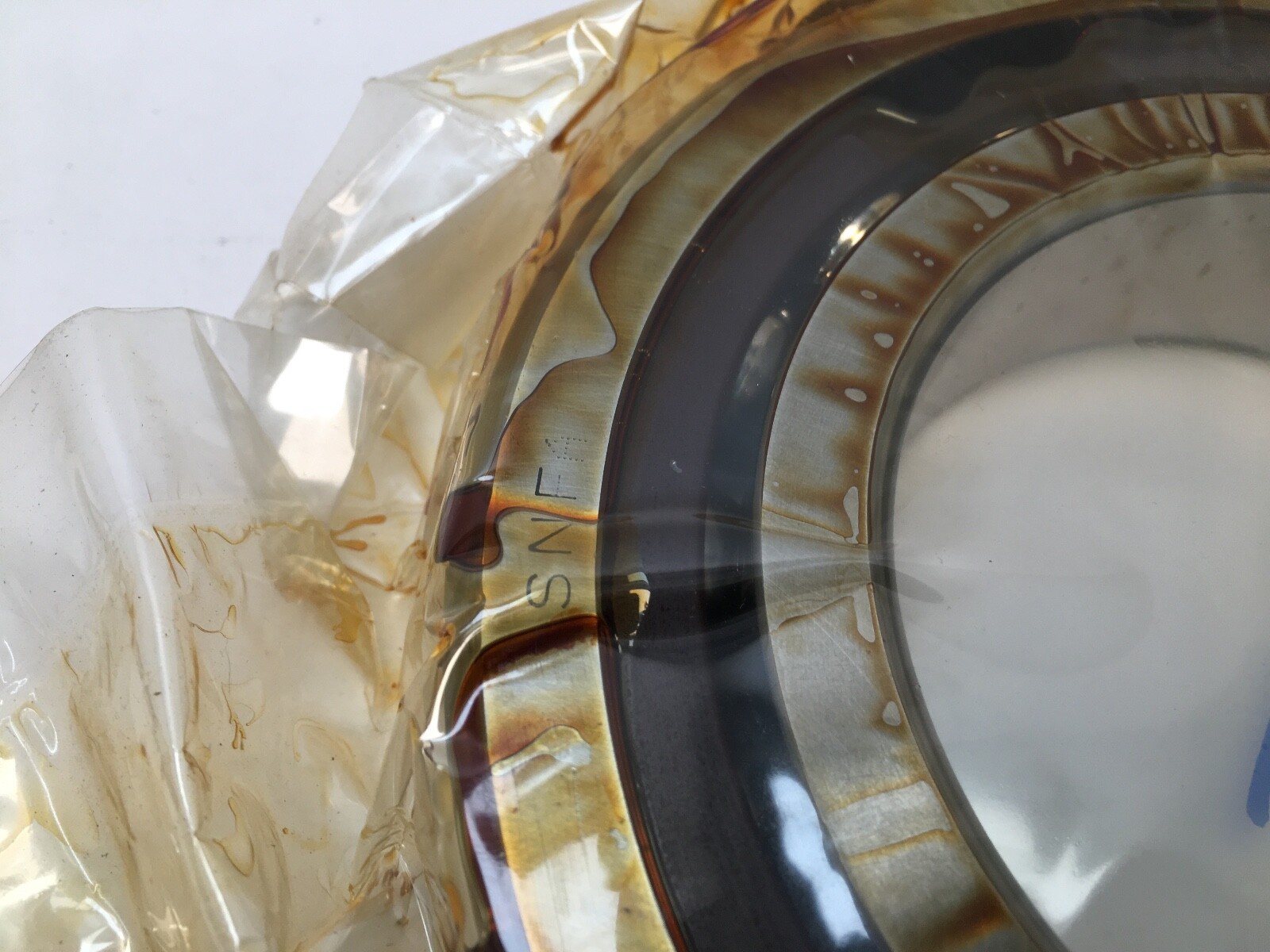

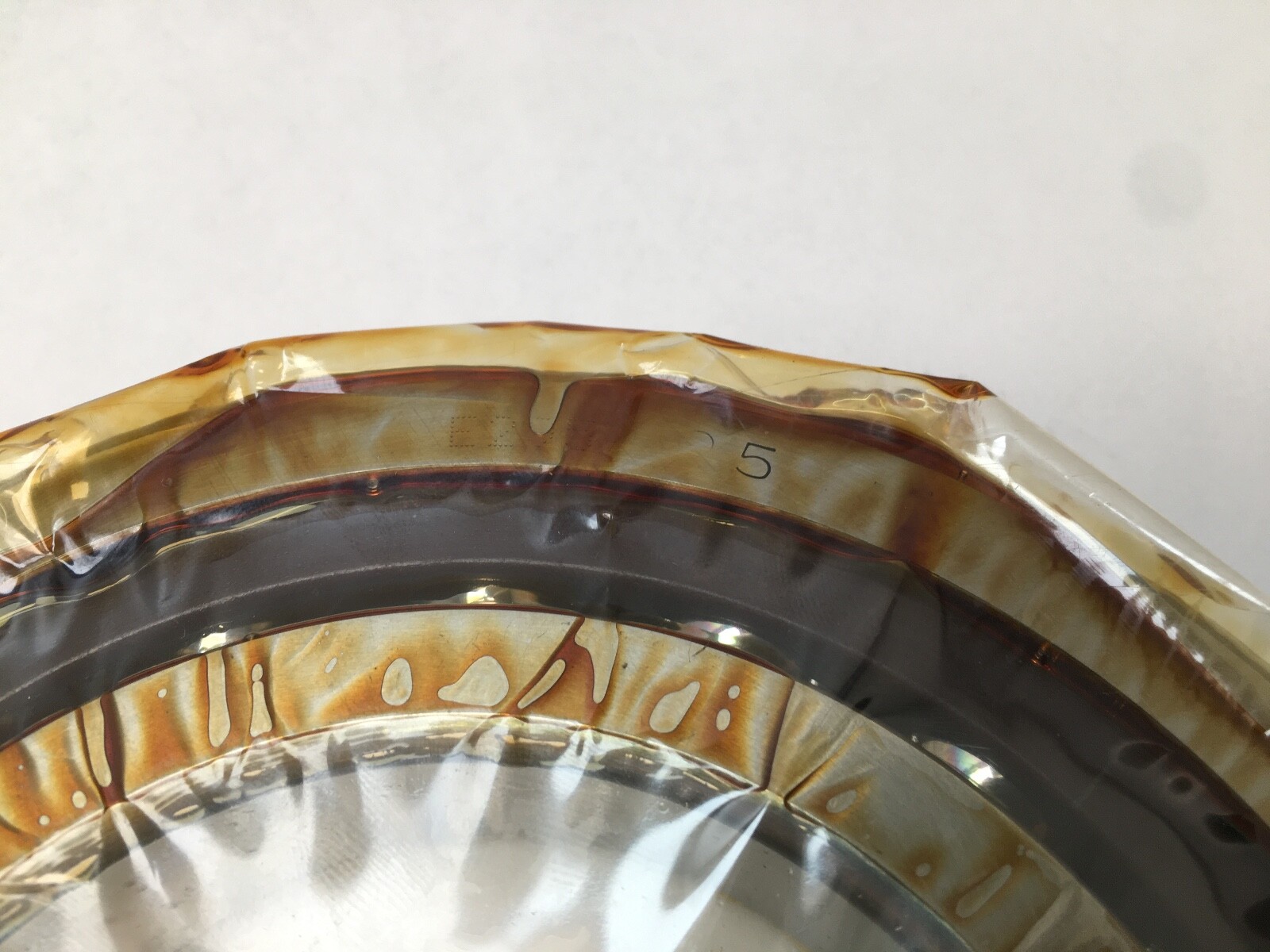

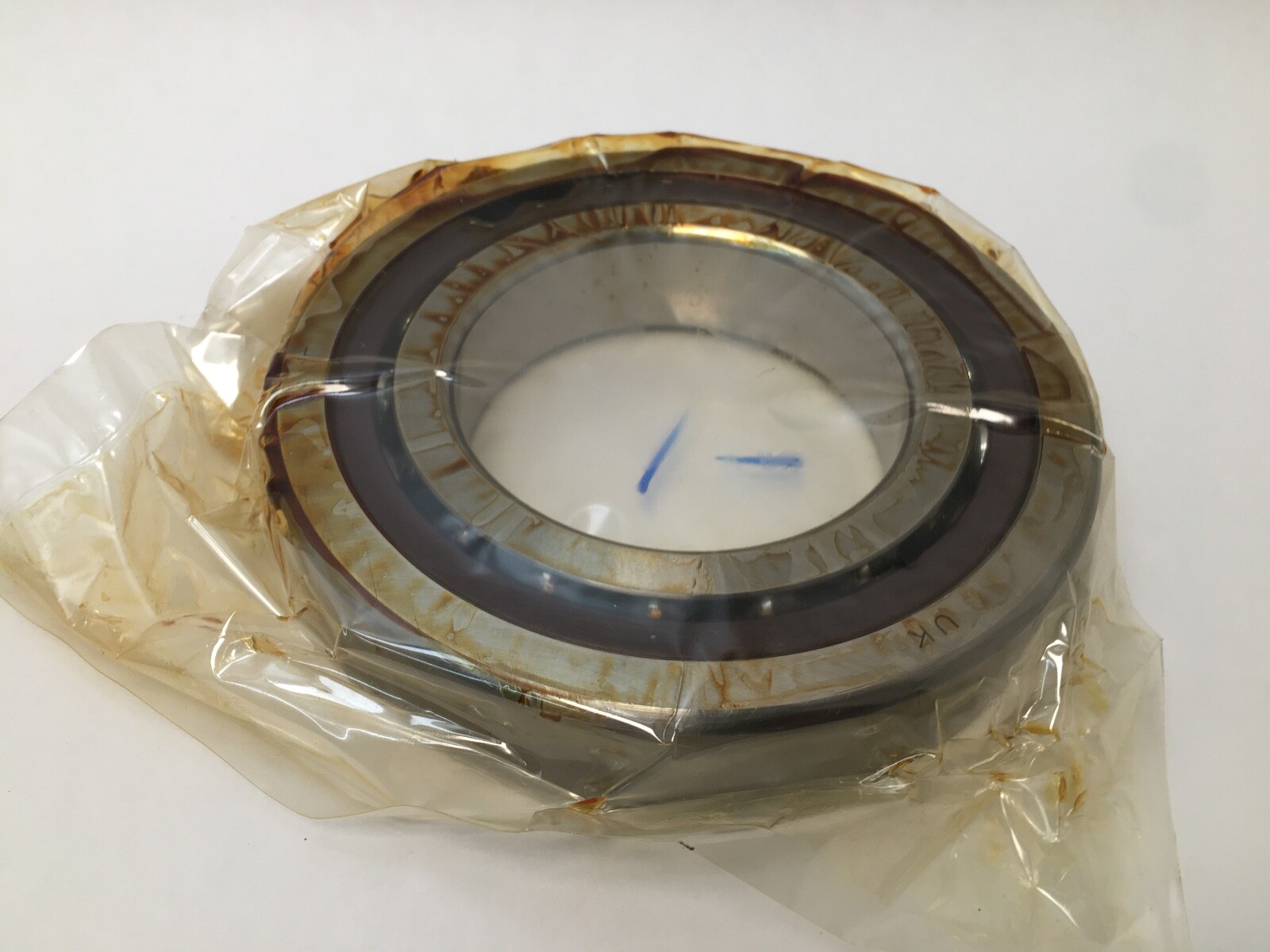

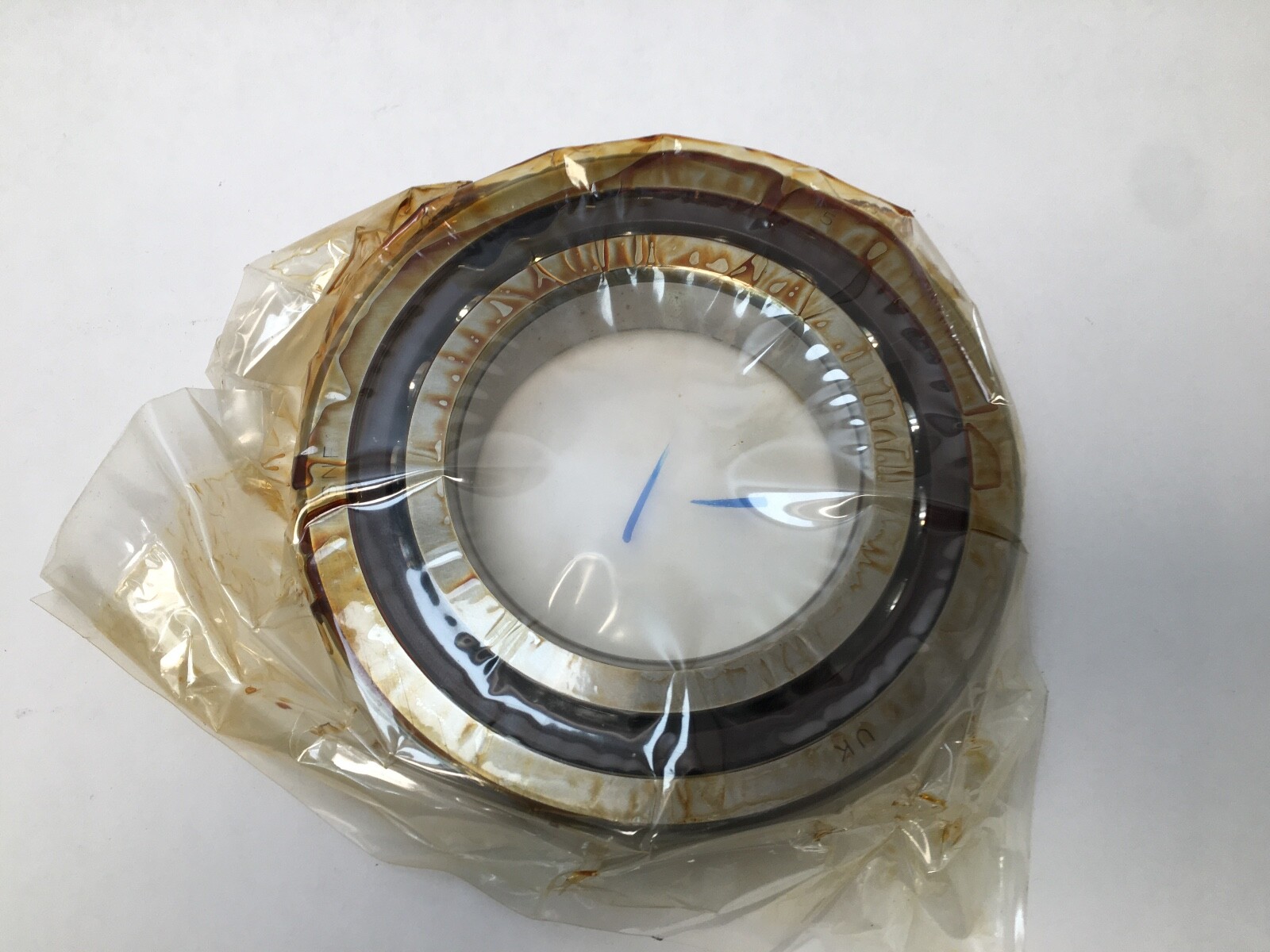

The SNFA E295-7CE3DUM-1/2PR bearing is a high-quality angular contact ball bearing designed for industrial automation and motion control applications. Made of steel, this bearing has a bore diameter of 95mm, an outside diameter of 170mm, and a width of 32mm. Manufactured in the United Kingdom, it meets the ABEC7 UK standard for precision and reliability. With its specific model numbers and dimensions, this bearing is a reliable and durable option for ensuring smooth and efficient motion in a variety of mechanical systems.
