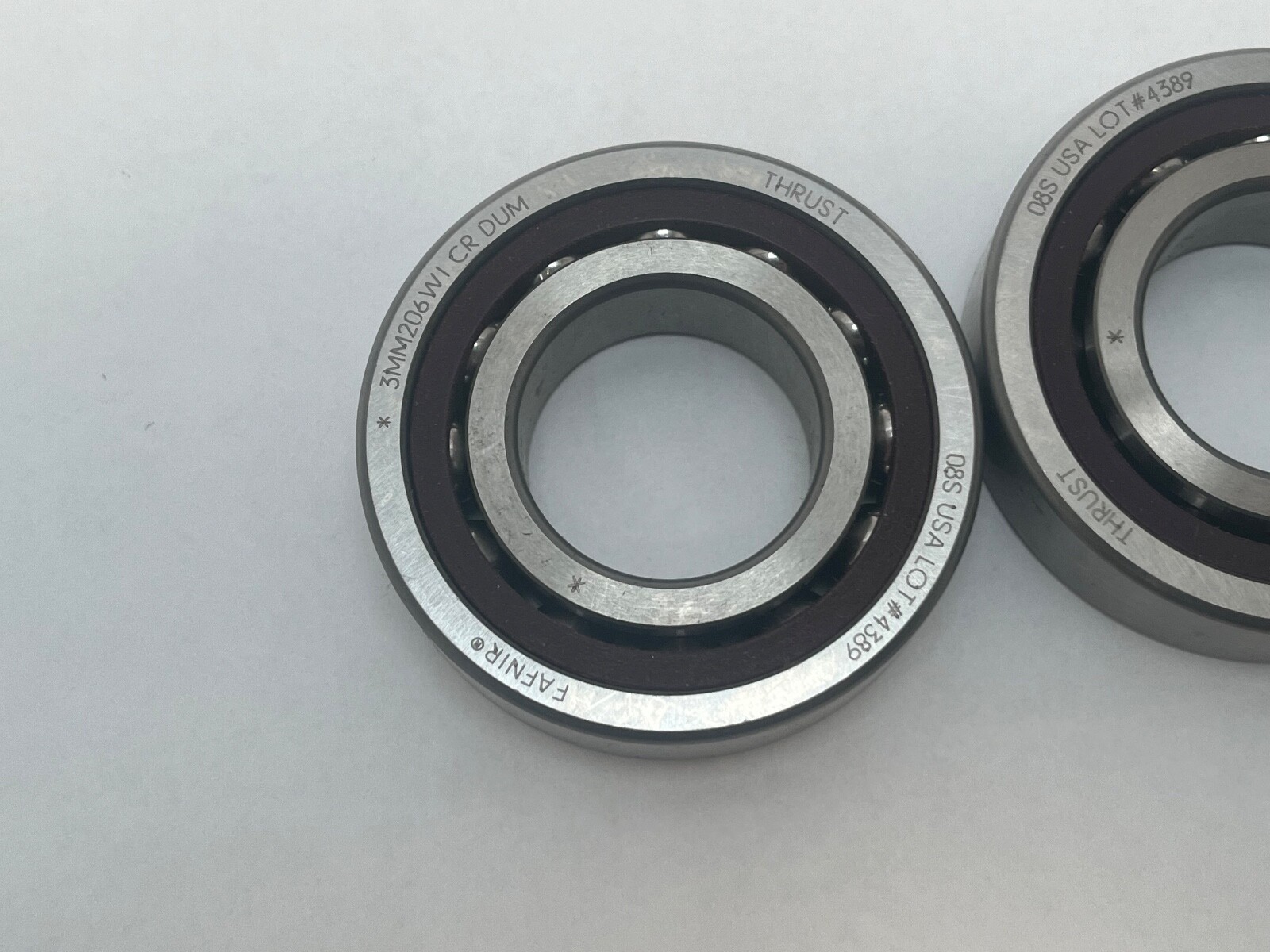

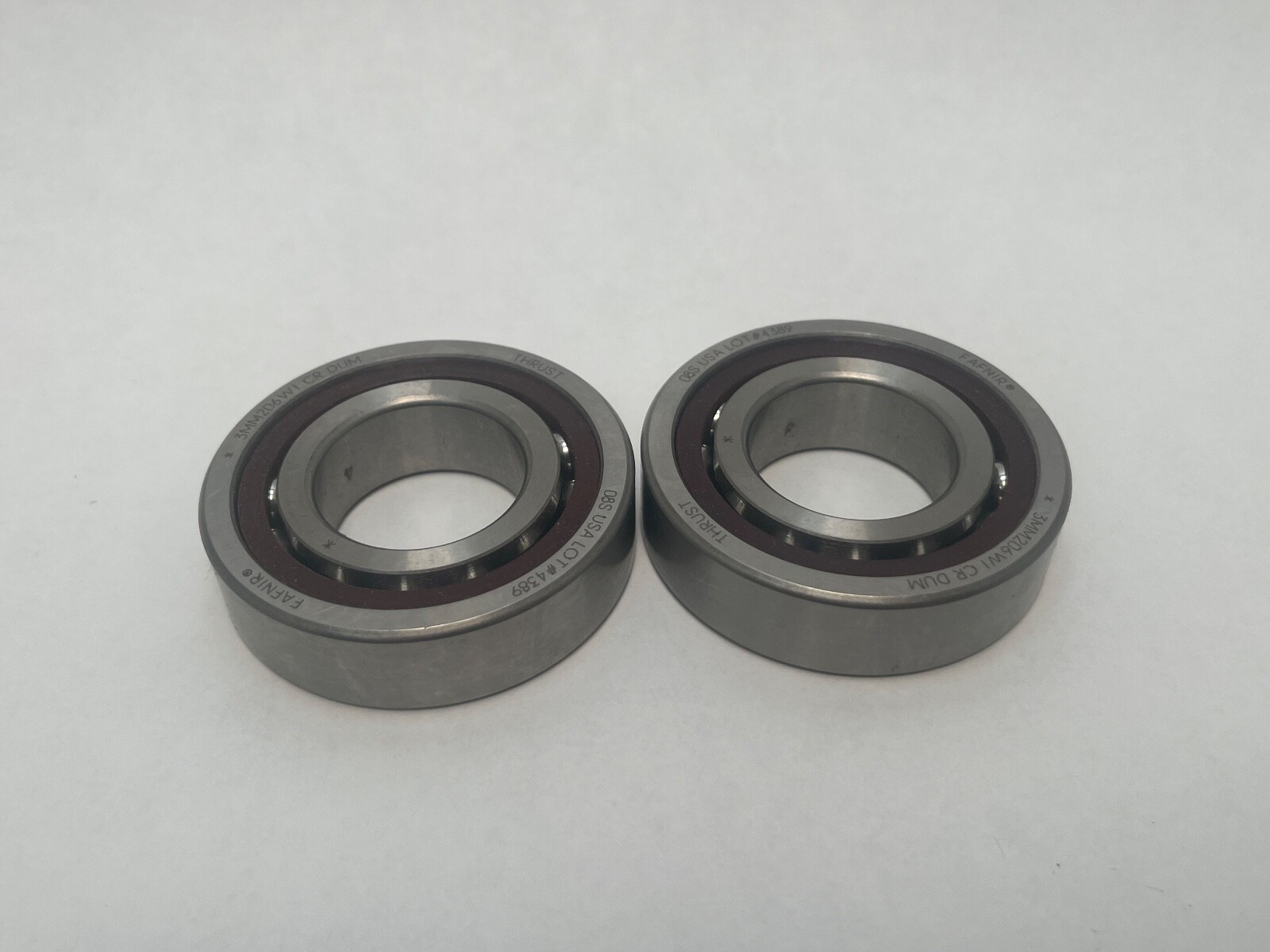

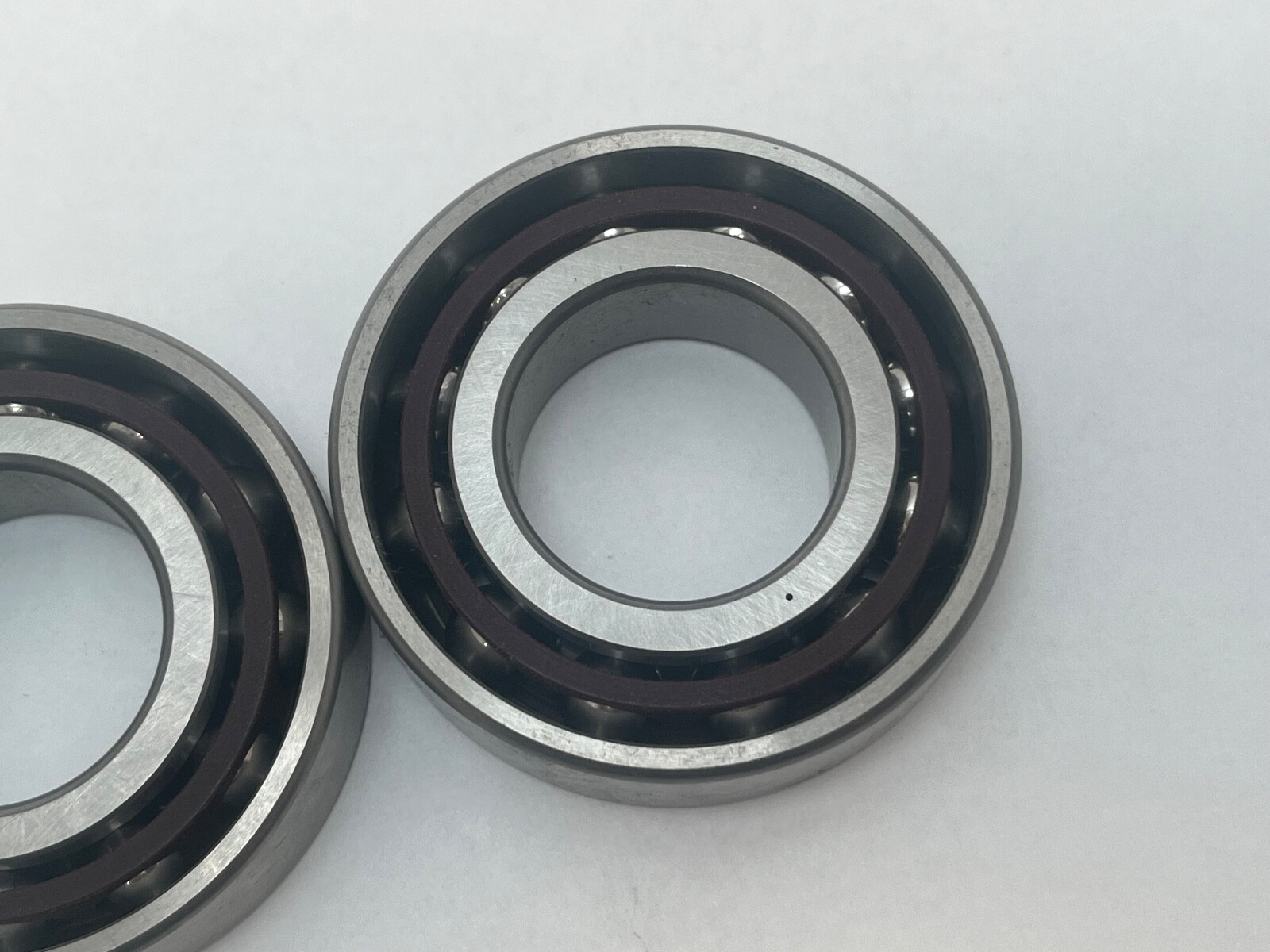

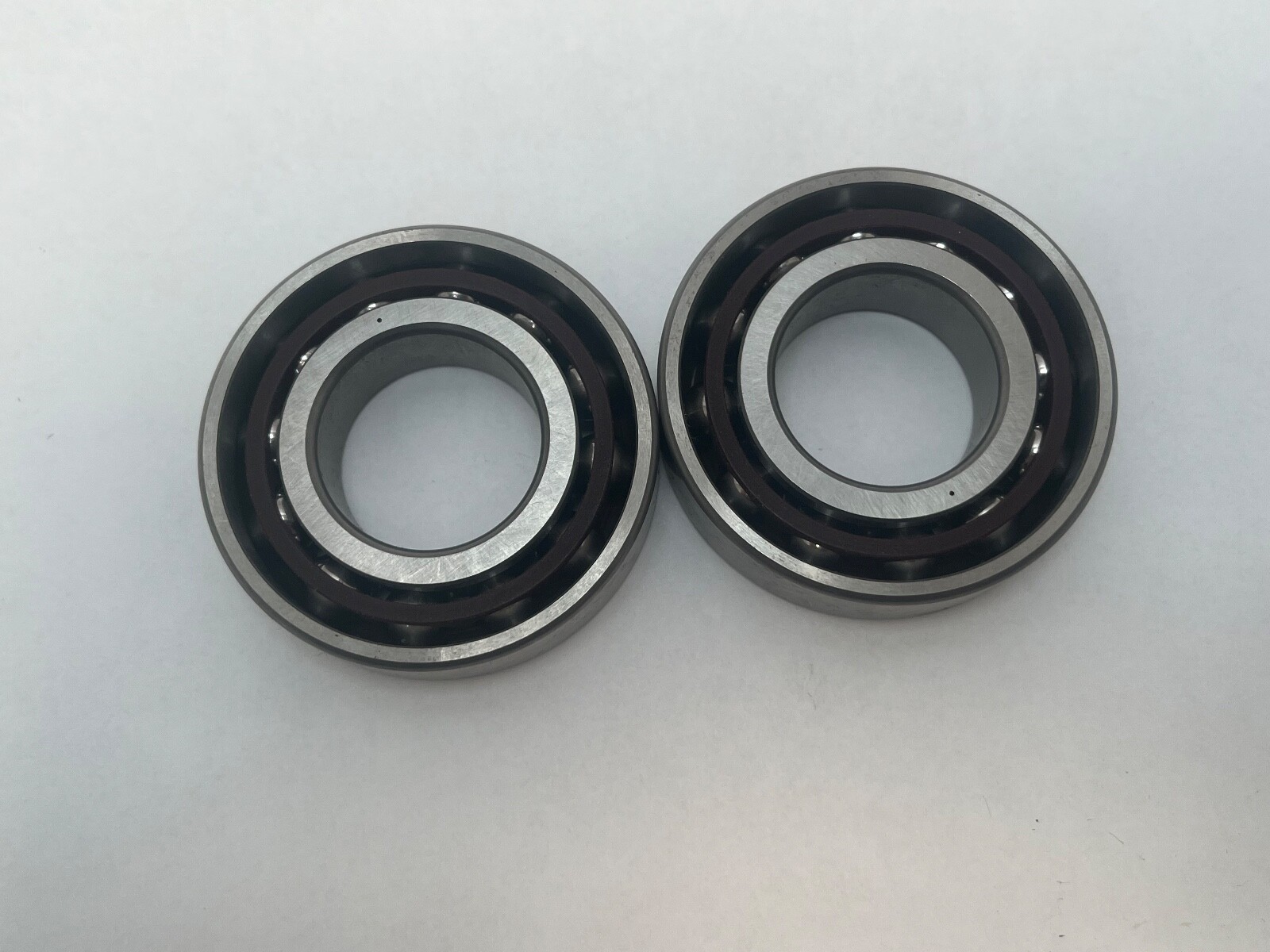

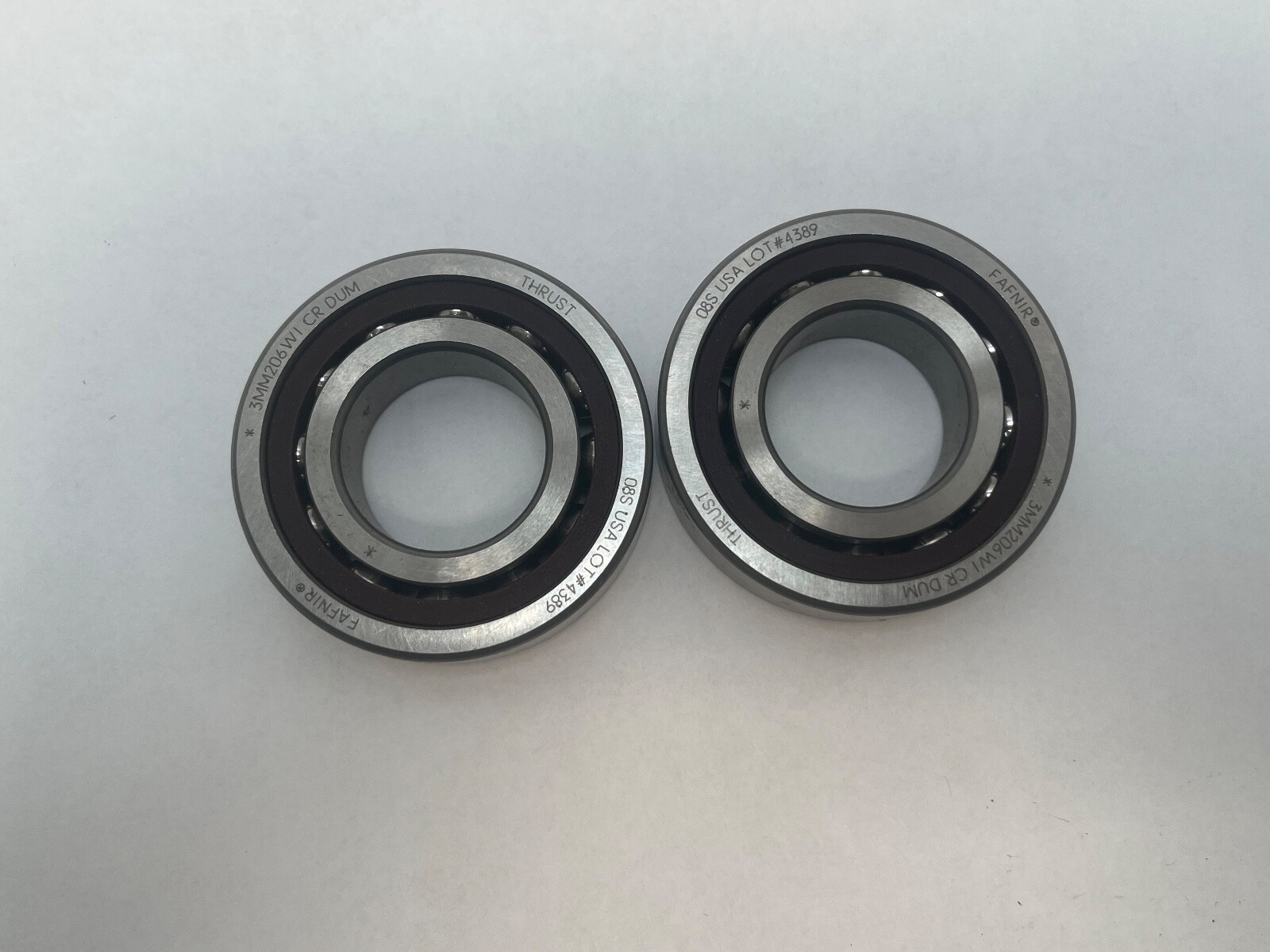

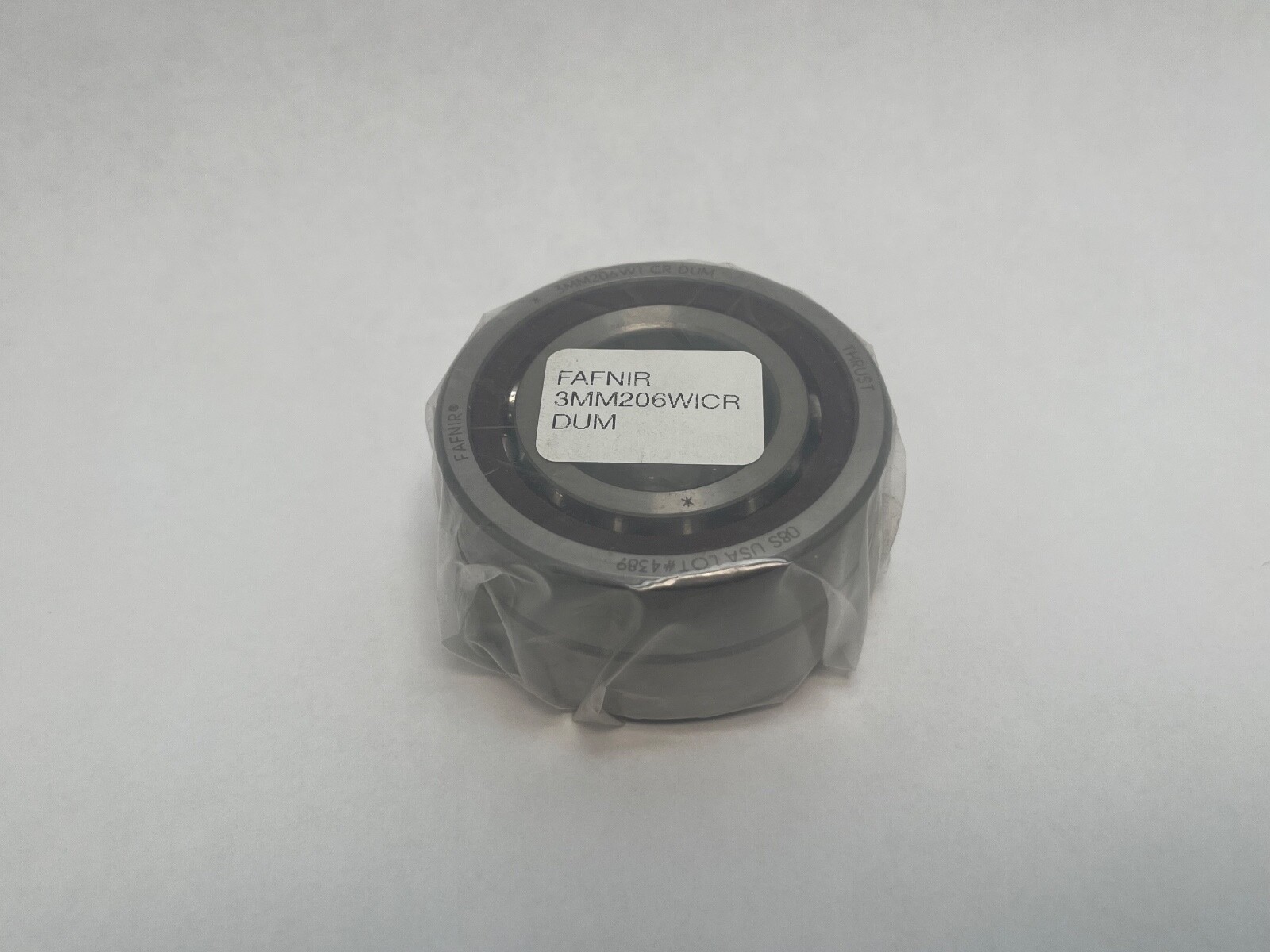

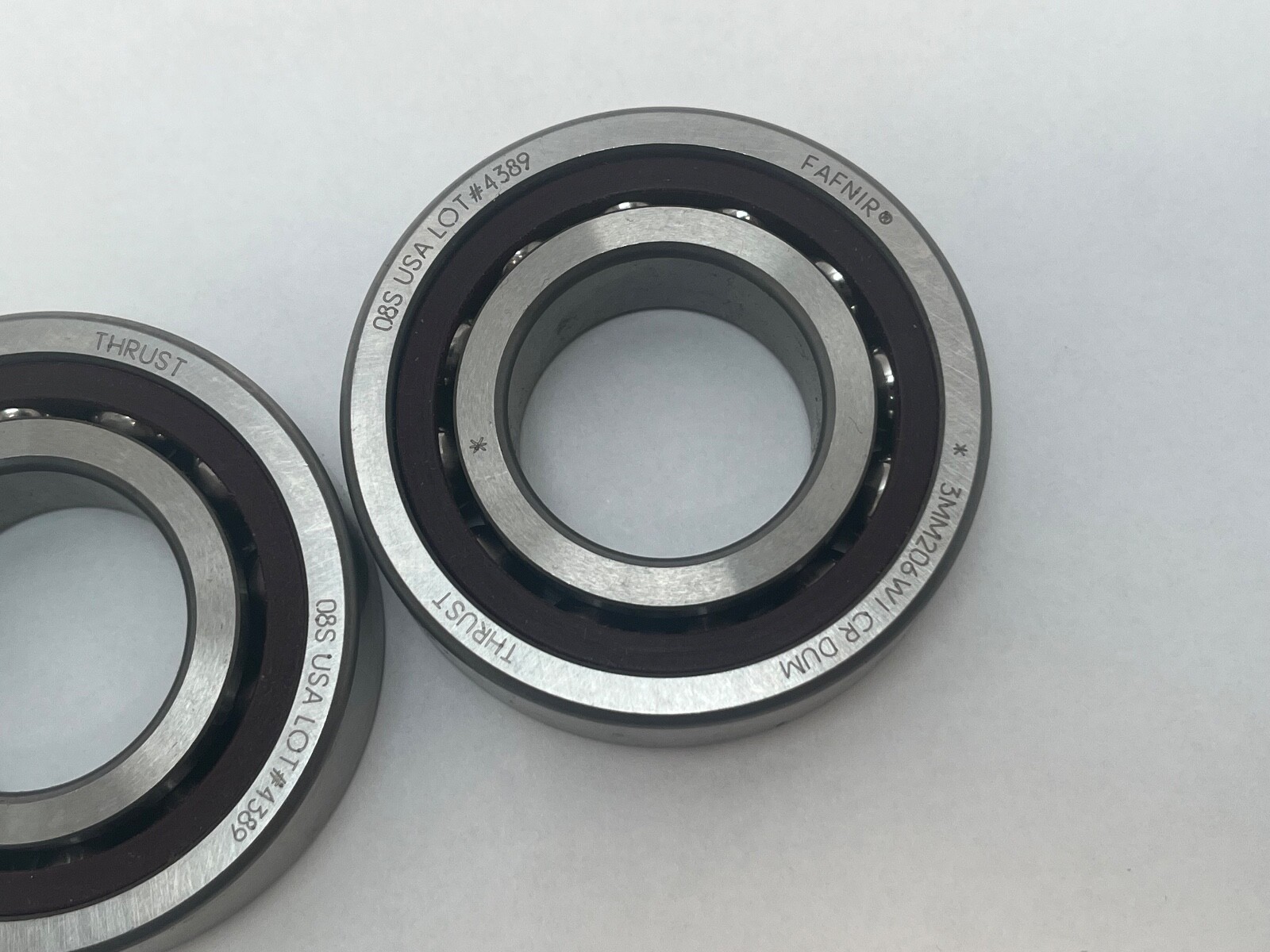

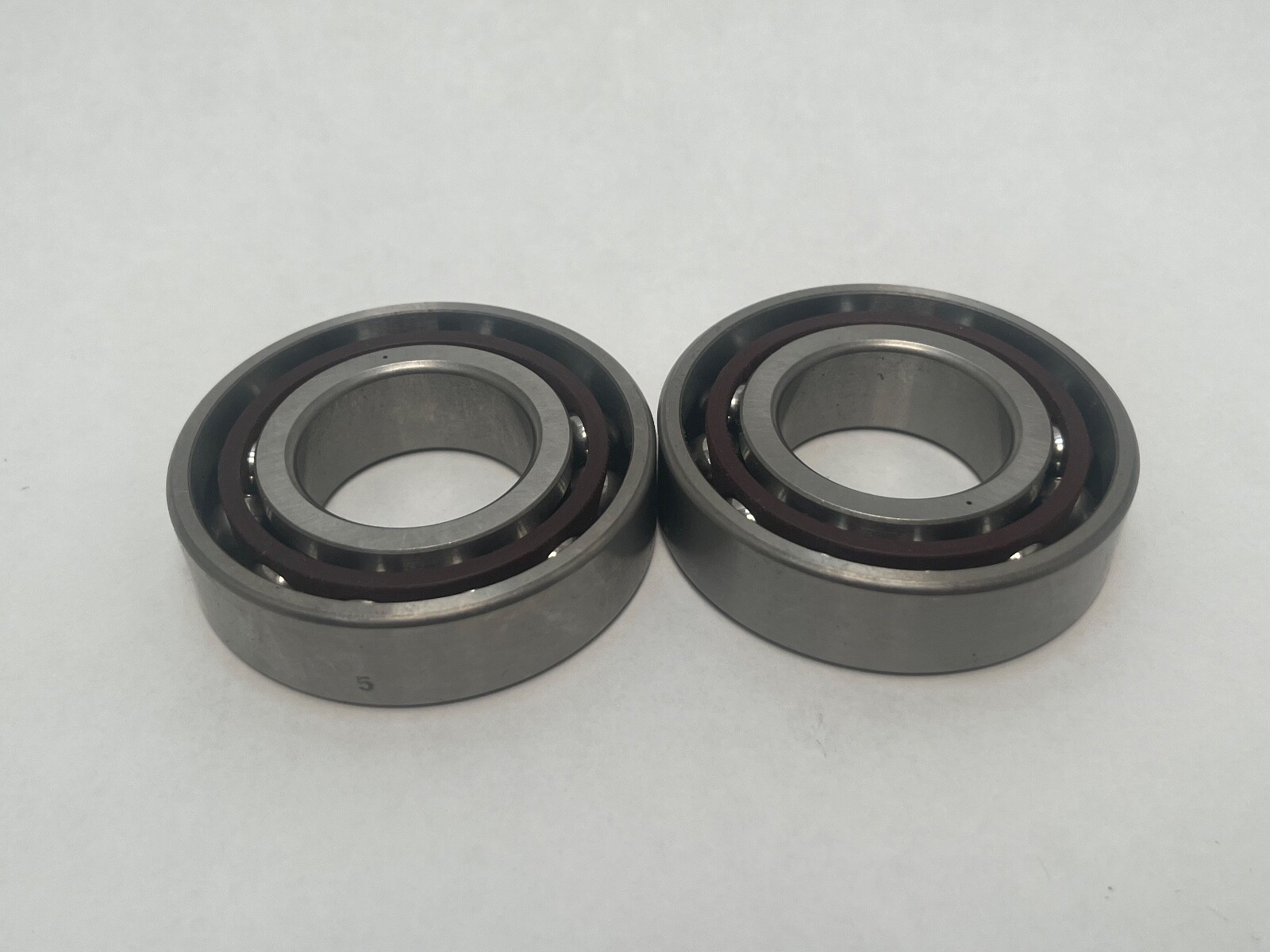

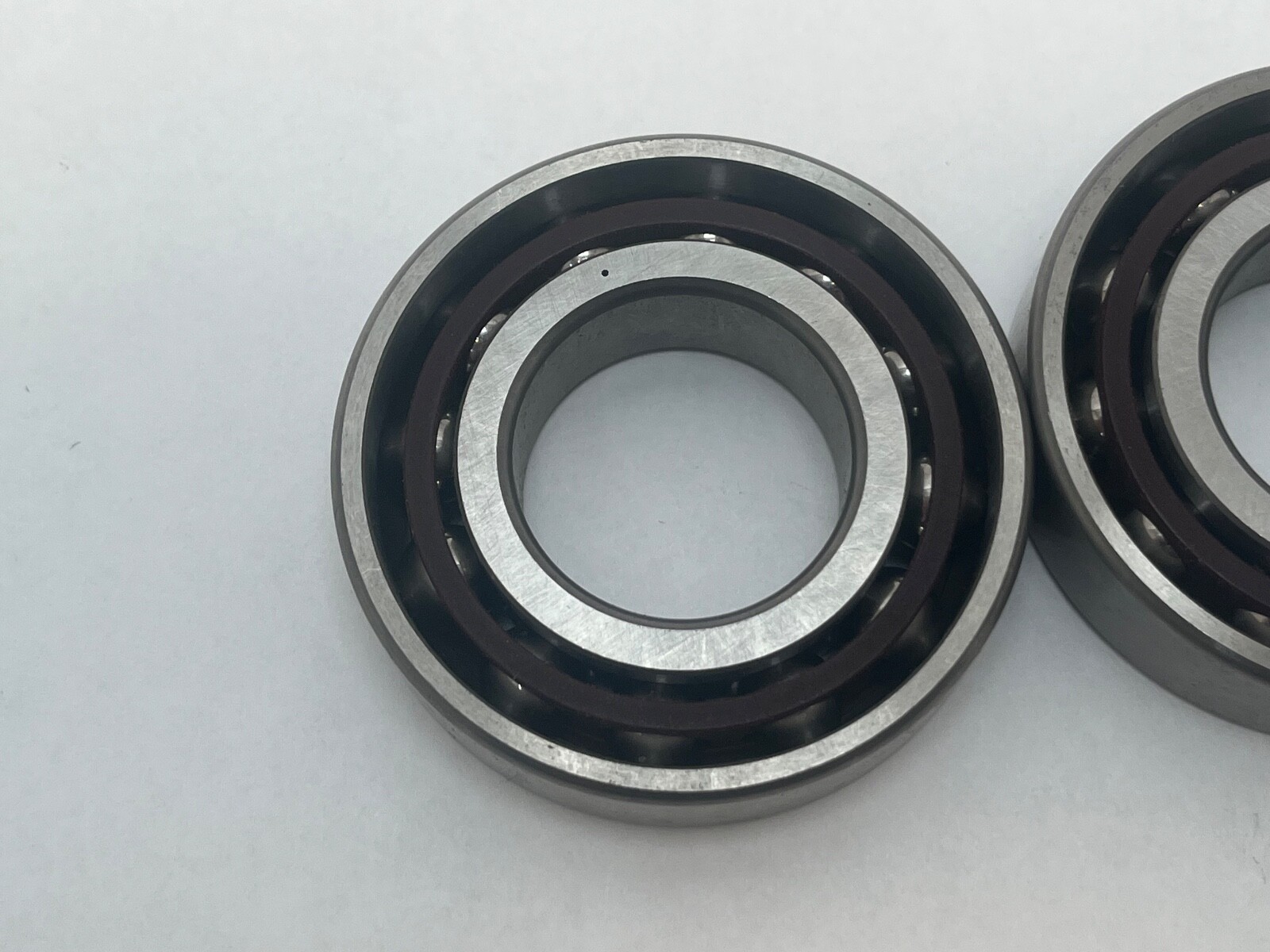

Name: Angular Contact Ball Bearing - Straight Bore, 30 mm ID, 62 mm OD, 16 mm Width, Open, 15° Contact Angle, Medium Preload.
Brand: Fafnir
SKU: AF2B3#KZ260P
Price: 132.16 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	Fafnir
MPN	3MM206WIDUM
Model	3MM 206 WI CR DUM / 7206 A5/AC TR/TY P4/P4Y
Bearing Type	Angular Contact Ball Bearing, Open
ID	30 mm
OD	62 mm
Width	16 mm

Specifications

Advertise	1
Material	Bearing Steel
Series	200
Condition	New – Open box
Preload	Medium
Condition Note	Made In USA, New Old Stock
Min Temp	-30°C
Cage Type	Phenolic
Dynamic Load Rating	20.3 kN
Static Load Rating	11.2 kN
Precision Rating	ABEC 7 / P4
Rolling Elements	Ball
Max Temp	120°C
Item Weight	0.44 lbs
Cage Material	Phenolic
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Harmonization Code	8482.10.50.68
Contact Angle	15°
Mounting Arrangement	Universal

Cross-References

Cross Reference 1	SKF 7206 CD/P4ADGB
Cross Reference 2	FAG B7206-C-T-P4S-DUM
Cross Reference 3	NSK 7206CTYNDUMP4
