Fafnir

3MM226WI-3

Angular Contact Ball Bearing – 130 mm ID, 230 mm OD, 40 mm Width, Open, 15° Contact Angle.

Condition: New – Open box

Model #: 3MM226 WI 3 7226A

Availability:

2 in stock

Categories: Uncategorized

Product Description

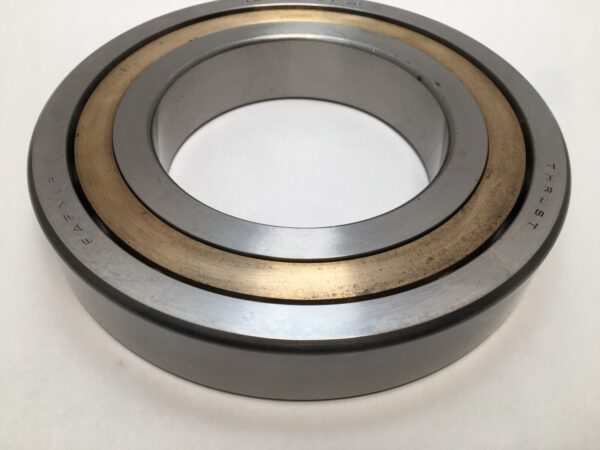

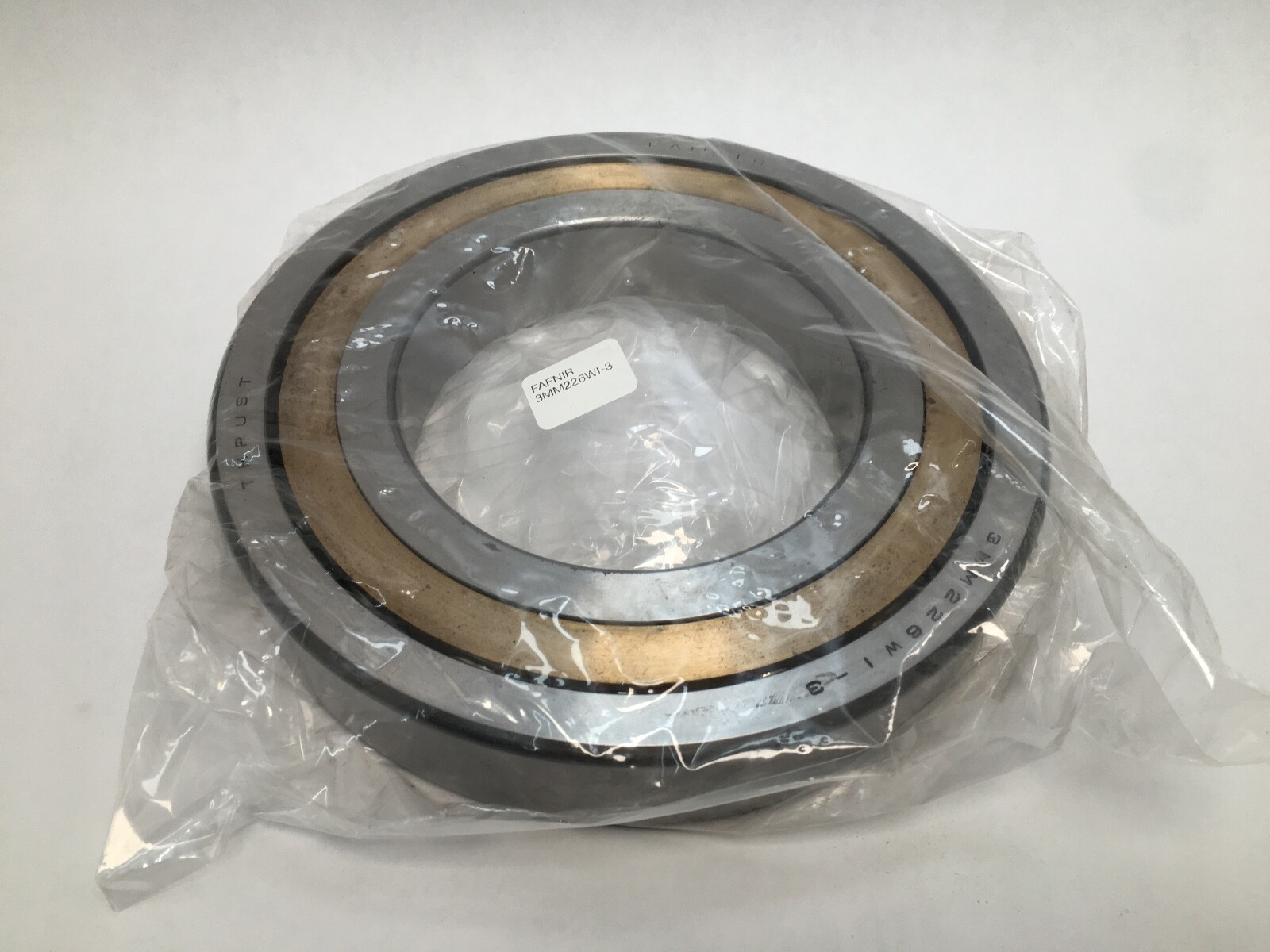

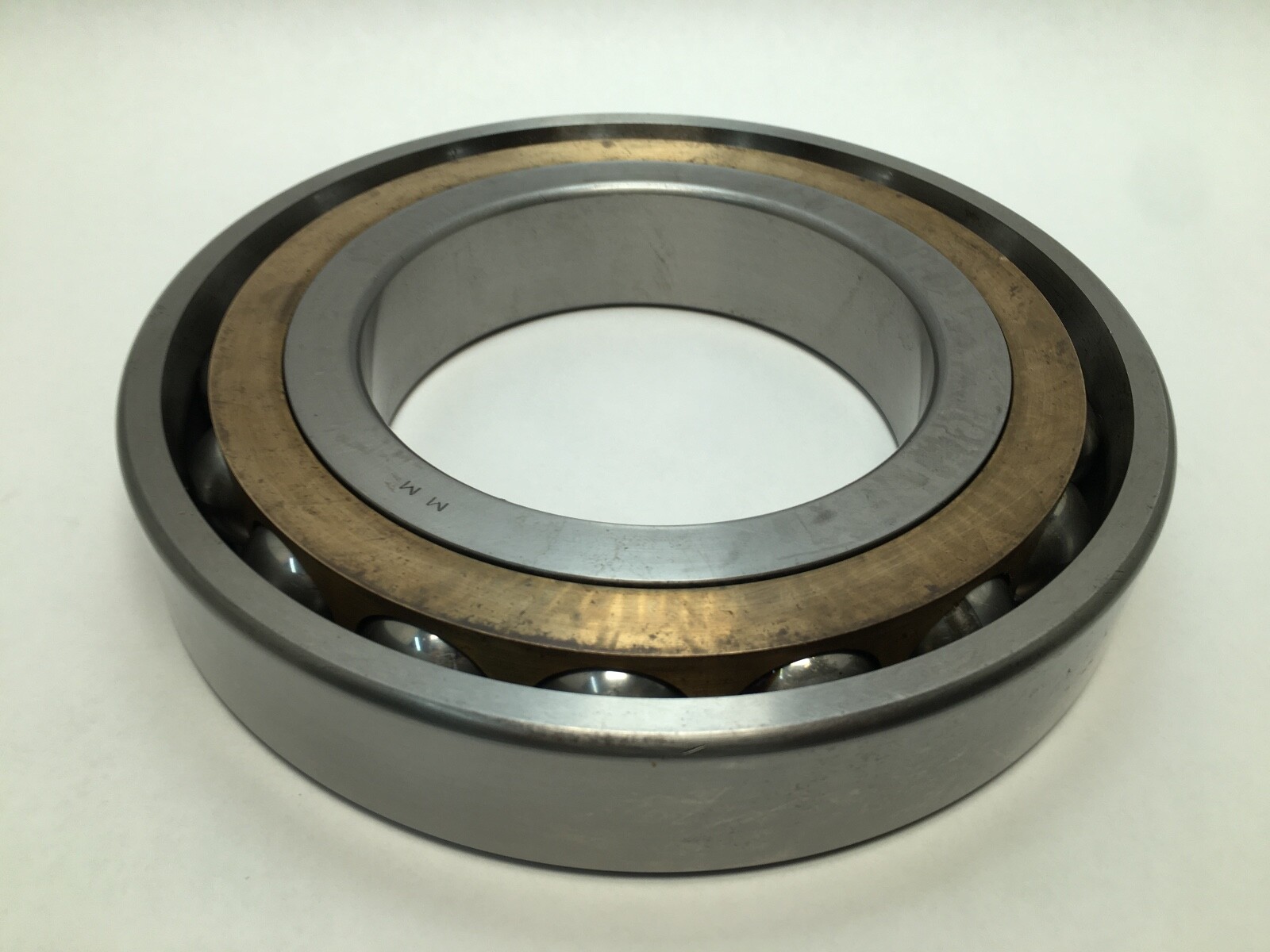

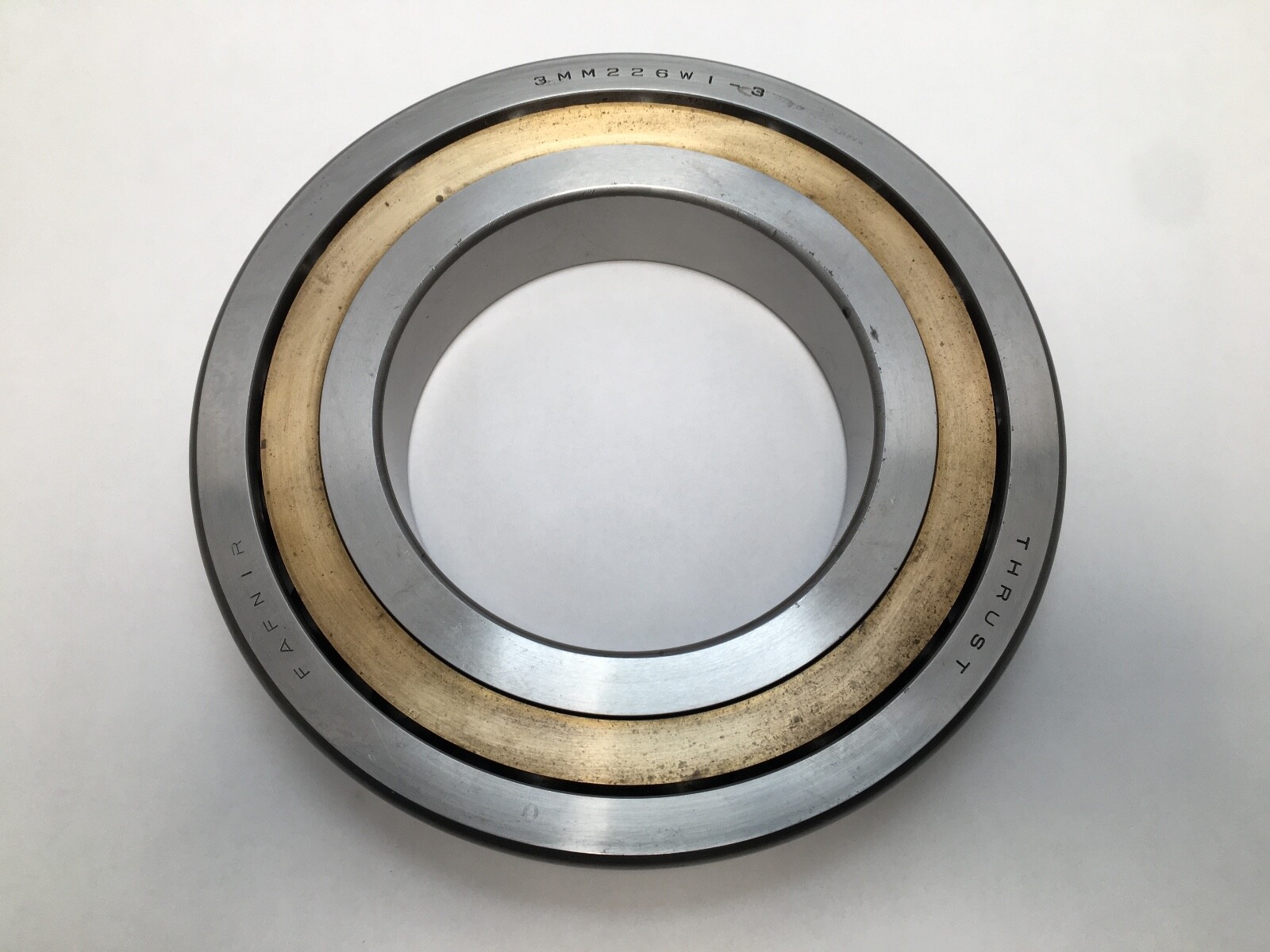

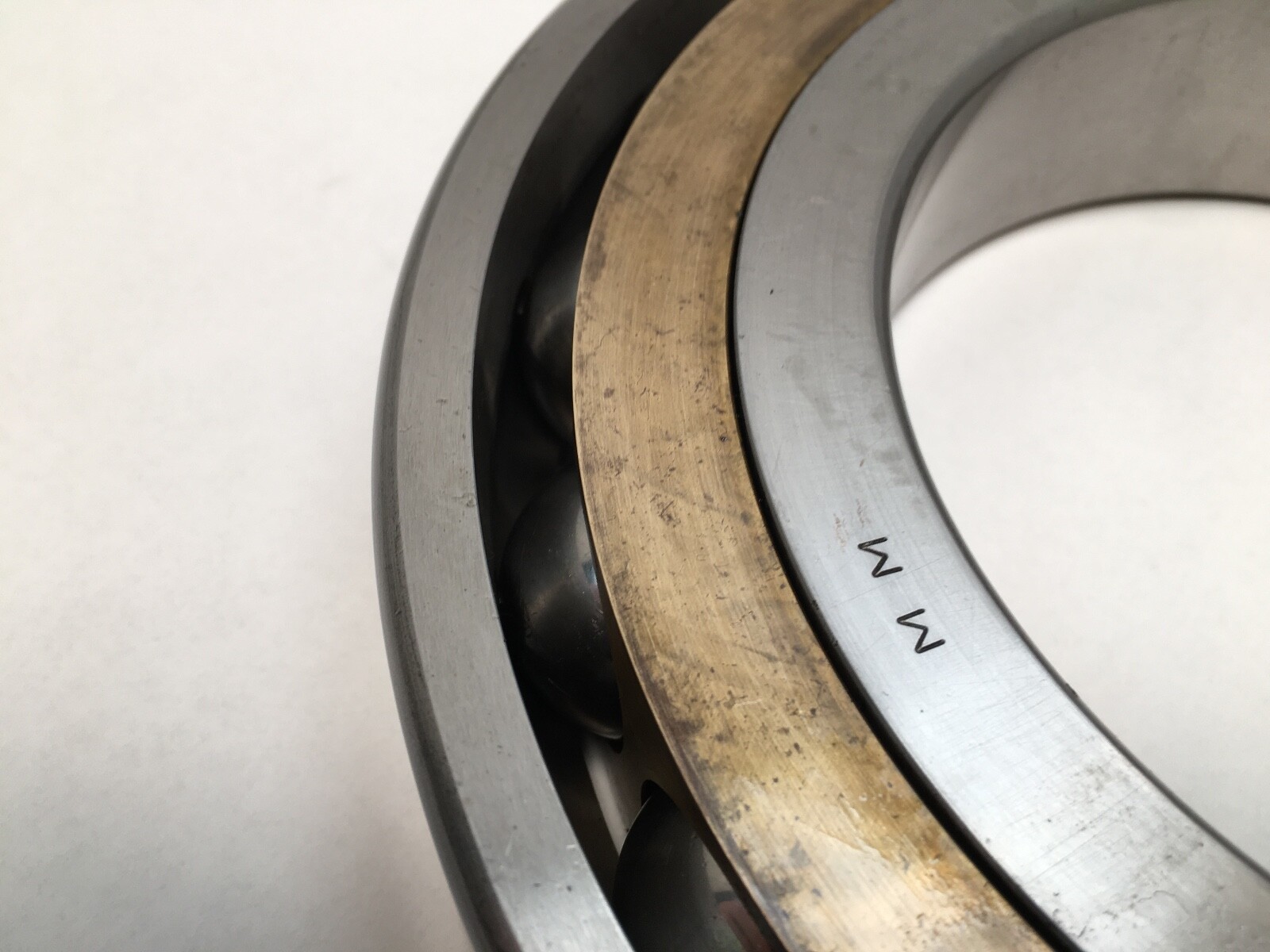

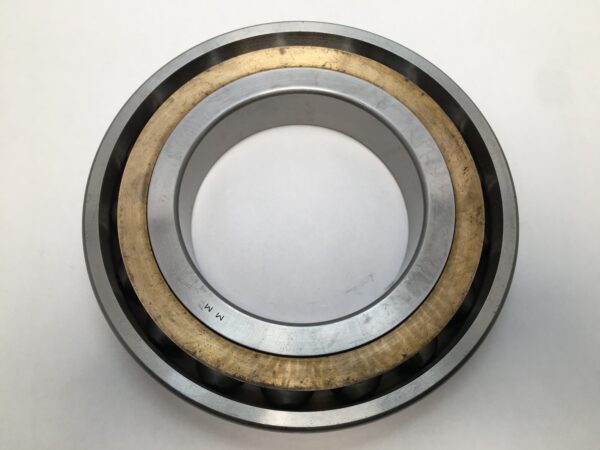

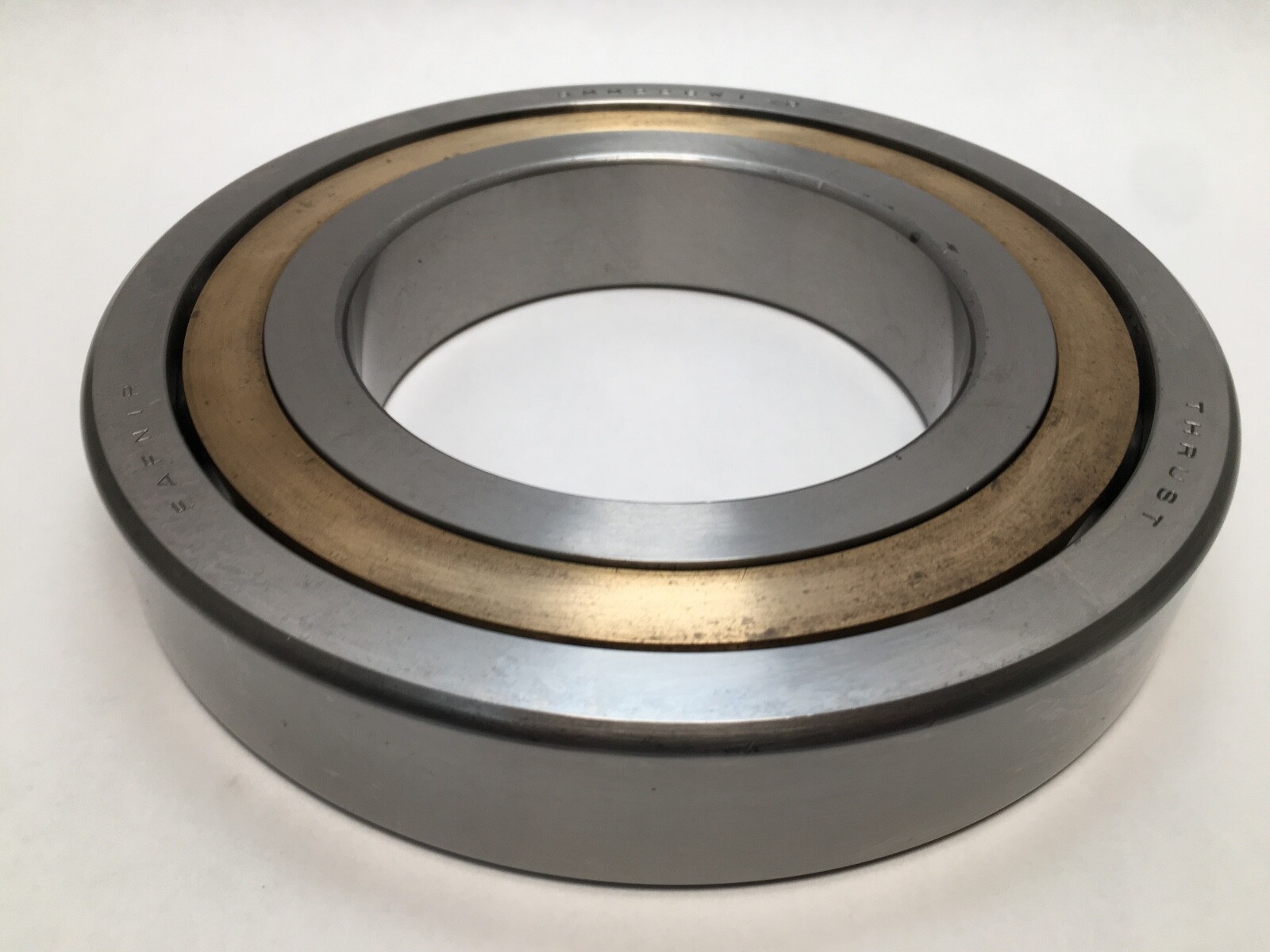

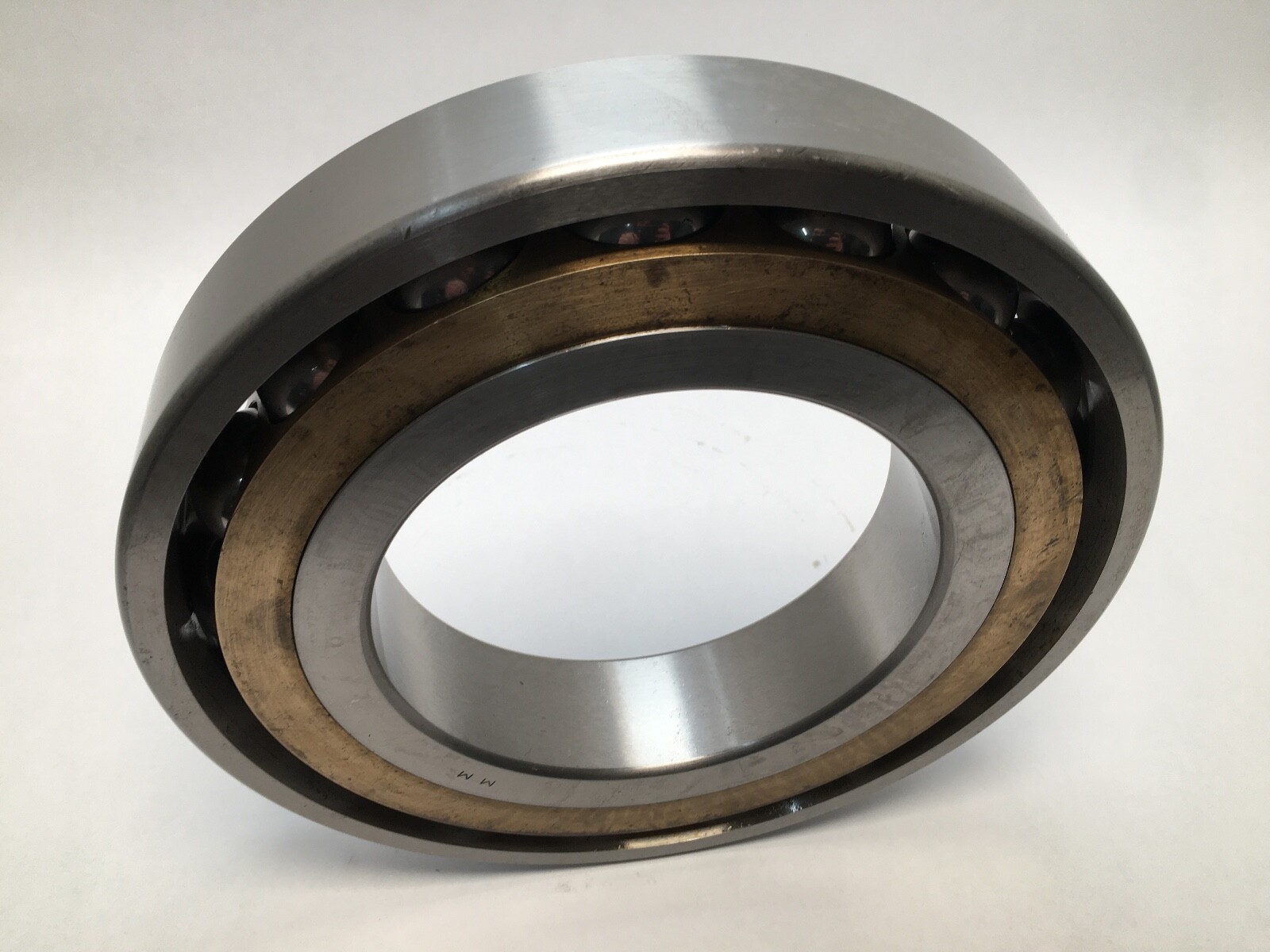

The Fafnir 3MM226WI-3 Angular Bearing is a high-quality, steel-made ball bearing designed for industrial automation and motion control systems. With a bore diameter of 130mm and an outside diameter of 230mm, this bearing boasts a width of 40mm, making it ideal for various mechanical power transmission applications. Manufactured in the United States by the reputable brand FAFNIR, this bearing is suitable for demanding environments that require precision and reliability in motion control systems. Its angular contact design ensures optimal performance and durability for a range of industrial uses.

Same day shipment

List Price

$604.32

2 in stock

Also Available From:

Need Help?
Click Here To Contact Support

Specifications

Additional information

Key Specifications

MFR / Brand	Fafnir
MPN	3MM226WI-3
Model	3MM226 WI 3 7226A
Bearing Type	Angular Contact Ball Bearing, Open
ID	130 mm
OD	230 mm
Width	40 mm

Specifications

Advertise	1
Material	Bearing Steel
Min Temp	-30 °C
Cage Type	Phenolic
Dynamic Load Rating	229 kN
Static Load Rating	260 kN
Precision Rating	ABEC 7 / P4
Series	7200
Rolling Elements	Ball
Max Temp	120 °C
Condition	New – Open box
Item Weight	14.5 lbs
Cage Material	Phenolic
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Lubricant	Oil
Harmonization Code	8482.10.50.28
Contact Angle	15°

Seller Part Number: BS6#NNG9SF
