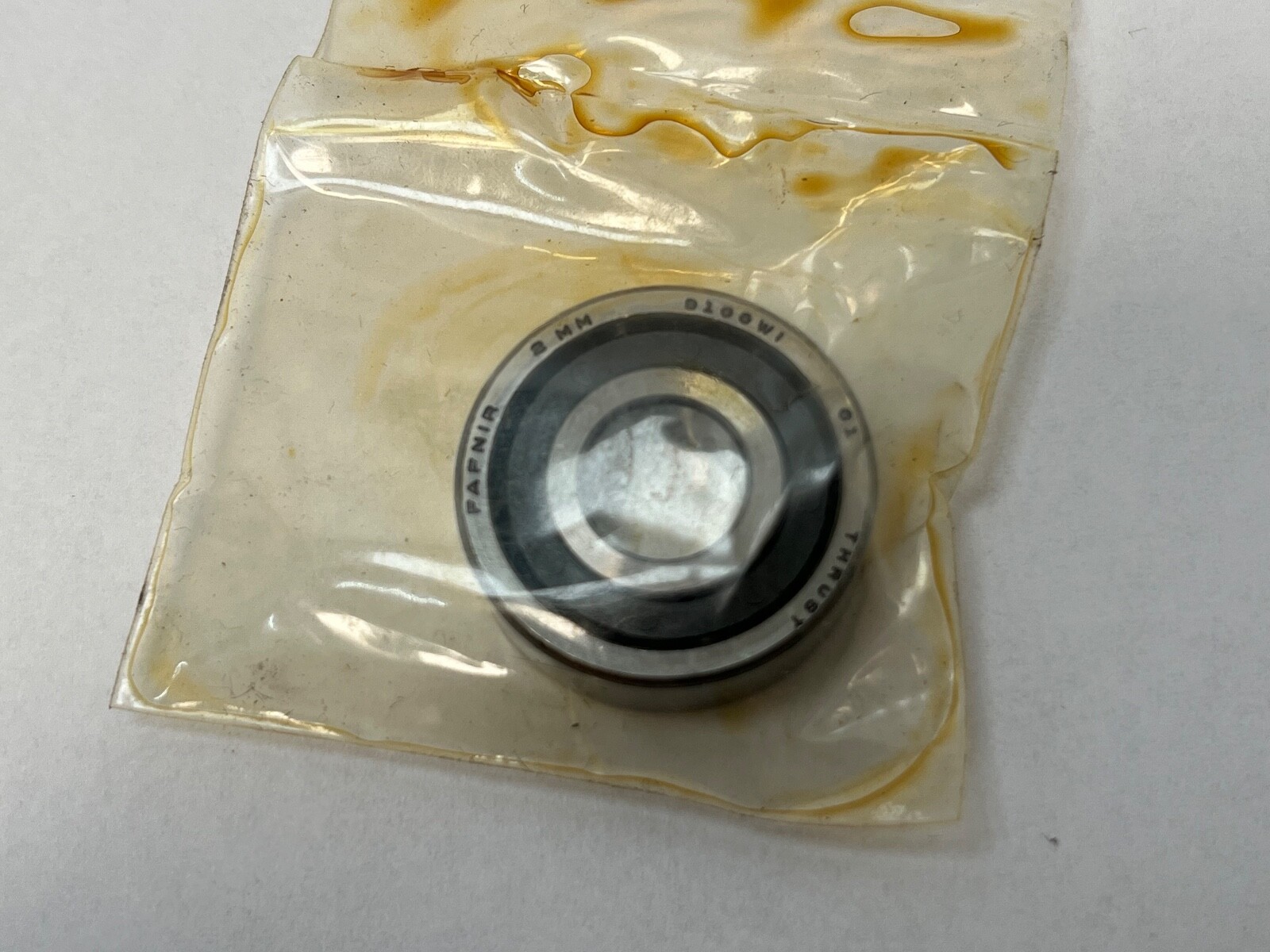

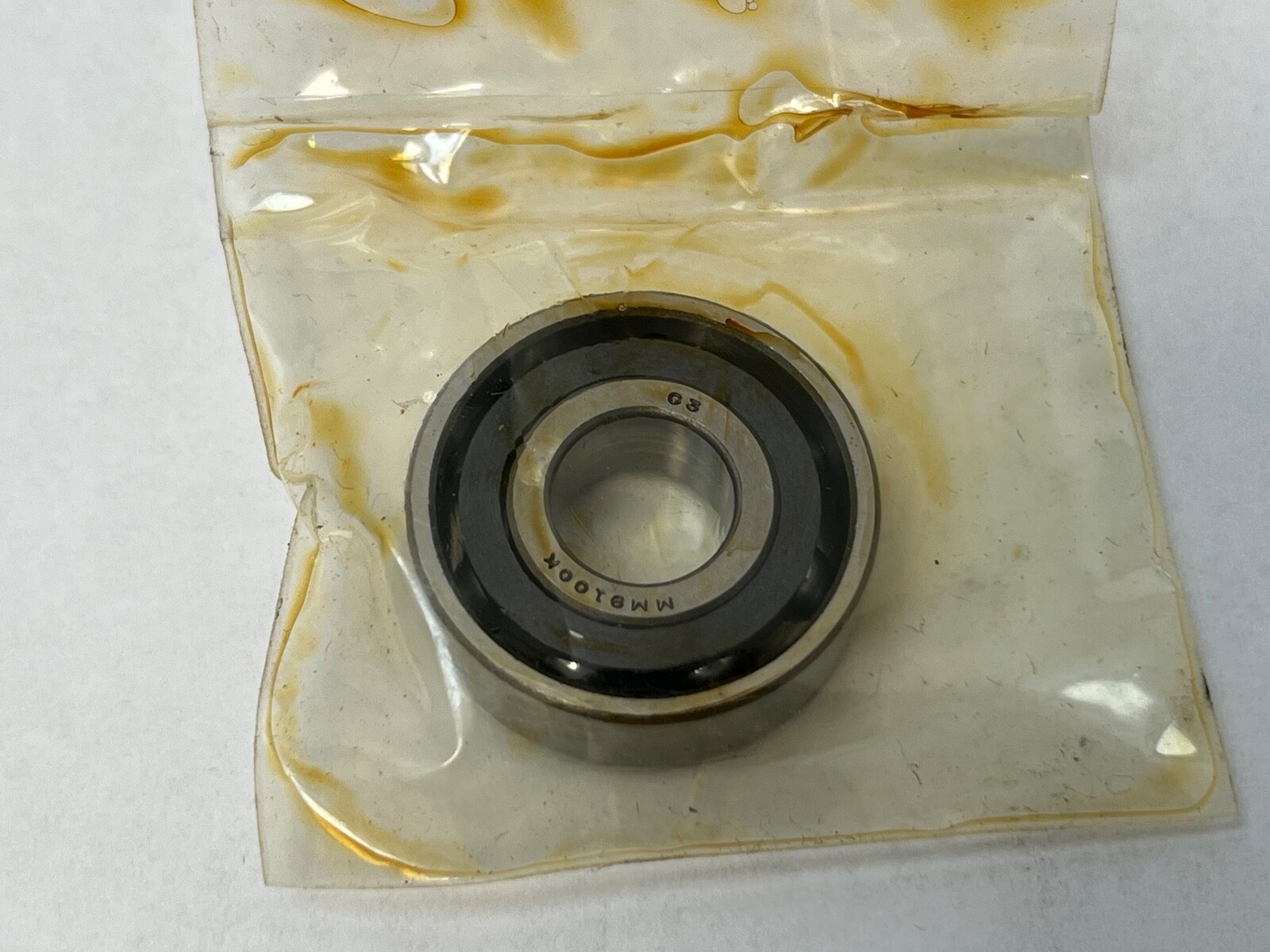

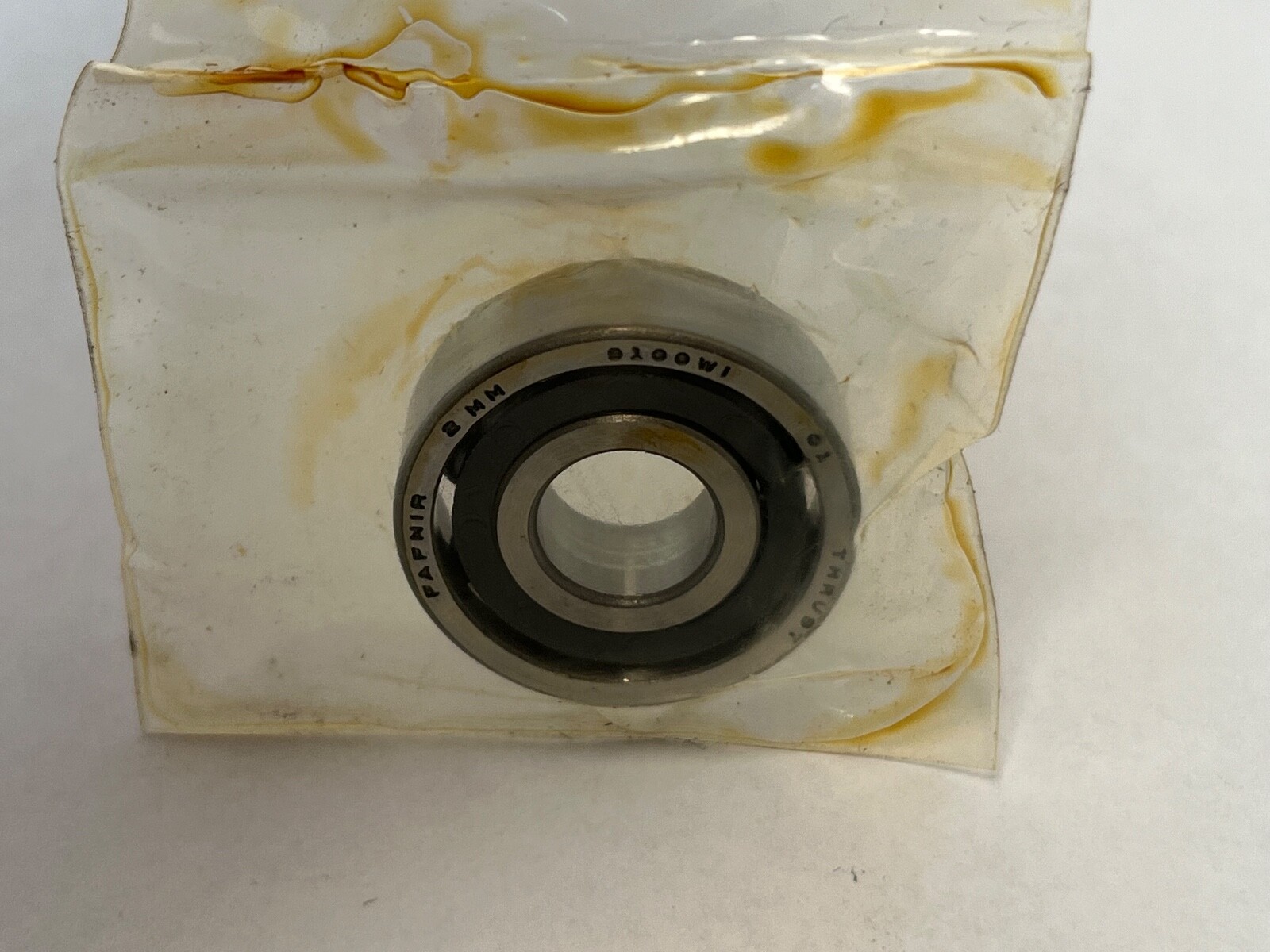

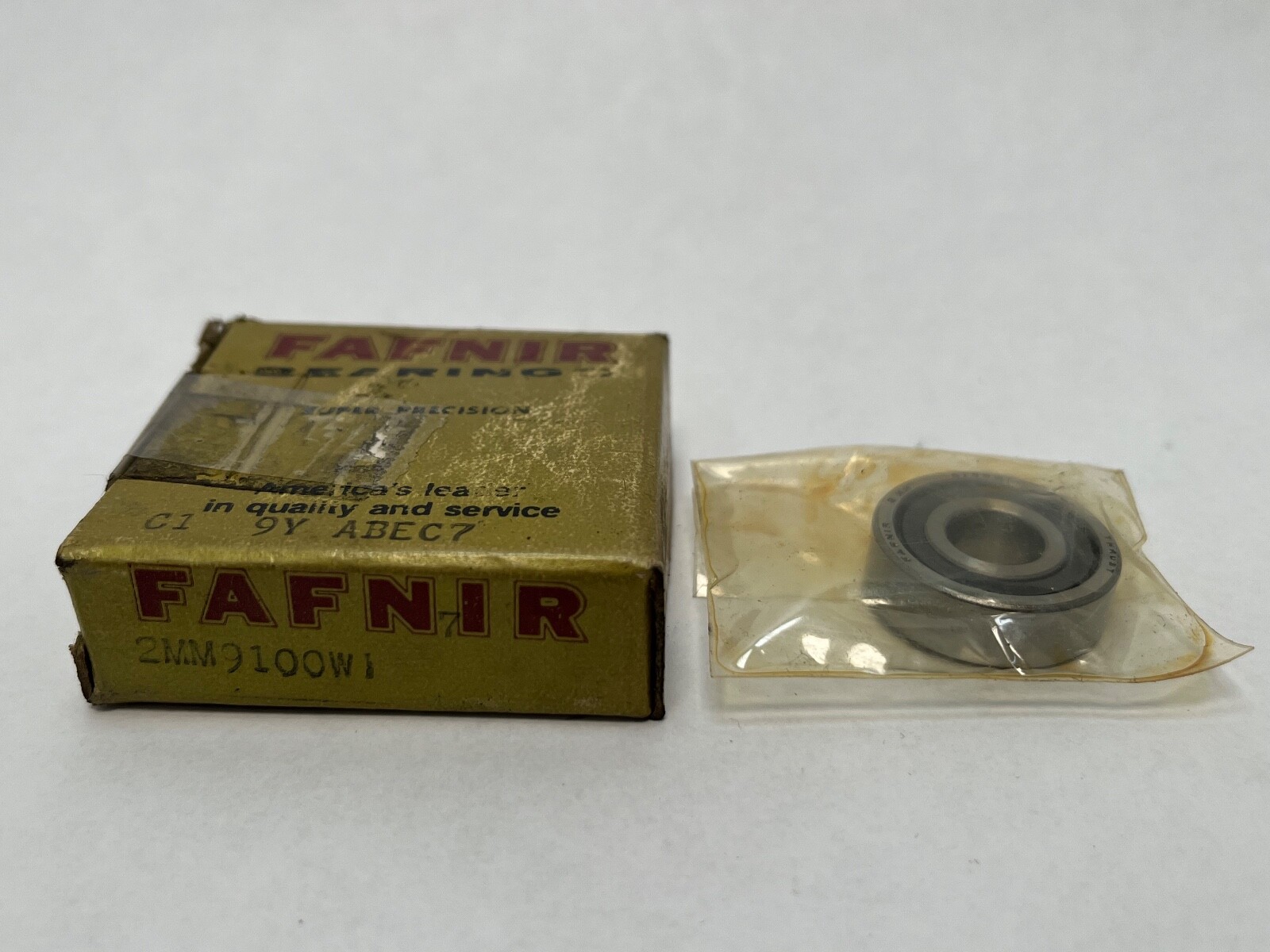

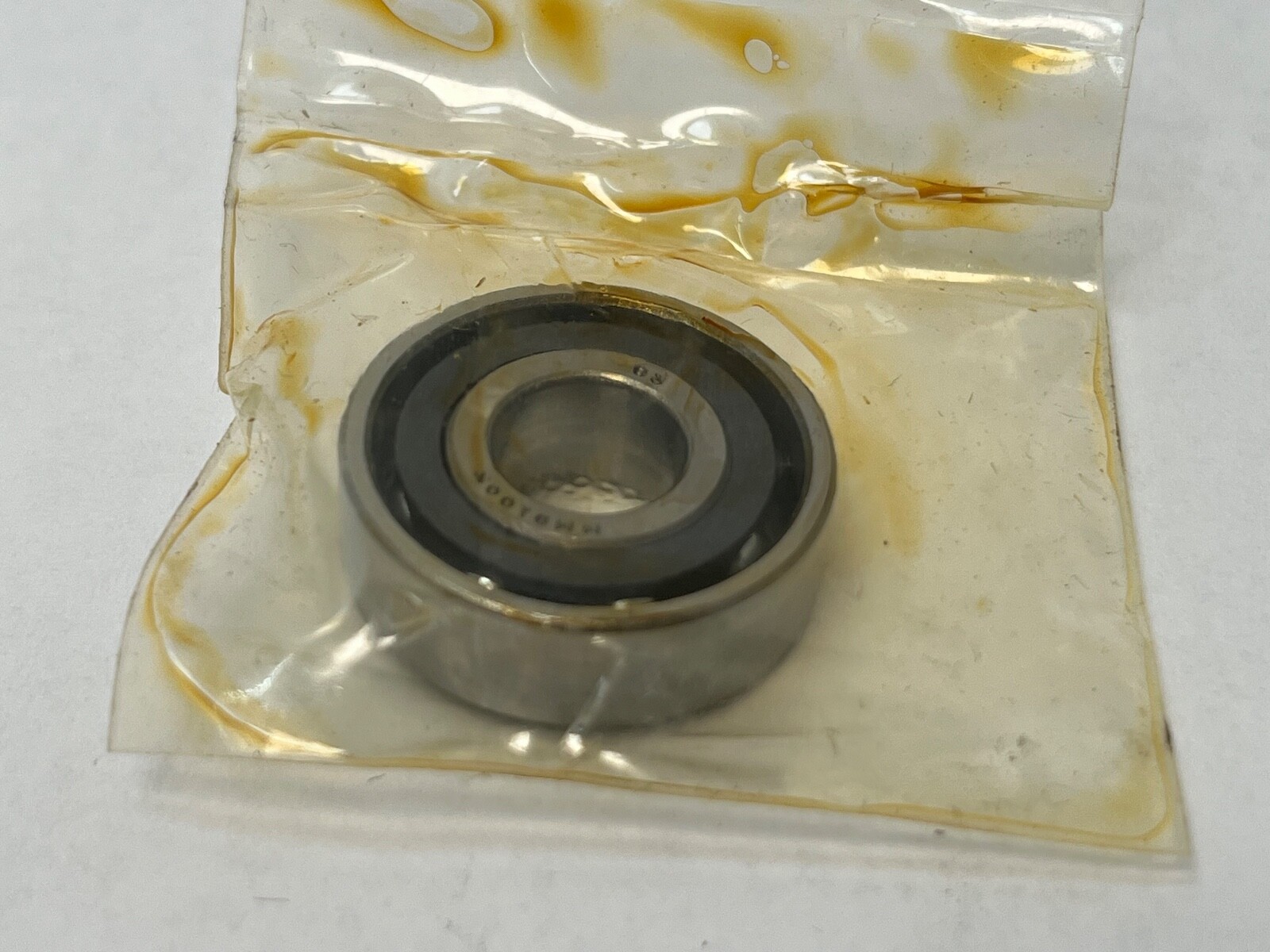

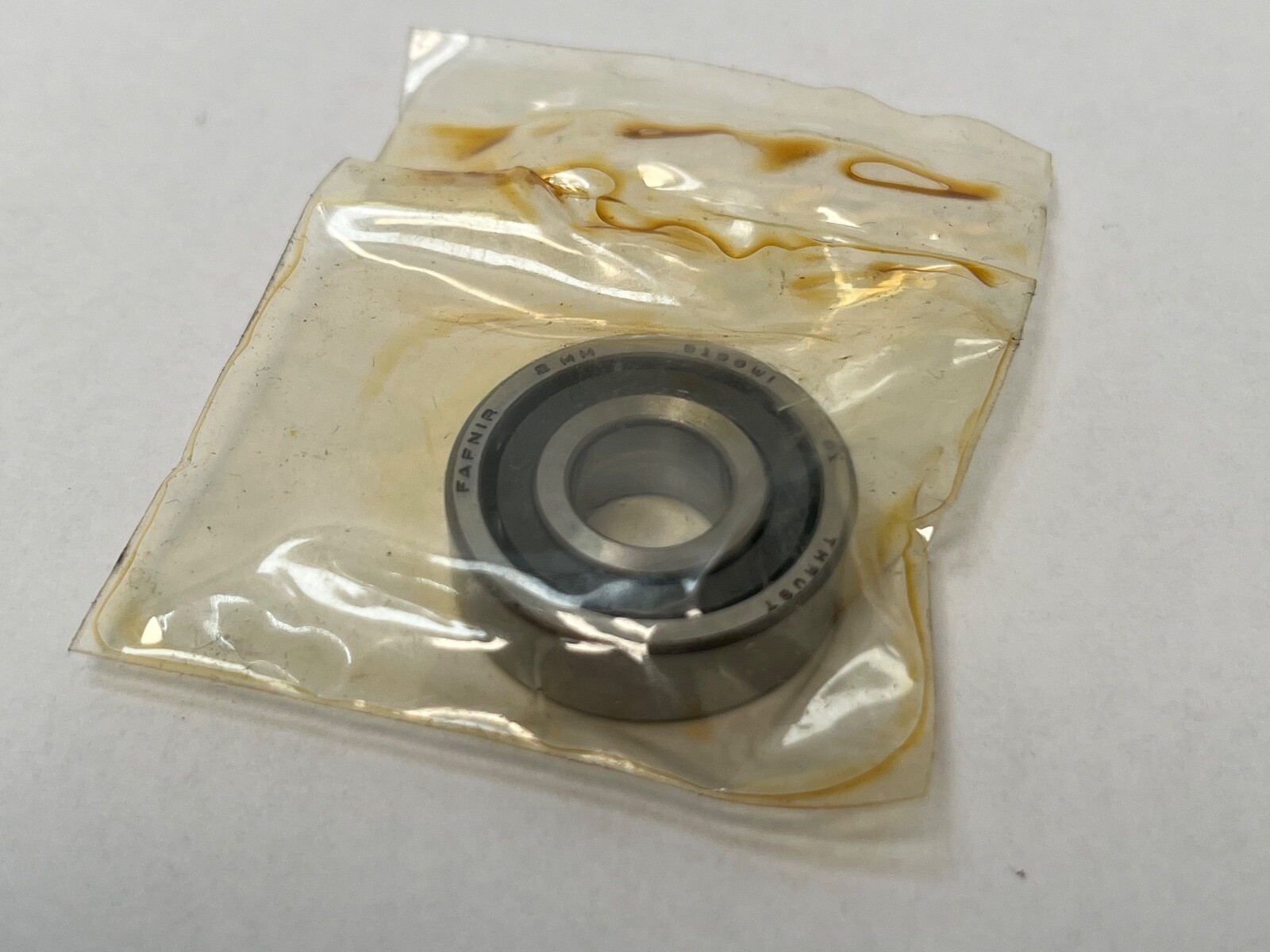

Name: Angular Contact Ball Bearing - 10 mm ID, 26 mm OD, 8 mm Width, Open, 15°, Light Preload
Brand: Fafnir
SKU: B-AN1B3#7CMKJI
Price: 45.36 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	Fafnir
MPN	2MM9100WI
Model	2 MM 9100 WI / 7000C T P4
Bearing Type	Angular Contact Ball Bearing, Open
ID	10 mm
OD	26 mm
Width	8 mm

Specifications

Advertise	1
Material	Bearing Steel
Min Temp	-30 °C
Cage Type	Window
Dynamic Load Rating	5.43 kN / 1220 lbf
Static Load Rating	2.18 kN / 490 lbf
Precision Rating	ABEC 7 / P4
Series	2MM9100WI
Rolling Elements	Ball
Max Temp	120 °C
Condition	New
Item Weight	0.04 lbs
Cage Material	Phenolic Resin
Limiting Speed	62600 rpm
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	No
Lubricant	Oil
Harmonization Code	8482.10.50
Contact Angle	15°
Internal Clearance	CN

Cross-References

Cross Reference 1	SKF 7000 CD/P4A
Cross Reference 2	NSK 7000CTRP4Y
