Weidmüller 911886 (RD-50ASJS) 50-position interface module, D-Sub female to screw terminals, 12–26 AWG, 150 V, 1.5 A per contact, 4-40 jackscrew retainer.
List Price
$86.24
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Weidmüller |
|---|---|
| Model | 911886 |
| Industry Terms | D-Sub breakout board; interface terminal block; 50-pin breakout module; DB50 terminal block |
|---|---|
| Common Misspellings | Weidmuller 911886; Weidmueller 911886; Wiedmuller 911886 |
| Application Types | PLC I/O cable breakout; control cabinet wiring; signal transfer to field devices |
| Mpn Variants | 911886; 0911886; RD-50ASJS; RD50ASJS |
| Additional Attributes | Positions: 50; Connector: D-Sub female; Cable retainer: jackscrew socket 4-40; Field connection: screw; Wire gauge: 12–26 AWG; Rated voltage: 150 V; Current: 1.5 A per contact; Length: 149.35 mm; Width: 70.00 mm |
| Min Temp | -25 °C |
| Max Temp | 50 °C |
| Part Number | 911886 |

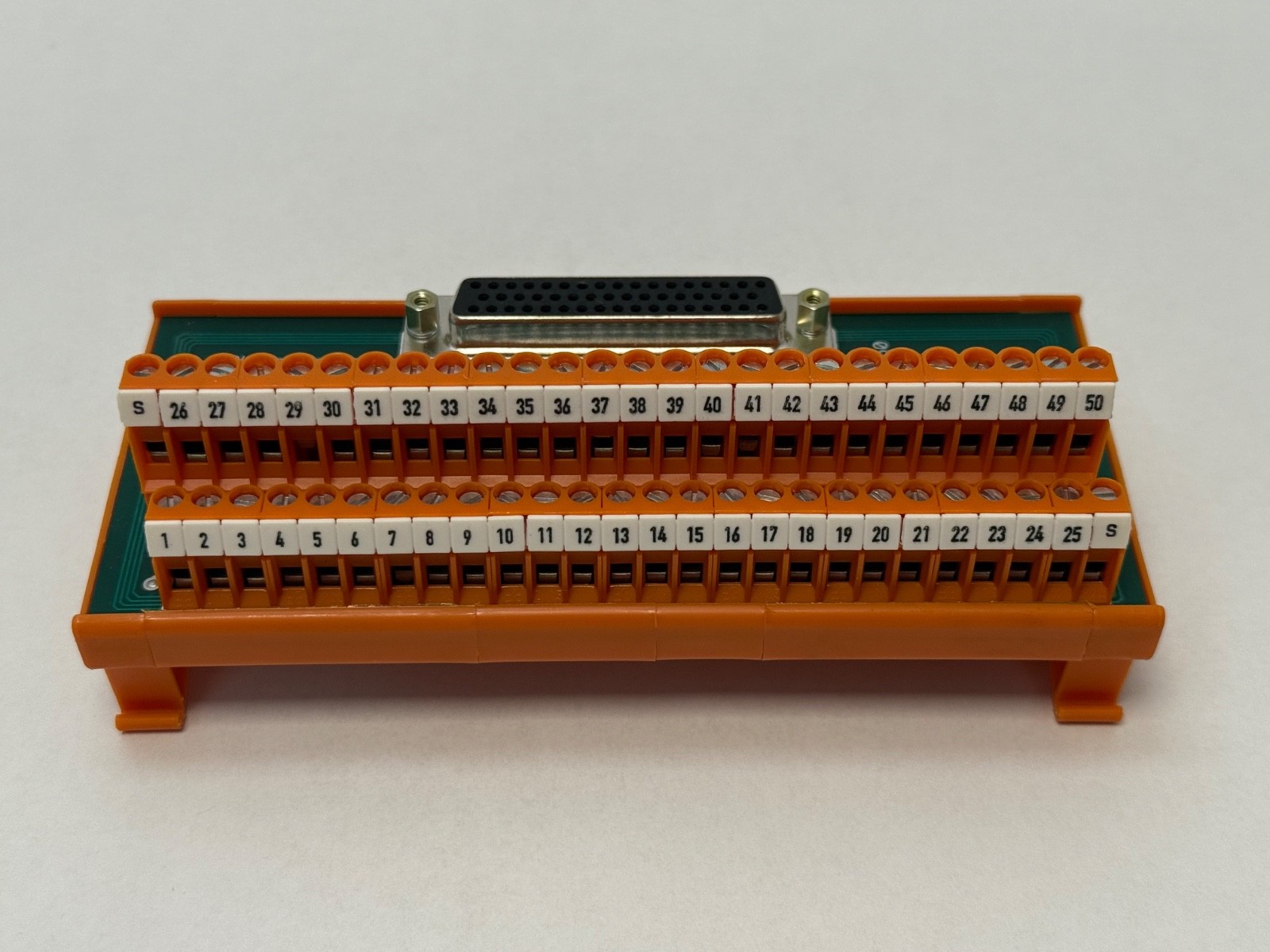

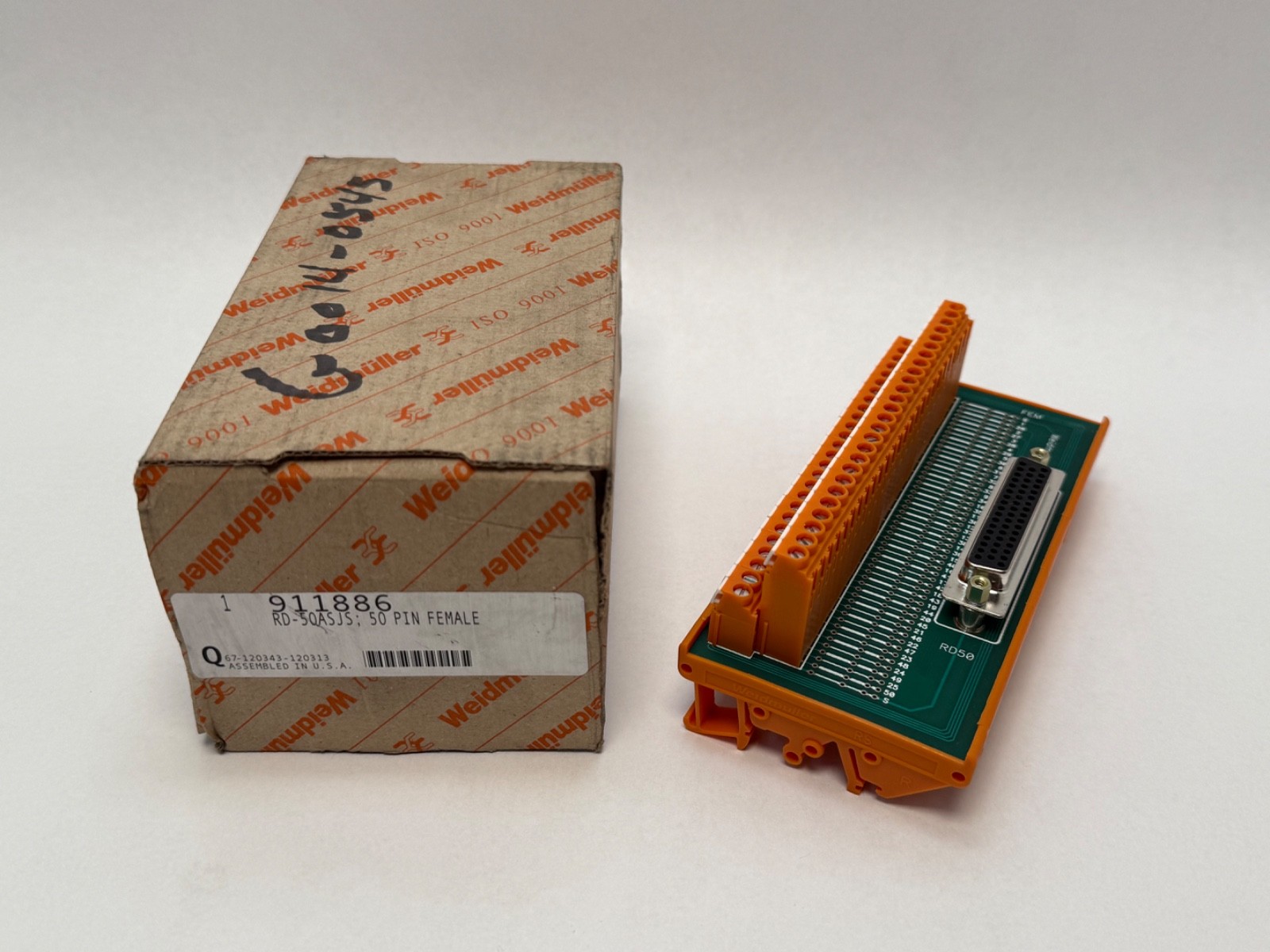

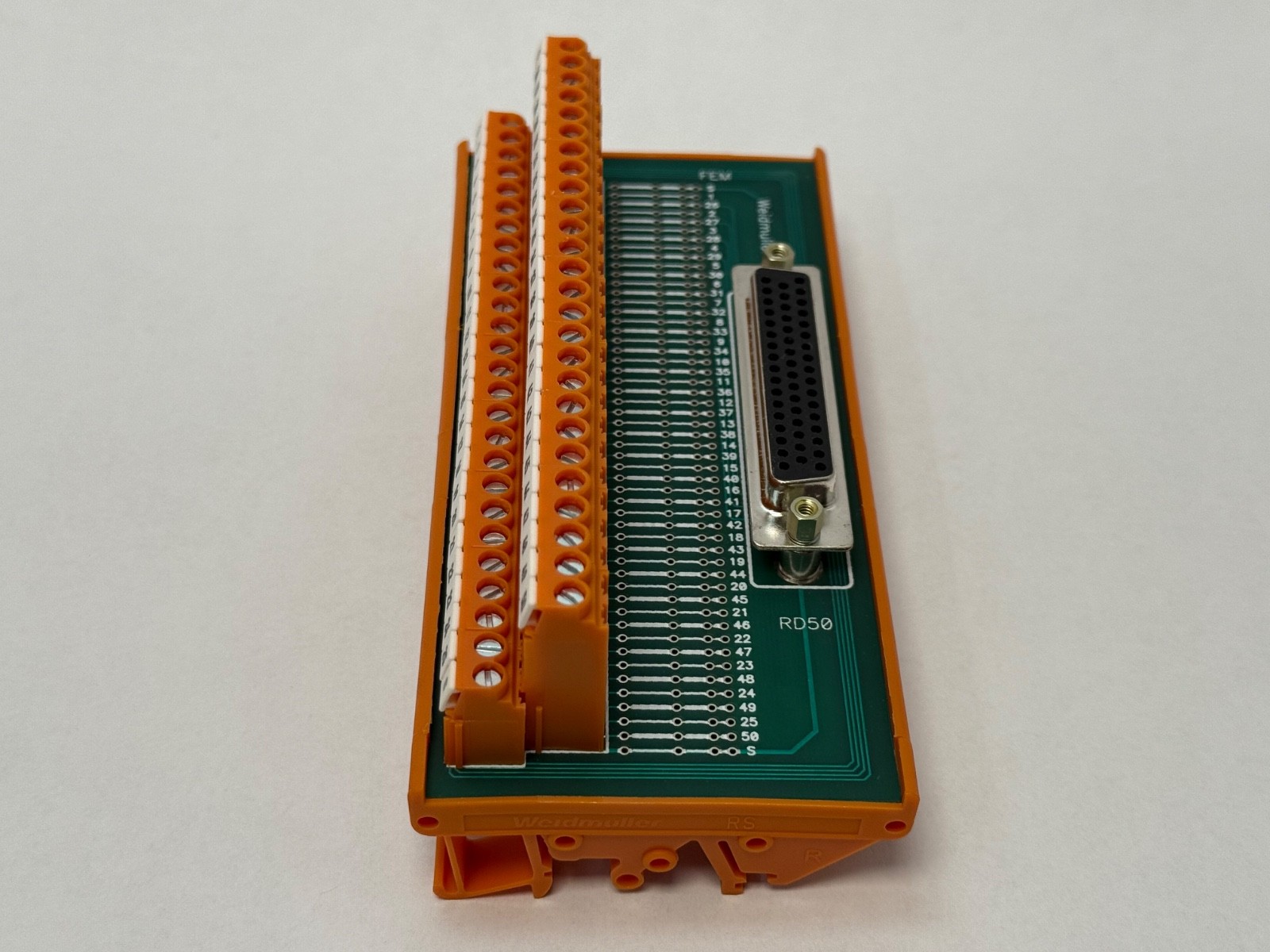

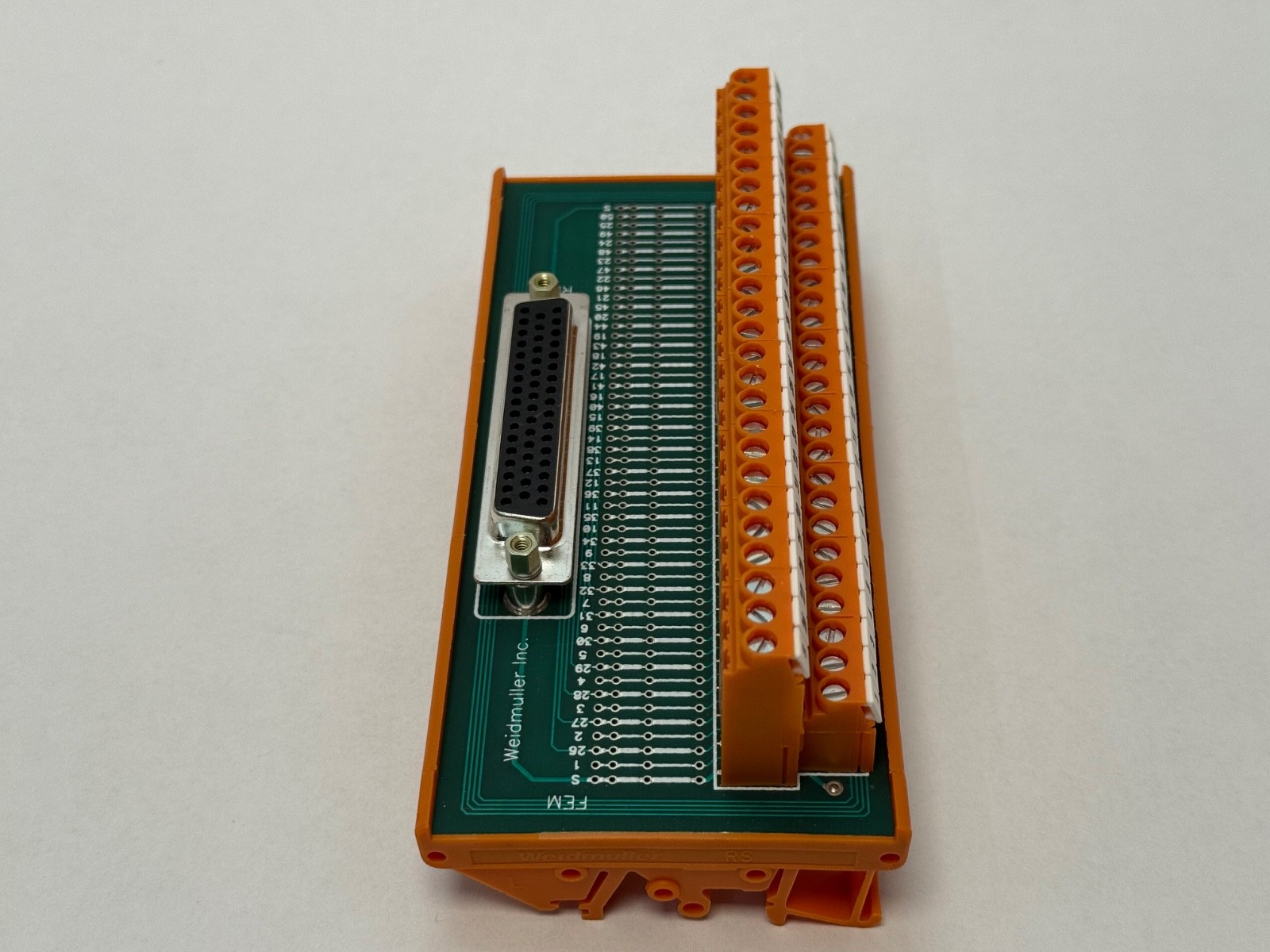

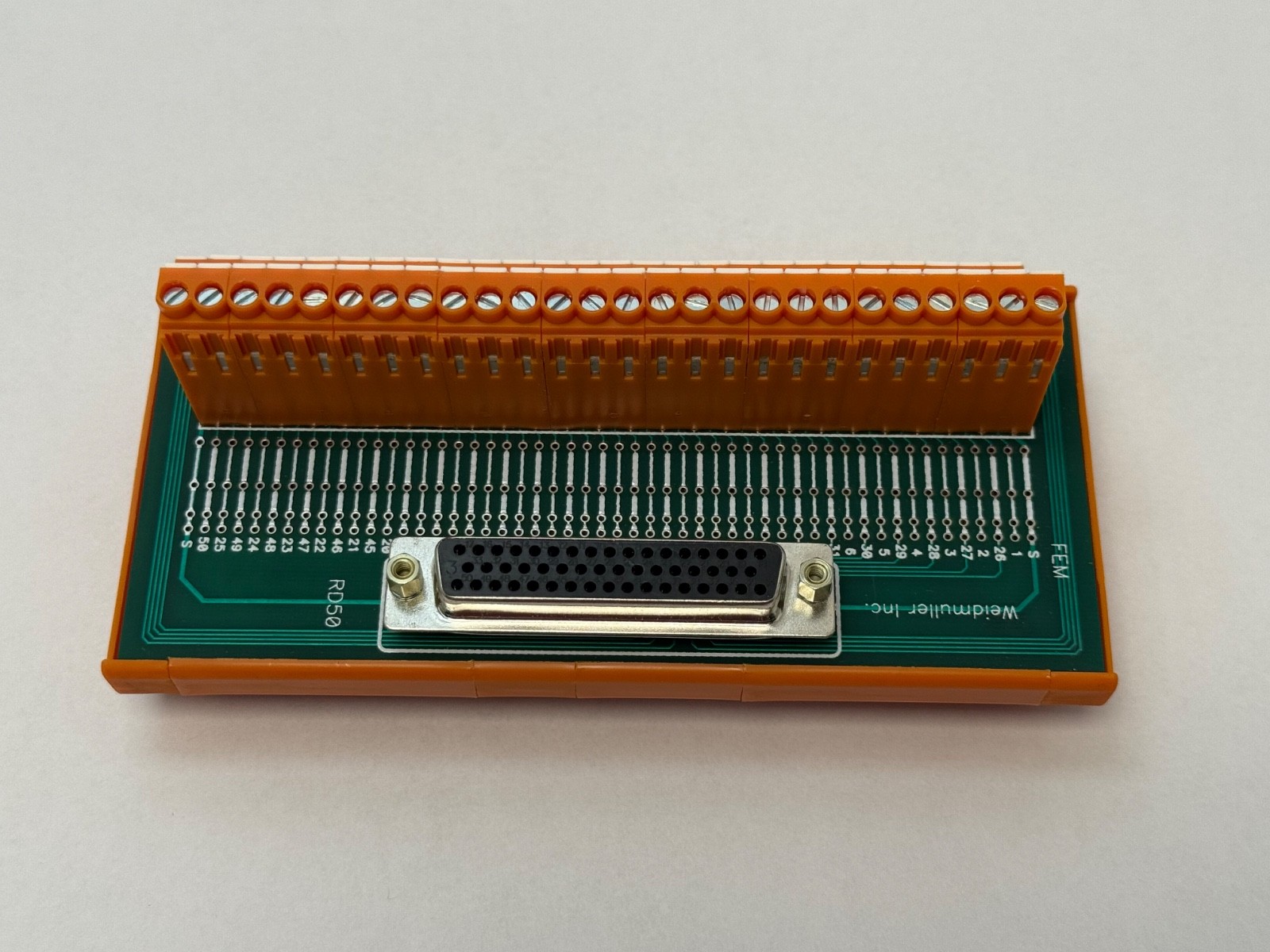

The Weidmüller 911886 (RD-50ASJS) is a 50-position interface module that transfers signals from a D-Sub female connector to screw-connection terminal blocks. It sits between a controller cable and field wiring in a control cabinet. Type: Interface module, terminal block to D-Sub.
Number of Positions: 50. Control-Side Connector: D-Sub, female, 50-position. Control-Side Cable Retainer: Jackscrew socket, 4-40 mating thread. Field-Side Connection: Screw terminals. Wire Gauge: 12–26 AWG.
Rated Voltage: 150 V. Current Rating: 1.5 A per contact. Operating Temperature: –25 °C to +50 °C.
Length: 149.35 mm (5.880 in). Width: 70.00 mm (2.756 in).
Frequently asked questions
What is the Weidmüller 911886?
The Weidmüller 911886, also marked RD-50ASJS, is a 50-position interface module connecting a D-Sub female connector to screw terminals. It breaks out a 50-pin cable to individual field wires.
What wire size does it accept?
The screw terminals accept 12 to 26 AWG wire. Each contact is rated 1.5 A at 150 V.
How does the cable attach?
The control side is a 50-position female D-Sub with jackscrew sockets using 4-40 mating thread.
