Availability:
1 in stock
Can’t find a part you’re looking for? CLICK HERE TO CONTACT US! -We can get all parts needed at competitive prices -International shipping is offered on every item and all orders -Shipping is combined on all orders -Collect Shipping offered for UPS, FedEx, DHL, Freight SAME DAY SHIPPING ON ALL ITEMS NEXT DAY SHIPPING AVAILABLE AT CHECKOUT
List Price
$45.87
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:

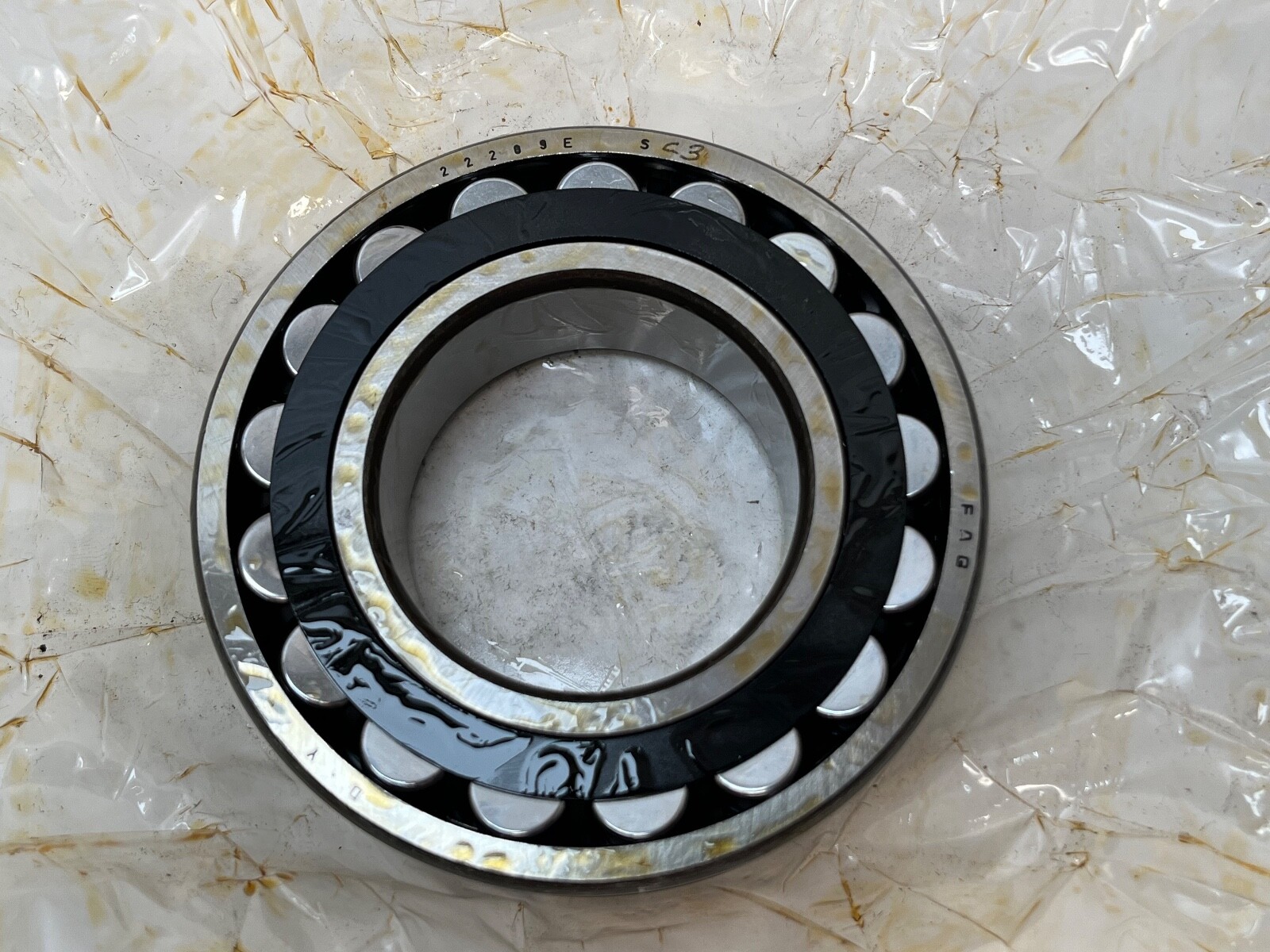

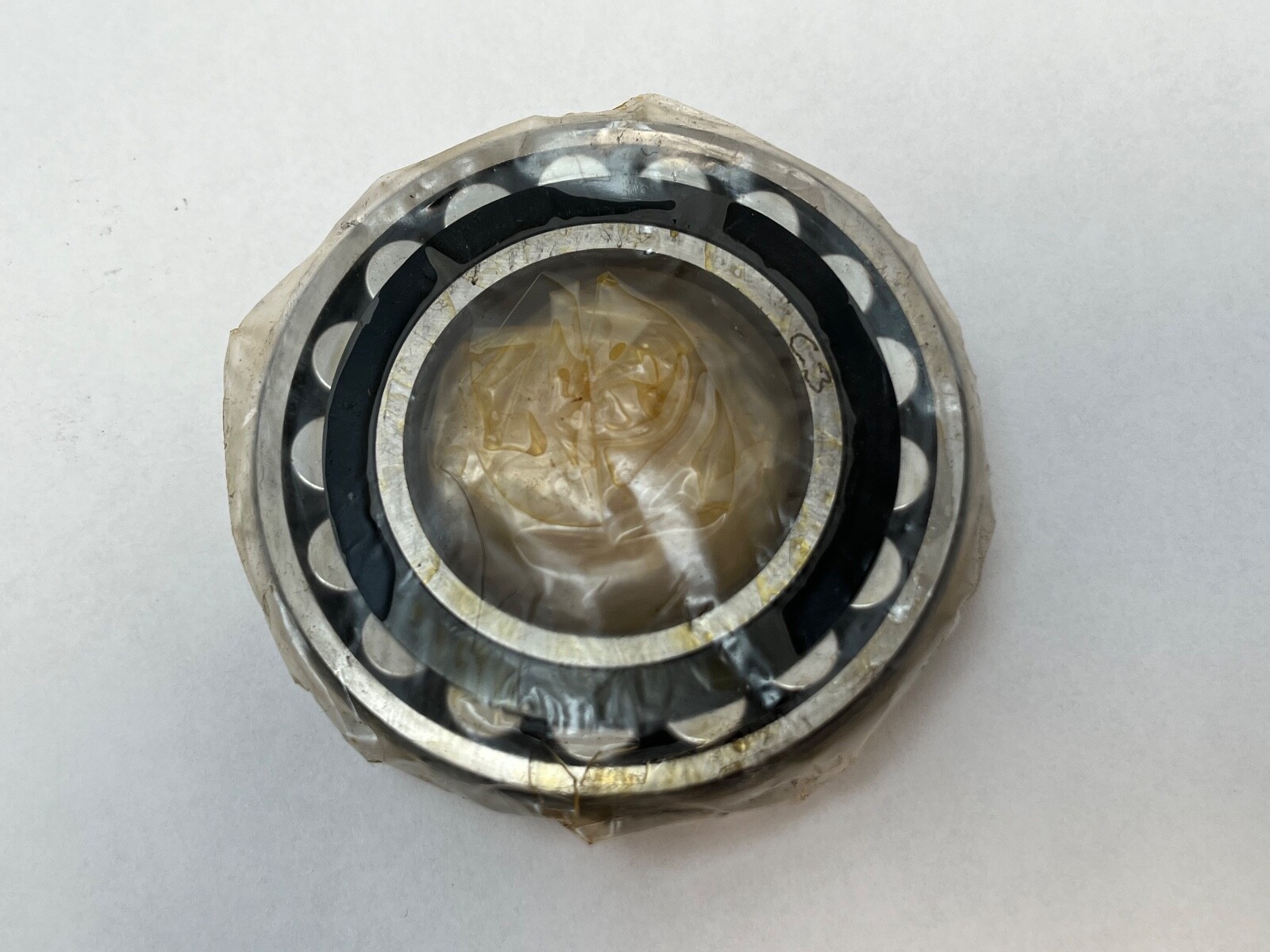

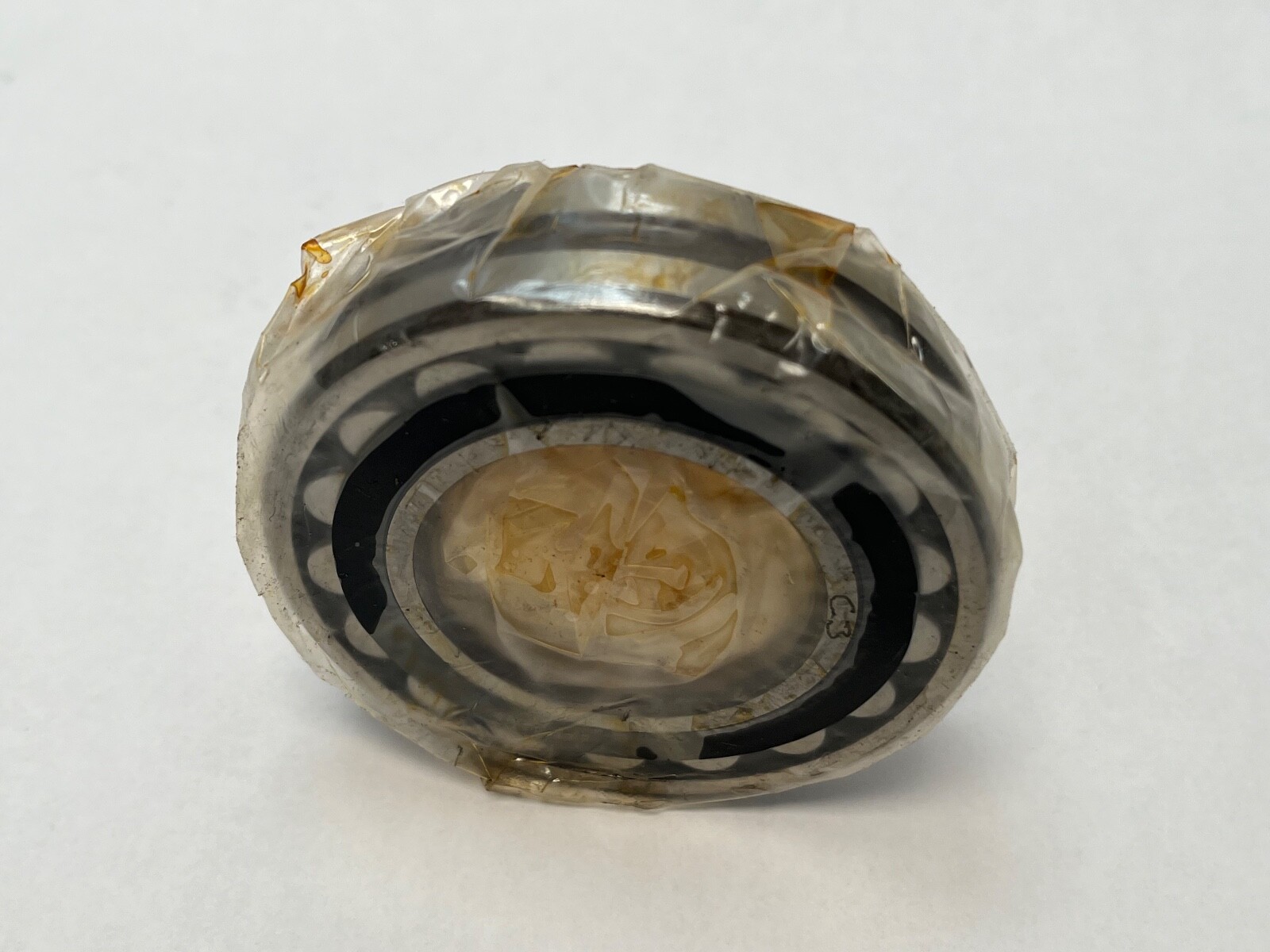

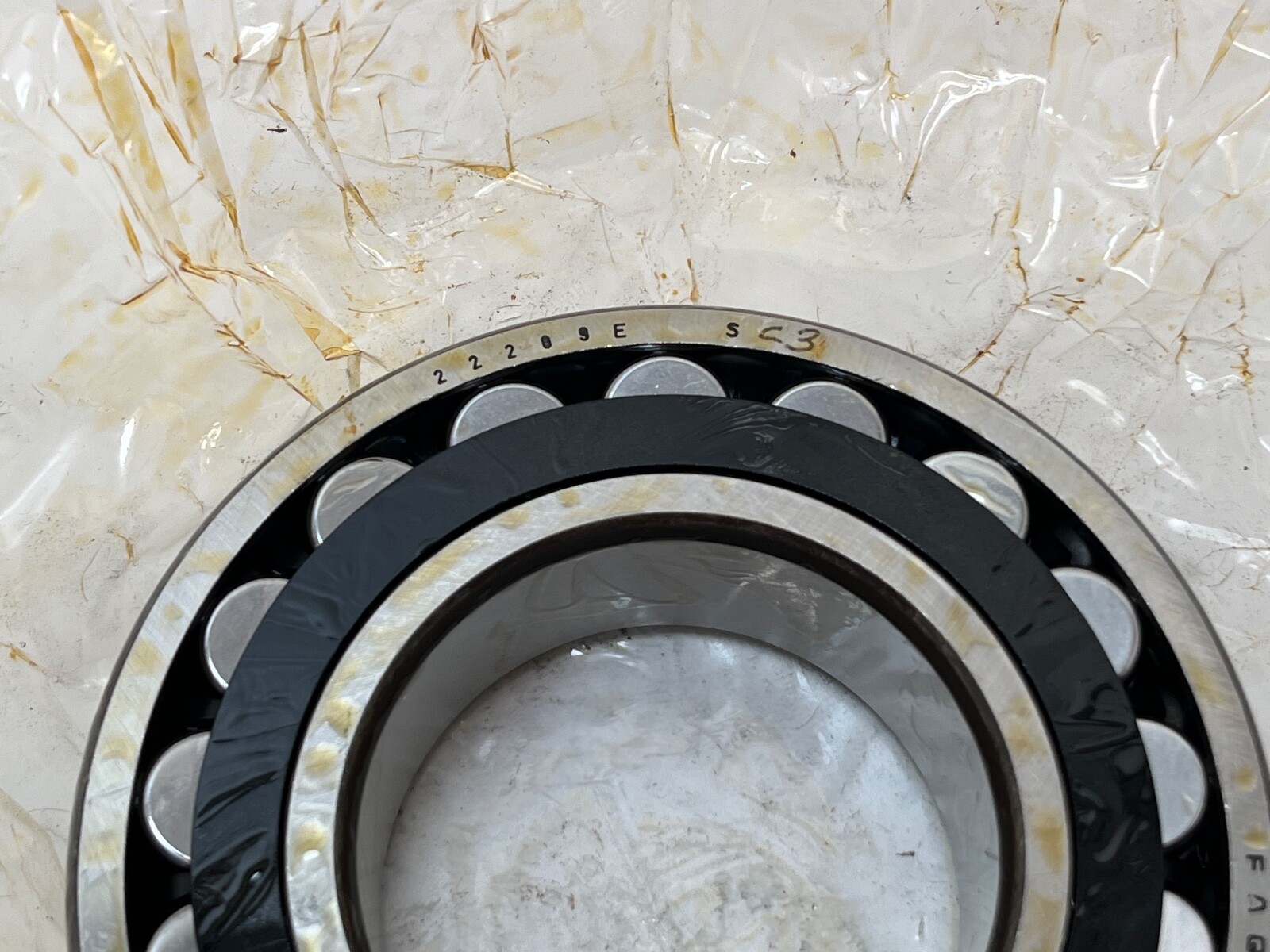

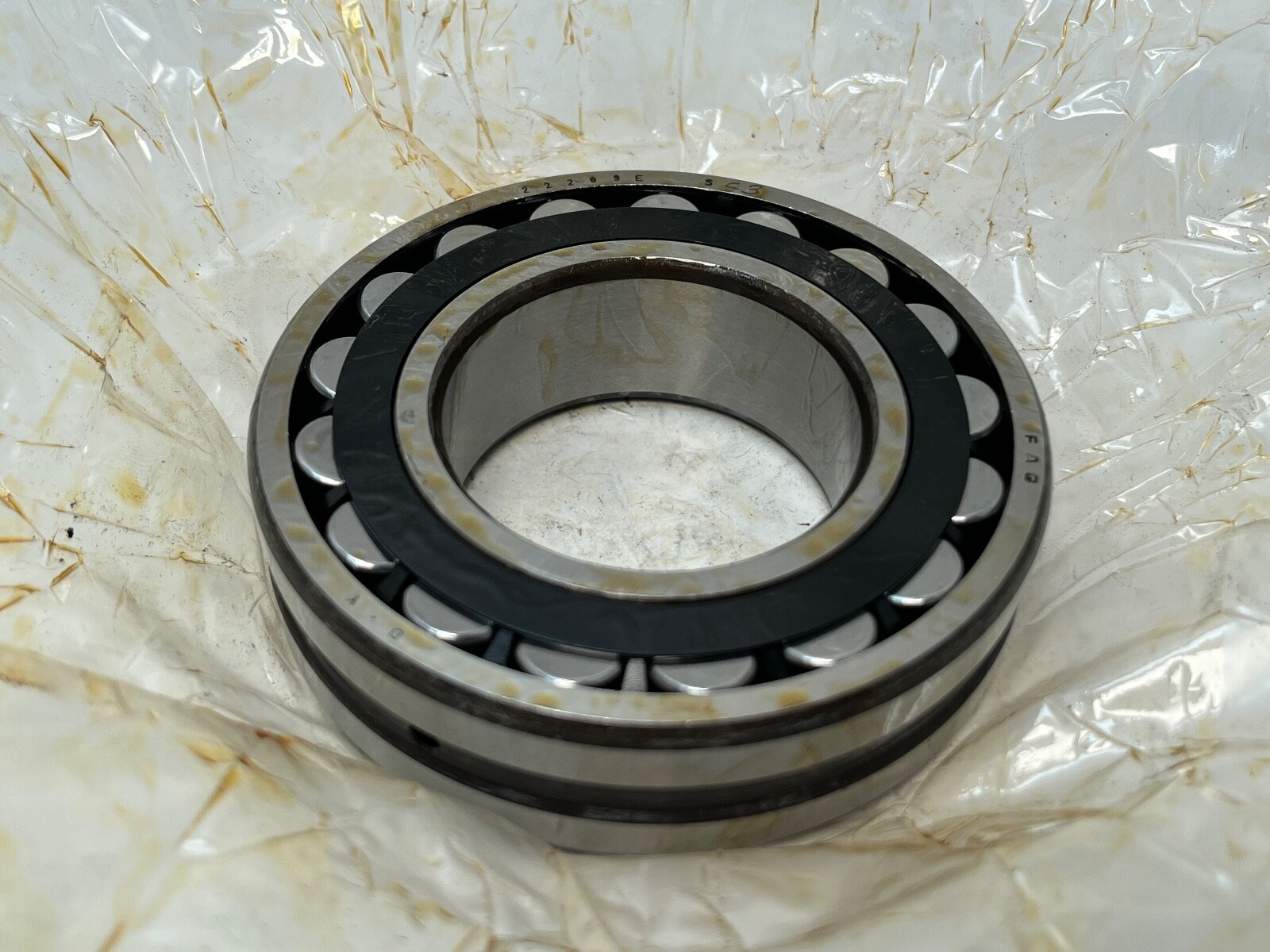

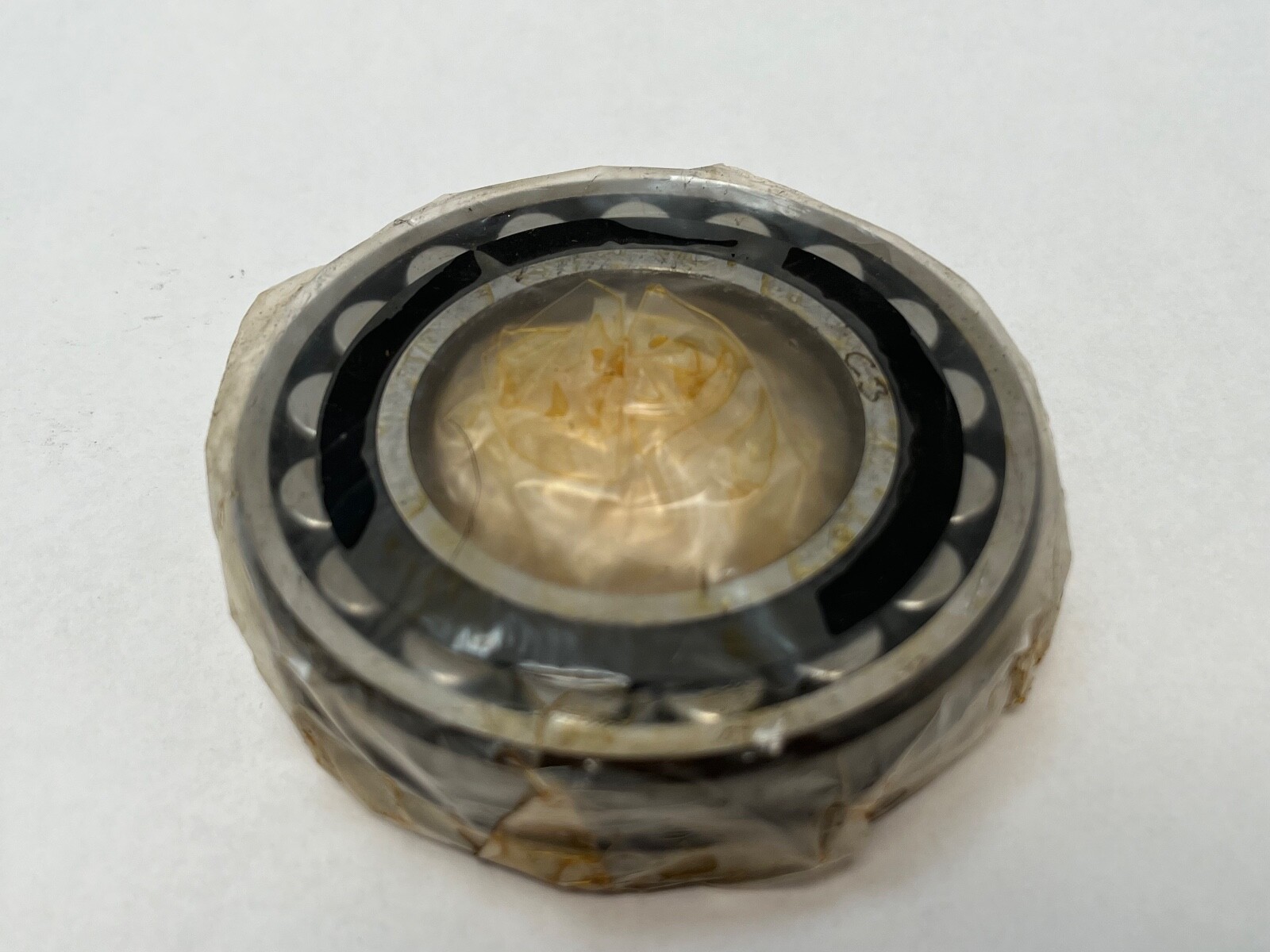

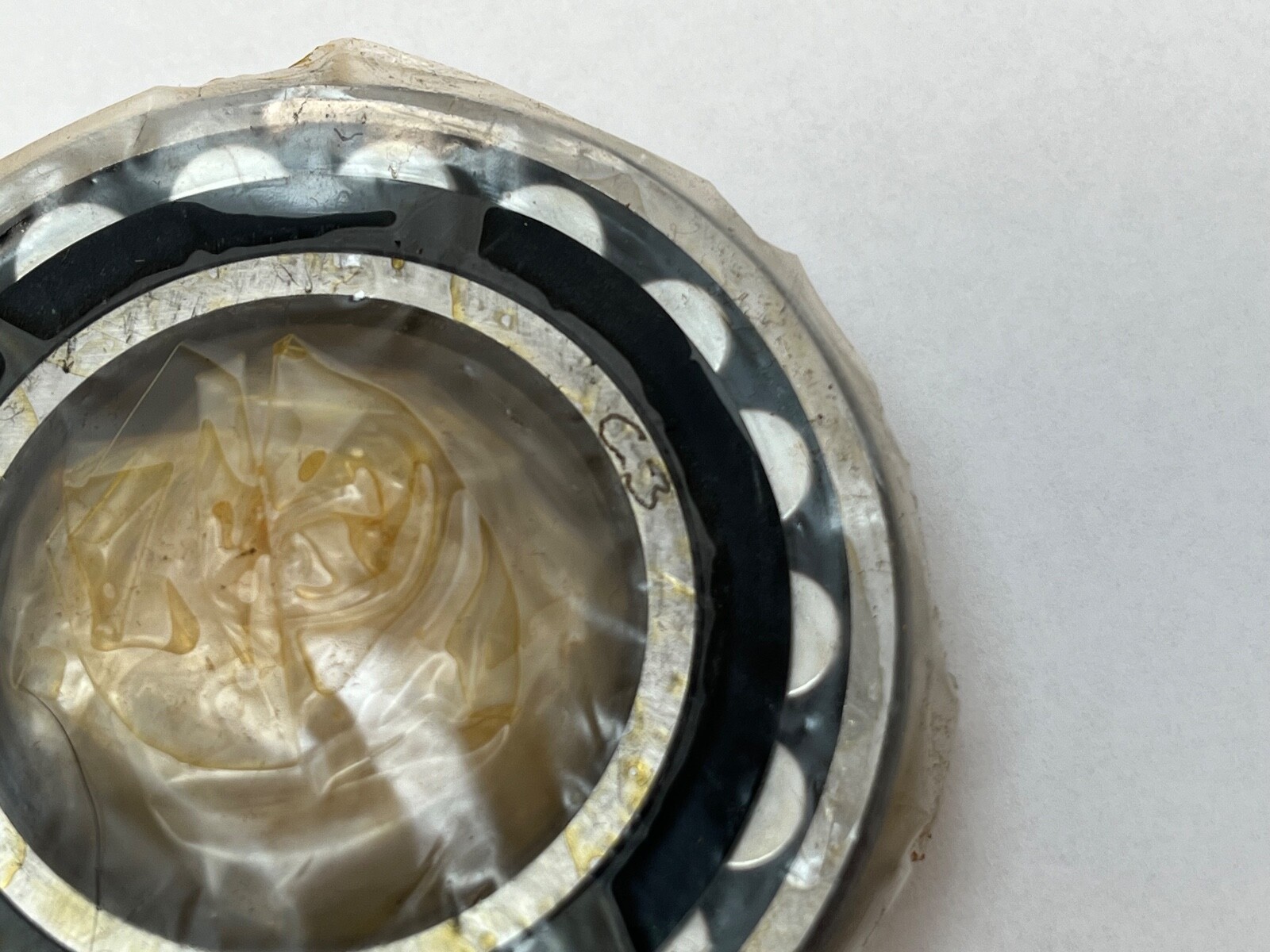

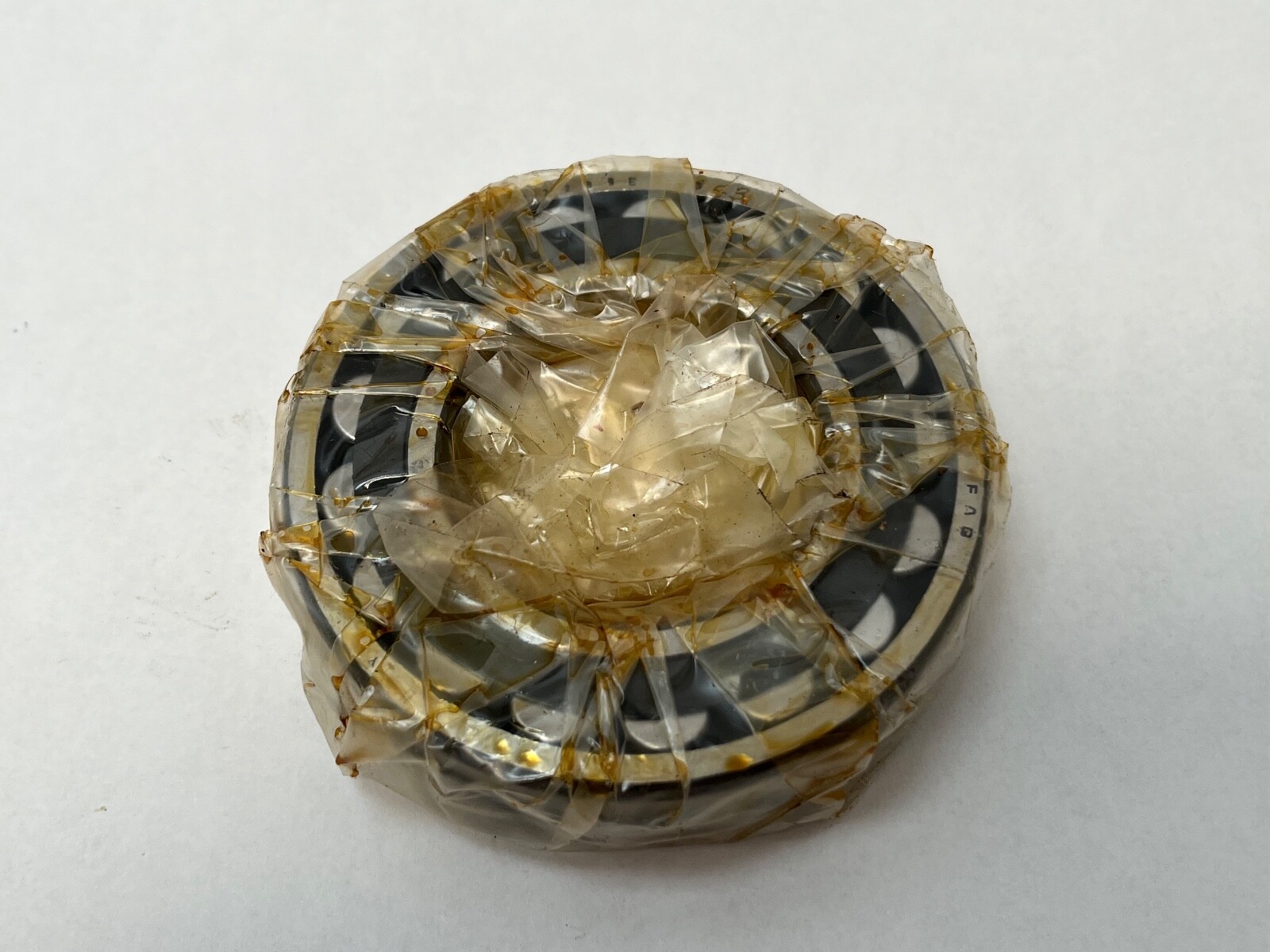

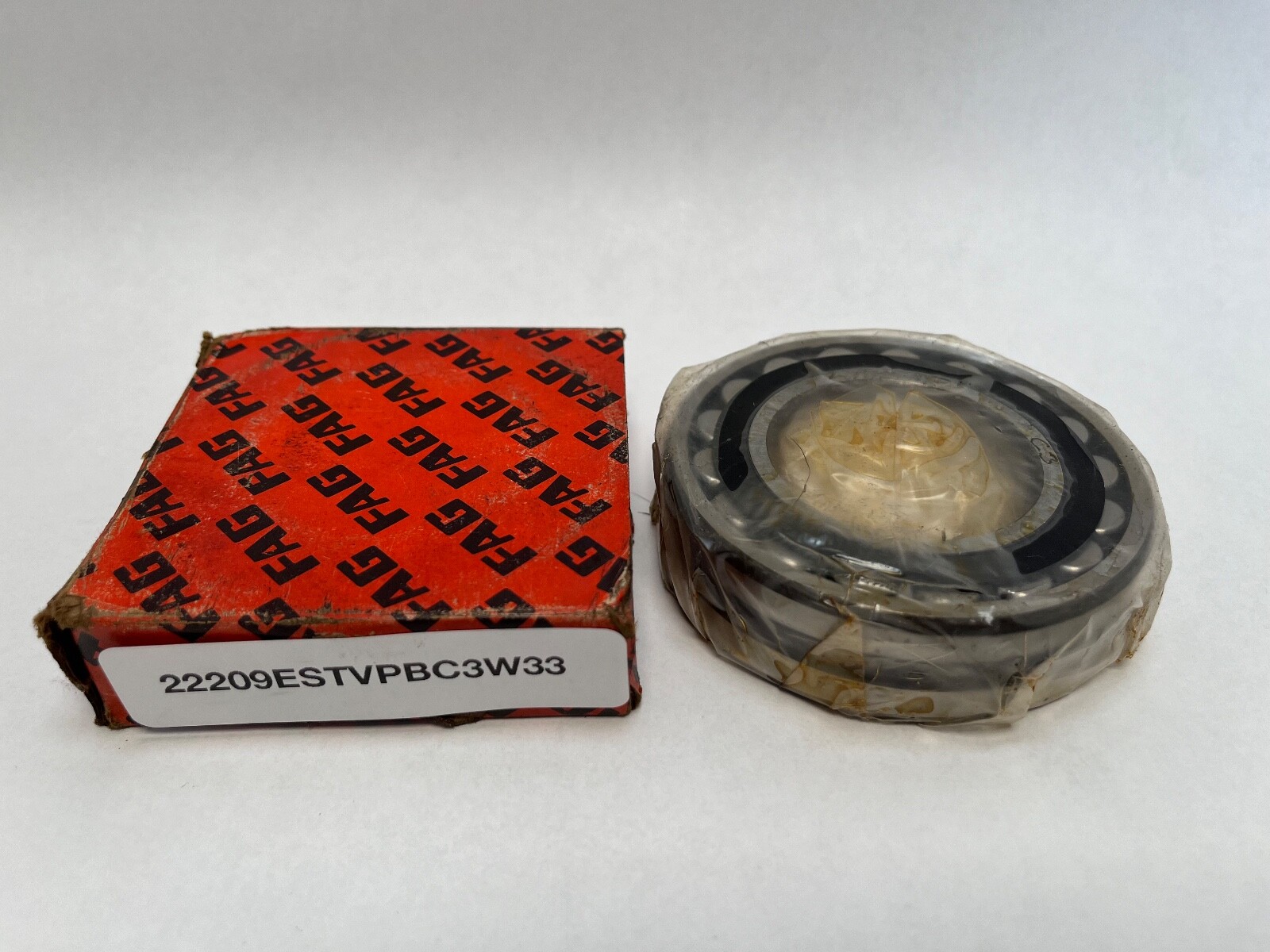

| MFR / Brand | FAG |
|---|---|
| MPN | 22209ESTVPBC3W33 |
| Model | 22209 E S TVPB C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45mm |
| OD | 85mm |
| Width | 23mm |
| Advertise | 1 |
|---|---|
| Min Temp | -30°C |
| Cage Type | TVPB - Polyamide |
| Dynamic Load Rating | 104 kN / 23400 lbf |
| Static Load Rating | 98 kN / 22000 lbf |
| Precision Rating | ABEC 1 / P0 |
| Series | 22200 |
| Rolling Elements | Spherical Rollers |
| Max Temp | 120°C |
| Condition | New |
| Item Weight | 1.19 lbs |
| Cage Material | Polyamide |
| Limiting Speed | 6300 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00 |
| Maximum Permissible Misalignment | 2° |
| Material | Bearing Steel |
| Internal Clearance | C3 |
| Cross Reference 1 | SKF 22209 E/C3 |
|---|---|
| Cross Reference 2 | NTN 22209EAD1C3 |
| Cross Reference 3 | NSK 22209EAE4C3 |
| Cross Reference 4 | Timken 22209EJW33C3 |
| Cross Reference 5 | Koyo 22209RHR C3 |
