Photo may not represent actual item. Refer to name and product specs for all details.

NTN

6311X1PX1

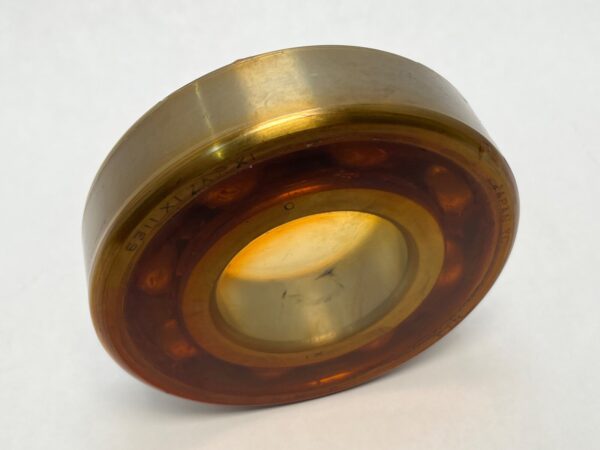

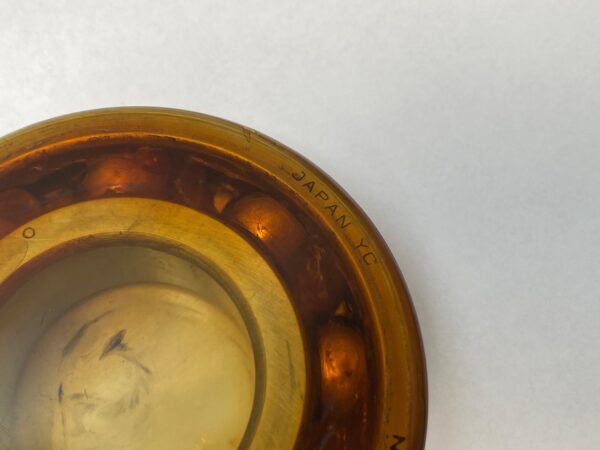

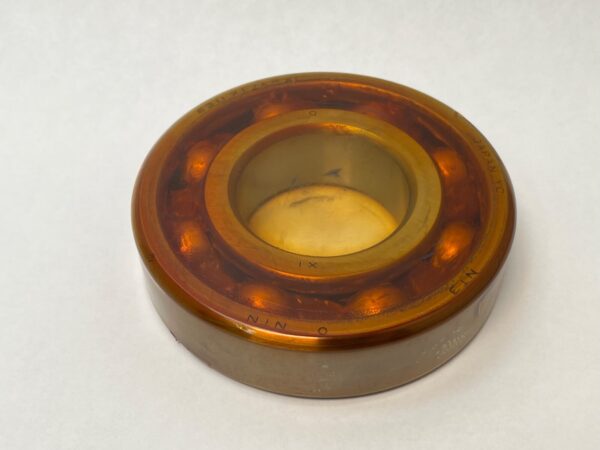

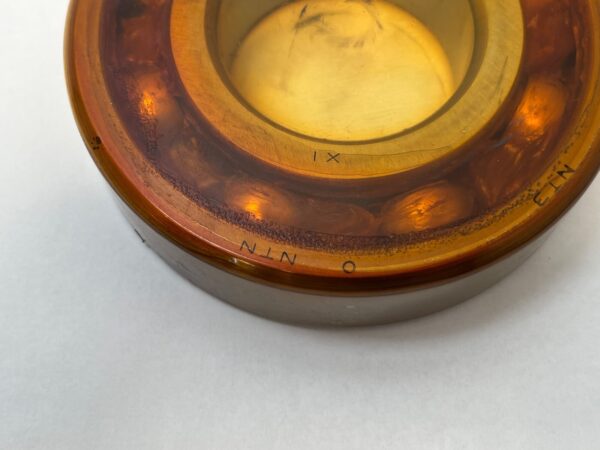

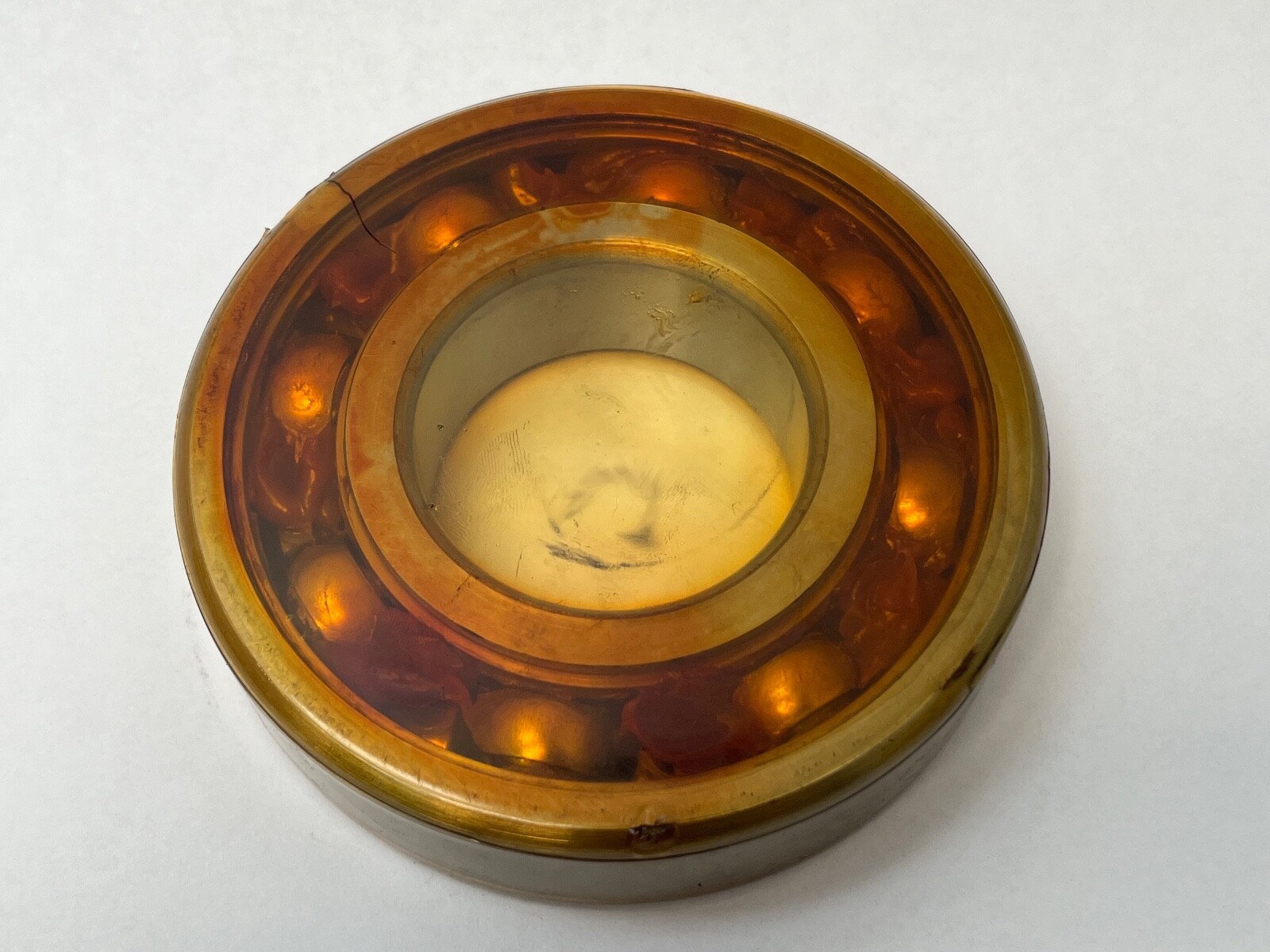

NTN 6311X1PX1 Bearing Open 55x120x29 mm 6311-X1-PX1 Japan

Condition: New – Open box

Model #: 6311 X1 PX1

Availability:

3 in stock

Categories: Ball & Roller Bearings, Bearings & Bushings, Business & Industrial, Industrial Automation & Motion Controls, Mechanical Power Transmission

List Price

$42.49

3 in stock

Need Help? Contact Support

Product Description

Deep Groove Ball Bearing – Straight Bore, 55 mm ID, 120 mm OD, 29 mm Width, Open, Without Snap Ring.

Specifications

Additional information

Key Specifications

MFR / Brand	NTN
MPN	6311X1PX1
Model	6311 X1 PX1
Bearing Type	Ball Bearing, Open
ID	55 mm
OD	120 mm
Width	29 mm

Specifications

Material	Chrome Steel
Min Temp	-40 °C
Cage Type	Pressed
Dynamic Load Rating	71.5 kN / 16073 lbf
Static Load Rating	44.5 kN / 10004 lbf
Precision Rating	ABEC 1 / P0
Series	6300
Rolling Elements	Ball
Max Temp	120 °C
Condition	New – Open box
Item Weight	3.02 lbs
Cage Material	Steel
Limiting Speed	6700 rpm
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Harmonization Code	8482.10.50.68
Internal Clearance	CN
