Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
List Price
$127.49
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | ZD |
|---|---|
| MPN | 4IK25GN-C |
| Model | 4IK25GN-C / 4GN25K |
| Insulation Class | B |
|---|---|
| Base Rpm | 1350 |
| Current Type | AC |
| Ip Rating | IP20 |
| Nominal Rated Input Voltage | 220V |
| Gear Ratio | 25:1 |
| Ac Phase | 1-Phase |
| Shaft Angle | Parallel |
| Full Load Amps | 0.25 A |
| Output Power | 25 W |

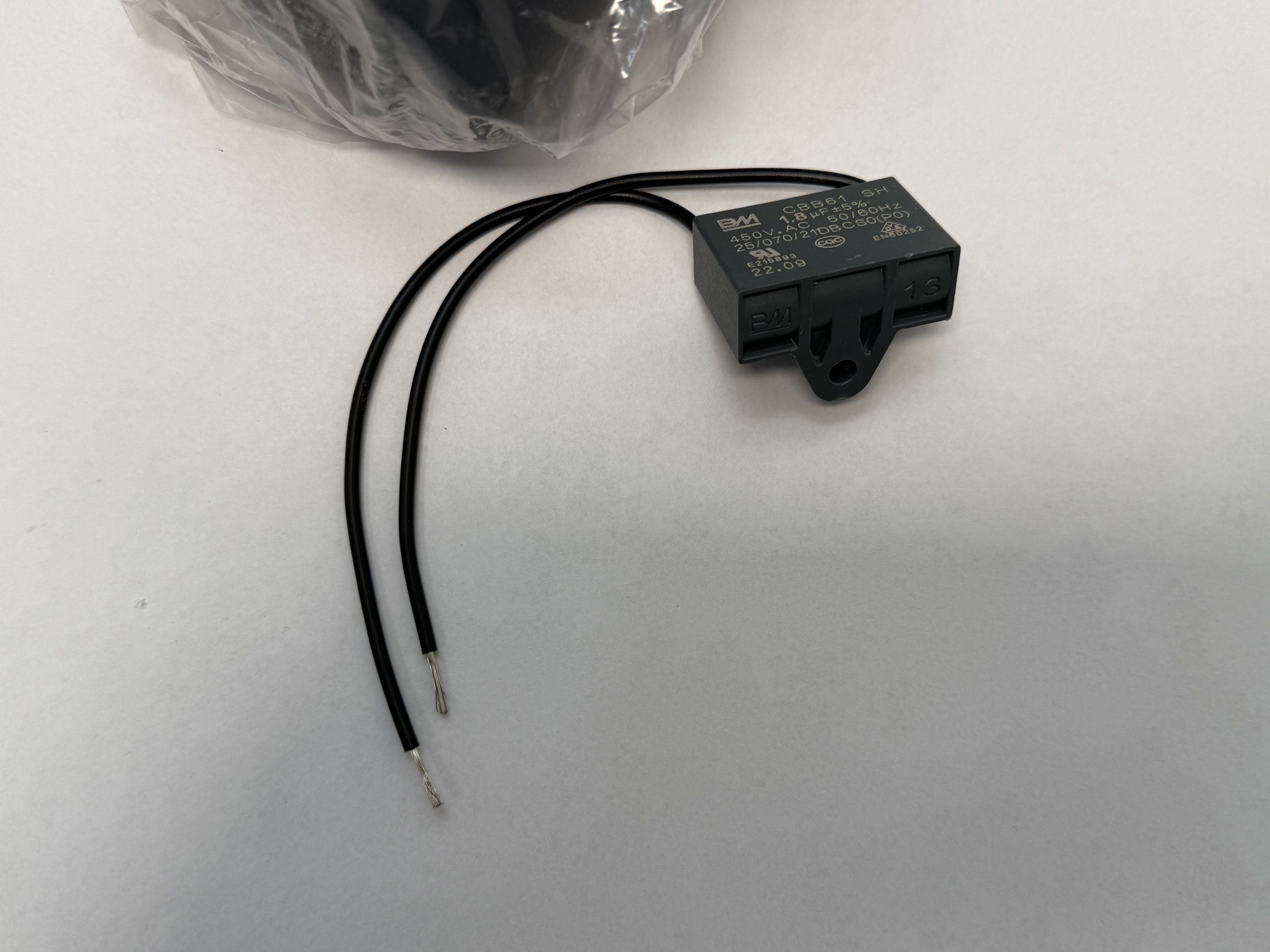

| Capacitor | 1.8uF/450V Included |
| Gearhead | 4GN25K |

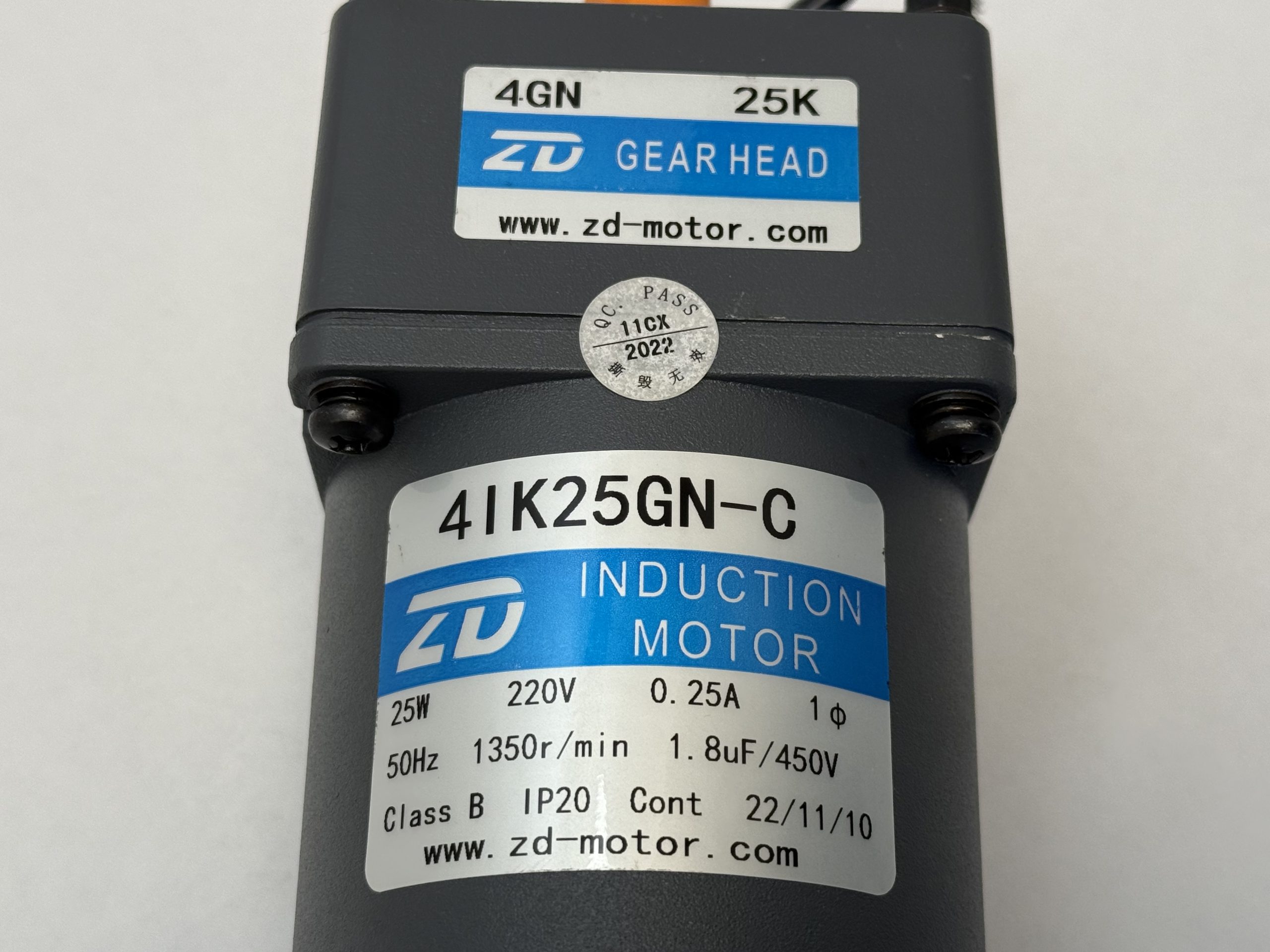

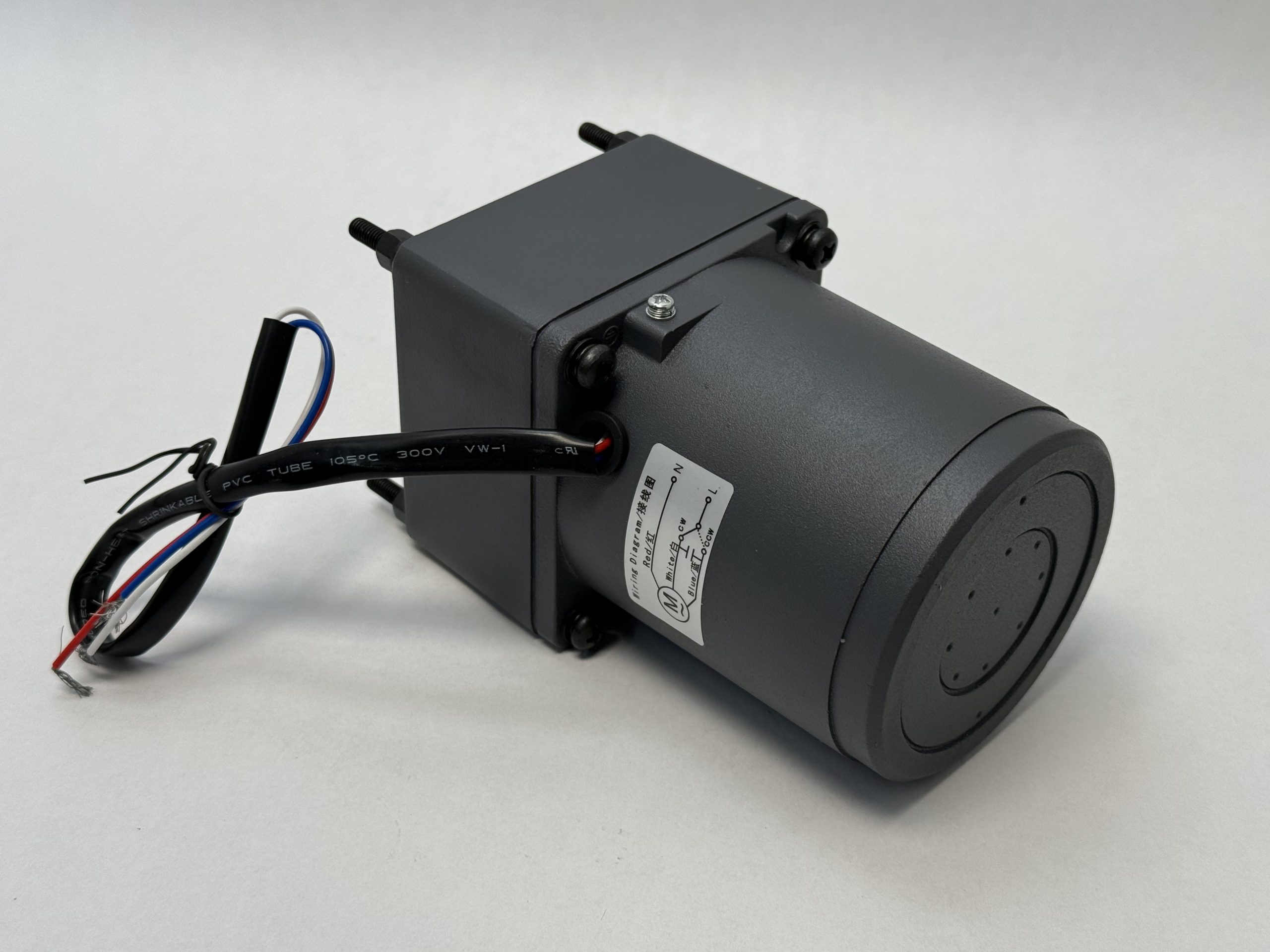

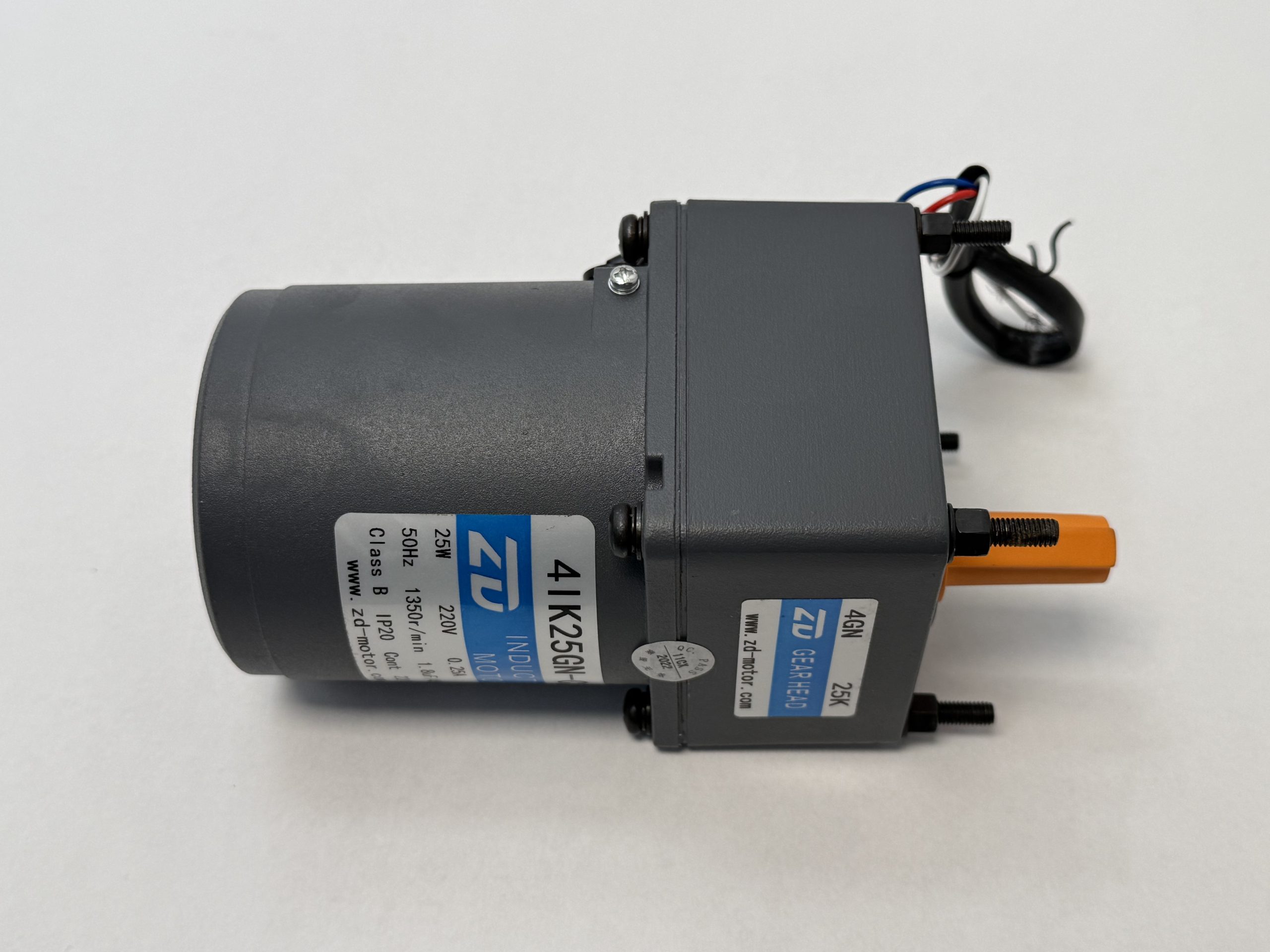

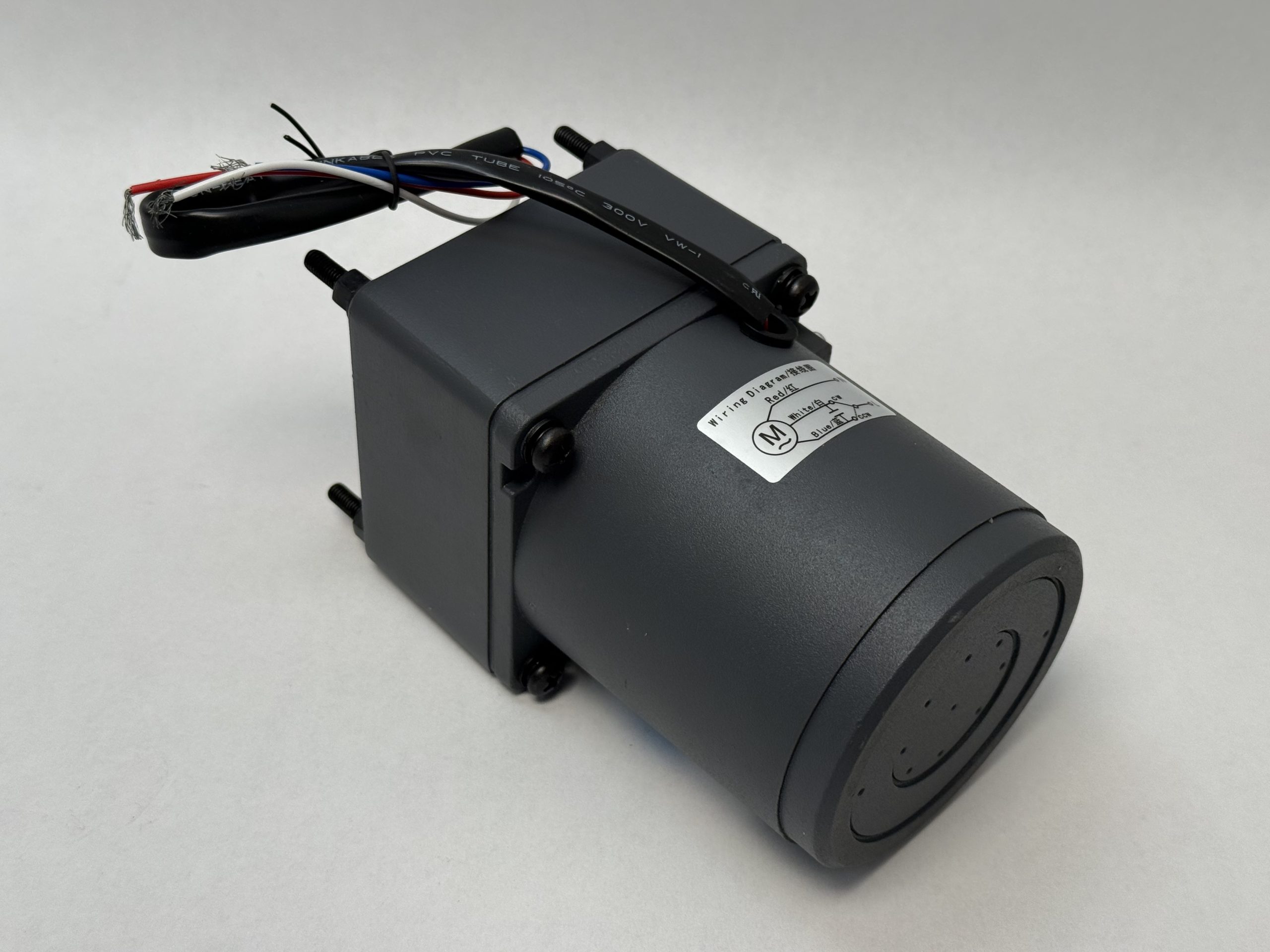

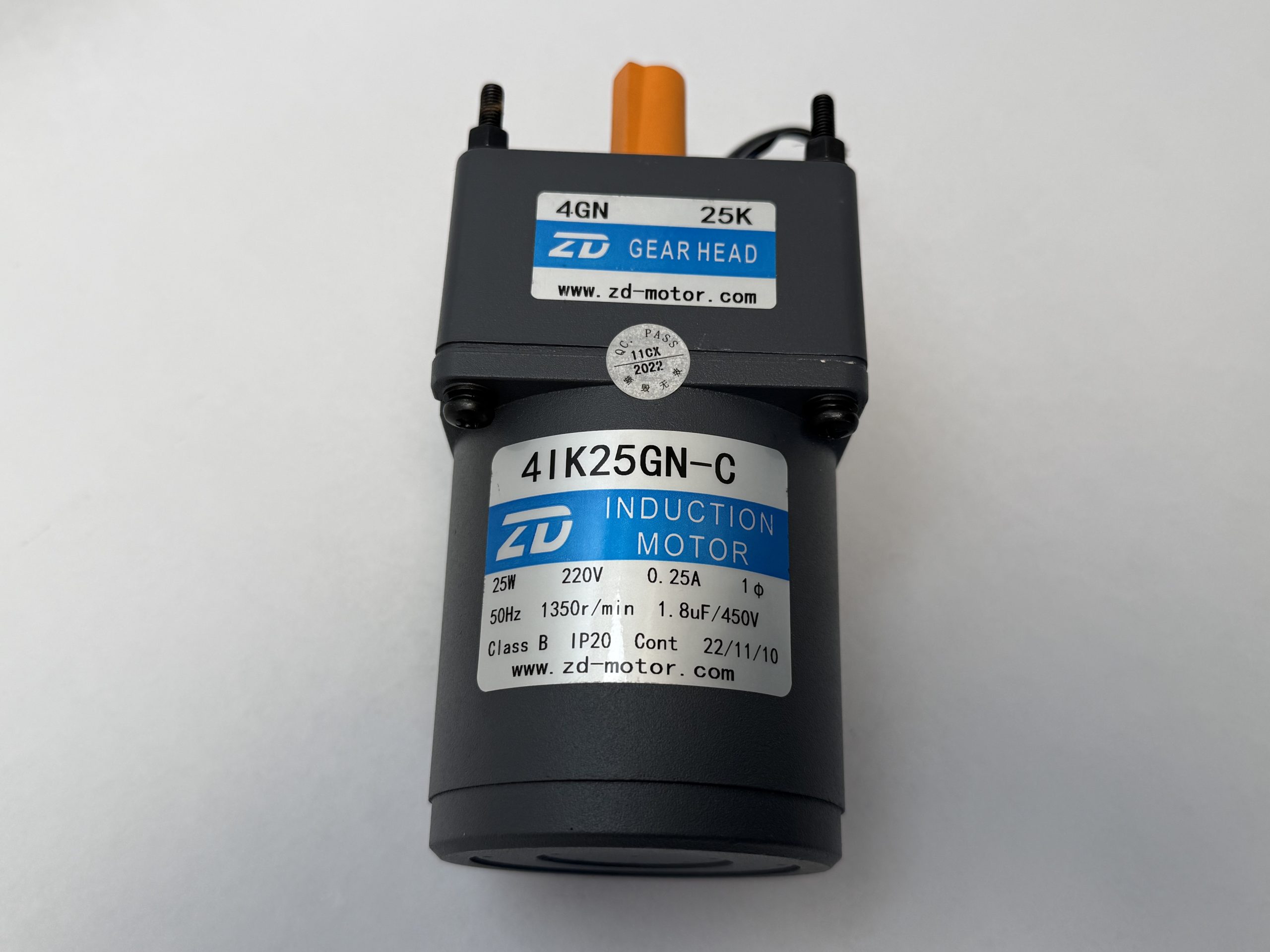

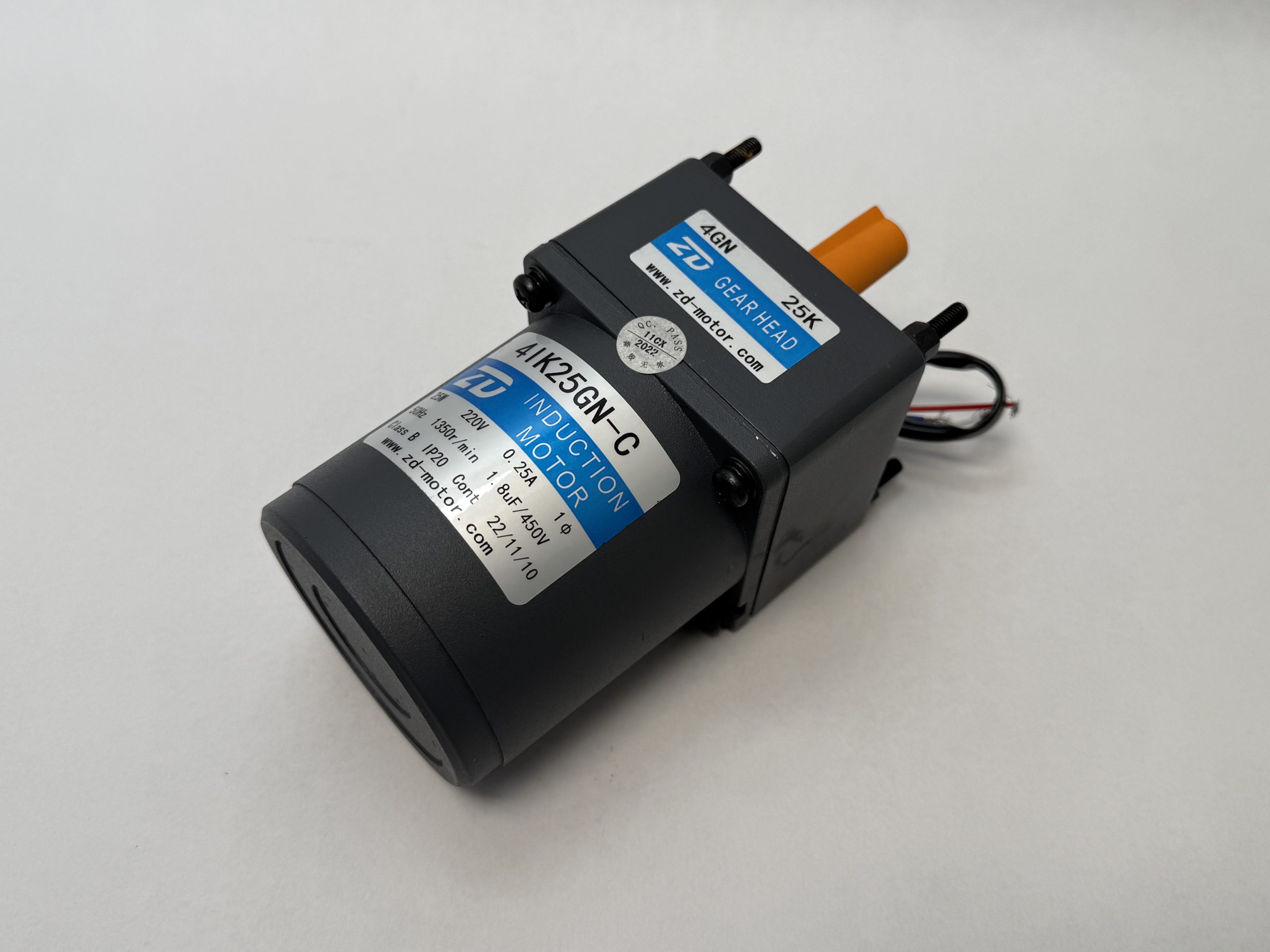

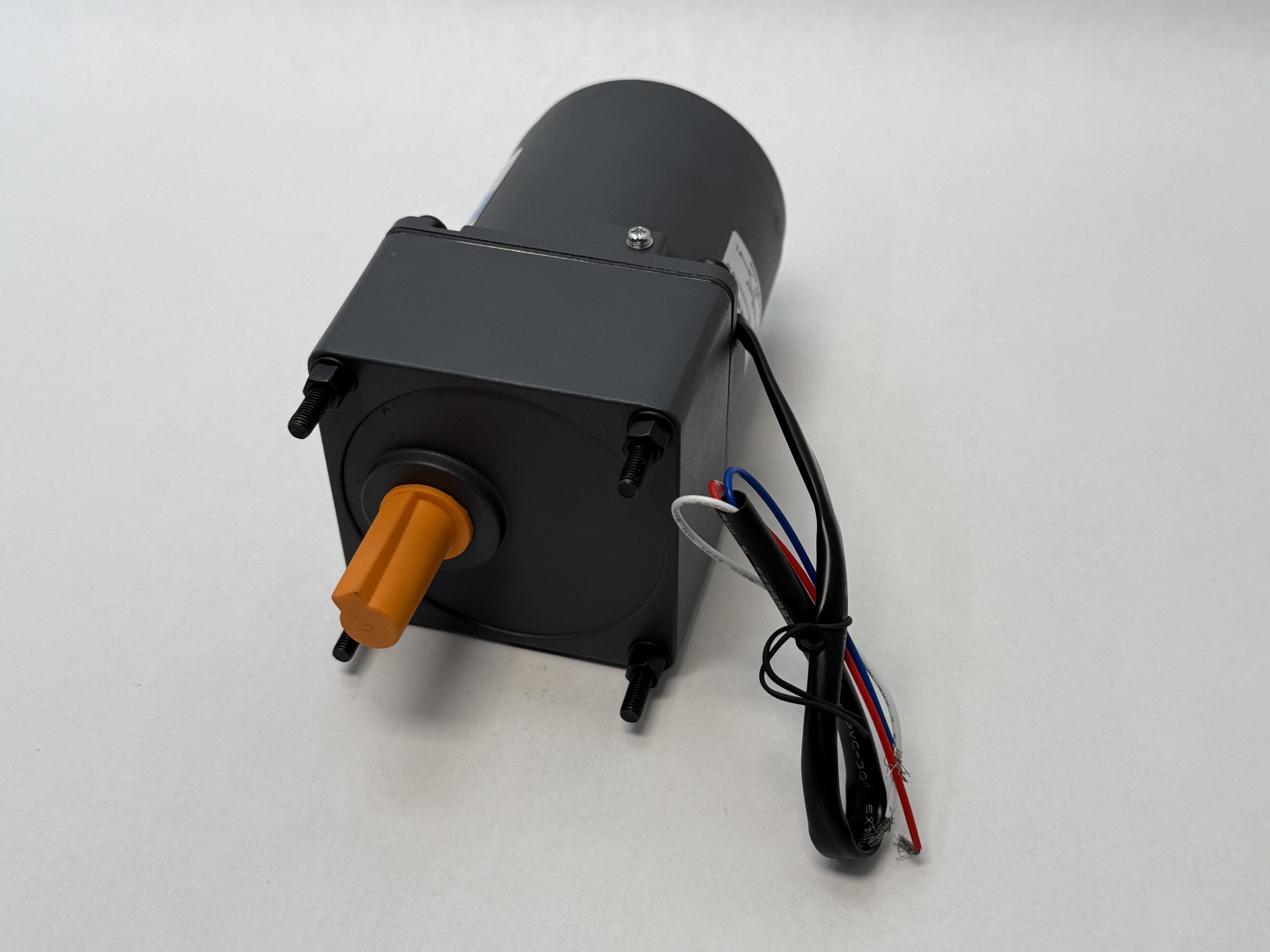

One (1) ZD 4IK25GN-C single-phase induction motor, 25 W, 220 V, fitted with a ZD 4GN 25K gear head at 25:1. The run capacitor is included. The nameplates read www.zd-motor.com, with a 2022 QC pass sticker; the motor label is dated 22/11/10.

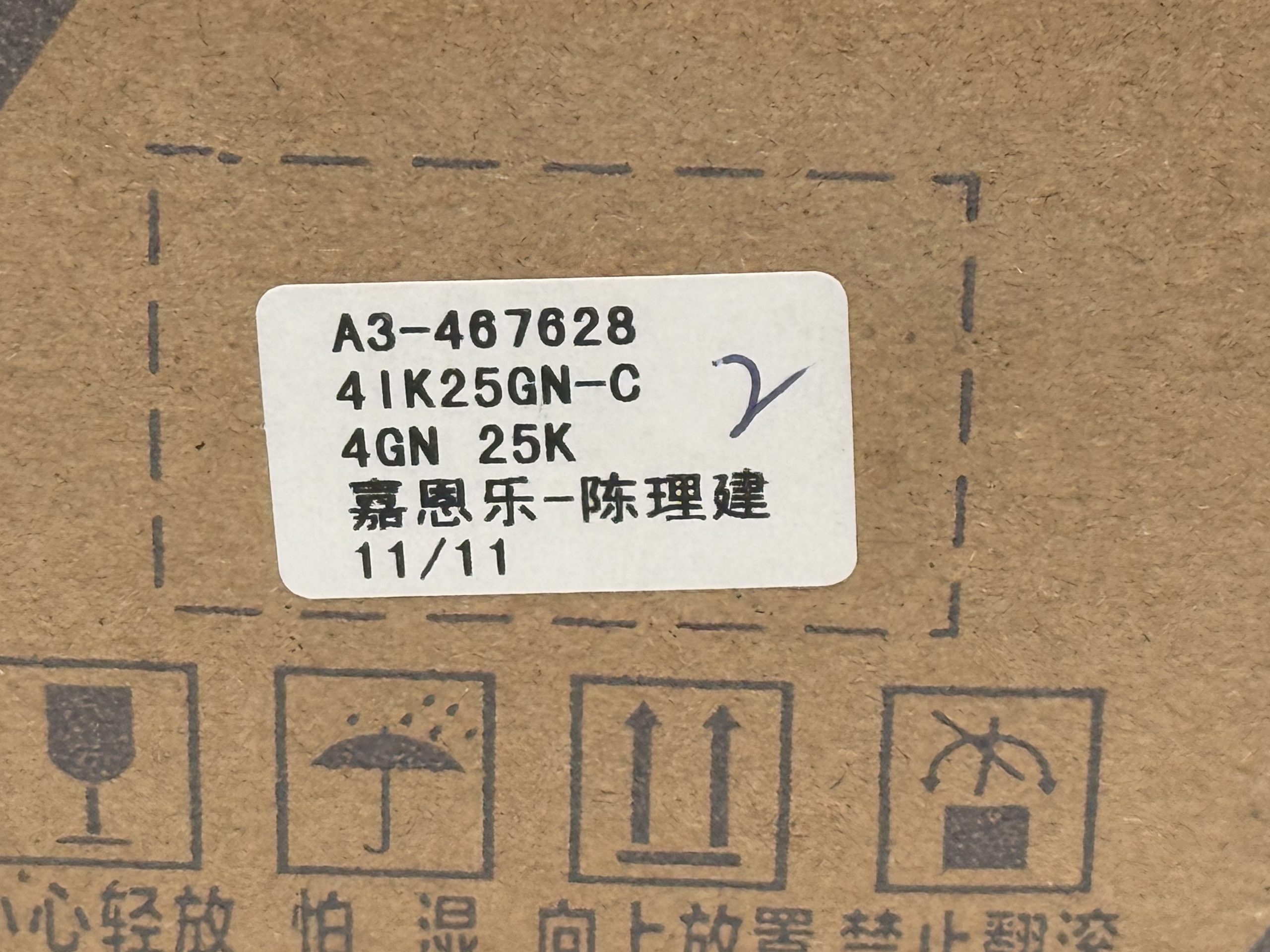

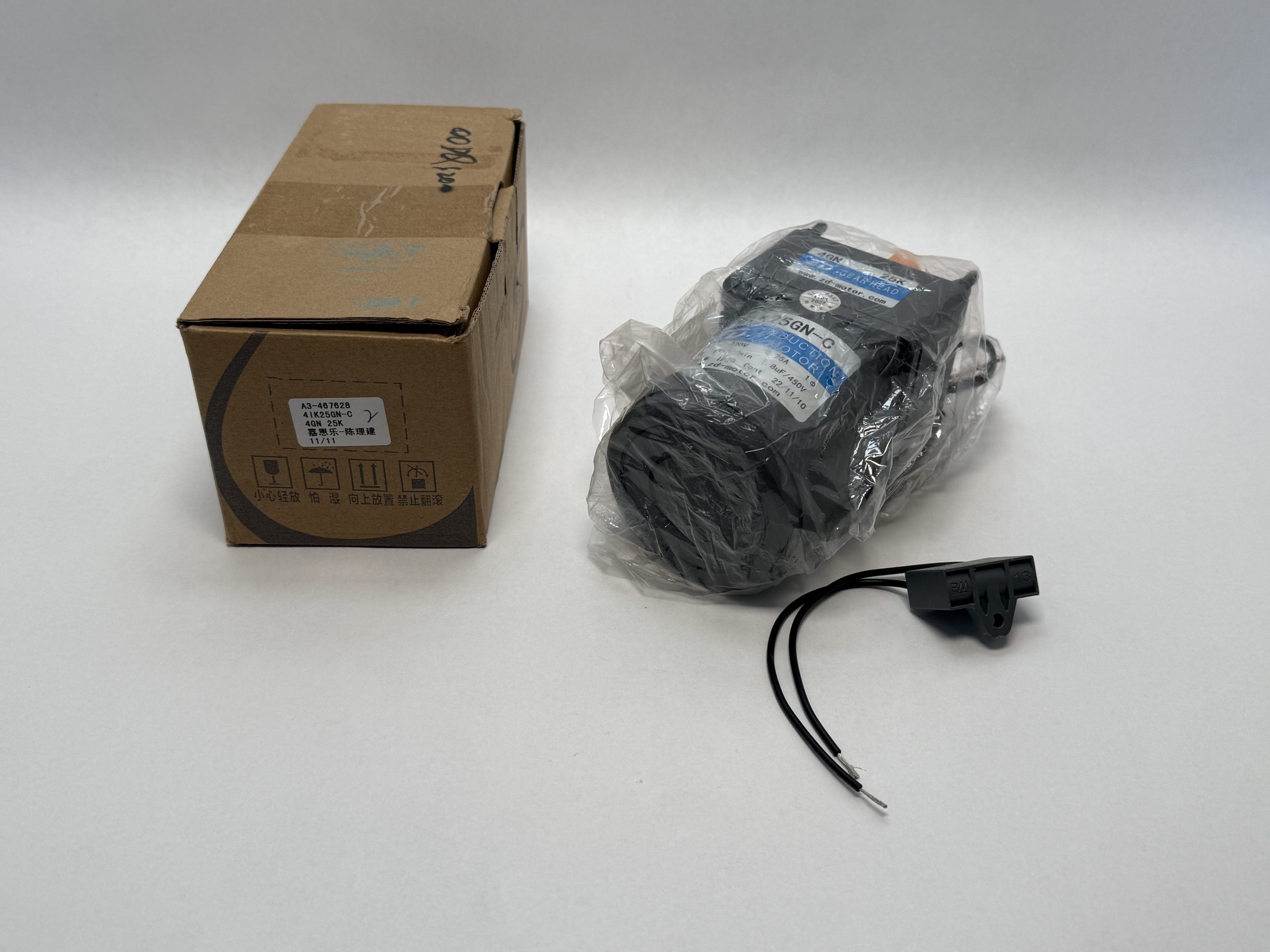

New, in its original box and bag.
4IK25GN-C — the motor: a 25 W induction motor with a GN-type pinion shaft that mates directly to a GN gear head.
4GN25K — the matching GN gear head; 25 is the 25:1 ratio.
This is the common 4IK25GN-C / 4GN-K size, so it is also searched as 4IK25GN-C 4GN25K and 4GN-25K. Output speed works out to about 54 rpm at 50 Hz (motor 1350 rpm divided by 25).
