CembreGF-M10Insulated Ring Terminal 12-10 AWG M10 Yellow 2054250 Lot Of 900

Product Description

What this is

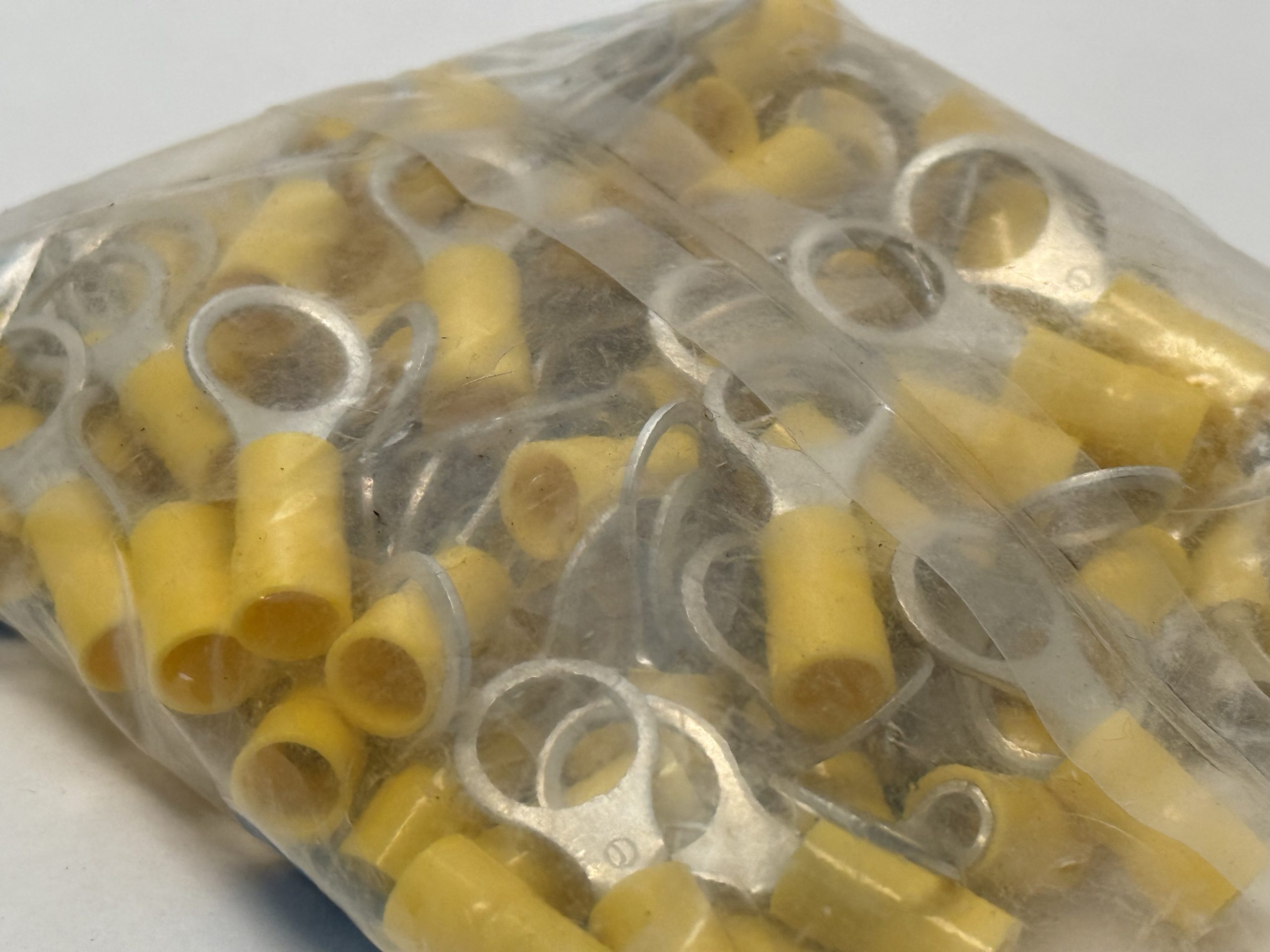

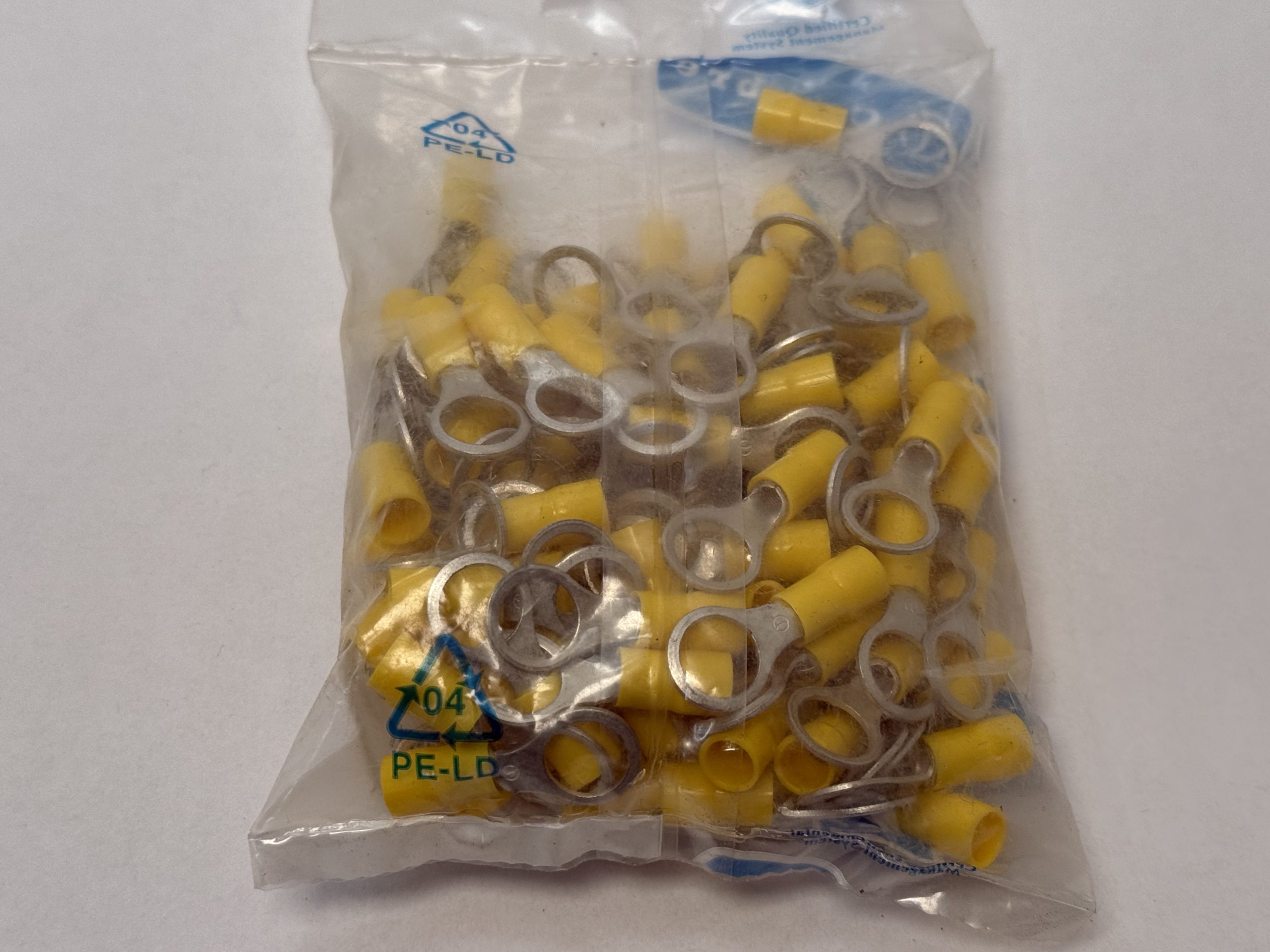

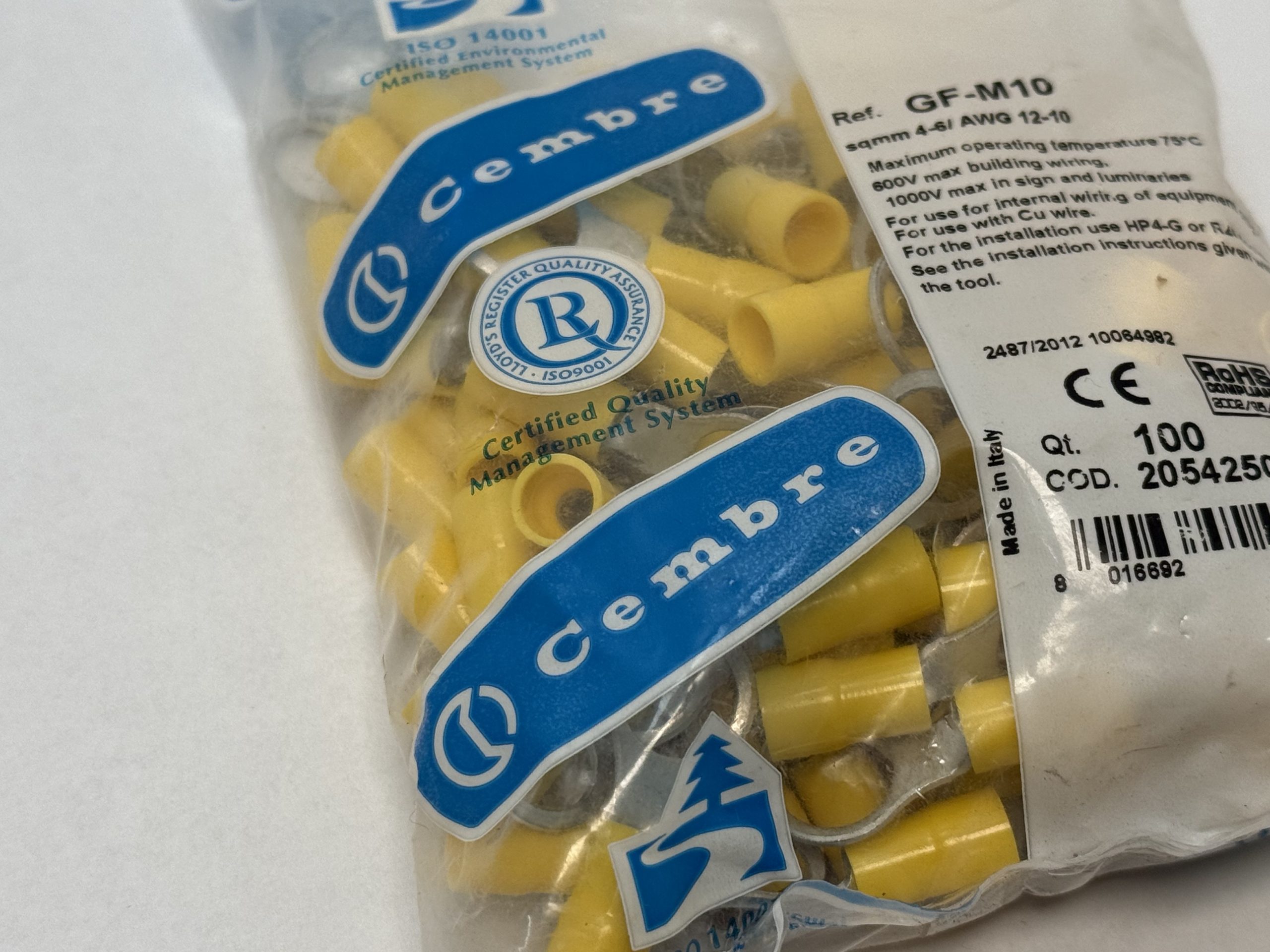

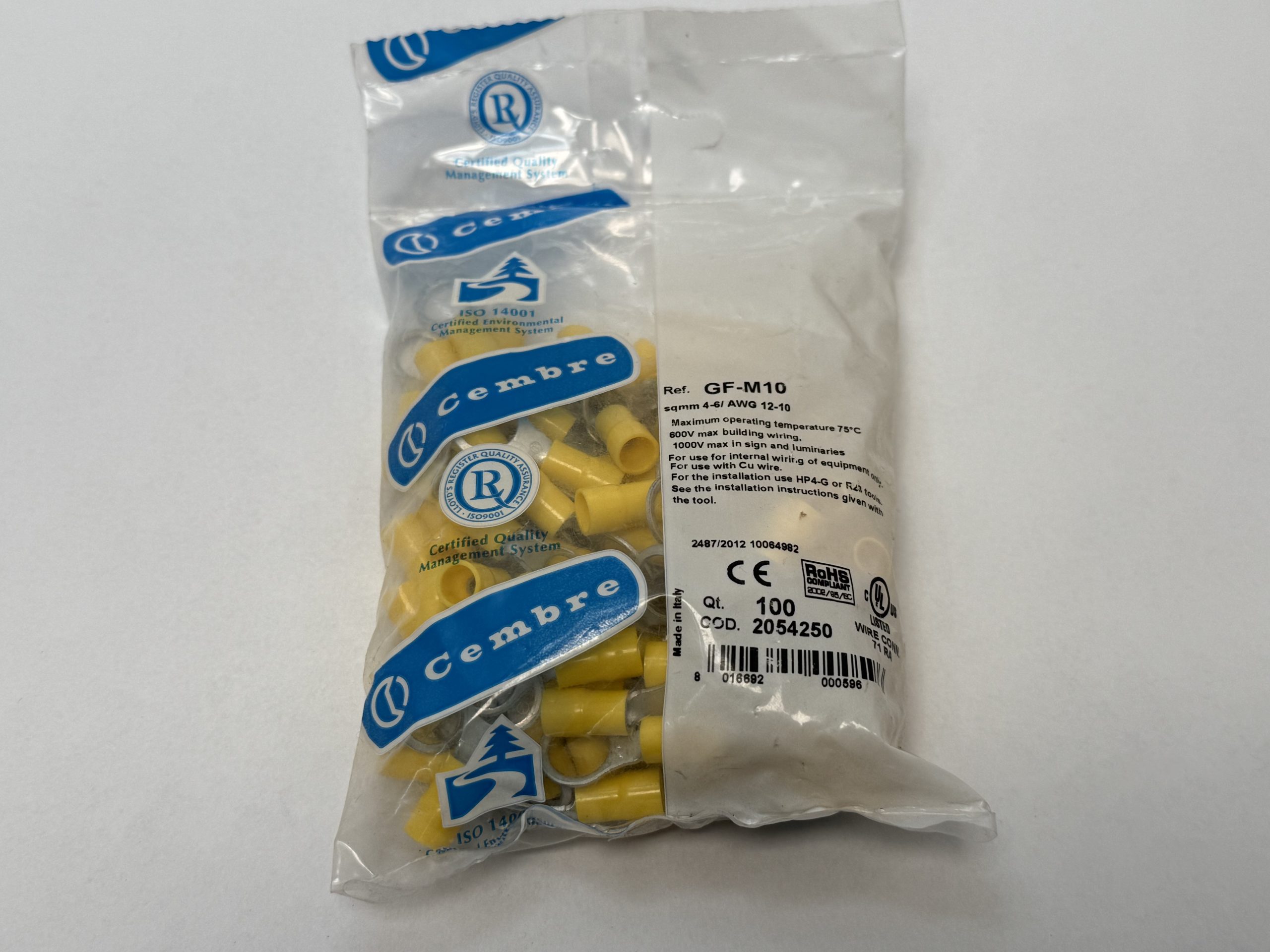

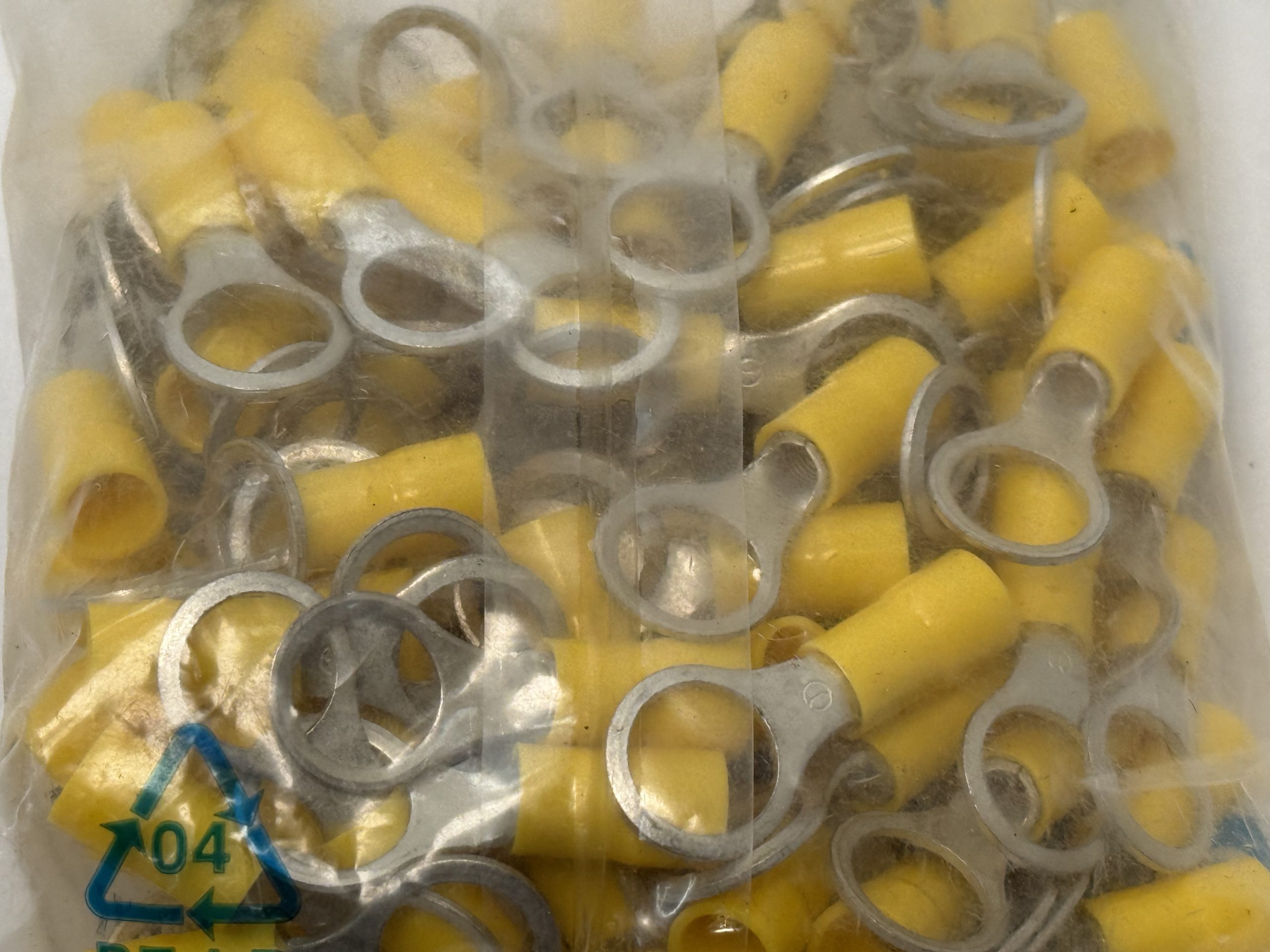

900 Cembre GF-M10 yellow insulated ring terminals for 4–6 mm² (12–10 AWG) copper wire with an M10 stud hole, Cembre code 2054250. Supplied as nine factory bags of 100.

How the part number breaks down

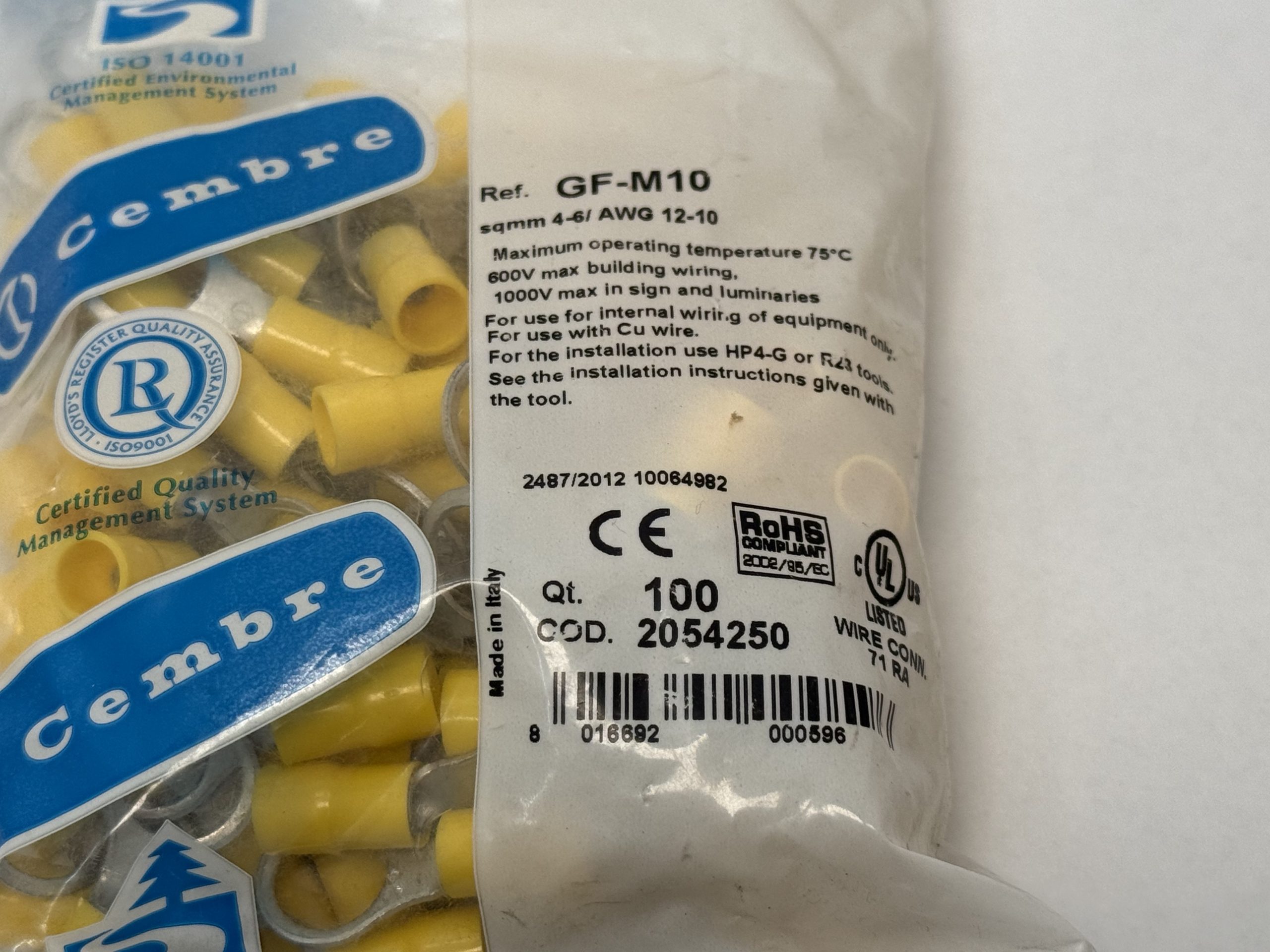

• GF – Cembre insulated terminal series for 4–6 mm² / 12–10 AWG (bag label)
• M10 – M10 stud hole
• 2054250 – Cembre code number

Item Specifications

• Brand: Cembre
• Ref.: GF-M10
• Code: 2054250
• Wire size: 4–6 mm² / 12–10 AWG, Cu wire
• Stud: M10
• Insulation: yellow
• Max. operating temperature: 75 °C
• Voltage: 600 V max building wiring, 1000 V max in signs and luminaries
• Installation tool: Cembre HP4-G or RA3 (per bag label)
• Approvals: UL listed wire connector 71RA, CE, RoHS
• EAN: 8016692000596

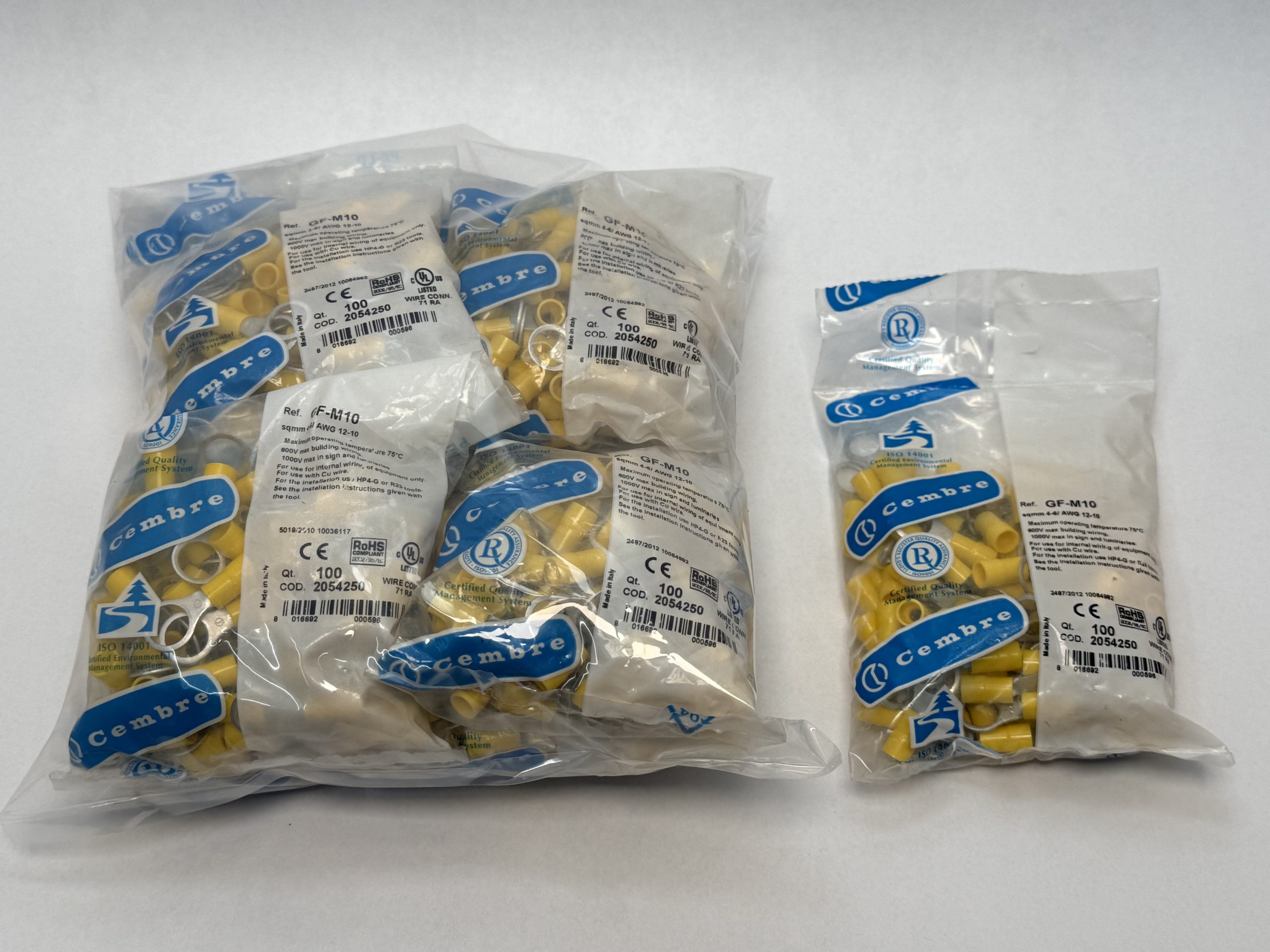

• Quantity: 900 (9 bags of 100)
• Country of origin: Italy
