Sandvik CoromantSNMG 642-PR 4235Square Negative Turning Insert — 19 mm Inscribed Circle, 6.35 mm Thick, 0.8 mm Corner Radius, Grade 4235 Carbide

Condition: New – Open box

Availability:

1 in stock

Sandvik Coromant SNMG 19 06 08-PR 4235 square negative carbide turning insert for T-Max P, 19 mm IC, 6.35 mm thick. Set of 2 inserts, opened box.

Same day shipment

List Price

$16.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandSandvik Coromant
MPNSNMG 642-PR 4235
ModelSNMG 190608-PR

Technical Specifications

Insert MaterialCarbide
Grade4235
Iso DesignationSNMG 19 06 08-PR
Insert ShapeSquare
Insert TypeTurning
SeriesT-Max P
Industry TermsSNMG insert; SNMG 642; SNMG 190608; square turning insert; negative turning insert; T-Max P insert; carbide turning insert
Common MisspellingsSandvick SNMG; Sandvik Coramant; Sandvik Coromont; SNMG 642PR 4235; SNGM 642-PR
Application TypesCNC turning (roughing) of steel and stainless steel
Mpn VariantsSNMG 642-PR 4235; SNMG 190608-PR 4235; SNMG 19 06 08-PR 4235; SNMG190608-PR 4235; SNMG642-PR; SNMG 642 PR
Additional AttributesISO SNMG 19 06 08-PR / ANSI SNMG 642-PR; box cutting data steel ap 5.0 mm, fn 0.35 mm/r, vc 195 m/min; stainless ap 5.0 mm, fn 0.35 mm/r, vc 170 m/min
Seller Part Number: AN1B2#LAAXCJ

Product Description

What this part is:

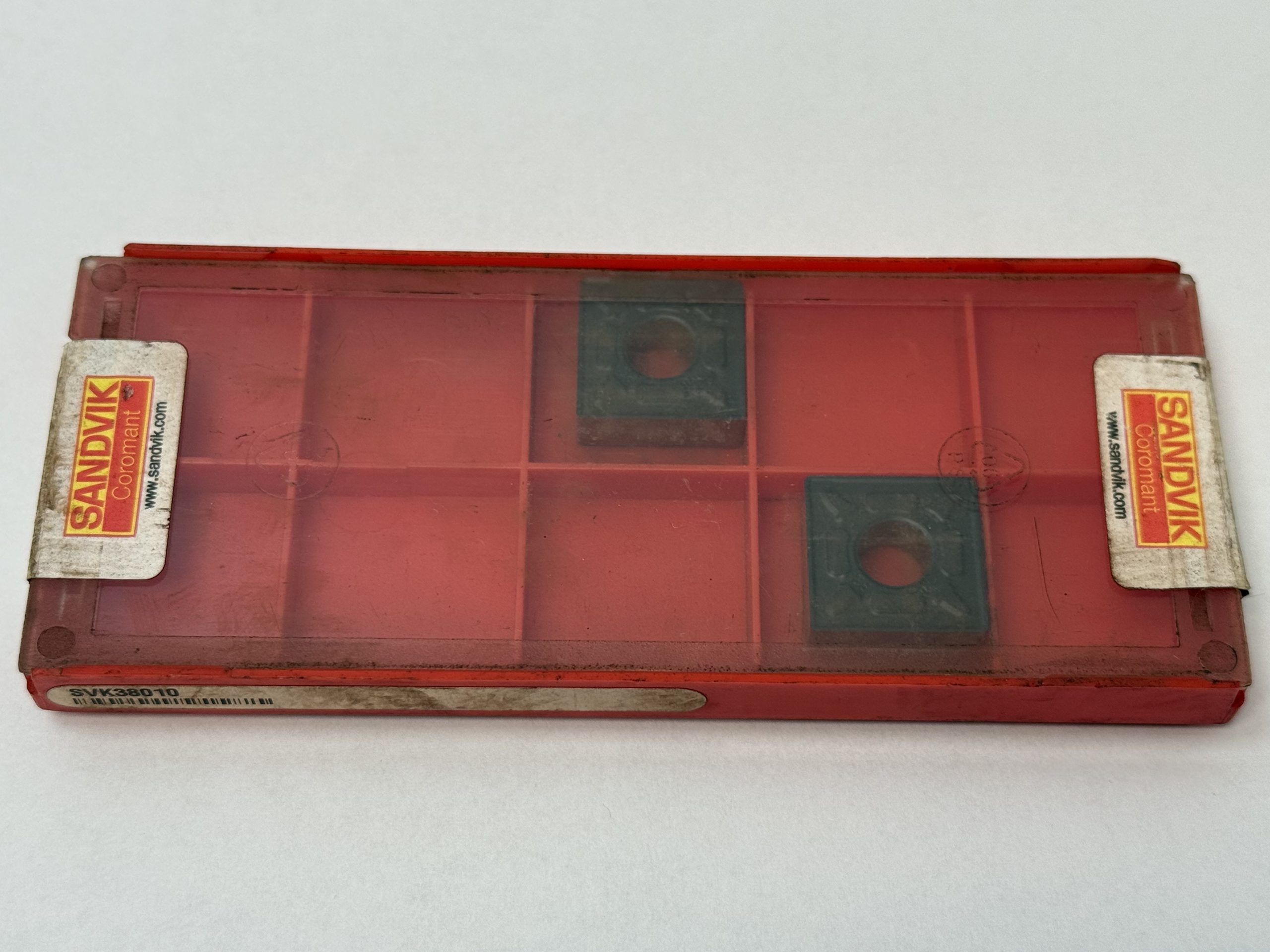

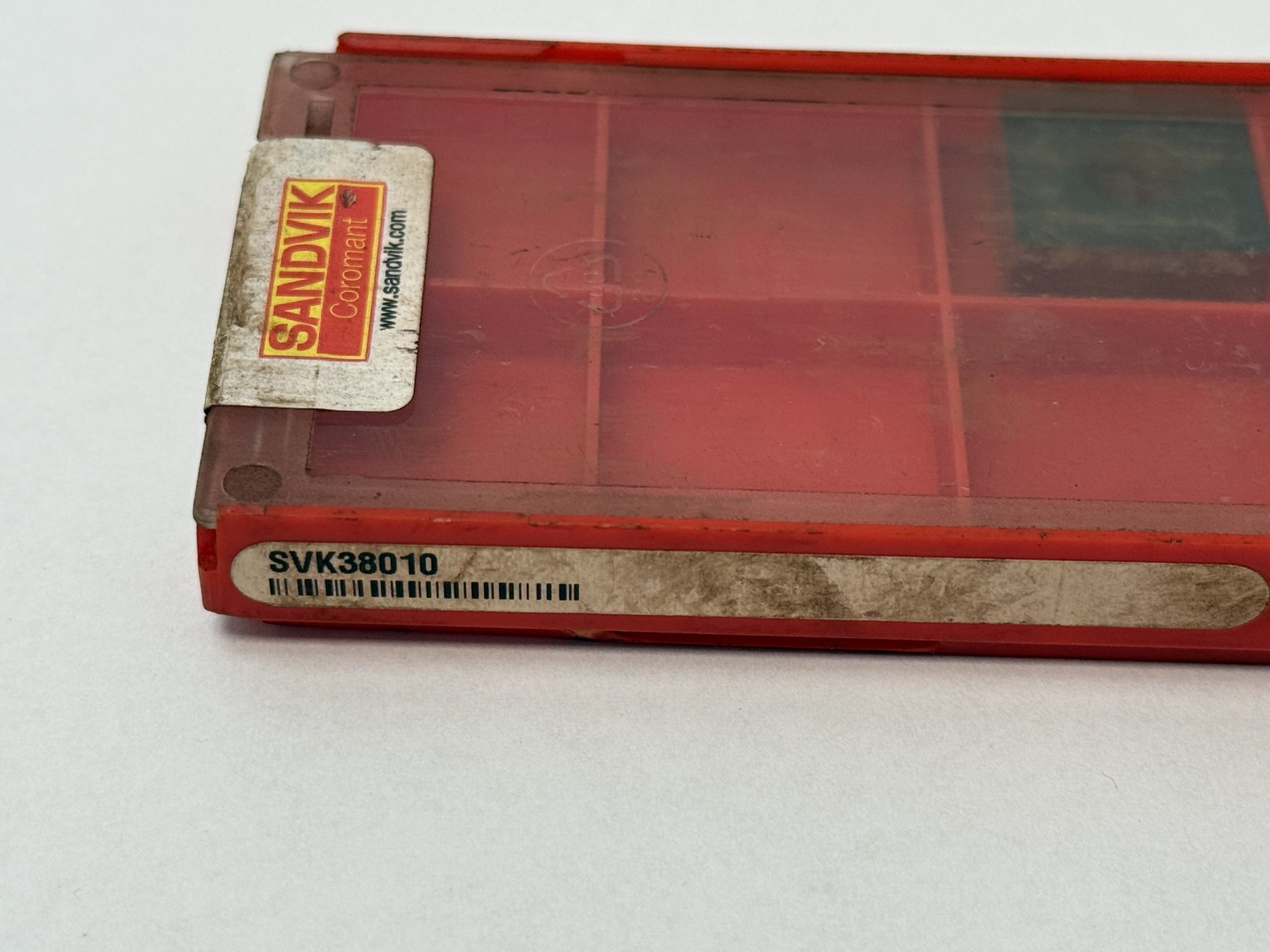

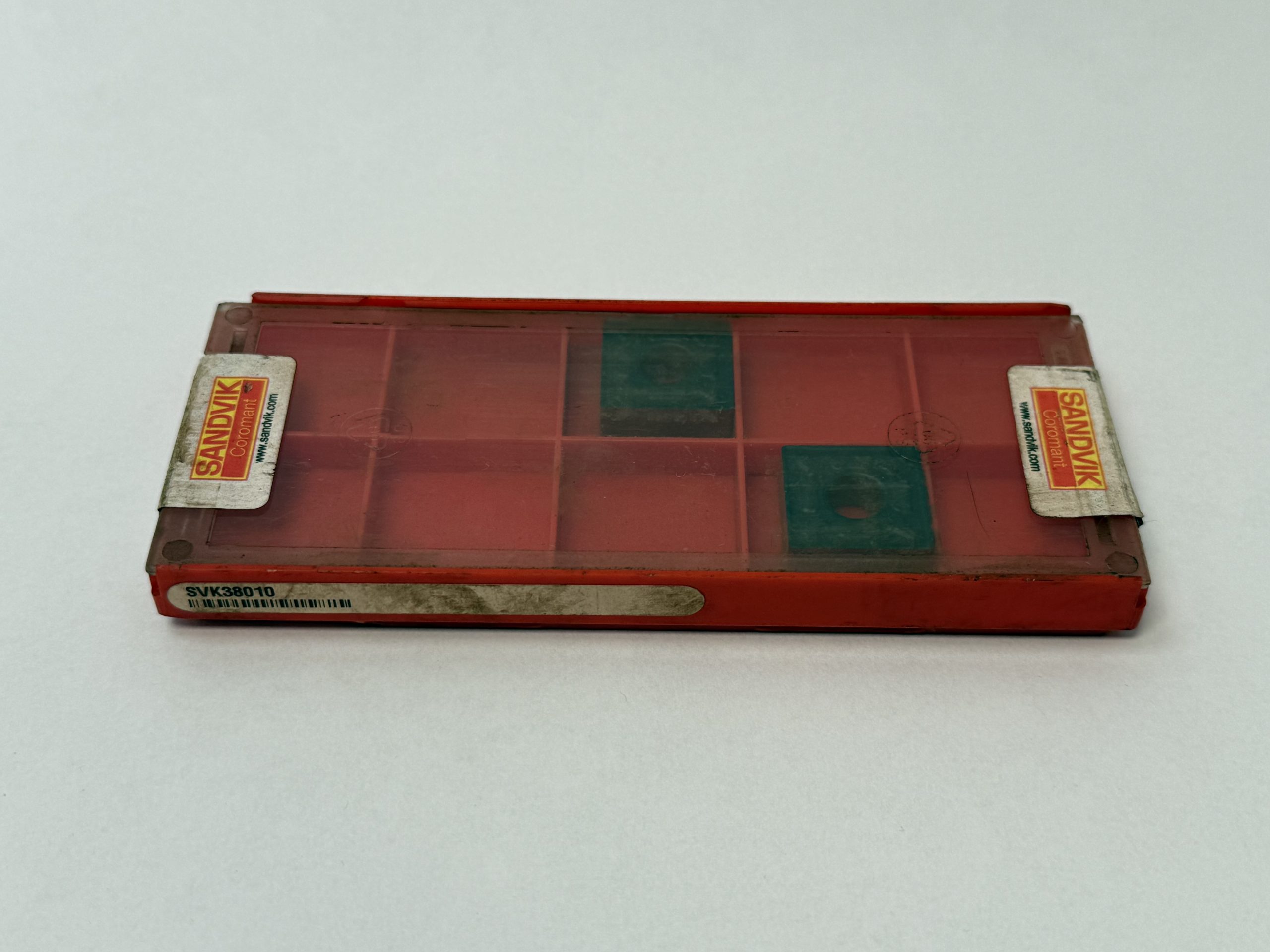

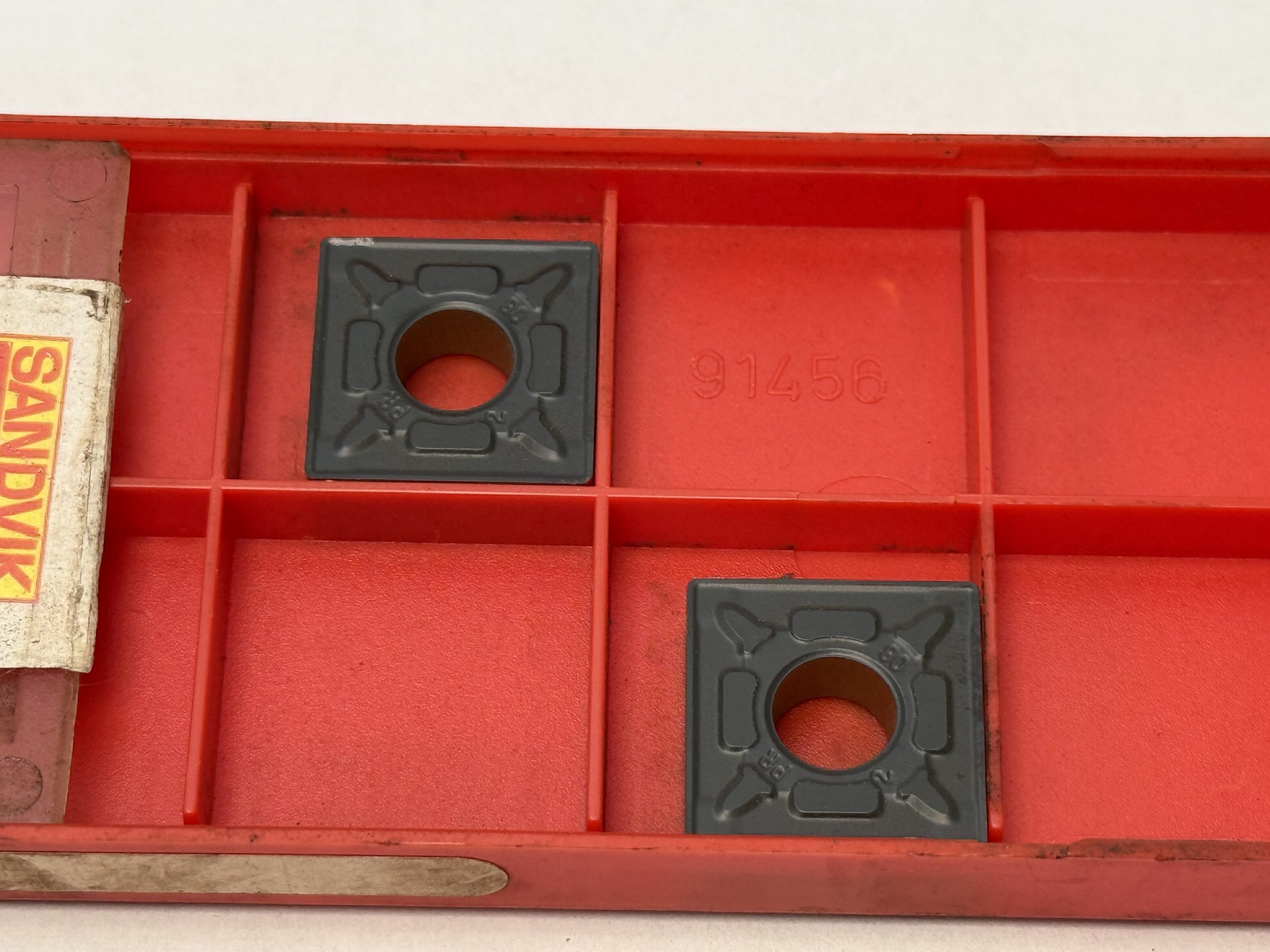

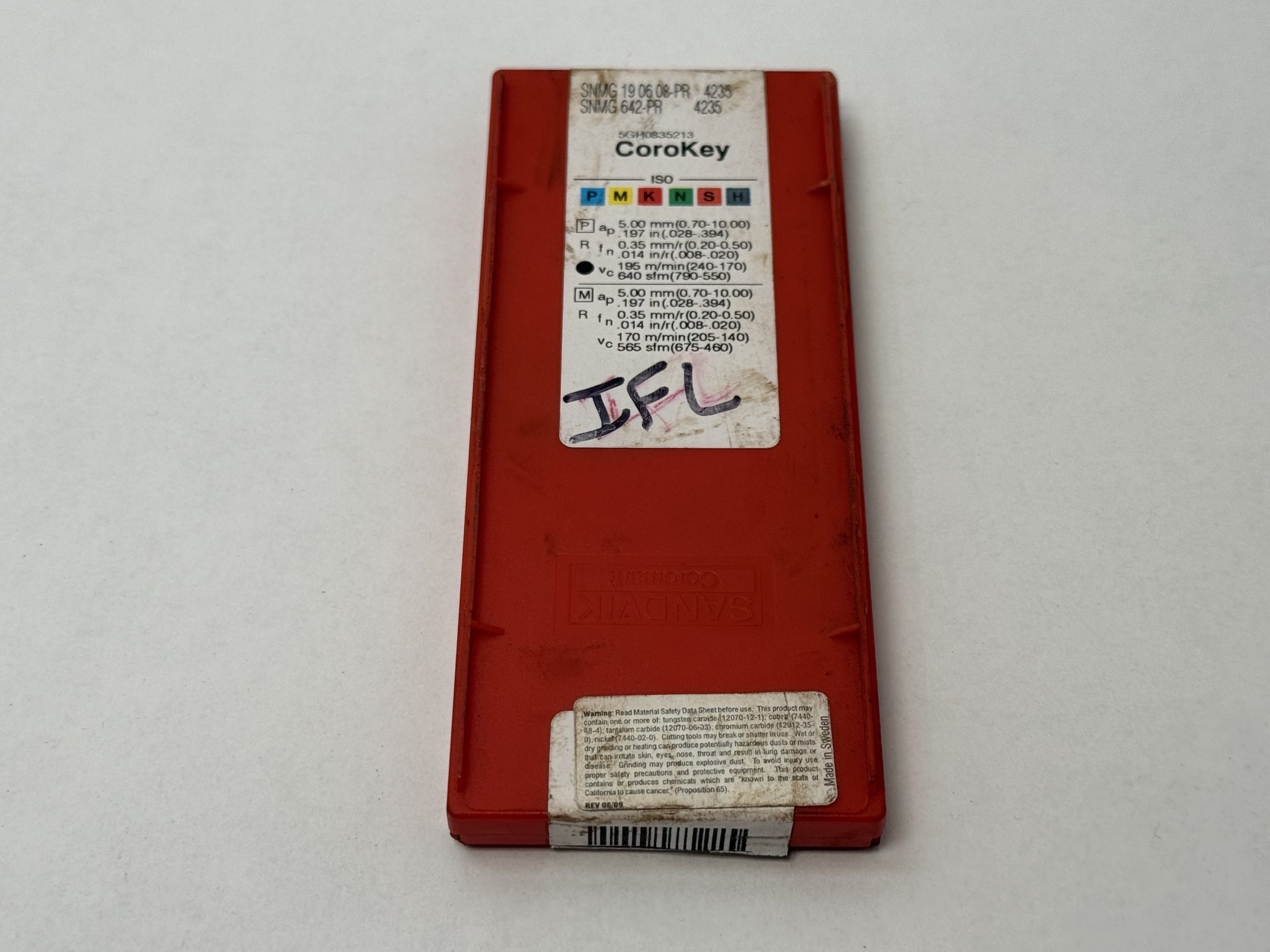

Sandvik Coromant SNMG 642-PR (ISO SNMG 19 06 08-PR) grade 4235 carbide turning insert for T-Max P holders. Set of 2 inserts in an opened CoroKey box with marker writing on the label. Made in Japan.

Decoding the designation:

S — square insert, 90°.

N — 0° clearance angle (negative insert).

M — tolerance class M.

G — center hole with chipbreakers on both sides.

642 / 19 06 08 — 3/4 in (19 mm) inscribed circle, 1/4 in (6.35 mm) thickness, 1/32 in (0.8 mm) corner radius.

PR — Sandvik PR roughing geometry.

4235 — Sandvik grade 4235.

Specifications:

Brand: Sandvik Coromant.

Series: T-Max P.

ISO Designation: SNMG 19 06 08-PR.

ANSI Designation: SNMG 642-PR.

Insert Shape: Square.

Insert Material: Carbide.

Grade: 4235.

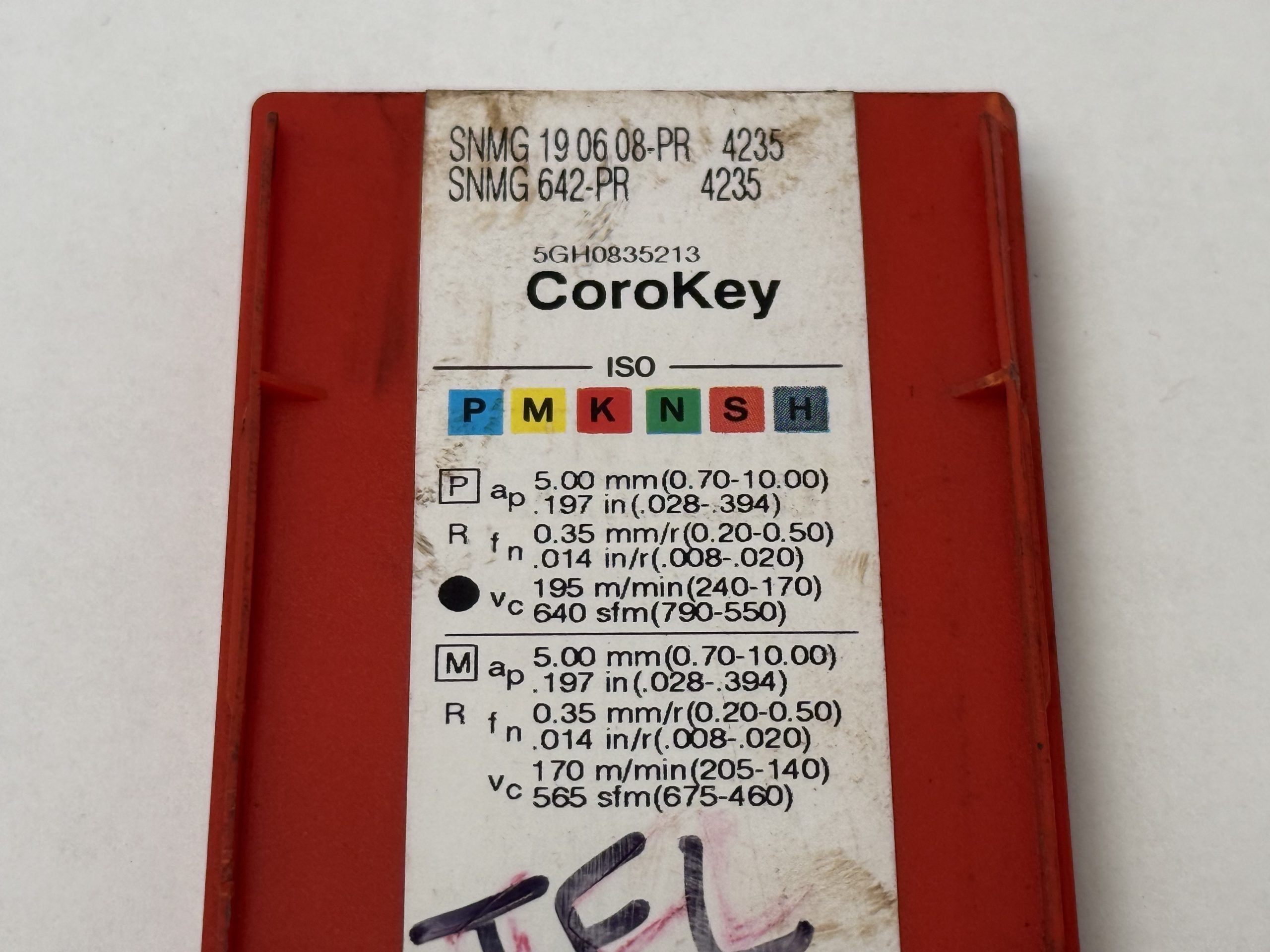

Box Cutting Data, Steel: ap 5.0 mm (0.7–10), fn 0.35 mm/r (0.20–0.50), vc 195 m/min.

Box Cutting Data, Stainless: ap 5.0 mm (0.7–10), fn 0.35 mm/r (0.20–0.50), vc 170 m/min.

Unit Quantity: 2 inserts.

Country of Origin: Japan.

Dimensions and mounting:

Inscribed circle: 3/4 in (19 mm). Thickness: 1/4 in (6.35 mm). Corner radius: 1/32 in (0.8 mm). Fits Sandvik Coromant T-Max P holders.

Compatibility and replacement:

ISO SNMG 19 06 08-PR and ANSI SNMG 642-PR are the same insert in the two naming systems.

Frequently asked questions:

What do SNMG 642 and SNMG 19 06 08 mean?

Both name the same insert: square, negative, tolerance class M, 19 mm (3/4 in) inscribed circle, 6.35 mm (1/4 in) thick, 0.8 mm (1/32 in) corner radius.

What grade is it?

Sandvik grade 4235 carbide with the PR roughing geometry.

How many inserts are in the lot?

2 inserts in an opened box.
