Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

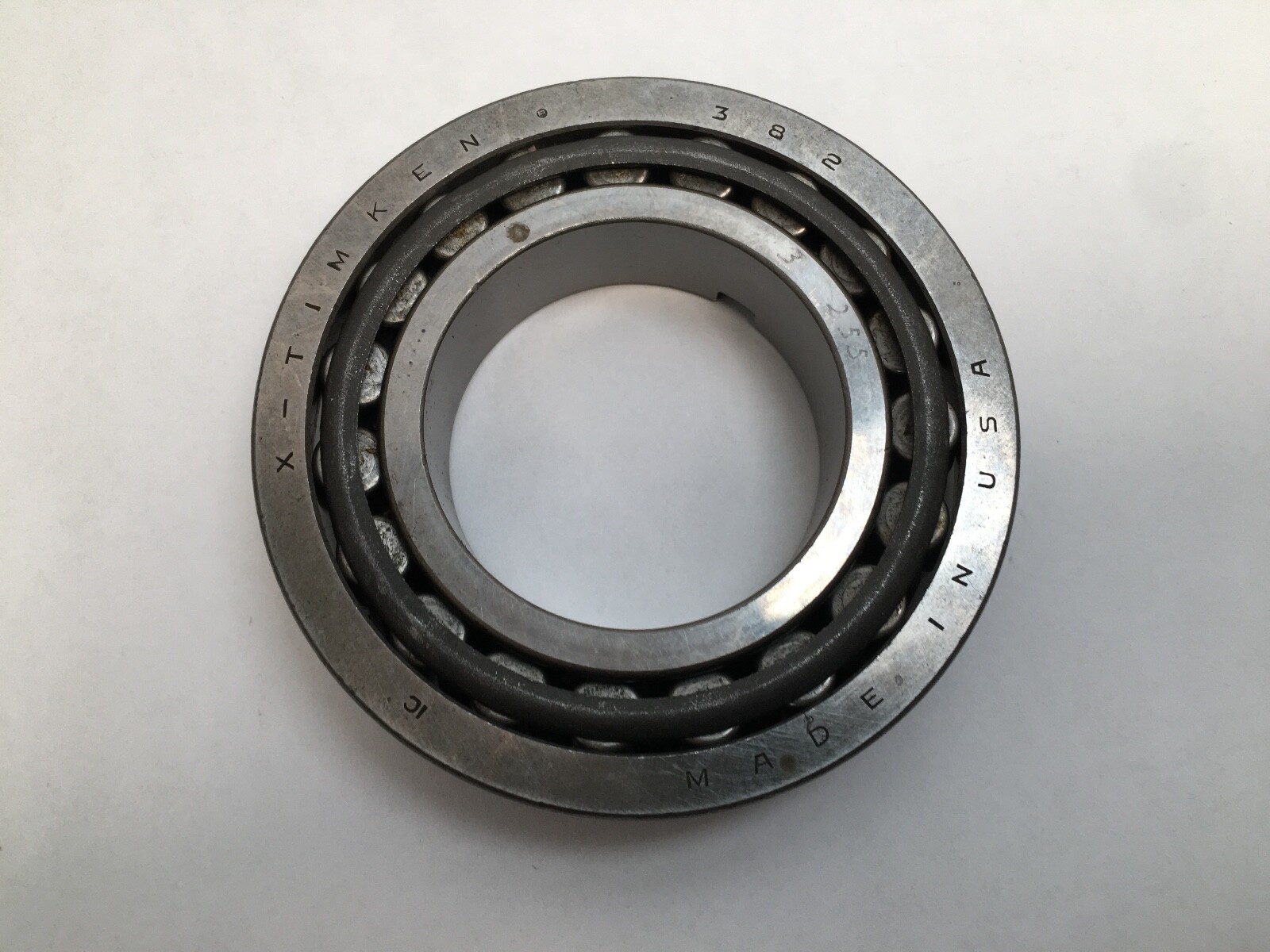

Timken single-row tapered roller bearing cone and cup set, 2-1/8 in bore, 3-7/8 in outside diameter, supplied as one matched set. Case carburized steel.
List Price
$72.49
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 389AW/382 |
| Model | 389A W / 382 |
| Bearing Type | Tapered Roller Bearing, Open |
| ID | 2.1250 in |
| OD | 3.8750 in |
| Width | 0.8660 in |
| Material | Steel |
|---|---|
| Series | 380 imperial tapered roller |
| Base Number | 389A/382 |
| Industry Terms | Taper bearing set; cone and cup; tapered roller bearing assembly; TS bearing |
| Common Misspellings | Timkin; Timkem; Tinken; 389WA/382; 398AW/382 |
| Application Types | Gearboxes; wheel ends; conveyor and agricultural drives; general industrial shafting |
| Bore Shaft Size | 2.1250 in (53.98 mm) |
| Mpn Variants | 389AW/382; 389AW-382; 389A/382; 389A; 389AW; 382 |
| Manufacturer Status | Current Timken catalogue set |
| Compatible With Replaces | Cone 389AW and cup 382 are each replaceable by their own number |
| Rolling Elements | Tapered Rollers |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.20.00 |
| Part Number | 389AW/382 |

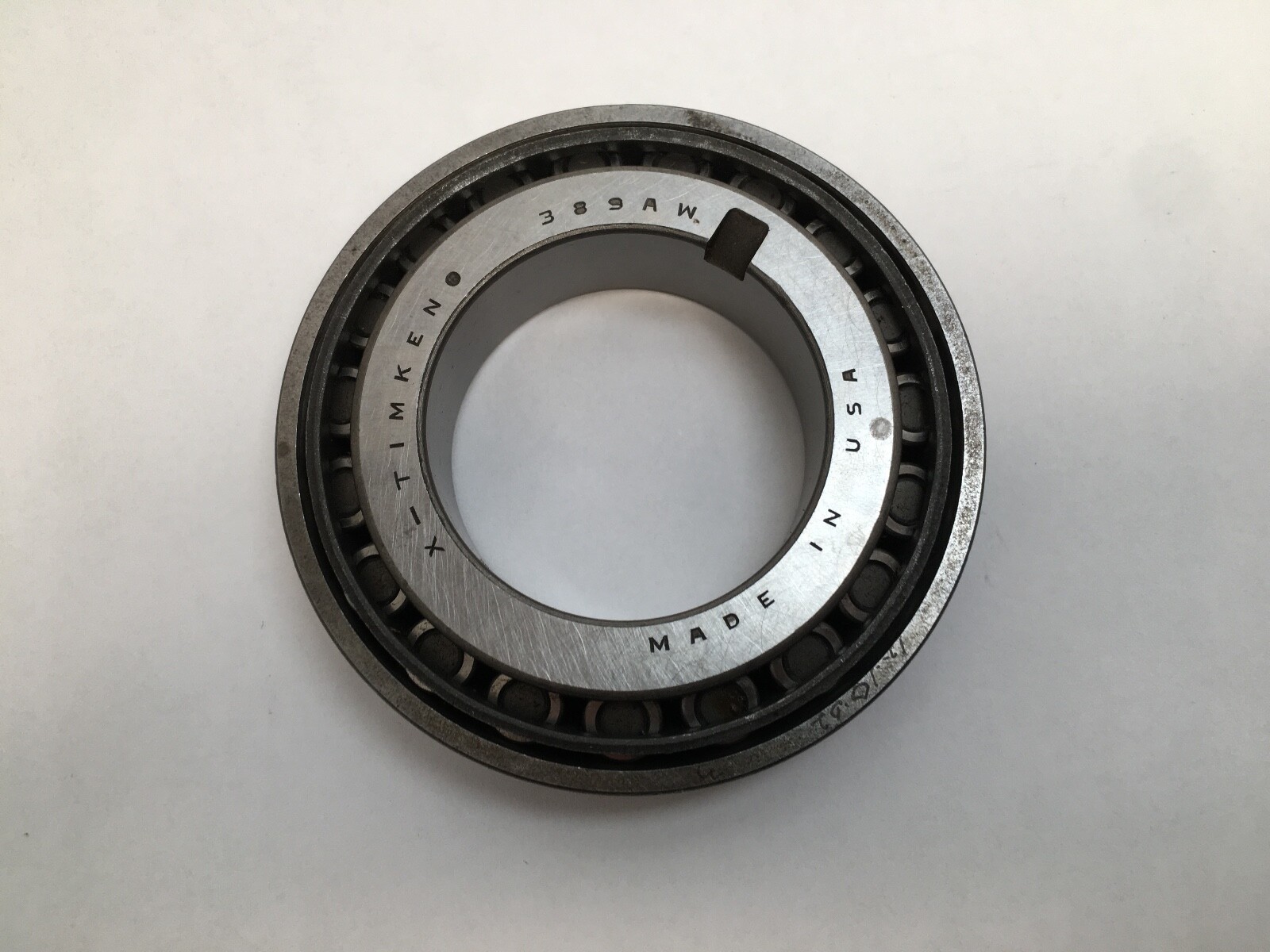

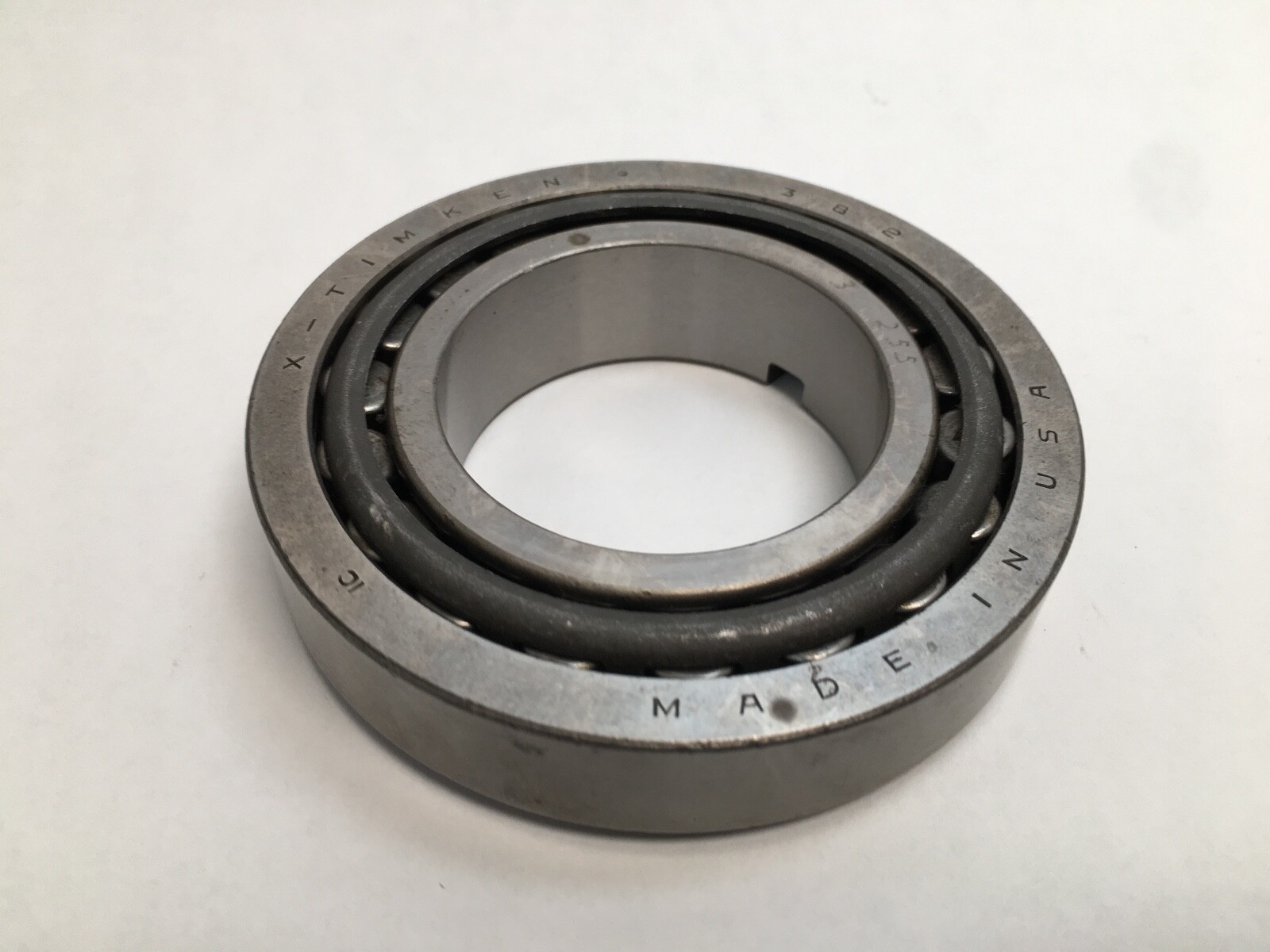

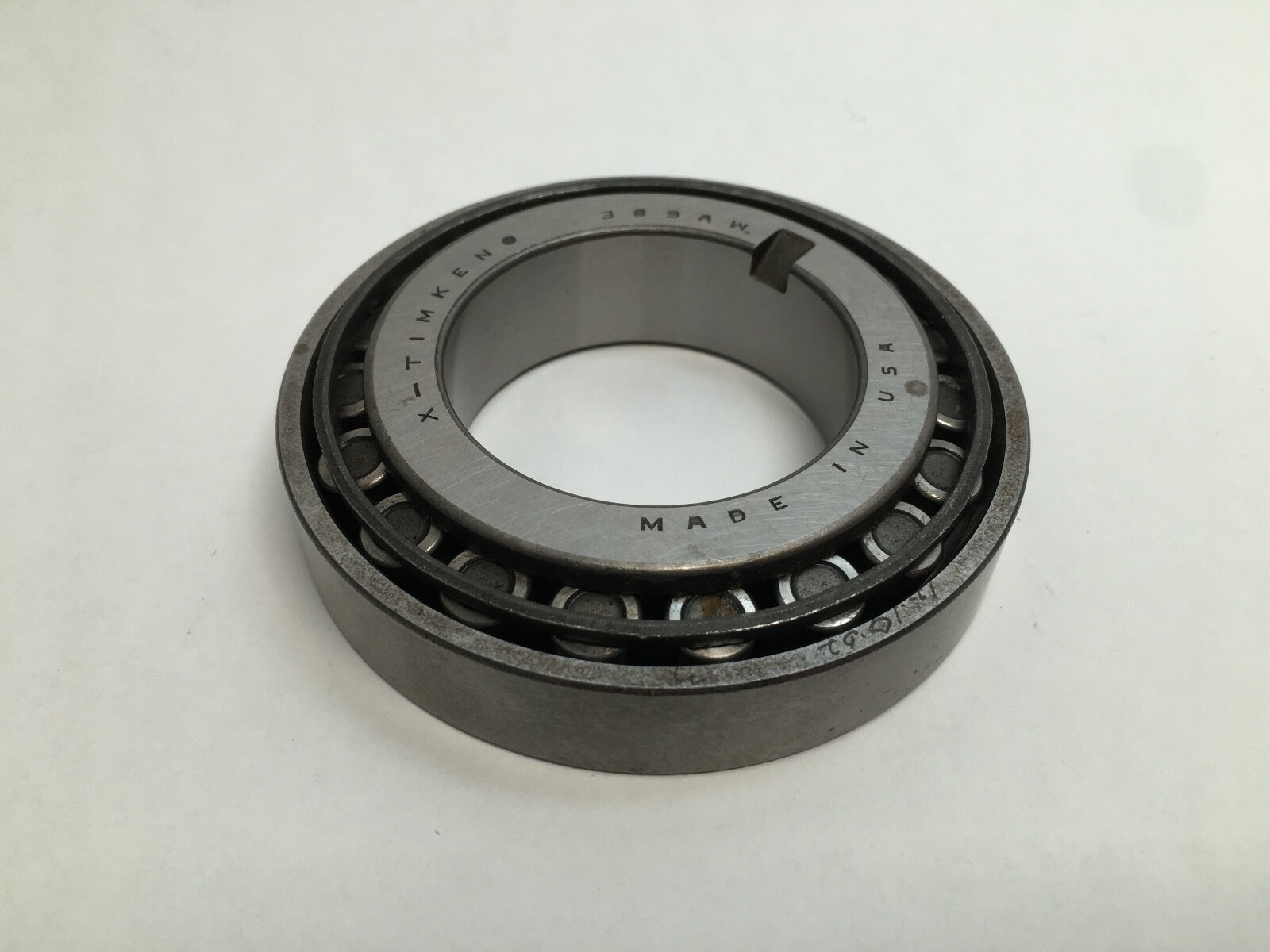

A Timken 389AW/382 single-row tapered roller bearing, supplied as both halves together: the 389AW cone with its rollers and cage, and the 382 cup. Unit Quantity: 1 Set, one cone and one matching cup, which is one complete bearing.

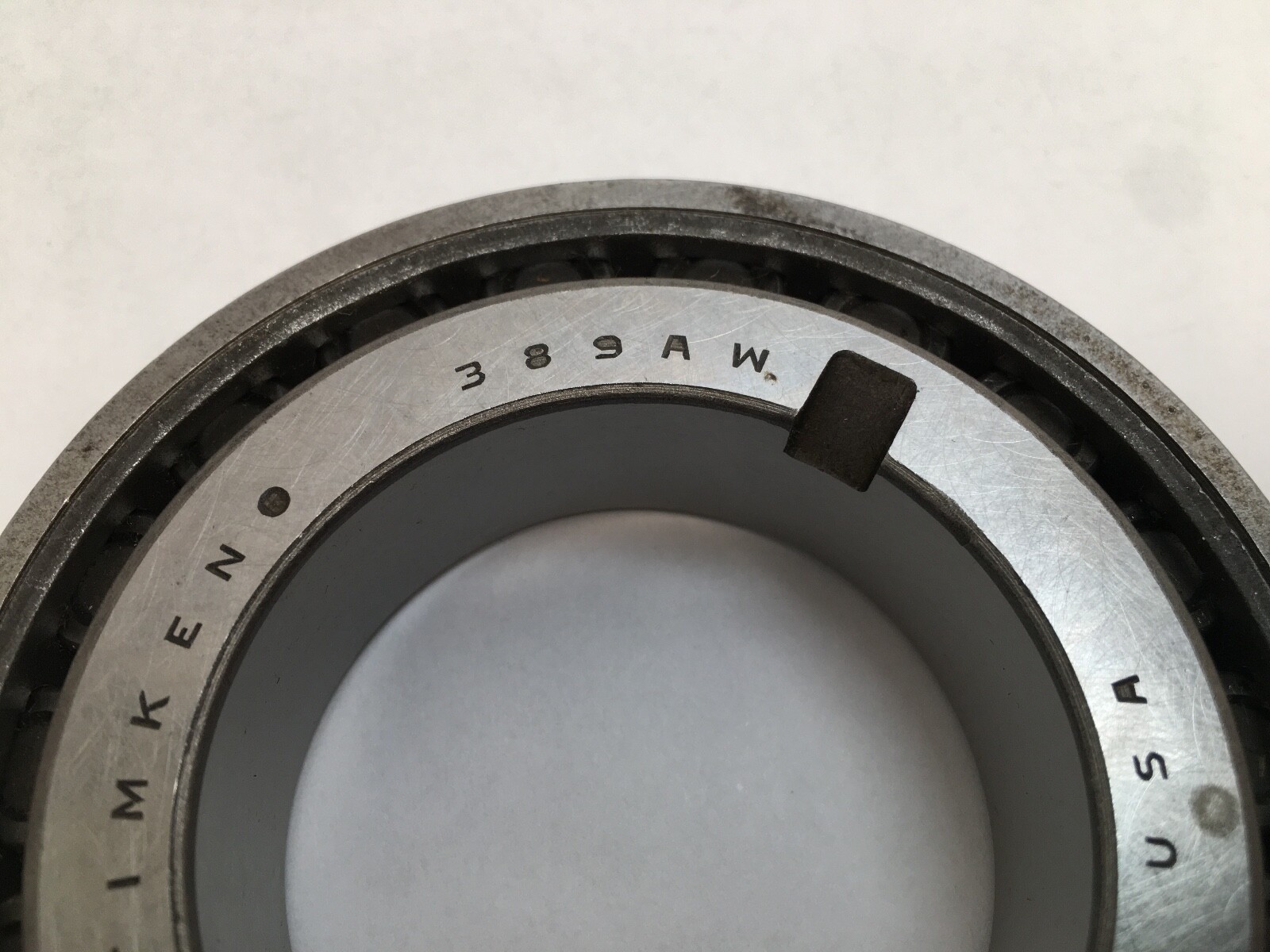

389A — the cone. It fixes the bore, the cone width and the raceway angle. W is a Timken variant marking on that cone.

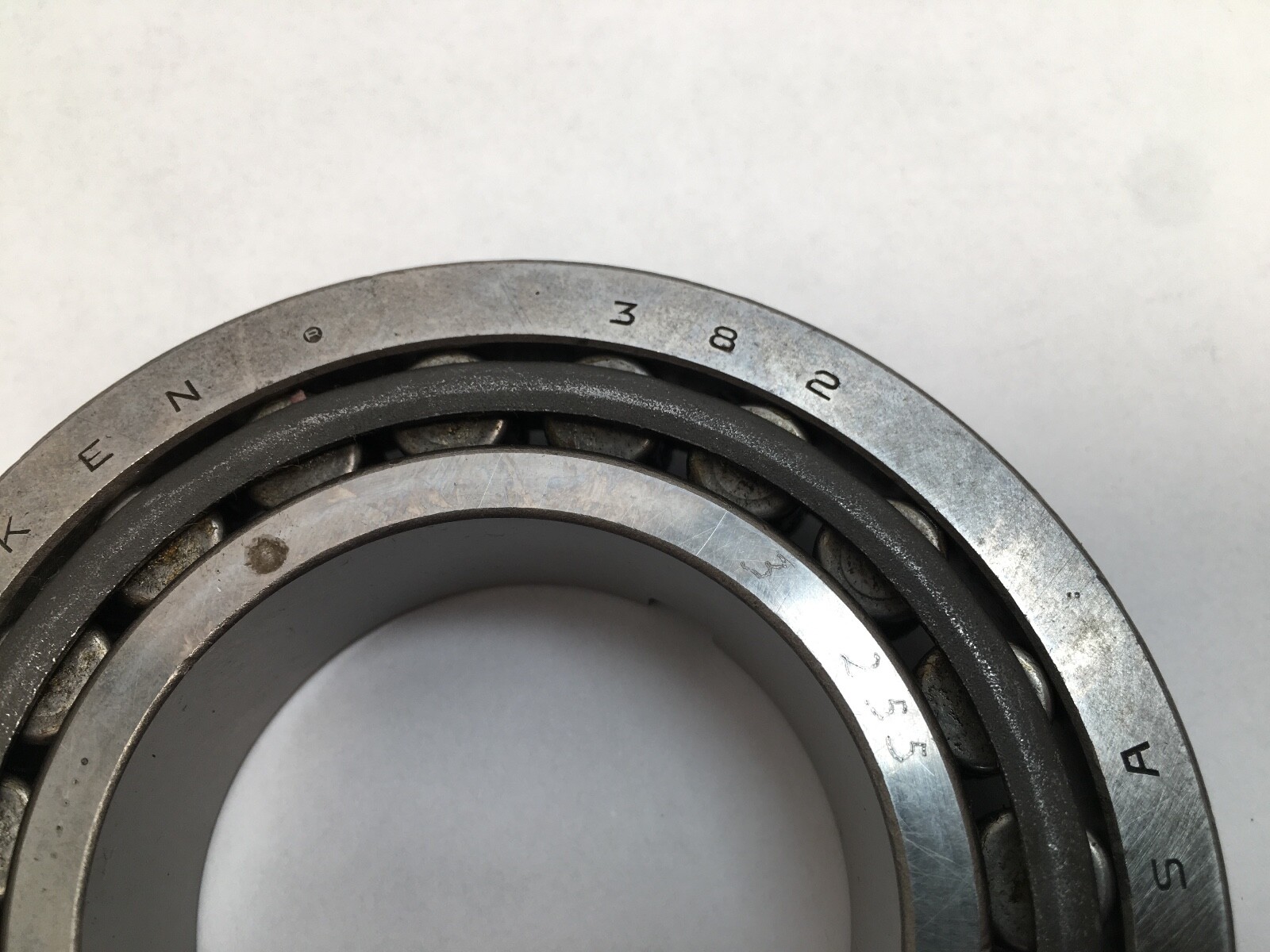

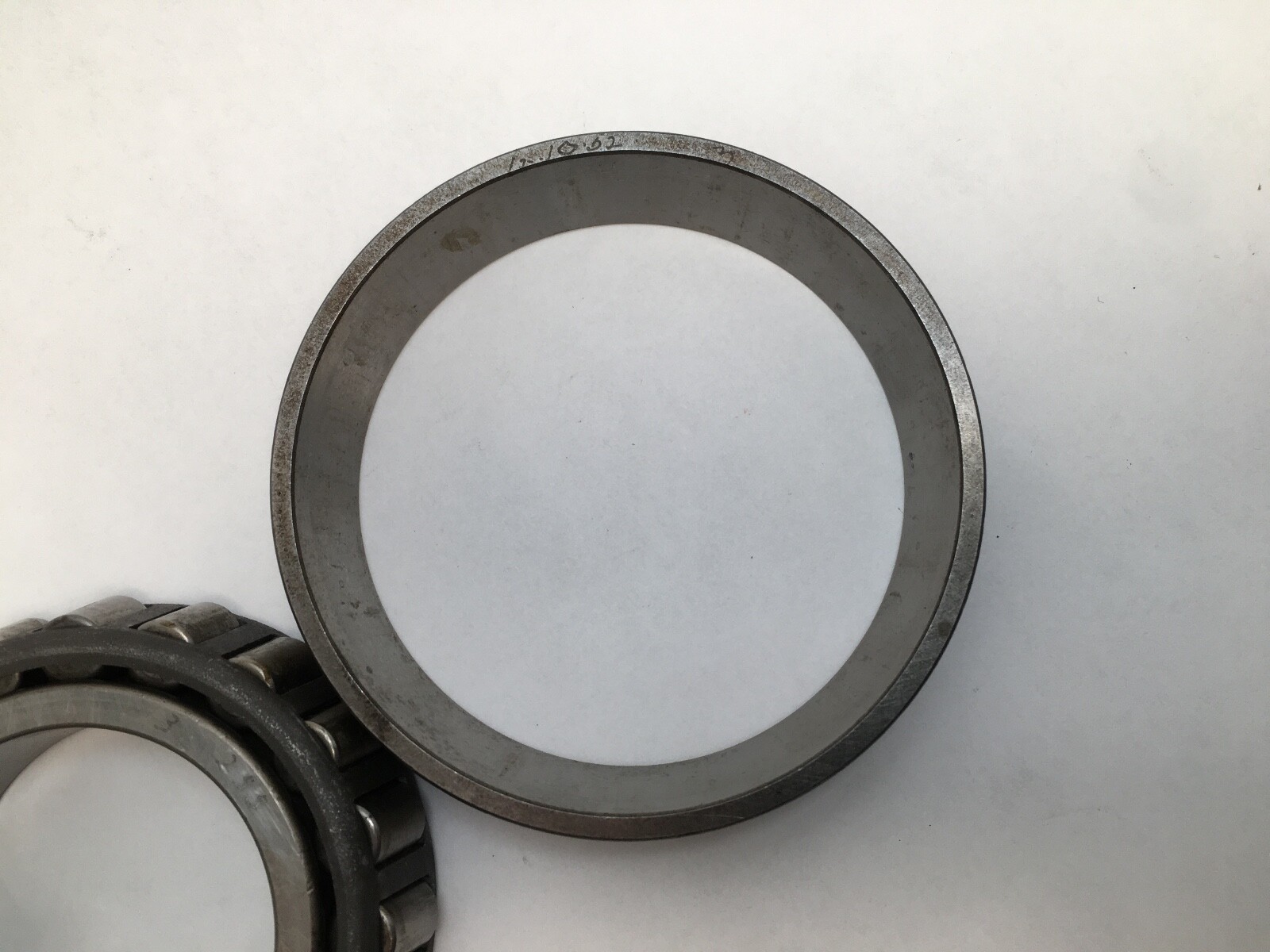

382 — the cup. It fixes the outside diameter and the matching outer raceway.
Timken writes a tapered roller bearing as cone number over cup number. Either half can be ordered on its own by its own number.
Bore Diameter: 2-1/8 in (2.1250 in, 53.98 mm). Outside Diameter: 3-7/8 in (3.8750 in). Number Of Rows: 1. Rolling Elements: Tapered Rollers. Series: 380 imperial tapered roller. Bearing Material: Case Carburized Steel. Harmonization Code: 8482.20.00.

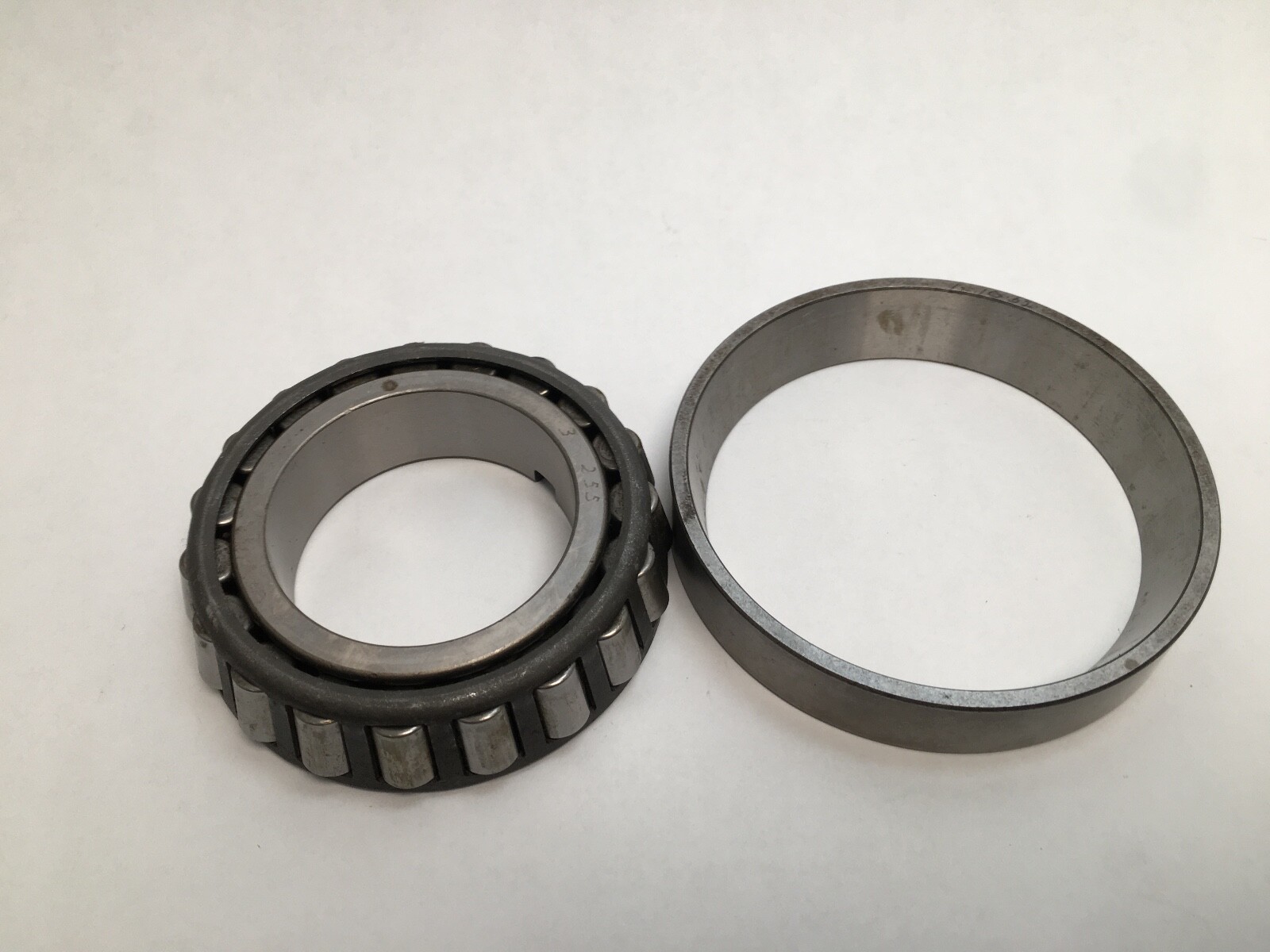

Cone Part Number: 389AW. Cup Part Number: 382. The cone and cup are separable halves of one single-row bearing.
389A and 382 are industry-standard numbers carried by other tapered roller bearing makers. The 382A and 382S are different cups in the same family with their own widths, related sizes. A plain 389 without the A is an earlier design of the cone, a related part. Search forms: 389AW/382, 389AW-382, 389A/382, 389A, 389AW, 382.

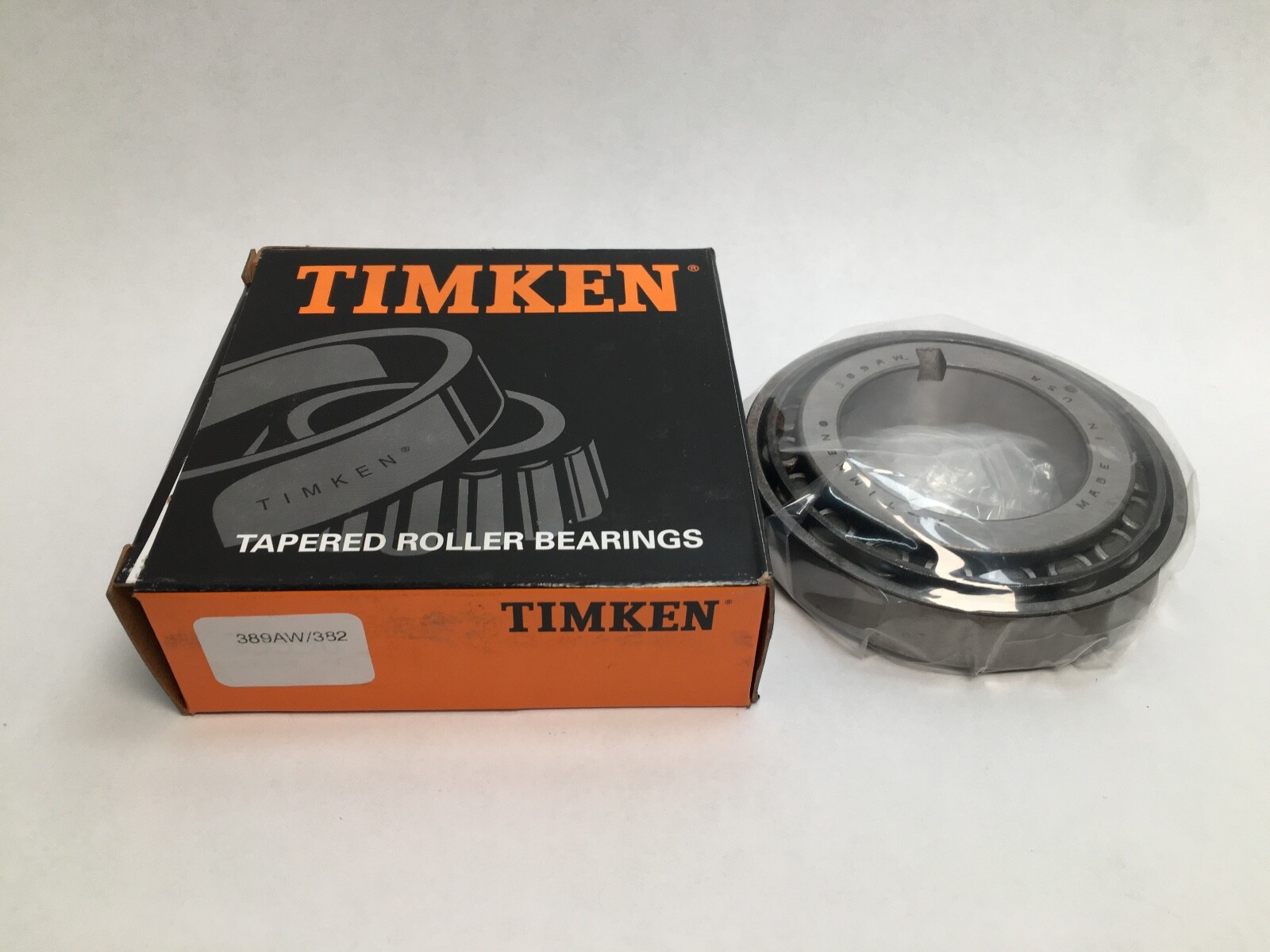

One 389AW cone and one 382 cup.
2-1/8 in bore and 3-7/8 in outside diameter.
Yes. The cone is 389AW and the cup is 382.
