A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

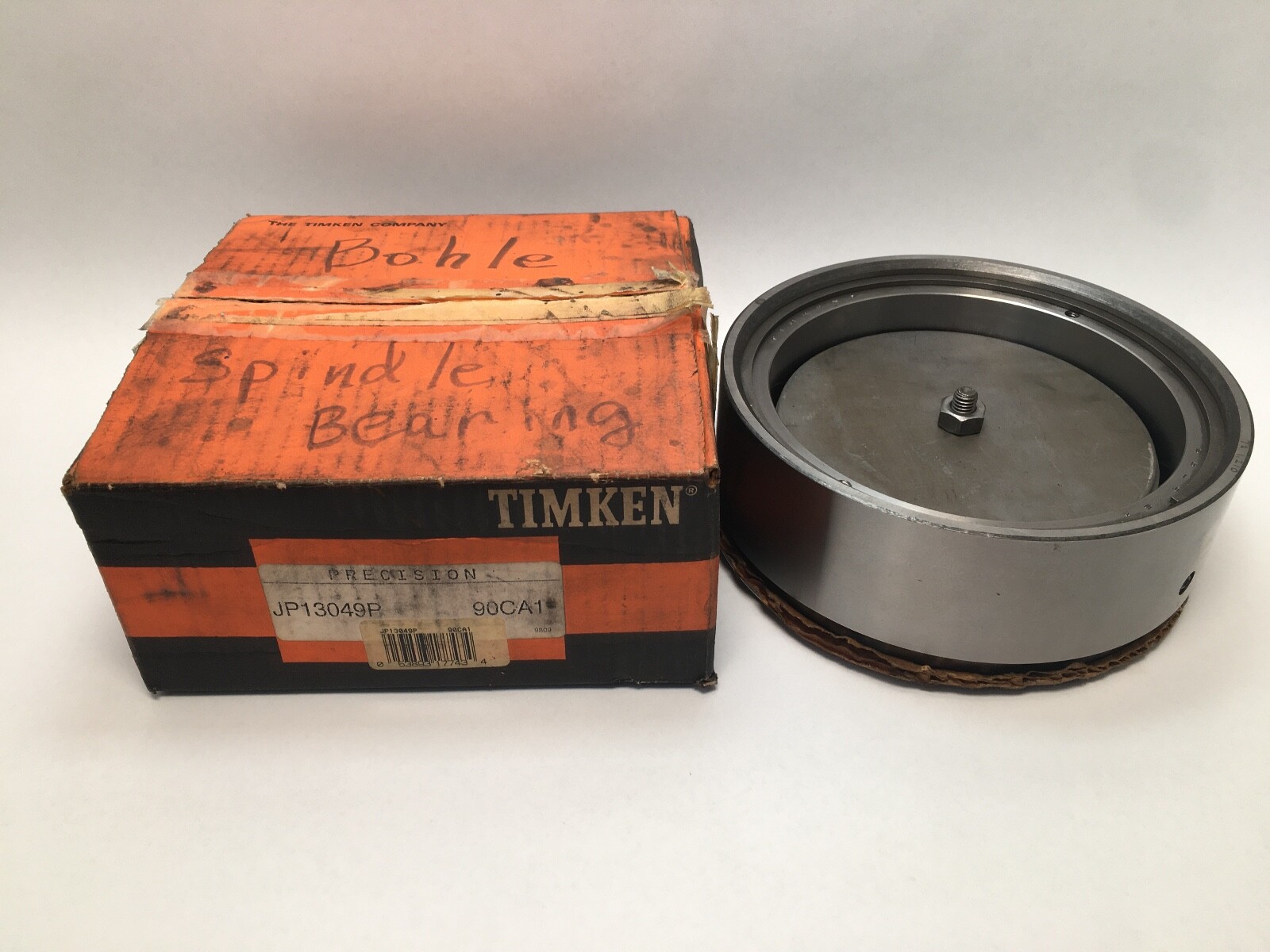

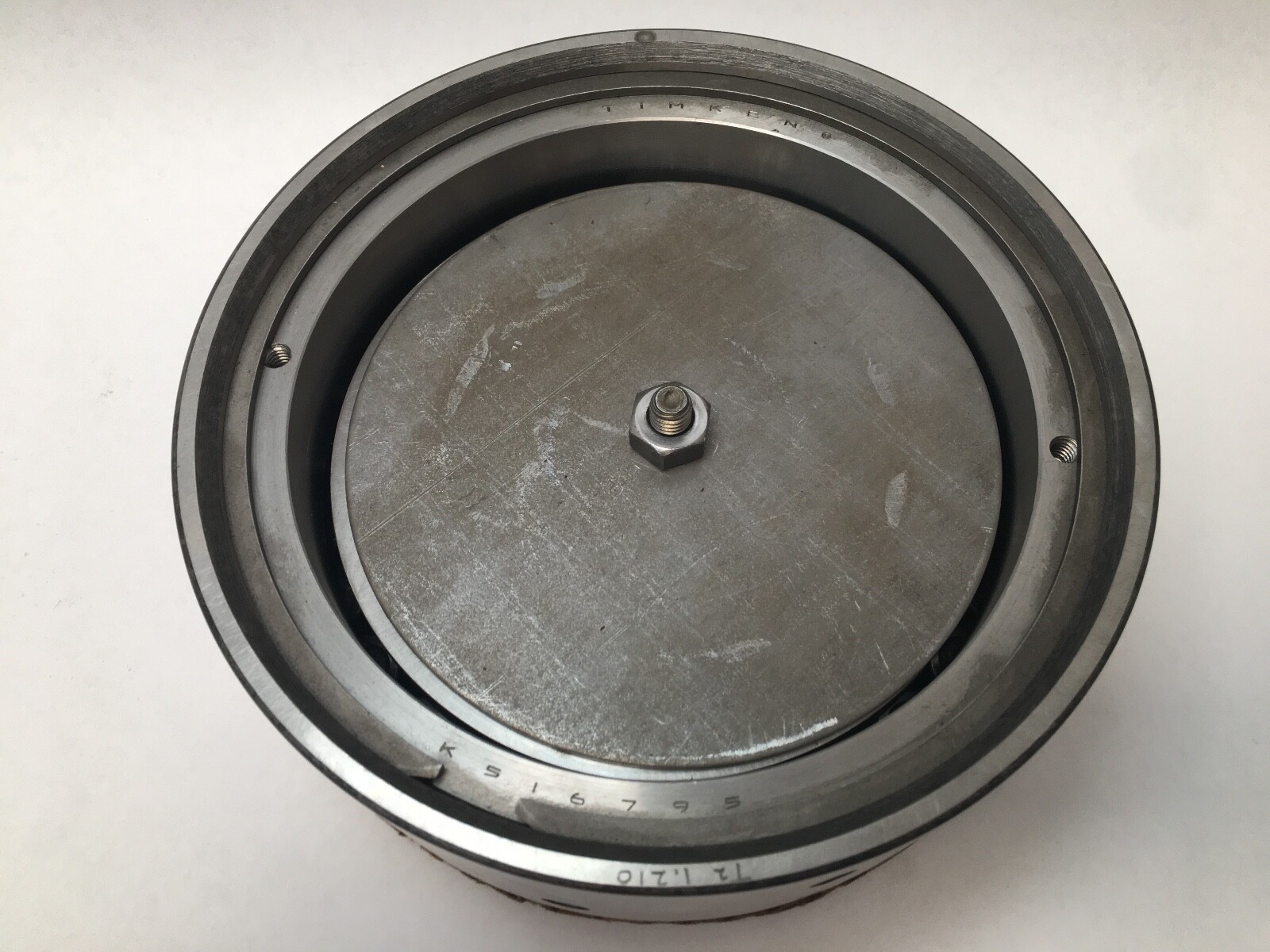

Metric tapered roller bearing assembly for machine tools, 130 mm bore, 190 mm OD, 72 mm width. Matched JP13049P cone with JP13016HR cup, K factor 1.50.
List Price
$1,904.83
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| Model | JP-13049-P / JP-13016-HR 90CA1 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 130 mm |
| OD | 190 mm |
| Width | 72 mm |
| Series | JP13000 |
|---|---|
| Base Number | JP13049P |
| Overall Width | 72 mm |
| Mpn Variants | JP13049P/JP13016HR, JP-13049-P / JP-13016-HR, JP13049P JP13016HR, 90CA1 |
| K Factor | 1.50 |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | JP13016HR |
| Design Units | Metric |
| Bearing Material | Steel |
| Cup Width | 31 mm |
| Cup Backface To Clear Radius | 3 mm |
| Cone Part Number | JP13049P |
| Cone Width | 40 mm |
| Cone Backface To Clear Radius | 3 mm |
| Cone Frontface Backing Diameter | 143 mm |
| Cup Frontface Backing Diameter | 181 mm |
| Effective Center Location | -7.1 mm |

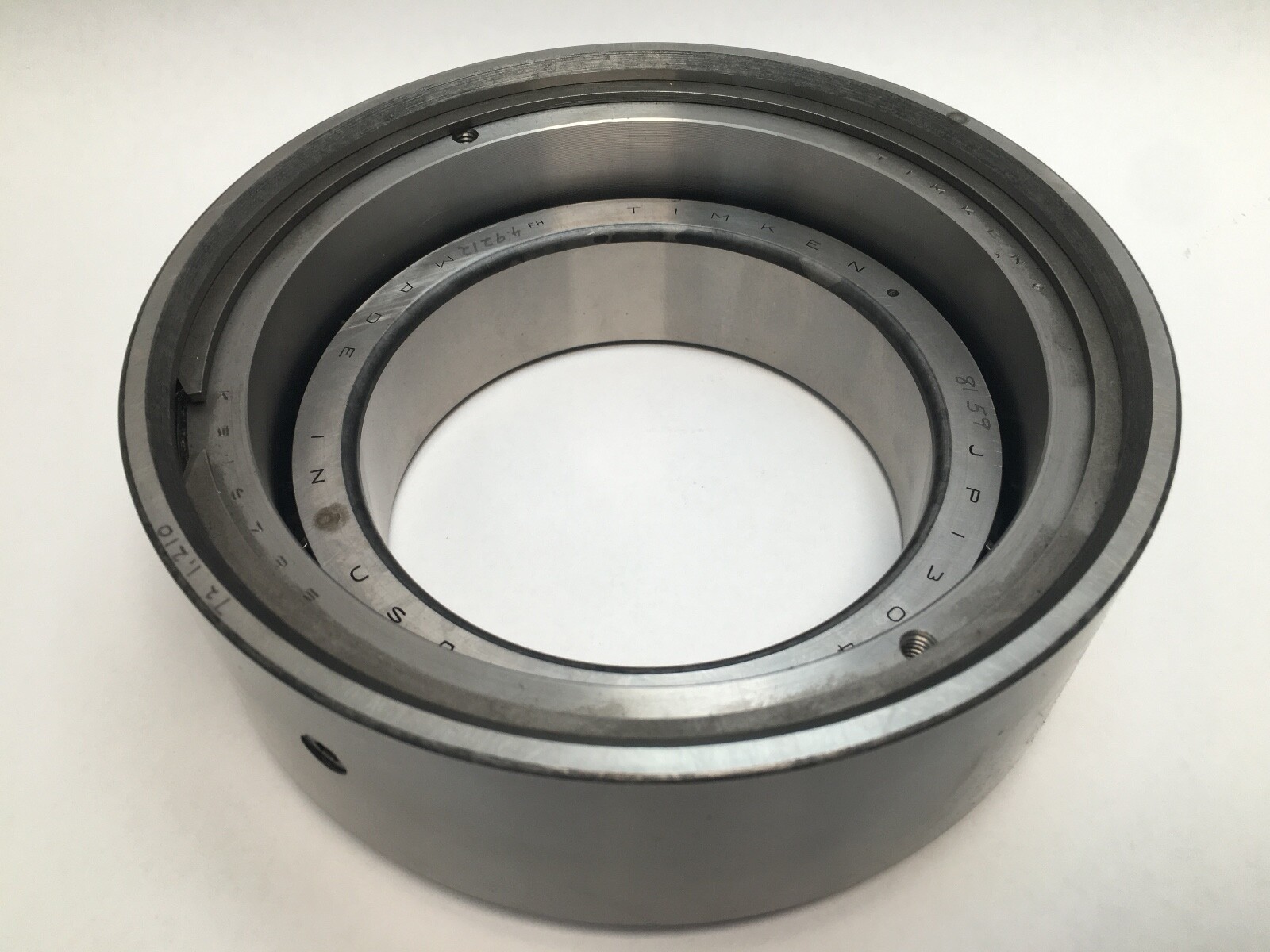

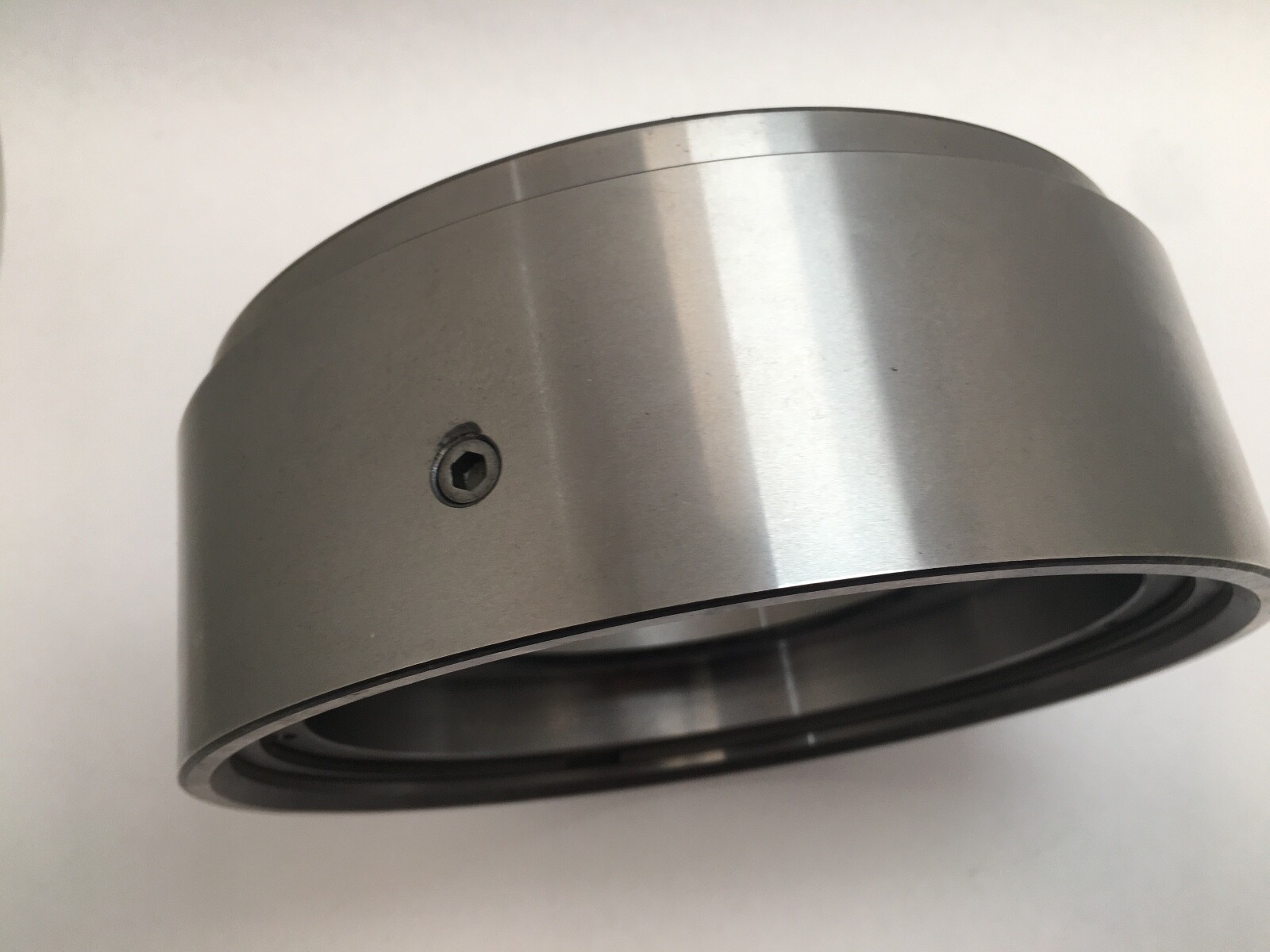

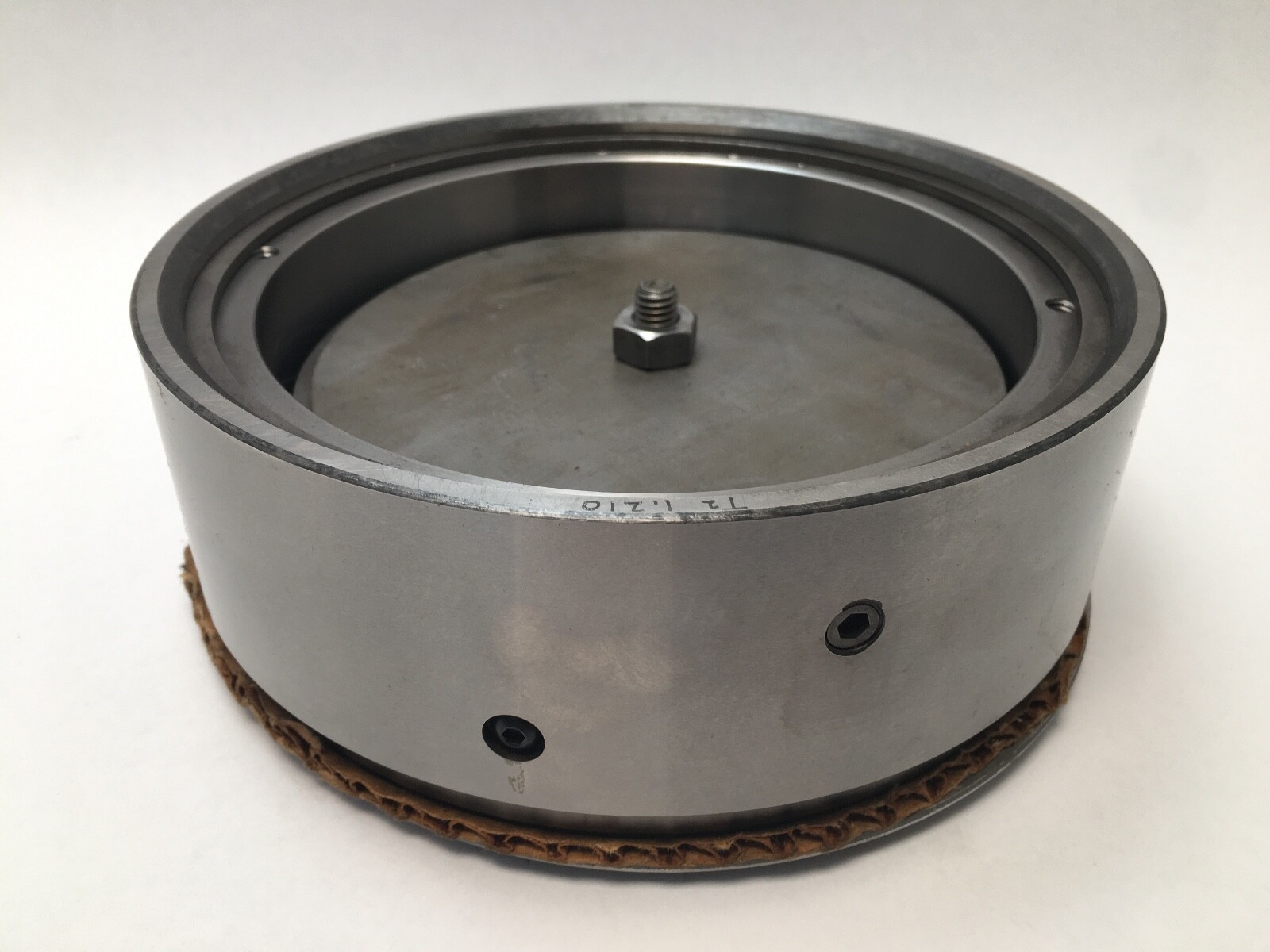

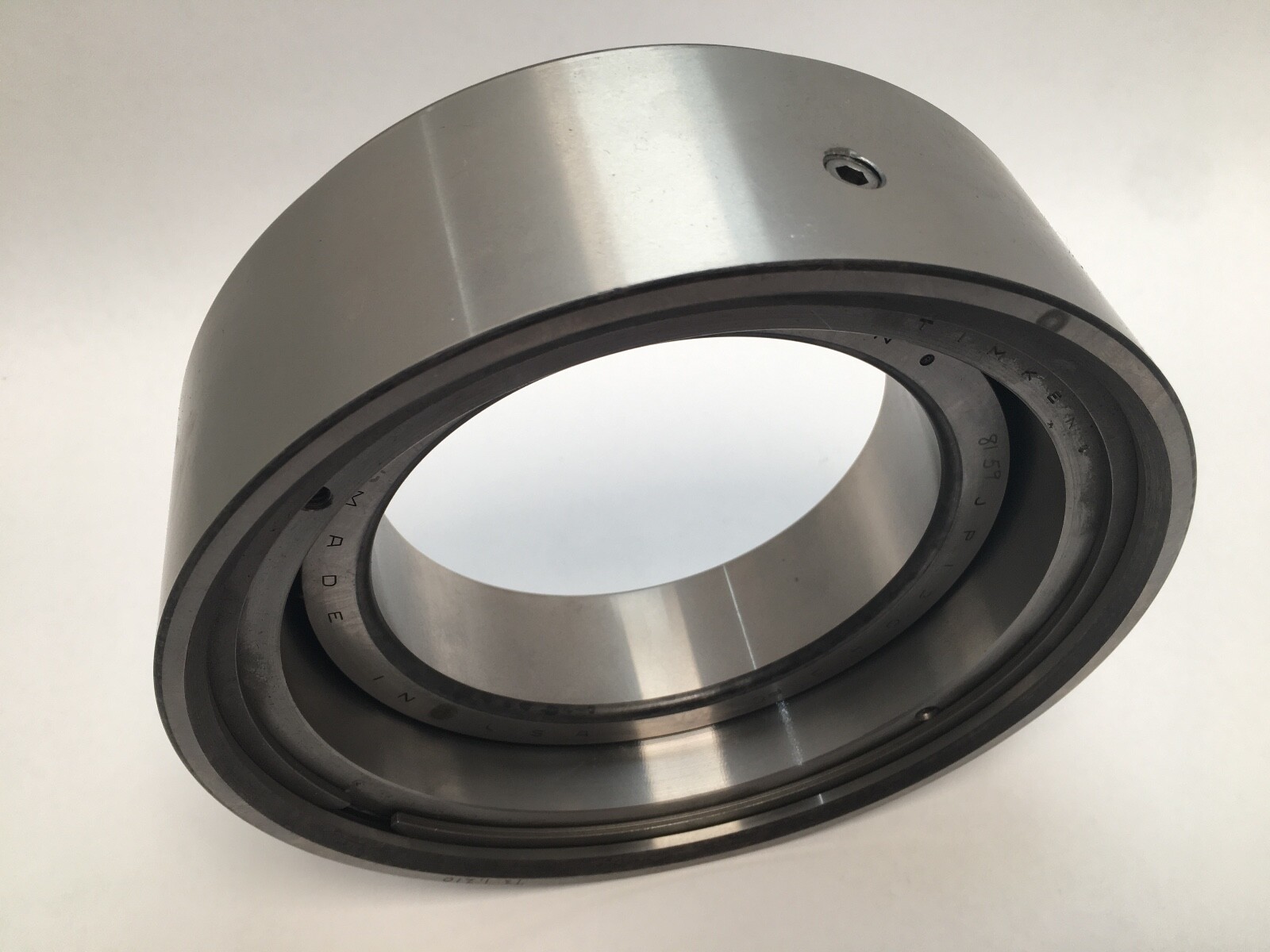

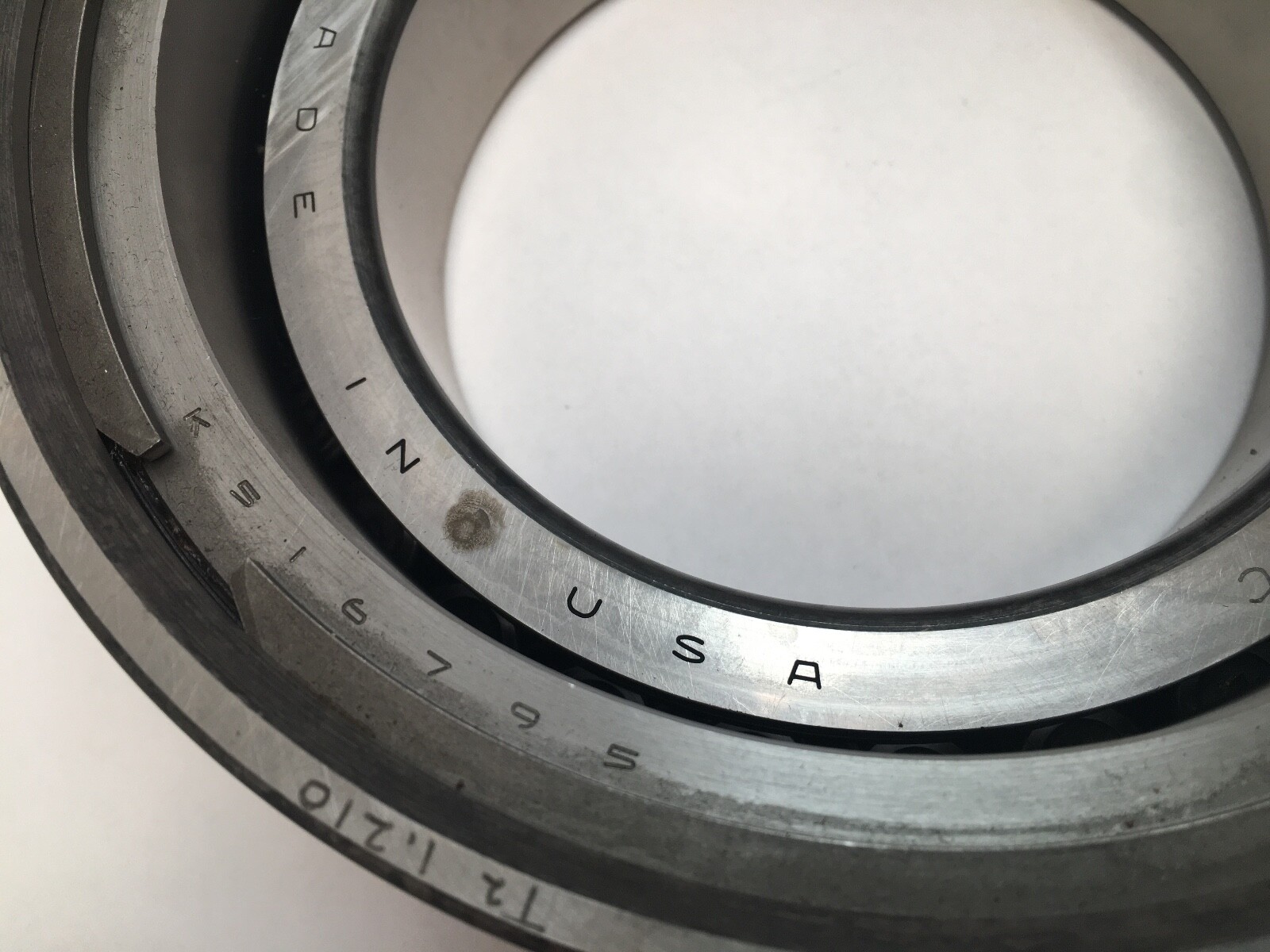

Timken JP13049P/JP13016HR metric tapered roller bearing assembly, a matched single cone and single cup from the Timken Fafnir super precision machine tool range. Bore Diameter: 130 mm. Outside Diameter: 190 mm. Overall Width: 72 mm. Cone Width: 40 mm. Cup Width: 31 mm. Series: JP13000. Base Number: JP13049P. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Bearing Material: Steel. Design Units: Metric.

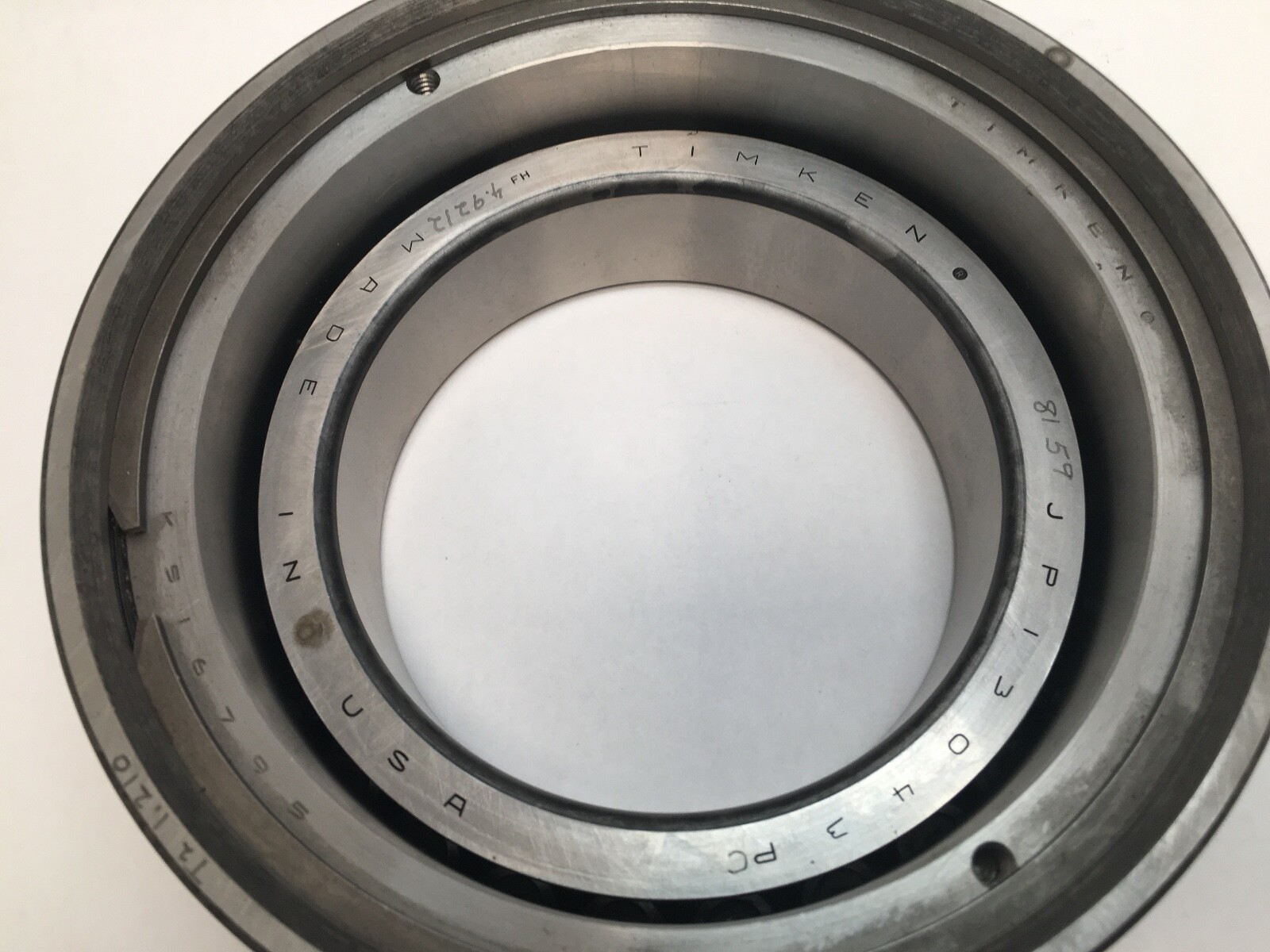

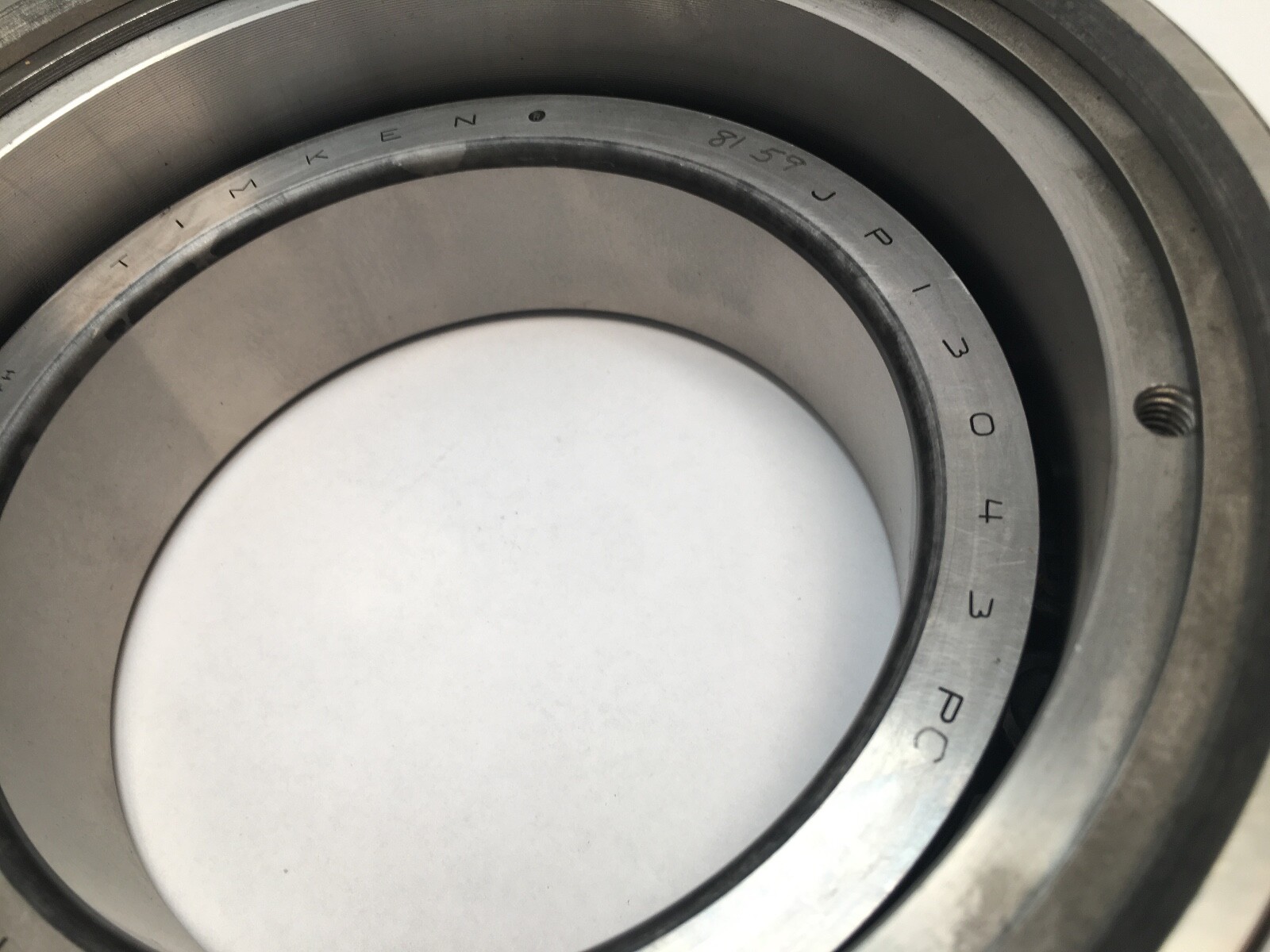

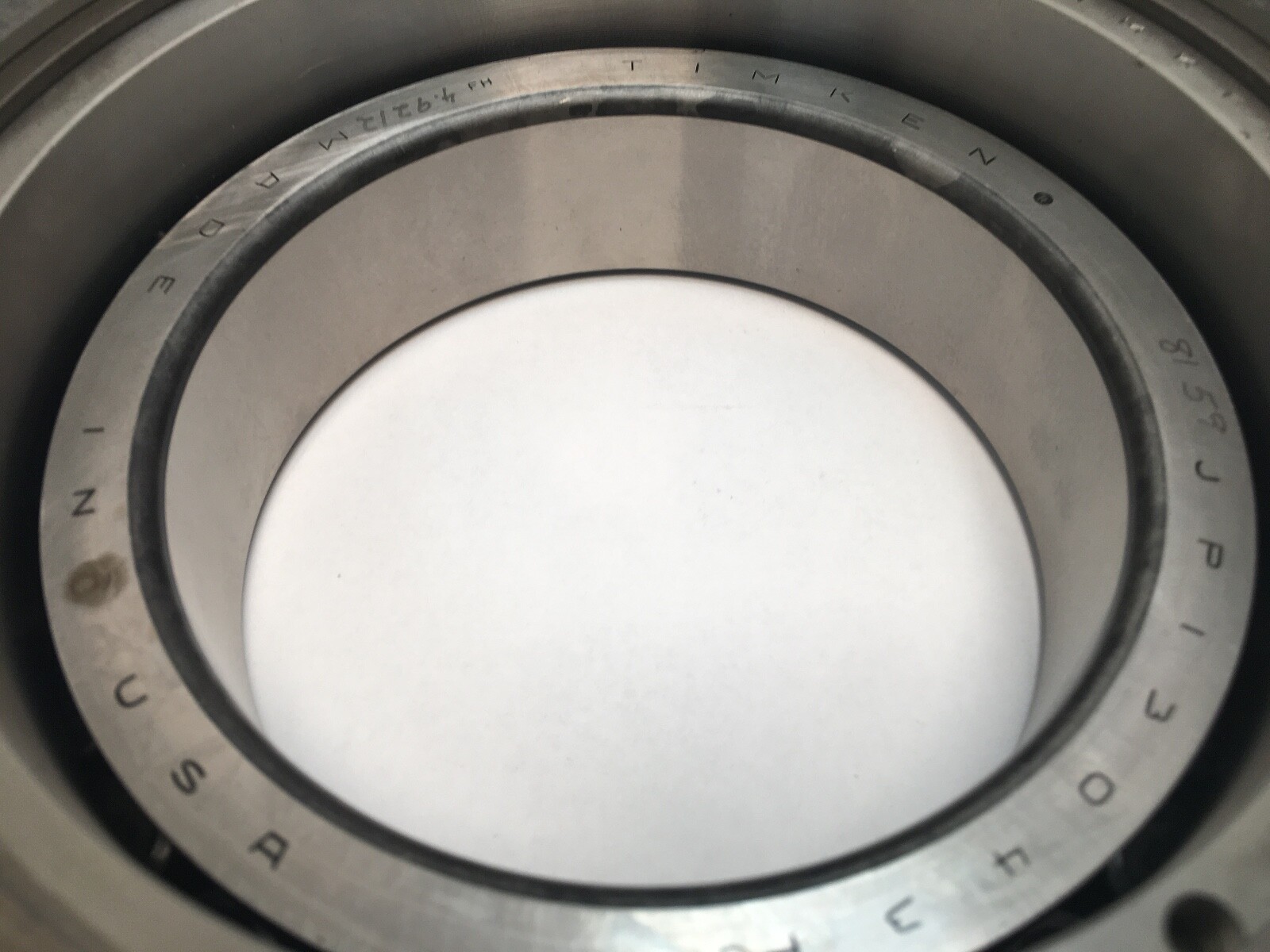

JP13049P — cone half of the pair. JP13 fixes the 130 mm bore family; 049 is the cone number; P marks the machine tool execution.

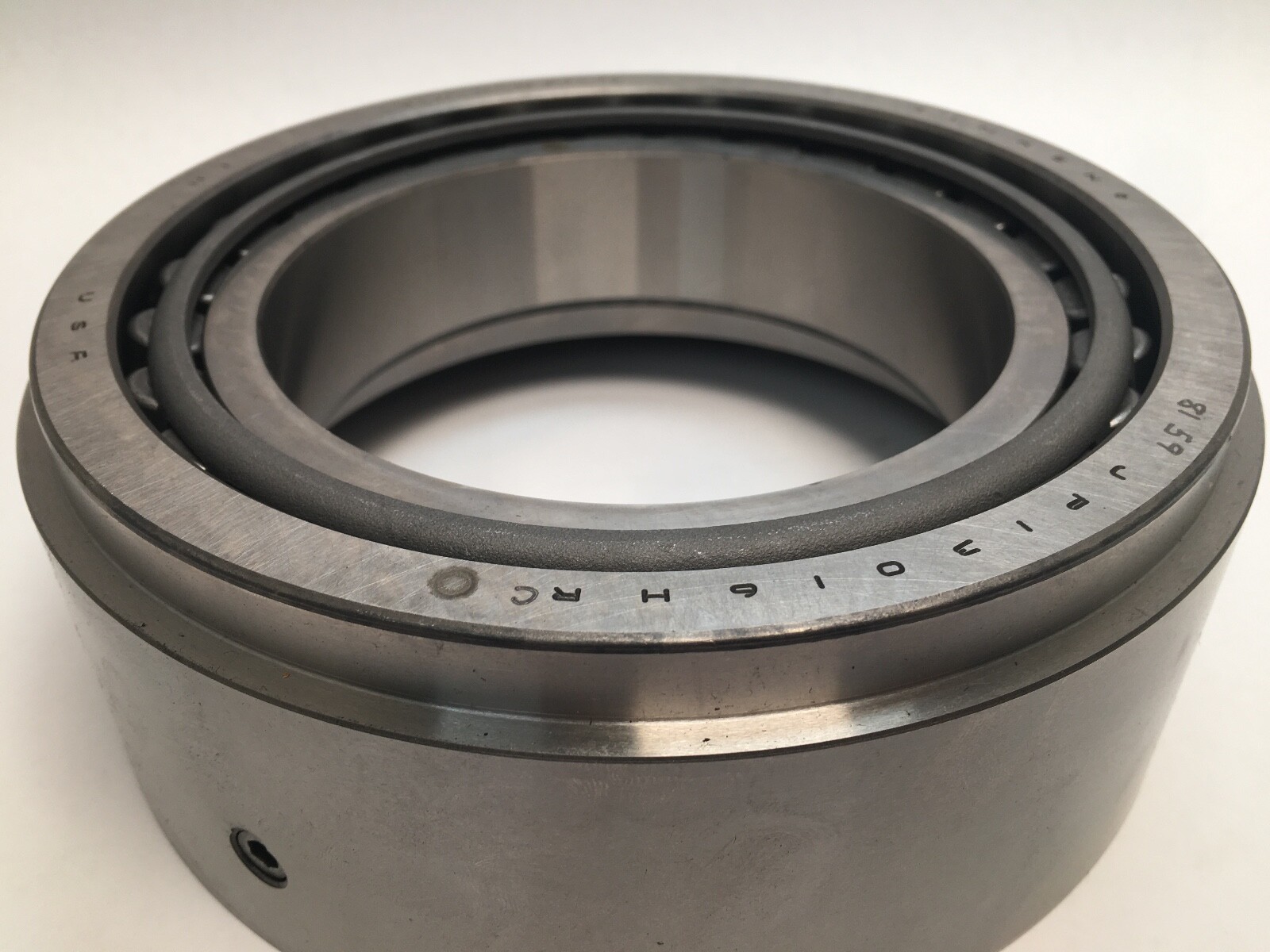

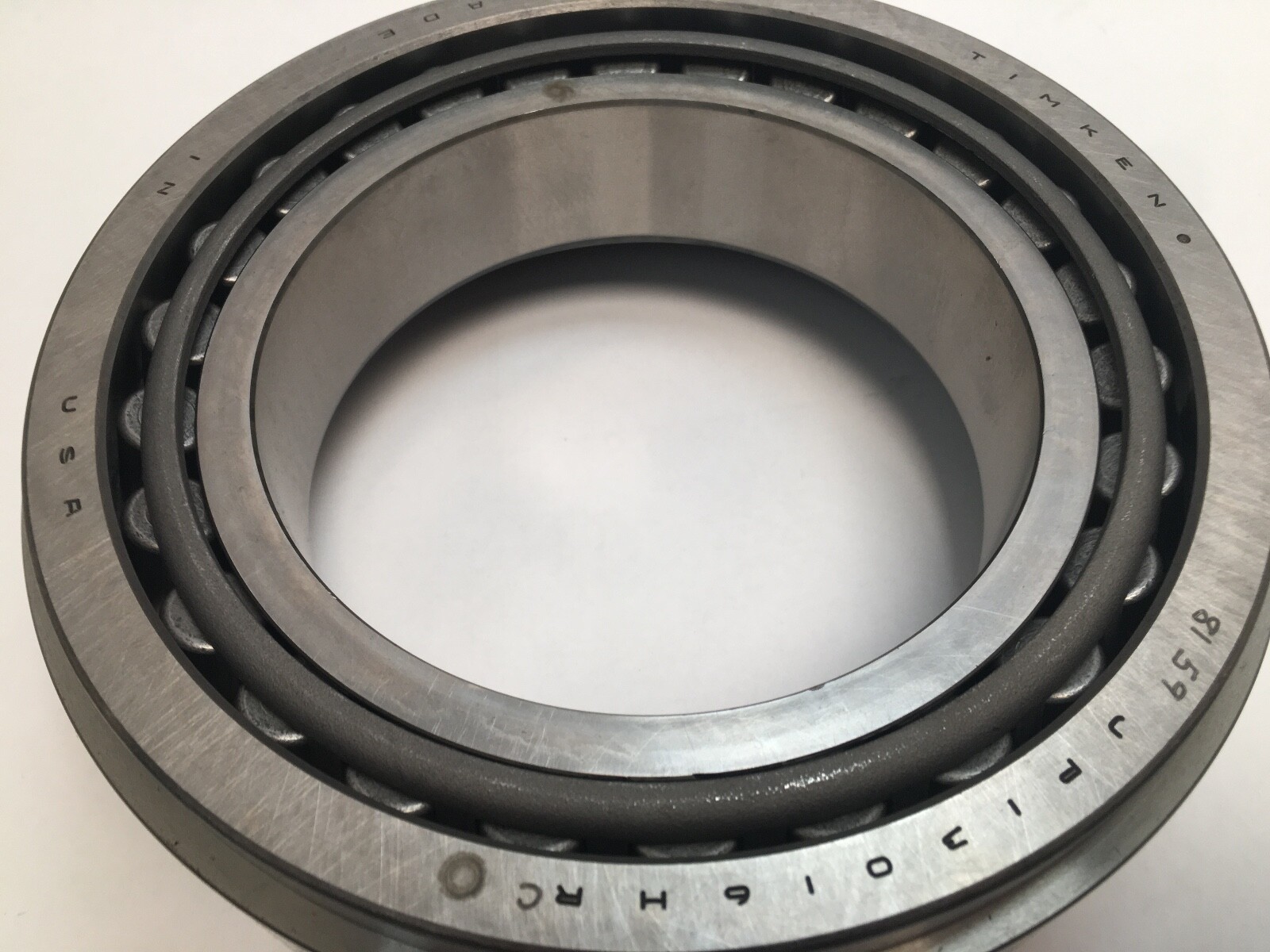

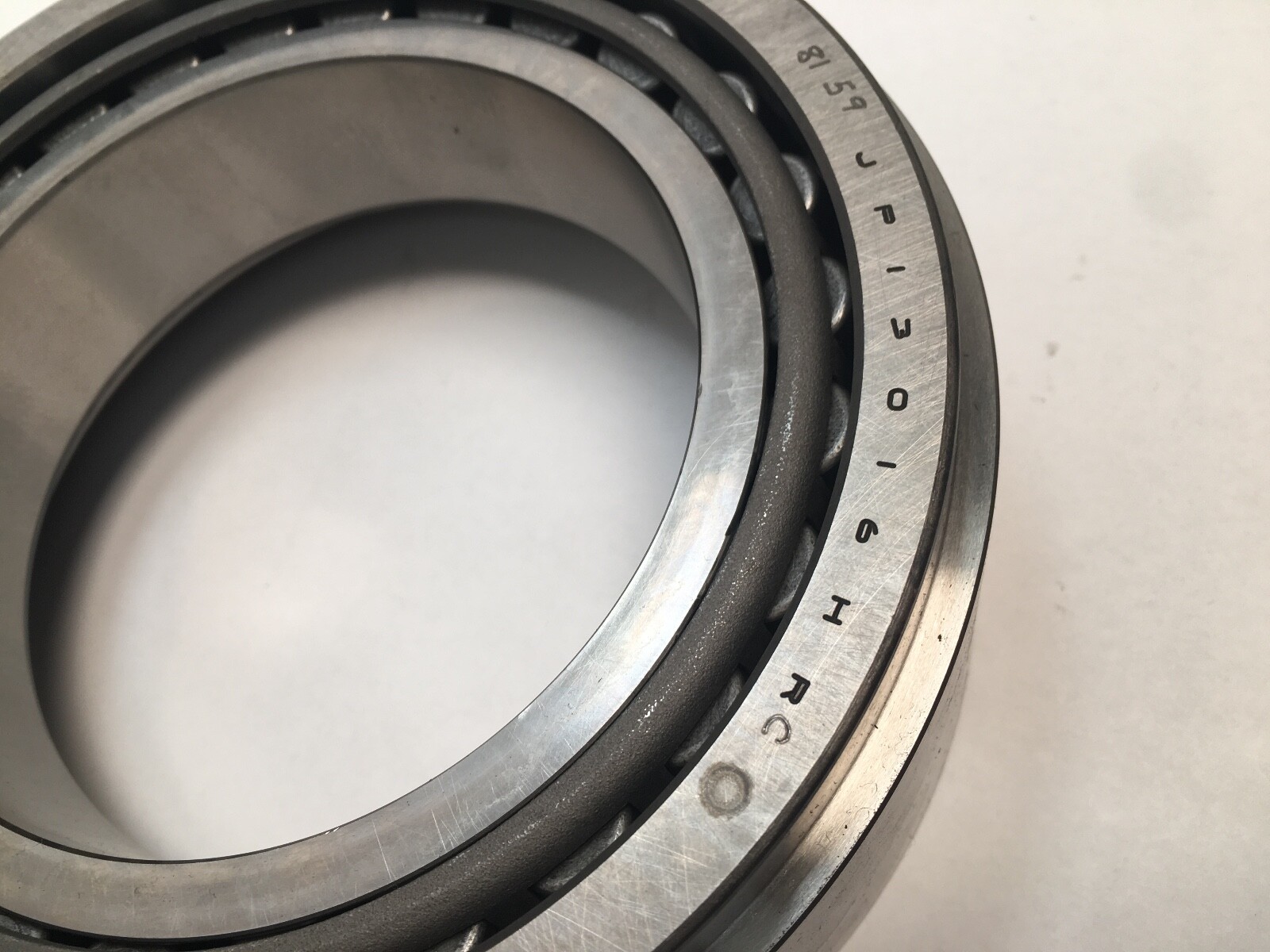

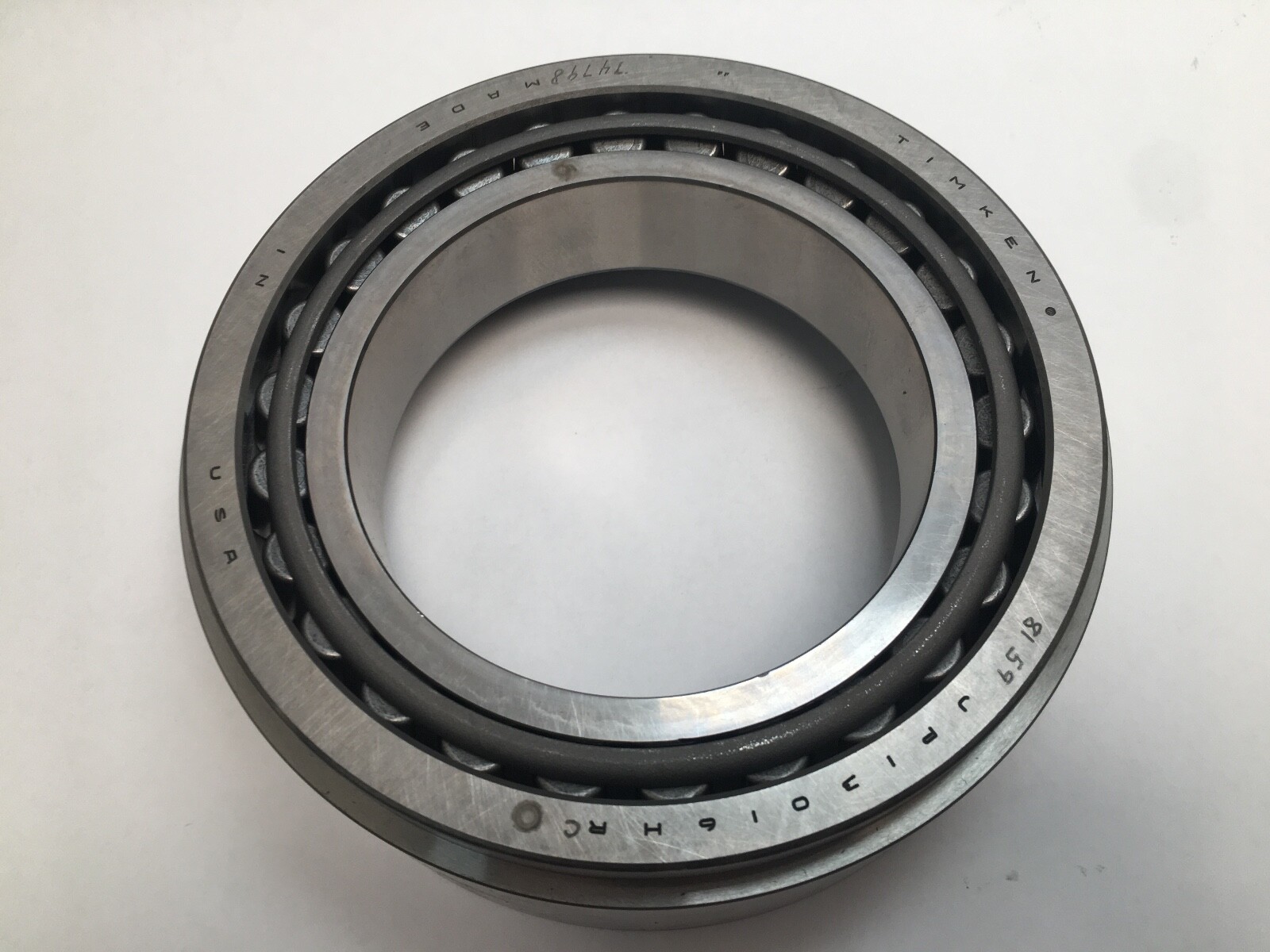

JP13016HR — cup half of the pair, matched to the JP13049P cone and carrying the HR machine tool cup execution.

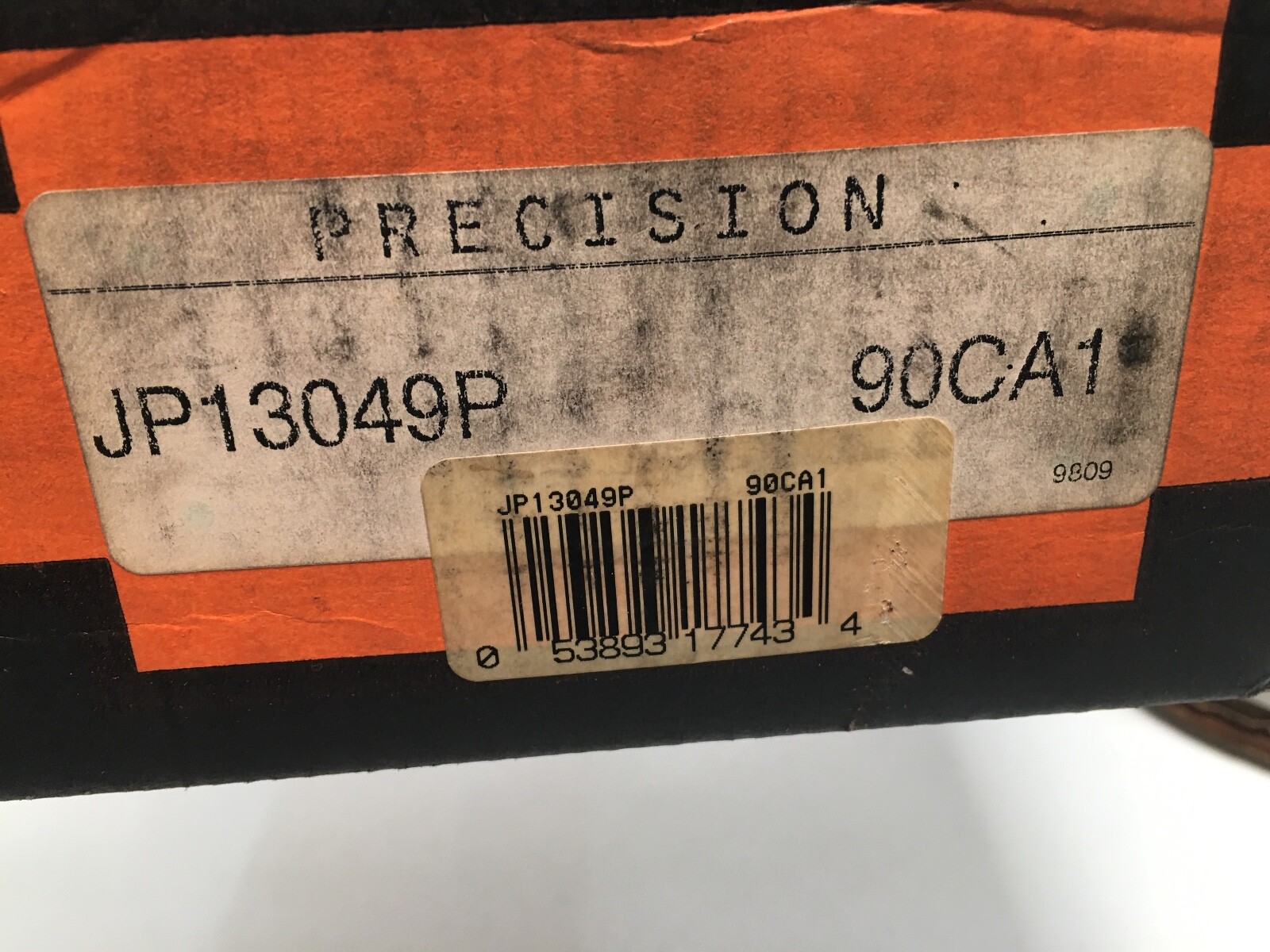

90CA1 — Timken assembly number: it designates the complete assembly, the cone-and-cup pairing supplied as a matched set, rather than either component on its own.
K Factor: 1.50. G1 Factor: 212.0. G2 Factor: 39.0. The K factor sets the ratio of radial to thrust capability on this raceway angle, and 1.50 places the pair toward the thrust-capable end of the metric JP range.
Bearing frequency coefficients, for vibration analysis against shaft speed — FTF Inner: 0.455. FTF Outer: 0.545. Ball Spin Frequency (BSF): 5.252. Ball Pass Frequency Outer (BPFO): 11.820. Ball Pass Frequency Inner (BPFI): 14.180. Multiplying these by shaft speed gives the defect frequencies for condition monitoring on this bearing.
Effective Center Location: -7.1 mm, the load centre lying inside the cone backface. Cone Frontface Backing Diameter: 143 mm. Cup Frontface Backing Diameter: 181 mm. Cone Backface To Clear Radius: 3 mm. Cup Backface To Clear Radius: 3 mm.
Unit Quantity: 2 Pcs. One JP13049P cone and one matched JP13016HR cup, supplied together as the assembly.
Searchable variants of this designation: JP13049P/JP13016HR, JP-13049-P / JP-13016-HR, JP13049P JP13016HR, 90CA1.
$144.56
12 in stock
