Availability:
2 in stock

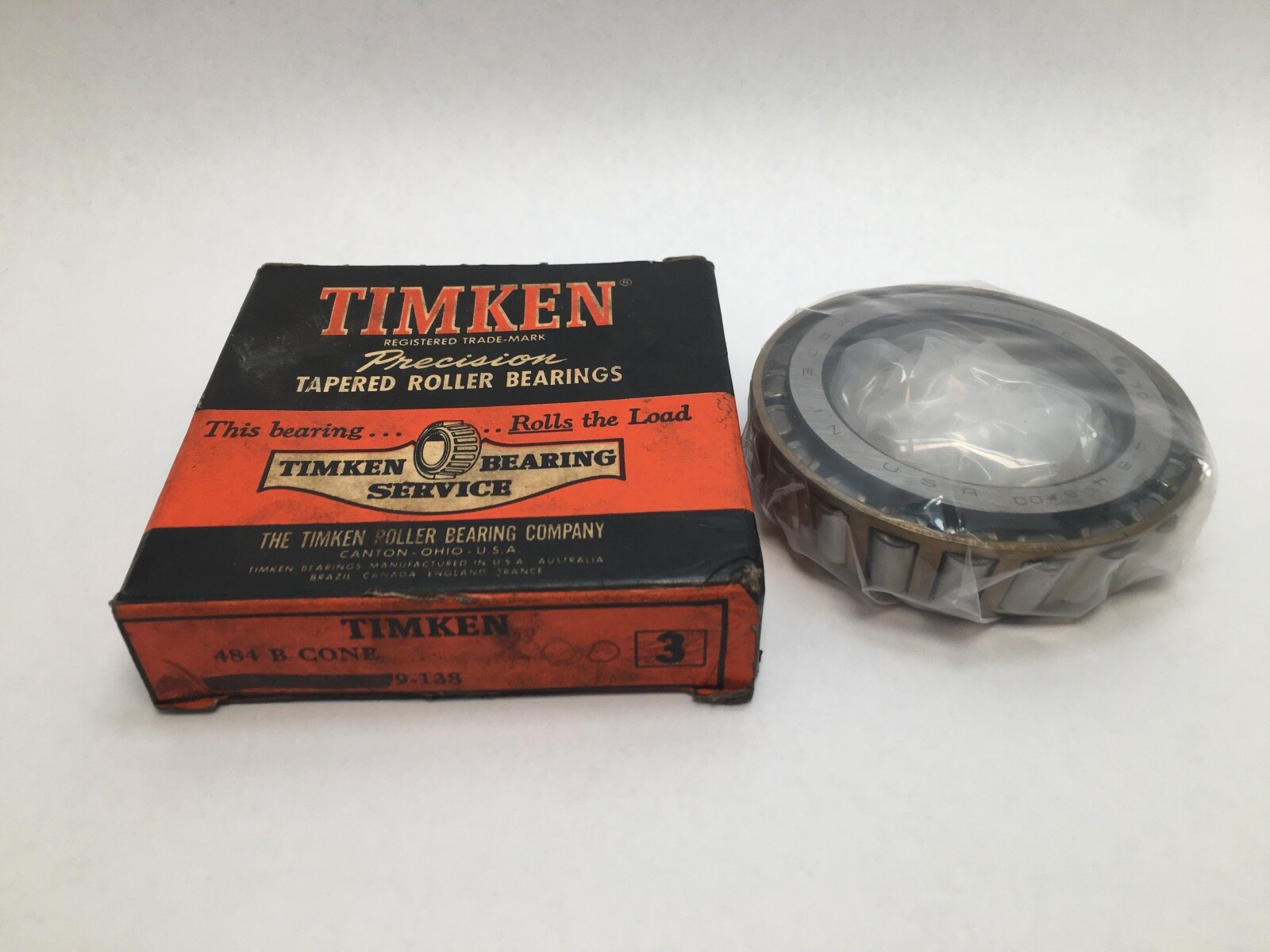

Tapered roller bearing cone, 2-3/4 in bore, Class 3 precision, series 475 inch design. Case-carburized alloy steel races, made in USA, new old stock.
List Price
$52.60
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| Model | 484-B *3 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 2-3/4" |
| Series | 475 |
|---|---|
| Harmonization Code | 8482.20.00 |
| Design Units | Imperial |
| Bearing Material | Case-carburized alloy steel |
| Cone Part Number | 484B |
| Base Number | 484 |
| Mpn Variants | 484B-3; 484B*3; 484B#3; 484-B *3; 484B 3; 484B |
| Compatible With Replaces | 484 cone family cups: Timken 472, Timken 472A |
| Precision Class | Class 3 |
| Precision Rating | Class 3 |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 1 |
| Bore Type | Straight |

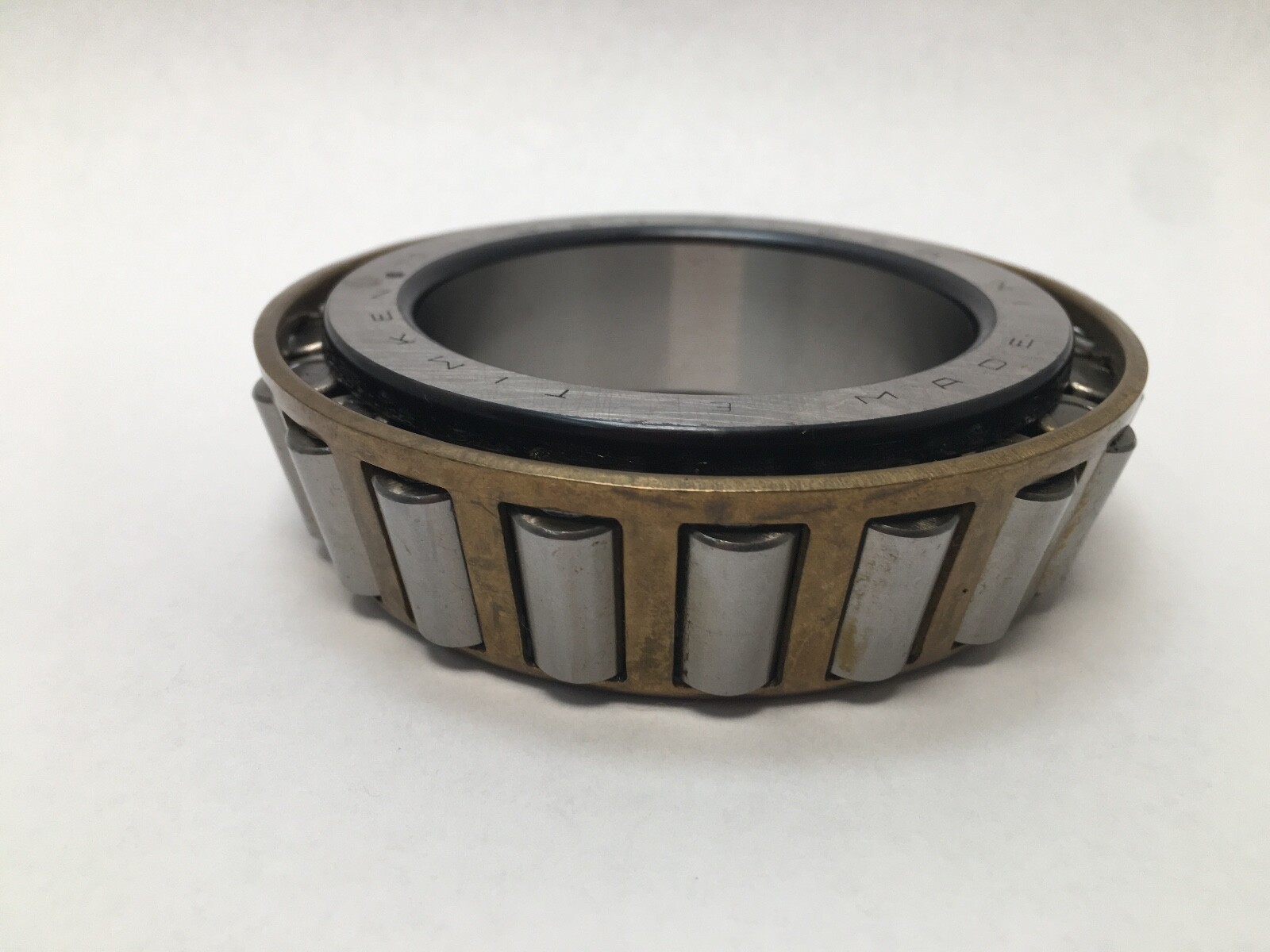

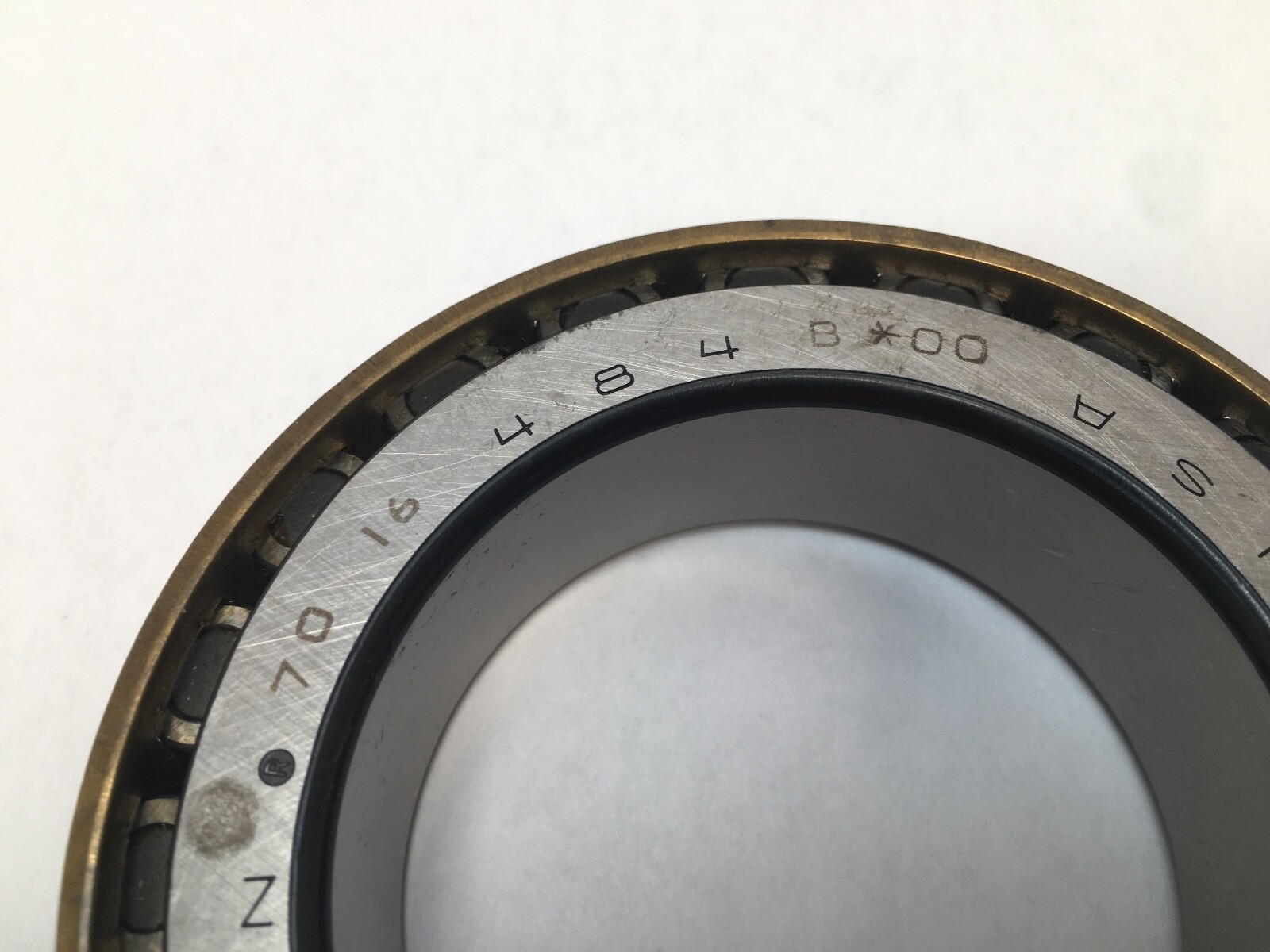

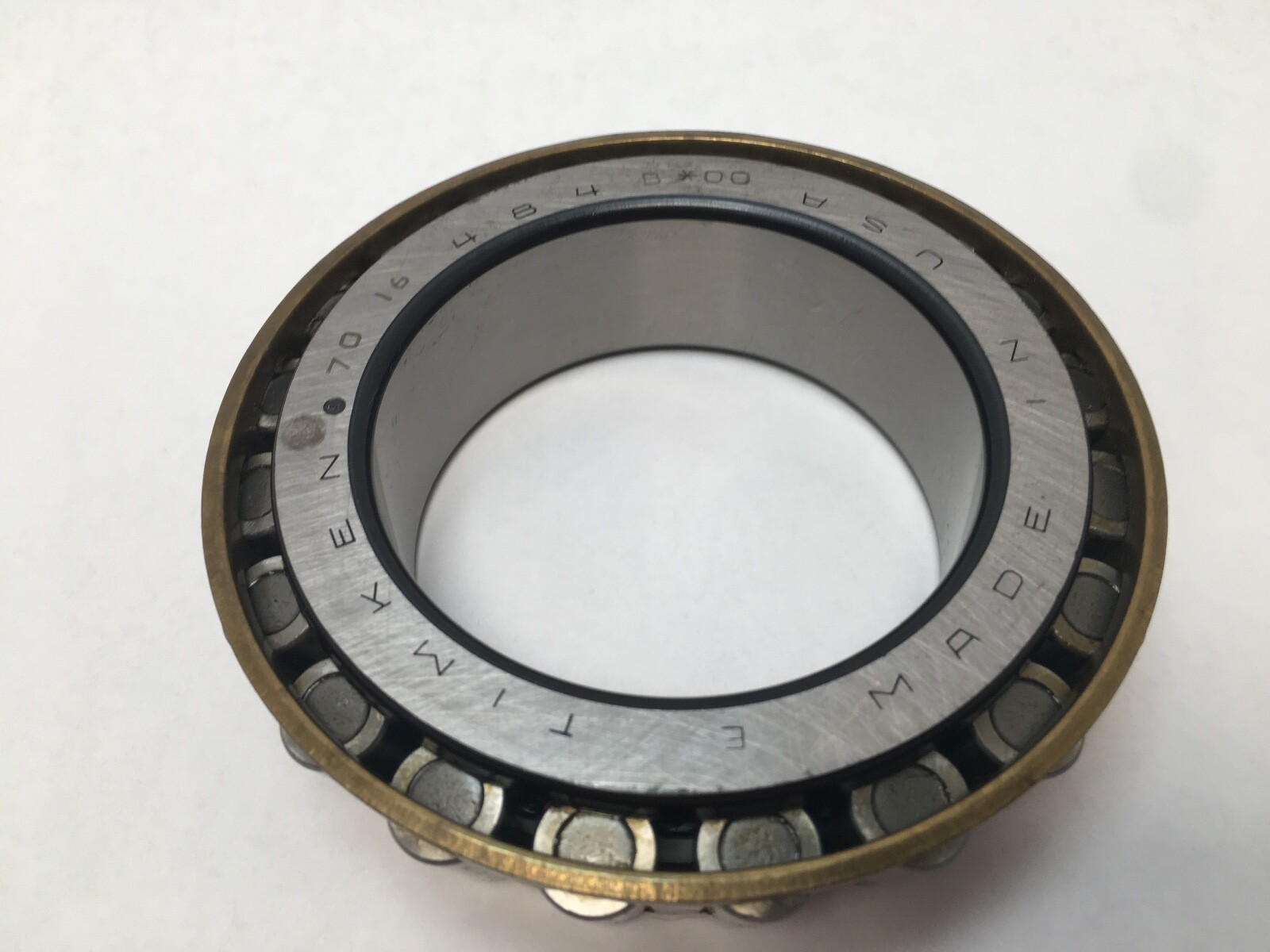

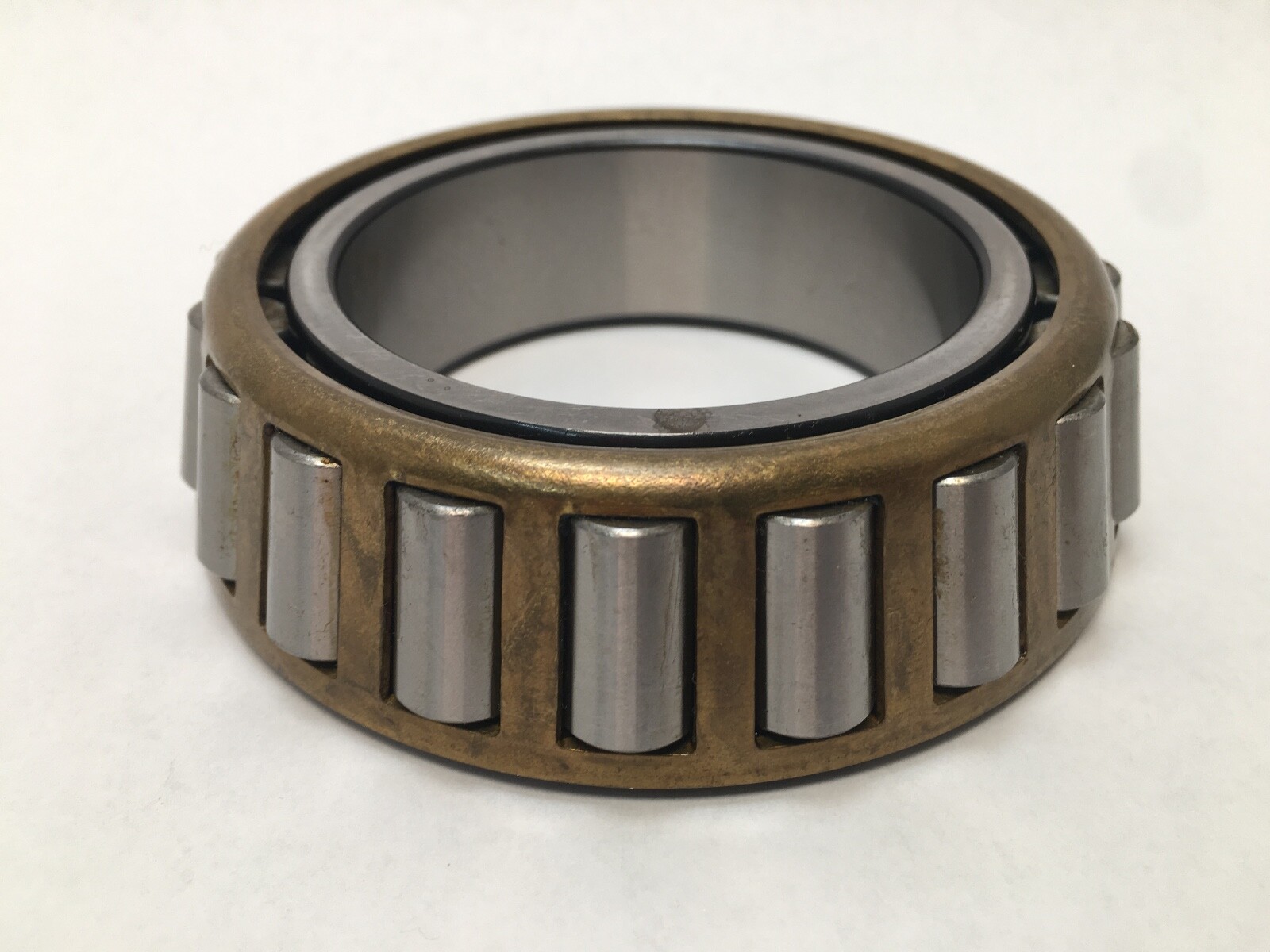

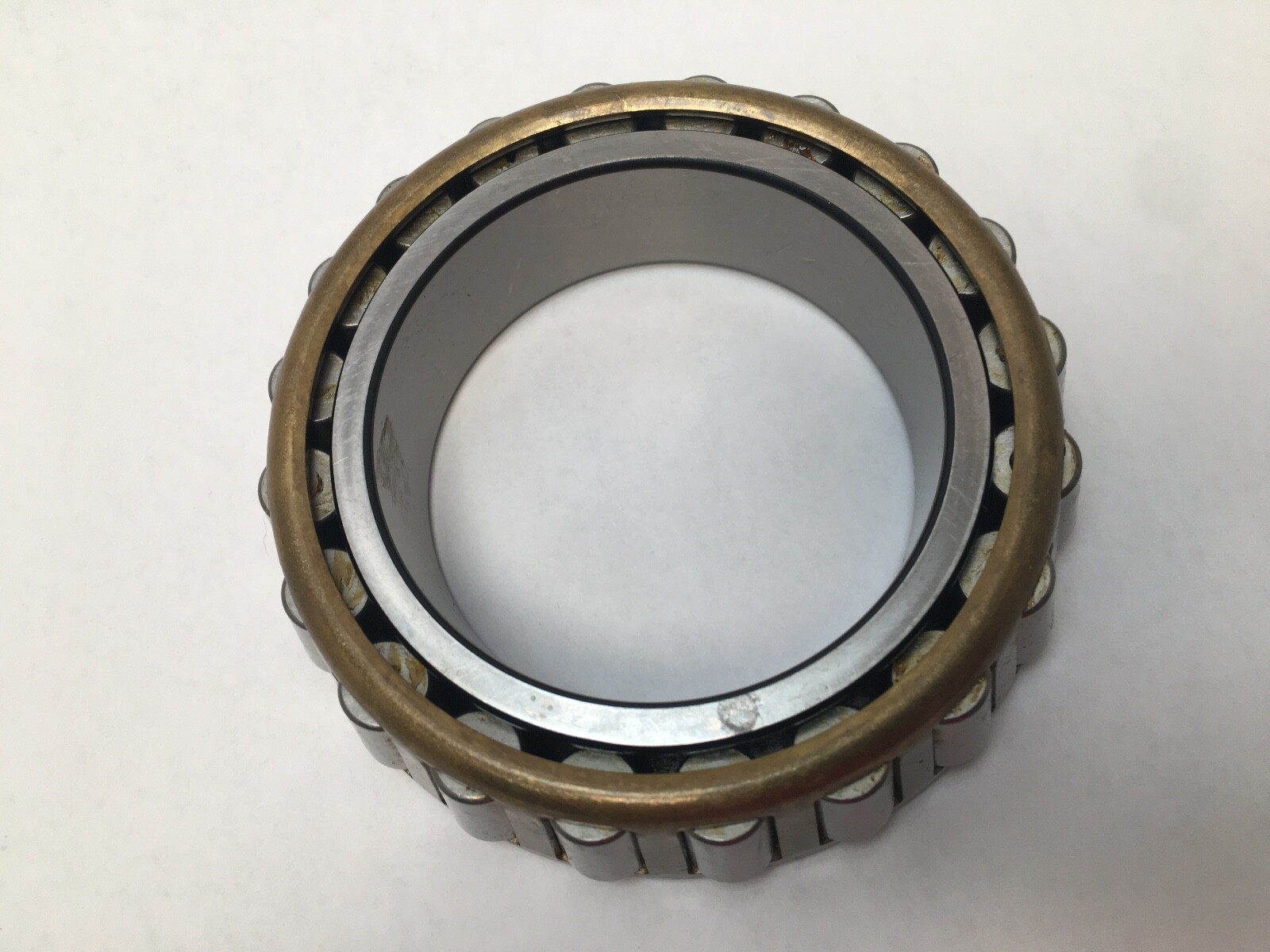

Timken 484B-3 single-row tapered roller bearing cone, inch design, series 475. Cone only, comprising the inner ring, the roller set and the cage as one non-separable assembly. Bore Diameter: 2-3/4 in (69.850 mm). Precision Class: Class 3. Unit Quantity: 1 Pc.
484 — the cone base number in the Timken 475 inch tapered roller series.
B — the cone execution this record carries, written on the carton as 484-B.
–3 — Precision Class 3. Tighter tolerance than standard, giving lower running vibration and closer shaft location. Cartons write the same code as 484B *3 and 484B #3.
Bore Diameter: 2-3/4 in (69.850 mm). Series: 475. Base Number: 484. Number Of Rows: 1. Rolling Elements: Tapered Roller. Bore Type: Straight. Bearing Material: Case-carburized alloy steel. Design Units: Imperial. Precision Class: Class 3. Harmonization Code: 8482.20.00.
Bore Diameter: 2-3/4 in (69.850 mm). Bore Type: Straight. The cone runs on the shaft and seats against a Timken cup in the housing; the 484 cone family runs against the Timken 472 and 472A cups.
Base Number: 484. Execution: B. Precision suffix: -3, written *3 and #3 on cartons. Cup family: Timken 472 and 472A. Searchable variants of the manufacturer part number: 484B-3, 484B*3, 484B#3, 484-B *3, 484B 3, 484B.
What cups run with the Timken 484 cone family?
The Timken 472 and 472A cups.
What is the bore of the Timken 484B-3?
Bore Diameter: 2-3/4 in (69.850 mm), Bore Type: Straight.
What does the -3 mean on a Timken 484B-3?
Precision Class 3, a tighter tolerance than standard, giving lower running vibration and closer shaft location.
