Timken397W-3Tapered Roller Bearing Cone Only, 2.3622 in / 60 mm Bore, Class 3 Precision, Slotted, Mates 394A Cup

Product Description

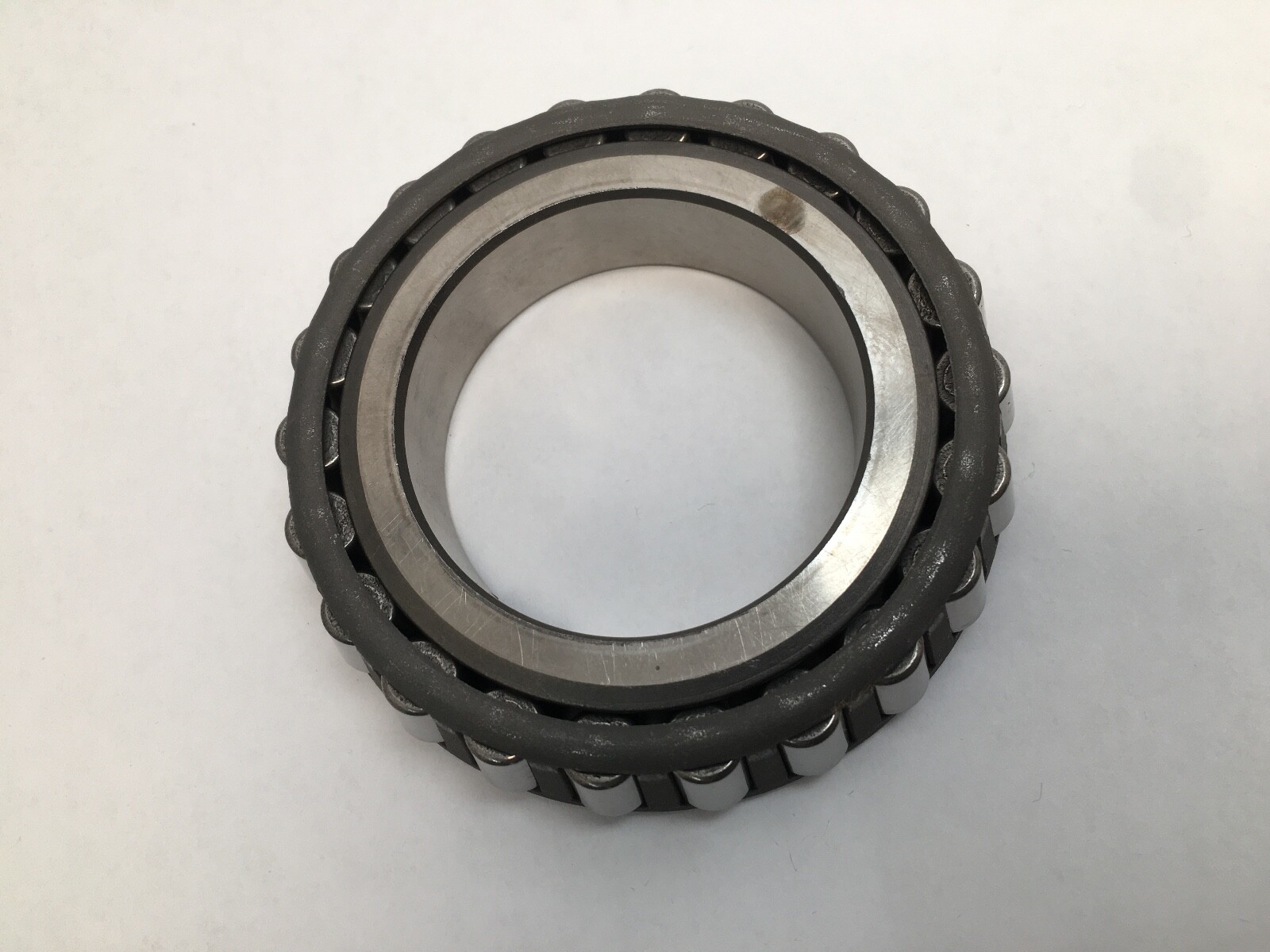

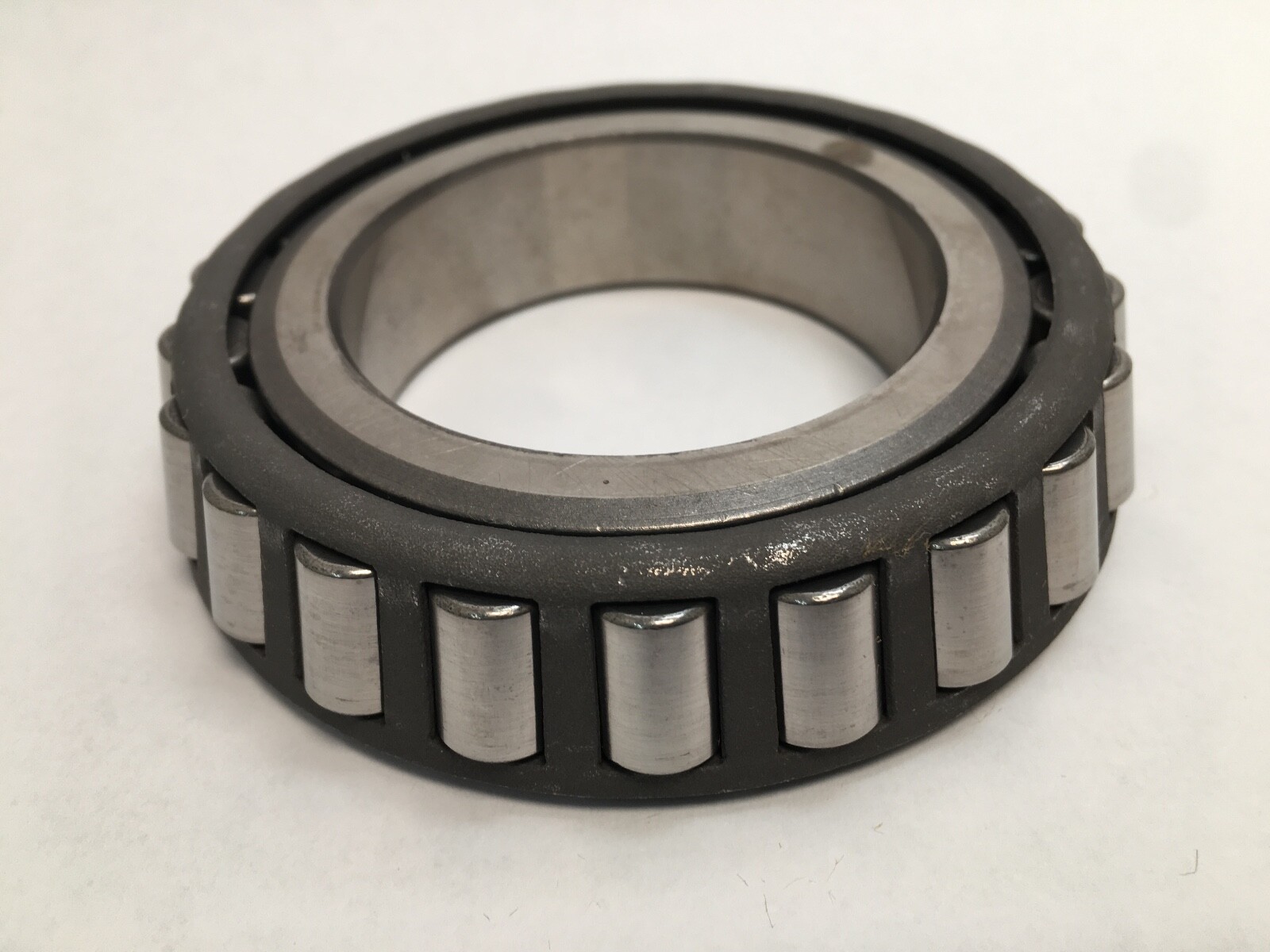

What this part is:

The cone of a single-row inch-series tapered roller bearing on the 397 numbering — that is, the inner ring complete with its tapered roller set and cage. The bore is 2.3622 in, which is exactly 60.000 mm: this is one of the inch-series bearings Timken produces on a metric bore so it drops onto metric shafting. The mating cup is the 394A, which has a 4.3307 in (110.000 mm) outside diameter.

Quantity and configuration:

This listing is the cone only. No cup is included. That is the normal way tapered roller bearings are sold as service parts, because the cup is often still good when the cone and rollers are worn — but if you need a complete bearing you will also need a 394A cup, or one of the other cups listed below.

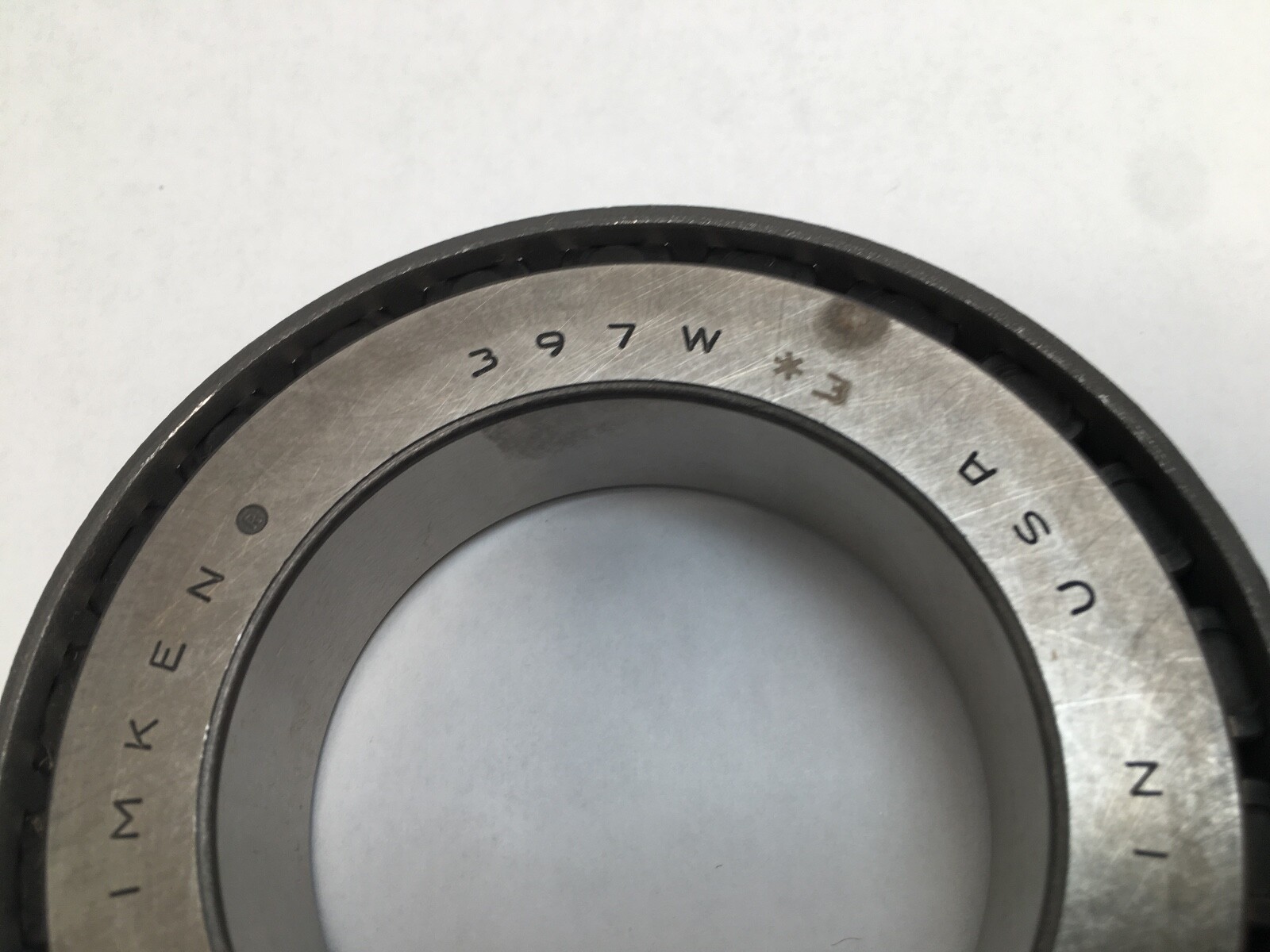

Decoding the designation:

• 397 – the cone number. The complete bearing is 397/394A.

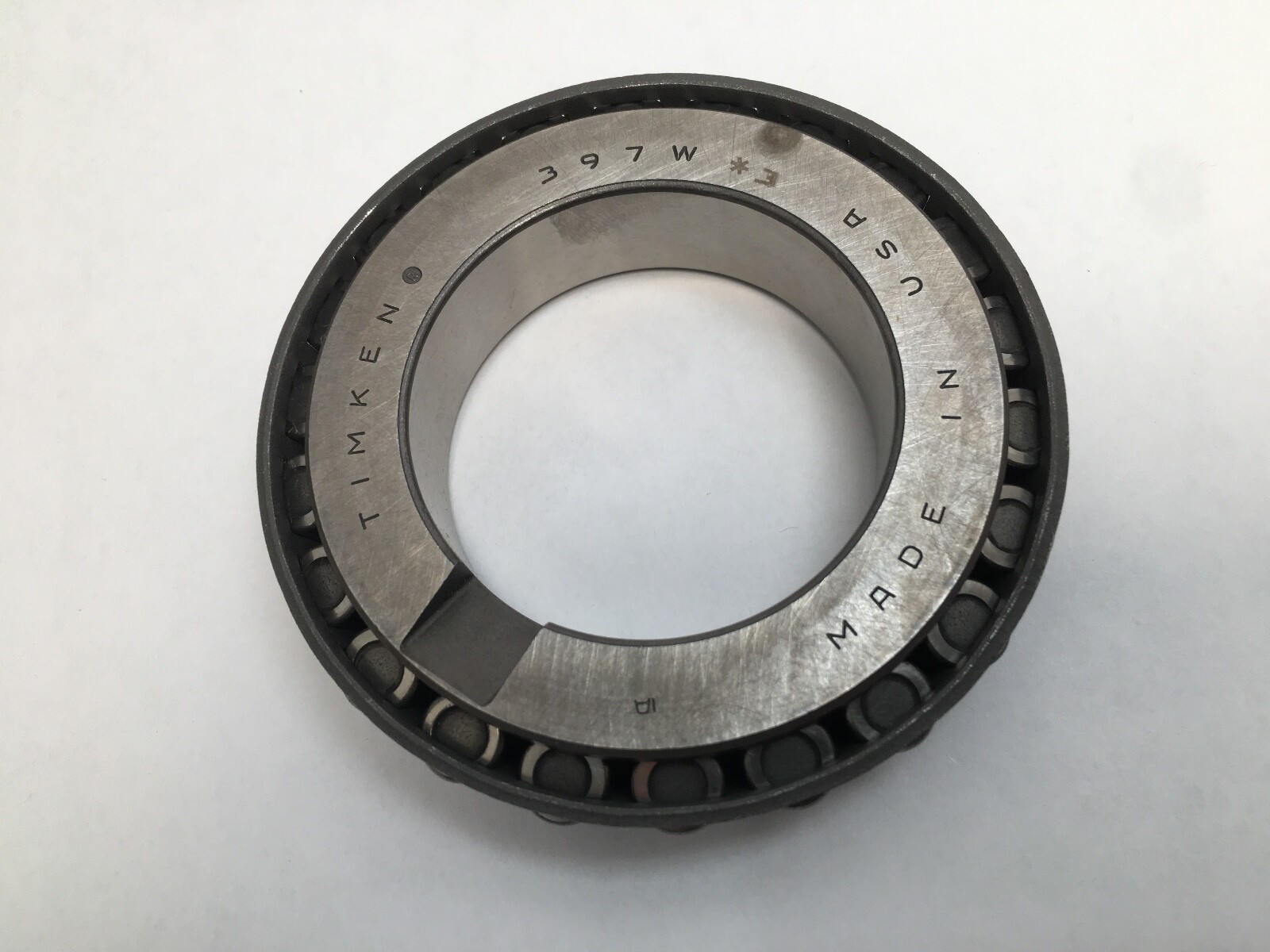

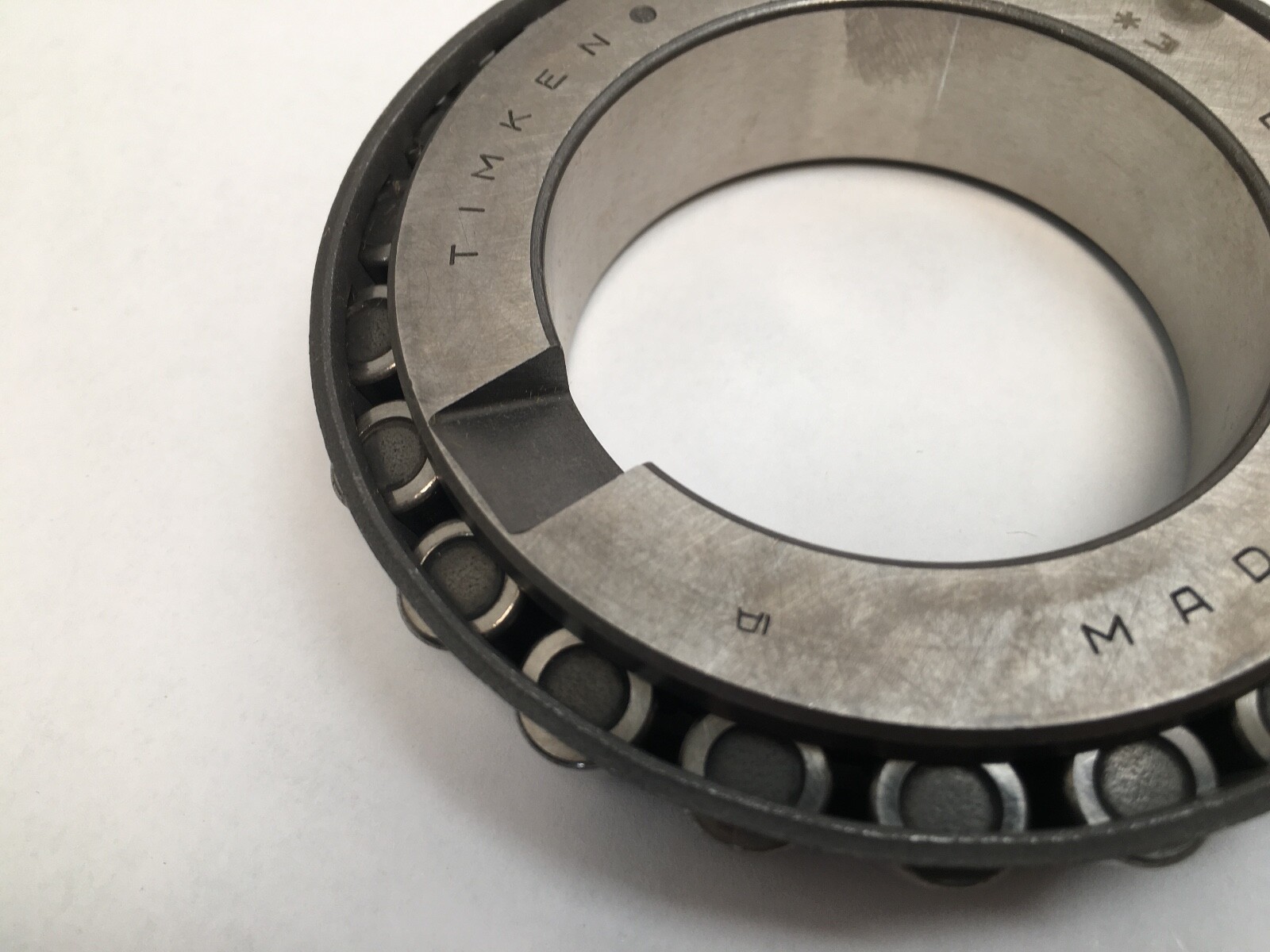

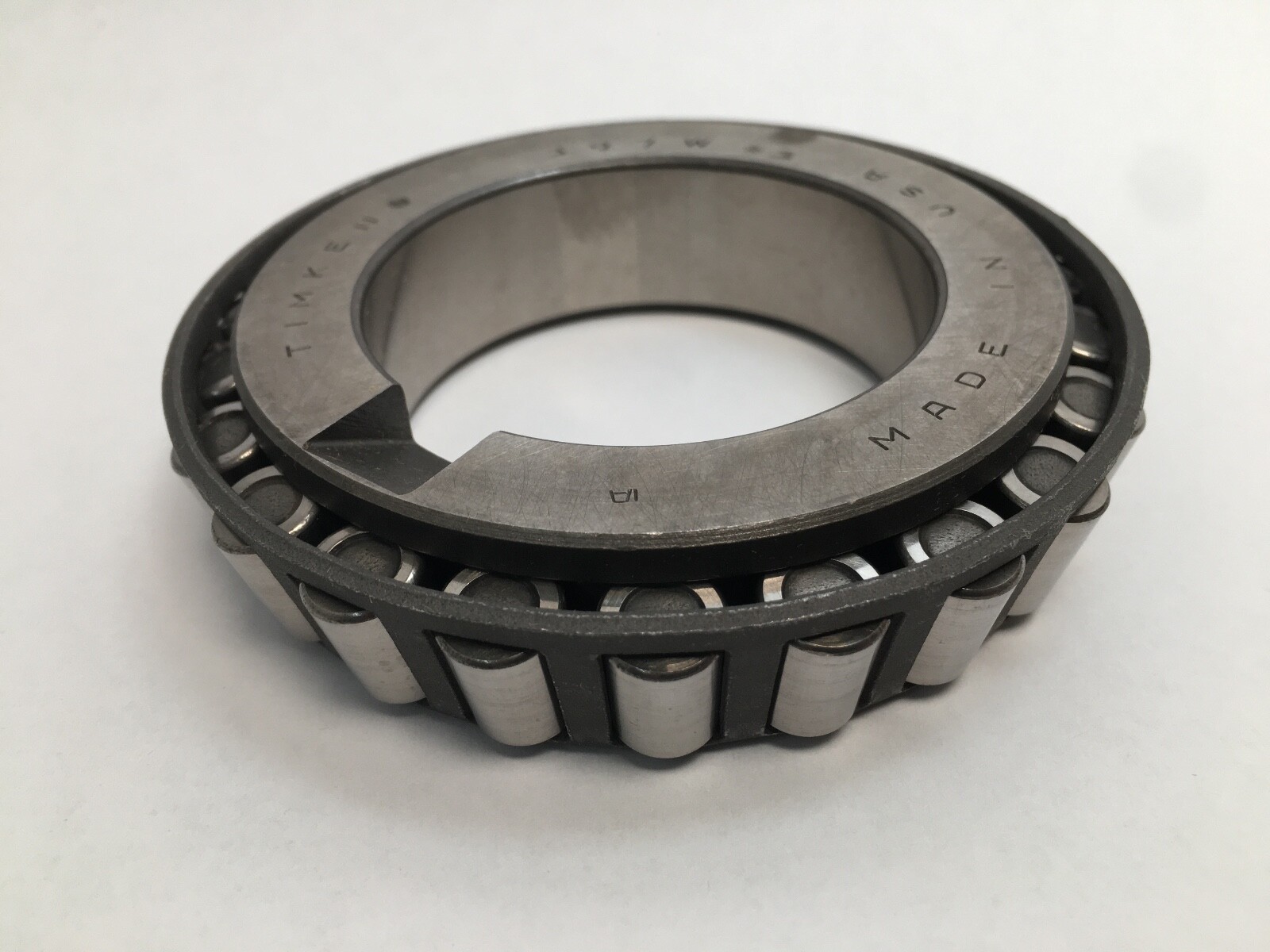

• W – a slot feature on the cone, a Type 12 slot in Timken’s suffix scheme. It is a geometry feature for lubricant flow or anti-rotation, not a change to the bore, the outside diameter or the load rating. Related suffixes WA, WB, WE and WD denote other slot forms.
• *3 or Class 3 – the precision class.

What these specs mean in practice:

Class 3 is the reason to want this particular cone, and the numbering is genuinely counterintuitive. For inch-series tapered roller bearings the precision ladder runs, loosest to tightest: Class 4 (standard commercial) → Class 2 → Class 3 → Class 0 → Class 00 → Class 000. So Class 3 is the first true precision grade above commercial, broadly equivalent to ABEC 5, ISO P5, or Timken’s metric Class C. It is not a downgrade from Class 0 — it is two steps below it, and two steps above ordinary Class 4. Anyone reading the number as a simple “lower is looser” scale will get it backwards, which is exactly why it is worth stating.

Tighter class means tighter control of bore and raceway runout and of the assembled bearing’s width variation, so a Class 3 cone belongs in machine tool spindles, precision gearboxes, printing and converting equipment and anywhere shaft position or repeatability matters. Fitting one into a commercial position does no harm; fitting a Class 4 cone into a Class 3 position gives away the accuracy the machine was designed around.

Remember that a tapered roller bearing has no internal clearance until it is assembled. Two of these mounted in opposition on a shaft are set against each other with shims, a spacer or a nut to a specified end play or preload, and that setting governs how the assembly runs.

Published ratings and mounting data:

• Cone bore d: 2.3622 in (60.000 mm)
• Cone width B: 0.8660 in (21.996 mm)
• Mating cup: 394A — 4.3307 in (110.000 mm) outside diameter, 0.7411 in (18.824 mm) wide
• Assembled bearing width T with the 394A cup: 0.8661 in (21.999 mm)
• Rows: 1, tapered rollers
• Dynamic radial rating C90: 5,760 lbf — C1 22,200 lbf
• Dynamic thrust rating Ca90: 3,970 lbf
• Static radial rating C0: 28,100 lbf (125 kN)
• K factor: 1.45 — e 0.40, Y 1.49
• Precision class: 3 (approximately ABEC 5 / ISO P5)
• Cage: stamped steel
