Availability:
4 in stock
Tapered roller bearing cone and cup, 1.2500 in bore x 2.4409 in OD x 0.8125 in wide, C1 59,900 N, 0.3 kg. Timken 15126 cone with 15244 cup.
List Price
$27.67
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 15126/15244 |
| Model | 15126 15244 |
| Bearing Type | Tapered Roller Bearing |
| ID | 1.2500 in (31.750 mm) |
| OD | 2.4409 in (61.999 mm) |
| Series | 15000 |
|---|---|
| Total Width | 0.8125 in (20.638 mm) |
| Mpn Variants | 15126/15244, 15126 15244, 15126-90062, 15126, 15244 |
| Precision Class | Not specified |
| Additional Attributes | C90: 15,500 N; Ca90: 9,310 N; e 0.35; Y 1.71; K 1.67; G1 14.6; G2 7.58; db 38.5 mm; Db 55.12 mm |
| Dynamic Load Rating | 59,900 N |
| Static Load Rating | 53,900 N |
| Rolling Elements | Tapered Roller |
| Item Weight | 0.3 kg (0.6 lb) |
| Cup Part Number | 15244 |
| Cup Width | 0.6250 in (15.875 mm) |
| Cup Backface To Clear Radius | 0.050 in (1.27 mm) |
| Cone Part Number | 15126 |
| Cone Width | 0.8125 in (20.638 mm) |
| Cone Backface To Clear Radius | 0.030 in (0.8 mm) |
| Cone Frontface Backing Diameter | 1.5 in (38 mm) |
| Cup Frontface Backing Diameter | 2.30 in (58.42 mm) |
| Cage Cone Frontface Clearance | 0.07 in (1.8 mm) |
| Cage Cone Backface Clearance | 0.03 in (0.8 mm) |
| Effective Center Location | -0.23 in (-5.8 mm) |
| Cross Reference 1 | Koyo 15126/15244 |
|---|---|
| Cross Reference 2 | NTN 4T-15126/15244 |
| Cross Reference 3 | SKF 15126/15244 |

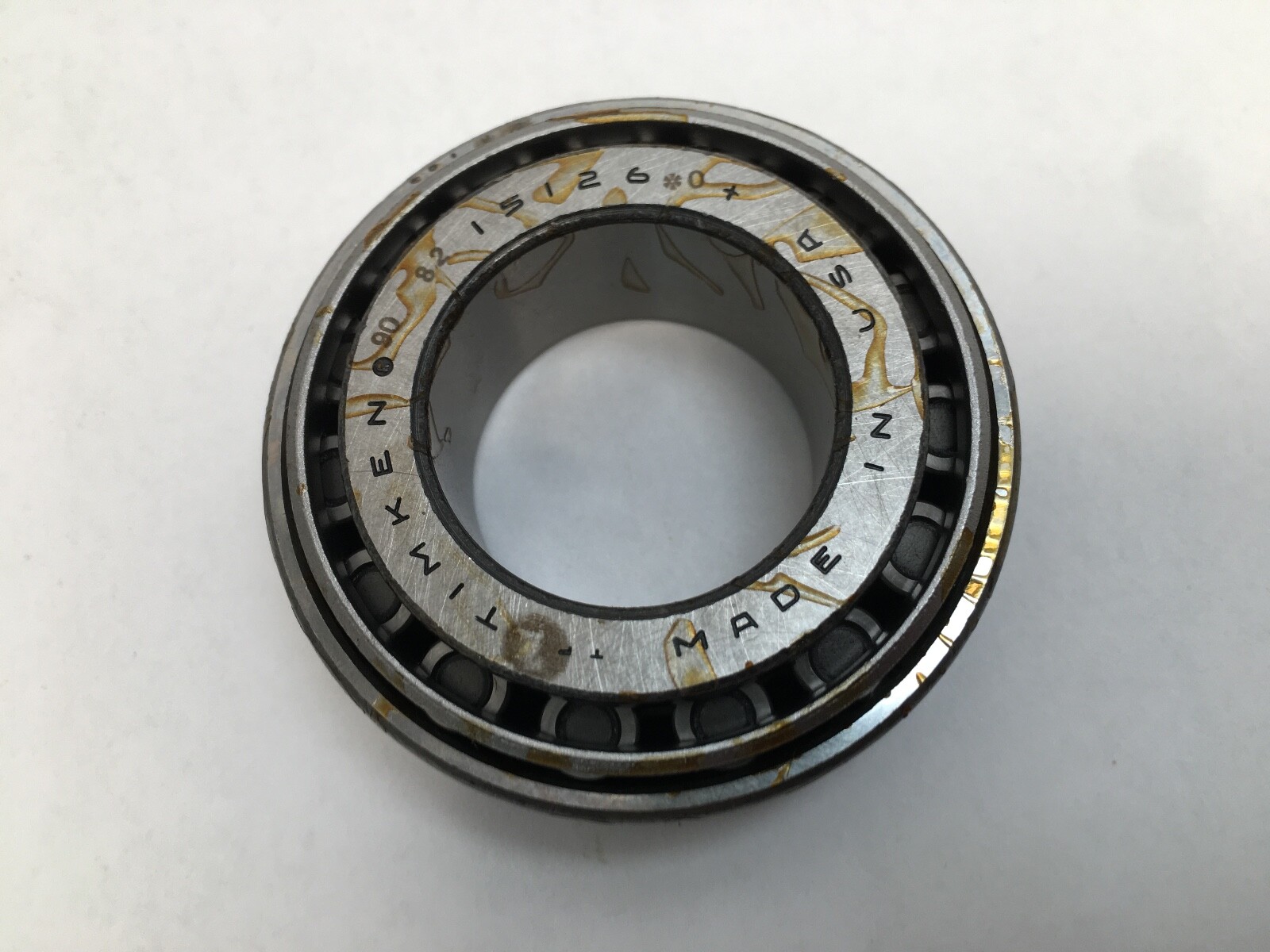

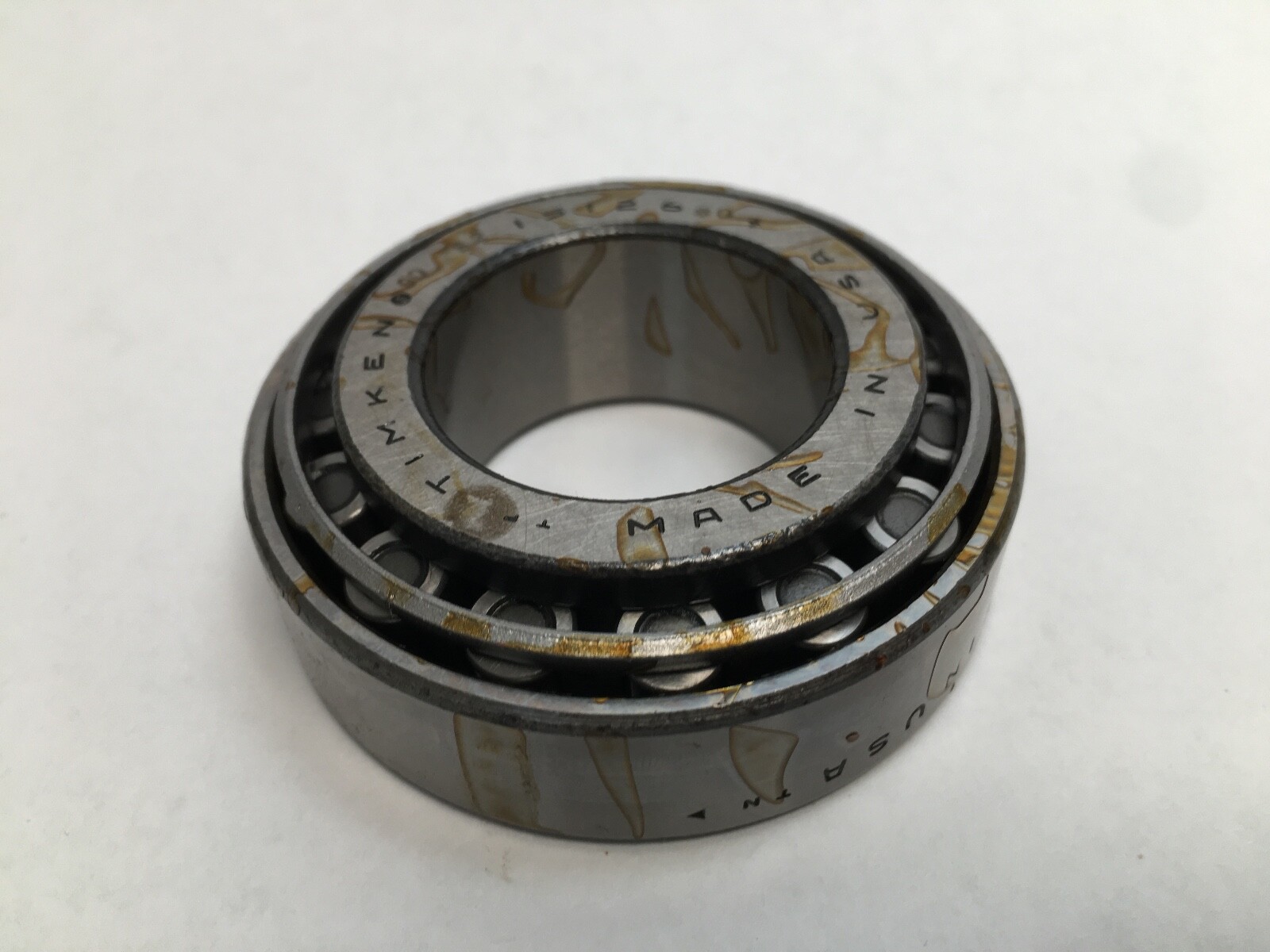

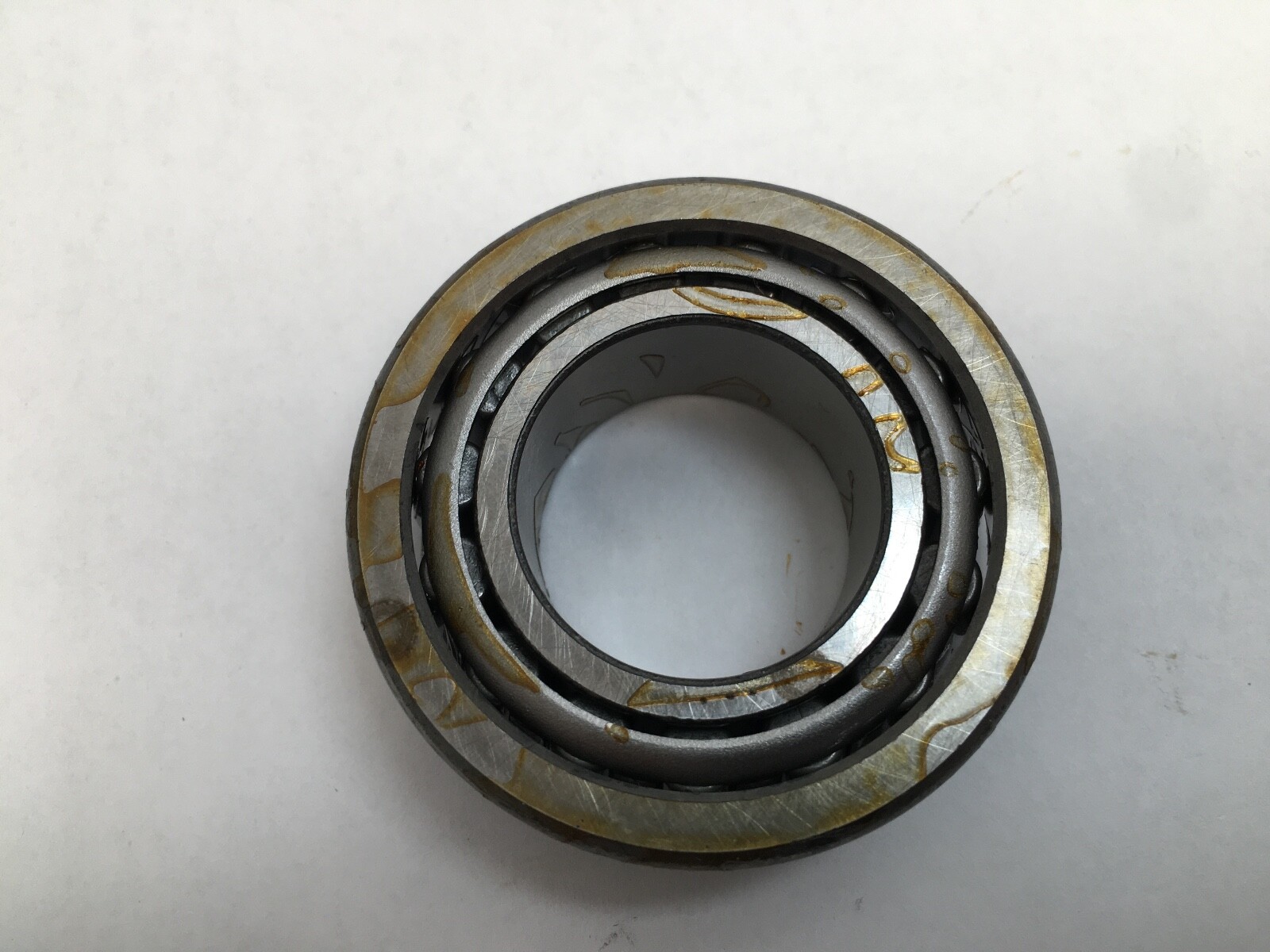

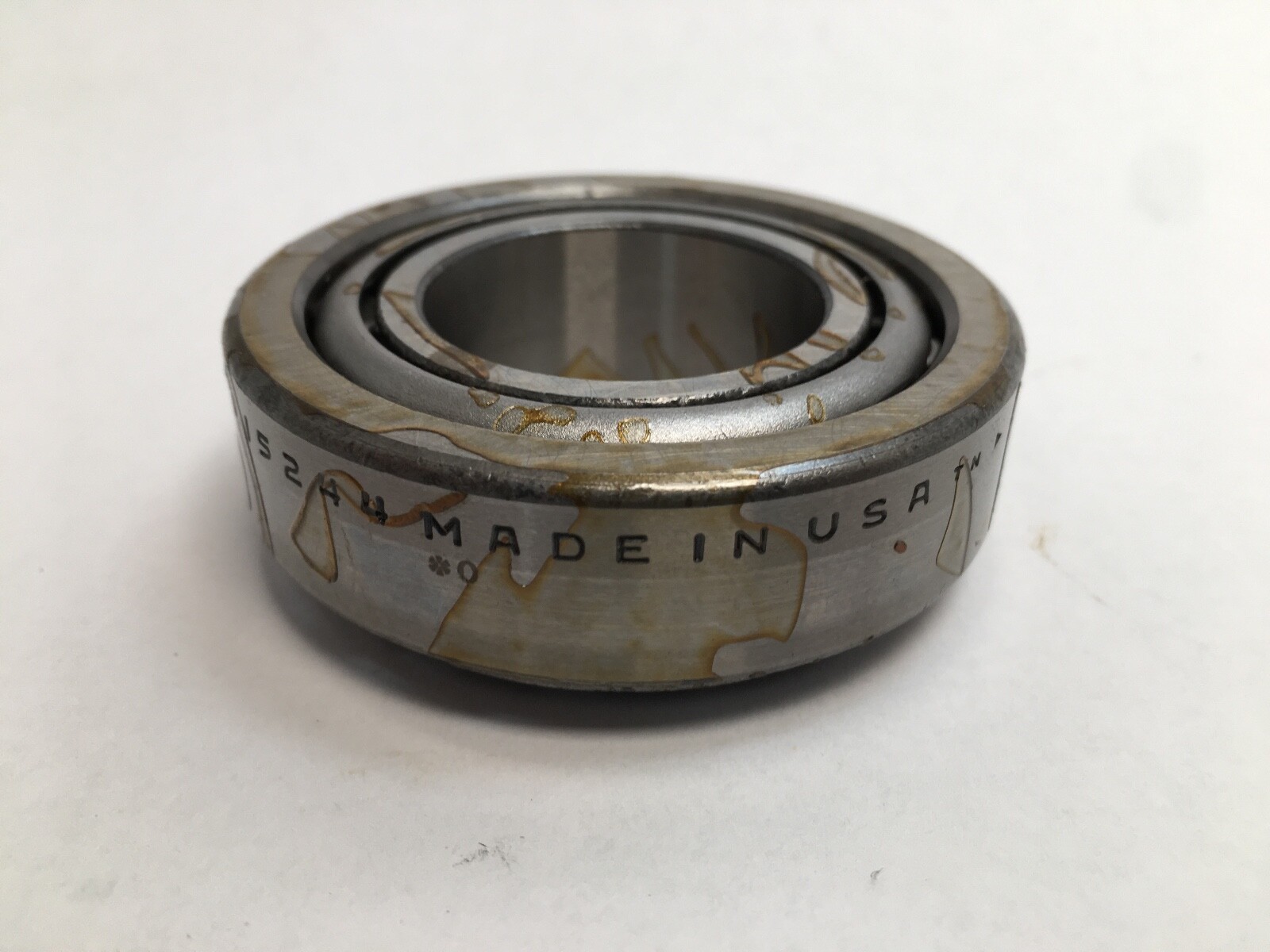

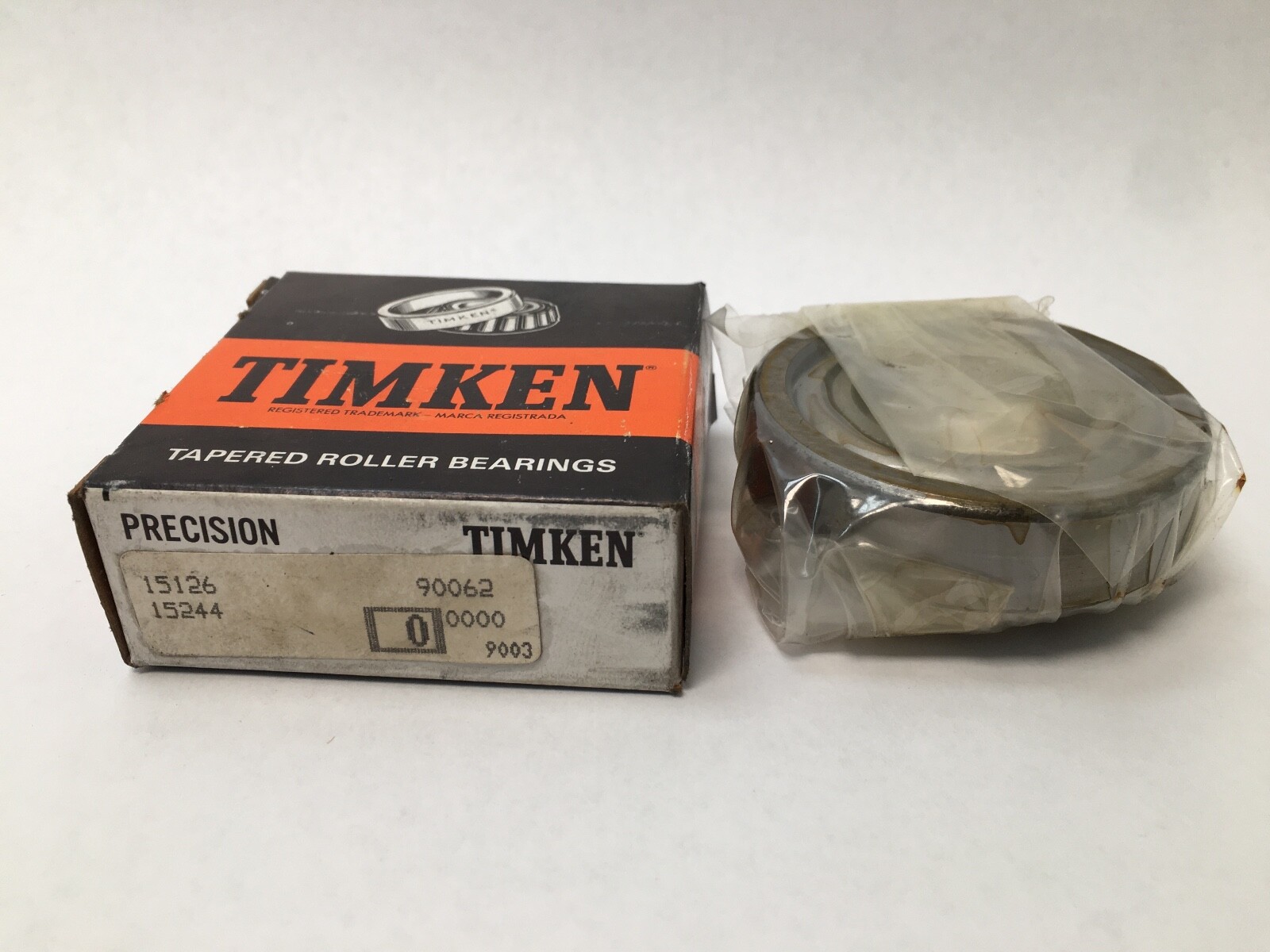

Timken 15126/15244 is a single-row tapered roller bearing (TS) set made up of one 15126 cone and one 15244 cup, 15000 series. Unit Quantity: 1 Set. Condition: surface staining.

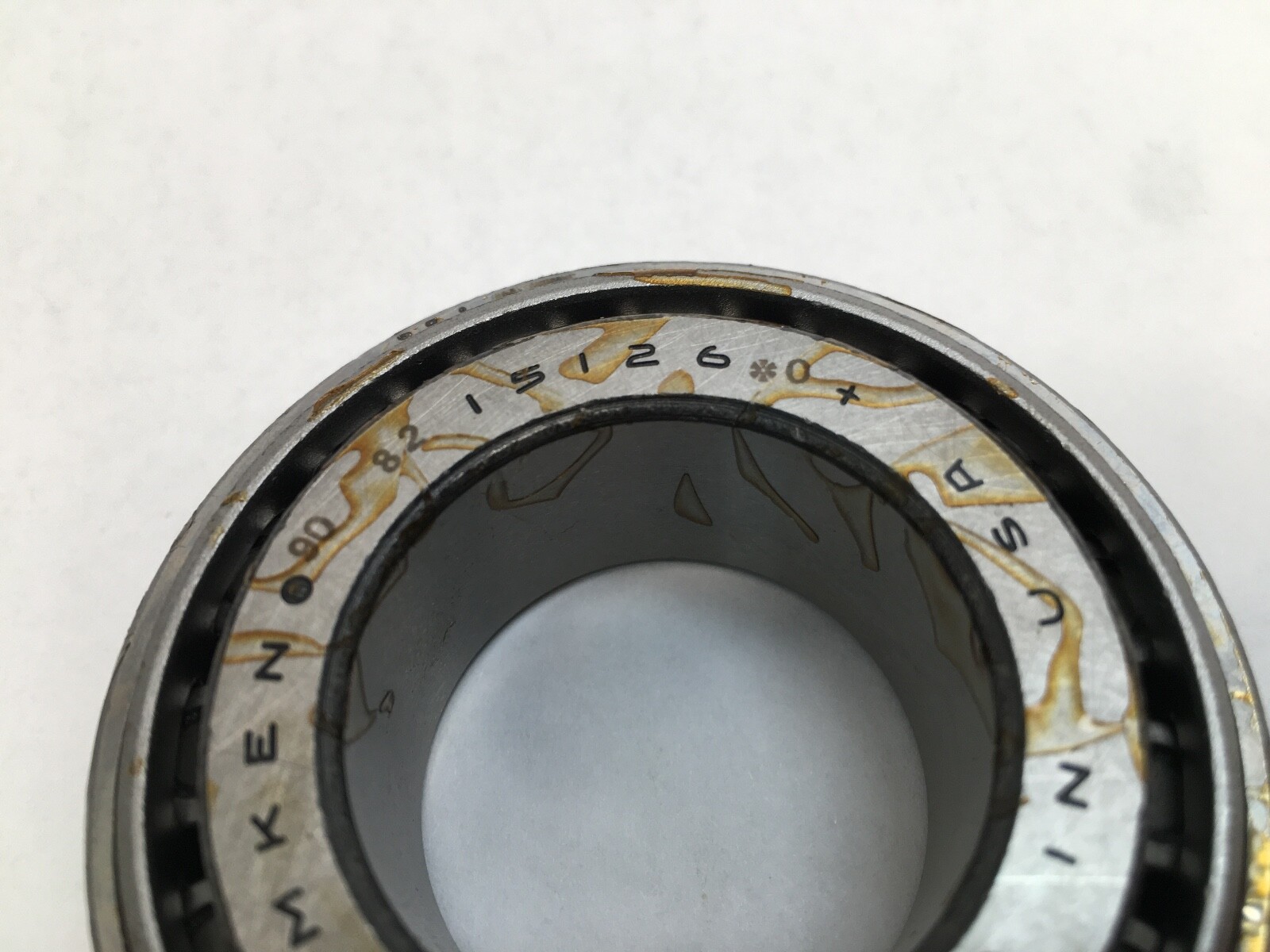

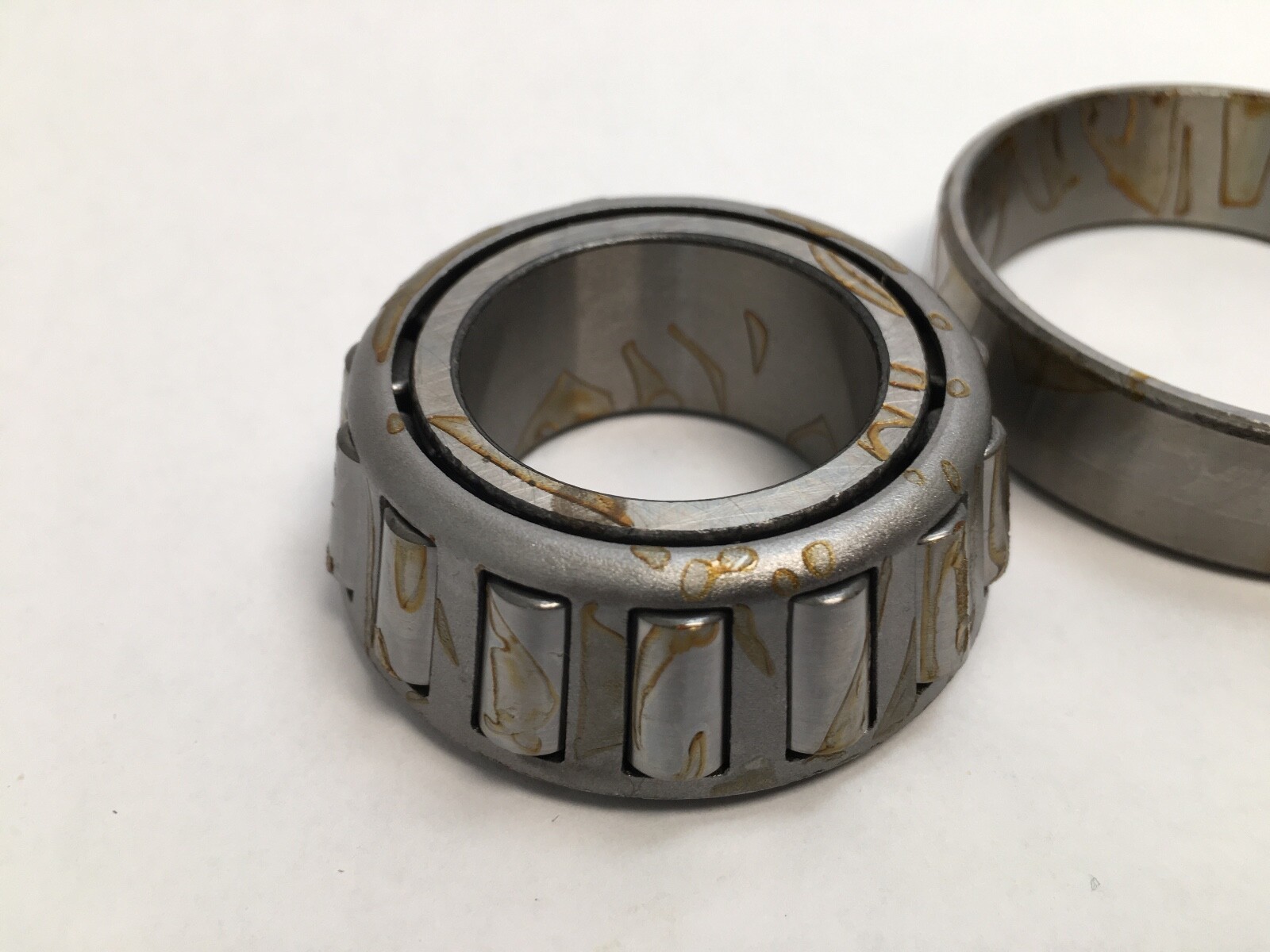

15126 — Timken single cone (inner ring, rollers and cage), 1.2500 in bore.

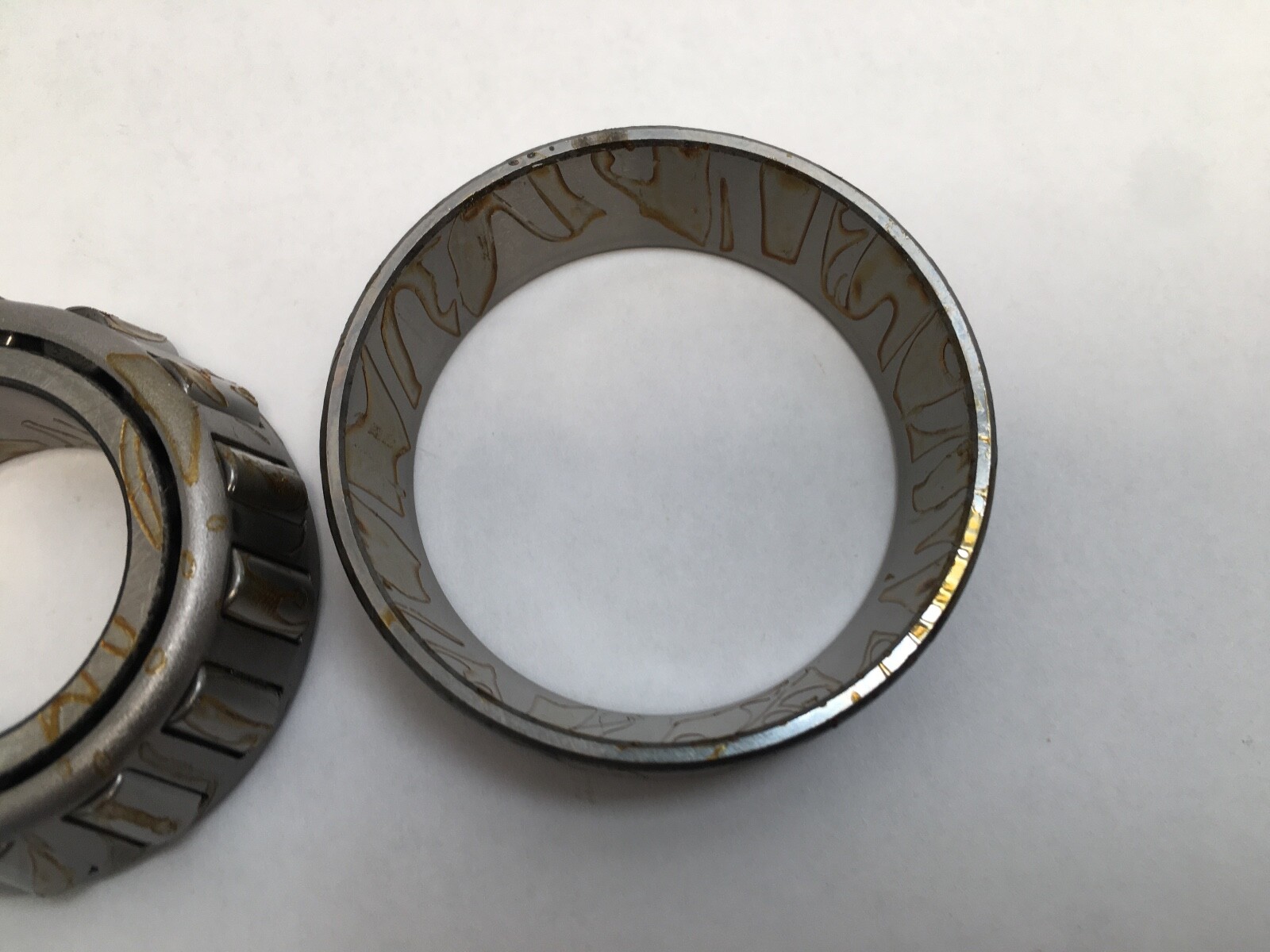

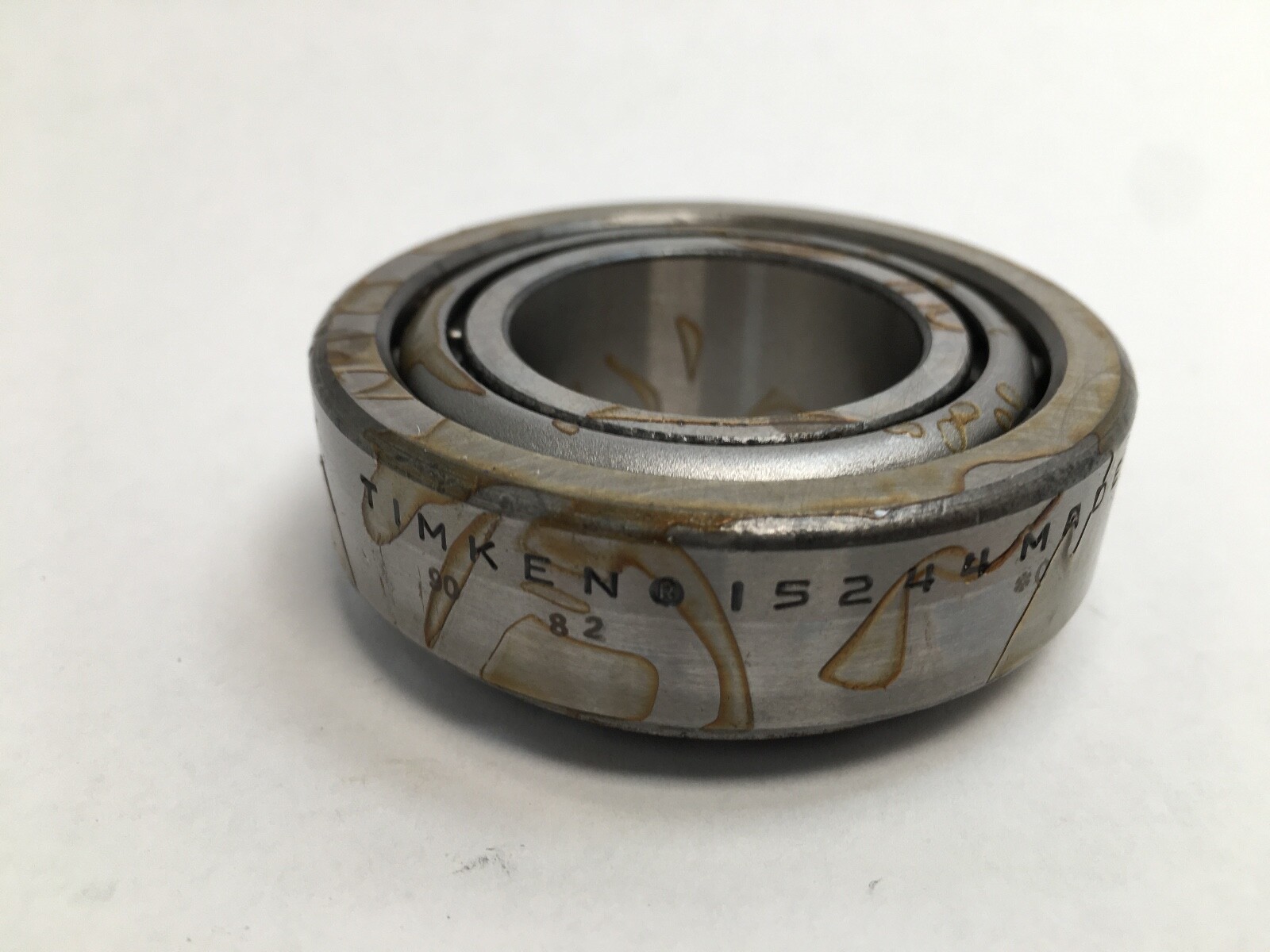

15244 — Timken single cup (outer ring), 2.4409 in OD.
15126-90062 — Timken assembly number marked with this set.
Bore Diameter: 1.2500 in (31.750 mm). Outside Diameter: 2.4409 in (61.999 mm). Total Width: 0.8125 in (20.638 mm). Rolling Elements: Tapered Roller. Series: 15000. Item Weight: 0.3 kg (0.6 lb). Dynamic Load Rating (C1): 59,900 N (13,500 lbf), ISO 1 million revolutions. Dynamic Radial Load Rating (C90): 15,500 N (3,490 lbf). Dynamic Axial Rating (Ca90): 9,310 N (2,090 lbf). Static Load Rating: 53,900 N (12,100 lbf). e Factor: 0.35. Y Factor: 1.71. K Factor: 1.67. G1 Factor: 14.6. G2 Factor: 7.58.
Cone Width: 0.8125 in (20.638 mm). Cup Width: 0.625 in (15.875 mm). Effective Load Center: -0.23 in (-5.8 mm). Max Shaft Fillet Radius: 0.030 in (0.8 mm). Max Housing Fillet Radius: 0.050 in (1.27 mm). Shaft Backing Shoulder Diameter: 1.5 in (38 mm) frontface, 1.52 in (38.5 mm) backface. Housing Backing Shoulder Diameter: 2.30 in (58.42 mm) frontface, 2.17 in (55.12 mm) backface.
15126/15244 is an ABMA inch set also built as Koyo 15126/15244, NTN 4T-15126/15244 and SKF 15126/15244. Marked and searchable variants: 15126/15244, 15126 15244, 15126-90062, 15126, 15244.

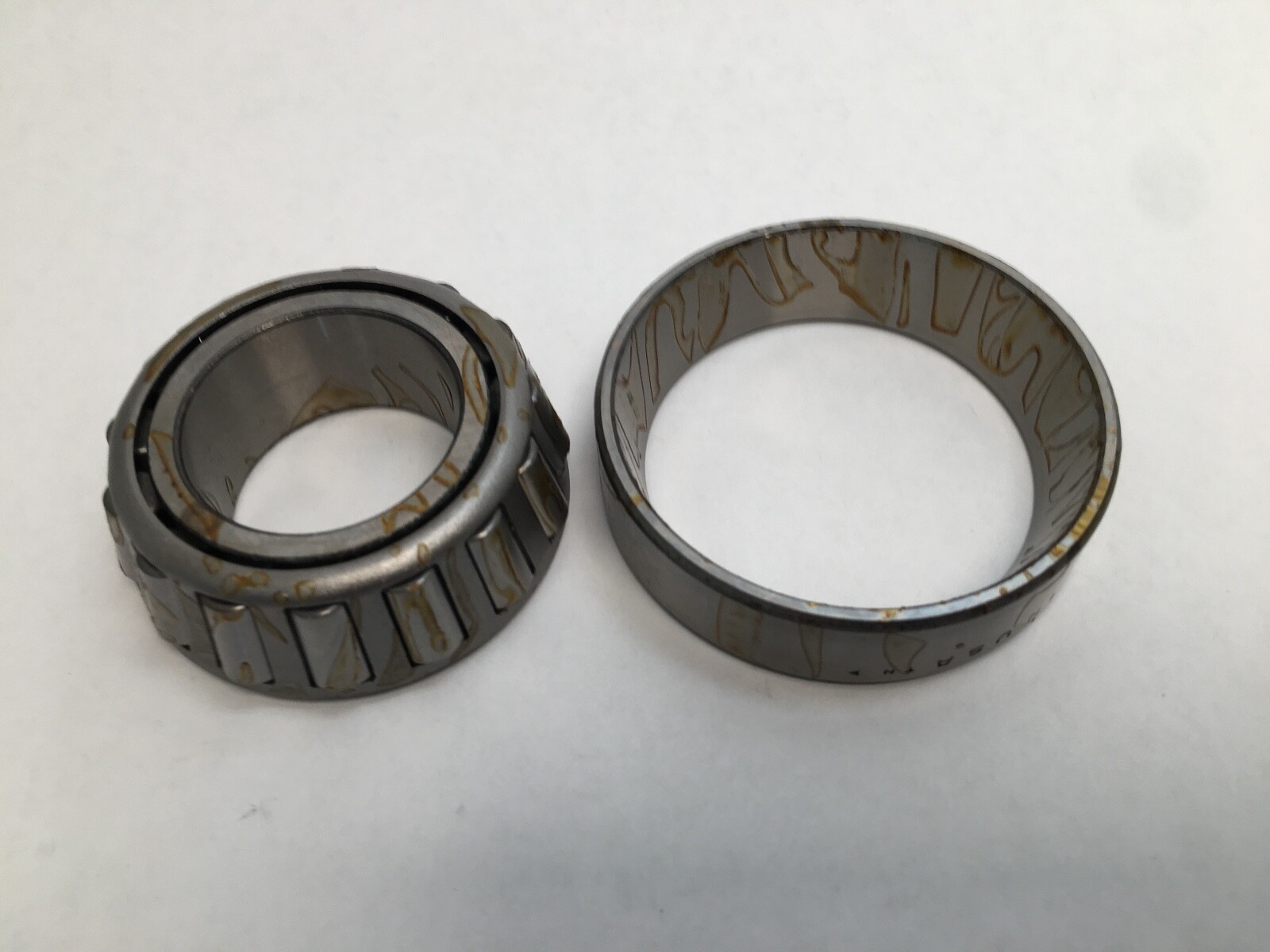

One 15126 cone and one 15244 cup.
1.2500 in bore, 2.4409 in outside diameter, 0.8125 in total width.
C1 is 59,900 N at ISO 1 million revolutions.
