10 in stock

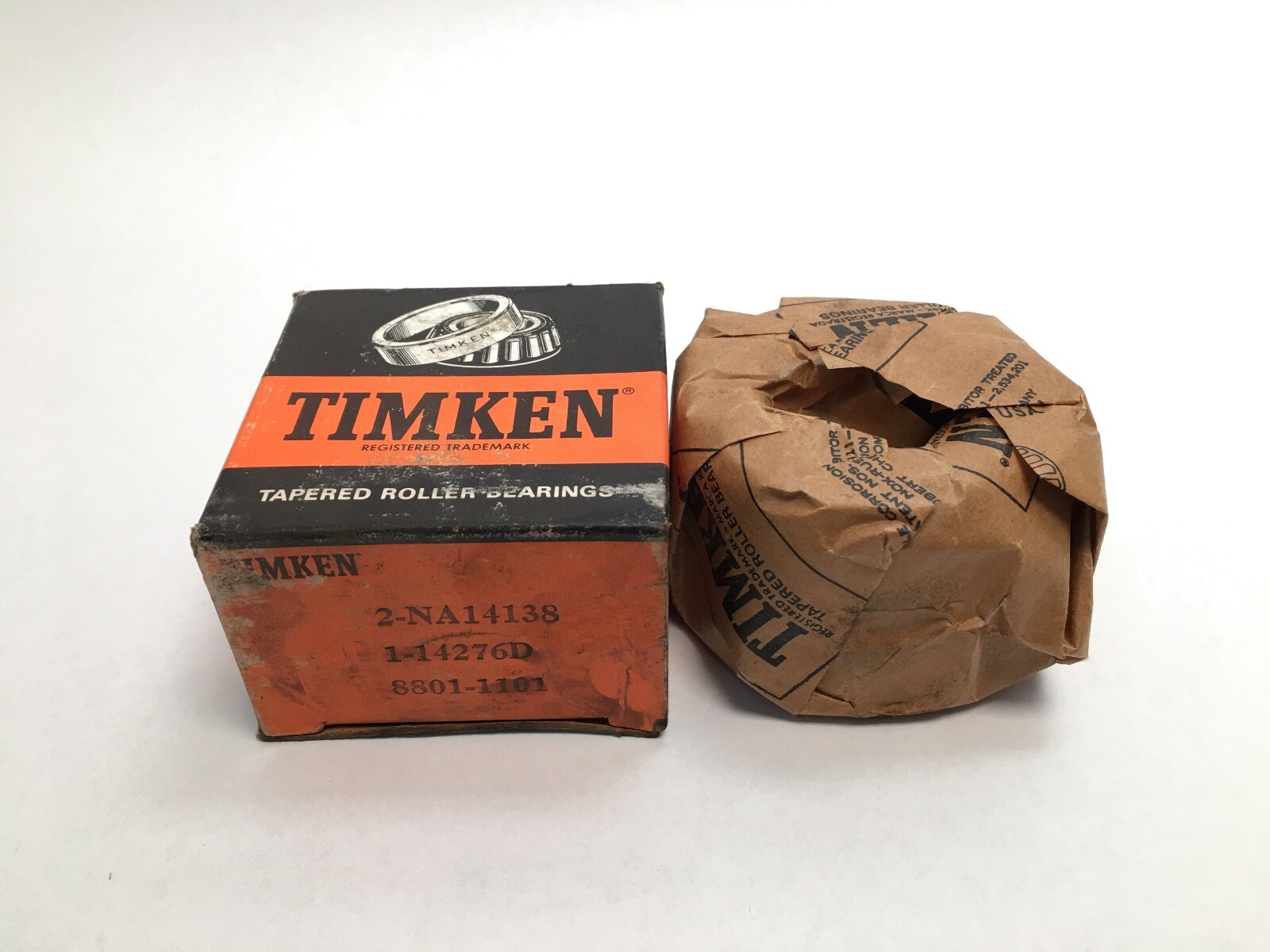

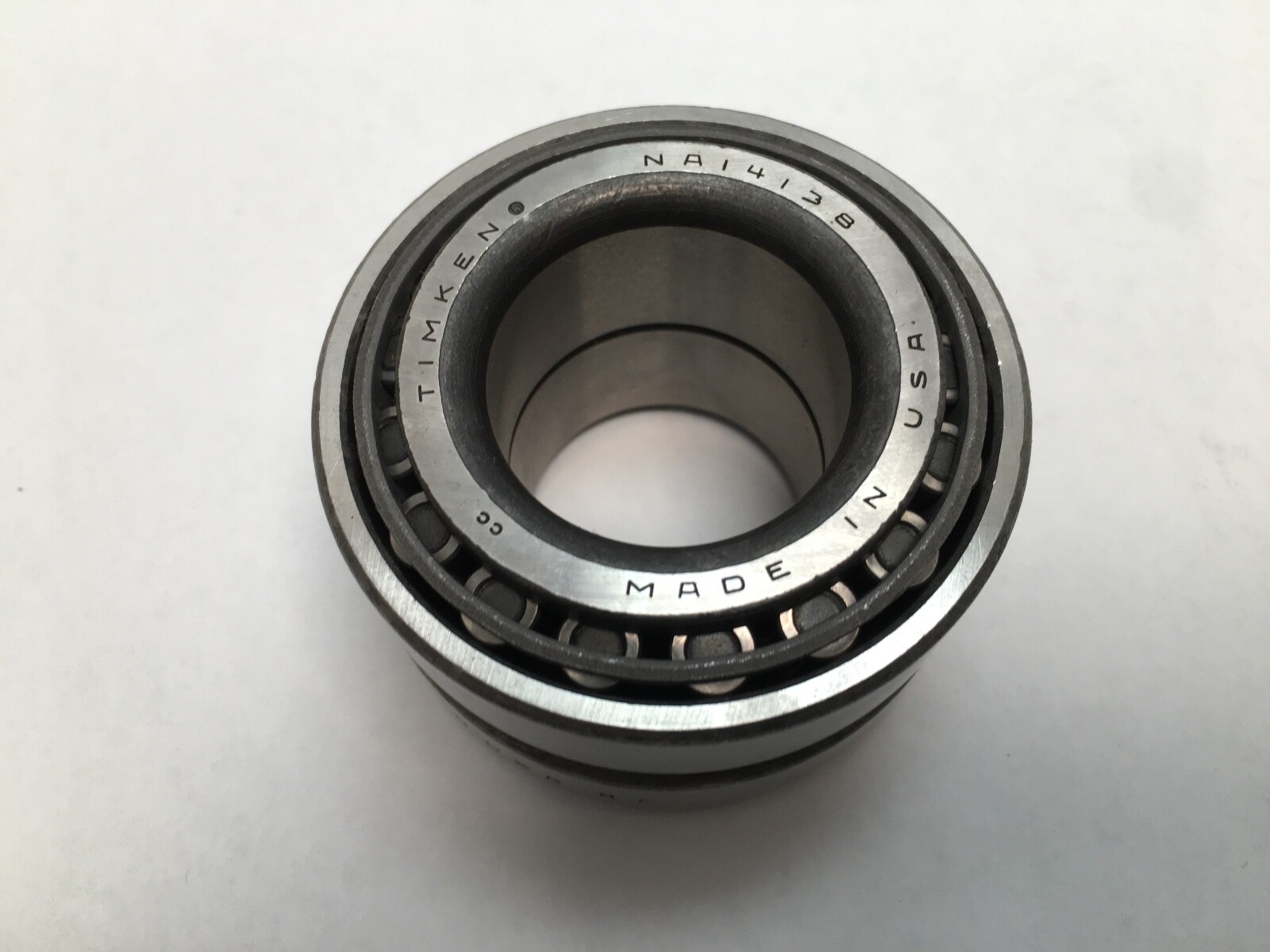

Double-row TNA tapered roller bearing assembly, 1.3750 in bore, 2.7170 in OD, 1.8126 in width. One 14276D double cup and two NA14138 cones, 3 Pcs.
List Price
$59.21
10 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | NA14138/14276D |
| Model | NA14138 / 14276 D |
| Bearing Type | Tapered Roller Bearing Assembly |
| ID | 1.3750 in (34.925 mm) |
| OD | 2.7170 in (69.012 mm) |
| Series | 14000 |
|---|---|
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 14276D |
| Design Units | Imperial |
| Bearing Material | Case-Carburized Steel |
| Cup Width | 1.5000 in (38.1 mm) |
| Cup Backface To Clear Radius | 0.03" |
| Cone Part Number | NA14138 |
| Cone Width | 0.7710" |
| Cone Backface To Clear Radius | 0.14" |
| Base Number | NA14138/14276D |
| Total Width | 1.8126 in (46.04 mm) |
| Overall Width | 1.8126 in (46.04 mm) |
| Mpn Variants | NA14138/14276D, NA14138-14276D, NA14138 14276D, 14138/14276D, 14276-D, NA 14138 |
| Compatible With Replaces | Timken NA14138 cone, Timken 14276D double cup |
| Arrangement Configuration | TNA double-row, non-adjustable: one double cup and two single cones |
| Precision Class | Not specified |
| Dynamic Load Rating C1 | 95,100 N (21,400 lbf) |
| Dynamic Axial Rating Ca90 | 9,260 N (2,080 lbf) |
| K Factor | 1.53 |
| E Factor | 0.38 |
| Dynamic Load Rating | 95,100 N |
| Precision Rating | Not specified |
| Rolling Elements | Tapered Roller |
| Item Weight | 0.7 kg (1.56 lb) |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Industry Terms | double row tapered roller bearing, TNA bearing, double cup with two cones, inch tapered roller bearing assembly, TDI bearing set |
| Common Misspellings | Timkin NA14138/14276D, NA 14138/14276 D, NA14138/14276, NA14183/14276D, NA14138/14267D |

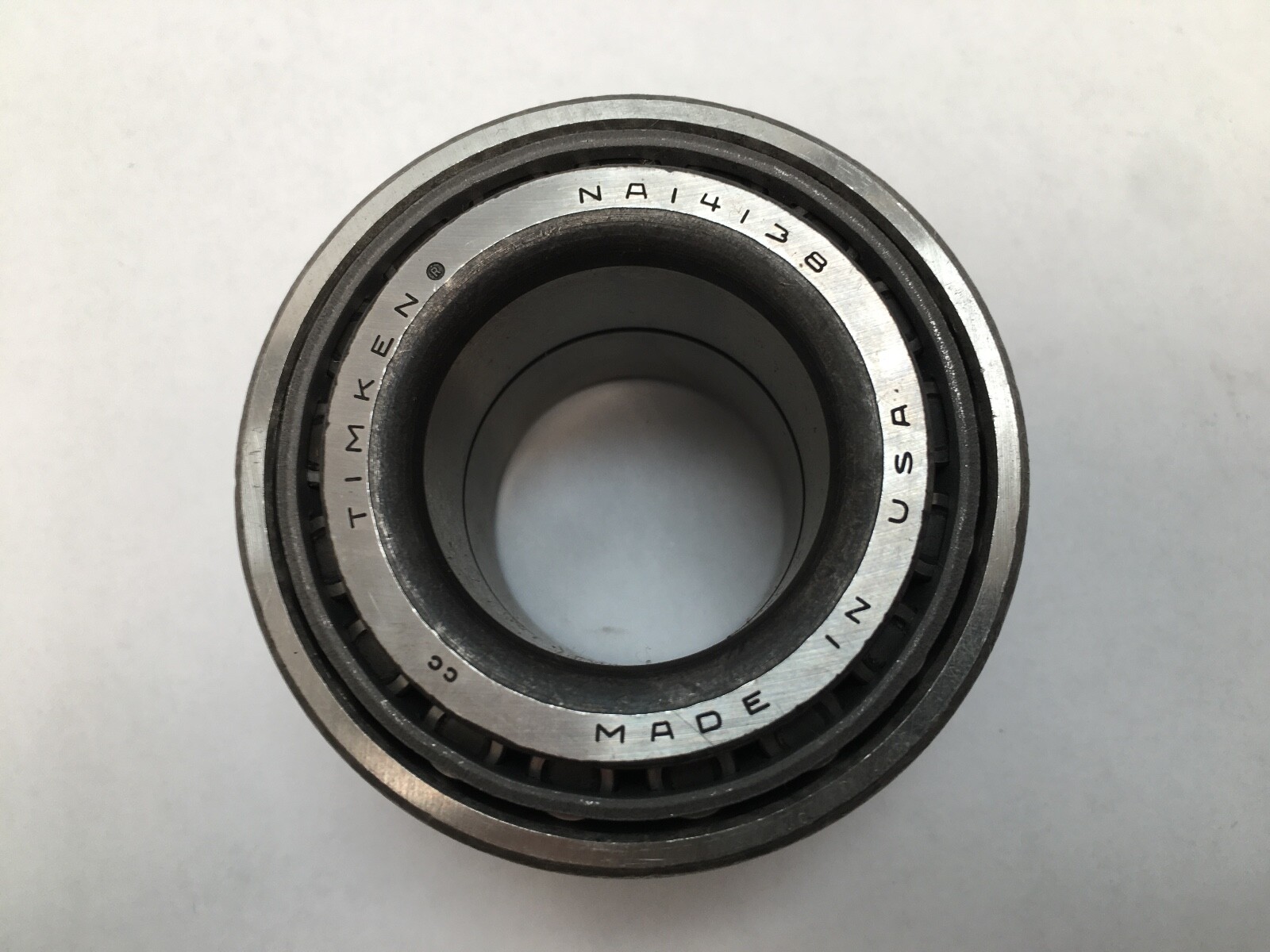

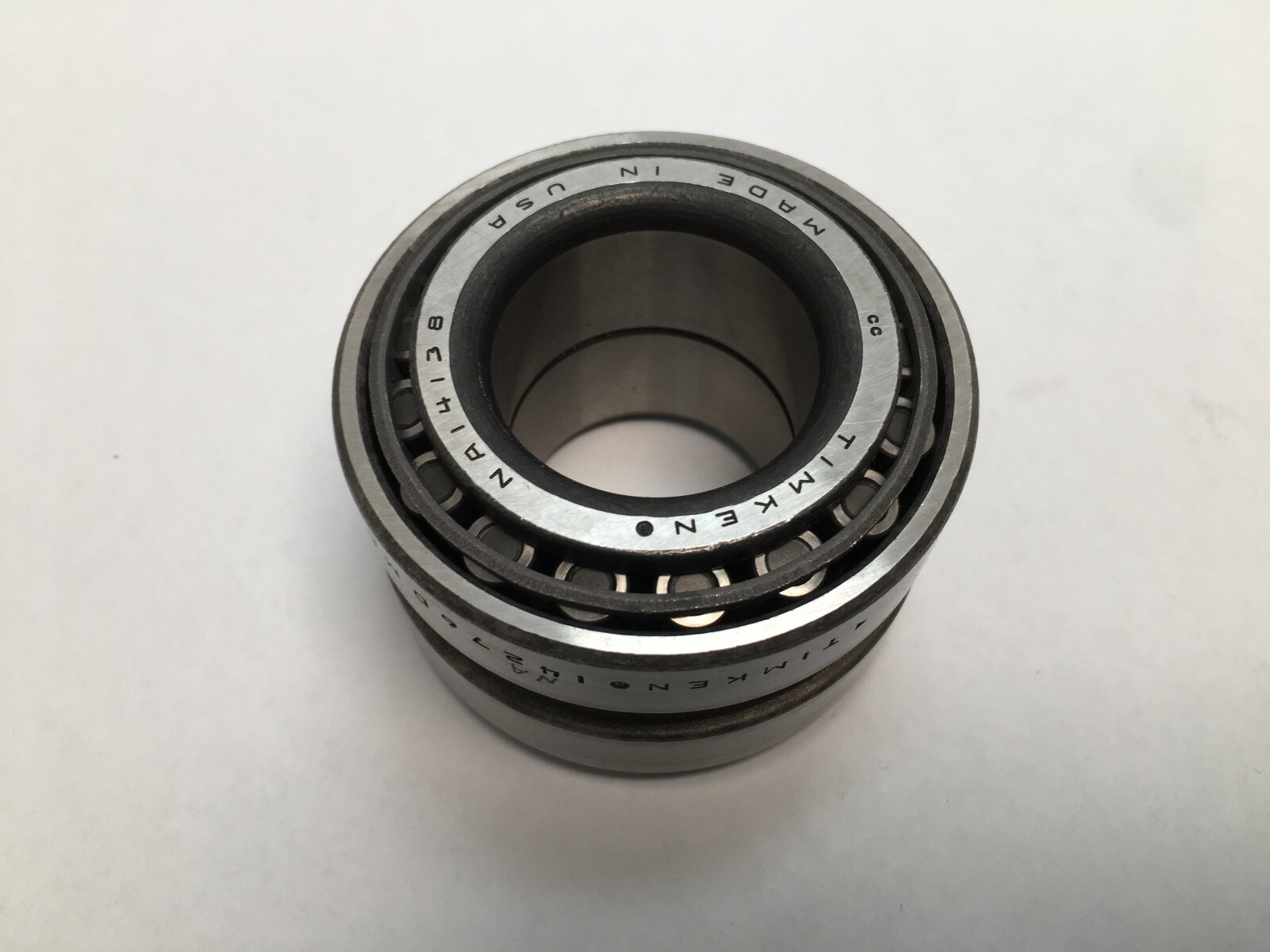

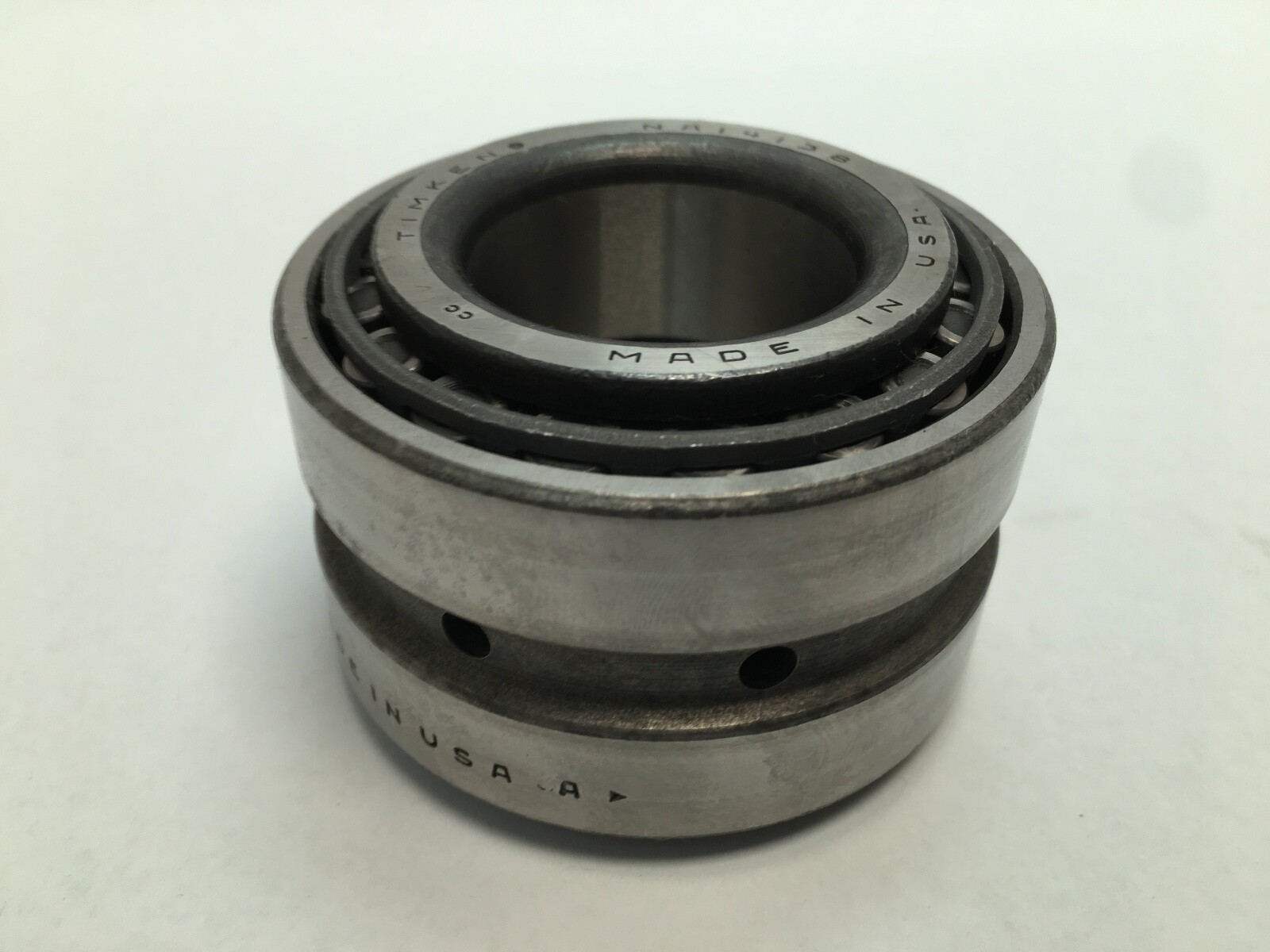

Timken NA14138/14276D double-row tapered roller bearing assembly, TNA type (Tapered Double, non-adjustable). Three pieces: two NA14138 cones and one 14276D double cup. Unit Quantity: 3 Pcs. Cone Part Number: NA14138. Cup Part Number: 14276D.
NA — a cone furnished for two-row service, with the front face extended so the two cones abut one another and set the internal clearance without a separate inner ring spacer.
14138 — the cone base number, a 14000-series inch tapered roller cone on a 1.3750 in bore.
14276 — the cup base number, giving a 2.7170 in outside diameter.

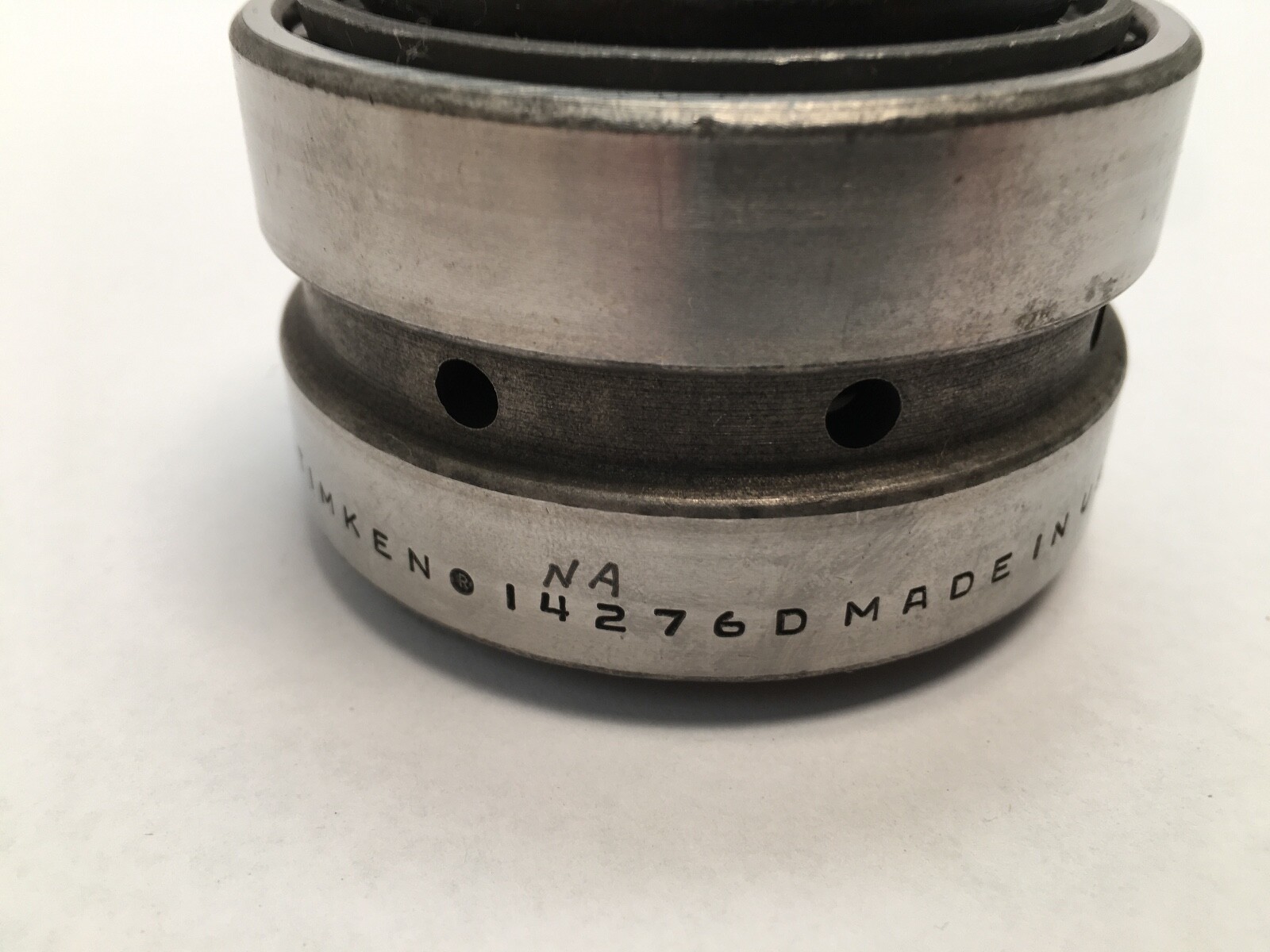

D — a double cup: one outer ring carrying two raceways, taking two cones back to back.
TNA — Timken’s double-row non-adjustable construction, supplied with built-in clearance to a standard setting range.
Rolling Elements: Tapered Roller. Number Of Rows: 2. Bore Type: Straight. Design Units: Imperial. Bore Diameter: 1.3750 in (34.925 mm). Outside Diameter: 2.7170 in (69.012 mm). Overall Width (T): 1.8126 in (46.04 mm). Outer Ring Width (C): 1.5000 in (38.1 mm). Cone Width: 0.7710 in. Series: 14000. Bearing Material: Case-Carburized Steel. Item Weight: 0.7 kg (1.56 lb). Dynamic Load Rating (C1): 95,100 N (21,400 lbf). Dynamic Radial Load Rating single row (C90): 14,200 N (3,180 lbf). Dynamic Radial Load Rating two-row (C90-2row): 24,600 N (5,540 lbf). Dynamic Axial Rating (Ca90): 9,260 N (2,080 lbf). K Factor: 1.53. e Factor: 0.38. Y1 Factor: 1.77. Y2 Factor: 2.63.
Max Shaft Fillet Radius: 0.140 in (3.5 mm). Max Housing Fillet Radius: 0.03 in (0.8 mm). Shaft Backing Shoulder Diameter, backface (db): 1.81 in (46 mm). Housing Backing Shoulder Diameter, frontface (Da): 2.52 in (64 mm).
Components: Timken NA14138 cone (two pieces) and Timken 14276D double cup (one piece). Searchable forms of the number: NA14138/14276D, NA14138-14276D, NA14138 14276D, 14138/14276D, 14276-D and NA 14138.

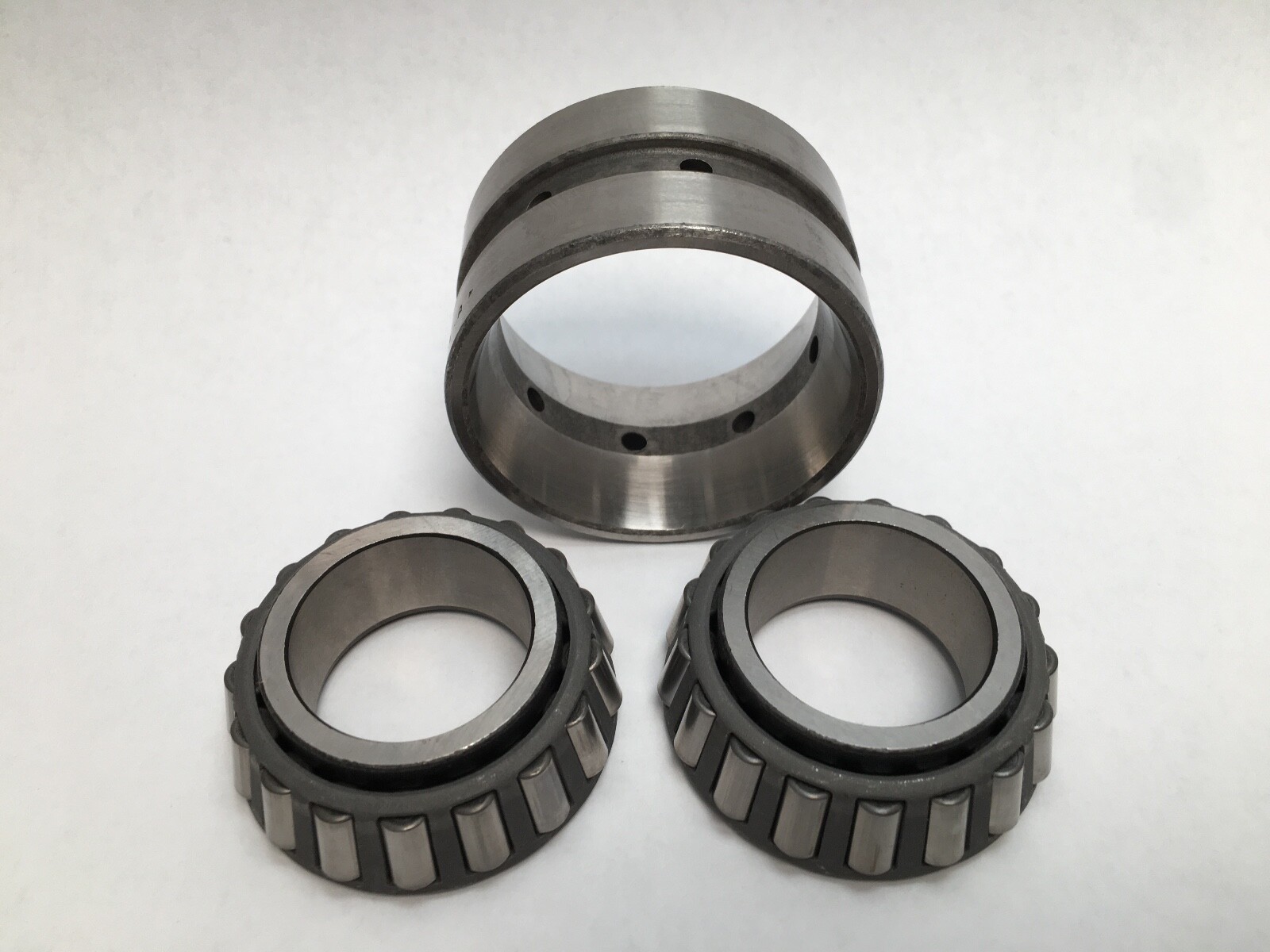

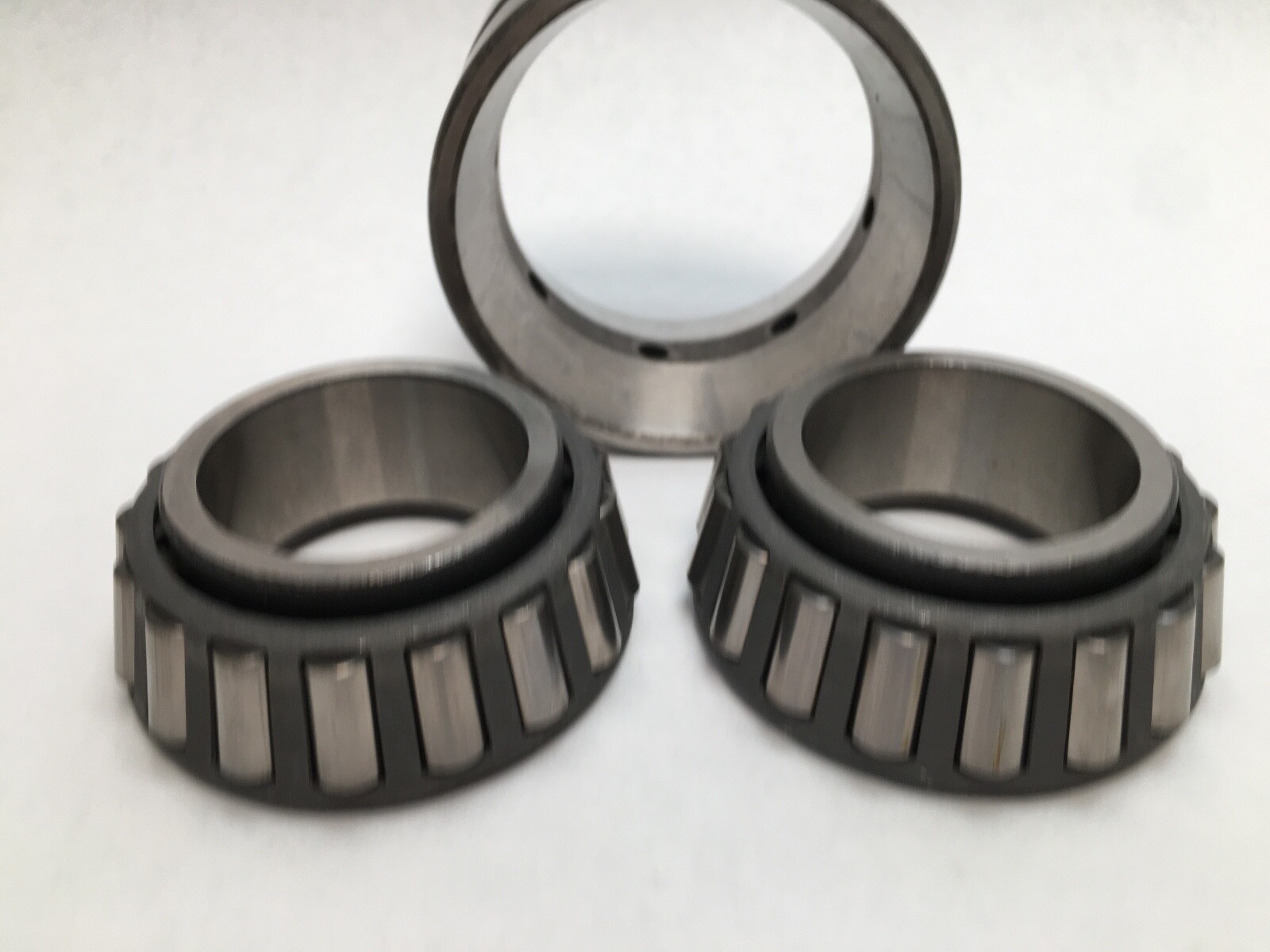

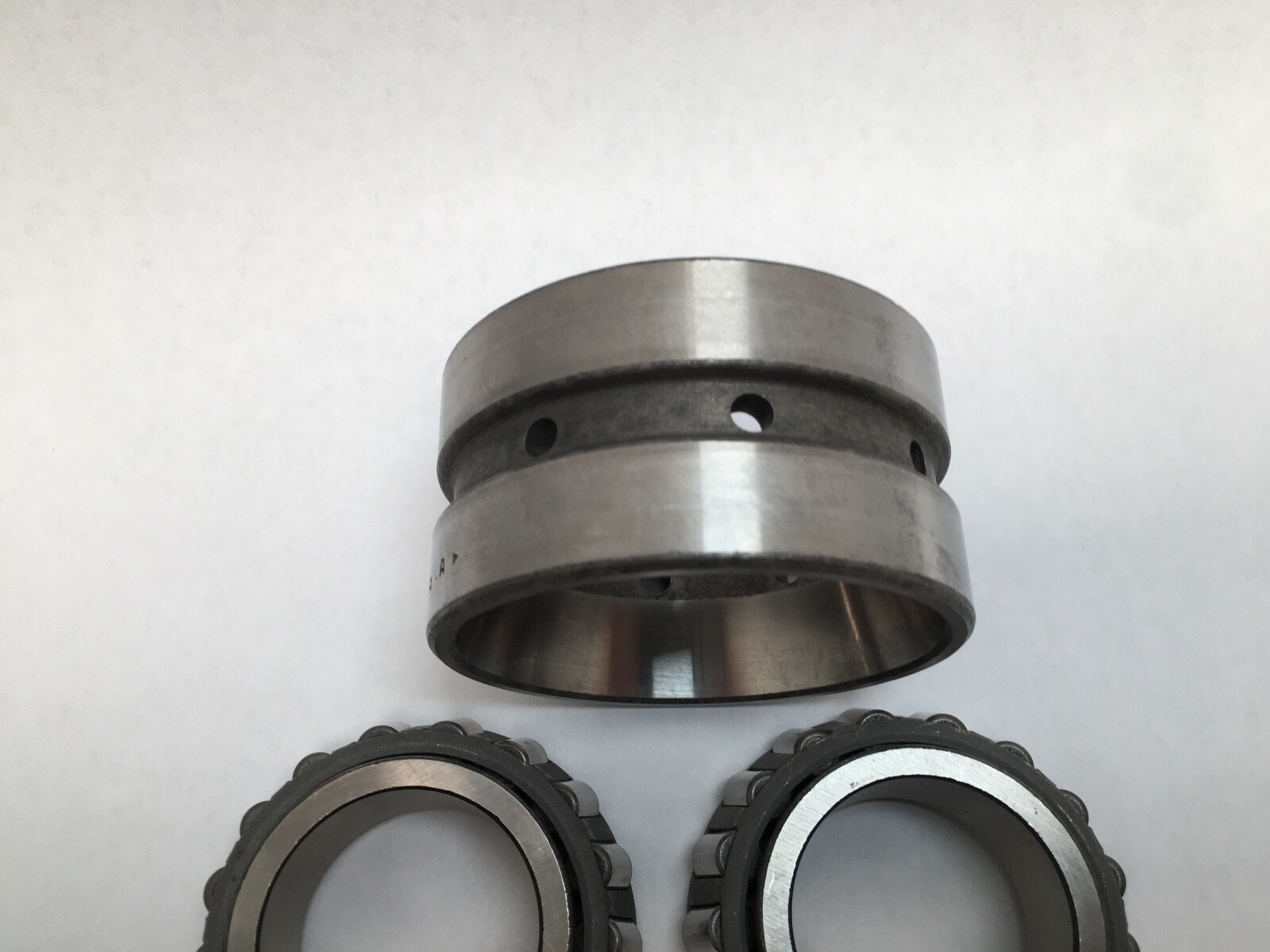

Two NA14138 cones and one 14276D double cup, 3 Pcs, which is the full TNA double-row assembly as Timken builds it.
A double cup: one outer ring carrying two raceways that takes two cones back to back.
Bore 1.3750 in (34.925 mm), outside diameter 2.7170 in (69.012 mm), overall width 1.8126 in (46.04 mm).
