Availability:
2 in stock

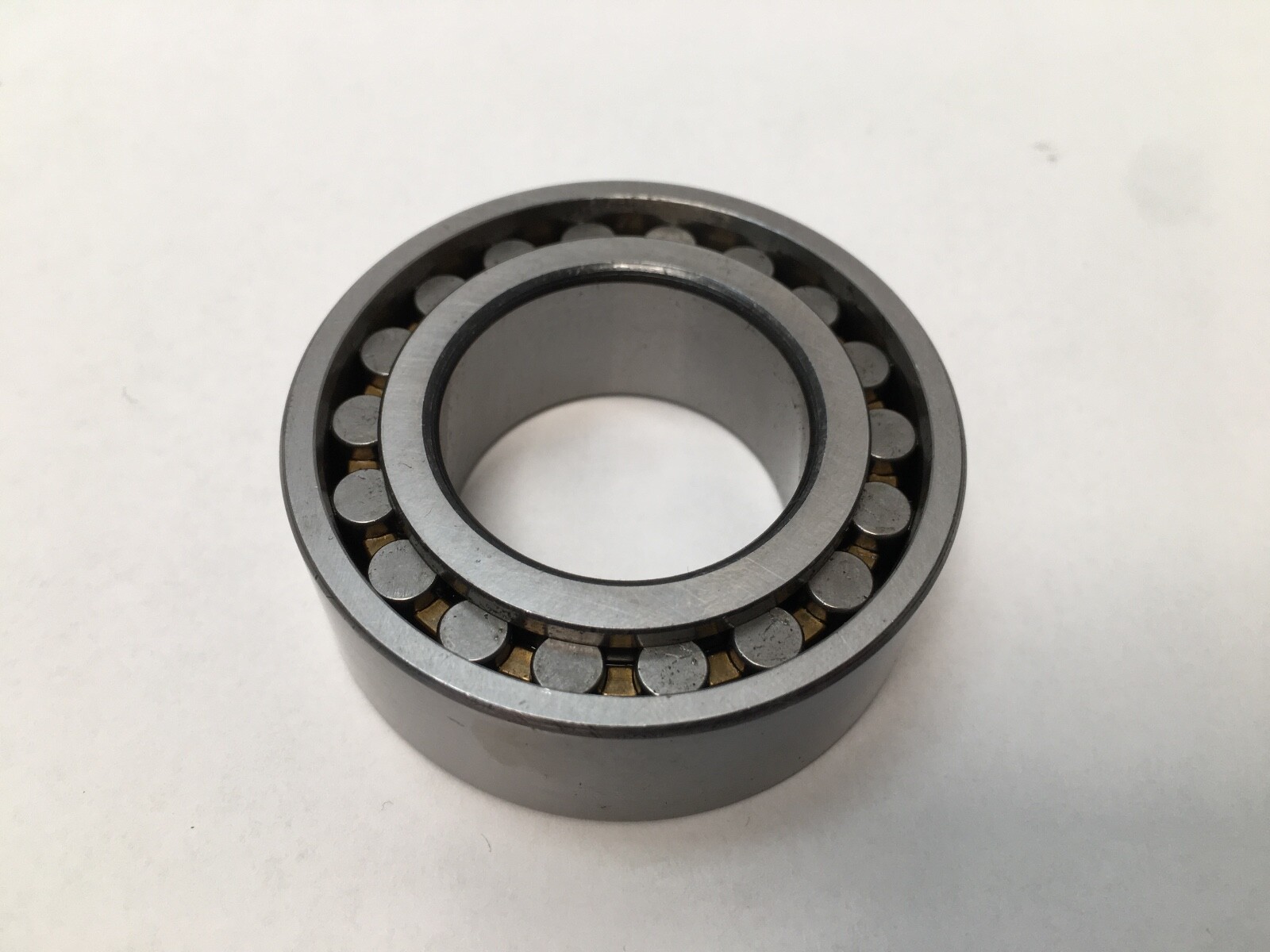

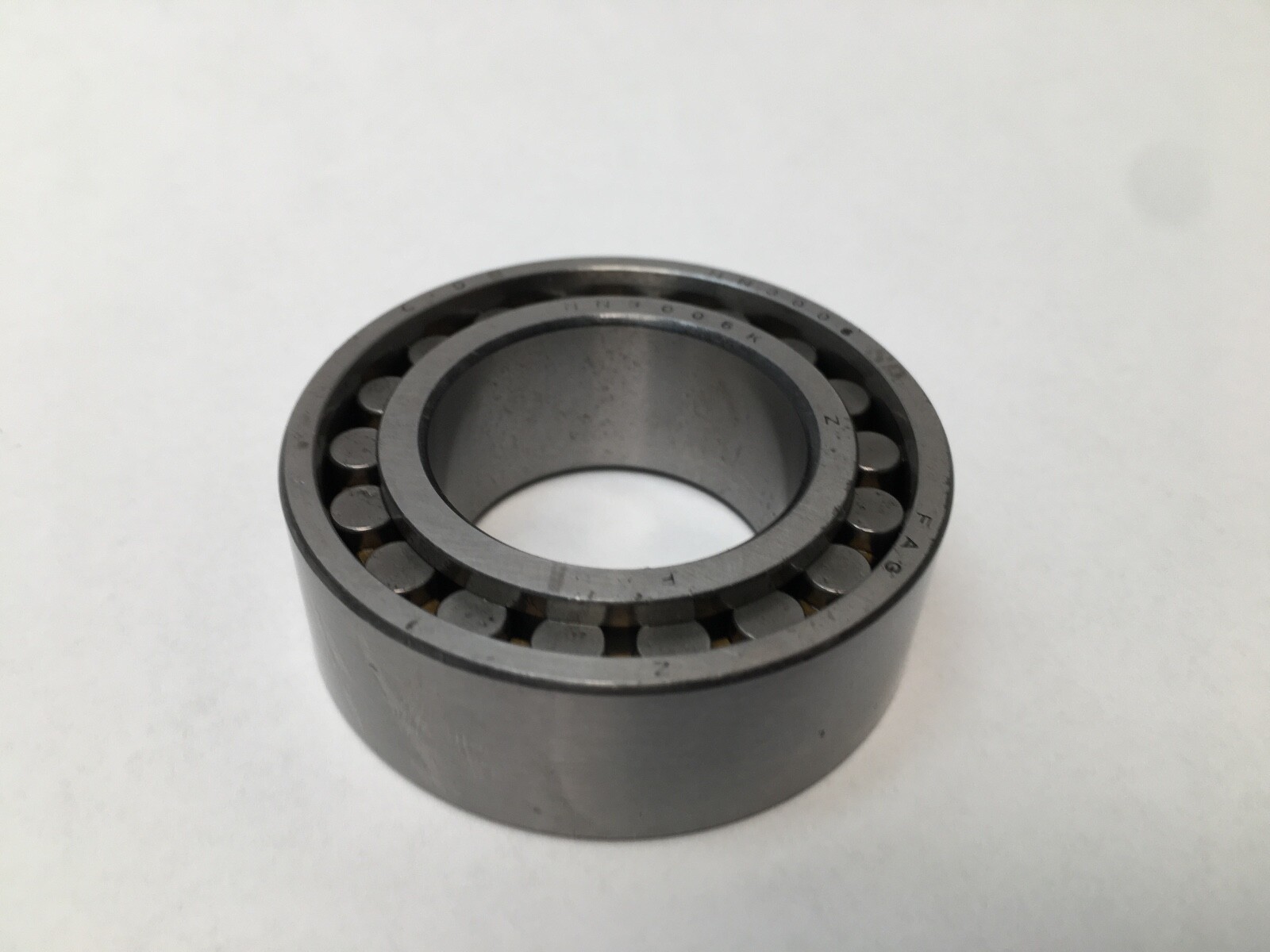

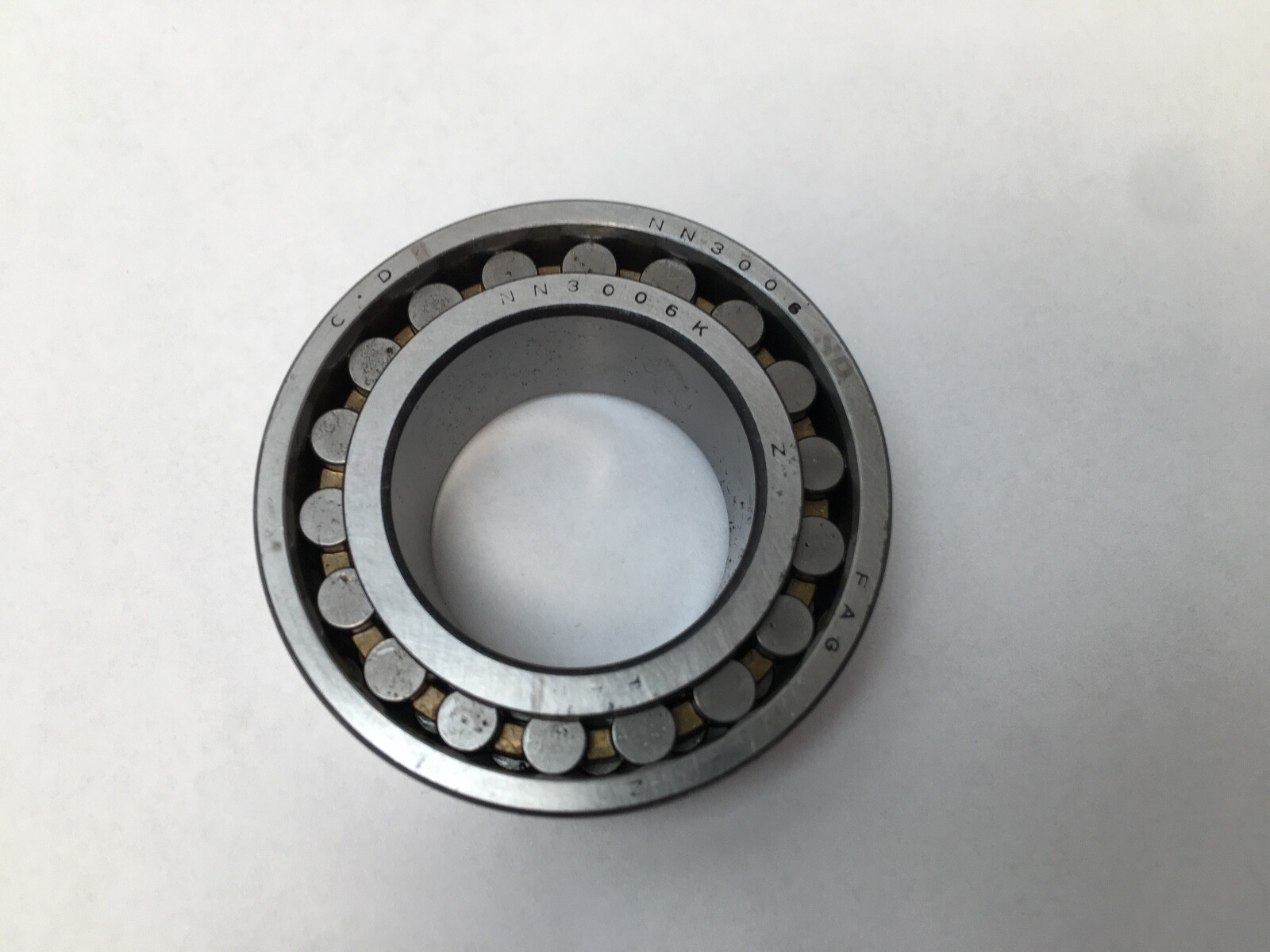

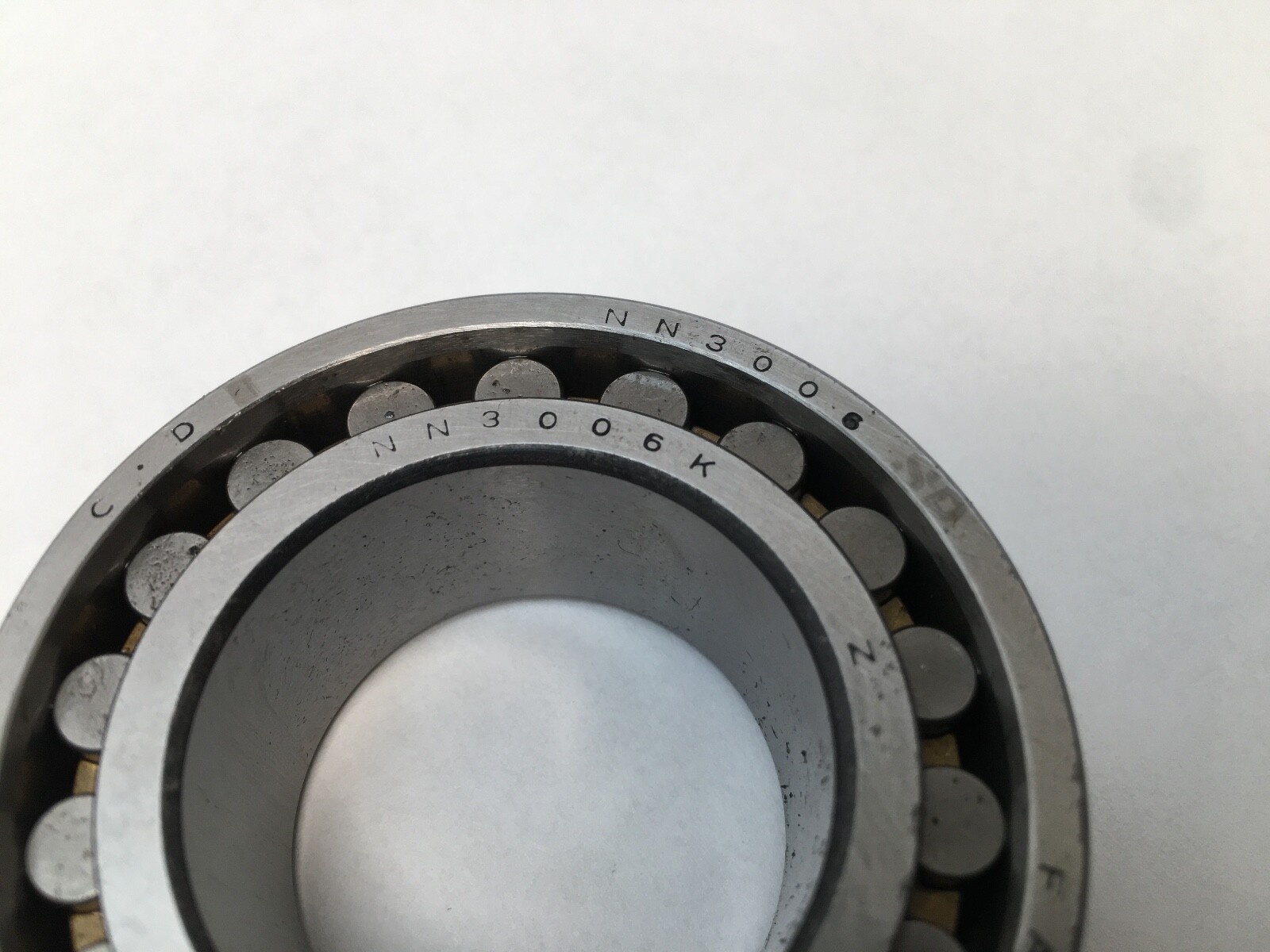

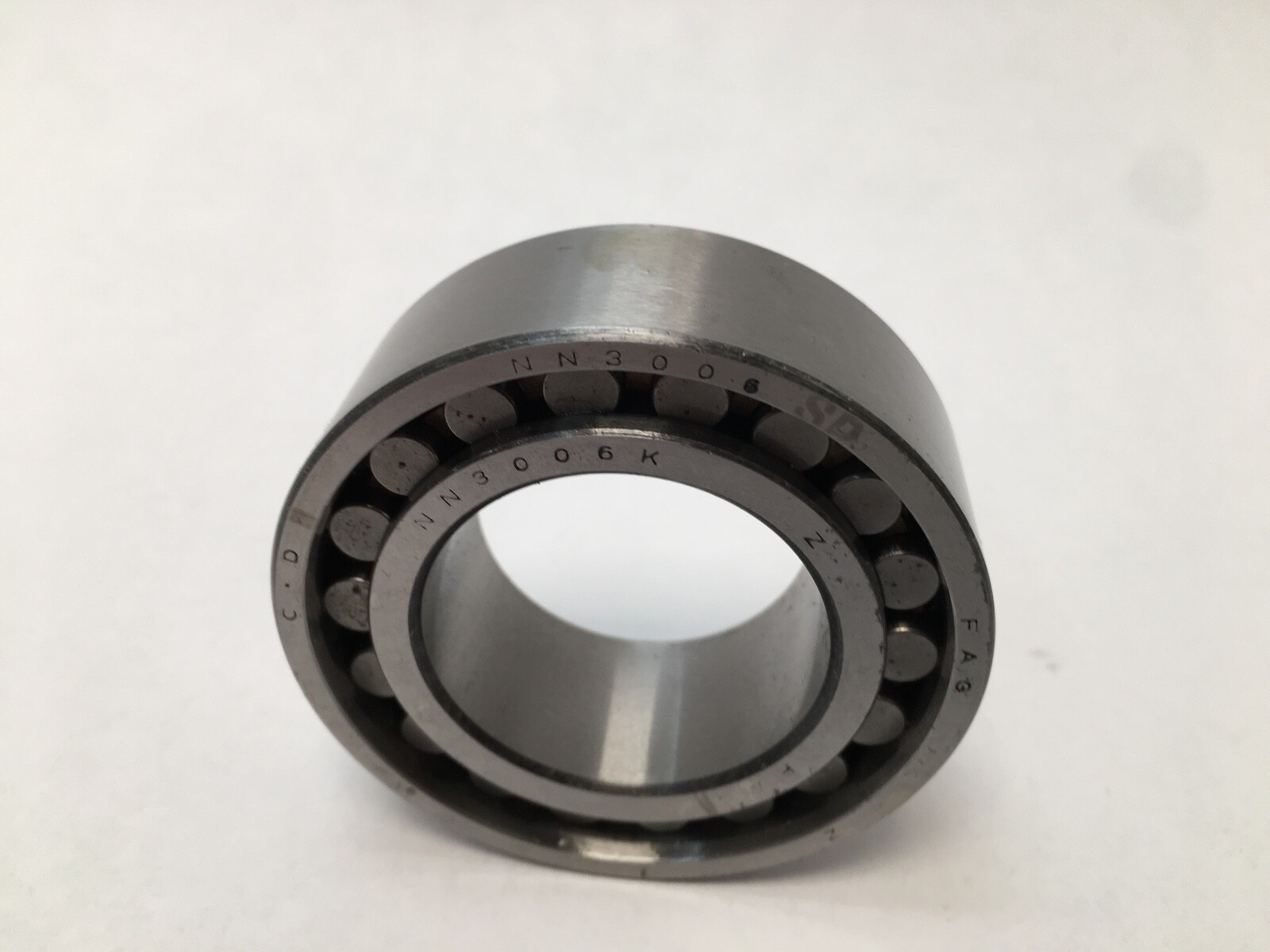

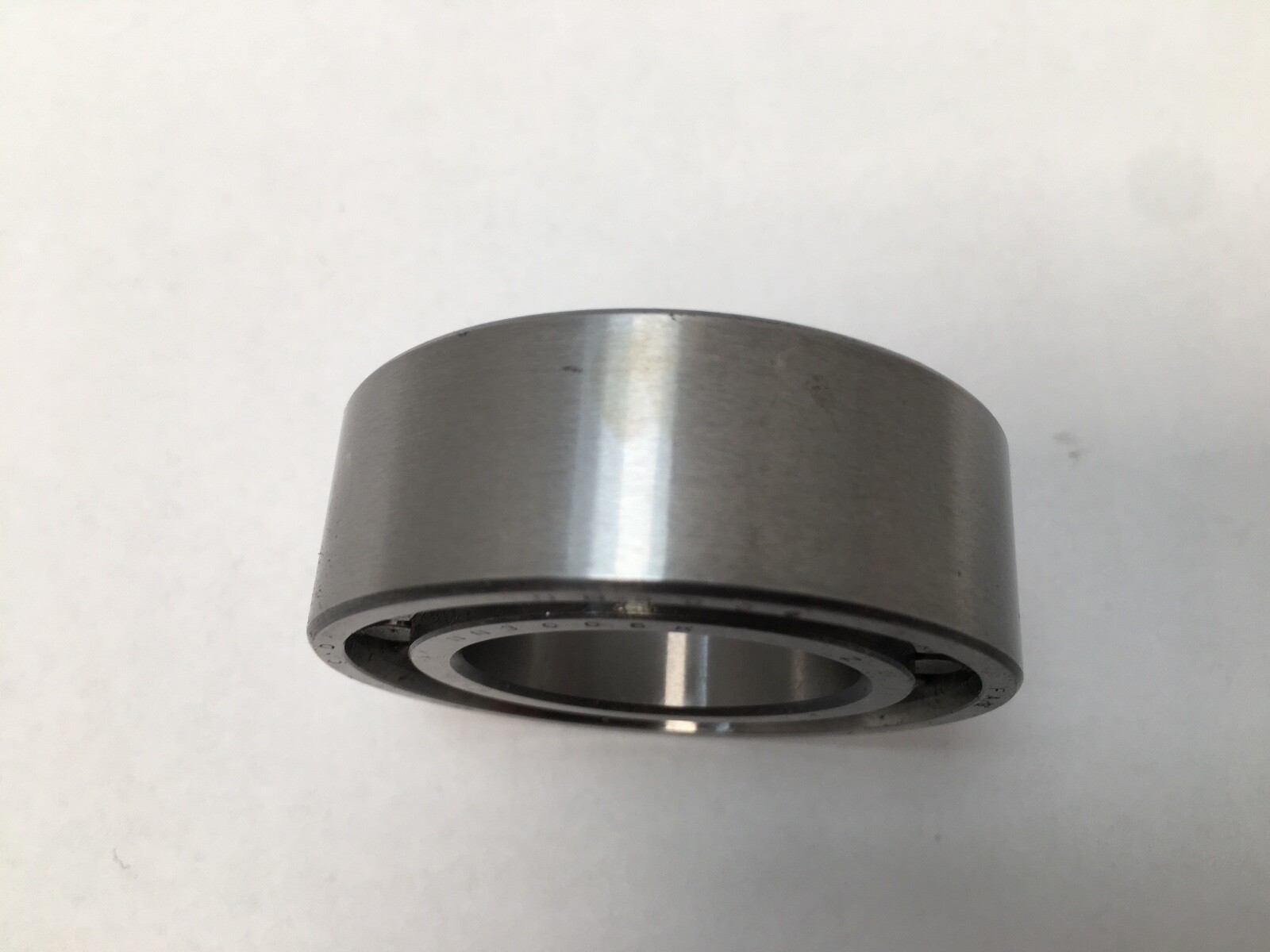

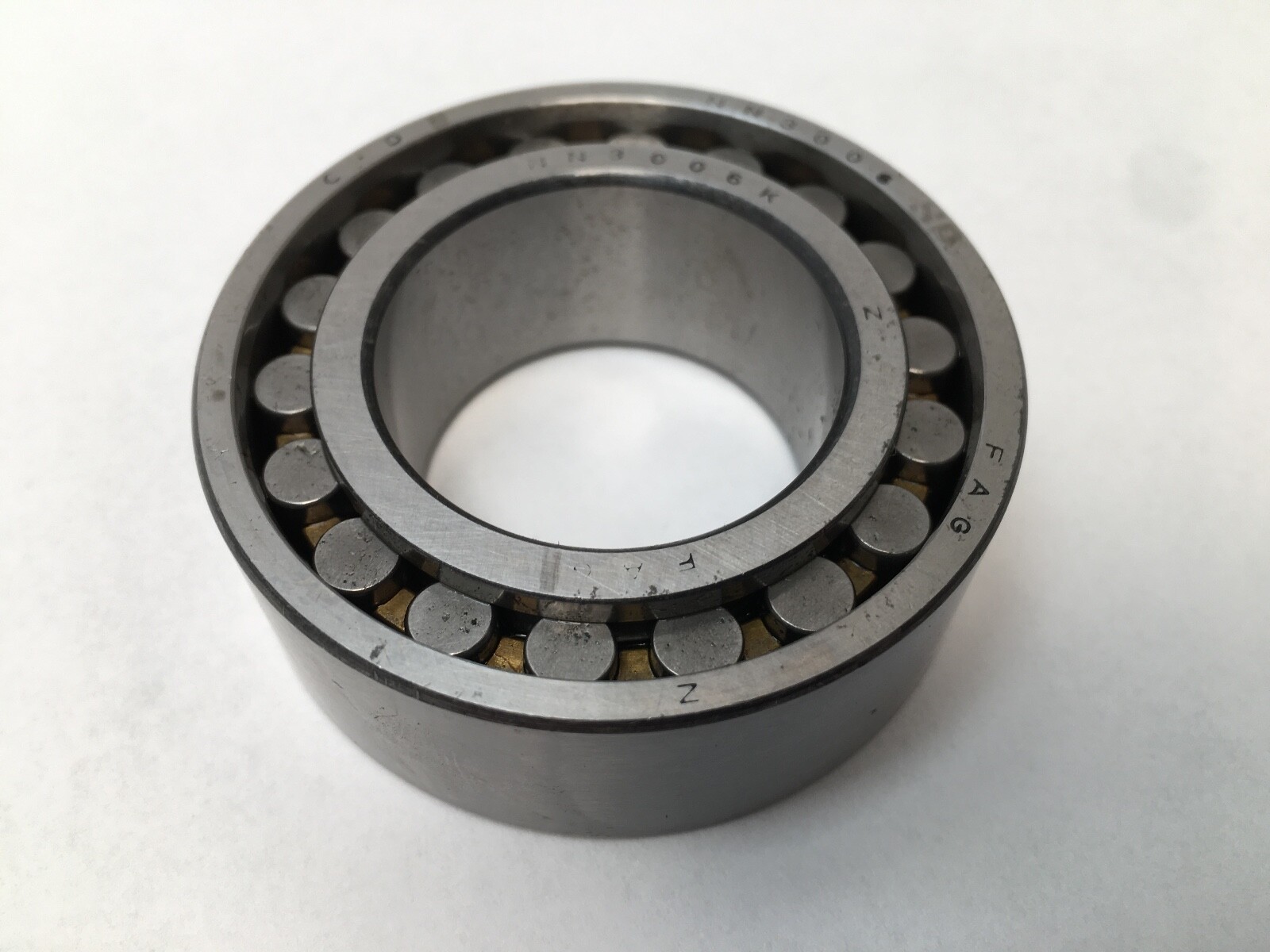

Double-row cylindrical roller bearing, 30 mm bore x 55 mm OD x 19 mm wide, 1:12 tapered bore, brass cage, P5 precision. Consolidated (FAG NN3006-K-M-SP).
List Price
$297.55
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Consolidated |
|---|---|
| MPN | NN3006KMSP5 |
| Model | NN3006-AS-K-M-SP |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 30 mm |
| OD | 55 mm |
| Width | 19 mm |
| Material | Chrome Steel |
|---|---|
| Series | NN3000 |
| Lubricant | Grease or oil |
| Overall Width | 19 mm |
| Mpn Variants | NN3006KMS.P5, NN3006KMSP5, NN 3006 K MS P5, NN-3006-K-MS-SP, NN3006-AS-K-M-SP, NN 3006 AS K M SP, NN3006K.M.SP, Consolidated NN3006KMS.P5 |
| Precision Class | RBEC 5 / P5 |
| Closure Type | Open |
| Precision Rating | RBEC 5 / P5 |
| Rolling Elements | Cylindrical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Relubrication Feature | Lubrication groove and holes in outer ring (W33 equivalent) |
| Harmonization Code | 8482.50.00.00 |
| Cross Reference 1 | NSK NN3006MBKR |
|---|---|
| Cross Reference 2 | SKF NN 3006 KTN/SP – polyamide cage, not brass |
| Cross Reference 3 | FAG NN3006-D-K-TVP-SP-XL – polyamide cage, not brass |

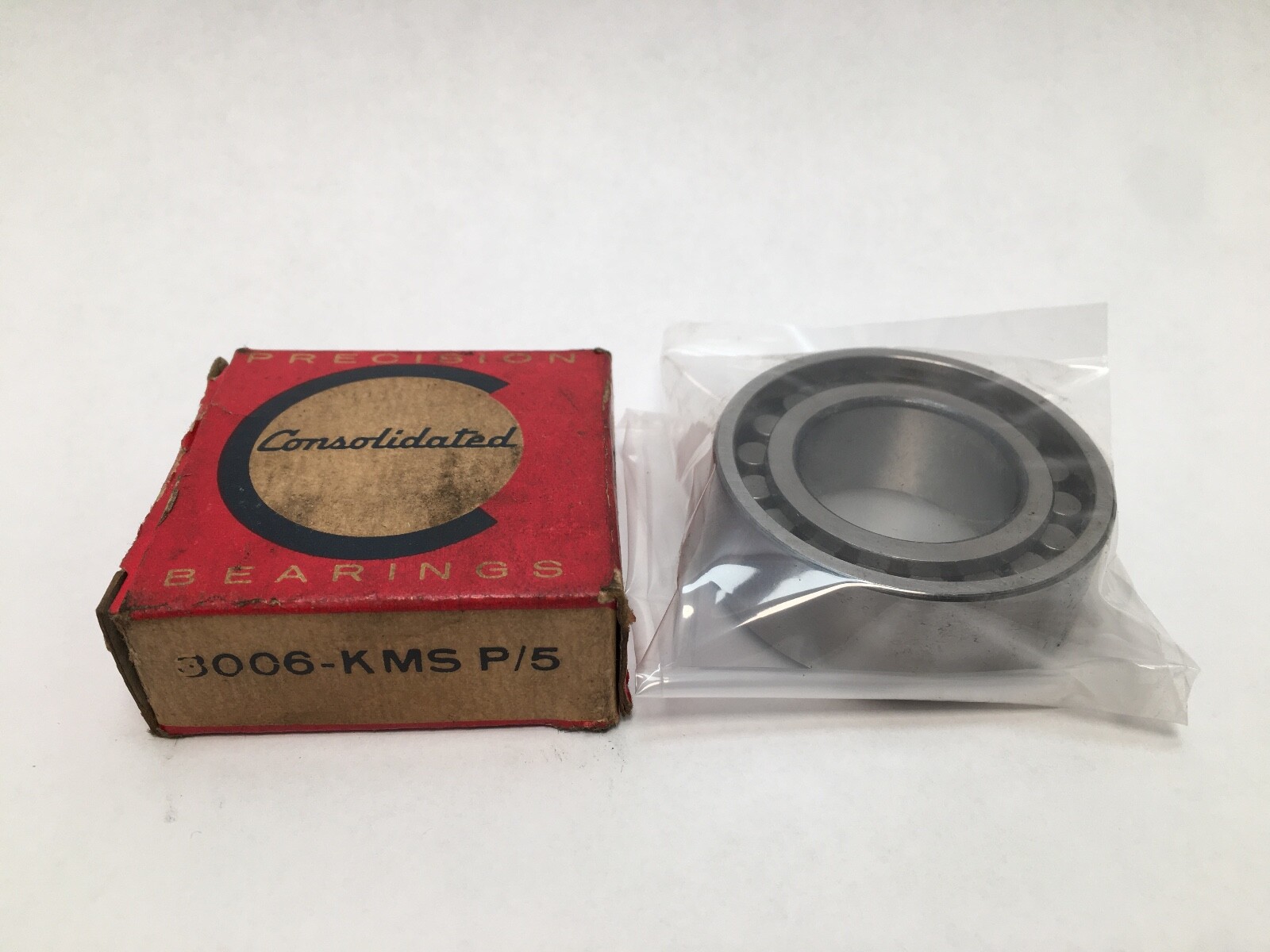

Consolidated NN3006KMS.P5 (FAG designation), a double-row cylindrical roller bearing for machine tool spindles. Bore Diameter: 30 mm. Outside Diameter: 55 mm. Width: 19 mm. Bore Type: Tapered 1:12. Cage Material: Machined brass. Precision Class: RBEC 5 / P5. Number Of Rows: 2. Closure Type: Open. Lubricant: grease or oil.
NN — double-row cylindrical roller bearing, two ribs on the inner ring, rib-less separable outer ring.
30 — dimension series 30.
06 — bore code, 06 x 5 = 30 mm.
AS — lubrication groove and holes in the outer ring.
K — tapered bore, taper 1:12.
M — machined brass cage.
S — lubrication groove and holes in the outer ring, W33 equivalent.
P5 — tolerance class RBEC 5 / P5.
SP — Schaeffler restricted tolerance class for super-precision cylindrical roller bearings.
Two rows of cylindrical rollers give high radial stiffness in a narrow section. The 1:12 tapered bore mounts directly on a tapered spindle journal, and axial drive-up sets the radial clearance or preload. The outer ring separates, so the unit is a non-locating bearing and the spindle floats axially. Rolling Elements: Cylindrical Roller. No contact angle applies.
Minimum Chamfer Dimension: 1 mm. Maximum Recess Radius: 1 mm.

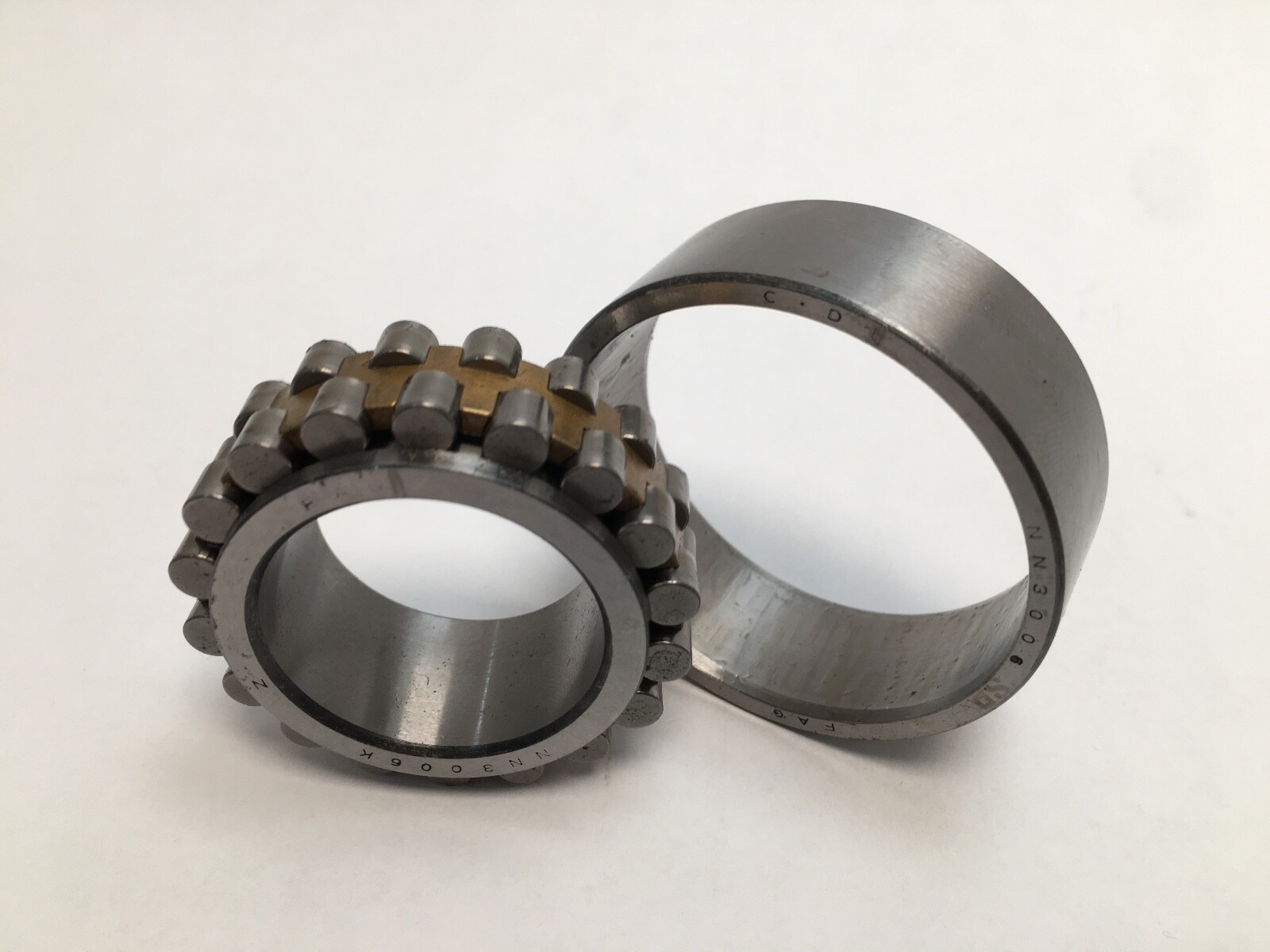

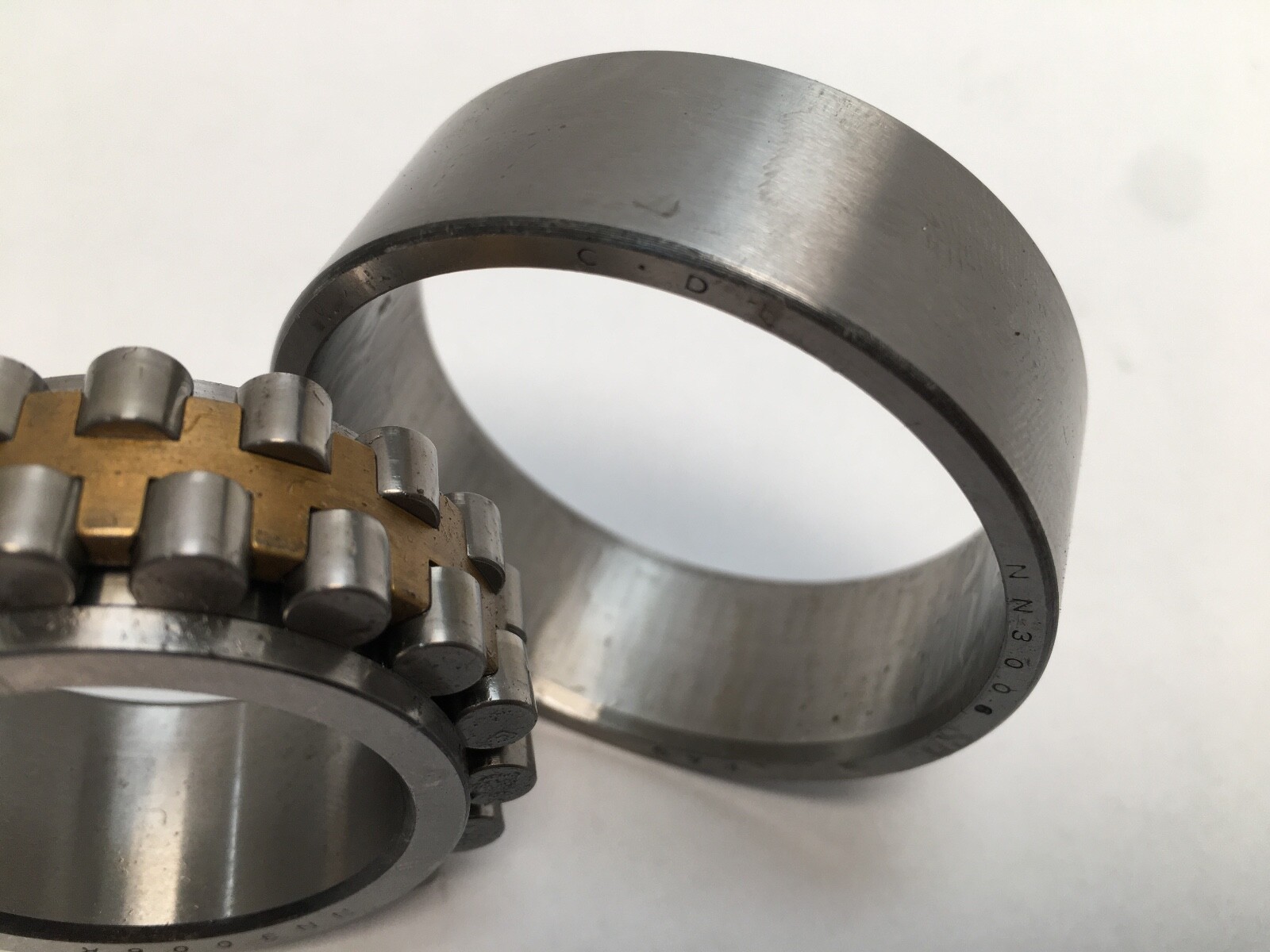

Unit Quantity: 1 Pc. Complete bearing: inner ring with roller and cage assembly, plus outer ring.
Same 30 x 55 x 19 mm envelope with 1:12 tapered bore: NSK NN3006MBKR (brass cage), SKF NN 3006 KTN/SP (polyamide cage), FAG NN3006-D-K-TVP-SP-XL (current FAG, polyamide cage). Pairs with 234406 series double-direction axial angular contact thrust bearings.
