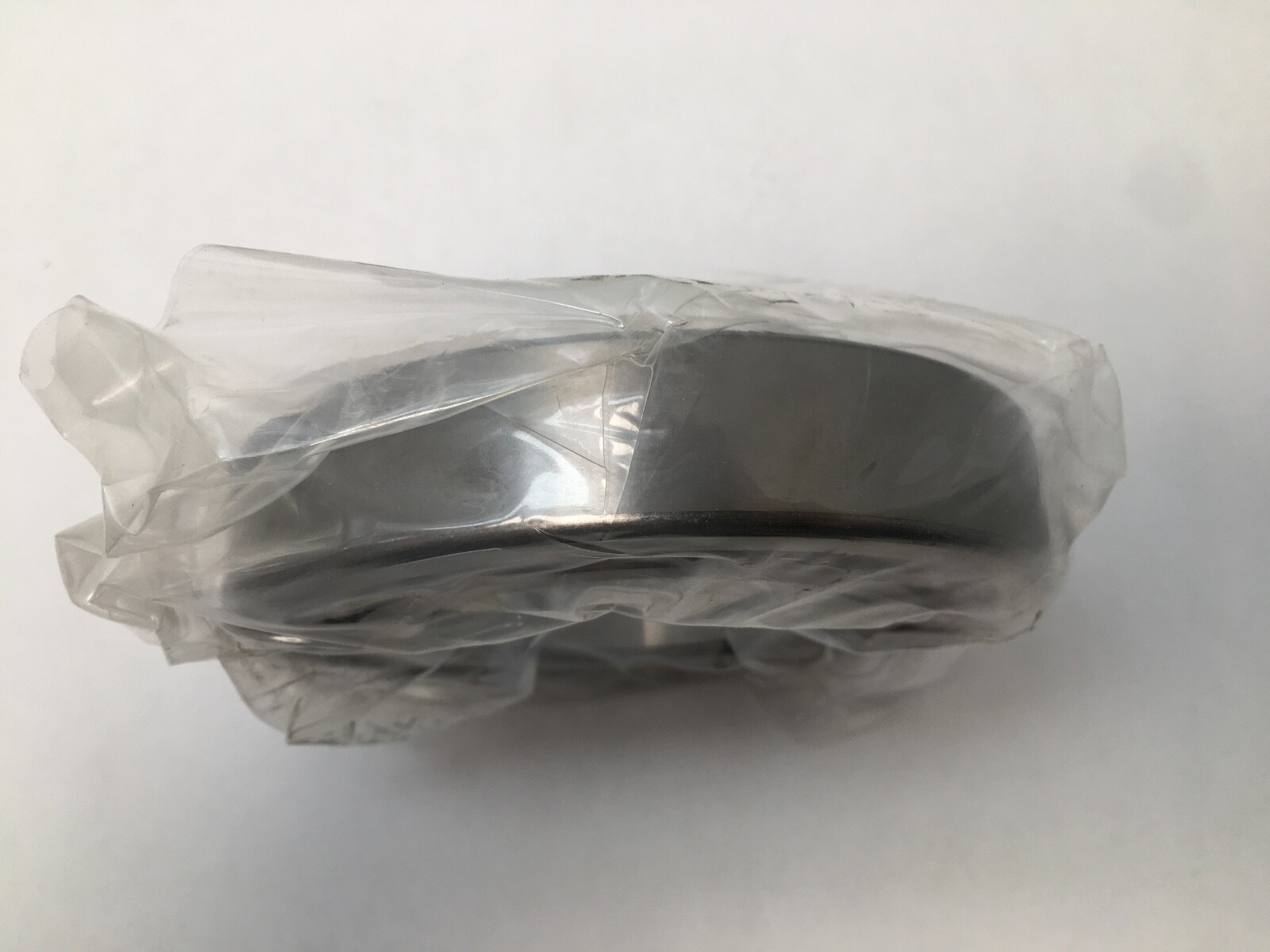

Super precision angular contact ball bearings, 70 x 125 x 24 mm, 25 degree contact angle, extra light preload, open, machined phenolic cage, P4A class.
List Price
$458.60
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7214ACDGAP4A |
| Model | 7214ACDGA/P4A |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 72 |
| Lubricant | Oil Preservative |
| Preload | Extra light |
| Base Number | 7214 |
| Industry Terms | spindle bearing; super precision bearing; machine tool bearing; precision angular contact |
| Common Misspellings | 7214ACDGA P4A; 7214 ACGDA/P4A; SKF 7214ACDAG P4A |
| Overall Width | 24 mm |
| Bore Shaft Size | 70 mm |
| Mpn Variants | 7214ACDGA/P4A; 7214 ACDGA P4A; 7214ACDGAP4A; 7214-ACDGA-P4A; 7214 ACD/P4A DGA; 7214C |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Part Number | 7214 ACDGA/P4A |
| Cross Reference 1 | FAG B7214-E-T-P4S-UL |
|---|---|
| Cross Reference 2 | SKF 7214 CD/P4A - 15 deg vs 25 deg |

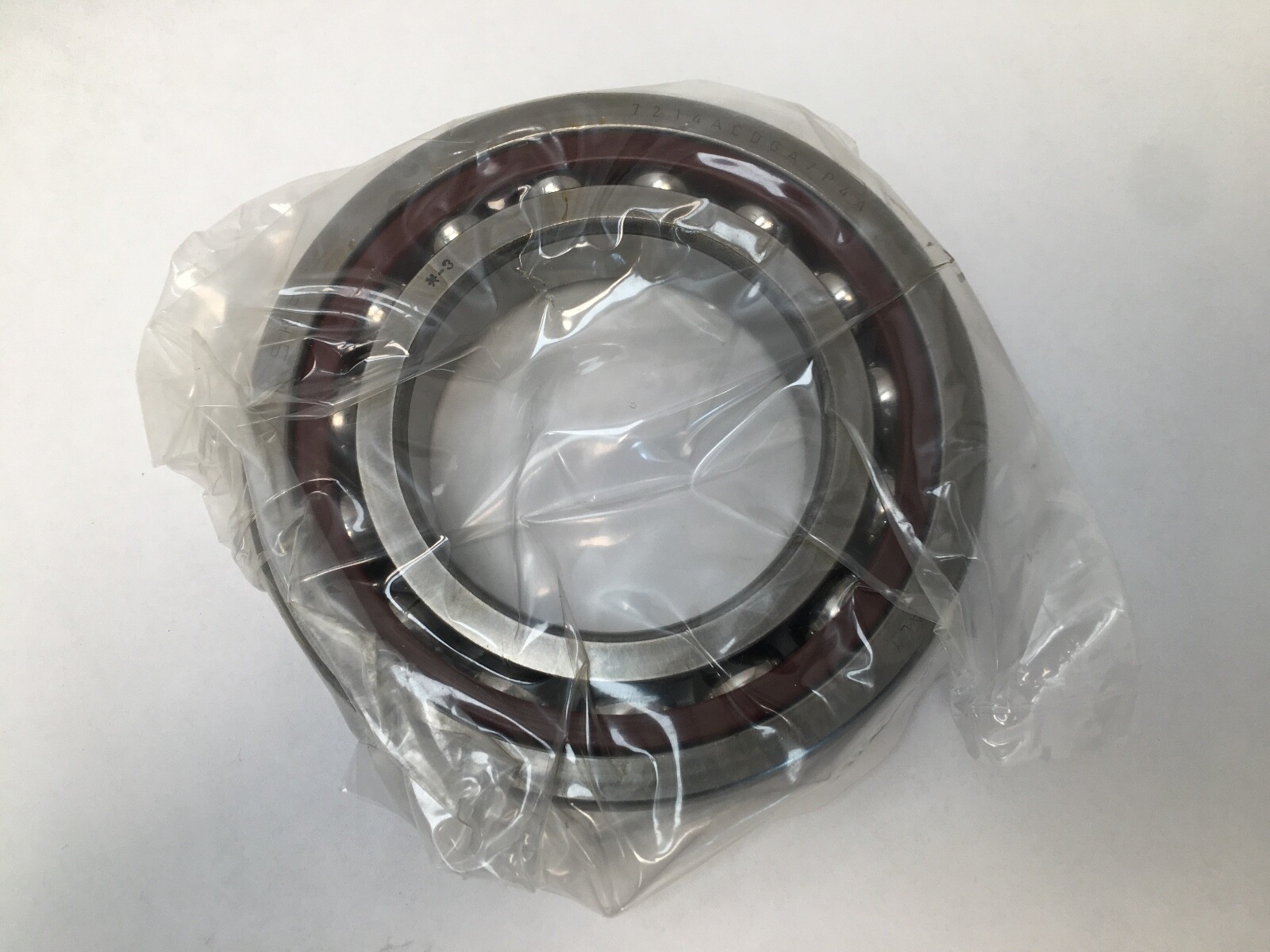

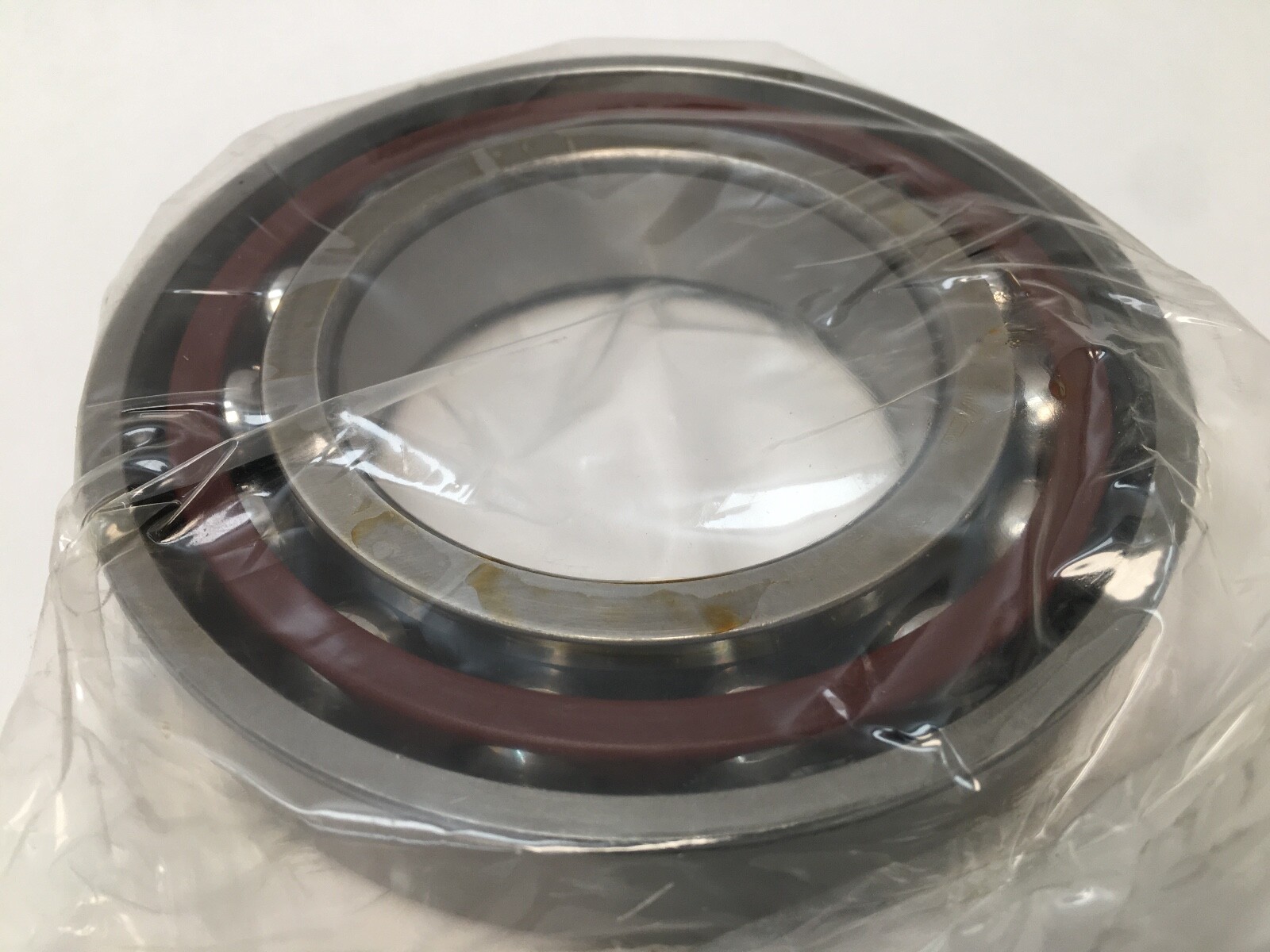

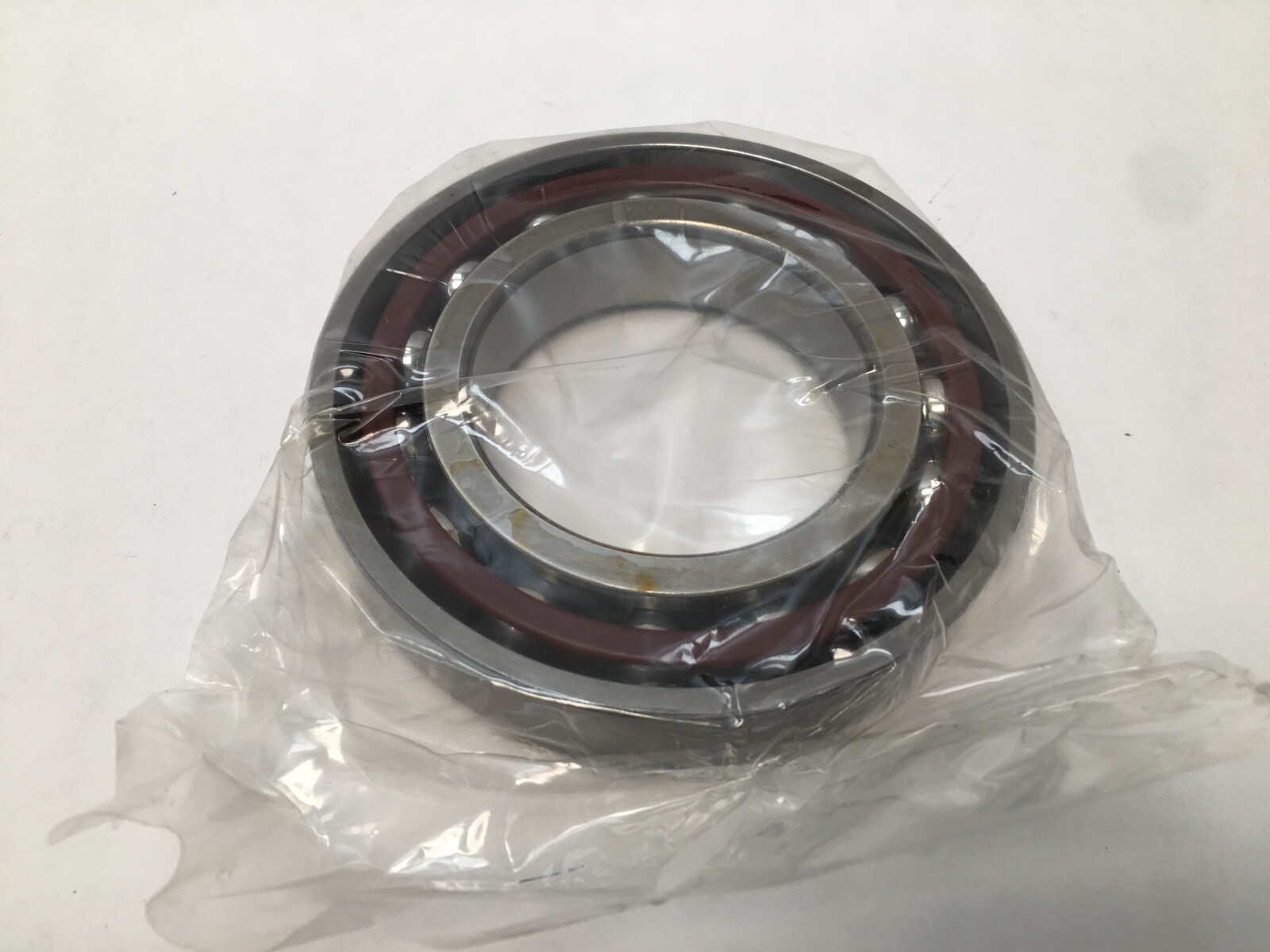

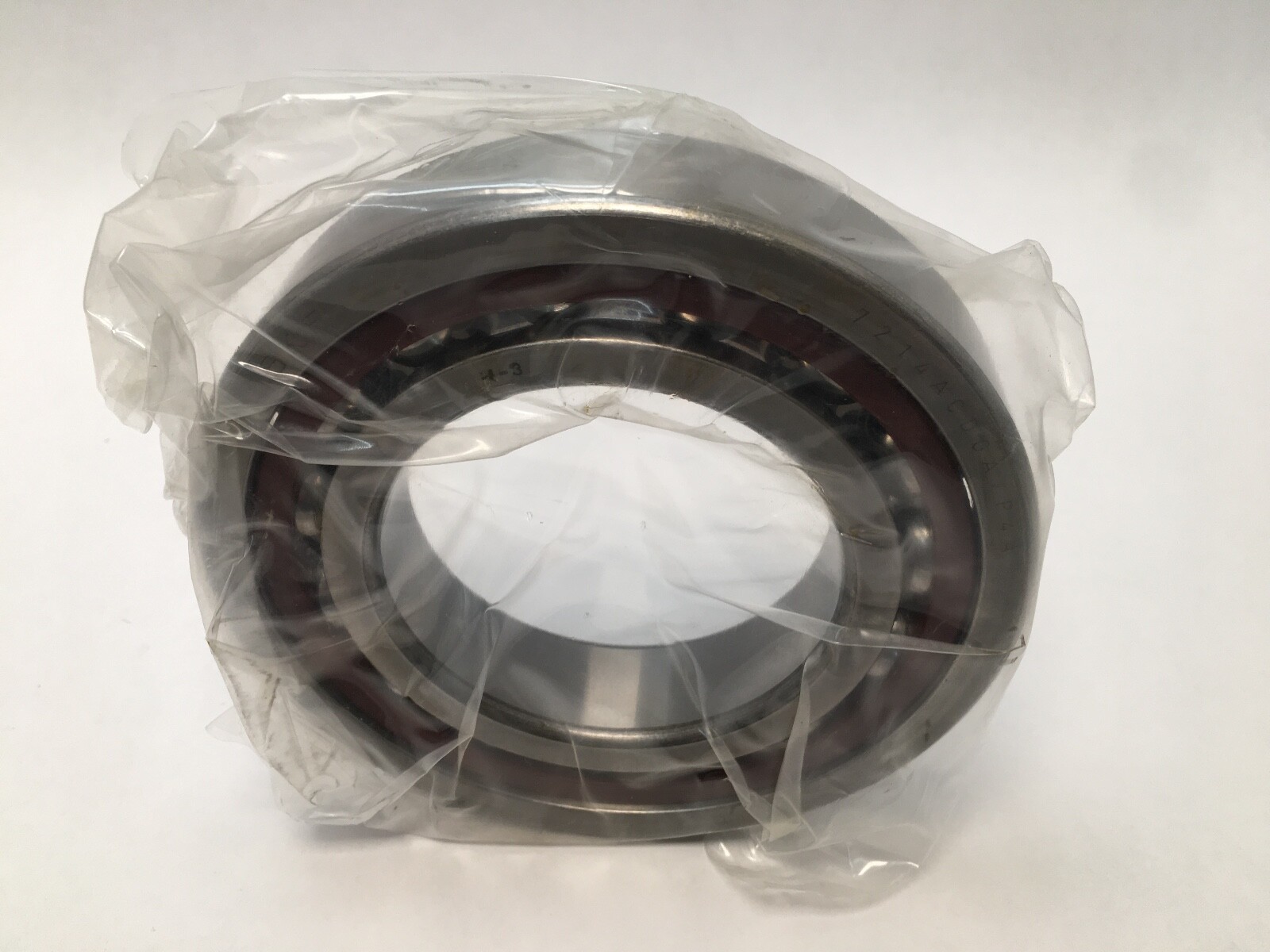

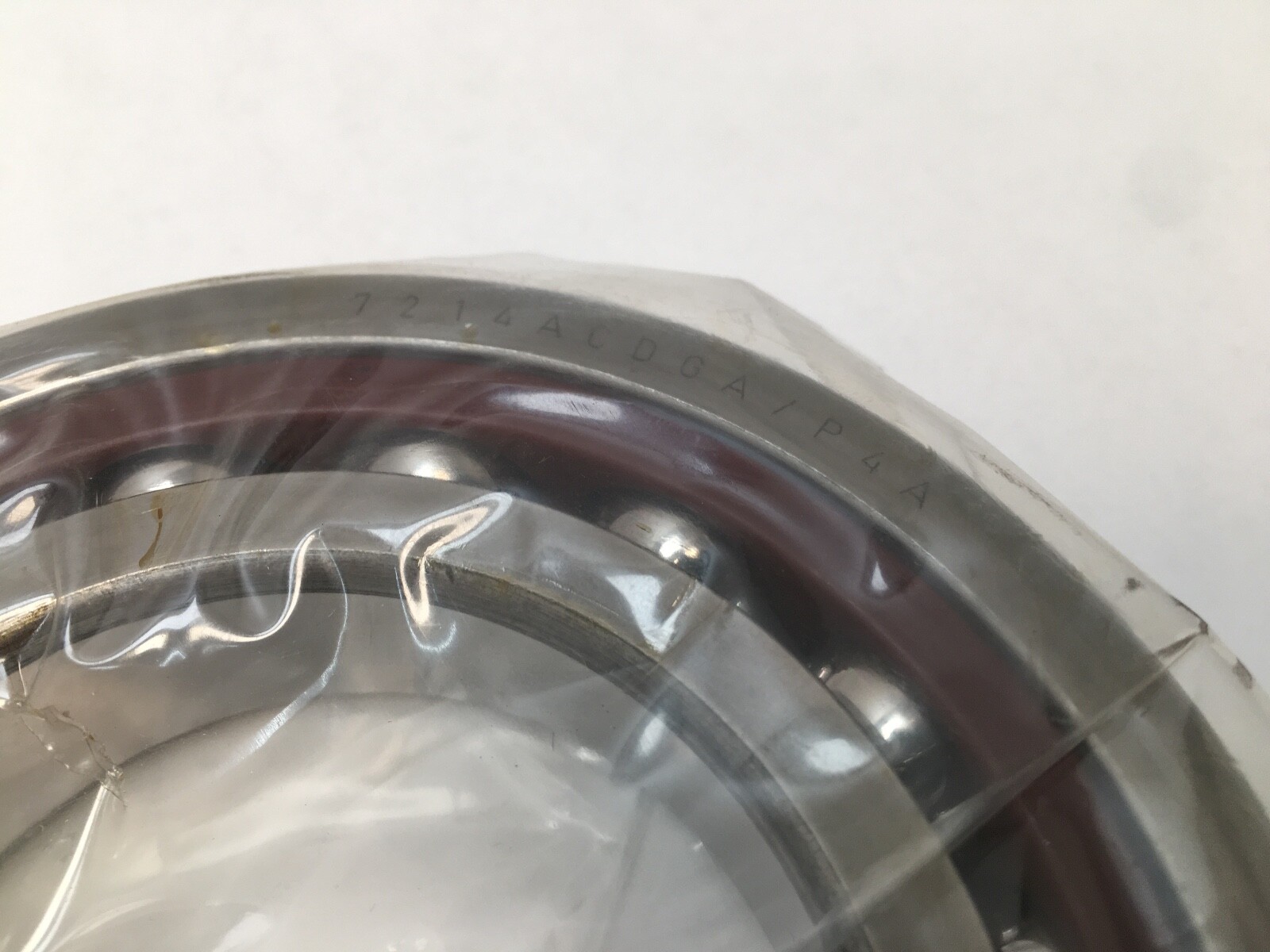

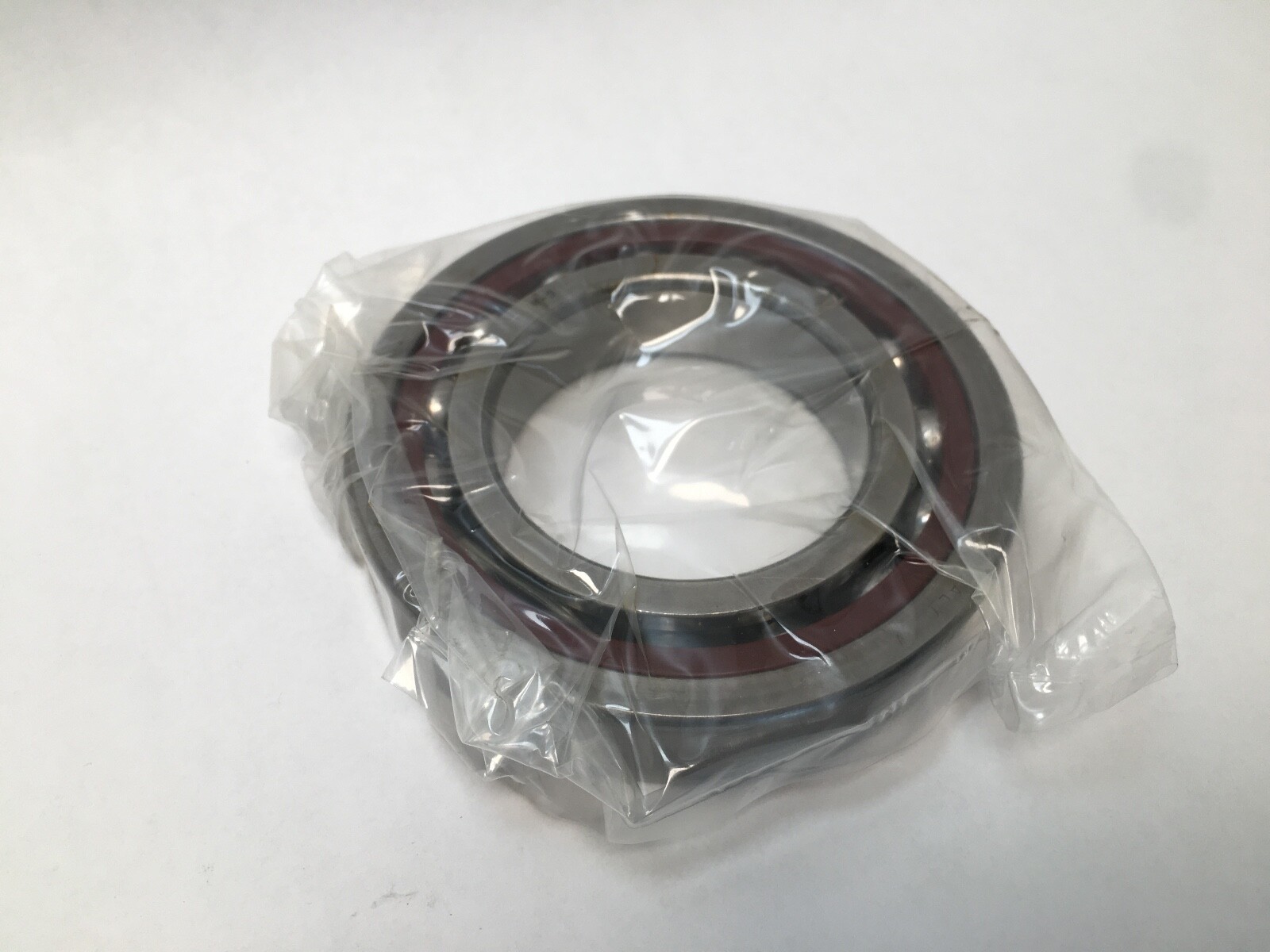

SKF 7214 ACDGA/P4A super-precision angular contact ball bearing. Series: 72, light section. Base number: 7214. Bore: 70 mm. Outside diameter: 125 mm. Width: 24 mm. Single row, straight bore, open on both faces. Searchable variants of the designation: 7214ACDGA/P4A, 7214 ACDGA P4A, 7214ACDGAP4A, 7214-ACDGA-P4A, 7214 ACD/P4A DGA.
Contact Angle: 25°. Design: ACD high-capacity super-precision execution. Precision Class: P4A, equivalent to ABEC 7. Preload: extra light. Cage: machined, fabric-reinforced phenolic, rated to 120 °C. Running accuracy: P4A radial and axial runout.
A 25° contact angle carries more thrust and less speed than a 15°, which suits spindles and screw drives taking a sustained axial load. Extra light preload holds running accuracy with low heat generation. Basic dynamic load rating: 66.3 kN. Basic static load rating: 55.0 kN. Limiting speed: 16000 rpm.

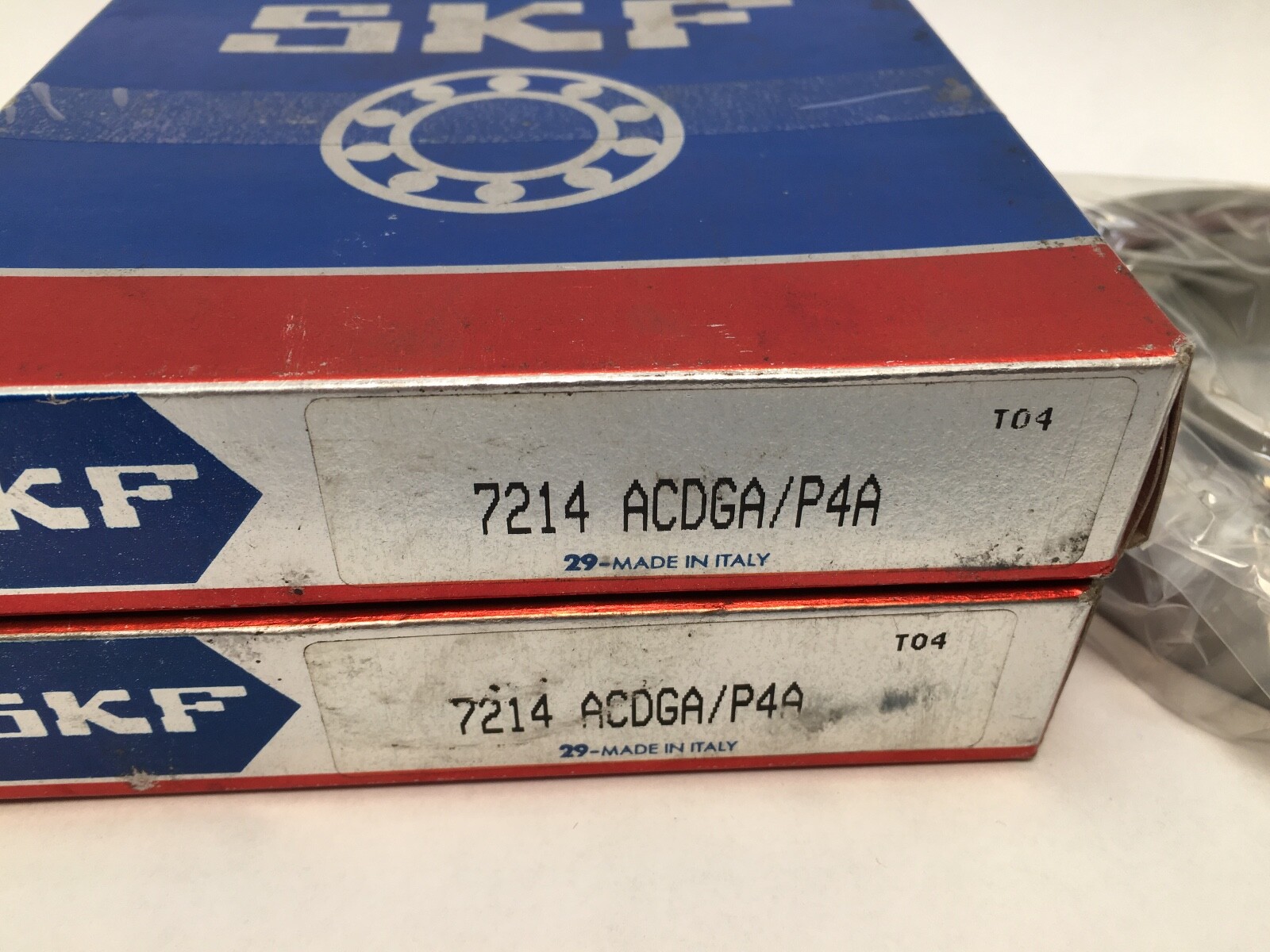

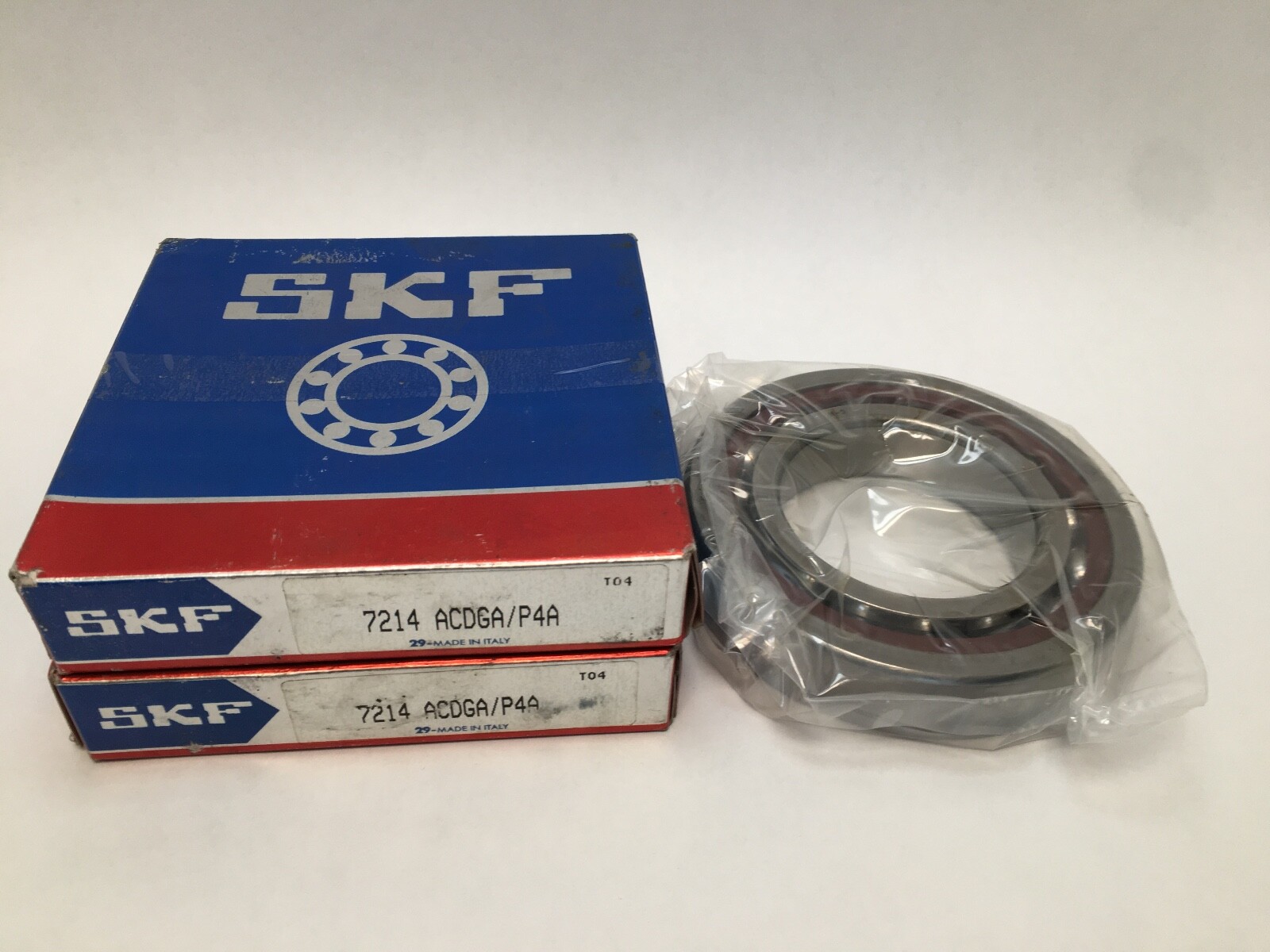

Two bearings. Unit Quantity: 2 Pcs. Universally matchable execution, ground to the extra light preload class. Internal Clearance: N/A — the bearings are preload-set, not clearance-set.
Mounting is by interference on the inner ring seat with the outer ring located axially in the housing. Supplied with an oil preservative coating. Operating range: -30 °C to 120 °C.
Cross-reference: FAG B7214-E-T-P4S-UL, 25°, universally matchable, light preload. Related size: 7214 CD/P4A carries a 15° contact angle and a different thrust capacity.
