A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

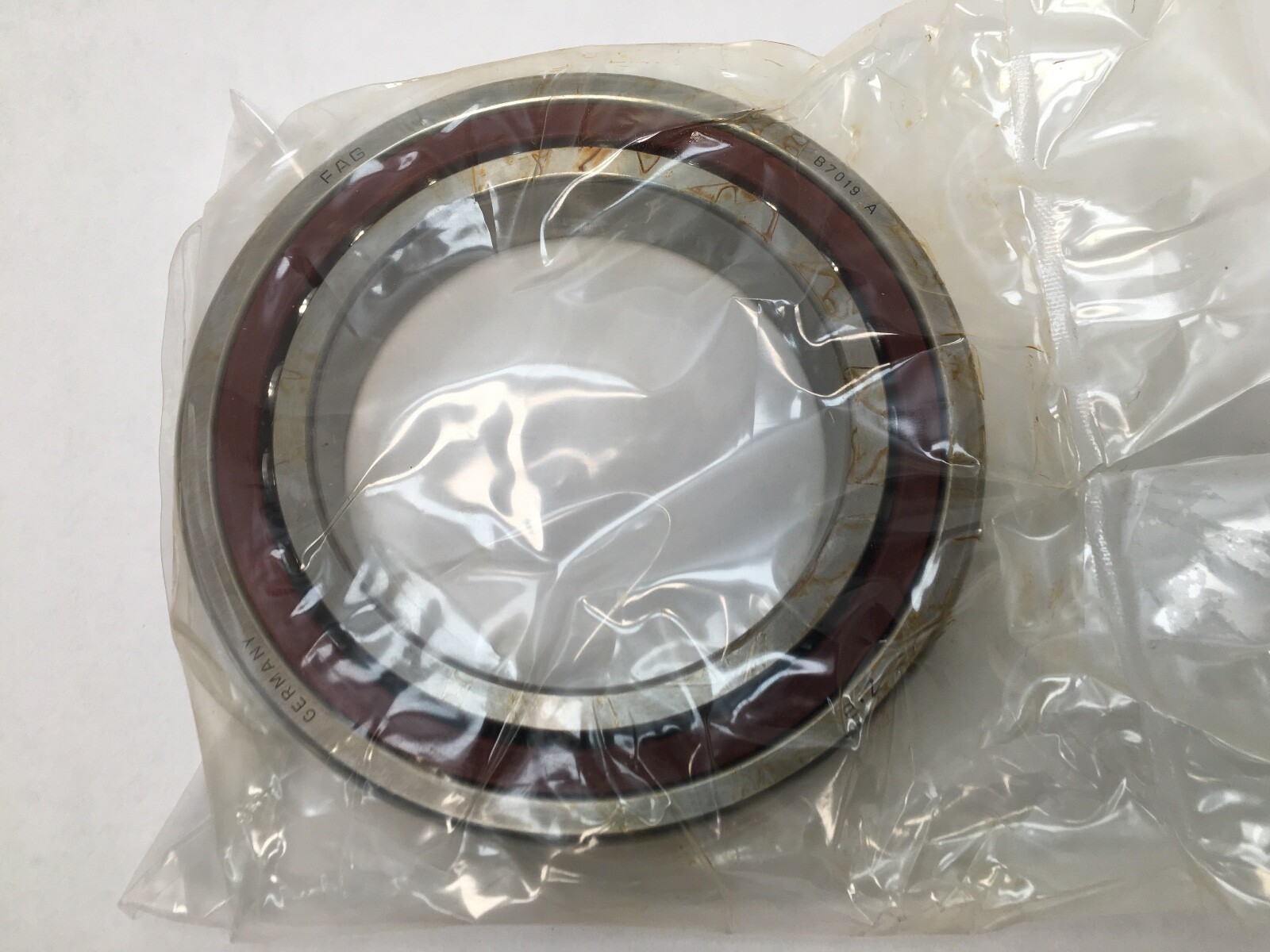

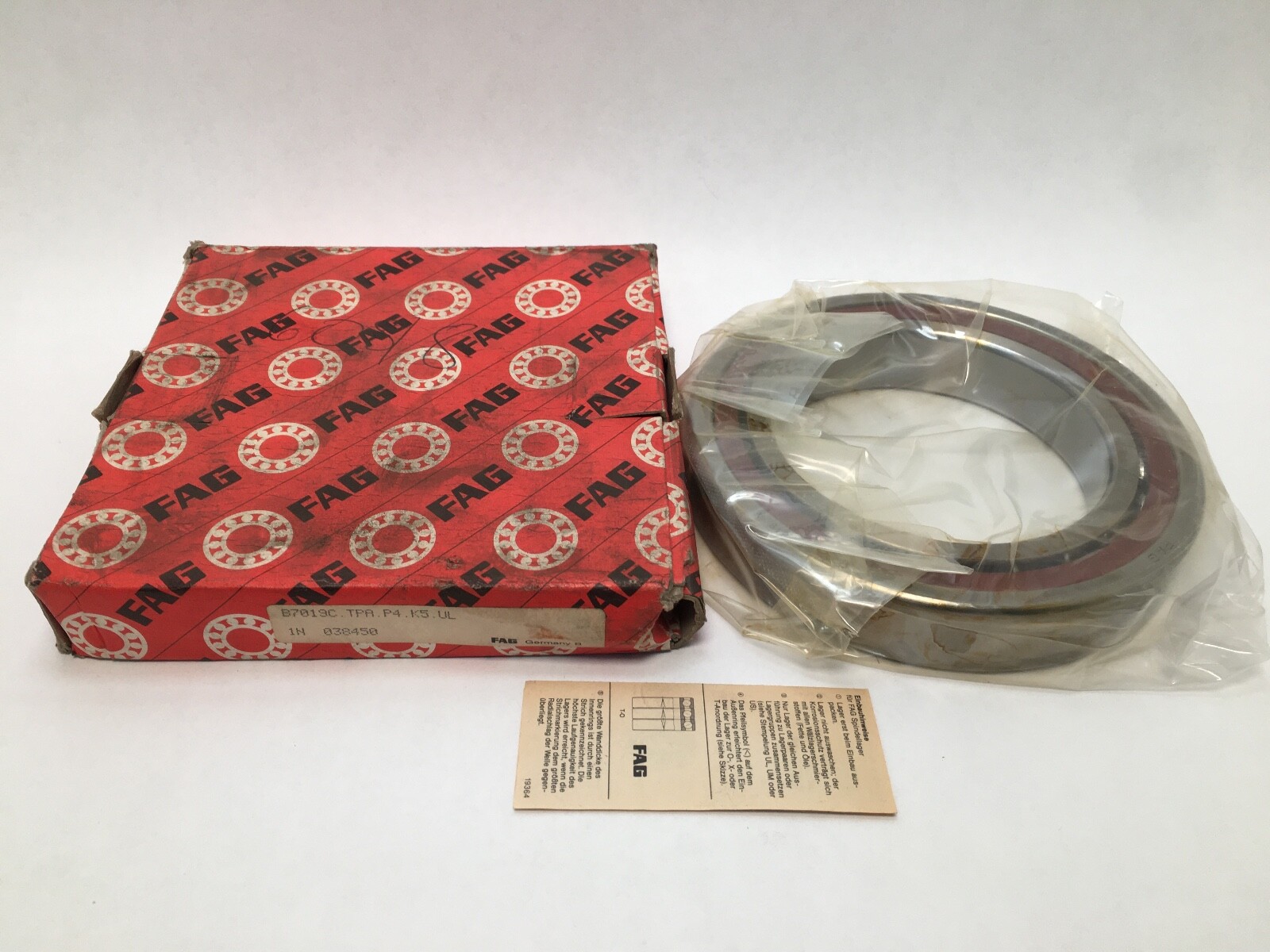

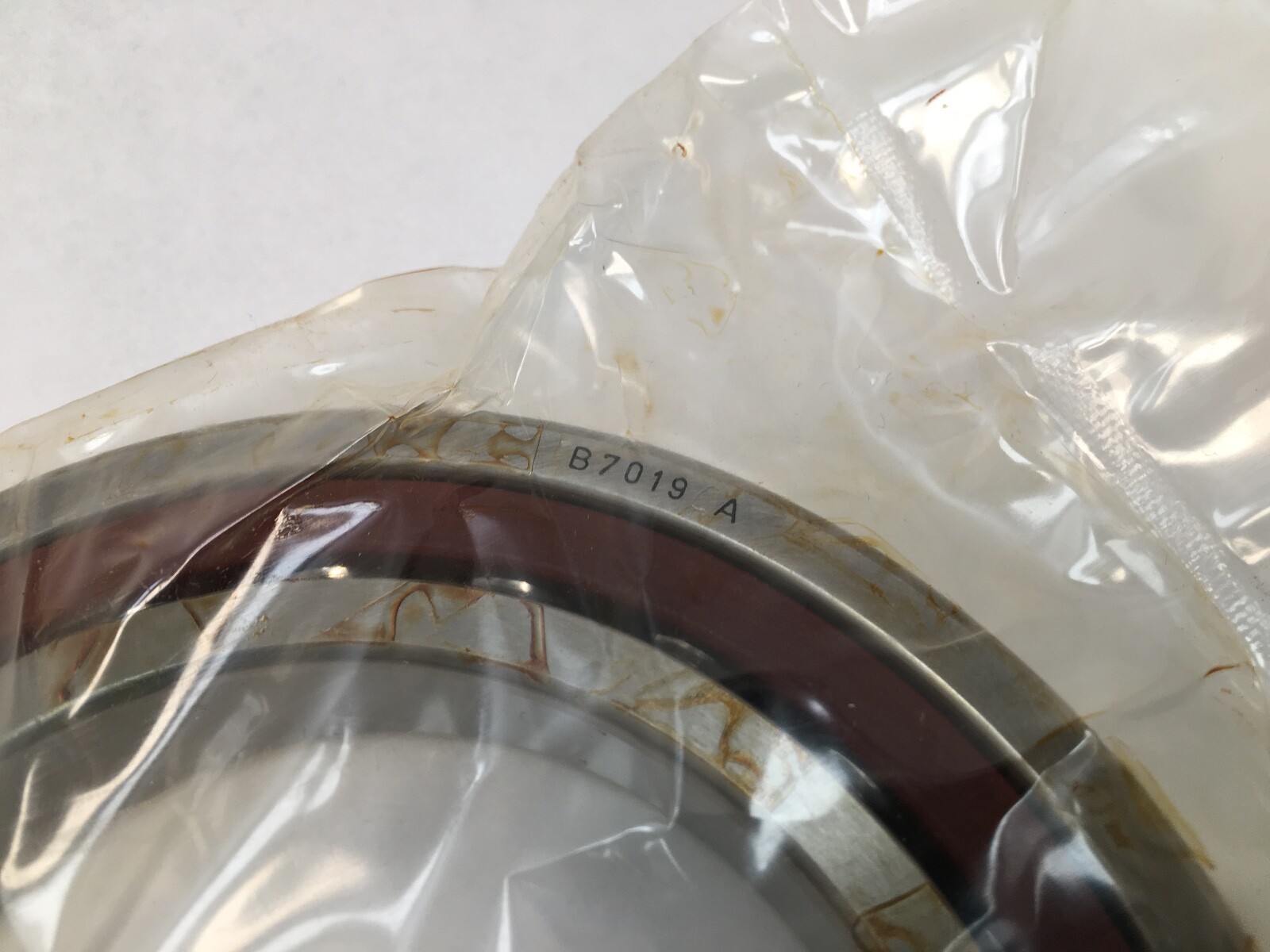

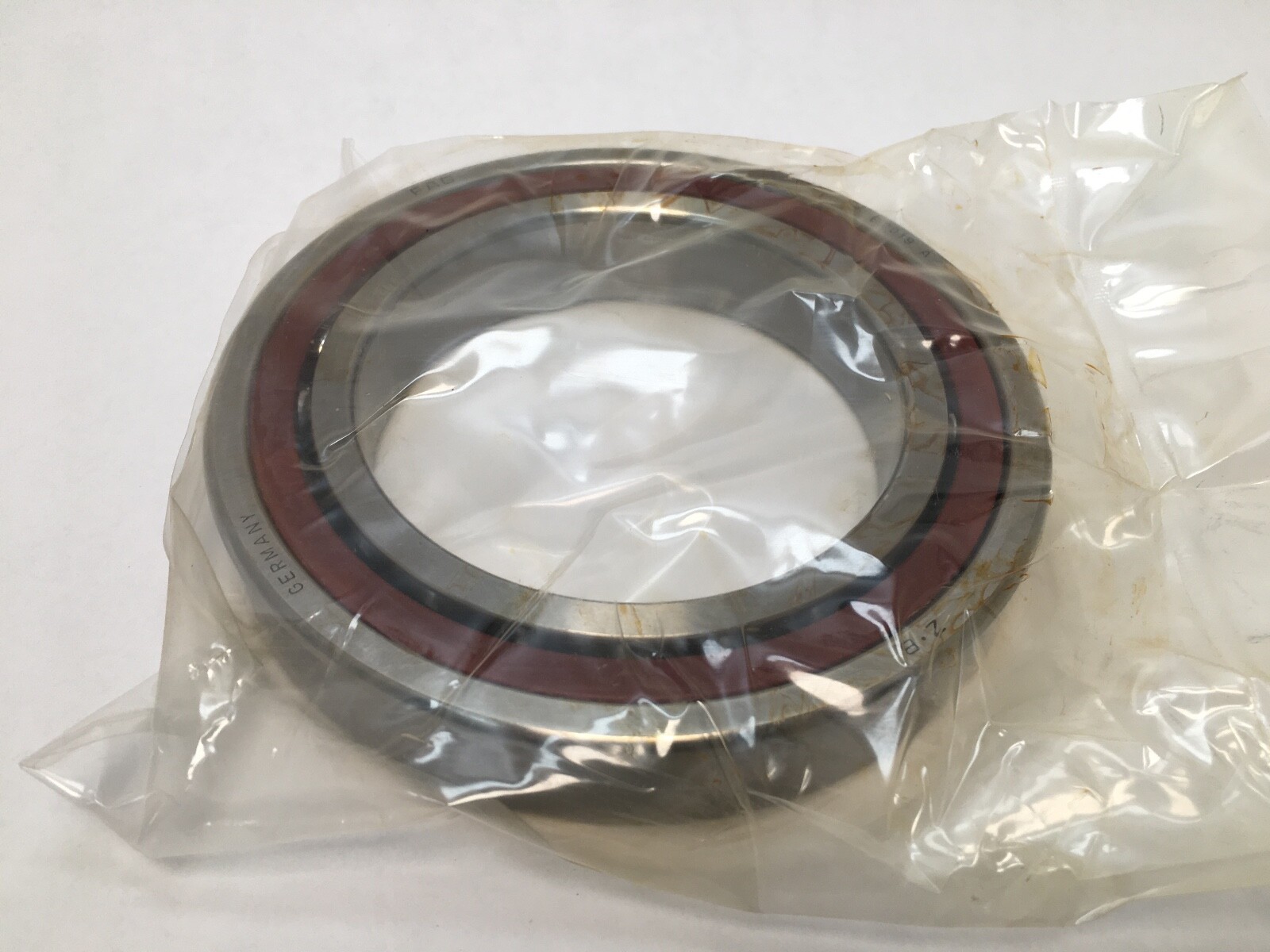

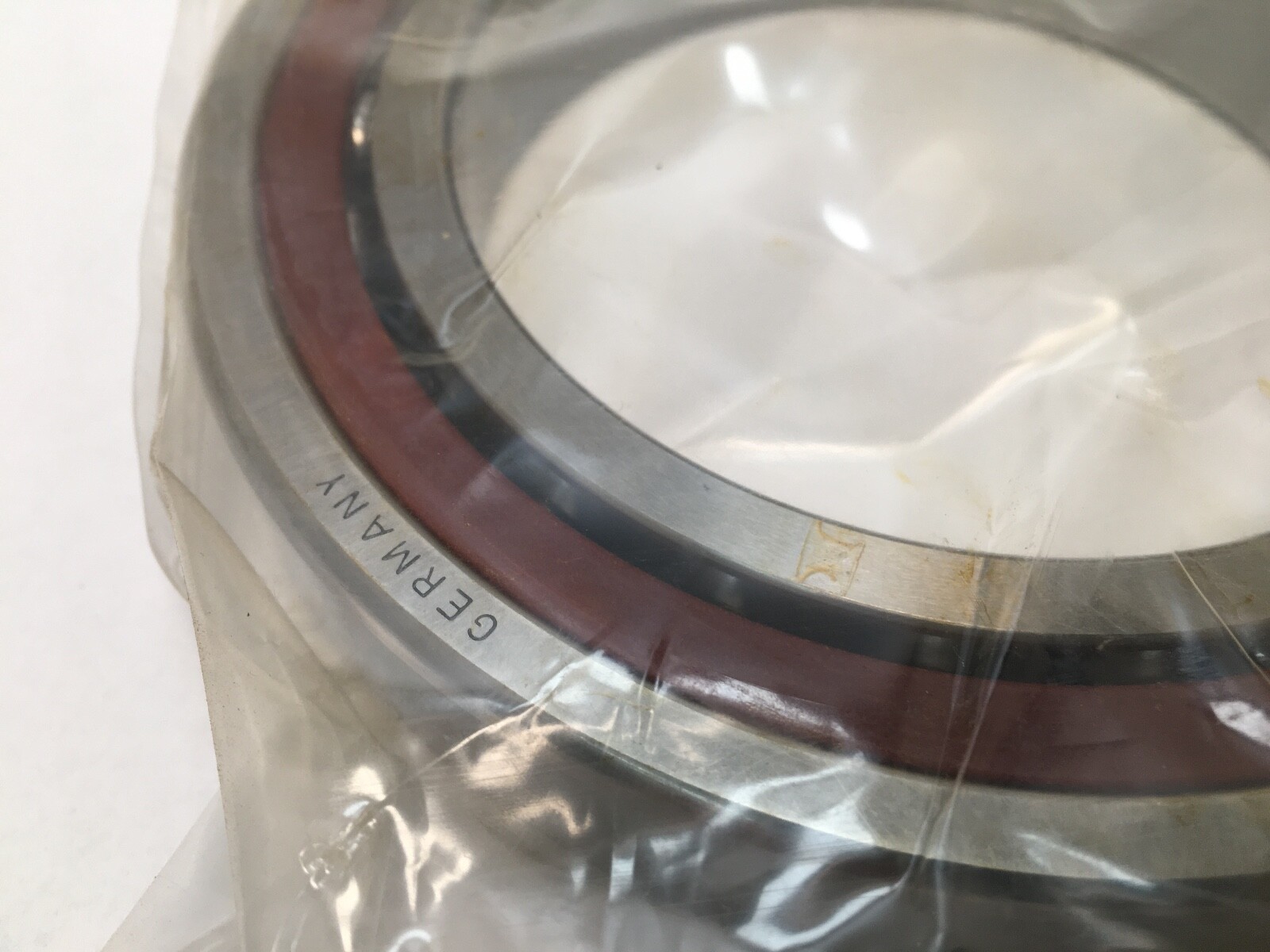

Super-precision angular contact spindle bearing, 95 x 145 x 24 mm, 15°, Light preload (444 N), P4S. Universal single bearing, phenolic cage, B70 series.
List Price
$320.49
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7019CTPAP4K5UL |
| Model | B7019C.TPA.P4S.UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 95 mm |
| OD | 145 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | B70 |
| Lubricant | Grease or oil |
| Preload | Light (444 N) |
| Mpn Variants | B7019-C-T-P4S-UL, B7019C.TPA.P4S.UL, B7019C.TPA.P4.UL, B7019C.T.P4S.UL, B-7019-C-TPA-P4-K5-UL, B7019C, 7019C |
| Precision Class | P4S (better than ABEC 7 / P4) |
| Min Temp | -30 °C |
| Cage Type | Laminated fabric cage |
| Dynamic Load Rating | 81,000 N |
| Static Load Rating | 54,000 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 1.19 kg (2.62 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 9,500 rpm grease; 15,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Cross Reference 1 | Fafnir 2MM9119WI CR SUL |
|---|---|
| Cross Reference 2 | NSK 7019CTRSULP4 |
| Cross Reference 3 | SKF 7019 CD/P4ADGB – light preload |
FAG B7019-C-T-P4S-UL is a super-precision angular contact spindle bearing in the B70 series. Bore Diameter: 95 mm. Outside Diameter: 145 mm. Overall Width: 24 mm. Contact Angle: 15°. Preload: Light (444 N). Precision Class: P4S. Universally matchable single bearing for pairs or sets in back-to-back, face-to-face or tandem arrangement.
B70 — FAG spindle bearing, ISO dimension series 10; bore code 19 = 95 mm.
C — contact angle 15°.
T / TPA — laminated fabric (phenolic) cage.
P4S — FAG tolerance class, better than ISO P4 / ABEC 7.
UL — universal single bearing, Light preload when paired.
Dynamic Load Rating: 81,000 N. Static Load Rating: 54,000 N. Fatigue Load Limit: 5,200 N. Limiting Speed: 9,500 rpm grease; 15,000 rpm oil. Preload: Light, 444 N (lift-off force 1,367 N, axial rigidity 99 N/µm). Medium preload for this size is 1,421 N and Heavy 2,842 N. Operating Temperature: -30 to 100 °C. Cage Material: Phenolic. Item Weight: 1.19 kg (2.62 lb).
Shaft Shoulder Diameter: 105 mm (h12). Housing Shoulder Diameter: 136 mm (H12). Pressure Cone Apex Distance: 28.1 mm. Minimum Chamfer: 1.5 mm. Maximum Fillet Radius: 1.5 mm. Lubrication Jet Pitch Diameter: 110.5 to 115.8 mm.
Current Schaeffler designation B7019-C-T-P4S-UL replaces B7019C.TPA.P4.UL and B7019C.T.P4S.UL. Fafnir 2MM9119WI CR SUL and NSK 7019CTRSULP4 share the 15° angle and light universal preload. SKF 7019 CD/P4ADGB has the same size, 15° angle and light preload.
