Availability:
2 in stock

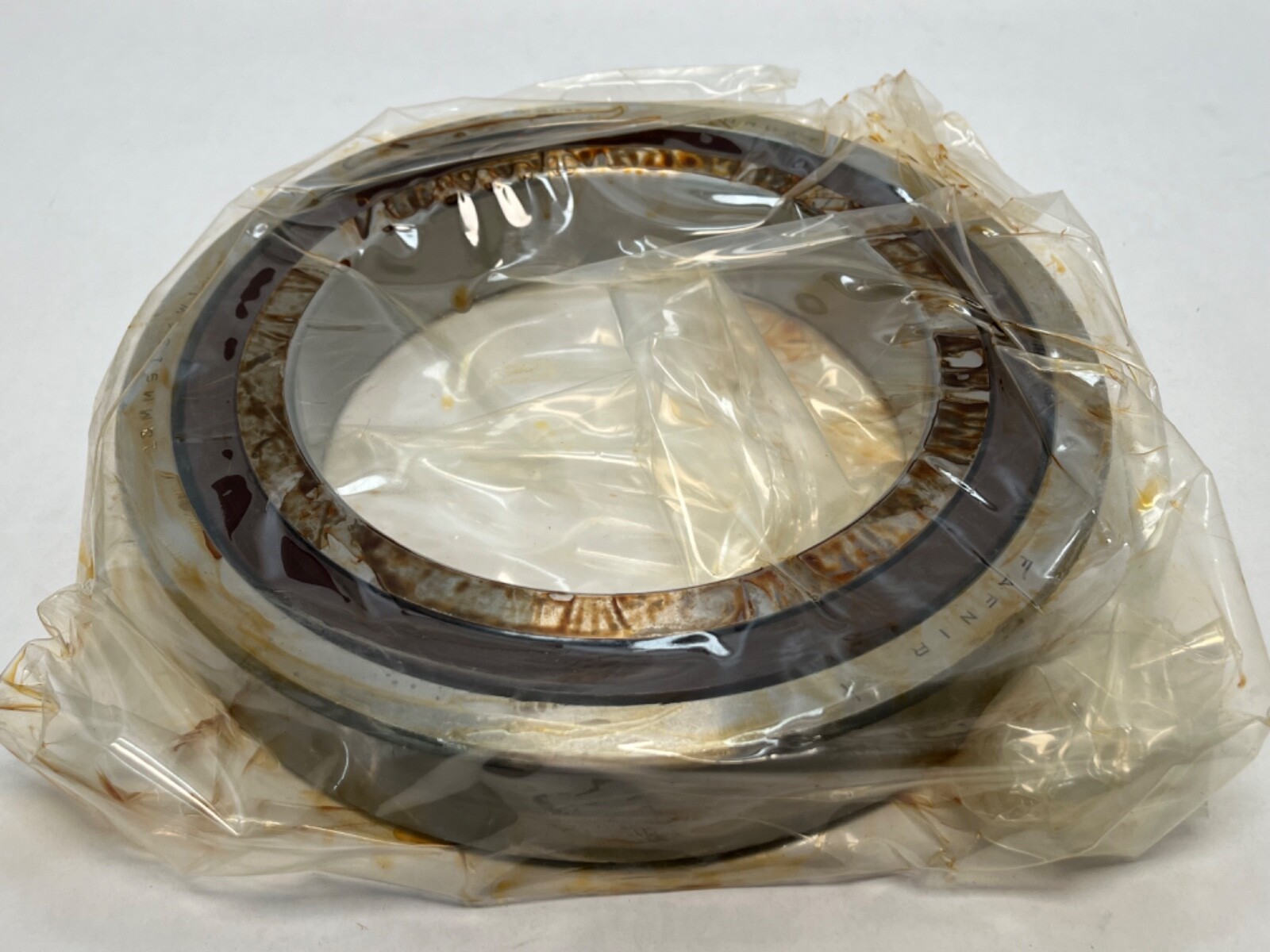

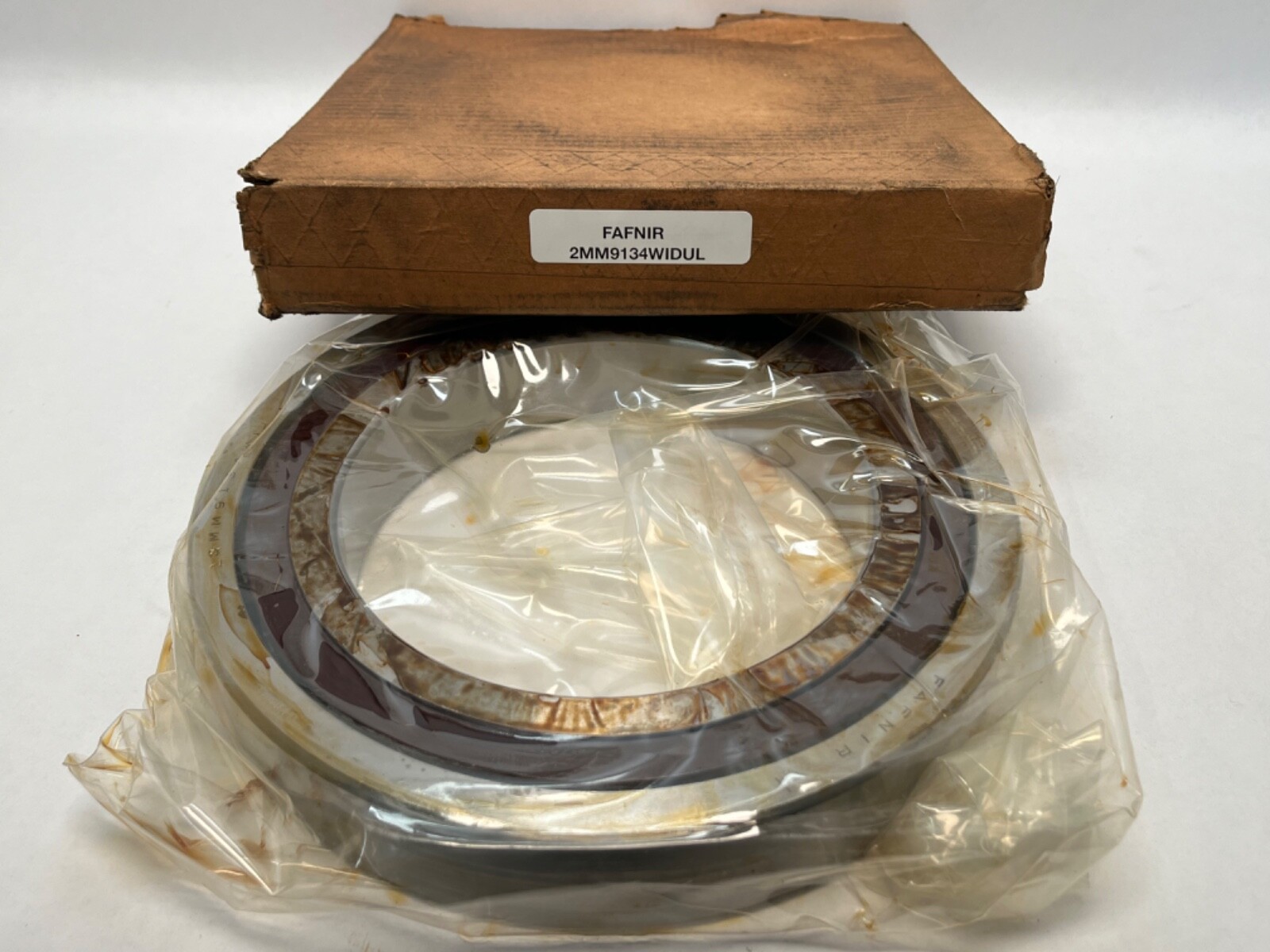

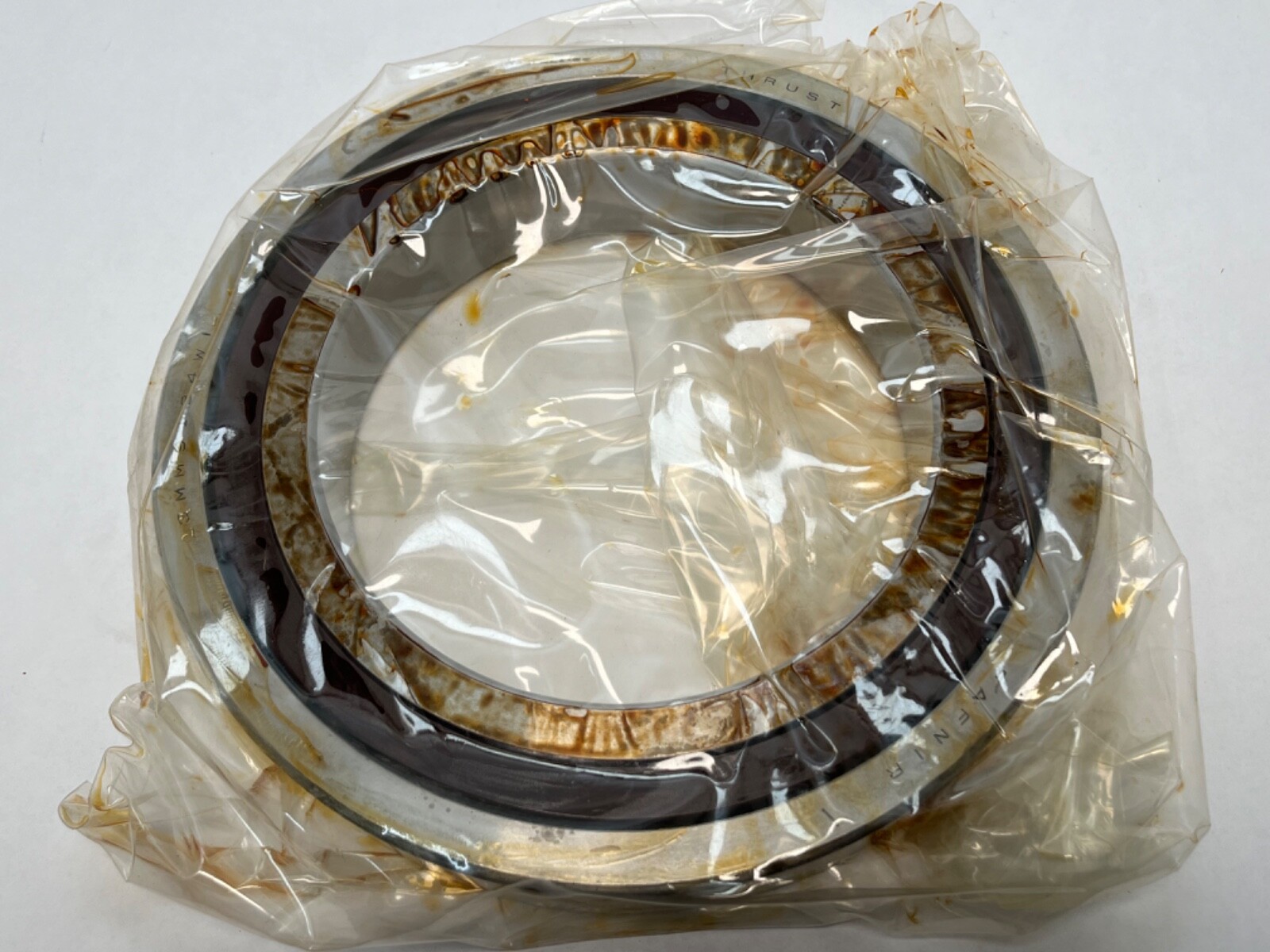

Super-precision angular contact ball bearing, 170 x 260 x 42 mm, 15° contact angle, ABEC 7 / P4. Matched duplex pair, light preload, phenolic cage. ISO 7034.
List Price
$948.38
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9134WIDUL |
| Model | 2MM 9134 WI CR DUL / 7034 C T DUL P4 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 170 mm |
| OD | 260 mm |
| Width | 42 mm |
| Material | Steel |
|---|---|
| Base Number | 2MM9134WI |
| Industry Terms | Super-precision angular contact ball bearing; spindle bearing; matched duplex pair; machine tool bearing |
| Common Misspellings | 2MM9134WL-DUL; 2MM9134WI-DLU; 2MM 9134 WI DUL; Fafner 2MM9134WI; 2MM9134WICRDLU |
| Application Types | Machine tool spindles; grinding spindles; milling and turning spindles; precision gearboxes; high-speed rotary tables |
| Total Width | 84 mm |
| Overall Width | 42 mm |
| Mpn Variants | 2MM9134WI-DUL; 2MM9134WICRDUL; 2MM-9134-WI-DUL; 2MM9134WIDUL; 2MM 9134 WI CR DUL |
| Precision Class | ABEC 7 / P4 |
| Series | 9100WI |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Preload | Light |
| Mounting Arrangement | Universal duplex (DB, DF or DT) |
| Cross Reference 1 | SKF 7034 CD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B7034-C-T-P4S-UL |
| Cross Reference 3 | NSK 7034CTRDULP4 |
| Cross Reference 4 | NTN 7034CDB/GLP4 |
| Cross Reference 5 | RHP 7034CTDULP4 |
| Cross Reference 6 | Koyo 7034CDB |
| Cross Reference 7 | SNR 7034CVDUJ74 |
| Cross Reference 8 | Timken 2MM9134WICRDUL |

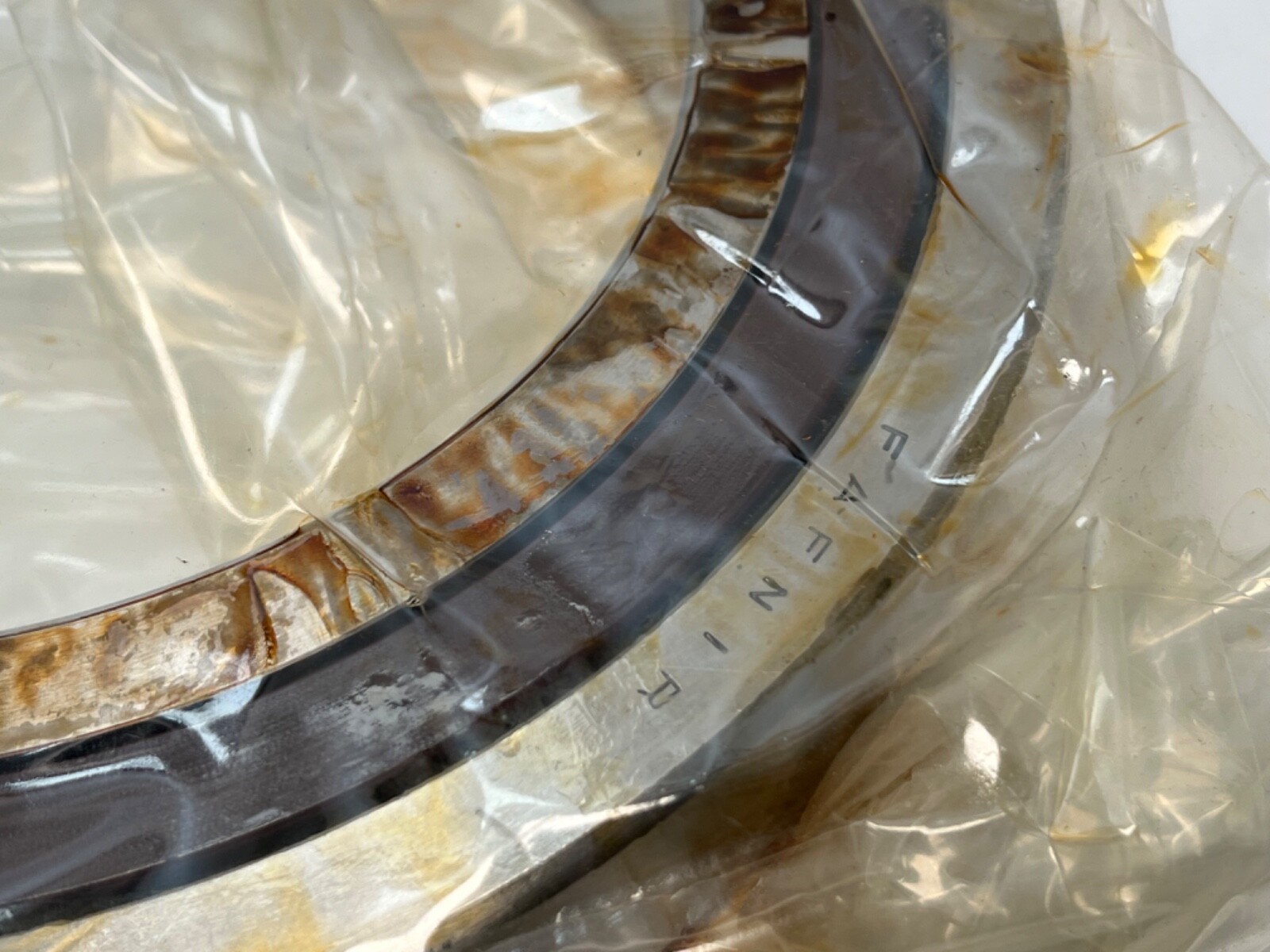

Fafnir 2MM9134WI-CR-DUL super-precision angular contact ball bearing, supplied as a matched duplex set. Bore Diameter: 170 mm (6.693 in). Outside Diameter: 260 mm (10.236 in). Overall Width: 42 mm (1.654 in) per bearing. Total Width: 84 mm across the mounted pair. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Preload: Light. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. The ISO size equivalent is 7034. Country of Origin: United States.

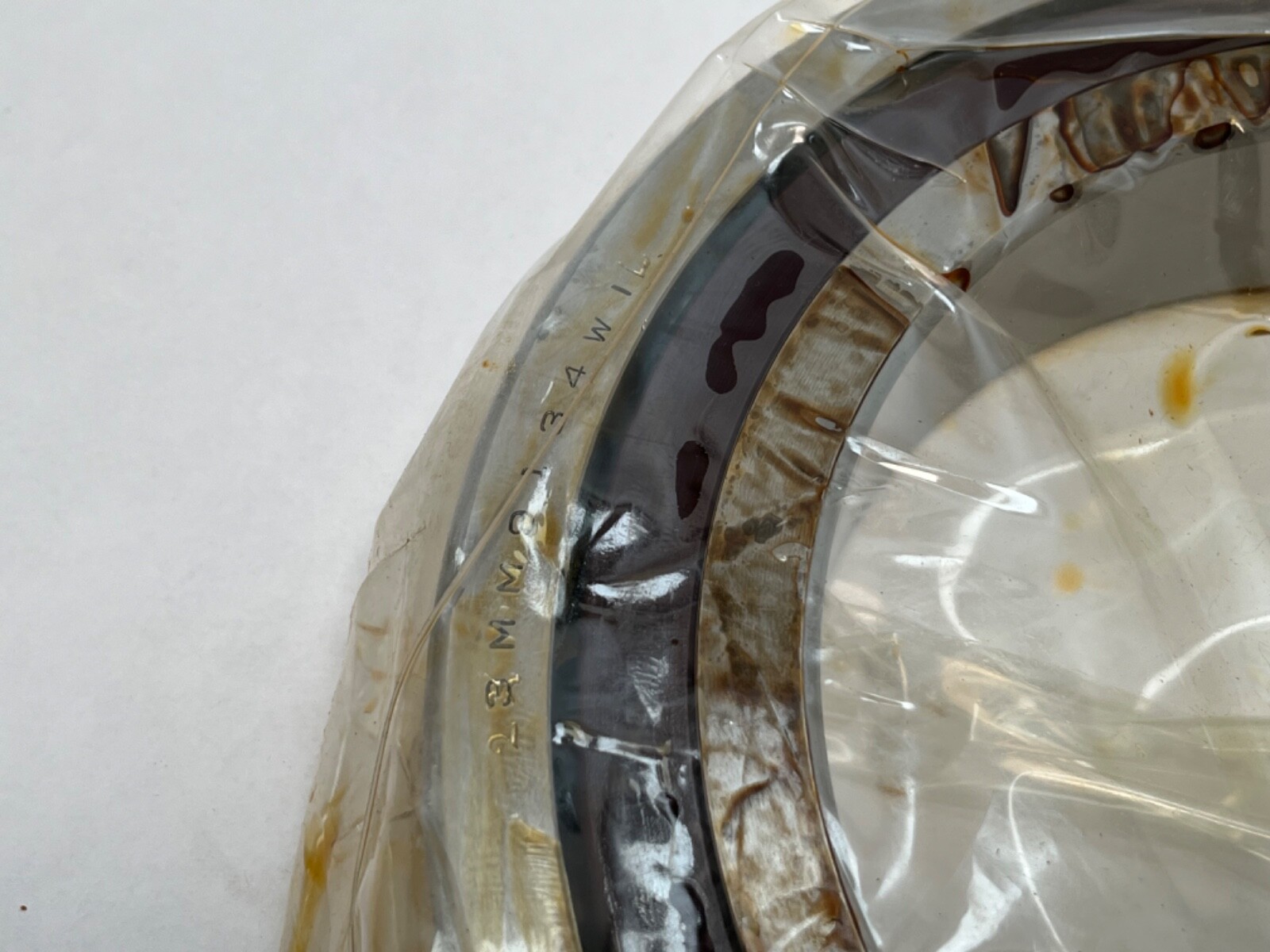

2MM — 15° contact angle, ABEC 7 / ISO P4 tolerance class.
9134 — Fafnir’s number for the ISO 7034 envelope, 170 x 260 x 42 mm.
WI — low shoulder on both rings, the duplex grinding form.
CR — one-piece machined phenolic cage.
DUL — duplex, universally ground, light preload. Two single-row bearings ground as a matched set. Not a double-row bearing.
A 15° contact angle keeps the load path close to the radial plane. That is the angle used on machine tool spindles running at speed under a predominantly radial cutting load.
Phenolic is a light, self-lubricating cage material and runs quiet at spindle speeds. It is the standard cage across the Fafnir 9100WI super-precision range.
ABEC 7 / P4 fixes bore, outside diameter, width and running accuracy to ISO P4 tolerances. At a 170 mm bore this is one of the larger sizes in the 9100WI range.

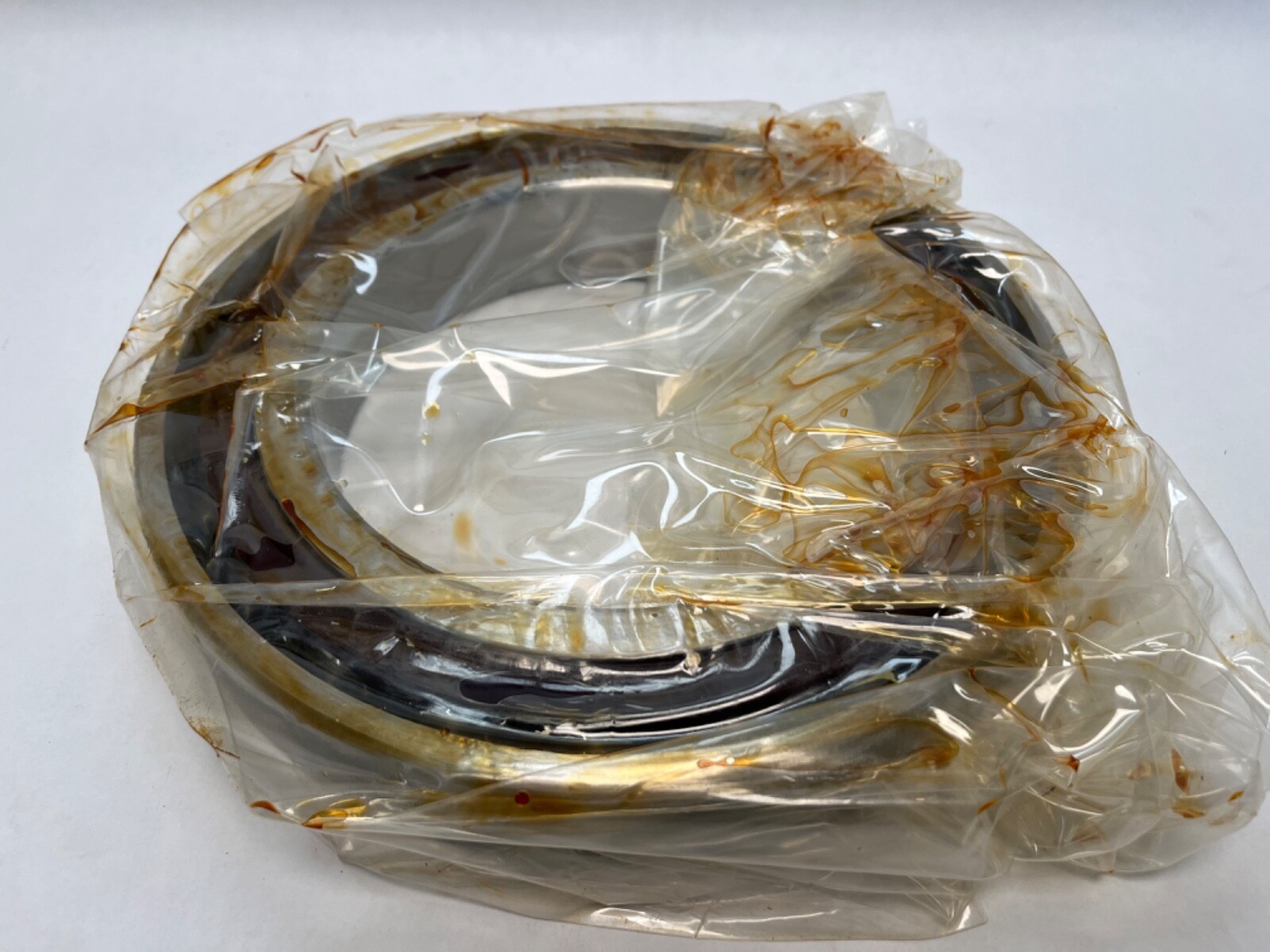

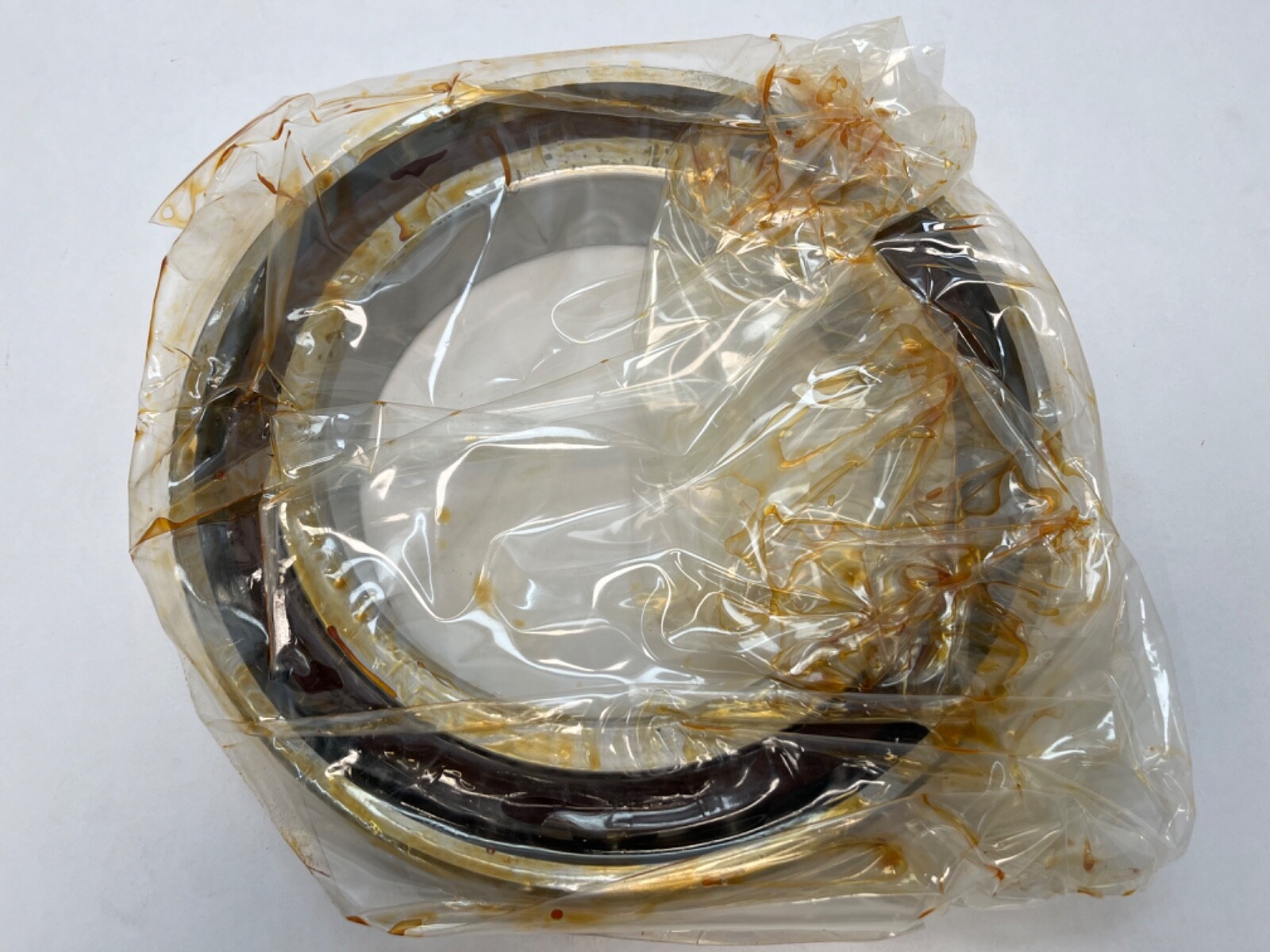

Unit Quantity: 2 Pcs. The two bearings are a factory-matched duplex set. Universal grinding lets the pair stack back-to-back (DB), face-to-face (DF) or in tandem (DT), and the ground ring faces carry the light preload. The set runs preload-set and carries no internal clearance code.
Bore Diameter: 170 mm. Outside Diameter: 260 mm. Overall Width: 42 mm per bearing, 84 mm for the pair stacked. Bore Type: Straight. Closure Type: Open. Number Of Rows: 1 per bearing. Harmonization Code: 8482.10.50.
Same envelope, 15° contact angle and super-precision class: SKF 7034 CD/P4ADGA, FAG B7034-C-T-P4S-UL, NSK 7034CTRDULP4, NTN 7034CDB/GLP4, RHP 7034CTDULP4, Koyo 7034CDB, SNR 7034CVDUJ74. The current Timken catalogue designation is 2MM9134WICRDUL.
