Availability:
1 in stock

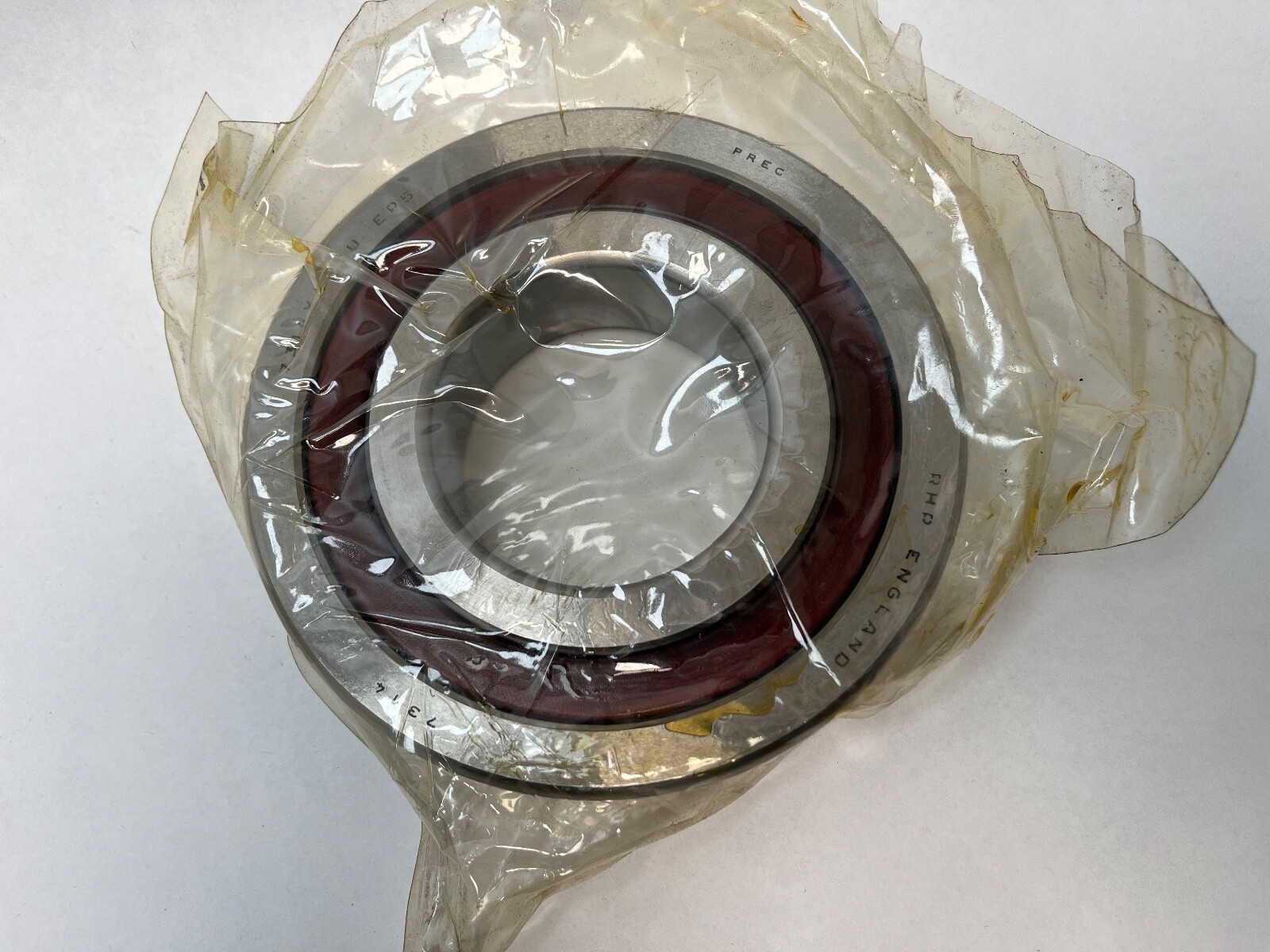

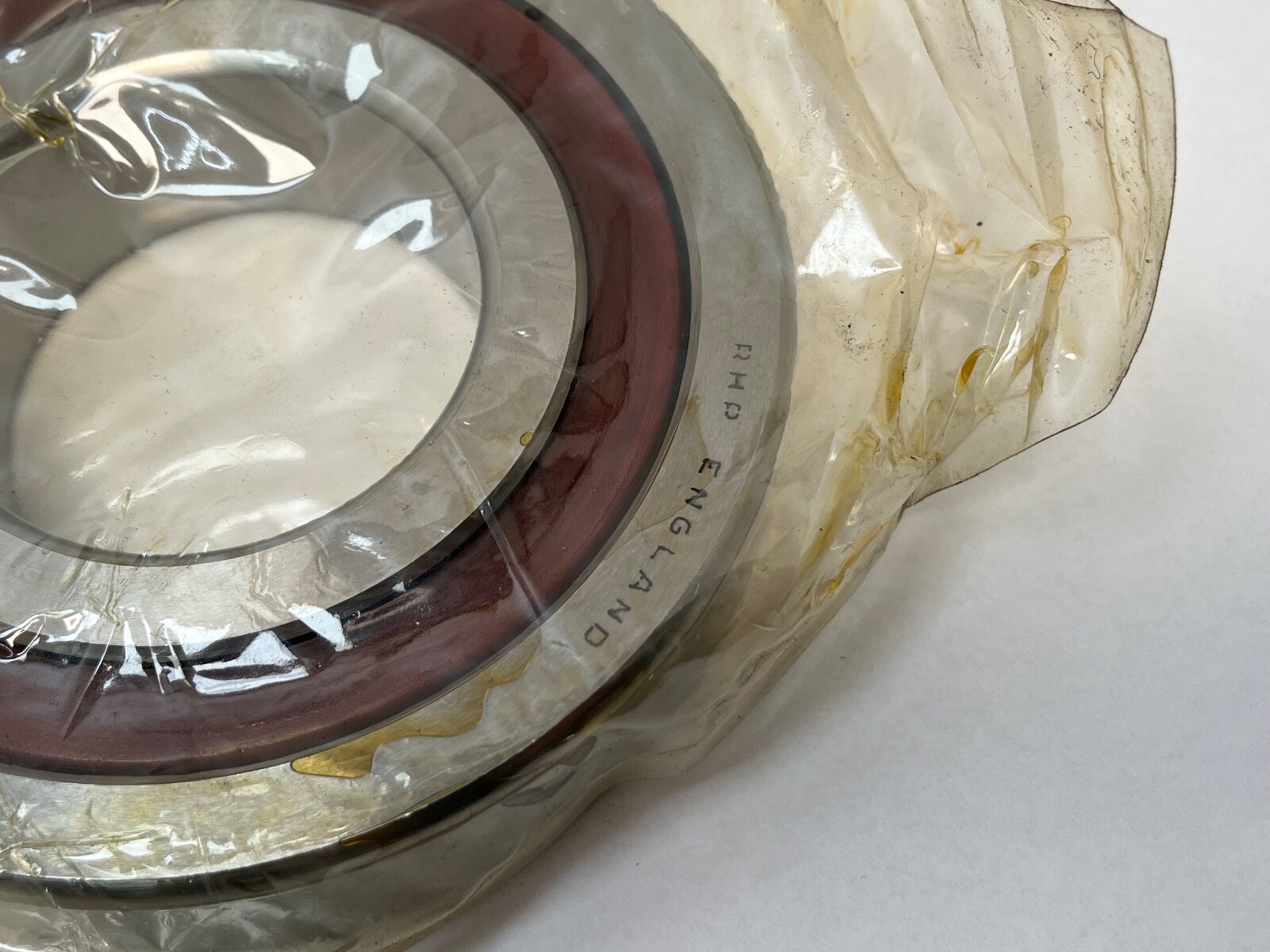

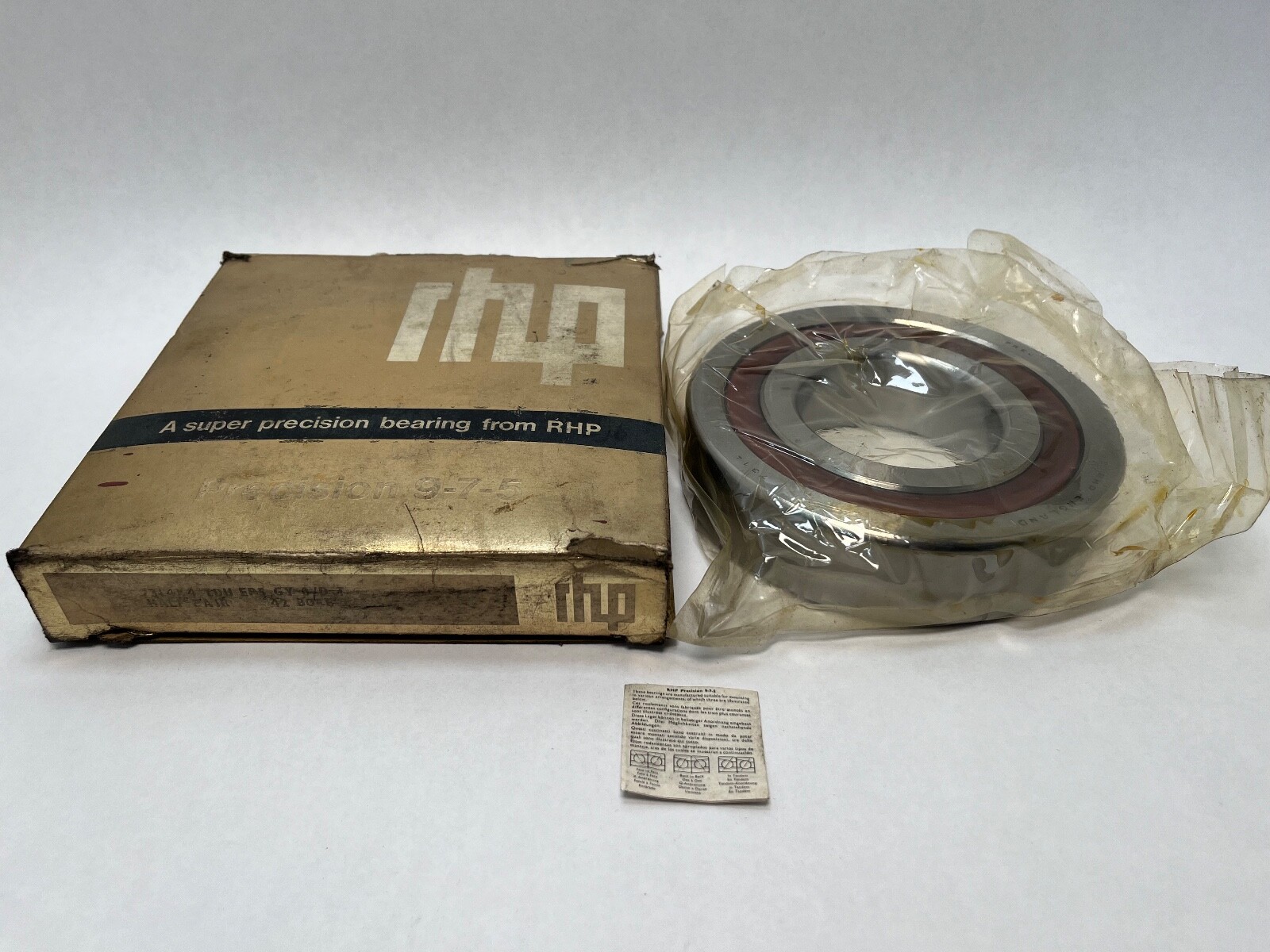

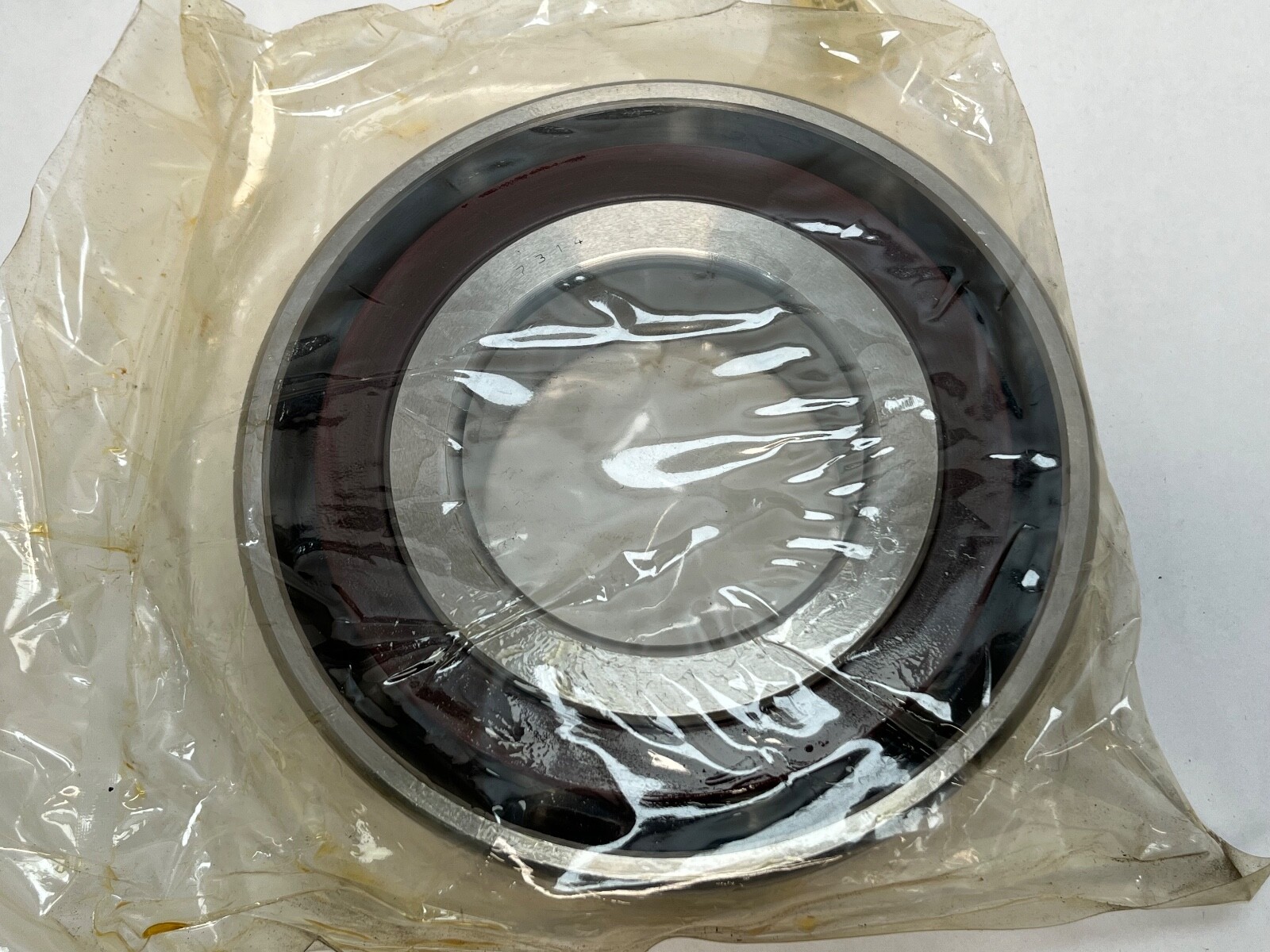

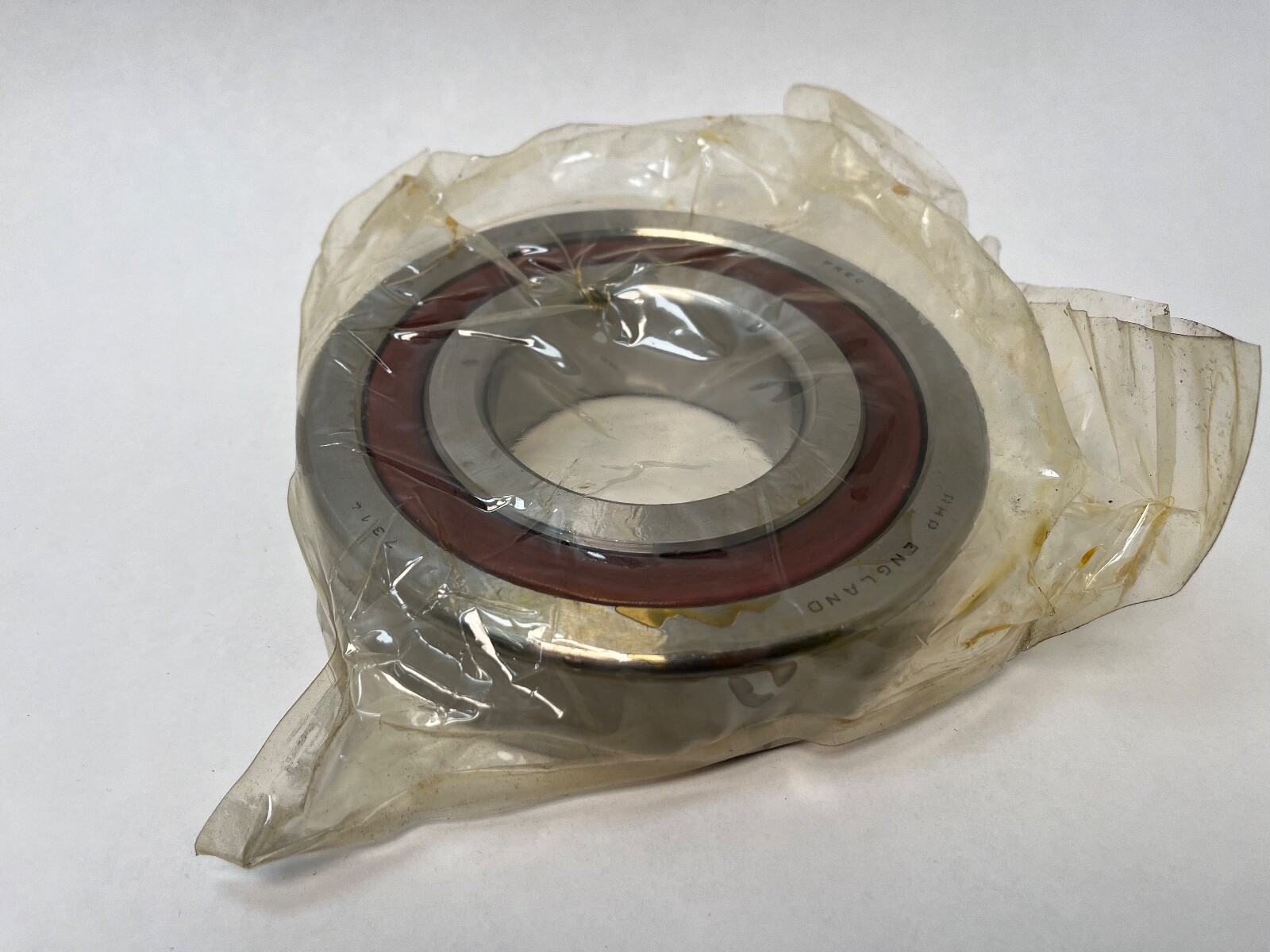

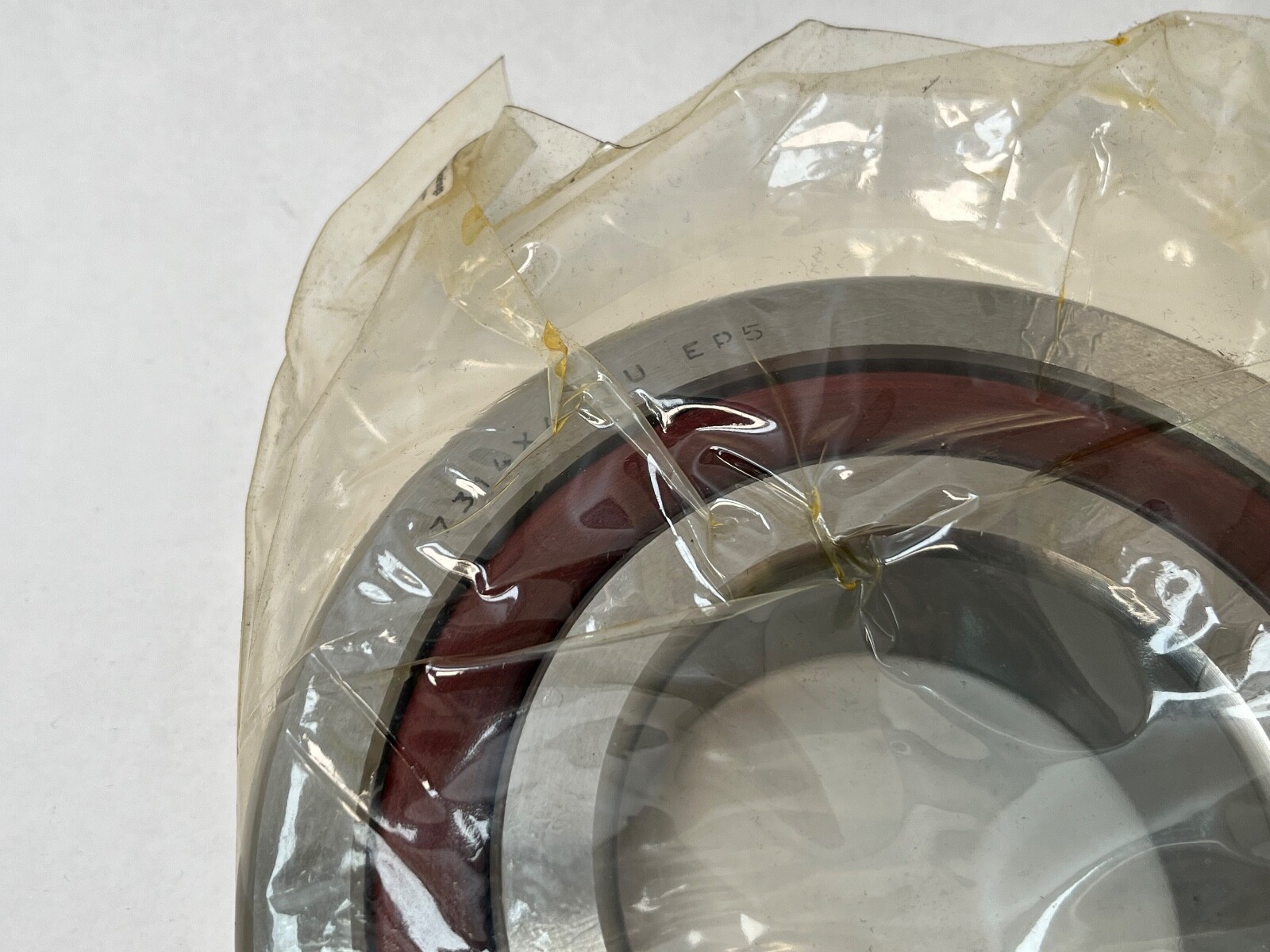

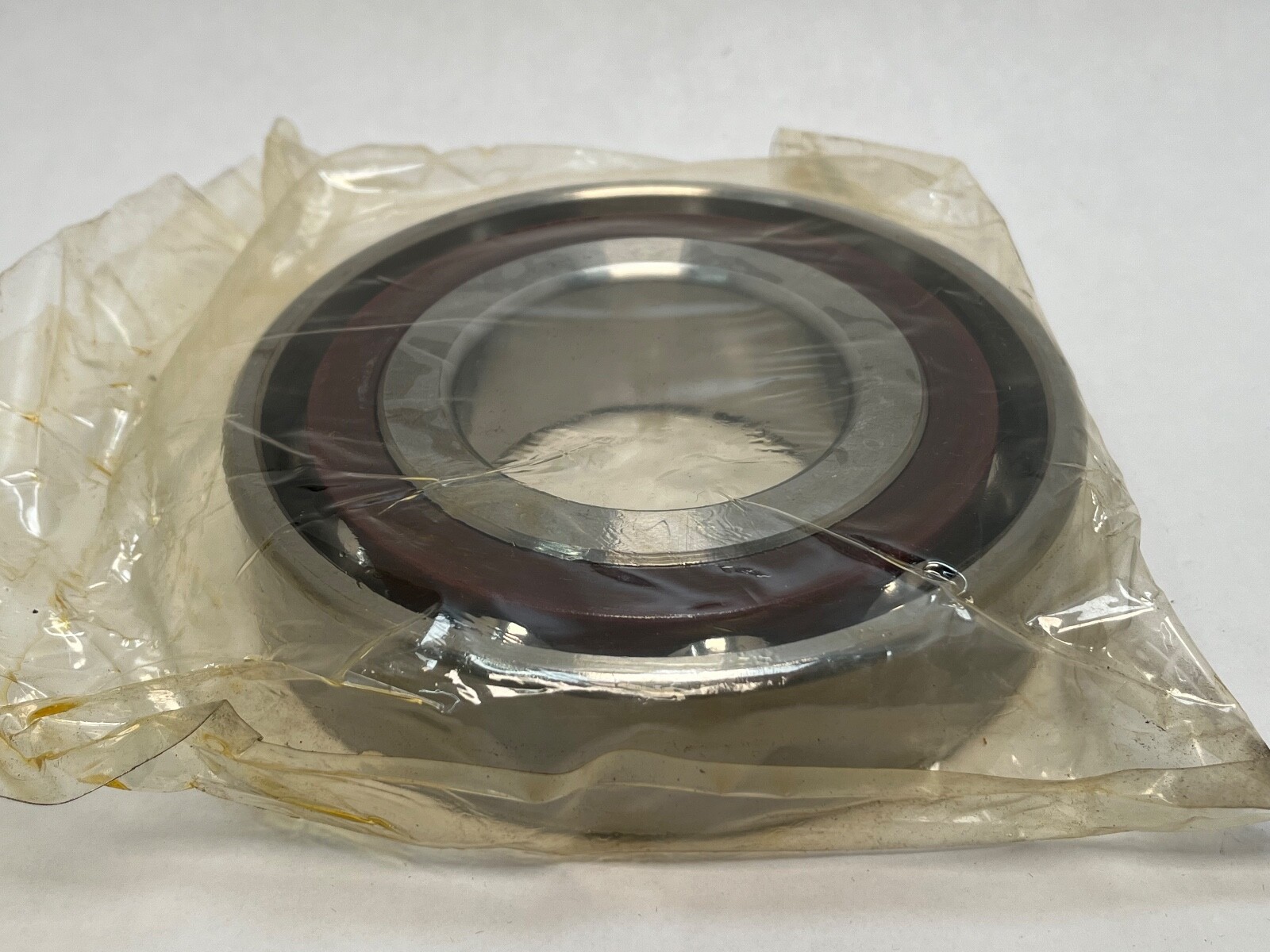

Super-precision angular contact ball bearing, 70 x 150 x 35 mm, 30 degree contact angle, ABEC 7. One half of a light-preload duplex pair, universally ground.
List Price
$91.77
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7314ATDULP4 |
| Model | 7314 A T DUL P4 / 3MM314WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 150 mm |
| Width | 35 mm |
| Series | 7300 |
|---|---|
| Preload | Light |
| Material | Bearing Steel |
| Industry Terms | Super precision angular contact bearing; machine tool spindle bearing; half pair |
| Application Types | Machine tool spindles; grinding spindles; high-speed gearboxes |
| Overall Width | 35 mm |
| Mpn Variants | 7314ATDULP4-1/2PR; 7314-A-T-DUL-P4; B7314X4TDUEP7 |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 30° |
| Mounting Arrangement | Duplex, universally ground |
| Bearing Material | Bearing Steel |
| Cross Reference 1 | NSK 7314A |
|---|---|
| Cross Reference 2 | Koyo 7314 |
| Cross Reference 3 | NTN 7314 |
RHP 7314-A-T-DUL-P4-1/2PR super-precision angular contact ball bearing. Bore Diameter: 70 mm. Outside Diameter: 150 mm. Overall Width: 35 mm. Contact Angle: 30°. Precision Class: ABEC 7 / P4. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel. Series: 7300.
7314 — ISO series 03 angular contact ball bearing, 70 mm bore, 150 mm outside diameter, 35 mm width.
A — 30° contact angle.
T — machined cage.
DU — duplex universal. The faces are ground so that any two bearings from the range mount back-to-back, face-to-face or in tandem.
L — light preload.
P4 — ISO precision class 4, equivalent to ABEC 7.
1/2PR — one half of a pair. A single bearing.
EP7 — the same class written in RHP’s B-series scheme, equivalent to ABEC 7.
Contact Angle: 30°. A 30° angle puts more of the load path along the shaft axis than a 15° or 25° execution of the same envelope, so it carries a higher thrust load and a lower radial one.
Preload: Light. Universal face grinding means a second bearing from the same range sets the light preload when the two are drawn together, with no shims or spacers ground to order.
Cage Type: Machined. Precision Class: ABEC 7 / P4, giving tighter bore, outside diameter and running-accuracy tolerances than a standard-class bearing.
Mounting Arrangement: Duplex, universally ground. Bore Type: Straight. Snap Ring Included: No.
Unit Quantity: 1 Pc. A single universally ground bearing, half of a light-preload duplex pair. It runs alone as a single, and pairs with any other bearing of the same designation.
Same 70 x 150 x 35 mm envelope at a 30° contact angle: NSK 7314A, Koyo 7314 and NTN 7314. The 15°, 25° and 40° executions of the 7314 envelope split the load differently and are not a substitution.
