Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

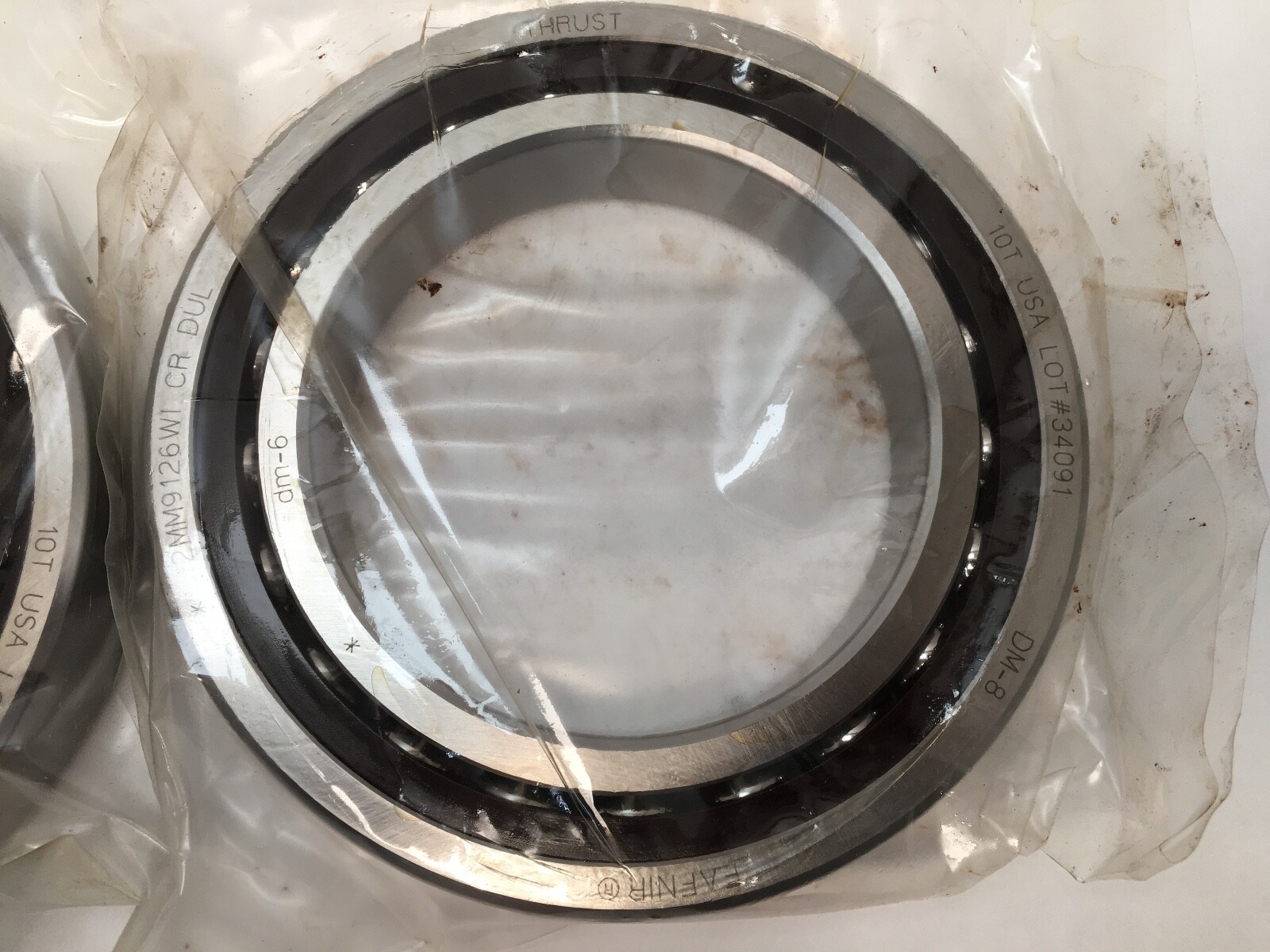

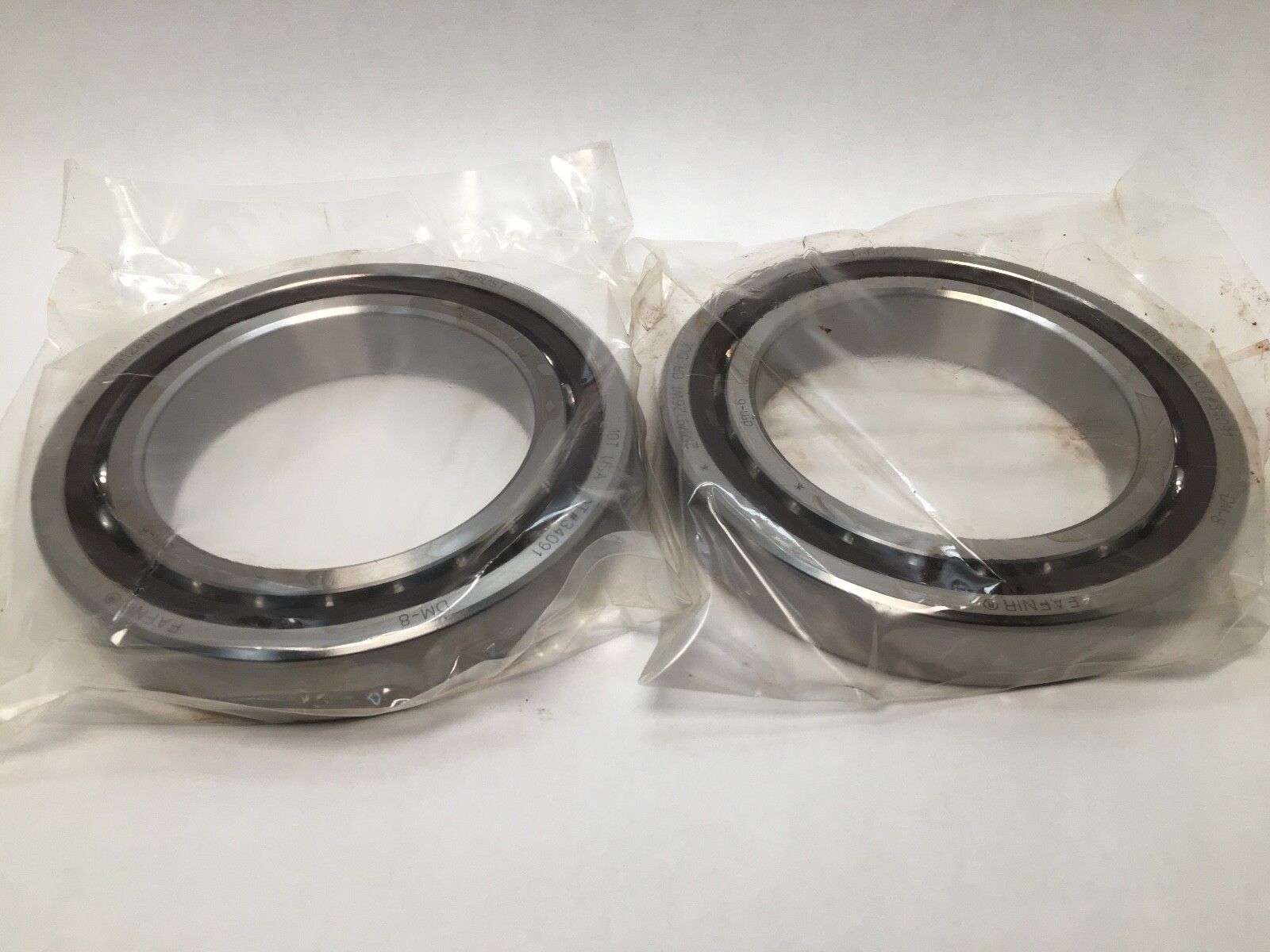

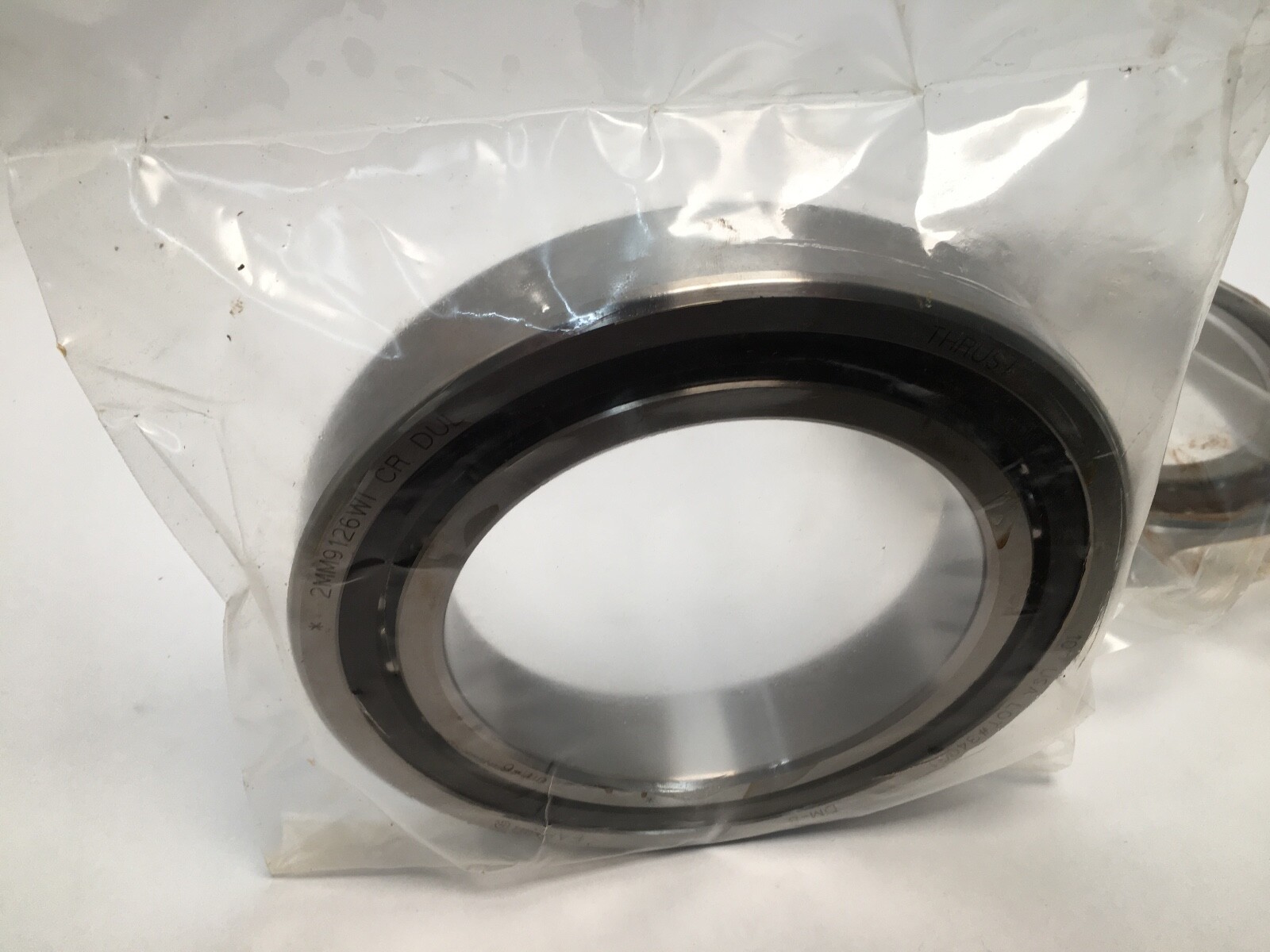

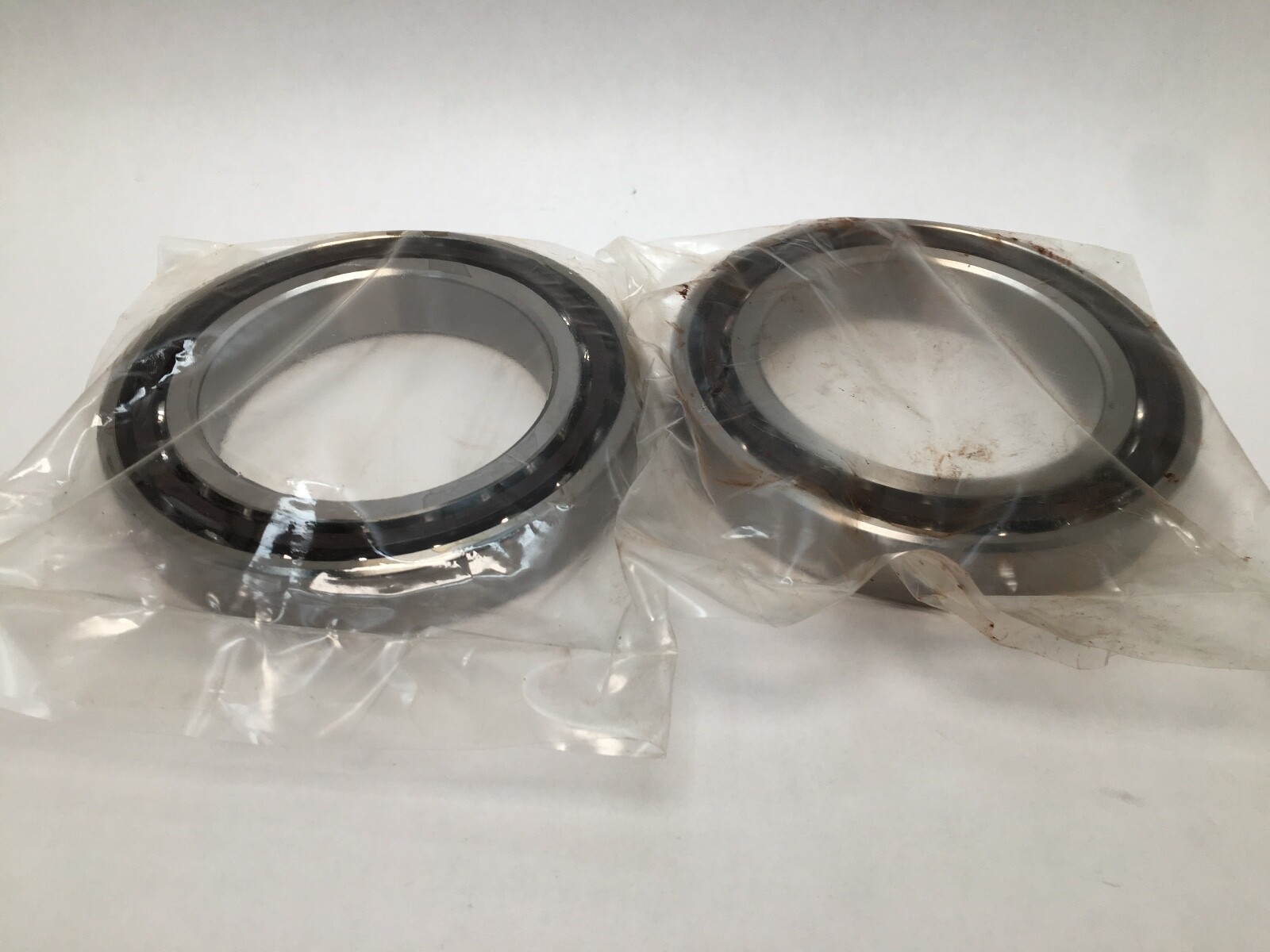

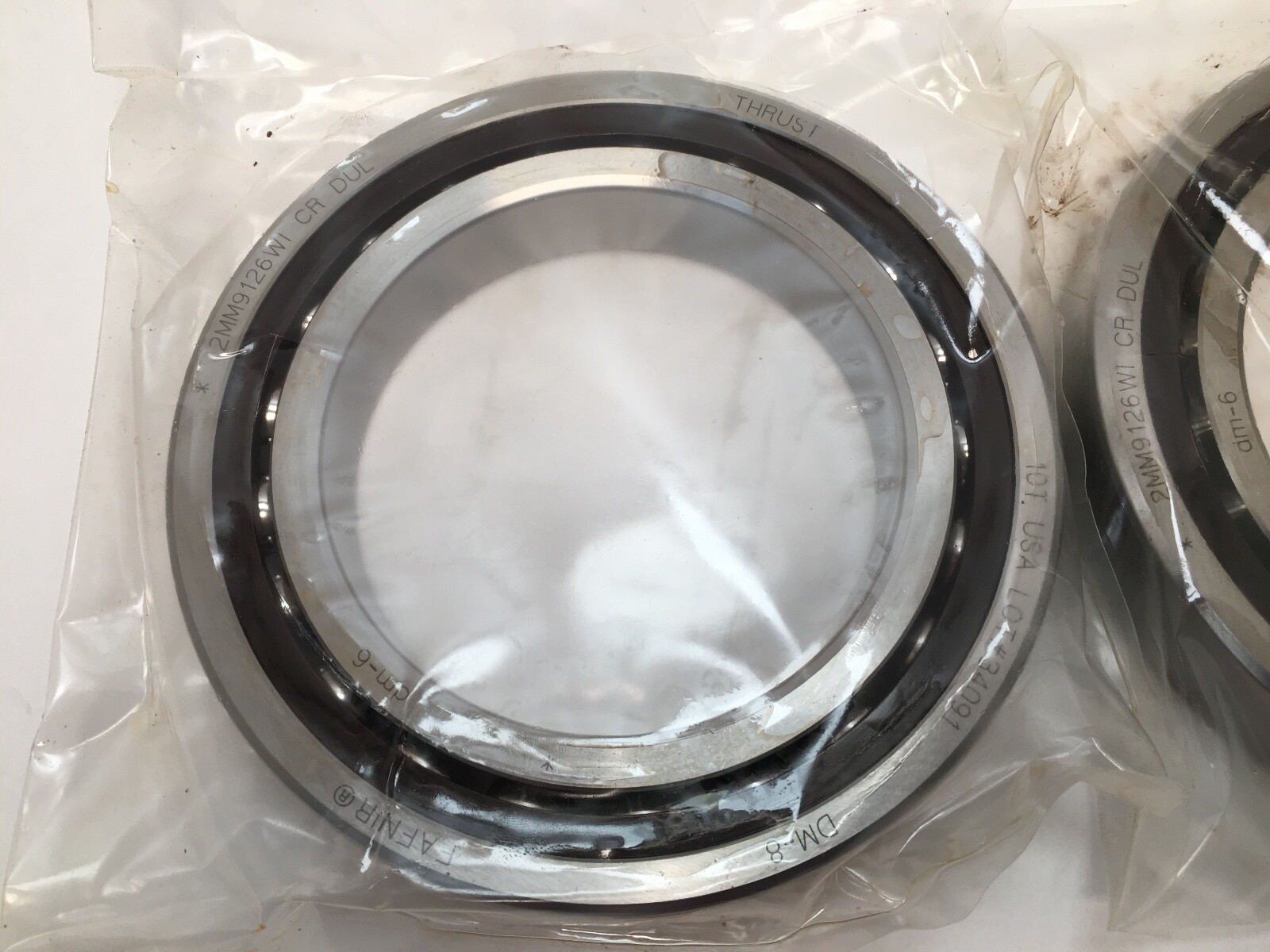

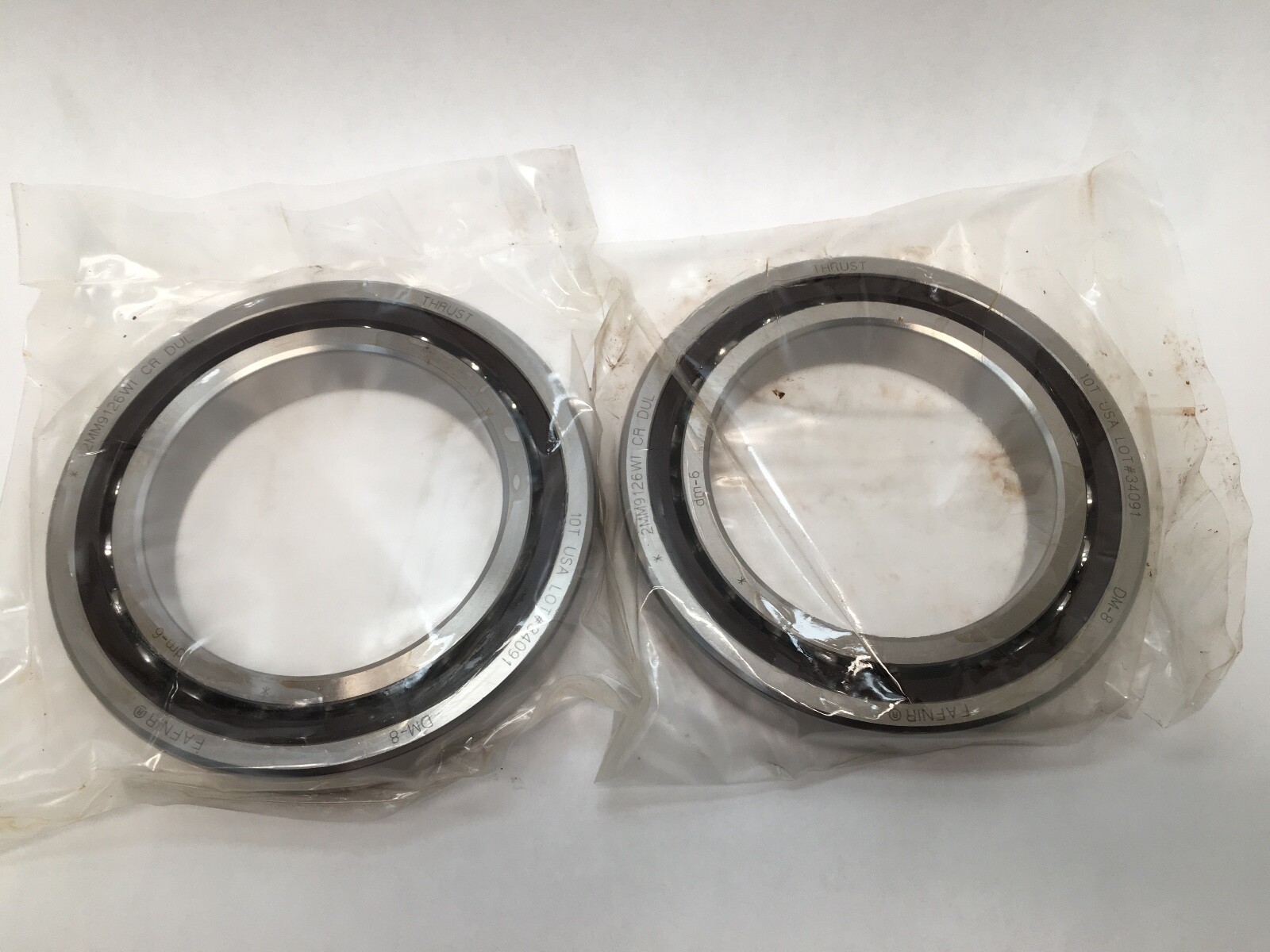

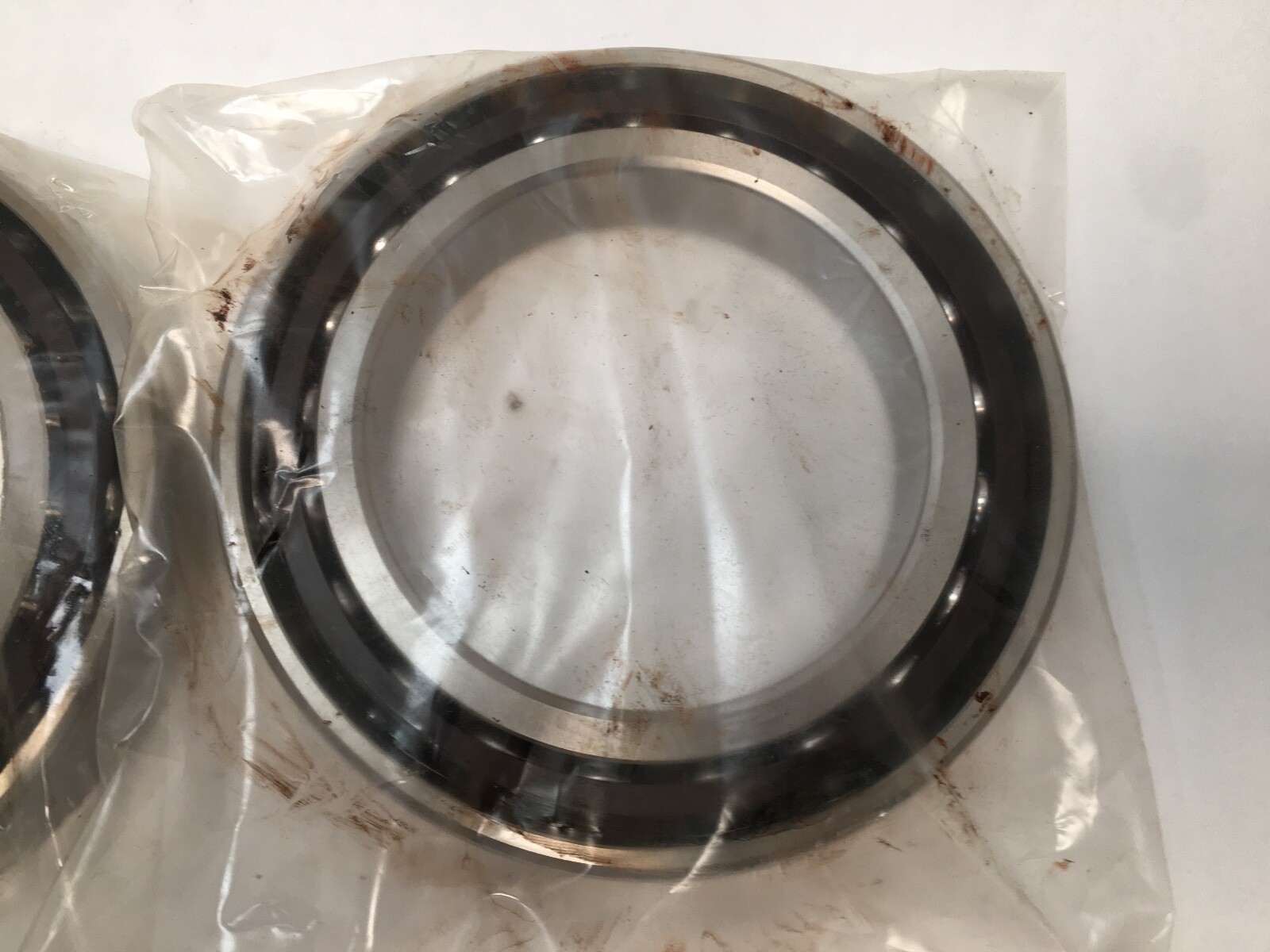

Super-precision angular contact ball bearing, 130 mm bore, 200 mm OD, 33 mm wide. 15 degree contact angle, light preload, phenolic cage, open. Supplied as a matched pair, 2 Pcs.
List Price
$1,516.77
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9126WIDUL |

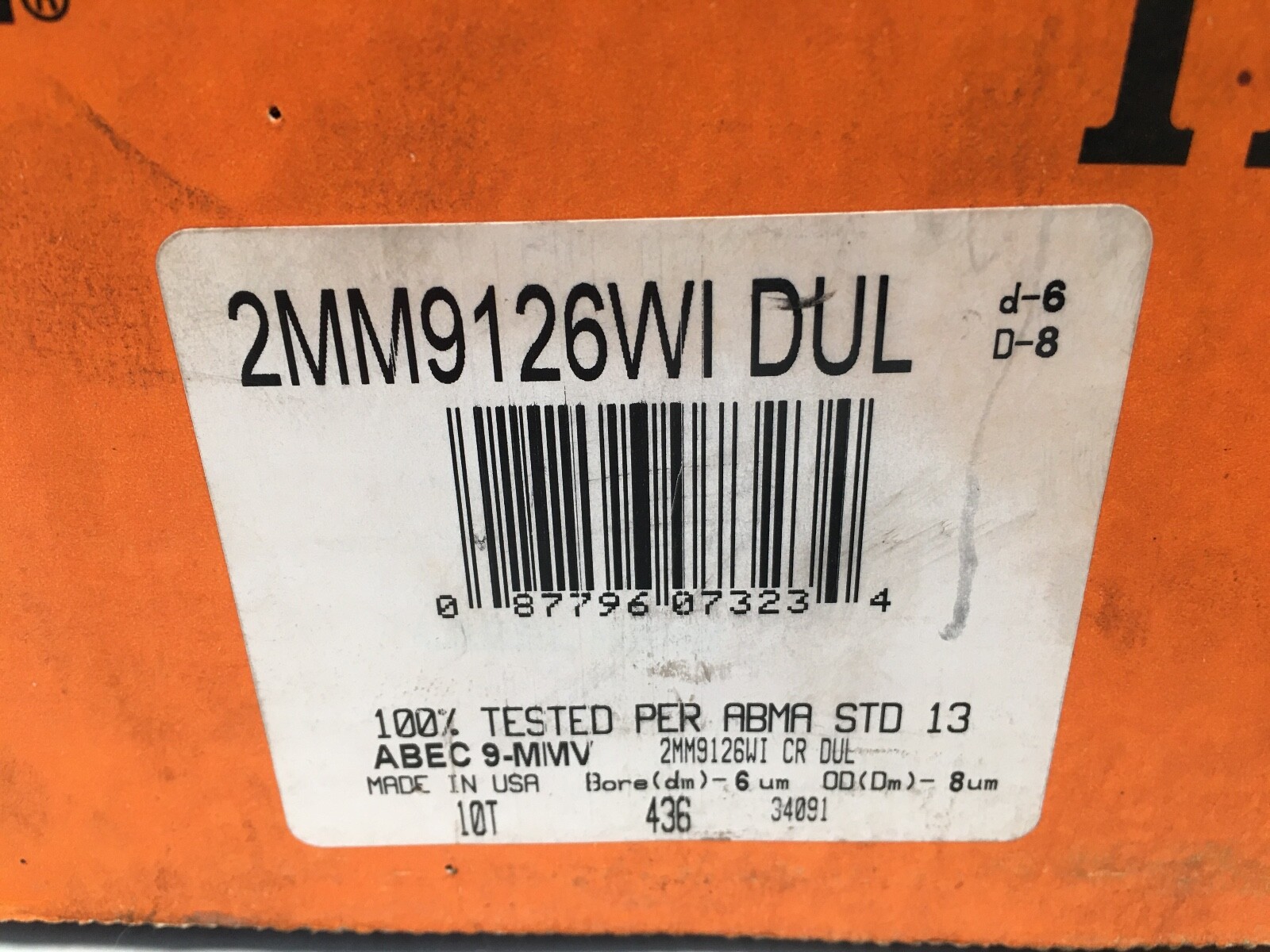

| GTIN | 087796073234 |
| Model | 7026 CCR-DUL-P4S / 7026C / 2MM 9126 WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 130 mm |
| OD | 200 mm |
| Width | 33 mm |
| Material | Steel |
|---|---|
| Series | 9100 |
| Base Number | 7026 |
| Industry Terms | Spindle bearing; super precision bearing; machine tool bearing; matched pair; duplex set; ABEC 7; phenolic cage bearing |
| Common Misspellings | Faffnir; Fafner; 2MM9126W1-DUL; 2M9126WI-DUL |
| Application Types | Machine tool spindles; CNC spindles; robotics; precision motion systems |
| Bore Shaft Size | 130 mm (5.1181 in) |
| Mpn Variants | 2MM9126WI-DUL; 2MM9126-WI-CR-DUL; 2MM9126WICRDUL; 2MM 9126 WI CR DUL |
| Manufacturer Status | Fafnir super-precision line, now branded Timken |
| Closure Type | Open |
| Rolling Elements | Balls |
| Number Of Rows | 1 per bearing, 2 rows as the mounted pair |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Part Number | 2MM9126WI-DUL |

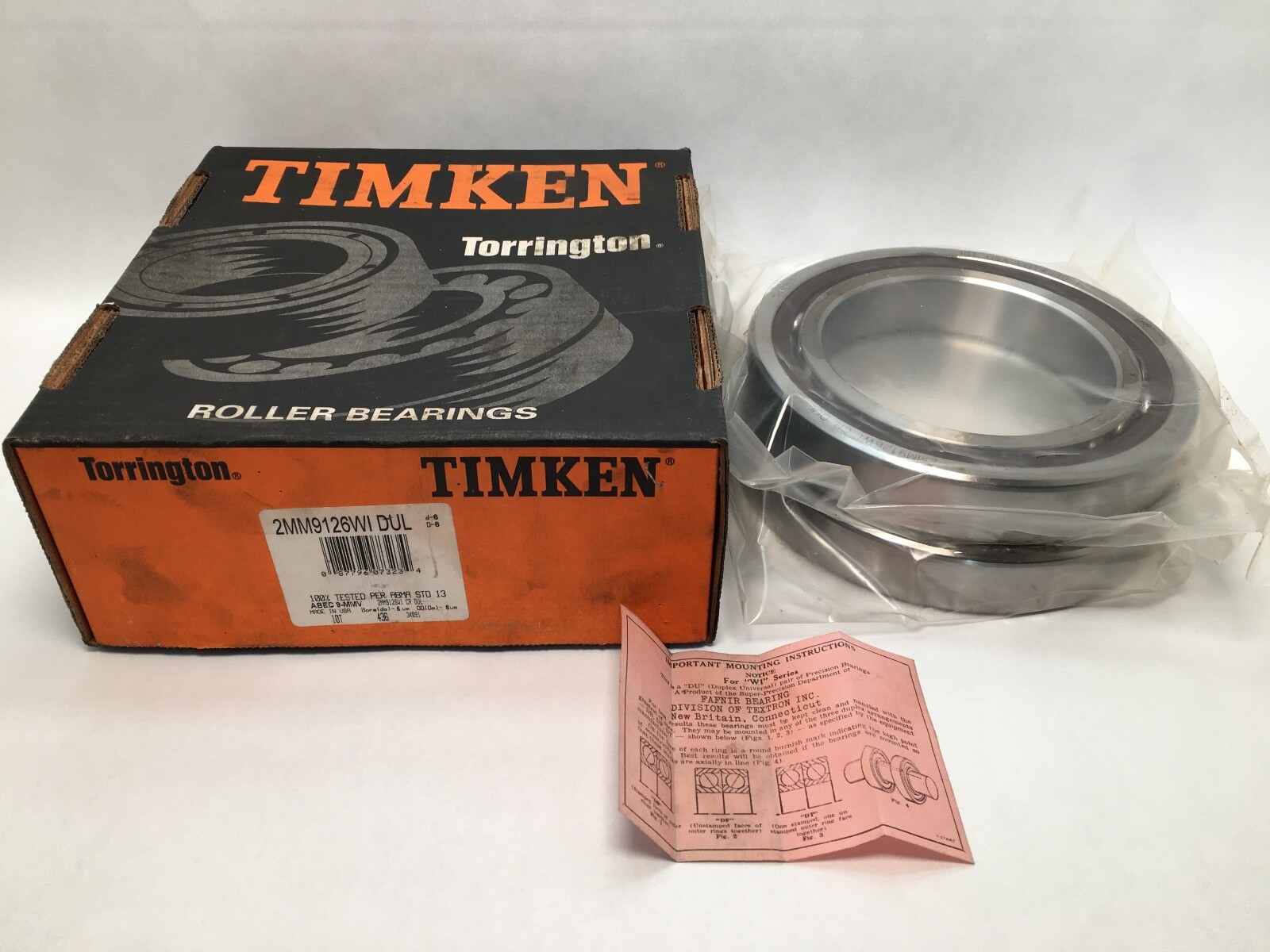

A Fafnir 2MM9126WI-DUL super-precision angular contact ball bearing, 130 mm bore by 200 mm outside diameter by 33 mm wide, with a machined phenolic cage, supplied as a matched duplex pair. Fafnir is Timken’s super-precision line.

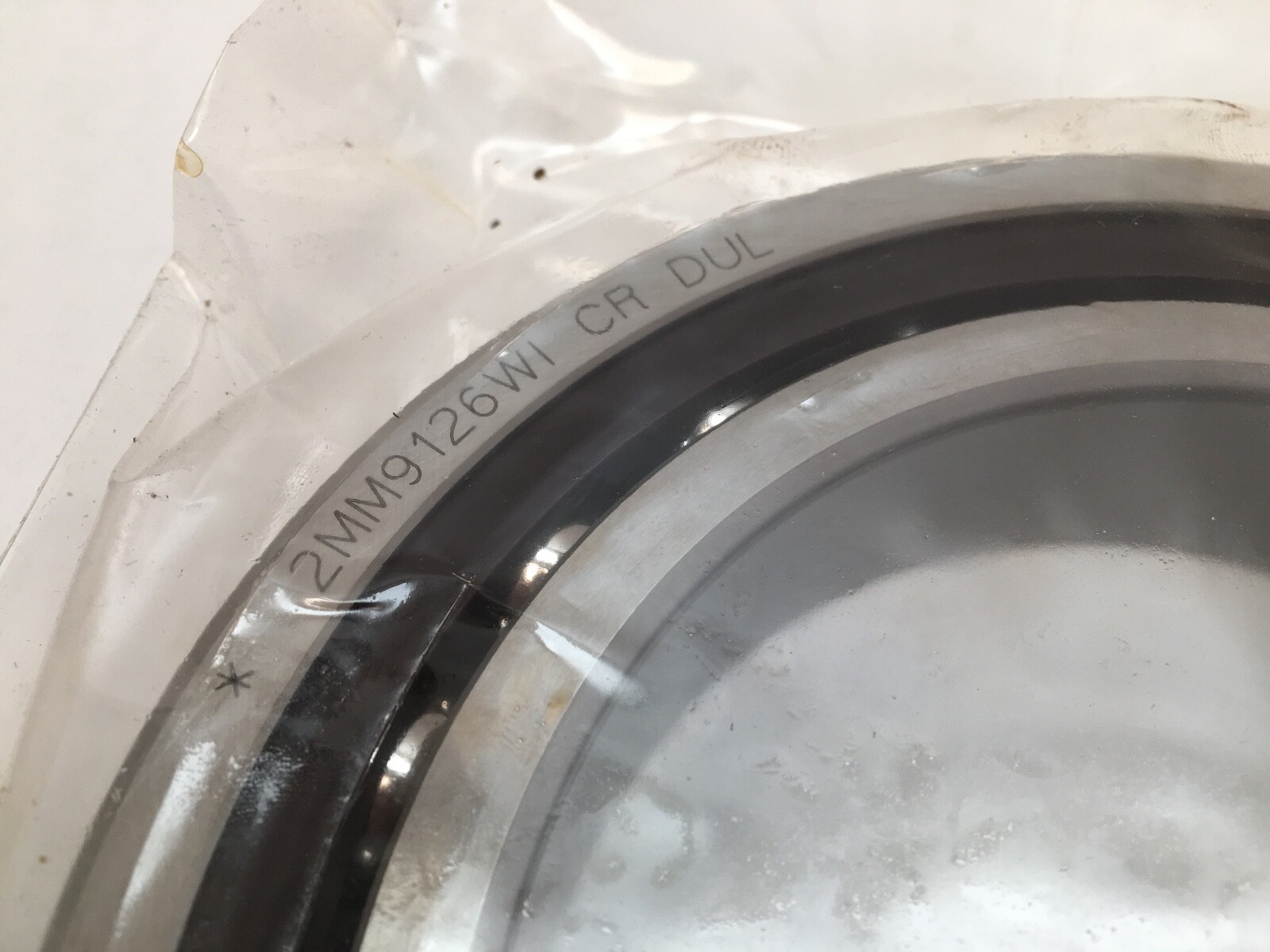

The 2MM prefix sets a 15° contact angle and carries P4S precision, equivalent to ABEC 7/9. The leading 9 in 9126 places the bearing in the ISO 70 light dimension series, giving an ISO base number of 7026, and the 26 size code gives a 130 mm bore. WI marks the super-precision angular contact family, CR the phenolic outer-land-riding cage, and DUL a duplex set at light preload.
The dynamic load rating is 148 kN and the static rating 156 kN, at a limiting speed of 4300 rpm. A 15° contact angle trades thrust capacity for speed and radial stiffness, and light preload keeps frictional heat low so that limiting speed is usable rather than nominal. The phenolic cage runs quiet and cool on the outer ring land, and sets the service ceiling at 120 °C.

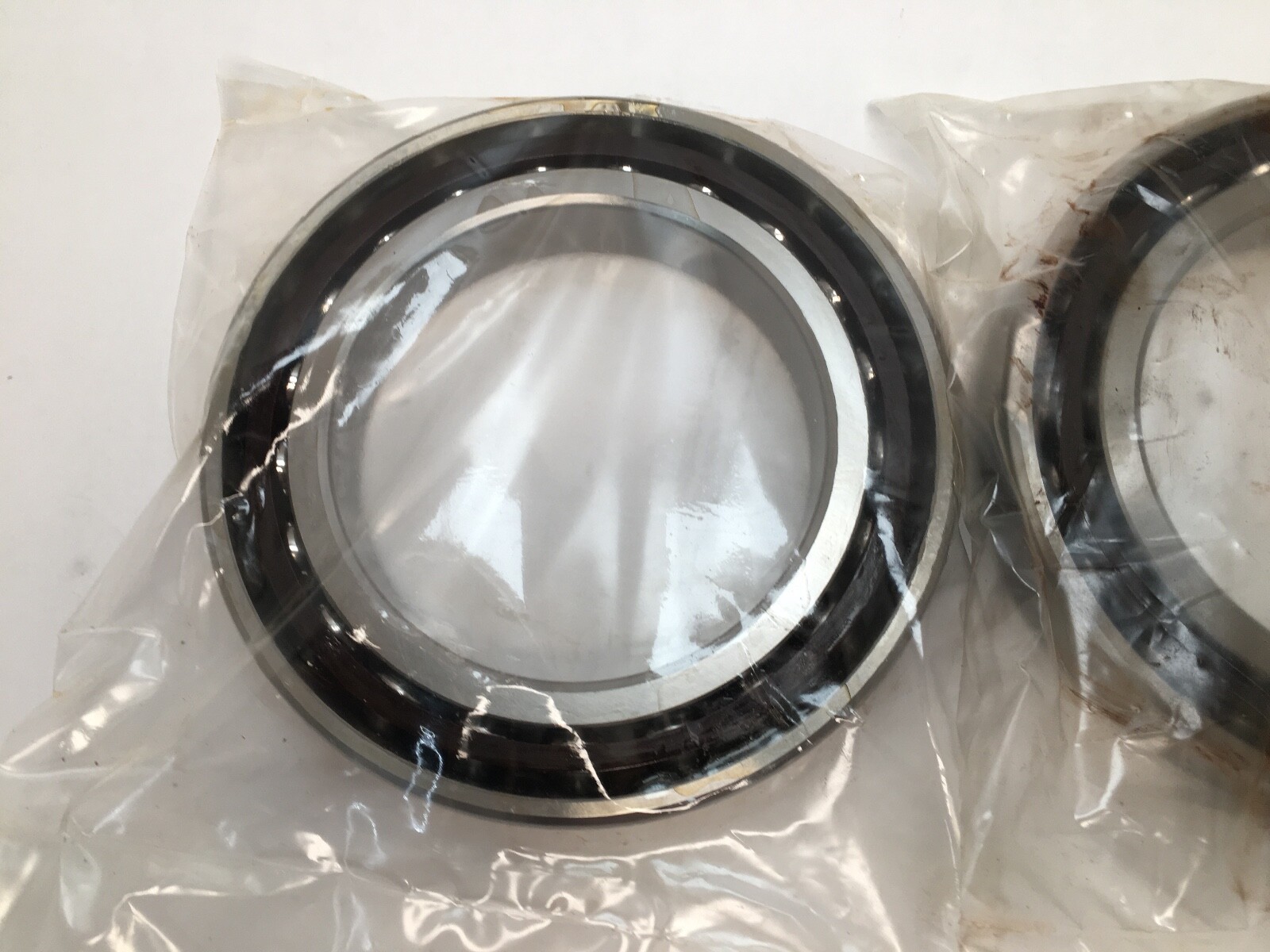

Two bearings, ground as a universal duplex set, open with no seals or snap rings. The rings are relieved so the pair mounts back-to-back, face-to-face or in tandem and reaches light preload when clamped without shims.
The pair is installed as a unit, since the ground offsets are matched within the set. Mounting is onto a clean straight journal against a square shoulder, with the marked faces oriented to the chosen arrangement. Service range is −30 to +120 °C.
The SKF 7026 CD/P4ADGA is a same-spec interchange at 15°, P4 class and duplex light preload. The NSK 7026CTYNSULP4 is an SU single-universal grind and the GMN S6026CTA a different family, so both are related sizes rather than substitutions.
