Availability:
1 in stock

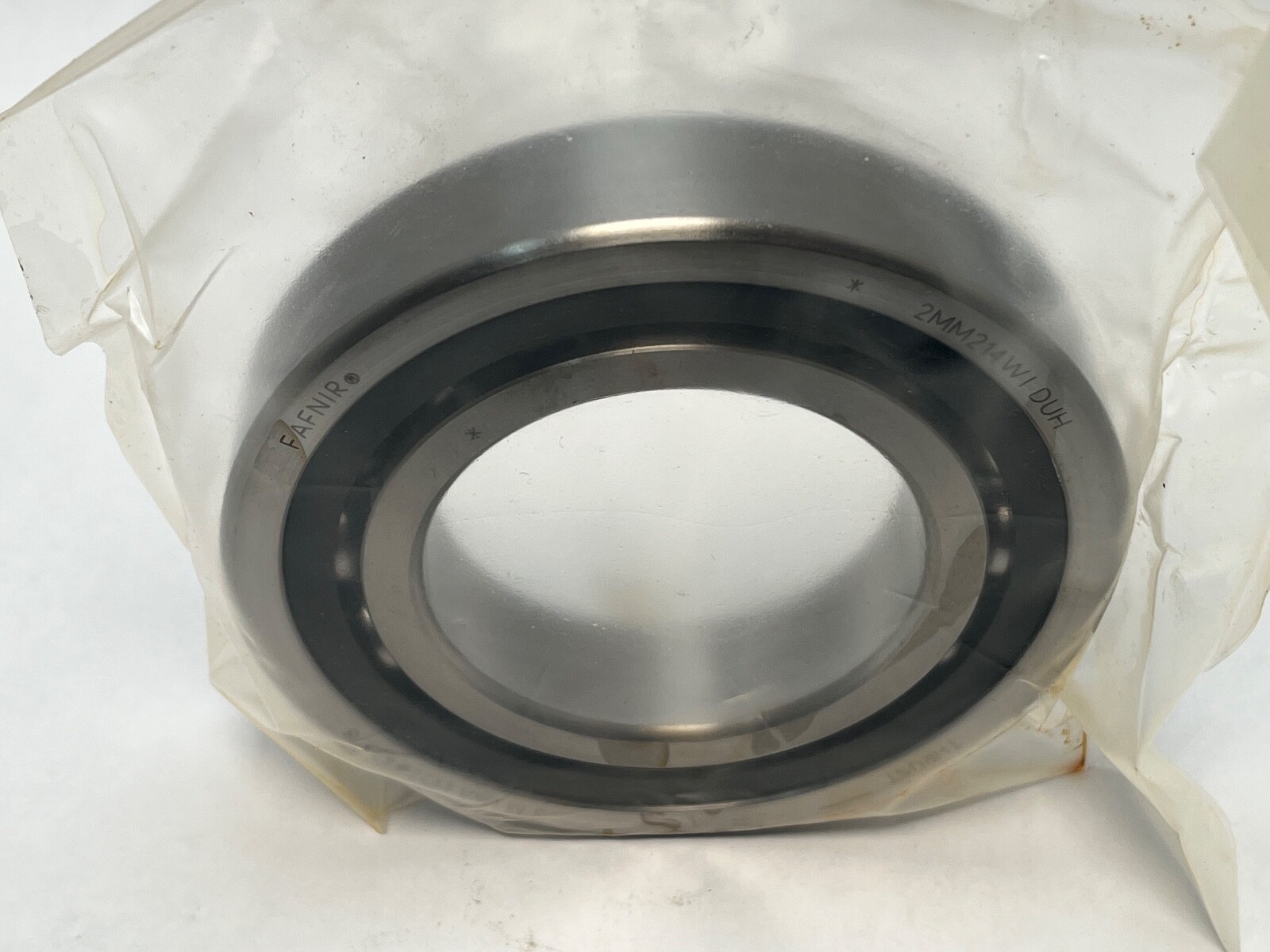

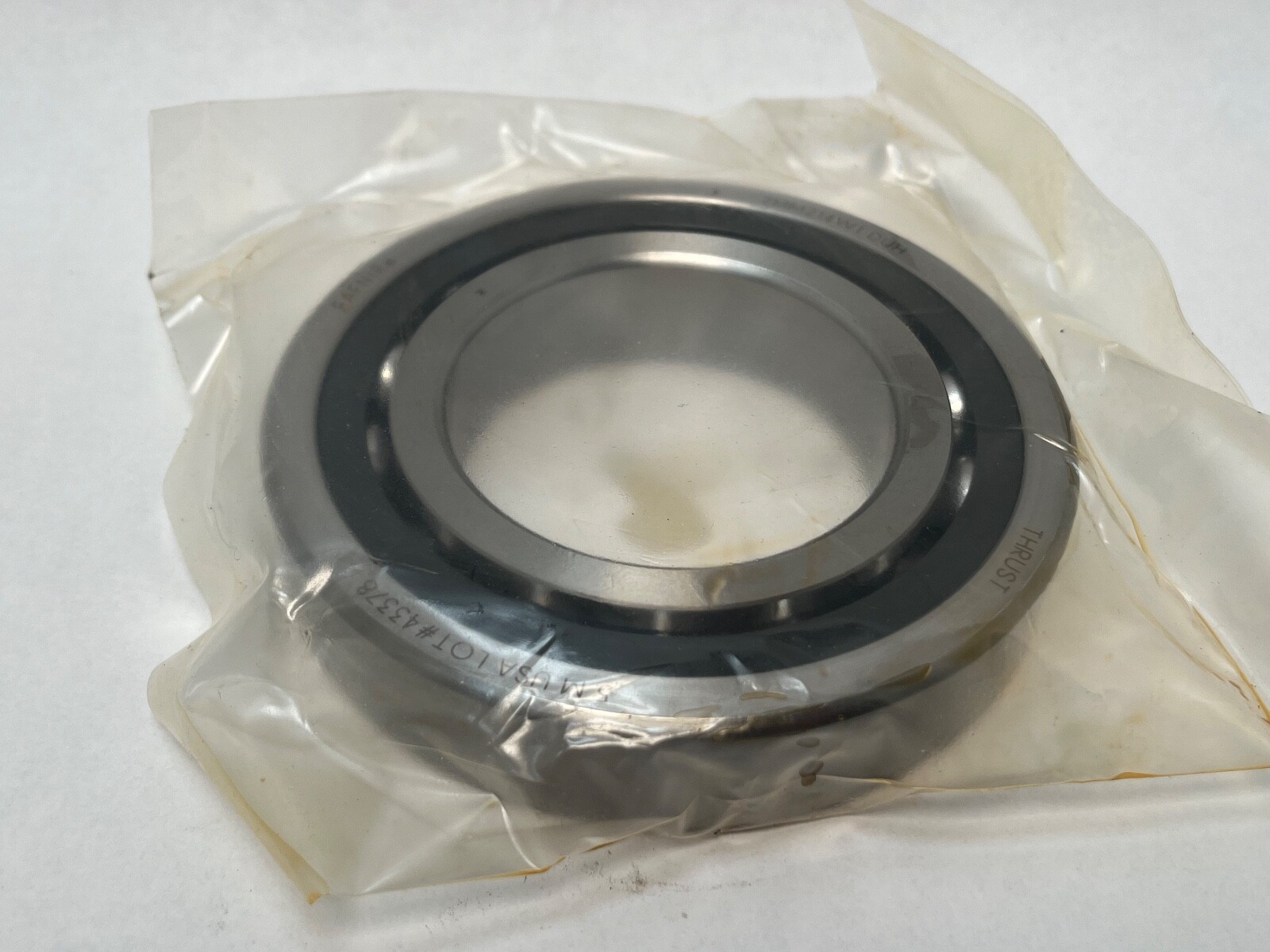

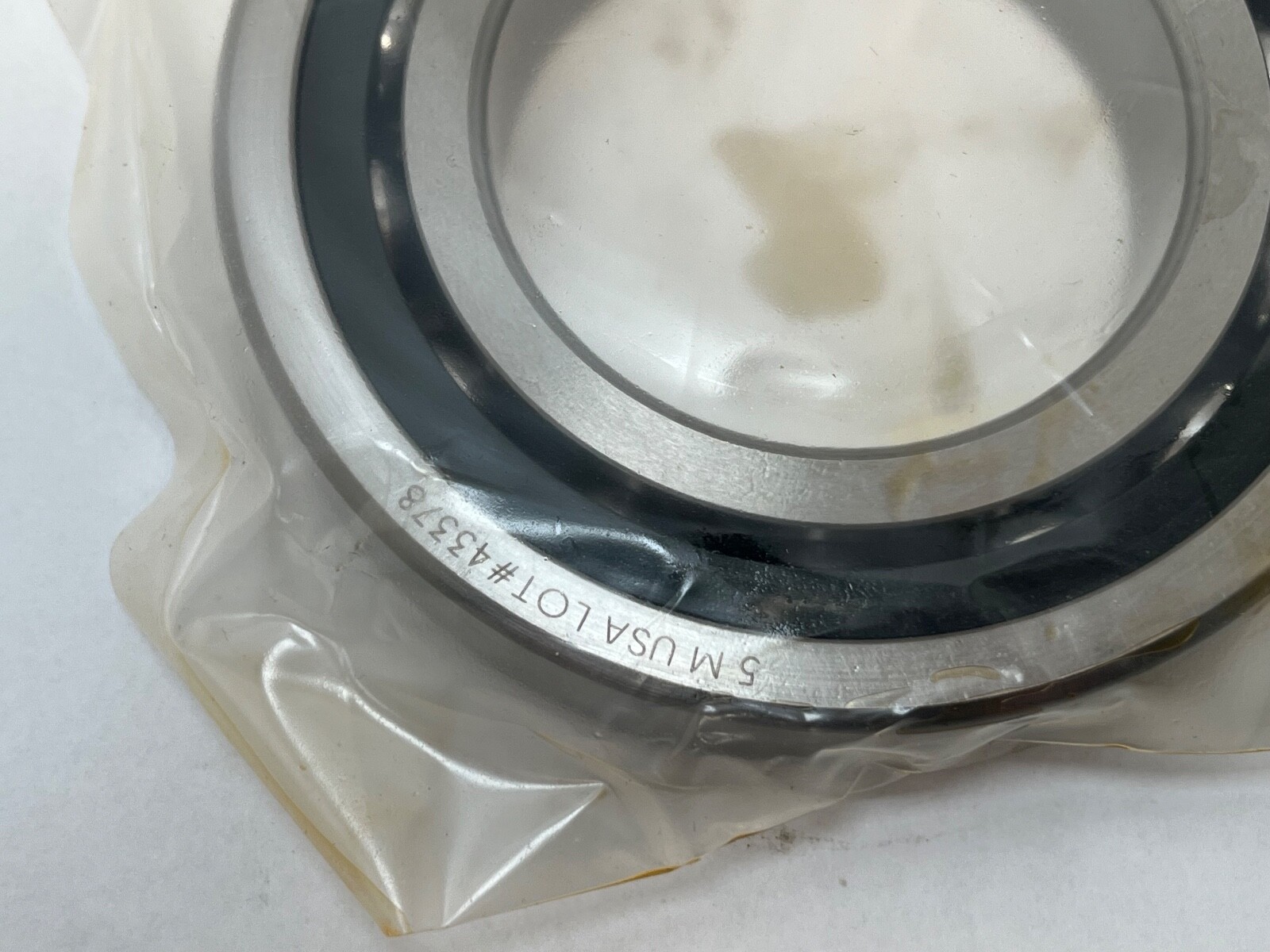

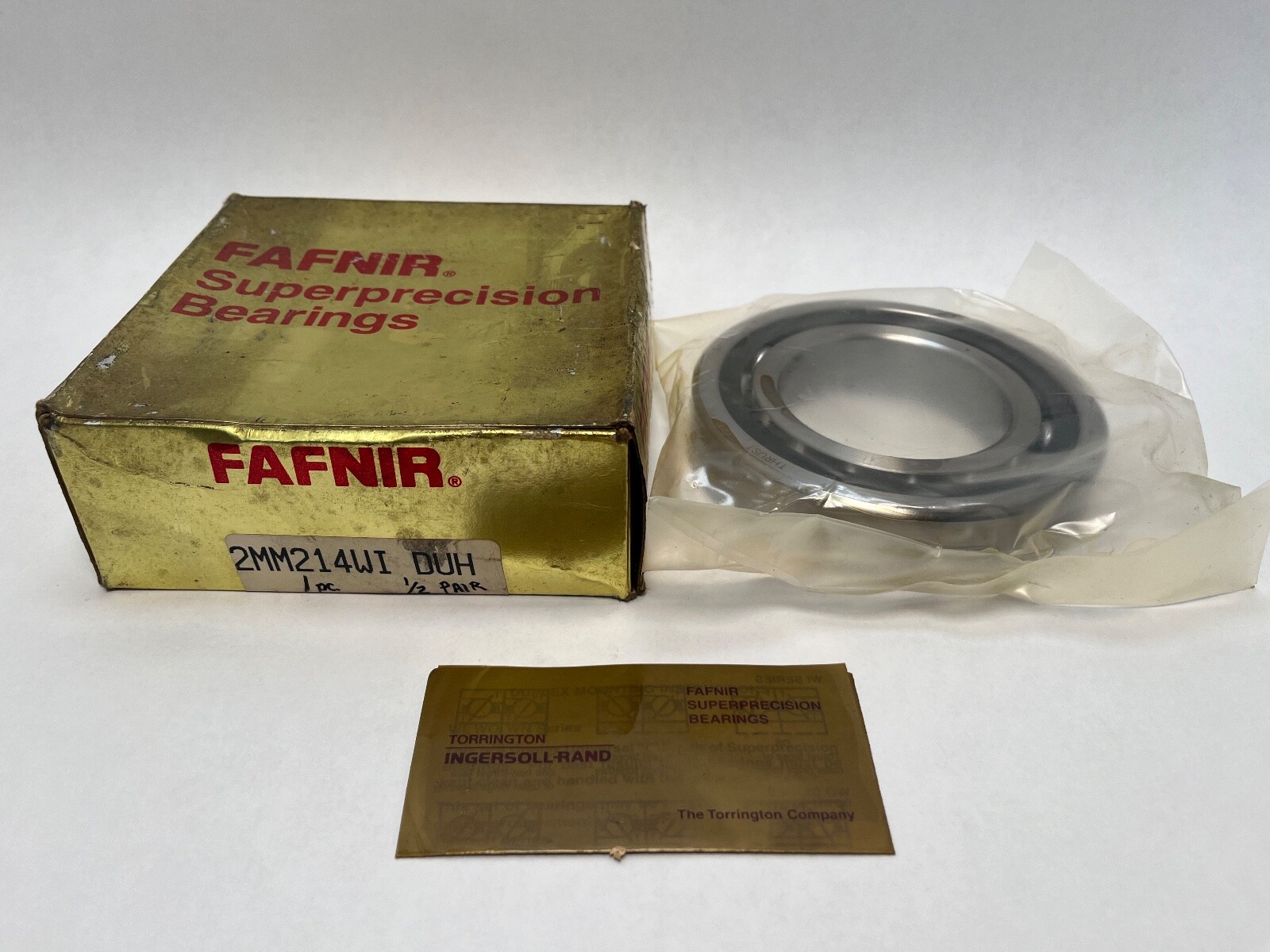

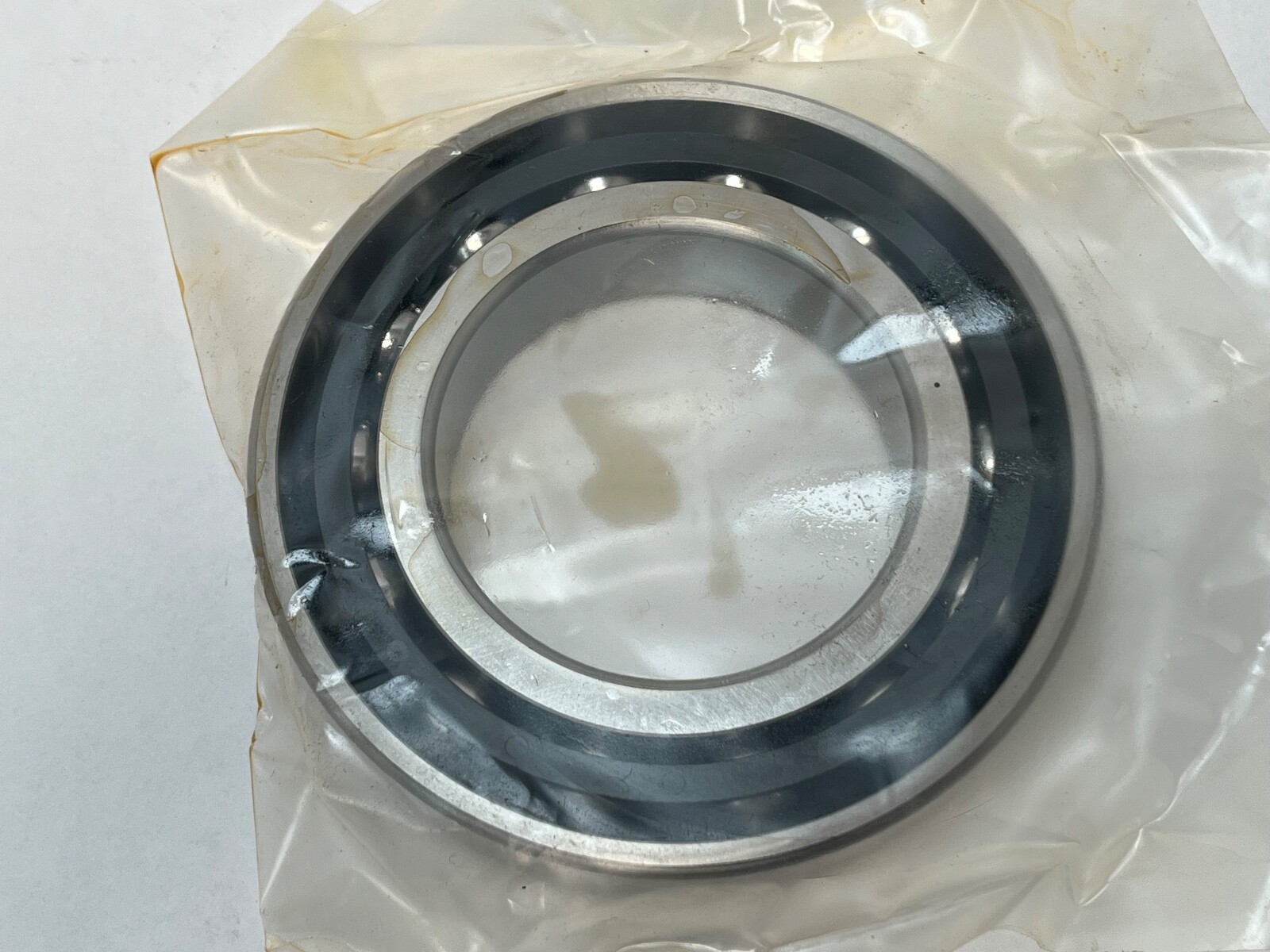

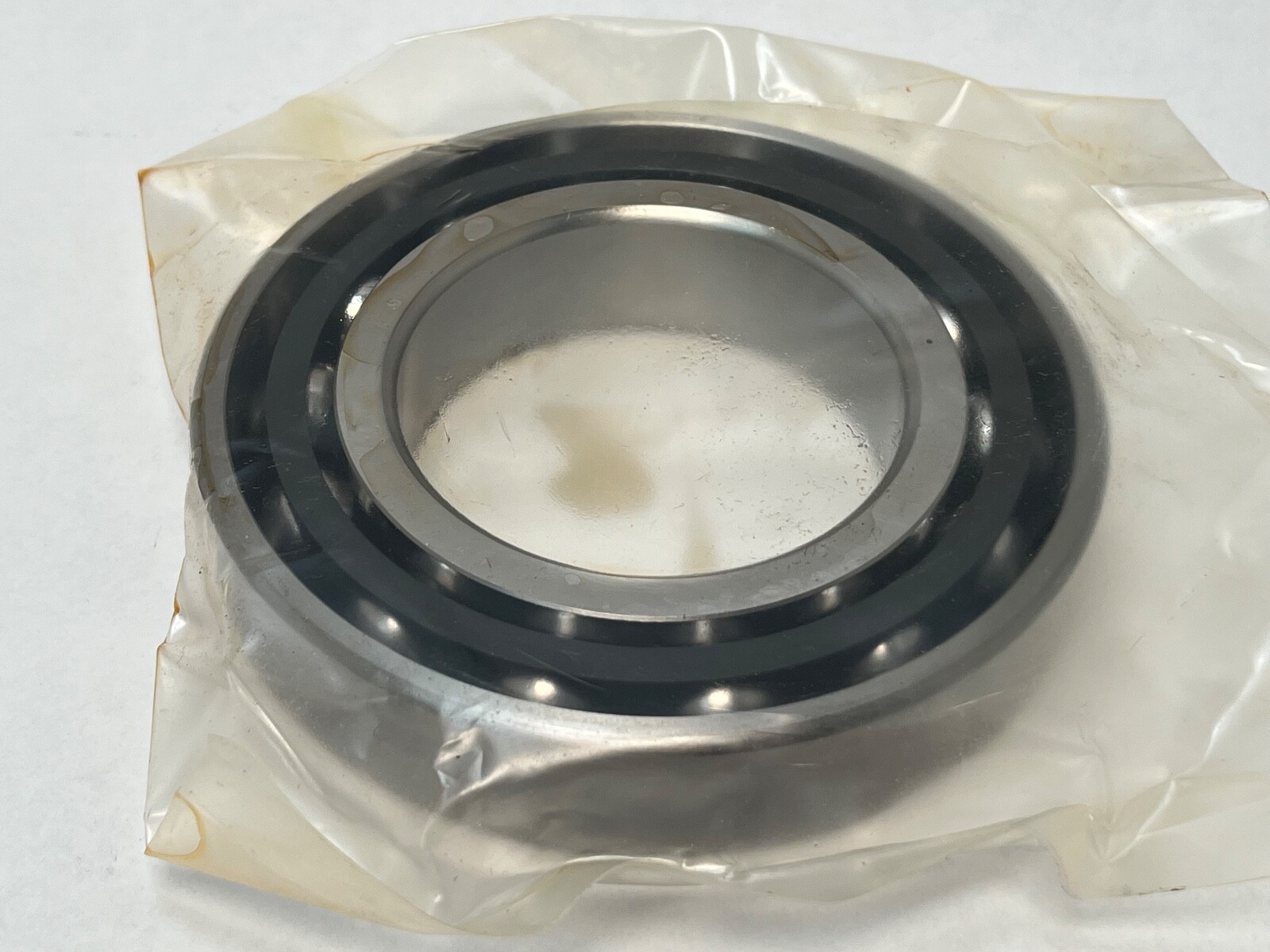

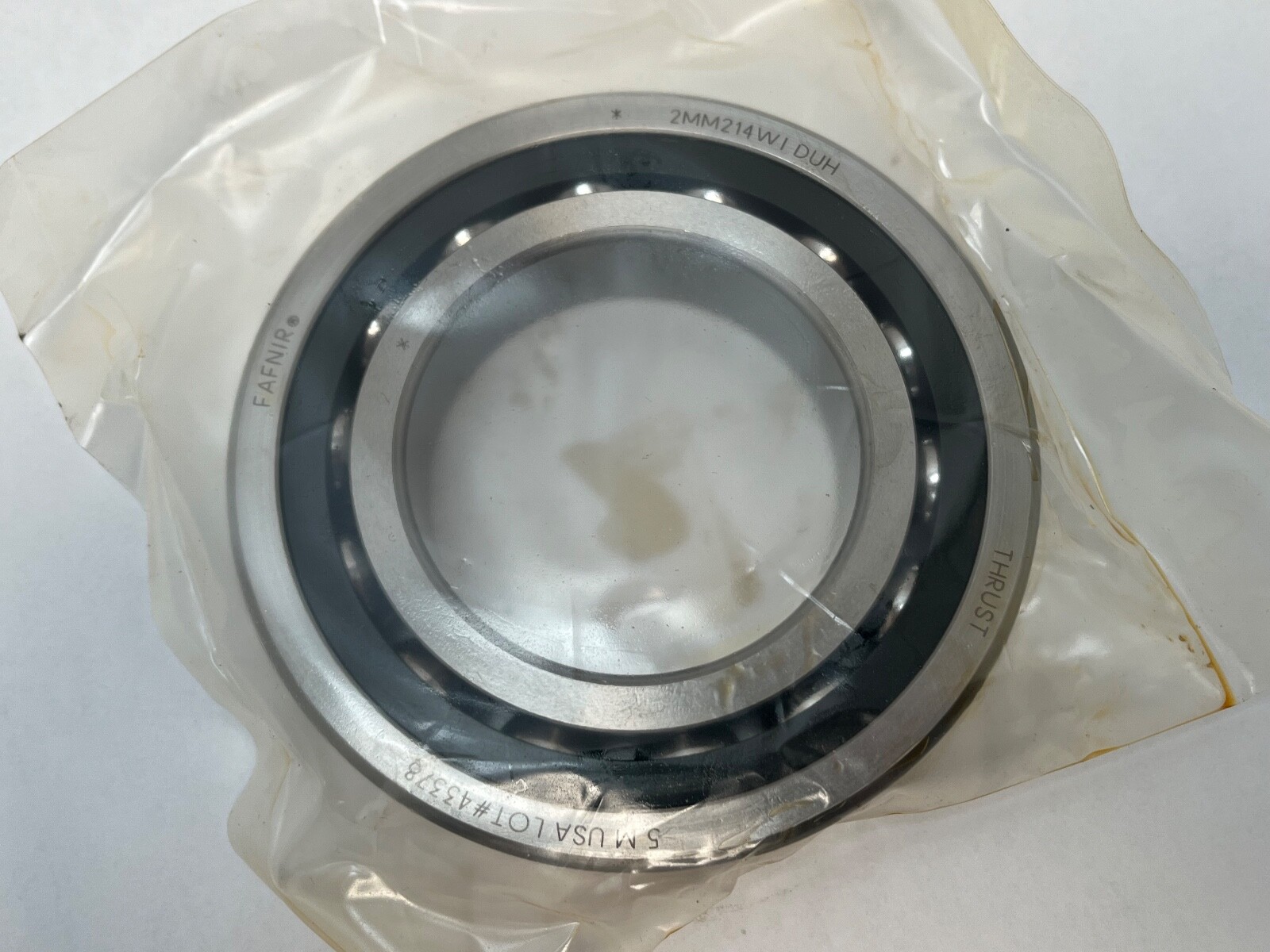

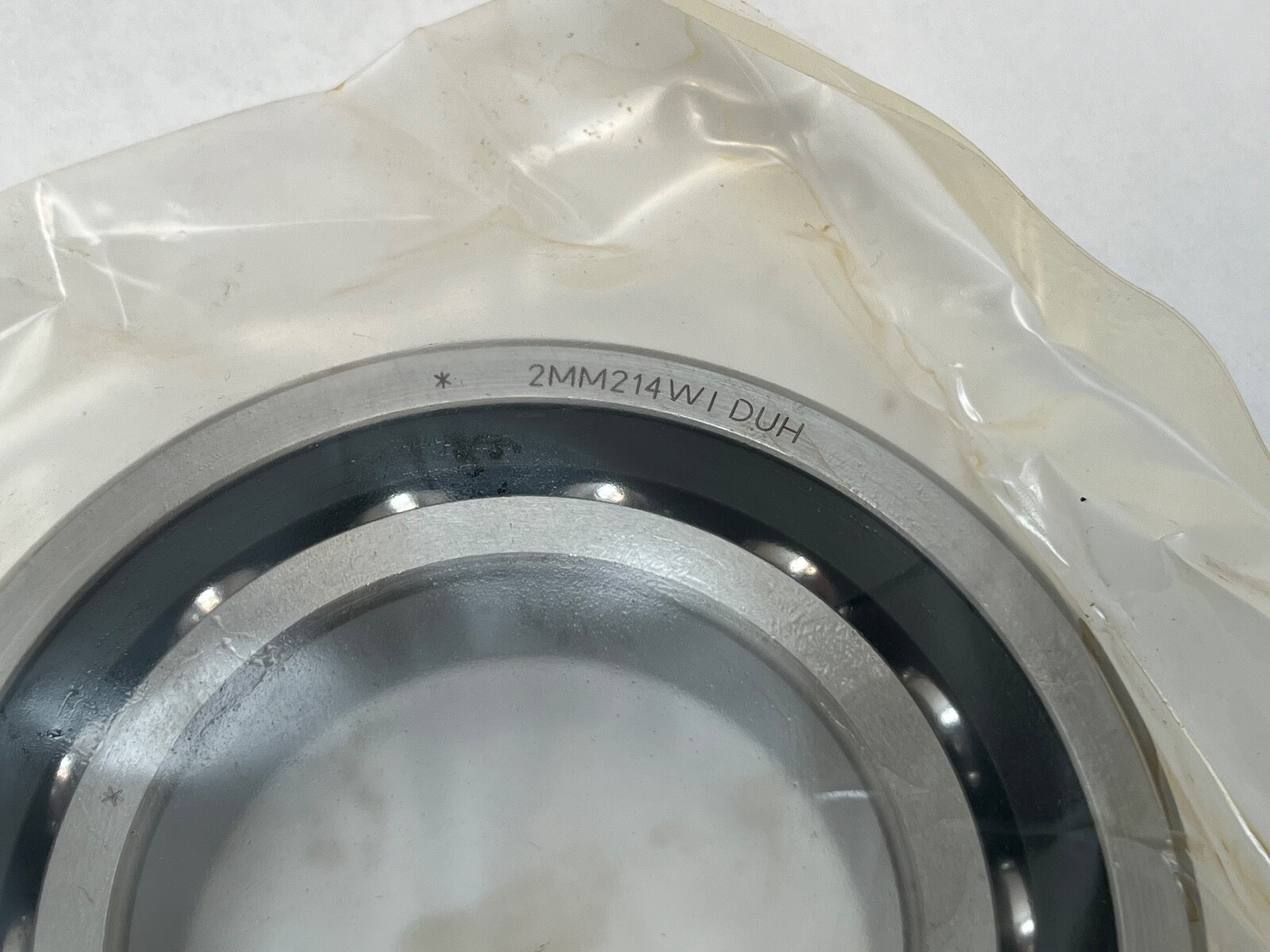

Super-precision angular contact ball bearing, 70 x 125 x 24 mm, 15° contact angle, heavy preload, phenolic cage, open, universally ground, ABEC 7.
List Price
$200.97
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM214WIDUH |
| GTIN | 087796070851 |
| Model | 2 MM 214 WI DUH / 7214 C T DUH P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 2MM200 |
| Unspsc | 31171504 |
| Base Number | 7214 |
| Industry Terms | spindle bearing, machine tool bearing, super precision bearing, precision angular contact ball bearing, heavy preload spindle bearing |
| Common Misspellings | Fafner 2MM214WI, Faffnir 2MM214WI, Fafnier 2MM214WI, 2MM214W1, 2M214WI, 2MM2I4WI SUH |
| Application Types | Machine tool spindles, grinding spindles, milling heads, high-speed gearboxes |
| Bore Shaft Size | 70 mm (2.7559 in) |
| Mpn Variants | 2MM214WI-SUH, 2MM214WISUH, 2MM-214-WI-SUH, 2MM 214 WI SUH, 2MM214WI, 2MM-214-WI-CR-SUH, 2MM214WICRSUH, 2MM214WI-DUH |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.5028 |
| Part Number | 2MM214WI-SUH |
A single-row super-precision angular contact ball bearing in the Fafnir 200WI spindle series. Brand: Fafnir (Timken). Part Number: 2MM214WI-SUH. Bore: 70 mm (2.7559 in). Outside Diameter: 125 mm (4.9213 in). Overall Width: 24 mm (0.9449 in). ISO Equivalent: 7214 C. GTIN: 087796070851.
2MM — 15° contact angle, Fafnir super-precision spindle bearing. 214 — 200 dimension series, bore code 14, giving a 70 mm bore. WI — spindle angular contact ball bearing, universally ground faces. SU — single bearing, universally ground for matching. H — heavy preload.
The MM prefix on a Fafnir spindle bearing carries P4S tolerances — ABEC 7 dimensional accuracy with ABEC 9 running accuracy.
Contact Angle: 15°. Precision Class: ABEC 7 / ISO P4S. Preload: Heavy (H). Number Of Rows: 1. Cage Material: Phenolic, outer-land-riding. Rolling Elements: Steel balls. Closure Type: Open, both faces. Bore Type: Straight. Arrangement / Configuration: SU — single, universally ground. Unit Quantity: 1 Pc.
A 15° contact angle biases the bearing toward speed and radial rigidity, and carries less thrust than a 25° bearing in the same envelope. Heavy preload raises axial and radial stiffness and holds the ball complement in a fixed contact path under load reversal, at the cost of extra running friction and heat, so it belongs on rigid, well-cooled spindles rather than long unsupported shafts.
Single bearing, 1 Pc. Universal grinding allows it to be stacked back-to-back, face-to-face or in tandem with matching bearings of the same designation.
Same-spec 15° P4 equivalents in other schemes are the SKF 7214 CD/P4A, FAG B7214-C-T-P4S and NSK 7214CTR, matched for heavy preload. The 3MM214WI is a 25° bearing in the same envelope, and the SUL and SUM variants differ in preload — those are related sizes rather than interchanges.
