Availability:
1 in stock

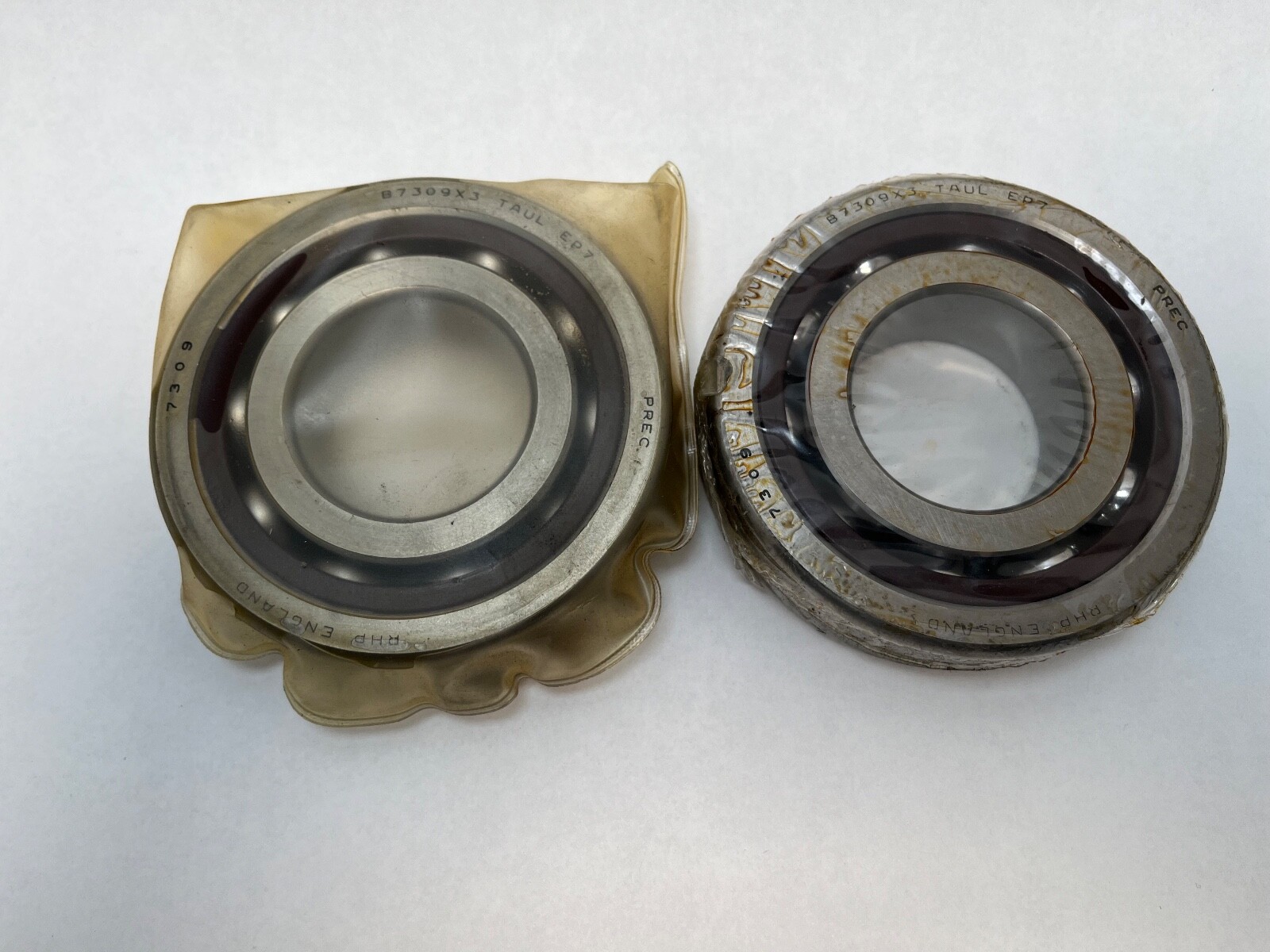

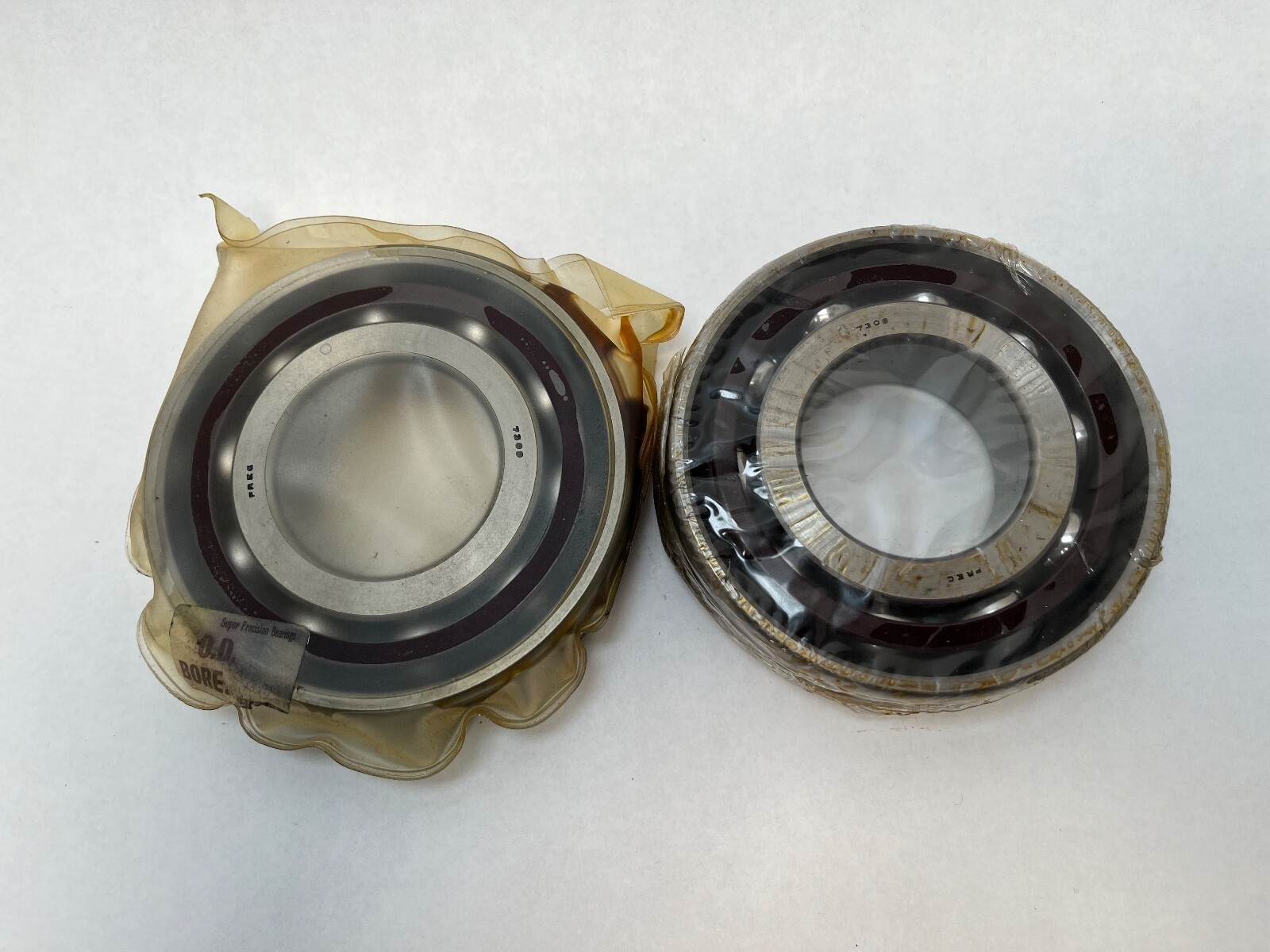

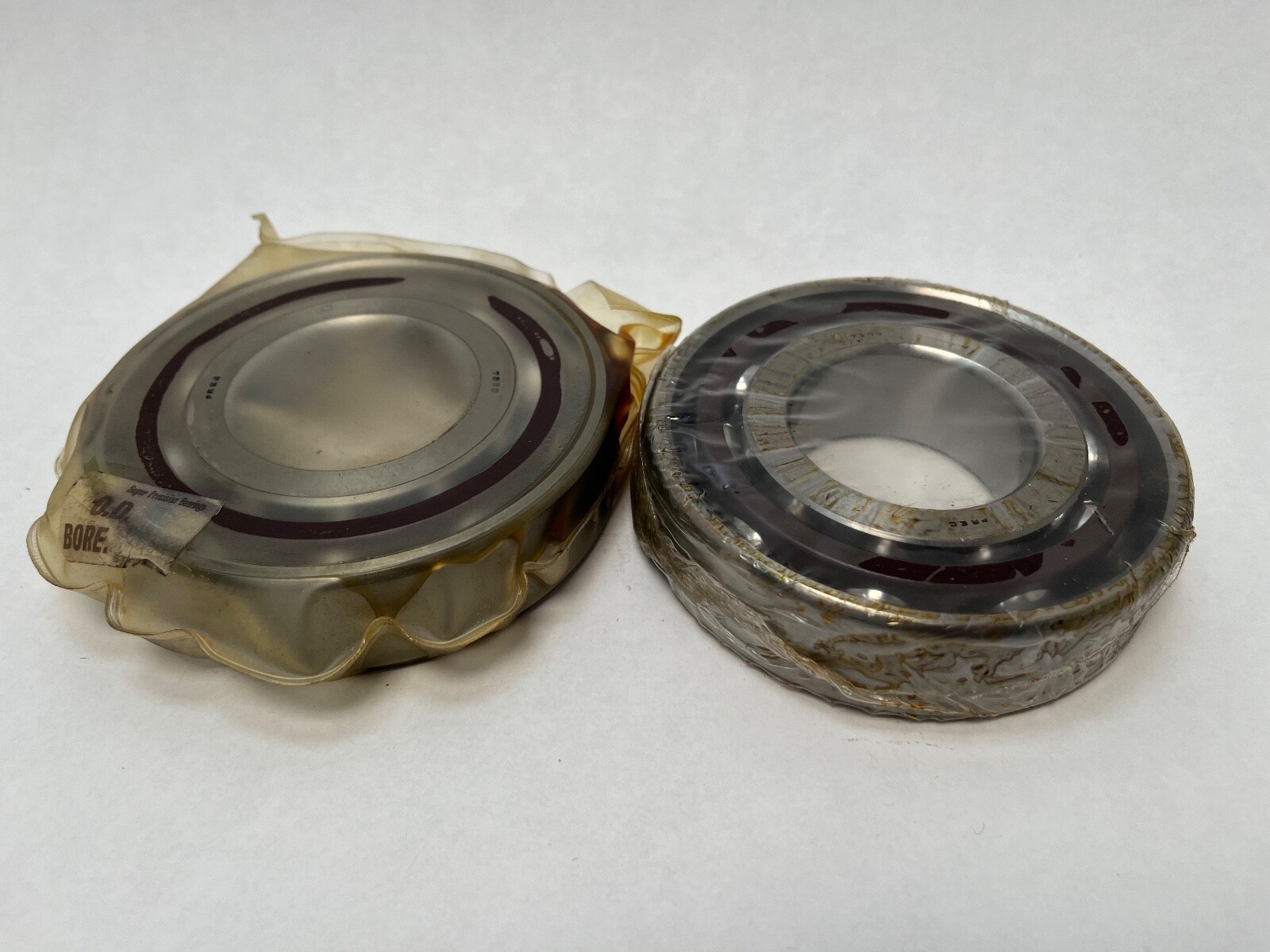

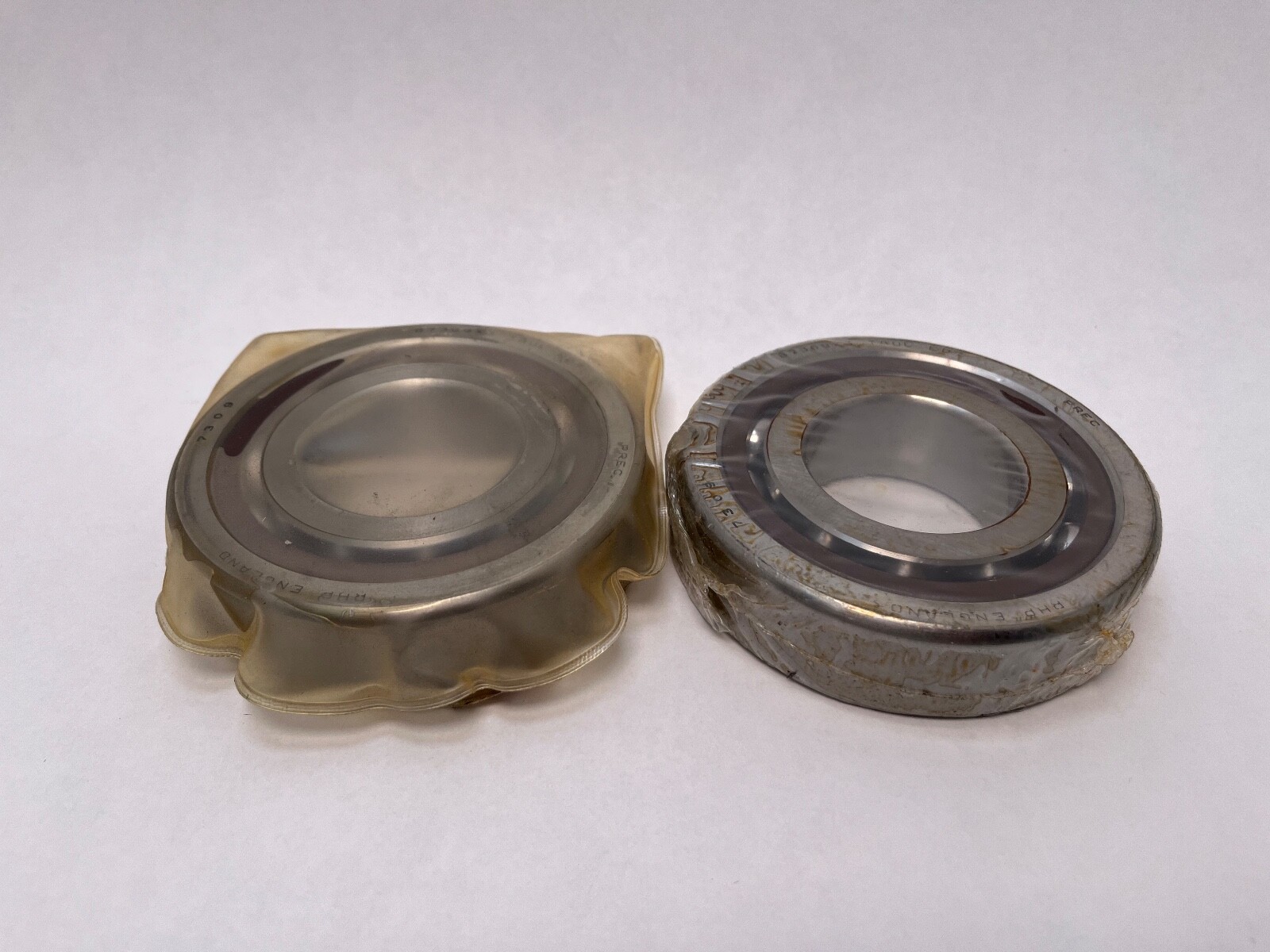

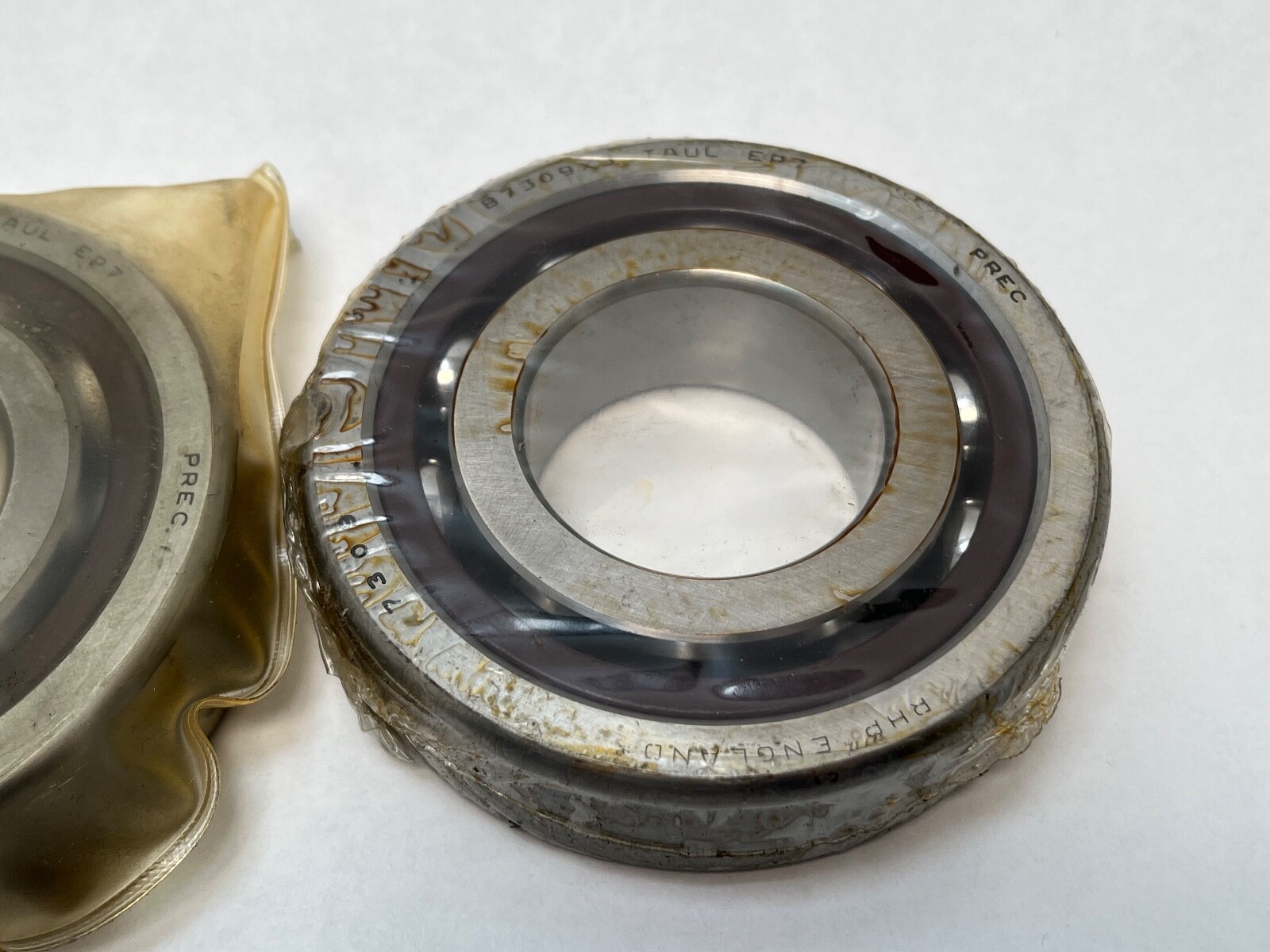

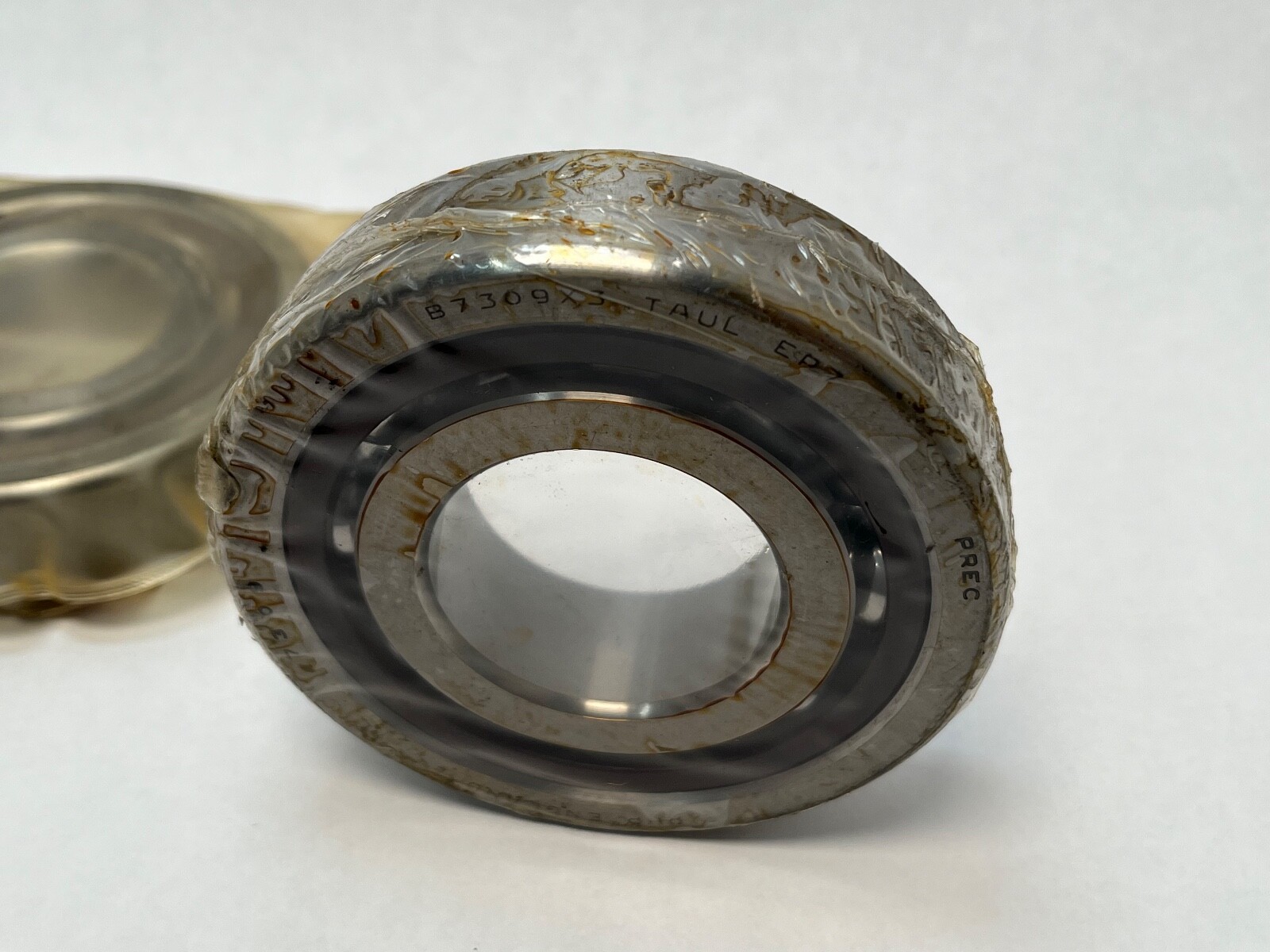

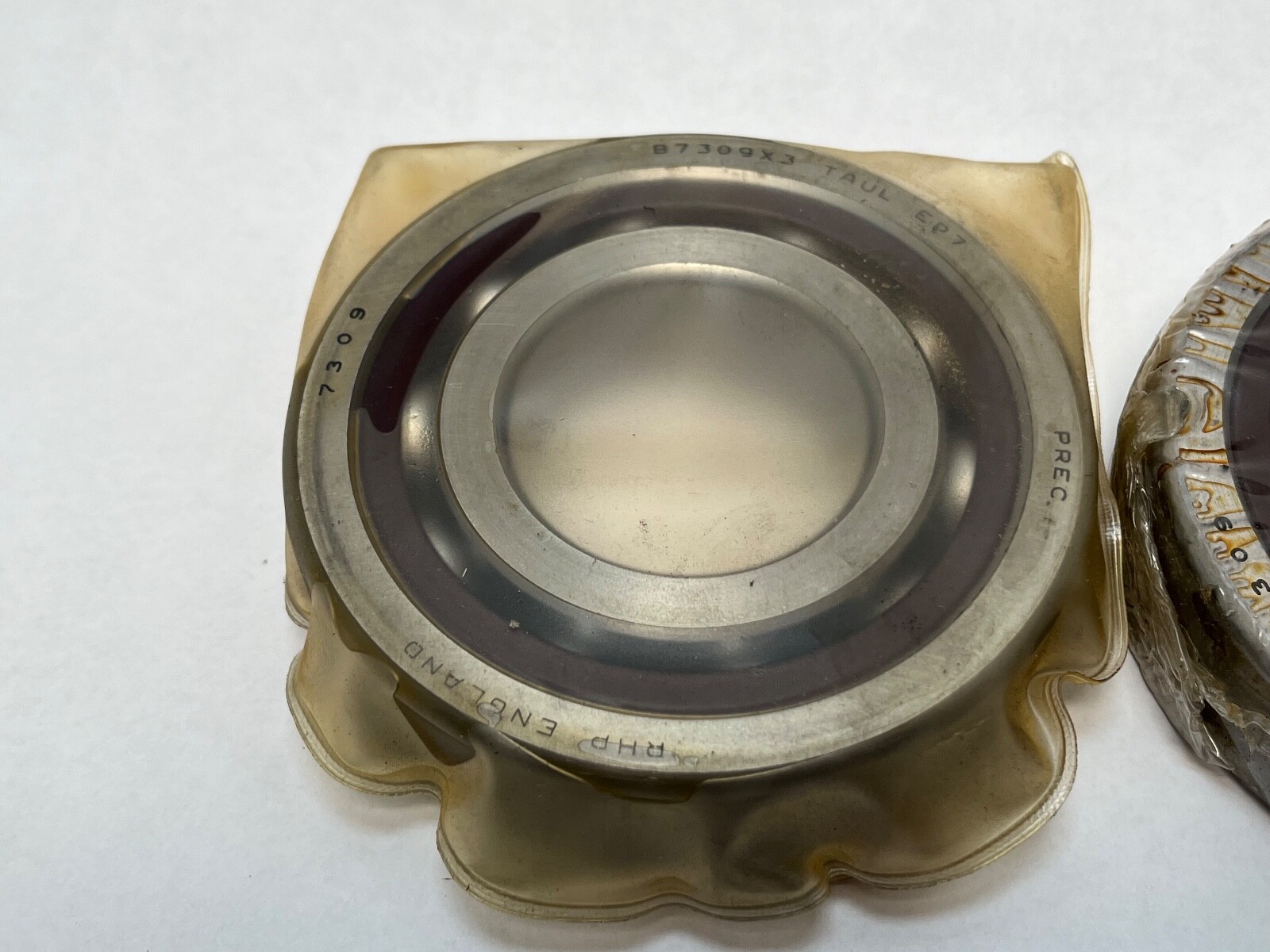

Super-precision angular contact ball bearing, 45 x 100 x 25 mm, 25 degree contact angle, ABEC 7. Two pieces from a matched light-preload duplex set.
List Price
$128.44
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7309ETDULP4 |
| Model | 7309 E T DUL P4 / B 7309 X3 TA DUL EP7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 100 mm |
| Width | 25 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7300 |
| Preload | Light |
| Industry Terms | Super precision angular contact bearing; machine tool spindle bearing; duplex matched pair |
| Application Types | Machine tool spindles; grinding spindles; high-speed gearboxes |
| Overall Width | 25 mm |
| Mpn Variants | 7309ETDULP4; 7309-E-T-DUL-P4; B7309X3TADULEP7; B 7309 X3 TA DUL EP7 |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined, outer-ring guided |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 25° |
| Mounting Arrangement | Duplex, universally ground |
| Bearing Material | Bearing Steel |
| Cross Reference 1 | NSK 7309A5TRDULP4 |
|---|---|
| Cross Reference 2 | FAG B7309-E-T-P4S-UL |
| Cross Reference 3 | SKF 7309 ACD/P4ADGA |
| Cross Reference 4 | NTN 7309UADG/GNP4 |
| Cross Reference 6 | SNR 7309HG1DUJ74 |
RHP 7309-E-T-DUL-P4 super-precision angular contact ball bearing. Bore Diameter: 45 mm. Outside Diameter: 100 mm. Overall Width: 25 mm. Contact Angle: 25°. Precision Class: ABEC 7 / P4. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel. Series: 7300.
7309 — ISO series 03 angular contact ball bearing, 45 mm bore, 100 mm outside diameter, 25 mm width.
E — 25° contact angle. The current RHP and NSK code for the same angle is A5.
T — machined cage. The carton’s B-series string resolves it to TA: a one-piece machined laminated phenolic cage, outer-ring centred.
DU — duplex universal. The faces are ground so that any two bearings from the range mount back-to-back, face-to-face or in tandem.
L — light preload.
P4 — ISO precision class 4, equivalent to ABEC 7.

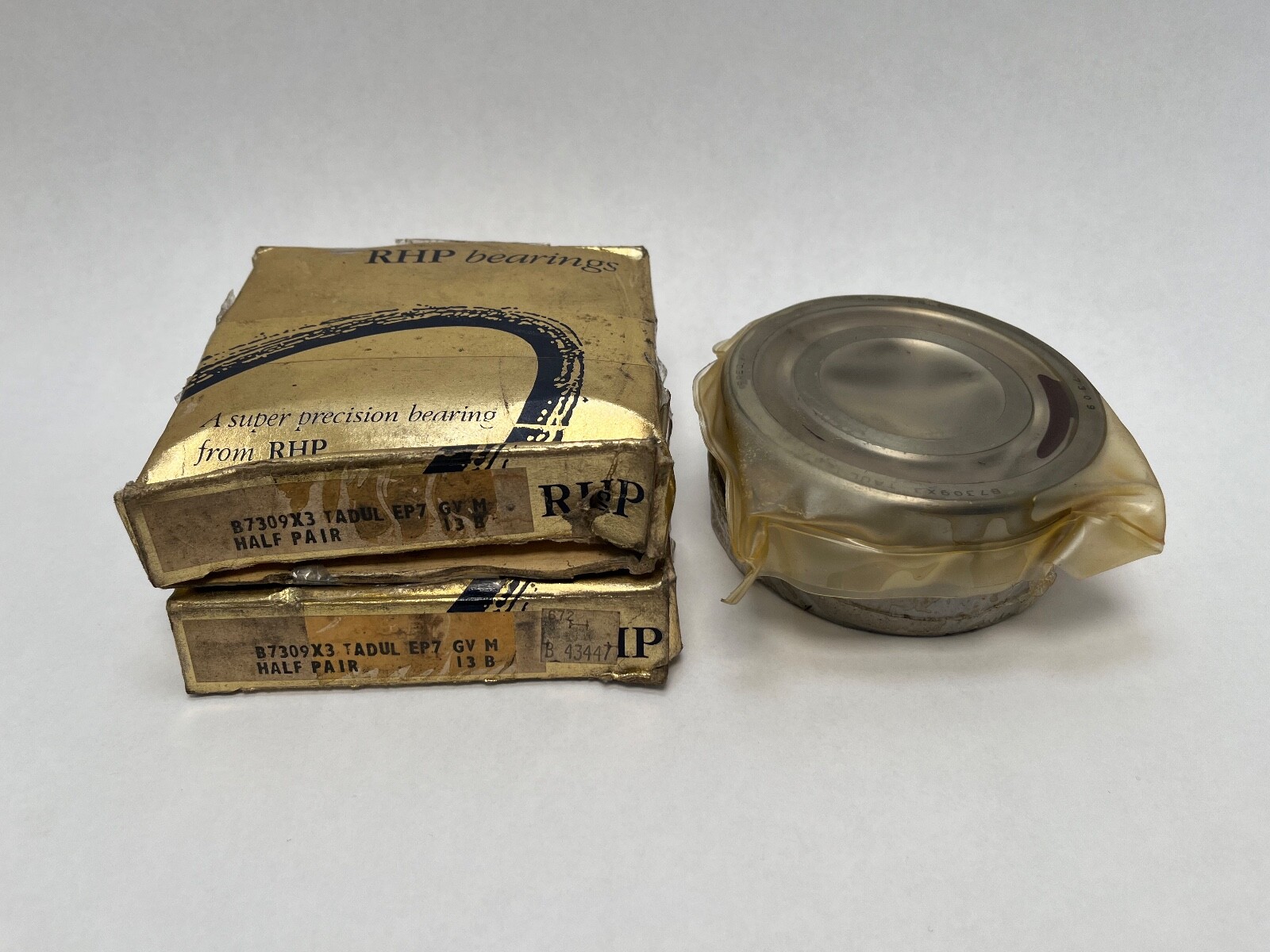

B7309X3TADULEP7 — the same bearing written in RHP’s B-series scheme. X3 = 25°, TA = outer-ring centred machined phenolic cage, EP7 = ABEC 7.
Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. A laminated phenolic cage is light, runs against the outer-ring land and tolerates the high cage speeds of a machine-tool spindle.
Preload: Light. A light preload sets the balls against both raceways with the minimum axial force that still removes play, which keeps running temperature down at speed.
Contact Angle: 25°. A 25° angle carries more thrust than a 15° execution of the same envelope and less than a 40°, and sits where most machine-tool spindle positions are specified.
Precision Class: ABEC 7 / P4. Tighter bore, outside diameter and running-accuracy tolerances than a standard-class bearing.
Mounting Arrangement: Duplex, universally ground. Bore Type: Straight. Snap Ring Included: No.
Unit Quantity: 2 Pcs. Two pieces from a factory matched set, ground for light preload when mounted as a pair.
Equivalent 25° super-precision executions on the same 45 x 100 x 25 mm envelope: NSK 7309A5TRDULP4, FAG B7309-E-T-P4S-UL, SKF 7309 ACD/P4ADGA, NTN 7309UADG/GNP4, Timken/Fafnir 3MM309WICRDUL, SNR 7309HG1DUJ74.
