RHP

7218ETDUMP4

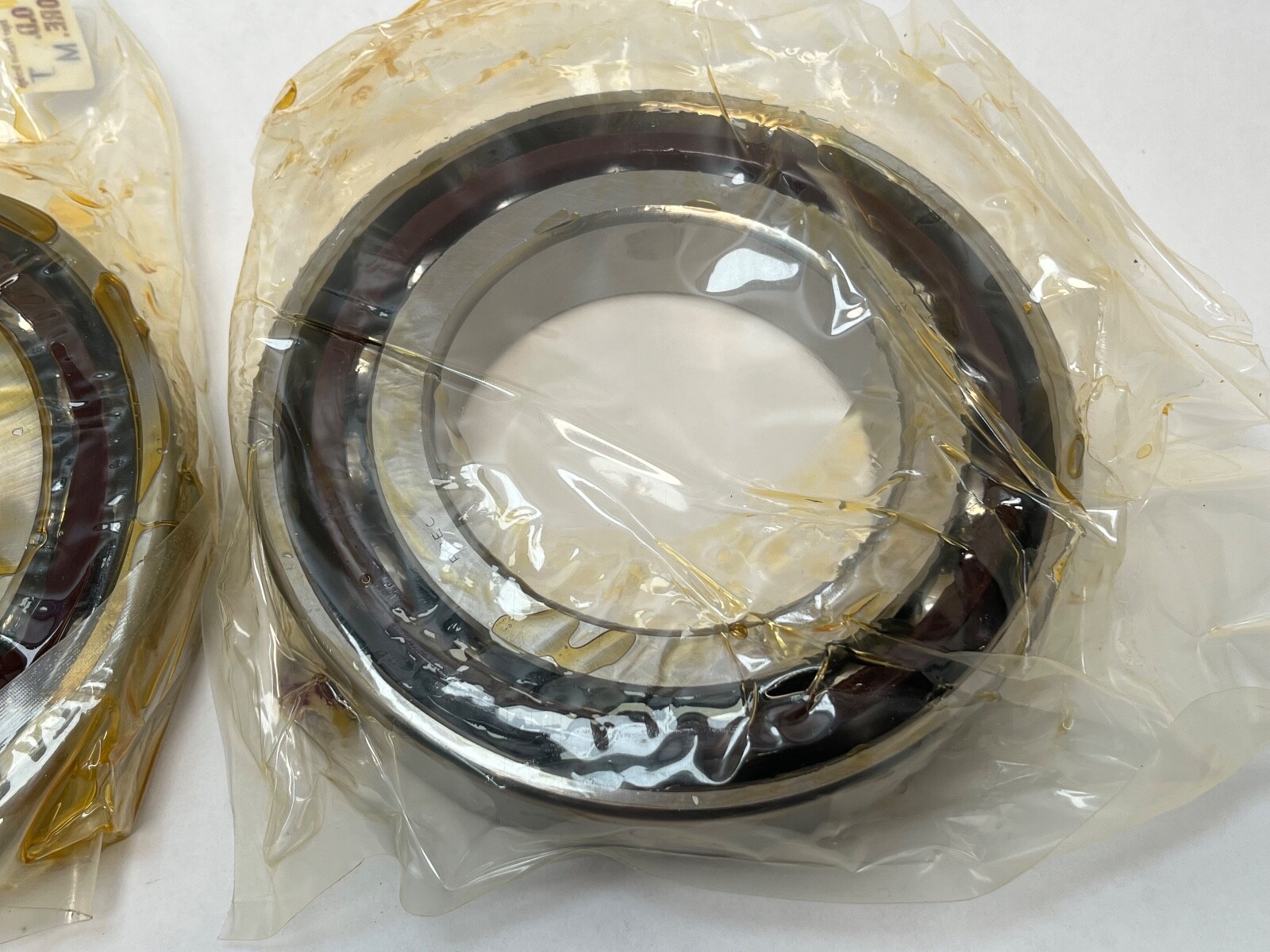

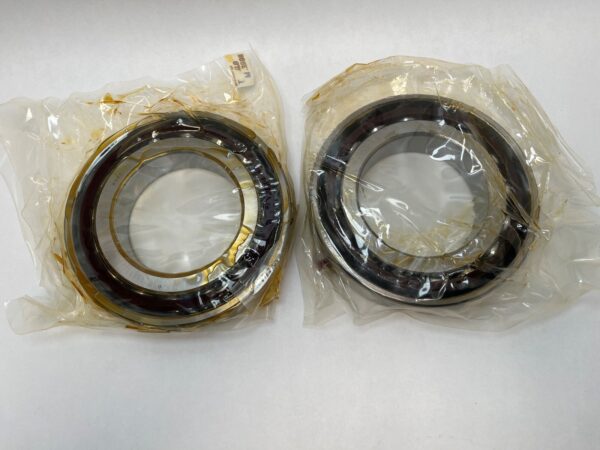

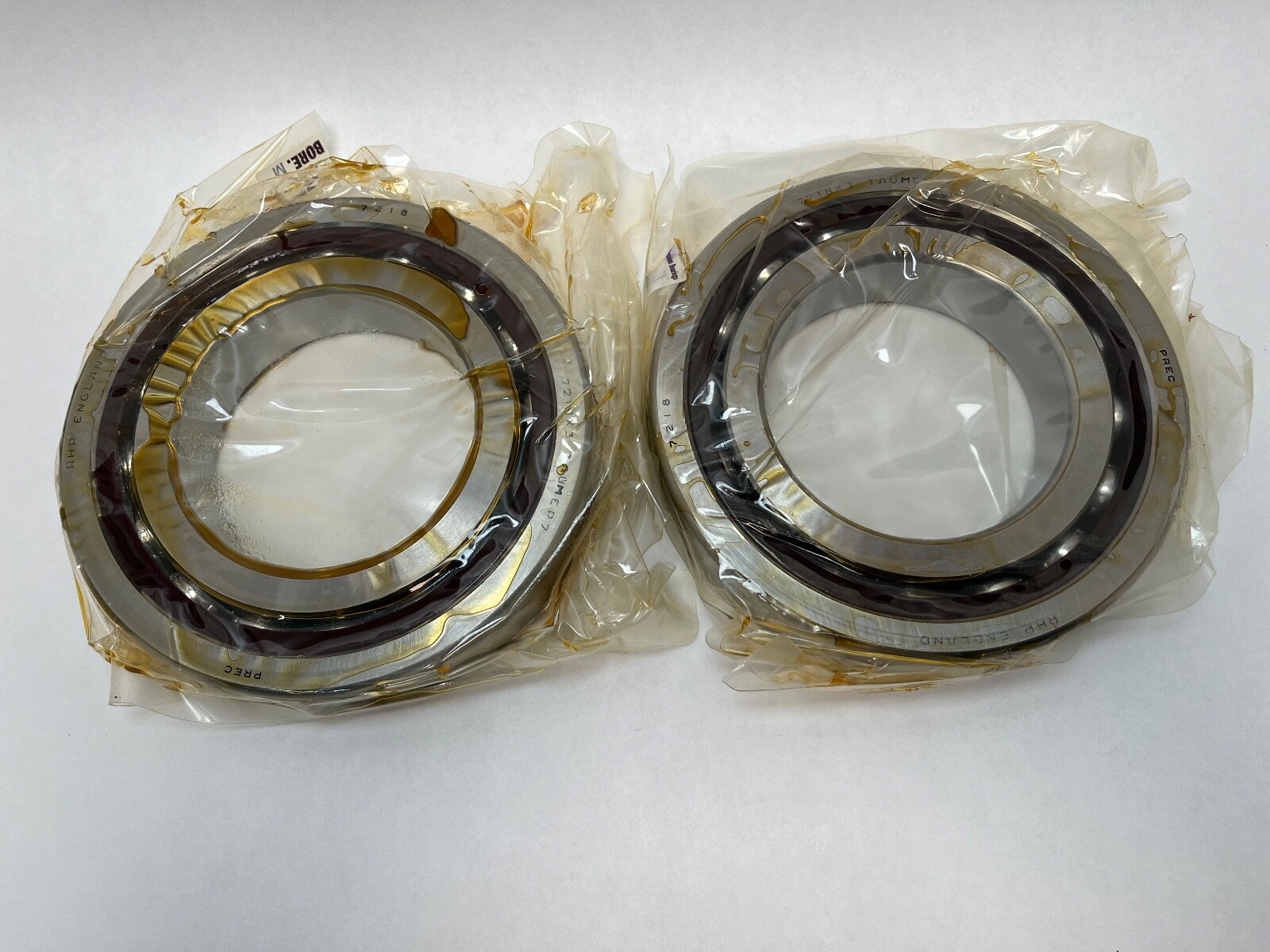

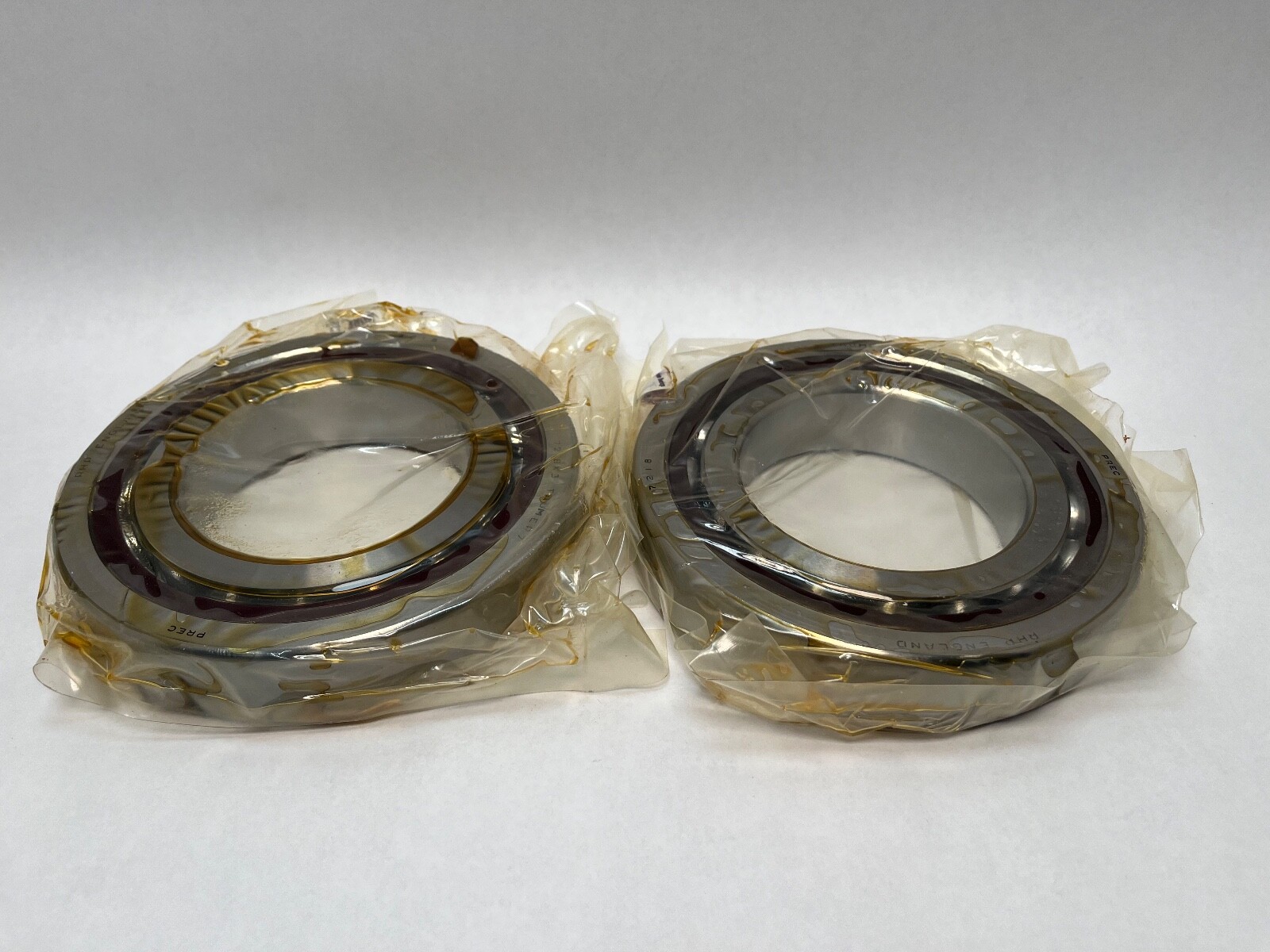

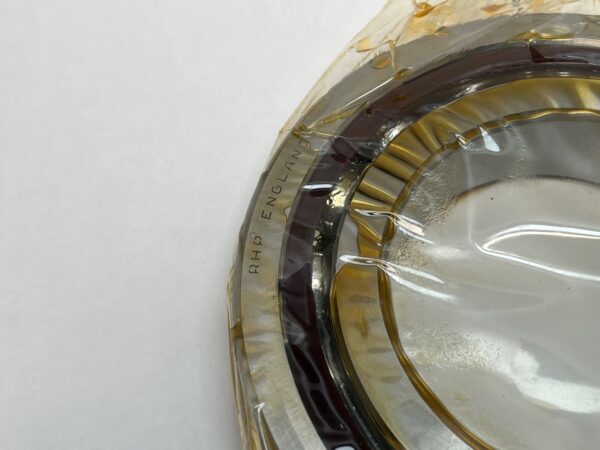

Angular Contact Bearing – 90 mm ID, 160 mm OD, 30 mm Width, Open, 25° contact angle, Medium preload.

Condition: New
Model #: 7218 E T DUM P4 / 3MM218WI CR DUM / 7218A5 7218AC

Availability:

6 in stock

Categories:

Product Description

Discover the exceptional performance of the RHP 7218ETDUMP4 Bearing, now available in a convenient set of two. Designed for precision and reliability, these angular contact ball bearings are expertly crafted in England to meet the demanding needs of industrial automation and motion control systems. Key specifications include a bore diameter of 90mm, an outside diameter of 160mm, and a width of 30mm, making it an ideal choice for a variety of applications. The model is recognized as 7218 E T DUM P4, also known as 3MM218WI CR DUM and 7218A5 7218AC, ensuring you receive a product that is synonymous with quality and durability. Manufactured from premium steel, the RHP 7218ETDUMP4 bearing offers exceptional load-bearing capabilities and is designed to withstand high levels of stress, making it an excellent investment for your mechanical power transmission needs. Upgrade your machinery with these new bearings, and enjoy the peace of mind that comes with using a product from a reputable brand like RHP–a trusted name in the world of ball and roller bearings. Upgrade your mechanical systems today with RHP’s top-tier bearings, and experience superior efficiency and performance.

List Price

$705.89

6 in stock

Angular Contact Bearing – 90 mm ID, 160 mm OD, 30 mm Width, Open, 25° contact angle, Medium preload.

Availability

6 in stock

On the Shelf & Ready to Ship

Tapered Roller Bearing – 3.6875 in Bore, 5.8750 in Cup Outer Diameter, 2.0625 in Cup Width, 1.1250 in Cone Width, class 2, Case-Hardened Steel.

Free Shipping

On all orders

Tapered Roller Bearing – 3.6875 in Bore, 5.8750 in Cup Outer Diameter, 2.0625 in Cup Width, 1.1250 in Cone Width, class 2, Case-Hardened Steel.

Free Returns

No Risk, No Hassle

Also Available From:

Specifications

Additional information

Key Specifications

MFR / BrandRHP
MPN7218ETDUMP4
Model7218 E T DUM P4 / 3MM218WI CR DUM / 7218A5 7218AC
Bearing TypeAngular Contact Ball Bearing, Open
ID90 mm
OD160 mm
Width30 mm

Specifications

Advertise1
MaterialChrome Steel
Min Temp-30°C
Cage TypeMachined
Dynamic Load Rating118 kN / 26527 lbf
Static Load Rating108 kN / 24279 lbf
Precision RatingABEC 7 / P4
Series7200
Rolling ElementsBalls
Max Temp150°C
ConditionNew
Item Weight4.74 lbs
Cage MaterialBrass
Limiting Speed6300 rpm
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
LubricantOil
Harmonization Code8482.10.50
Contact Angle25°
PreloadMedium
Mounting ArrangementUniversal
Seller Part Number: B-CB3#7RVVAC
