Availability:
1 in stock

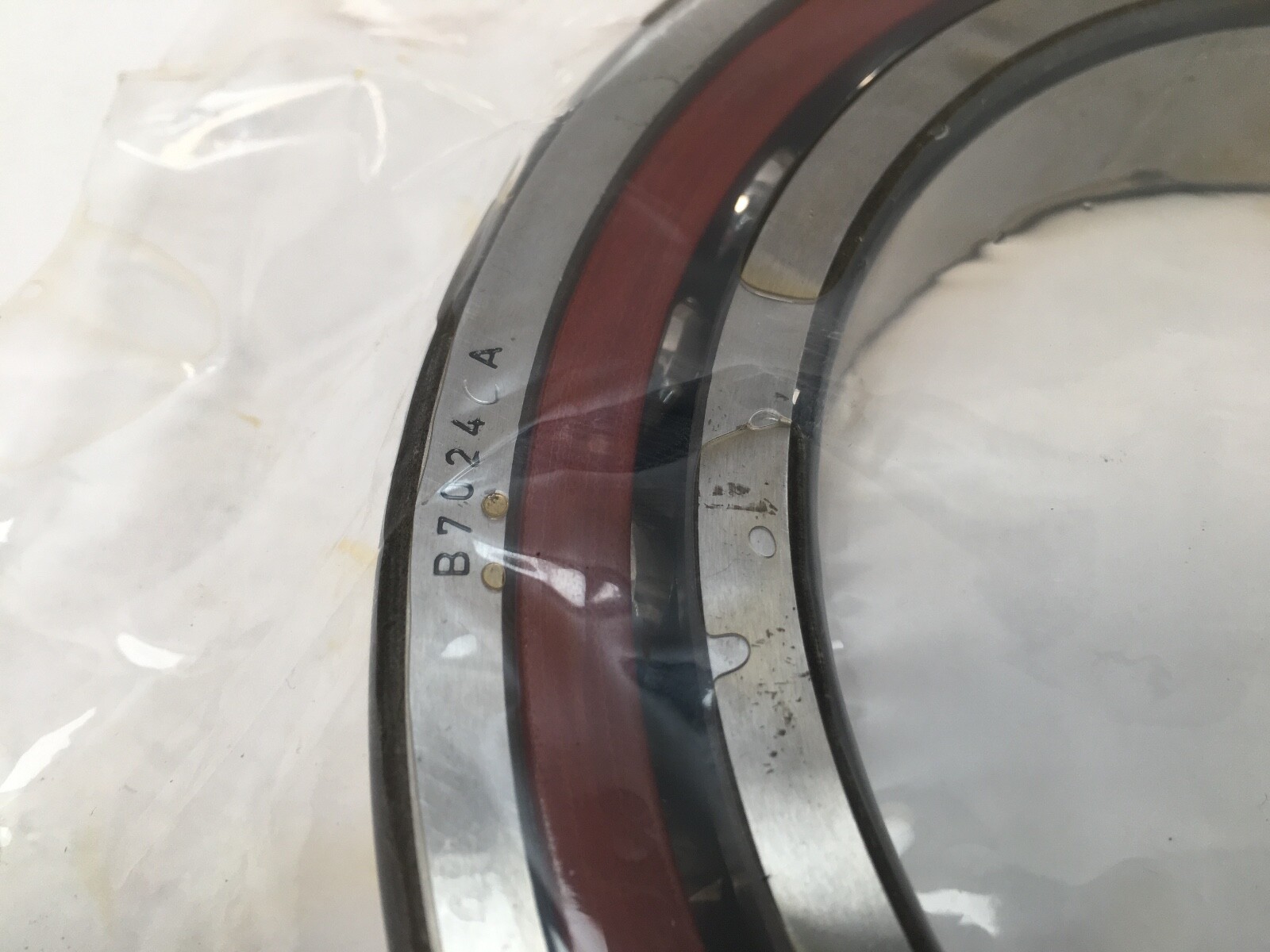

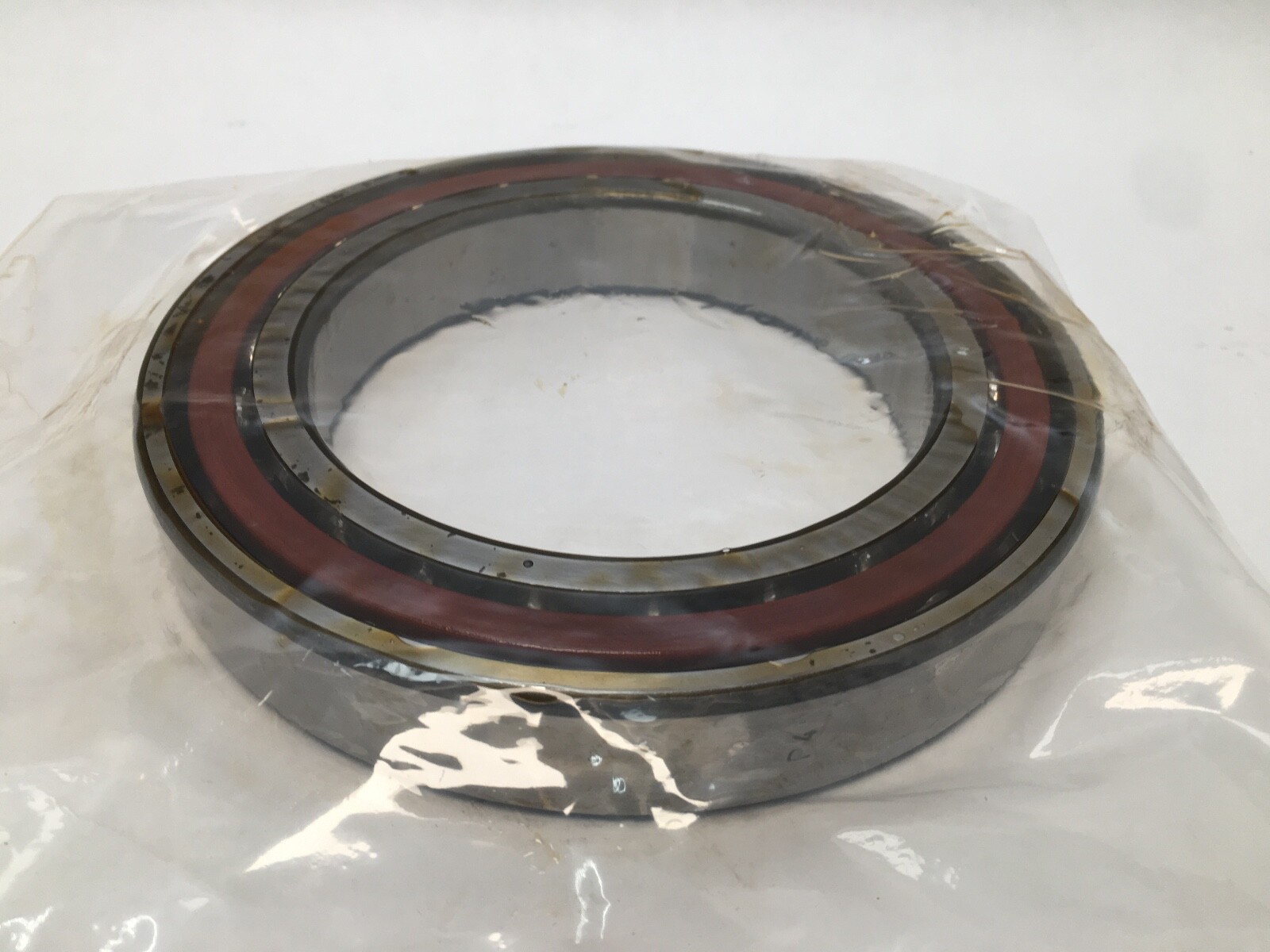

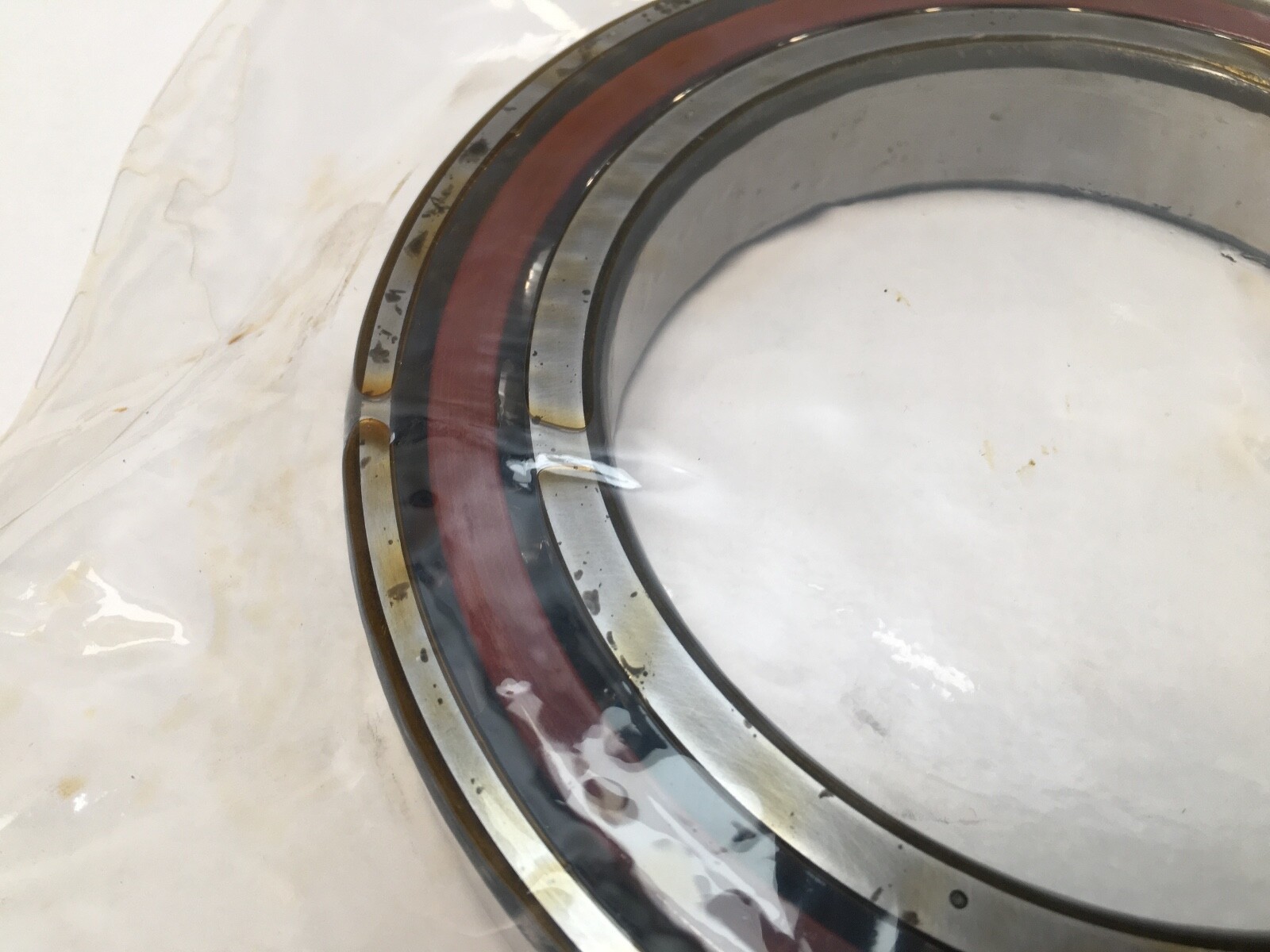

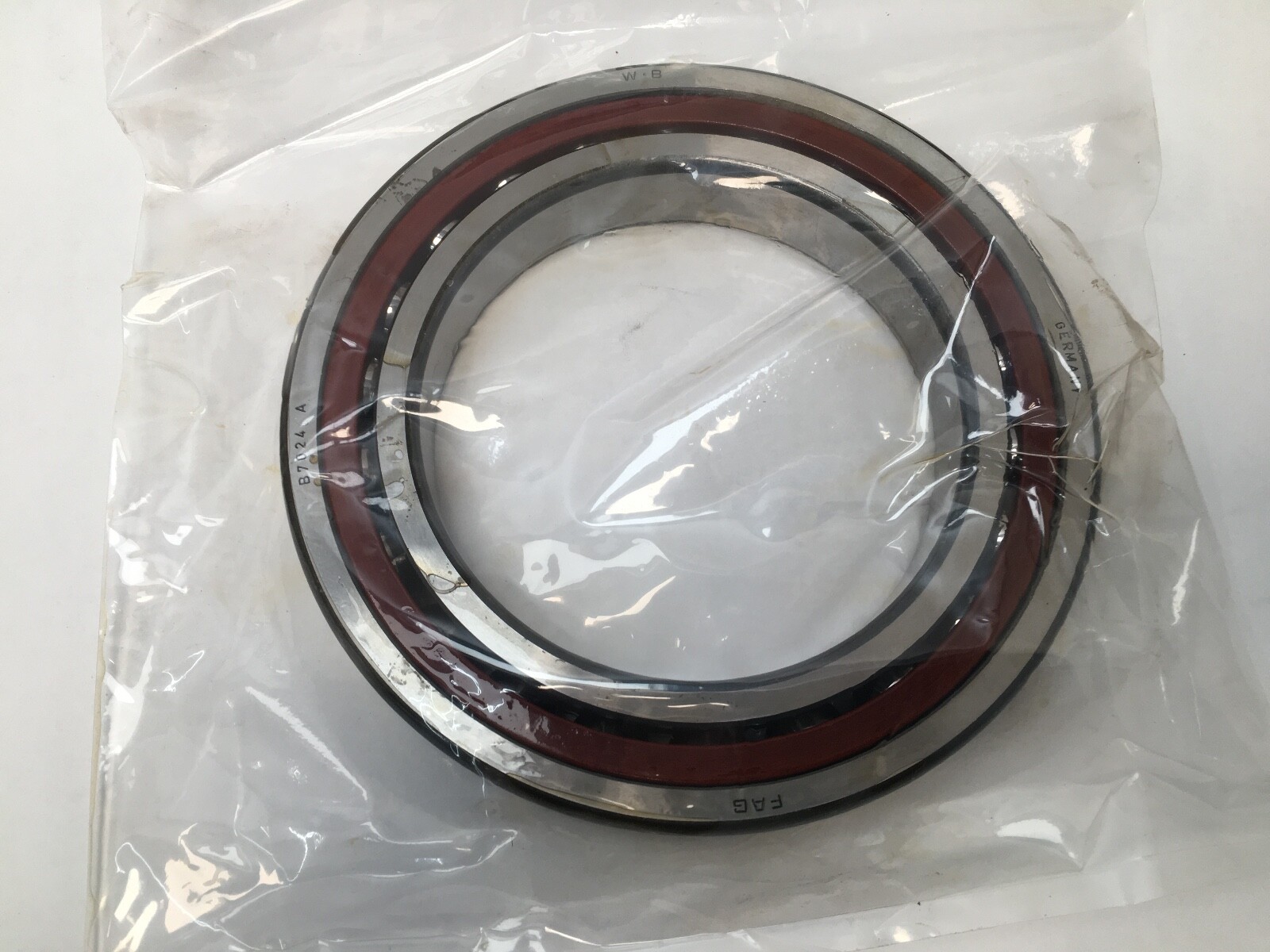

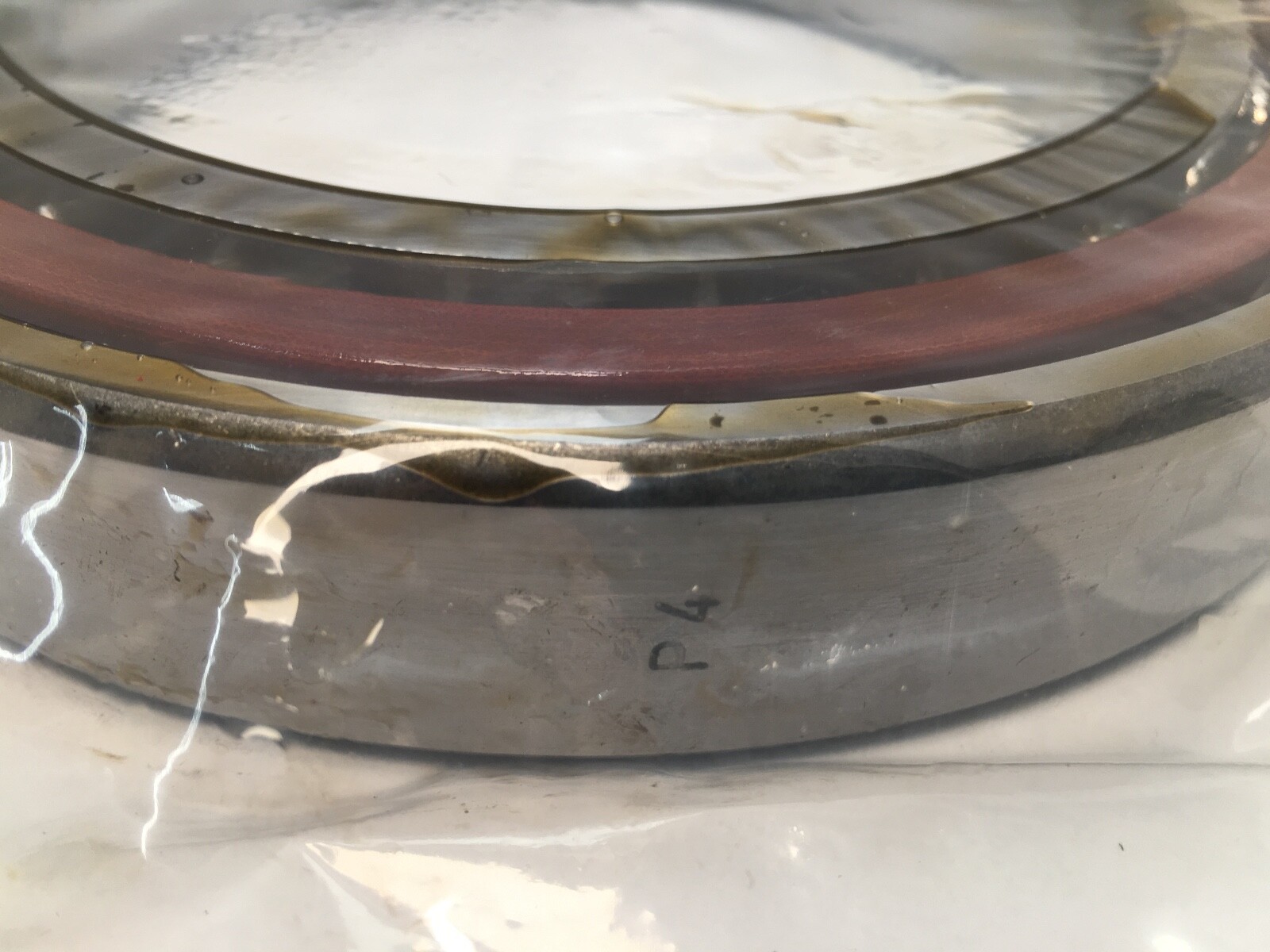

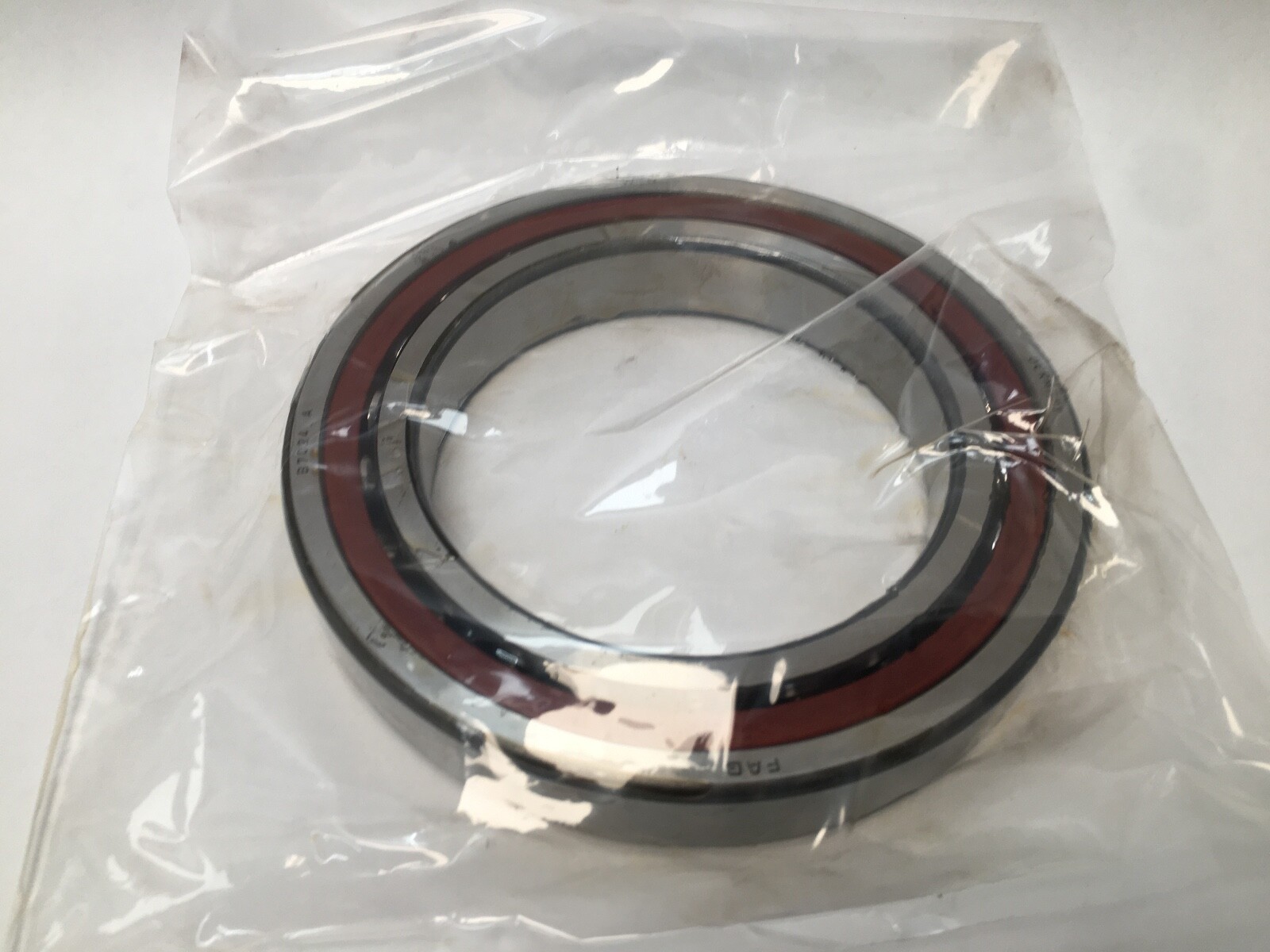

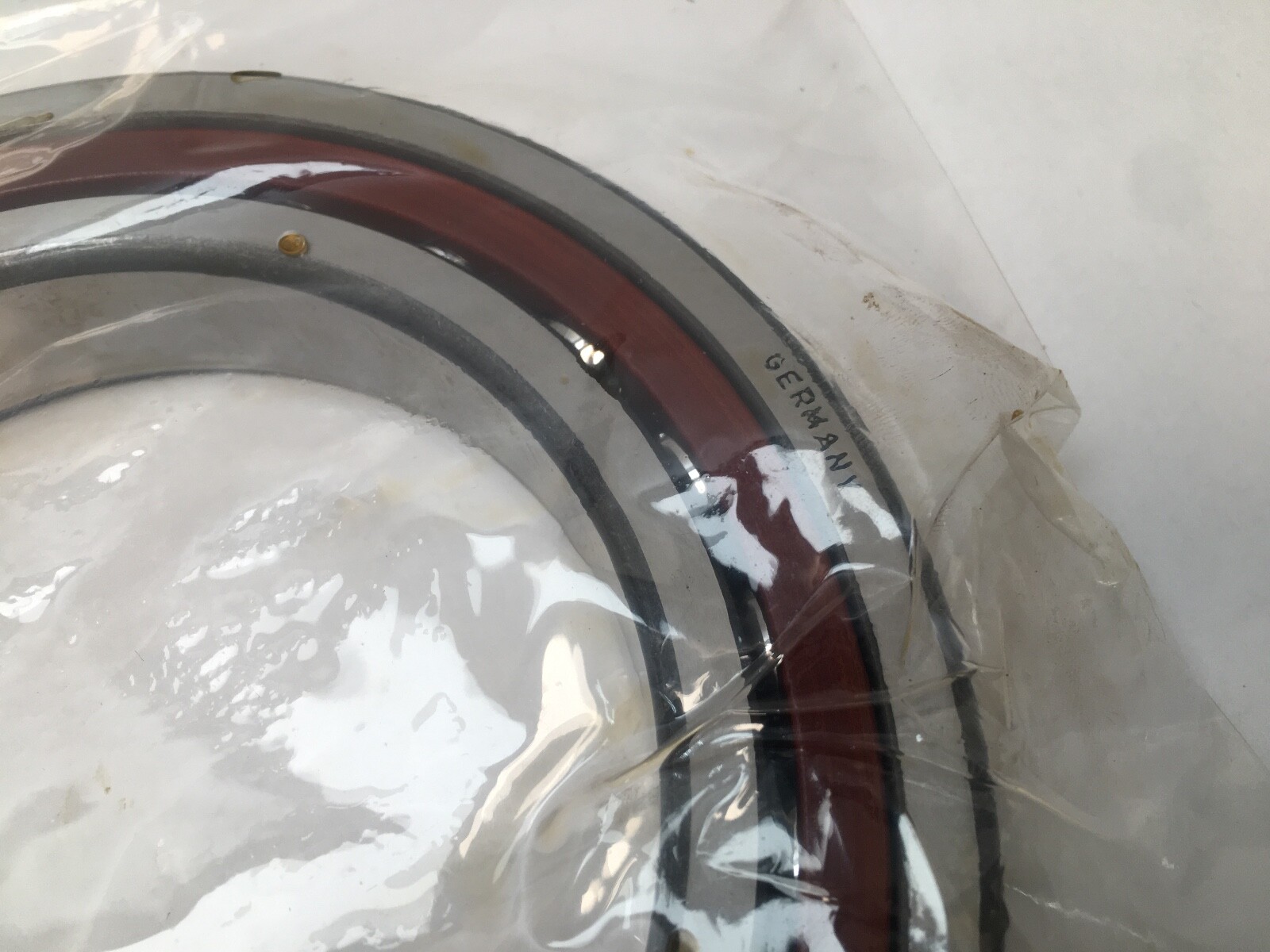

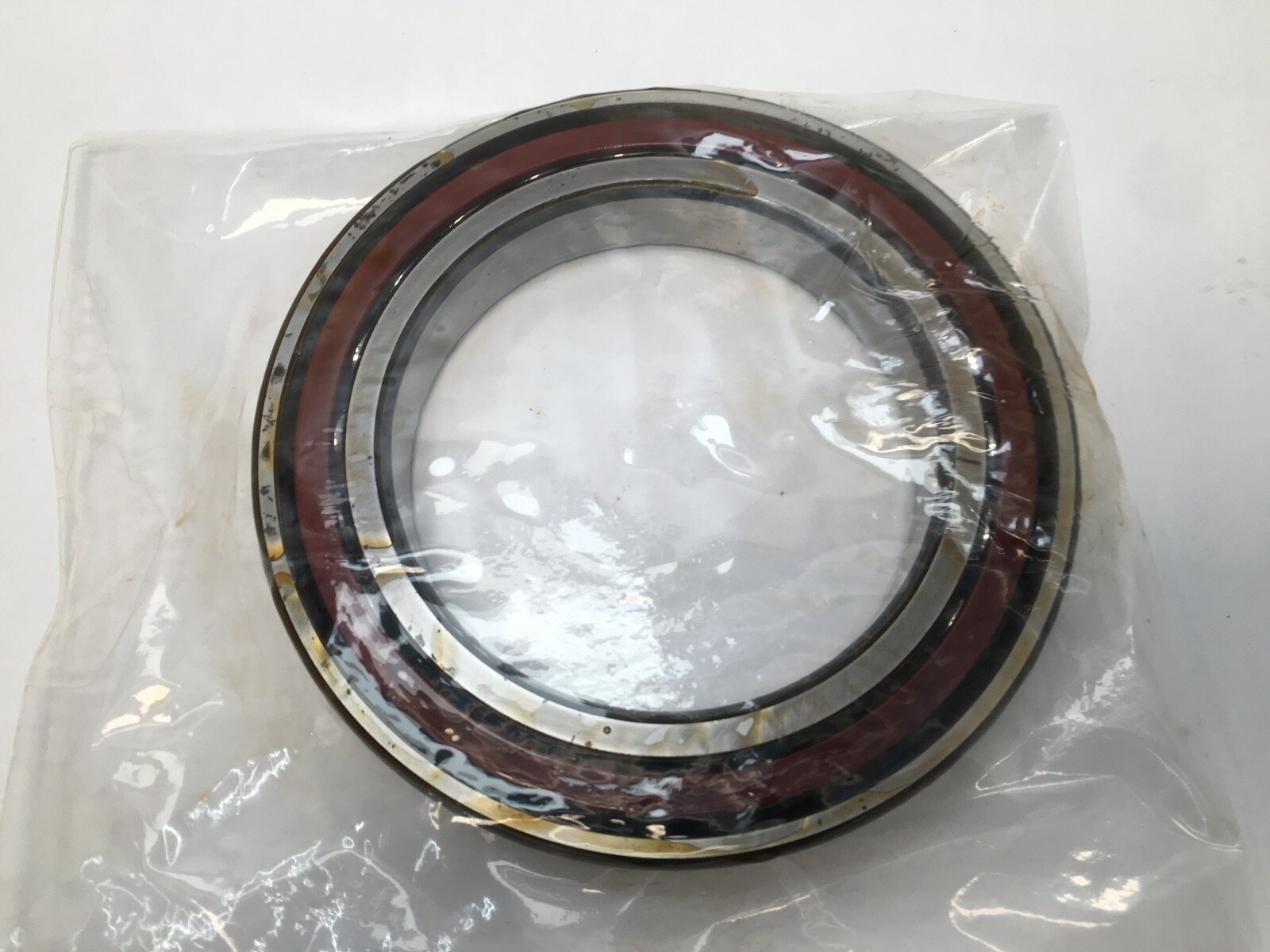

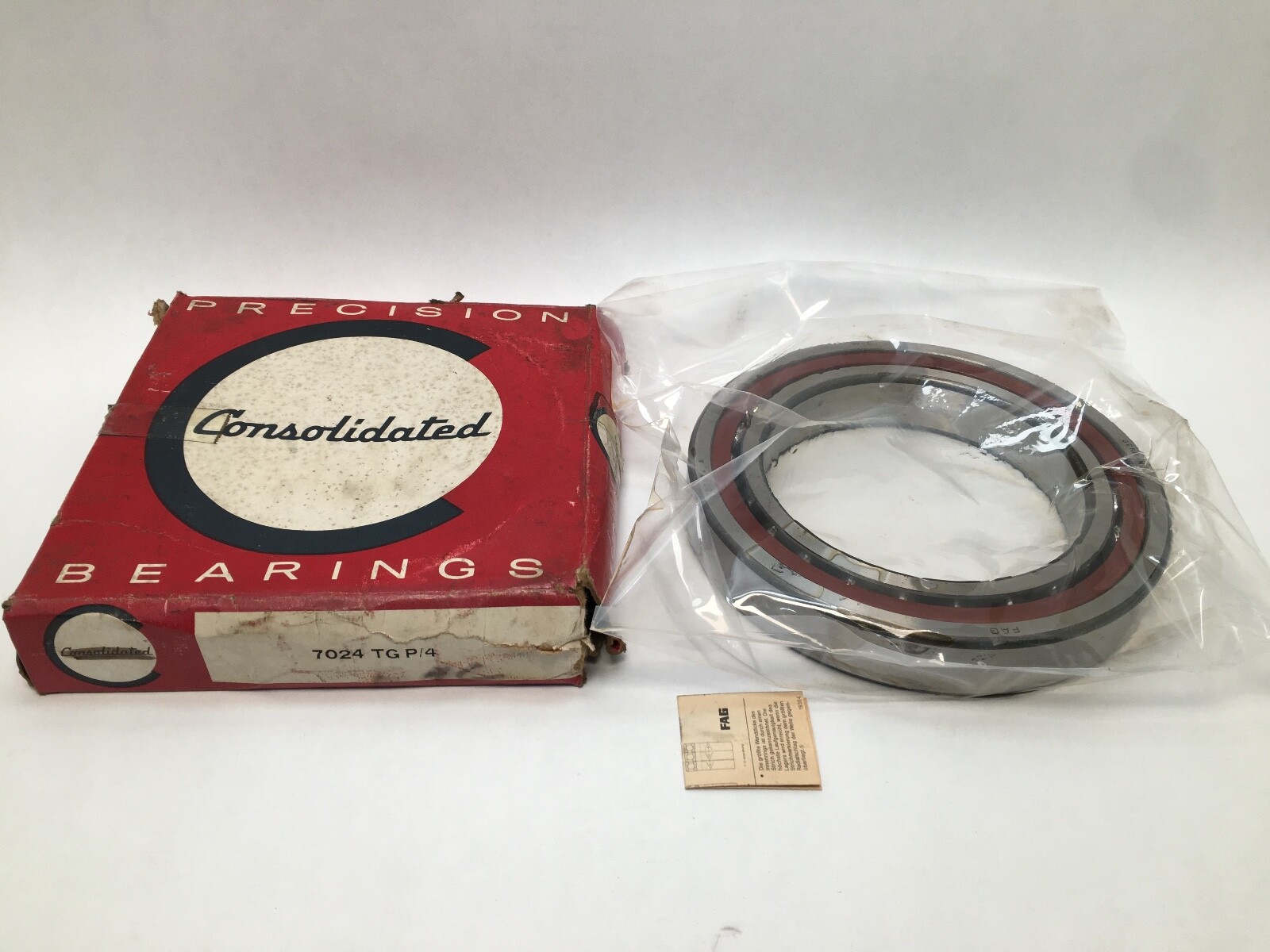

The FAG B7024C-TPA-P4-UL bearing is a precision Angular Contact Ball Bearing designed for industrial automation and motion control applications. Made in Germany, this bearing features a high dynamic load rating of 96.5 kN and a static load rating of 98 kN, with a running accuracy of P4 for optimal performance. With a bore diameter of 120 mm and an outside diameter of 180 mm, this bearing is suitable for a wide range of operating temperatures from -30°C to 100°C, making it a reliable choice for various mechanical power transmission systems.
List Price
$573.72
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | FAG |
|---|---|
| MPN | B7024C-TPA-P4-UL |
| Model | 7024-TG-P4 / B7024CTPAP4UL / QOL24DTL7 / 7024C DP/DU / 2MM9124 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 120 mm |
| OD | 180 mm |
| Width | 28 mm |
| Advertise | 1 |
|---|---|
| Material | Bearing Steel |
| Min Temp | -30°C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 96.5 kN / 21700 lbf |
| Static Load Rating | 98 kN / 22000 lbf |
| Precision Rating | ABEC 7 / P4 |
| Series | 7000 |
| Rolling Elements | Balls |
| Max Temp | 100°C |
| Condition | New |
| Item Weight | 5.20 lbs |
| Cage Material | Phenolic Resin |
| Limiting Speed | 9000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Lubricant | Oil Preservative |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Preload | Light |
| Mounting Arrangement | Universal |
| Running Accuracy | P4 |
| Running Accuracy Radial And Axial Runout | P4 |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 7024 CD/P4ADGA |
|---|---|
| Cross Reference 2 | NSK 7024CTRDULP4 |
